Roll No…………………..

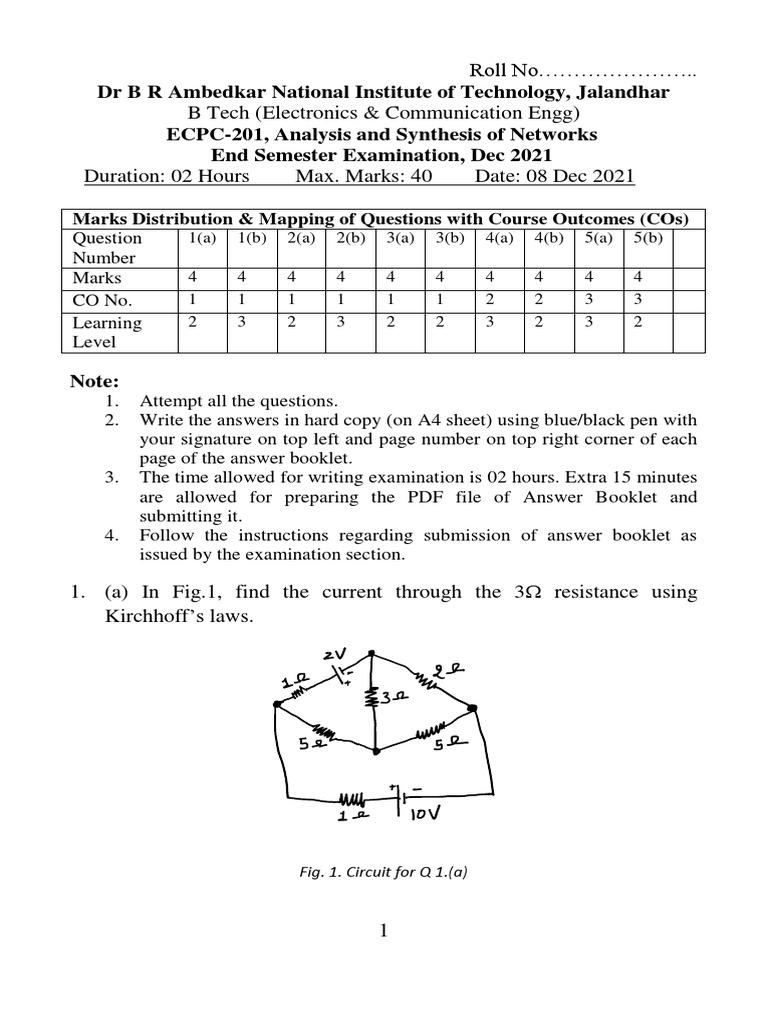

Dr B R Ambedkar National Institute of Technology, Jalandhar


B Tech (Electronics & Communication Engg)
ECPC-201, Analysis and Synthesis of Networks
End Semester Examination, Dec 2021
Duration: 02 Hours Max. Marks: 40 Date: 08 Dec 2021

Marks Distribution & Mapping of Questions with Course Outcomes (COs)


Question 1(a) 1(b) 2(a) 2(b) 3(a) 3(b) 4(a) 4(b) 5(a) 5(b)
Number
Marks 4 4 4 4 4 4 4 4 4 4
CO No. 1 1 1 1 1 1 2 2 3 3
Learning 2 3 2 3 2 2 3 2 3 2
Level

Note:
1. Attempt all the questions.
2. Write the answers in hard copy (on A4 sheet) using blue/black pen with
your signature on top left and page number on top right corner of each
page of the answer booklet.
3. The time allowed for writing examination is 02 hours. Extra 15 minutes
are allowed for preparing the PDF file of Answer Booklet and
submitting it.
4. Follow the instructions regarding submission of answer booklet as
issued by the examination section.

1. (a) In Fig.1, find the current through the 3Ω resistance using


Kirchhoff’s laws.

Fig. 1. Circuit for Q 1.(a)

1
(b) Use Nodal analysis to compute current through 6Ω resistor
and power absorbed by dependent source shown in Fig 2.

Fig. 2. Circuit for Q. 1. (b).

2. (a) Find Vx in the circuit shown in Fig. 3 using Superposition


theorem.

Fig. 3. Circuit for Q 2. (a)

(b) What amount of maximum power transfer to R in the circuit


of Fig. 4.

Fig. 4. Circuit for Q. 2. (b)

2
3. (a) Draw the oriented graph of the network shown in Fig. 5 and
obtain the tie-set matrix.

Fig. 5. Circuit for Q. 3(a)

(b) Find i1(t) and i2(t) resulting from closing the switch at t = 0
with the circuit previously unenergized as shown in the Fig. 6.

Fig. 6. Circuit for Q. 3(b)

4. (a) Assuming the initial current to be 2A through the inductor,


find Vo(t) in Fig. 7 if the supply is 𝟏𝟎𝒆−𝒕 𝒖(𝒕).

Fig. 7. Circuit for Q.4 (a)


3
(b) Determine the Y-Parameters for the bridge-T network shown
in Fig. 8.

Fig. 8. Circuit for Q.4 (b)

5. (a) Find the driving point impedance of the network shown in


Fig. 8.

Fig. 8. Circuit for Q.5 (a)

(b) Check the stability of the system using Routh Hurwitz


Criterion with characteristic equation as follow:

2s 5  3s 4  2s 3  3s 2  2s  1  0 .
