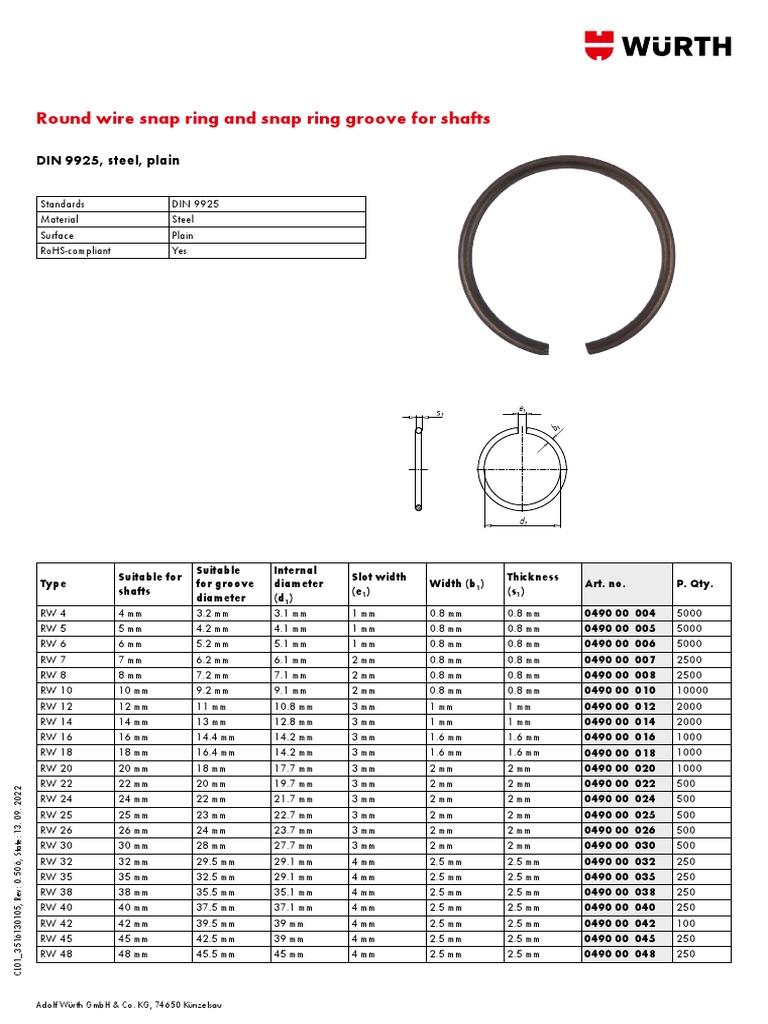

    Round wire snap ring and snap ring groove for shafts

    DIN 9925, steel, plain

    Standards DIN 9925


    Material Steel
    Surface Plain
    RoHS-compliant Yes

    Suitable Internal
    Suitable for Slot width Thickness
    Type for groove diameter Width (b1) Art. no. P. Qty.
    shafts (e1) (s1)
    diameter (d1)
    RW 4 4 mm 3.2 mm 3.1 mm 1 mm 0.8 mm 0.8 mm 0490 00 004 5000
    RW 5 5 mm 4.2 mm 4.1 mm 1 mm 0.8 mm 0.8 mm 0490 00 005 5000
    RW 6 6 mm 5.2 mm 5.1 mm 1 mm 0.8 mm 0.8 mm 0490 00 006 5000
    RW 7 7 mm 6.2 mm 6.1 mm 2 mm 0.8 mm 0.8 mm 0490 00 007 2500
    RW 8 8 mm 7.2 mm 7.1 mm 2 mm 0.8 mm 0.8 mm 0490 00 008 2500
    RW 10 10 mm 9.2 mm 9.1 mm 2 mm 0.8 mm 0.8 mm 0490 00 010 10000
    RW 12 12 mm 11 mm 10.8 mm 3 mm 1 mm 1 mm 0490 00 012 2000
    RW 14 14 mm 13 mm 12.8 mm 3 mm 1 mm 1 mm 0490 00 014 2000
    RW 16 16 mm 14.4 mm 14.2 mm 3 mm 1.6 mm 1.6 mm 0490 00 016 1000
    RW 18 18 mm 16.4 mm 14.2 mm 3 mm 1.6 mm 1.6 mm 0490 00 018 1000
    RW 20 20 mm 18 mm 17.7 mm 3 mm 2 mm 2 mm 0490 00 020 1000
    RW 22 22 mm 20 mm 19.7 mm 3 mm 2 mm 2 mm 0490 00 022 500
    CL01_3516130105, Rev: 0.506, State: 13. 09. 2022

    RW 24 24 mm 22 mm 21.7 mm 3 mm 2 mm 2 mm 0490 00 024 500


    RW 25 25 mm 23 mm 22.7 mm 3 mm 2 mm 2 mm 0490 00 025 500
    RW 26 26 mm 24 mm 23.7 mm 3 mm 2 mm 2 mm 0490 00 026 500
    RW 30 30 mm 28 mm 27.7 mm 3 mm 2 mm 2 mm 0490 00 030 500
    RW 32 32 mm 29.5 mm 29.1 mm 4 mm 2.5 mm 2.5 mm 0490 00 032 250
    RW 35 35 mm 32.5 mm 29.1 mm 4 mm 2.5 mm 2.5 mm 0490 00 035 250
    RW 38 38 mm 35.5 mm 35.1 mm 4 mm 2.5 mm 2.5 mm 0490 00 038 250
    RW 40 40 mm 37.5 mm 37.1 mm 4 mm 2.5 mm 2.5 mm 0490 00 040 250
    RW 42 42 mm 39.5 mm 39 mm 4 mm 2.5 mm 2.5 mm 0490 00 042 100
    RW 45 45 mm 42.5 mm 39 mm 4 mm 2.5 mm 2.5 mm 0490 00 045 250
    RW 48 48 mm 45.5 mm 45 mm 4 mm 2.5 mm 2.5 mm 0490 00 048 250

    Adolf Würth GmbH & Co. KG, 74650 Künzelsau


    Suitable Internal
    Suitable for Slot width Thickness
    Type for groove diameter Width (b1) Art. no. P. Qty.
    shafts (e1) (s1)
    diameter (d1)
    RW 50 50 mm 47.5 mm 47 mm 4 mm 2.5 mm 2.5 mm 0490 00 050 200
    RW 55 55 mm 51.8 mm 51.1 mm 4 mm 3.2 mm 3.2 mm 0490 00 055 100
    RW 60 60 mm 56.8 mm 56.1 mm 4 mm 3.2 mm 3.2 mm 0490 00 060 100
    RW 65 65 mm 61.8 mm 61.1 mm 4 mm 3.2 mm 3.2 mm 0490 00 065 100
    RW 70 70 mm 66.8 mm 66 mm 5 mm 3.2 mm 3.2 mm 0490 00 070 50
    RW 75 75 mm 71.8 mm 71 mm 5 mm 3.2 mm 3.2 mm 0490 00 075 200
    RW 80 80 mm 76.8 mm 76 mm 5 mm 3.2 mm 3.2 mm 0490 00 080 200
    RW 85 85 mm 81.8 mm 81 mm 5 mm 3.2 mm 3.2 mm 0490 00 085 100
    RW 90 90 mm 86.8 mm 86 mm 5 mm 3.2 mm 3.2 mm 0490 00 090 25
    RW 95 95 mm 91.8 mm 91 mm 5 mm 3.2 mm 3.2 mm 0490 00 095 100
    RW 100 100 mm 96.8 mm 95.8 mm 5 mm 3.2 mm 3.2 mm 0490 00 100 100
    RW 105 105 mm 101.8 mm 100.8 mm 5 mm 3.2 mm 3.2 mm 0490 00 105 100
    RW 110 110 mm 106.8 mm 105.8 mm 5 mm 3.2 mm 3.2 mm 0490 00 110 100
    RW 120 120 mm 116.8 mm 115.8 mm 5 mm 3.2 mm 3.2 mm 0490 00 120 100
    RW 125 125 mm 121.8 mm 120.8 mm 5 mm 3.2 mm 3.2 mm 0490 00 125 25

    Notice
    DIN 9925 replaces DIN 7993 shape A
    CL01_3516130105, Rev: 0.506, State: 13. 09. 2022

    Adolf Würth GmbH & Co. KG, 74650 Künzelsau
