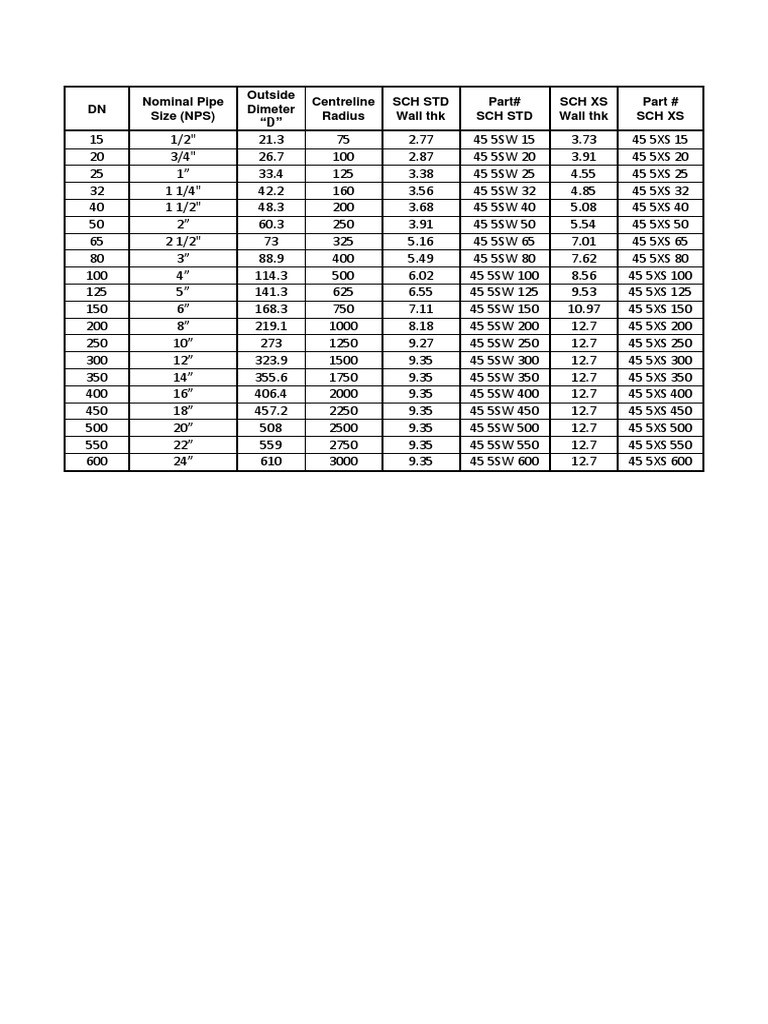

Outside

Nominal Pipe Centreline SCH STD Part# SCH XS Part #

DN Dimeter
Size (NPS) Radius Wall thk SCH STD Wall thk SCH XS
“D”
15 1/2" 21.3 75 2.77 45 5SW 15 3.73 45 5XS 15
20 3/4" 26.7 100 2.87 45 5SW 20 3.91 45 5XS 20
25 1” 33.4 125 3.38 45 5SW 25 4.55 45 5XS 25
32 1 1/4" 42.2 160 3.56 45 5SW 32 4.85 45 5XS 32
40 1 1/2" 48.3 200 3.68 45 5SW 40 5.08 45 5XS 40
50 2” 60.3 250 3.91 45 5SW 50 5.54 45 5XS 50
65 2 1/2" 73 325 5.16 45 5SW 65 7.01 45 5XS 65
80 3” 88.9 400 5.49 45 5SW 80 7.62 45 5XS 80
100 4” 114.3 500 6.02 45 5SW 100 8.56 45 5XS 100
125 5” 141.3 625 6.55 45 5SW 125 9.53 45 5XS 125
150 6” 168.3 750 7.11 45 5SW 150 10.97 45 5XS 150
200 8” 219.1 1000 8.18 45 5SW 200 12.7 45 5XS 200
250 10” 273 1250 9.27 45 5SW 250 12.7 45 5XS 250
300 12” 323.9 1500 9.35 45 5SW 300 12.7 45 5XS 300
350 14” 355.6 1750 9.35 45 5SW 350 12.7 45 5XS 350
400 16” 406.4 2000 9.35 45 5SW 400 12.7 45 5XS 400
450 18” 457.2 2250 9.35 45 5SW 450 12.7 45 5XS 450
500 20” 508 2500 9.35 45 5SW 500 12.7 45 5XS 500
550 22” 559 2750 9.35 45 5SW 550 12.7 45 5XS 550
600 24” 610 3000 9.35 45 5SW 600 12.7 45 5XS 600
