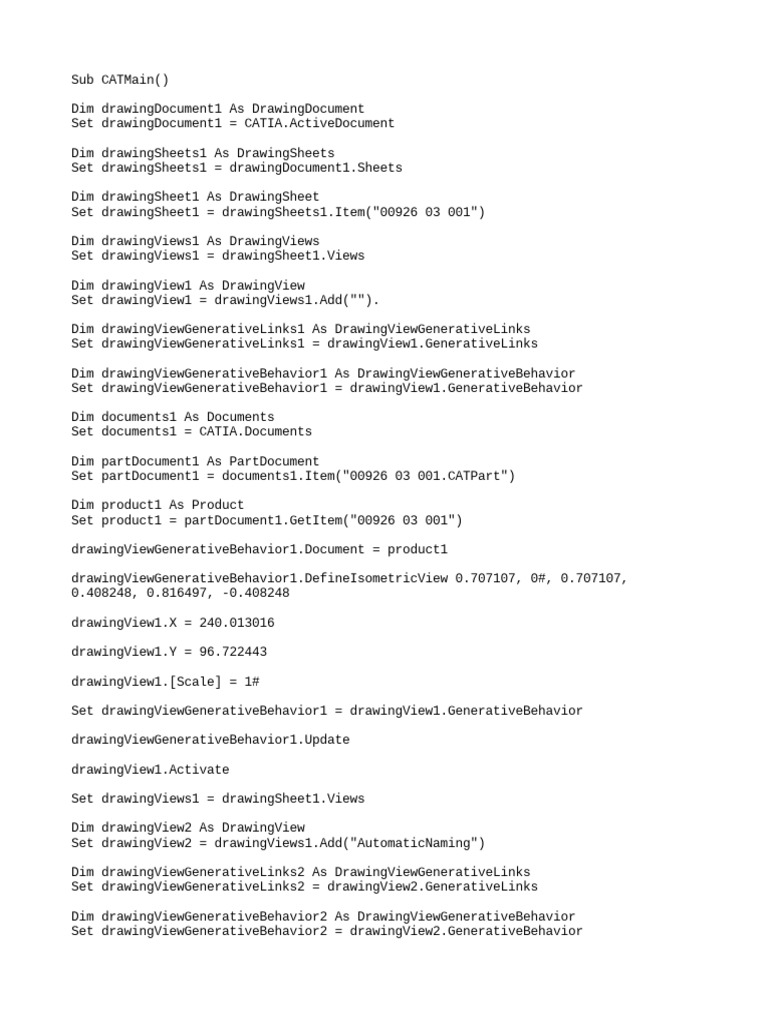

    Sub CATMain()

    Dim drawingDocument1 As DrawingDocument


    Set drawingDocument1 = CATIA.ActiveDocument

    Dim drawingSheets1 As DrawingSheets


    Set drawingSheets1 = drawingDocument1.Sheets

    Dim drawingSheet1 As DrawingSheet


    Set drawingSheet1 = drawingSheets1.Item("00926 03 001")

    Dim drawingViews1 As DrawingViews


    Set drawingViews1 = drawingSheet1.Views

    Dim drawingView1 As DrawingView


    Set drawingView1 = drawingViews1.Add("").

    Dim drawingViewGenerativeLinks1 As DrawingViewGenerativeLinks


    Set drawingViewGenerativeLinks1 = drawingView1.GenerativeLinks

    Dim drawingViewGenerativeBehavior1 As DrawingViewGenerativeBehavior


    Set drawingViewGenerativeBehavior1 = drawingView1.GenerativeBehavior

    Dim documents1 As Documents


    Set documents1 = CATIA.Documents

    Dim partDocument1 As PartDocument


    Set partDocument1 = documents1.Item("00926 03 001.CATPart")

    Dim product1 As Product


    Set product1 = partDocument1.GetItem("00926 03 001")

    drawingViewGenerativeBehavior1.Document = product1

    drawingViewGenerativeBehavior1.DefineIsometricView 0.707107, 0#, 0.707107,


    0.408248, 0.816497, -0.408248

    drawingView1.X = 240.013016

    drawingView1.Y = 96.722443

    drawingView1.[Scale] = 1#

    Set drawingViewGenerativeBehavior1 = drawingView1.GenerativeBehavior

    drawingViewGenerativeBehavior1.Update

    drawingView1.Activate

    Set drawingViews1 = drawingSheet1.Views

    Dim drawingView2 As DrawingView


    Set drawingView2 = drawingViews1.Add("AutomaticNaming")

    Dim drawingViewGenerativeLinks2 As DrawingViewGenerativeLinks


    Set drawingViewGenerativeLinks2 = drawingView2.GenerativeLinks

    Dim drawingViewGenerativeBehavior2 As DrawingViewGenerativeBehavior


    Set drawingViewGenerativeBehavior2 = drawingView2.GenerativeBehavior
    drawingViewGenerativeBehavior2.Document = product1

    drawingViewGenerativeBehavior2.DefineFrontView 1#, 0#, 0#, -0#, 1#, 0#

    drawingView2.X = 69.032341

    drawingView2.Y = 147.765181

    drawingView2.[Scale] = 1#

    Set drawingViewGenerativeBehavior2 = drawingView2.GenerativeBehavior

    drawingViewGenerativeBehavior2.Update

    drawingView2.Activate

    Set drawingDocument1 = CATIA.ActiveDocument

    Set drawingSheets1 = drawingDocument1.Sheets

    Set drawingSheet1 = drawingSheets1.ActiveSheet

    Set drawingViews1 = drawingSheet1.Views

    Set drawingView2 = drawingViews1.ActiveView

    Set drawingViewGenerativeBehavior2 = drawingView2.GenerativeBehavior

    Dim drawingView3 As DrawingView


    Set drawingView3 = drawingViews1.Add("AutomaticNaming")

    Dim drawingViewGenerativeBehavior3 As DrawingViewGenerativeBehavior


    Set drawingViewGenerativeBehavior3 = drawingView3.GenerativeBehavior

    drawingViewGenerativeBehavior3.DefineProjectionView drawingViewGenerativeBehavior2,
    catTopView

    Dim drawingViewGenerativeLinks3 As DrawingViewGenerativeLinks


    Set drawingViewGenerativeLinks3 = drawingView3.GenerativeLinks

    Set drawingViewGenerativeLinks2 = drawingView2.GenerativeLinks

    drawingViewGenerativeLinks2.CopyLinksTo drawingViewGenerativeLinks3

    drawingView3.X = 69.032341

    drawingView3.Y = 71.745445

    Dim double1 As Double


    double1 = drawingView2.[Scale]

    drawingView3.[Scale] = 1#

    Set drawingViewGenerativeBehavior3 = drawingView3.GenerativeBehavior

    drawingViewGenerativeBehavior3.Update

    drawingView3.ReferenceView = drawingView2
    drawingView3.AlignedWithReferenceView

    Set drawingDocument1 = CATIA.ActiveDocument

    Set drawingSheets1 = drawingDocument1.Sheets

    Set drawingSheet1 = drawingSheets1.ActiveSheet

    Set drawingViews1 = drawingSheet1.Views

    Set drawingView2 = drawingViews1.ActiveView

    Set drawingViewGenerativeBehavior2 = drawingView2.GenerativeBehavior

    Dim drawingView4 As DrawingView


    Set drawingView4 = drawingViews1.Add("AutomaticNaming")

    Dim drawingViewGenerativeBehavior4 As DrawingViewGenerativeBehavior


    Set drawingViewGenerativeBehavior4 = drawingView4.GenerativeBehavior

    drawingViewGenerativeBehavior4.DefineProjectionView drawingViewGenerativeBehavior2,
    catLeftView

    Dim drawingViewGenerativeLinks4 As DrawingViewGenerativeLinks


    Set drawingViewGenerativeLinks4 = drawingView4.GenerativeLinks

    Set drawingViewGenerativeLinks2 = drawingView2.GenerativeLinks

    drawingViewGenerativeLinks2.CopyLinksTo drawingViewGenerativeLinks4

    drawingView4.X = 170.856323

    drawingView4.Y = 147.765181

    Dim double2 As Double


    double2 = drawingView2.[Scale]

    drawingView4.[Scale] = 1#

    Set drawingViewGenerativeBehavior4 = drawingView4.GenerativeBehavior

    drawingViewGenerativeBehavior4.Update

    drawingView4.ReferenceView = drawingView2

    drawingView4.AlignedWithReferenceView

    End Sub
