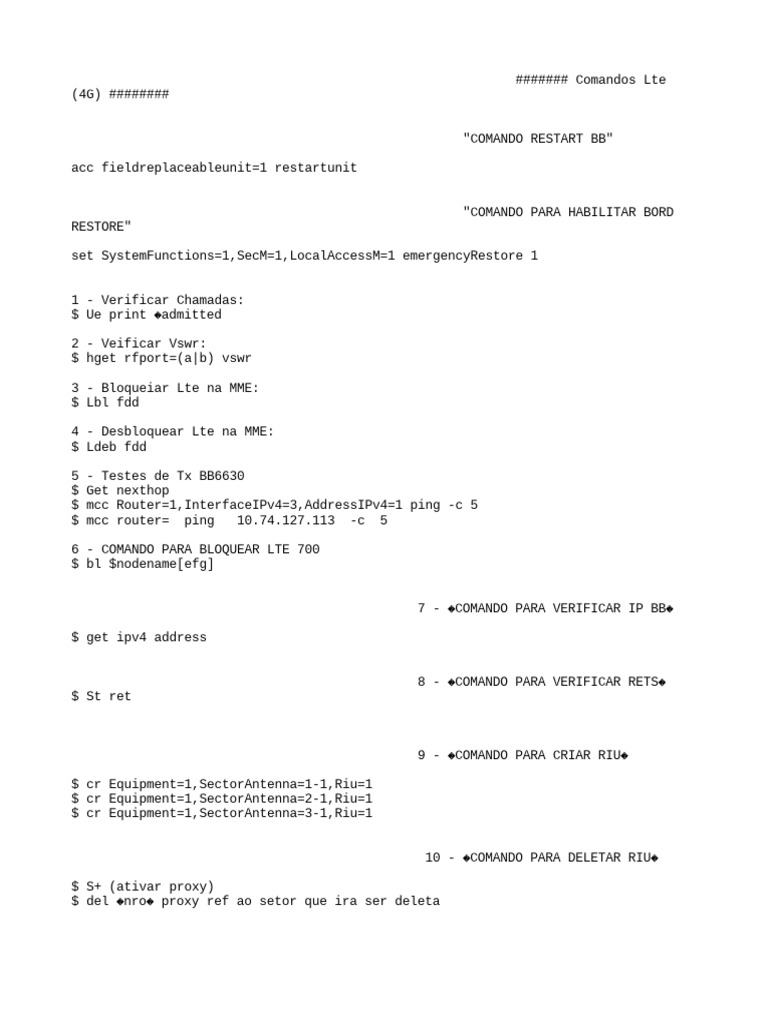

####### Comandos Lte

(4G) ########

"COMANDO RESTART BB"

acc fieldreplaceableunit=1 restartunit

"COMANDO PARA HABILITAR BORD

RESTORE"

set SystemFunctions=1,SecM=1,LocalAccessM=1 emergencyRestore 1

1 - Verificar Chamadas:
$ Ue print �admitted

2 - Veificar Vswr:
$ hget rfport=(a|b) vswr

3 - Bloqueiar Lte na MME:

$ Lbl fdd

4 - Desbloquear Lte na MME:

$ Ldeb fdd

5 - Testes de Tx BB6630
$ Get nexthop
$ mcc Router=1,InterfaceIPv4=3,AddressIPv4=1 ping -c 5
$ mcc router= ping 10.74.127.113 -c 5

6 - COMANDO PARA BLOQUEAR LTE 700

$ bl $nodename[efg]

7 - �COMANDO PARA VERIFICAR IP BB�

$ get ipv4 address

8 - �COMANDO PARA VERIFICAR RETS�

$ St ret

9 - �COMANDO PARA CRIAR RIU�

$ cr Equipment=1,SectorAntenna=1-1,Riu=1
$ cr Equipment=1,SectorAntenna=2-1,Riu=1
$ cr Equipment=1,SectorAntenna=3-1,Riu=1

10 - �COMANDO PARA DELETAR RIU�

$ S+ (ativar proxy)
$ del �nro� proxy ref ao setor que ira ser deleta
 11 - �COMANDO PARA VERIFICAR RIU�

$ lpr riu

12 - �COMANDO PARA FORCE CALIBRATION

DOS RETS�

$ acc ret forcecalibration

$ acc proxy forcecalibration (individual)

13 - COMANDO PARA ACIONAR �STA� LOGS

$ !./sta.sh

14 - "Comando P/criar e Salvar

Backup"

Segue como fazer:

primeiro vc salva um cv: ( cvms �nome� )

$ cvms BACKUP
depois vc extrai esse CV p dentro do seu PC:
$ cvget BACKUP (Nome do CV criado)
Obs: no final do comando ele indicara aonde envio o backup em seu pc

===================================================================================
===================================================================================
=
DEMAIS COMANDOS P/MUDAN�A DE PORTA
TX E VELOCIDADE DA PORTA

4G-IQTP01> get port=tn

200623-11:19:13 169.254.2.2 19.0a MSRBS_NODE_MODEL_18.Q4_369.27924.51_aace

stopfile=/tmp/2332
===================================================================================
==============================
37 Equipment=1,FieldReplaceableUnit=1,TnPort=TN_C
===================================================================================
==============================
reservedBy [1] =
>>> reservedBy = Transport=1,EthernetPort=TN_C
sfpModuleRef
tnPortId TN_C
userLabel
===================================================================================
==============================
7378 Transport=1,EthernetPort=TN_C
===================================================================================
==============================
admOperatingMode 6 (1G_FULL)
administrativeState 0 (LOCKED)
autoNegEnable true
availabilityStatus i[1] = 3 (OFF_LINE)
egressQosClassification
egressQosMarking
egressQosQueueMap
encapsulation FieldReplaceableUnit=1,TnPort=TN_C
ethernetPortId TN_C
holdDownTimer
ingressQosMarking [0] =
macAddress 98:A4:04:A6:1C:D3
mtu 9000
operOperatingMode 6 (1G_FULL)
operationalState 0 (DISABLED)
reservedBy [1] =
>>> reservedBy = Transport=1,VlanPort=INFRA
userLabel
===================================================================================
==============================
Total: 2 MOs

4G-IQTP01> deb 7378

200623-11:19:18 169.254.2.2 19.0a MSRBS_NODE_MODEL_18.Q4_369.27924.51_aace

stopfile=/tmp/2332
Deblock following 1 MOs ?
===================================================================================
7378 Transport=1,EthernetPort=TN_C
===================================================================================
Deblock 1 MOs. Are you Sure [y/n] ? y

===================================================================================
=========================
Id MO
administrativeState Result
===================================================================================
=========================
7378 EthernetPort=TN_C 1
>>> Set.
===================================================================================
=========================
Total: 1 MOs attempted, 1 MOs set

4G-IQTP01> set port=tn admOperatingMode 5

200623-11:19:29 169.254.2.2 19.0a MSRBS_NODE_MODEL_18.Q4_369.27924.51_aace

stopfile=/tmp/2332
Set admOperatingMode on following 1 MOs ?
===================================================================================
7378 Transport=1,EthernetPort=TN_C
===================================================================================
Set admOperatingMode on 1 MOs. Are you Sure [y/n] ? y

===================================================================================
=========================
Id MO
admOperatingMode Result
===================================================================================
=========================
 7378 EthernetPort=TN_C 5
>>> Set.
===================================================================================
=========================
Total: 1 MOs attempted, 1 MOs set

4G-IQTP01> get port=tn

200623-11:19:34 169.254.2.2 19.0a MSRBS_NODE_MODEL_18.Q4_369.27924.51_aace

stopfile=/tmp/2332
===================================================================================
==============================
37 Equipment=1,FieldReplaceableUnit=1,TnPort=TN_C
===================================================================================
==============================
reservedBy [1] =
>>> reservedBy = Transport=1,EthernetPort=TN_C
sfpModuleRef
tnPortId TN_C
userLabel
===================================================================================
==============================
7378 Transport=1,EthernetPort=TN_C
===================================================================================
==============================
admOperatingMode 5 (100M_FULL)
administrativeState 1 (UNLOCKED)
autoNegEnable true
availabilityStatus i[0] =
egressQosClassification
egressQosMarking
egressQosQueueMap
encapsulation FieldReplaceableUnit=1,TnPort=TN_C
ethernetPortId TN_C
holdDownTimer
ingressQosMarking [0] =
macAddress 98:A4:04:A6:1C:D3
mtu 9000
operOperatingMode 5 (100M_FULL)
operationalState 1 (ENABLED)
reservedBy [1] =
>>> reservedBy = Transport=1,VlanPort=INFRA
userLabel
===================================================================================
==============================
Total: 2 MOs

4G-IQTP01> get nexthop

200623-11:19:39 169.254.2.2 19.0a MSRBS_NODE_MODEL_18.Q4_369.27924.51_aace

stopfile=/tmp/2332
===================================================================================
==============================
7387
Transport=1,Router=1,RouteTableIPv4Static=1,Dst=1,NextHop=1
===================================================================================
==============================
address 10.35.196.1
adminDistance 1
bfdMonitoring true
discard false
nextHopId 1
reference
===================================================================================
==============================
Total: 1 MOs

4G-IQTP01> mcc router= ping 10.35.196.1 -c 5

200623-11:19:53 169.254.2.2 19.0a MSRBS_NODE_MODEL_18.Q4_369.27924.51_aace

stopfile=/tmp/2332
Run COMCLI command(s) on following 1 MOs ?
===================================================================================
7380 Transport=1,Router=1
===================================================================================
Run COMCLI commands(s) on 1 MOs. Are you Sure [y/n] ? y

===================================================================================
=========================
Id MO Command
Result
===================================================================================
=========================
7380 Router=1 ping
10.35.196.1 -c 5
>ManagedElement=4G-IQTP01,Transport=1,Router=1
>ping 10.35.196.1 -c 5
PING 10.35.196.1 (10.35.196.1) 56(84) bytes of data.
64 bytes from 10.35.196.1: icmp_seq=1 ttl=255 time=5.84 ms
64 bytes from 10.35.196.1: icmp_seq=2 ttl=255 time=5.43 ms
64 bytes from 10.35.196.1: icmp_seq=3 ttl=255 time=5.56 ms
64 bytes from 10.35.196.1: icmp_seq=4 ttl=255 time=5.56 ms
64 bytes from 10.35.196.1: icmp_seq=5 ttl=255 time=5.62 ms

--- 10.35.196.1 ping statistics ---

5 packets transmitted, 5 received, 0% packet loss, time 4006ms
rtt min/avg/max/mdev = 5.432/5.606/5.848/0.151 ms
===================================================================================
=========================
Total: 1 MOs

4G-IQTP01> alt

200623-11:20:00 169.254.2.2 19.0a MSRBS_NODE_MODEL_18.Q4_369.27924.51_aace

stopfile=/tmp/2332

Collecting Alarms...

===================================================================================
=================================
Date & Time (UTC) S Specific Problem MO (Cause/AdditionalInfo)
===================================================================================
=================================
2020-06-23 13:53:55 C License Key File Fault Lm=1 (Key file fault in
Managed Element AI: eventId:1)
2020-06-23 13:56:15 m Calendar Clock All NTP Servers Unavailable SysM=1 (No NTP
server configured, or no NTP service available)
>>> Total: 2 Alarms (1 Critical, 0 Major)

4G-IQTP01> cvls

200623-11:20:03 169.254.2.2 19.0a MSRBS_NODE_MODEL_18.Q4_369.27924.51_aace

stopfile=/tmp/2332
.
===================================================================================
========
200623-11:20 BackupName SwVersion
===================================================================================
========
LastCreatedBackup:
LastRestoredBackup:
-----------------------------------------------------------------------------------
--------
Current SwVersion: CXP9024418/6_R55N28 (18.Q4)
BrmHouseKeeping: ENABLED (max: 20 backups)
BrmFailSafe: IDLE
RestoreEscalationList: s[1] = Auto integration backup - SITE_CONFIG_COMPLETE
===================================================================================
=====================================
SwVersion ProductData ProdDate Rel LMs InstallationDate
ActivationDate DeactivationDate
===================================================================================
=====================================
CXP9024418/6-R55N28 CXP9024418/6_R55N28 20191114 18.Q4 89 2020-06-23 13:52:36
2020-06-23 13:58:39
===================================================================================
=====================================
UpgradePackage ProductData ProdDate Rel CreationDate
State
===================================================================================
=====================================
CXP9024418/6-R55N28 CXP9024418/6_R55N28 20191114 18.Q4 2020-06-23 13:52:34
COMMIT_COMPLETED
===================================================================================
=====================================
Id BackupName CreationTime SwVersion
Rel Type Stat MO
===================================================================================
=====================================
1 Auto integration backup - SITE_CONFIG_COMPLETE 2020-06-23 13:54:16
CXP9024418/6_R55N28 18.Q4 SYSCR OK BrmBackup=2
===================================================================================
=====================================
>>> Total: 1 CV's, 1 UP's

4G-IQTP01> cvms Tx_ok_20200623

200623-11:20:14 169.254.2.2 19.0a MSRBS_NODE_MODEL_18.Q4_369.27924.51_aace

stopfile=/tmp/2332

===================================================================================
==============================
Proxy MO Action
Nr of Params
===================================================================================
==============================
113 BrM=1,BrmBackupManager=1 createBackup
1
>>> Return value = 0

===================================================================================
==============================
Total: 1 MOs attempted, 1 MOs actioned

Waiting 5 seconds before starting to poll...

MO ElapsedTime state progressCount

progressHeader
BrmBackupManager=1 0s RUNNING 0/100 (0%) Creating
database backup
BrmBackupManager=1 2s RUNNING 0/100 (0%) Creating
database backup
BrmBackupManager=1 4s FINISHED 100/100 (100%) Creating
database backup
Waiting 2 seconds before checking result...
MO ElapsedTime $polp_result $polp_info
BrmBackupManager=1 4s SUCCESS
BrM=1,BrmBackupManager=1,BrmBackup=3

Last MO: 7391. Loaded 7391 MOs. Total: 7392 MOs.

COMANDO PARA VERIFICAR PORTA DE TX

(TN) VELOCIDADE E AUTONEGOCIA��O

get port=tn

COMANDO PARA VERIFICAR PORTAS DOS

R�DIOS NA BASE BAND

invxg

invgxrf

COMANDO PARA VERIFICAR N�VEL DE

INTERFER�NCIA

pmxet fdd interferencepwr$ (Verifica Momentaneamente)

pmr -m 4 -r 206,106 | grep -i interferencepwr (Verifica �ltimas 4 horas)

COMANDO PARA VERIFICAR DELTA

pmxe . Int_BranchDeltaSinrDistr[0-2] -m 4 (Verifica Delta nas �ltimas 4 horas)

pmxet . Int_BranchDeltaSinrDistr[0-2] -m 0.5 (Verifica Delta Momentaneamente)

COMANDO PARA VERIFICAR PORTA DE

REFER�NCIA DO TMA

get tma rfportref

COMANDO PARA RESTART R�DIO (RRU)

acc rru-(?) restartunit
op�oes (y, 2, 0, 0)

Ex: acc rru -5 restartunit

acc Equipment=1,FieldReplaceableUnit=RRU-5 restartunit
y
2
0
0

COMANDO PARA VERIFICAR VSWR TODOS

OS BRANCH

hget rfport=(a|b|c|d) vswrValue|dlFrequency

COMANDO PARA VERIFICAR N�MERO DE

S�RIE RRU

hget rru prod

IP DE ACESSO

3G DUW 30 01

| IP Address: 169.254.1.2
| mask: 255.255.255.0
| Default Gateway: 169.254.1.1

BASE BAND

| IP Address: 169.254.2.2
| mask: 255.255.255.0
| Default Gateway 169.254.2.1

|NOTEBOOK: PLACA DE REDE

| IP Address: 169.254.2.1
| mask: 255.255.255.0
| Default Gateway 169.254.2.2

-------------------------------------------------------------------
4G LTE

s+
alt
ue print -admitted
st cell
st rru
st ret
st tma
st alarm
hget alarmport
cabx
lh ru fui get vswr
lh ru fui get vswr 2
lh ru fui get vswr 3
lh ru fui get vswr 4
pmxet fdd interferencepwr$ (verificar interfer�ncia)
pmr -m 2 -r 206,106 | grep -i interference (verificar interfer�ncia das ultimas
duas horas)
invgrx
sdir
alt
s+
hget rfport=(a|b|c|d) value
pmxet . int_.*tr[012] (verifiCar delta)
pmxe . Int_.*tr[012] -m 2 (verificar delta das ultimas duas horas)

-----------------------------------------

3G WCDMA BB

s+
alt
get rad noof
st cell
st rru
st ret
st tma
st alarm
hget alarmport
cabx
lh ru fui get vswr
lh ru fui get vswr 2
lh ru fui get vswr 3
lh ru fui get vswr 4
pmxet -m 1 . avgrssihigh$
pmxet -m 2 . avgrssihigh$ (verificar interfer�ncia das ultimas duas horas)
invxrf (Verificar Delta momentaneamente)
invgrx
sdir
alt
s+
invgrf

------------------------------------------------------------------------------
3G DUW

Restartar (DUW)
Ex: acc 0 manualrestart
y
2
0
0

s+
alt
get rad noof
st cell
st rru
st ret
st tma
st alarm
hget alarmport
cabx
rbs
lh ru fui get vswr
lh ru fui get vswr 2
lh ru fui get vswr 3
lh ru fui get vswr 4

invgrx
sdir
alt
s+

lst near / st rru

- Lista os Rets / lista as RRU�s

cabx
- Verifica��o de posi��o, leds, invent�rio, status das placa, temperatura.

lga
- Exibe os log�s de alarmes

-----------------------------------------------------------------------------------
-----------------------------------------------------------------------------------
-

get 0
- Exibe o nome do site e vers�o de sw.

get . Associated
- Exibe os IP�s das refer�ncias de sincronismo.

get . autoneg
- Verificar se o autonegotiation esta em false ou true

get S freqBand
- Verificar a banda das RRU�s ou RU�s. B1-2100 / B5-850 / B7-2600 / B3-1800 / B8-
900 / B28-700

get IPv4 address

- Mostra os IP�s de todas interfaces criadas na BaseBand

get . vlan
- Exibe o numero e o nome da vlan configurada

-----------------------------------------------------------------------------------
-----------------------------------------------------------------------------------
-
hget Equipment=1,FieldReplaceableUnit=1,AlarmPort=.$ administrativeState|
alarmslogan|normallyOpen|perceived
- Exibe alarmes externos criados. Para mostrar em linhas, digitar get alarmPort=

Invxg
- Exibe o invent�rio do site e o gr�fico entre R�dio e DU.

lh ru fui get vswr / lh ru fui get vswr 2 (RRUS32 e R�dios 4414 tem Branchs 3 e 4)
- Comando para listar o VSWR branch 1 / lista VSWR branch 2

lh ru fui get devstat

- Lista as tens�es e correntes de todos os setores e todos os branchs
-----------------------------------------------------------------------------------
-----------------------------------------------------------------------------------
COMANDO PARA TILT
EL�TRICO

get . electricalAntennaTilt
- Lista os tilts el�tricos setado de todos os setores

set prox electricalAntennaTilt valor_tilt

- Alterar valor Tilt El�trio
-----------------------------------------------------------------------------------
-----------------------------------------------------------------------------------
COMANDO PARA RESTART
BASEBAND

acc fieldreplaceableunit=1 restartunit

- Restartar a baseband

-----------------------------------------------------------------------------------
----------------------------------------------------------------------------------

COMANDO P/CRIAR
PASTA USERS PARA MOSHELL

c:/cygwin/bin/perl c:/cygwin/cygwin_install.txt

bash moshell_install

-----------------------------------------------------------------------------------
-----------------------------------------------------------------------------------

COMANDO PARA
VERIFICAR POTENCIA

get sector MaxTxPower

-----------------------------------------------------------------------------------
-----------------------------------------------------------------------------------
-

COMANDO PARA
VERIFICAR VSWR RRU4443
lh ru fui get vswr_mb all

-----------------------------------------------------------------------------------
-----------------------------------------------------------------------------------
-
 COMANDO PARA SUBIR
C�LULA 1800/2100 (AIR)

4G-SPIB05-2> alt

210518-15:56:57 169.254.2.2 20.0j MSRBS_NODE_MODEL_20.Q4_480.27915.116_4392

stopfile=/tmp/10556

Collecting Alarms...

===================================================================================
=================================
Date & Time (UTC) S Specific Problem MO (Cause/AdditionalInfo)
===================================================================================
=================================
2021-05-18 17:55:53 M Power Saving Capacity Limit Exceeded EUtranCellFDD=4G-SPIB05-
18-1A (Not possible to allocate resources. Restart node to update baseband power
saving status.)
2021-05-18 18:06:47 M Resource Activation Timeout EUtranCellFDD=4G-SPIB05-
18-2A (TimeoutExpired)
>>> Total: 2 Alarms (0 Critical, 2 Major)

$ set PowerSaving=1 bbPowerSavingsEnabled false

Obs: salve um cv e depois restart baseband
-----------------------------------------------------------------------------------
-----------------------------------------------------------------------------------
-

4G-SPCR22-4> alt

210527-11:46:16 169.254.2.2 20.0j MSRBS_NODE_MODEL_21.Q2_508.27859.133_dd12

stopfile=/tmp/16452

$ssh_pid = 17100

Connected to 169.254.2.2
(SubNetwork=ONRM_ROOT_MO_R,SubNetwork=LTE,SubNetwork=TSP,SubNetwork=RadioNodes,MeCo
ntext=4G-SPCR22-4,ManagedElement=4G-SPCR22-4)

Collecting Alarms...

===================================================================================
=================================
Date & Time (UTC) S Specific Problem MO (Cause/AdditionalInfo)
===================================================================================
=================================
2021-05-27 14:37:40 m No Connection FieldReplaceableUnit=AIR-
11,AntennaNearUnit=1 (Contact lost with resource object)
2021-05-27 14:38:06 M Inconsistent Configuration EUtranCellFDD=4G-SPCR22-
18-3C (Cell contains too many <receive, transmit, receive & transmit> antennas)
2021-05-27 14:38:06 M Inconsistent Configuration EUtranCellFDD=4G-SPCR22-
21-3C (Cell contains too many <receive, transmit, receive & transmit> antennas)
2021-05-27 14:38:32 M Sync PTP Time Reachability Fault
Synchronization=1,RadioEquipmentClock=1,RadioEquipmentClockReference=1 (No PTP
messages)

C O M A N D O
Abaixo sequ�ncia dos comandos usados:

Set . iuantAntennaBearing 0
y
set . iuantAntennaOperatingBand 16424
y
set . maxTilt 120
y
set . minTilt 20
y

Ap�s setar os valores restartar a AIR e ap�s 3 minutos veja se normaliza o RET.

acc AIR restartunit

y
2
0
0

===================================================================================
==================================================================================

COMANDO PARA
VERIFICAR ALARMES EXTERNOS BB

hget AlarmPort administrativeState|activeExternalAlarm|alarmSlogan|userLabel|

normallyOpen|perceivedSeverity

===================================================================================
==================================================================================

COMANDO PARA VOLTAR

ARQUIVO DE BACKUP (FALLBACK)

!ls
obs: pra ver arquivo de fallback

cvput + (nome do arquivo backup.zip)

cvre (para colocar cv em restart)

c:/cygwin/home/user/ (Pasta onde tem que ficar arquivo de backup)

OBS: FAZER DESTA FORMA APENAS QUANDO PACOTE FOR O MSM DO BACKUP (C:\cygwin\home\
useregs)

===================================================================================
==================================================================================

COMANDO PARA
VERIFICAR ALGO BLOQUEADO NO SITE
LST . ^0

===================================================================================
==================================================================================

COMO ALTERAR ALGUM

PARAMETRO NO SCRIPT (NOTEPAD++)

OBS: ABRIR SCRIPT NO NOTEPAD++

APERTAR CRTL F, AP�S ABRIR ABA ENTRAR EM SUBSTITUIR, ENTRAR EM LOCALIZAR, DEPOIS
SUBSTITUIR POR E POR FIM NA OP��O SUBSTITUIR TODOS

===================================================================================
===================================================================================

5G ativar
10 ge:

get CXC4011838

set CXC4011838 featureState 1

y

acc integration activate

y

cvms 10GE_OK

COMANDOS PARA
ALTERR PORTA DE TX (TNC P/TNA)

DE TNC PARA TNA:

cr Equipment=1,FieldReplaceableUnit=1,TnPort=TN_A

cr Transport=1,EthernetPort=TN_A

qndo mandar comando a cima ele pedira um valor basta por a linha abaixo:

Equipment=1,FieldReplaceableUnit=1,TnPort=TN_A
lt all

Deb port=TN_A
y

set VlanPort= encapsulation EthernetPort=TN_A

y

lt all

del EthernetPort=TN_C
y
del TnPort=TN_C
y

COMANDO PARA
PUXAR BACKUP

cvput (nome do backup)

Obs: jogar arquivo de backup na seguinte pasta (Caminho)
cygwin/home/useregs/moshell
* renomear arquivo Ex: 4G-IDJG02_4G-IDJG02_BACKUP.zip

Ex: cvput 4G-IDJG02_4G-IDJG02_BACKUP.zip

cvls
cvre (Nome do arquivo de backup)

COMANDO PARA VERIFICAR

INTERFER�NIA FREQ. ESPECIFICA

pmxet Eutrancellfdd=4G-COAV01-18- interferencepwr$ - (SIGLA DO SITE, DEPOIS DO

-FREQ. EX:07 (700) 18 (1800) 21 (2100)

COMANDO PARA
VERIFICAR DELTA FREQ. ESPECIFICA

pmxet sectorCarrier=18 Int_.*tr[012] - (FREQ. EX:07 (700) 18 (1800) 21

(2100)

NOVOS COMANDO "5G"

hpget . pmMacVolDlDrb$|pmMacVolDlDrbQos$
hpget . pmEndcSetupUeAtt$|pmEndcSetupUeSucc$

CARREGAR SCRIPT DE
ALARMES EXTERNOS

run alm_tim.txt

Obs: "ARQUIVO TEM QUE FICAR NO SEGUINTE DIRET�RIO (c:/cygwin/home/user)

ALTERA��O PORTA DE
TX

DE TNA PARA TNC:

cr Equipment=1,FieldReplaceableUnit=1,TnPort=TN_C

cr Transport=1,EthernetPort=TN_C

qndo mandar comando a cima ele pedira um valor basta por a linha abaixo:

Equipment=1,FieldReplaceableUnit=1,TnPort=TN_C
lt all

Deb port=TN_C
y

set VlanPort= encapsulation EthernetPort=TN_C

y

lt all

del EthernetPort=TN_A
y
del TnPort=TN_A
y

COMANDO PARA VERIFICAR RETS CRIADOS E DE

QUAL SETOR E FREQU�NCIA PERTENCE

hget ret label|^oper
