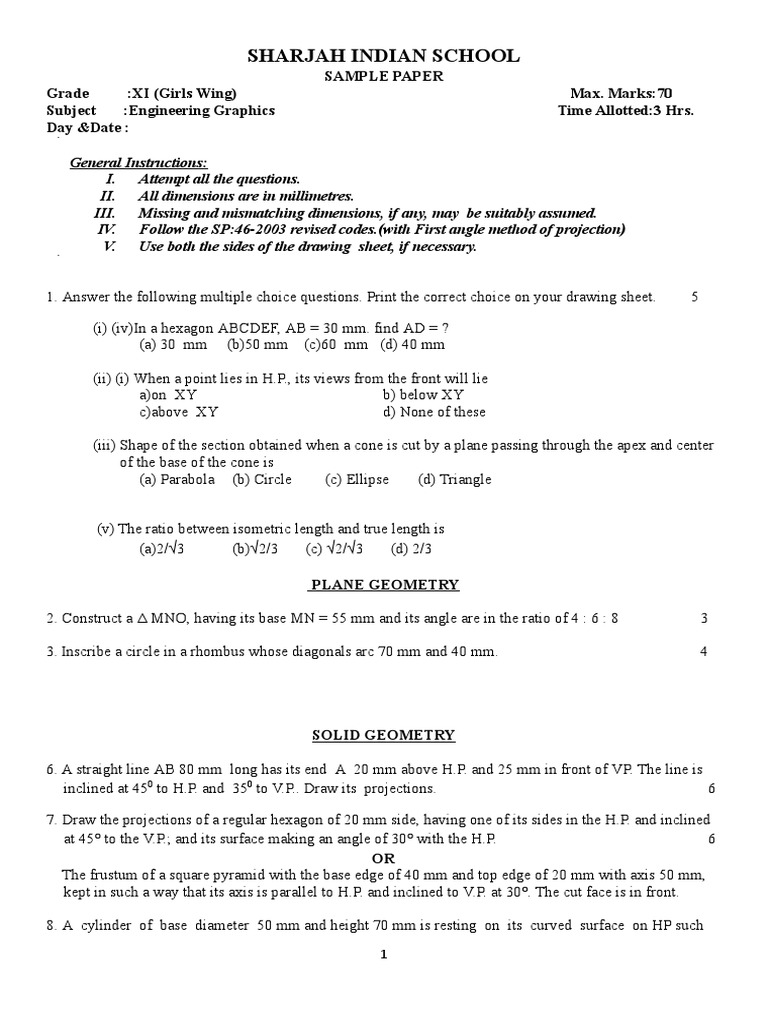

SHARJAH INDIAN SCHOOL

SAMPLE PAPER
Grade :XI (Girls Wing) Max. Marks:70
Subject :Engineering Graphics Time Allotted:3 Hrs.
Day &Date :

General Instructions:
I. Attempt all the questions.
II. All dimensions are in millimetres.
III. Missing and mismatching dimensions, if any, may be suitably assumed.
IV. Follow the SP:46-2003 revised codes.(with First angle method of projection)
V. Use both the sides of the drawing sheet, if necessary.

1. Answer the following multiple choice questions. Print the correct choice on your drawing sheet. 5

(i) (iv)In a hexagon ABCDEF, AB = 30 mm. find AD = ?

(a) 30 mm (b)50 mm (c)60 mm (d) 40 mm

(ii) (i) When a point lies in H.P., its views from the front will lie
a)on XY b) below XY
c)above XY d) None of these

(iii) Shape of the section obtained when a cone is cut by a plane passing through the apex and center
of the base of the cone is
(a) Parabola (b) Circle (c) Ellipse (d) Triangle

(v) The ratio between isometric length and true length is

(a)2/√3 (b)√2/3 (c) √2/√3 (d) 2/3

PLANE GEOMETRY

2. Construct a Δ MNO, having its base MN = 55 mm and its angle are in the ratio of 4 : 6 : 8 3

3. Inscribe a circle in a rhombus whose diagonals arc 70 mm and 40 mm. 4

SOLID GEOMETRY

6. A straight line AB 80 mm long has its end A 20 mm above H.P. and 25 mm in front of VP. The line is
inclined at 450 to H.P. and 350 to V.P.. Draw its projections. 6

7. Draw the projections of a regular hexagon of 20 mm side, having one of its sides in the H.P. and inclined
at 45° to the V.P.; and its surface making an angle of 30° with the H.P. 6
OR
The frustum of a square pyramid with the base edge of 40 mm and top edge of 20 mm with axis 50 mm,
kept in such a way that its axis is parallel to H.P. and inclined to V.P. at 30°. The cut face is in front.

8. A cylinder of base diameter 50 mm and height 70 mm is resting on its curved surface on HP such
1
 that the axis is normal to VP. A section plane inclined to VP at an angle of 60°, passes through the axis
Draw theTop View, sectional front View and true shape of the section.

MACHINE DRAWING

10.Construct an isometric scale. Also draw the isometric projection of an equilateral triangle of side
60 mm in V.P. 9

11.The following figure shows the pictorial view of a machine block. Draw the following orthographic
views to a scale 1:1. Give all dimensions. 10
(a) Front view
(b) Top view
(c) Left End view. `

2
 SHARJAH INDIAN SCHOOL
MODEL EXAMINATION, 2016-2017
Grade :XII (Girls Wing) Max. Marks:70
Subject :Engineering Graphics Time Allotted:3 Hrs.
Day &Date :Thursday,10/01/2017

General Instructions:
I. Attempt all the questions.
II. All dimensions are in millimetres.
III. Missing and mismatching dimensions, if any, may be suitably assumed.
IV. Follow the SP:46-2003 revised codes.(with First angle method of projection)
V. Use both the sides of the drawing sheet, if necessary.

3
1.Answer the following multiple choice questions. Print the correct choice on your drawing sheet. 5

(i)The ratio between isometric length and true length is

(a)2/ 3 (b) 2/3 (c) 2/ 3 (d) 2/3

(ii) In the conventional representation of internal V-threads, thin line indicates_____.

a) chamfering circle b) crest c) root d) pitch

(iii) Which bolt is used in the slots of machine tool tables?

(a)hook bolt (b)square head bolt (c)t-head bolt(d)hexagonal head bolt

(iv) ________are devices used to join two shafts end to end. This may be done to increase
the length of the shaft or to connect shafts of different machines.
(a) Bearing (b) Flange Pipe Joint (c) Turnbuckle (d) Coupling

(v) The pulley used, with the motor shaft is called driver
(a) driver (b) driven (c) flexible connector (d) spindle

2.(i) Construct an isometric scale. 4

(ii)Draw the isometric projection of a frustum of a cone of diameter 30 mm at smaller end,

diameter 50 mm at bigger end and the axial height is 70 mm. It is resting on its bigger end on
H.P. keeping its axis vertical. Show the axis and indicate the direction of viewing. Give all
dimensions. 7

(iii)Draw an Isometric Projection of a square pyramid resting vertically and centrally on the top
pentagon face of a pentagonal prism, having one rectangular face parallel to V.P. while closer
to the observer. Side of the square base = 30 mm, height of pyramid = 50 mm, side of the
pentagon = 34 mm and height of the prism = 52 mm. Show the axis and indicate the direction
of viewing. Give all dimensions. 13

3.(i) Draw to scale 1:1, the standard profile of metric screw thread (internal) taking enlarged pitch
as 60mm. Give standard dimensions. 8

[OR]
Draw to scale 1:1, the front view and side view of a T-Headed bolt of diameter 20mm. Keep the axis
parallel to V.P and H.P..

4
(ii) Sketch freehand the Front view and Top view of a 60° counter sunk flat head rivet of diameter
20mm, keeping its axis vertical. Give standard dimensions. 5
[OR]
Sketch freehand the front view, top view and side view of a Woodruff Key suitable for a shaft of
diameter 40 mm. Give standard dimensions

4. Figure 1 shows the details of the parts of a Solid Web Cast Iron Pulley. Assemble these parts
correctly and then draw to scale 1 : 1 its following views :
(i) Front view, top half in section. 14
(ii) Side view as viewed from left. 8

5
 Print the title and the scale used. Draw the projection symbol. Give 6 important dimensions. 6

[OR]

Fig. 2. Shows the assembly of an UNPROTECTED FLANGE COUPLING. Disassemble

the parts and draw the following views to scale 1 :1.
(a) FLANGE ‘A’
(i) Front view, upper half in section. 8
(ii) Side view, viewing from the left hand side. 8
6
 (b) SHAFT ‘A’
(i) Front view. 3
(ii) Side view, viewing from the right hand side. 3
Print titles, symbol of projection and scale used. Draw the projection symbol. Give 6 important
dimensions. 6
