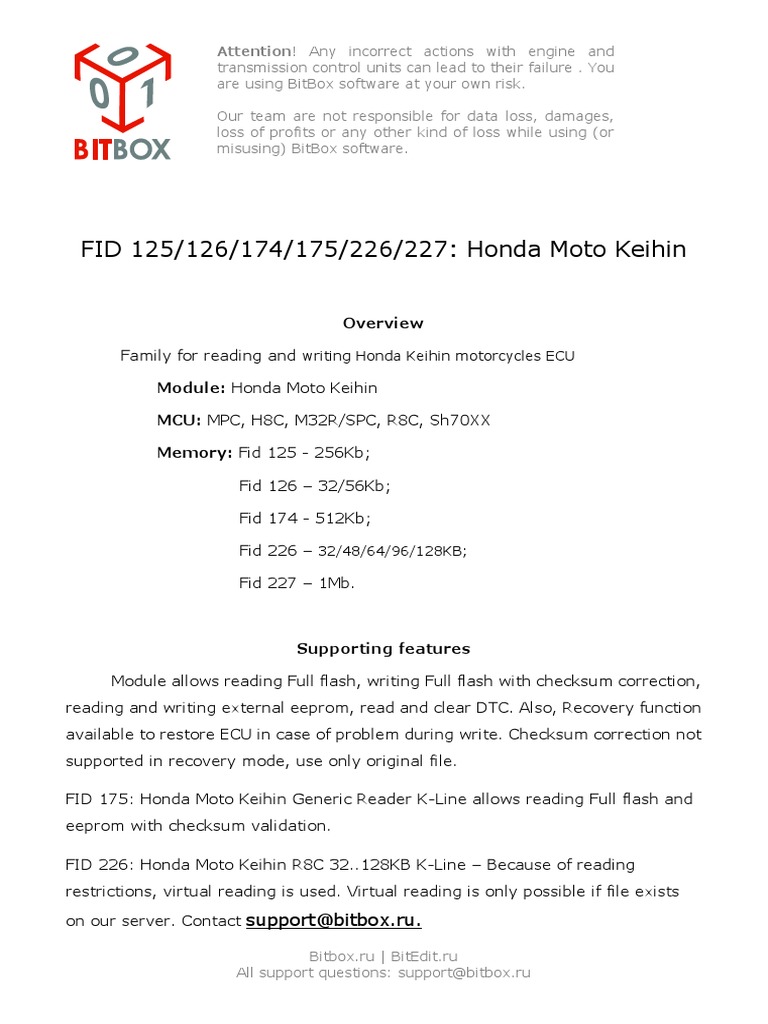

FID 125/126/174/175/226/227: Honda Moto Keihin

Overview

Family for reading and writing Honda Keihin motorcycles ECU

Module: Honda Moto Keihin

MCU: MPC, H8C, M32R/SPC, R8C, Sh70XX

Memory: Fid 125 - 256Kb;

Fid 126 – 32/56Kb;

Fid 174 - 512Kb;

Fid 226 – 32/48/64/96/128KB;

Fid 227 – 1Mb.

Supporting features

Module allows reading Full flash, writing Full flash with checksum correction,
reading and writing external eeprom, read and clear DTC. Also, Recovery function
available to restore ECU in case of problem during write. Checksum correction not
supported in recovery mode, use only original file.

FID 175: Honda Moto Keihin Generic Reader K-Line allows reading Full flash and
eeprom with checksum validation.

FID 226: Honda Moto Keihin R8C 32..128KB K-Line – Because of reading
restrictions, virtual reading is used. Virtual reading is only possible if file exists
on our server. Contact support@bitbox.ru.

Bitbox.ru | BitEdit.ru
All support questions: support@bitbox.ru
 Attention! Any incorrect actions with engine and
transmission control units can lead to their failure . You
are using BitBox software at your own risk.

Our team are not responsible for data loss, damages,

loss of profits or any other kind of loss while using (or
misusing) BitBox software.

Reading and writing

Warning: Writing takes a long time (up to 40 min)

on large files. Please check PC and vehicle charge
level or connect to power supply.

Diagnostic Connector

Bitbox.ru | BitEdit.ru
All support questions: support@bitbox.ru
 Attention! Any incorrect actions with engine and
transmission control units can lead to their failure . You
are using BitBox software at your own risk.

Our team are not responsible for data loss, damages,

loss of profits or any other kind of loss while using (or
misusing) BitBox software.

For reading and writing ECU Honda Moto Keihin MEL (Type 1) use special
connection diagram:

Warning: Connecting both Ground is necessarily

Bitbox.ru | BitEdit.ru
All support questions: support@bitbox.ru
 Attention! Any incorrect actions with engine and
transmission control units can lead to their failure . You
are using BitBox software at your own risk.

Our team are not responsible for data loss, damages,

loss of profits or any other kind of loss while using (or
misusing) BitBox software.

For reading and writing ECU Honda Moto Keihin MEL (Type 2) use special
connection diagram:

Bitbox.ru | BitEdit.ru
All support questions: support@bitbox.ru
 Attention! Any incorrect actions with engine and
transmission control units can lead to their failure . You
are using BitBox software at your own risk.

Our team are not responsible for data loss, damages,

loss of profits or any other kind of loss while using (or
misusing) BitBox software.

For reading and writing ECU Honda Moto Keihin MJE (Type 3) use special
connection diagram:

Warning: Connecting both Ground is necessarily

Bitbox.ru | BitEdit.ru
All support questions: support@bitbox.ru
 Attention! Any incorrect actions with engine and
transmission control units can lead to their failure . You
are using BitBox software at your own risk.

Our team are not responsible for data loss, damages,

loss of profits or any other kind of loss while using (or
misusing) BitBox software.

For reading and writing ECU Honda Moto Keihin MGZ/MGS (Type 4) use special
connection diagram:

Warning: Connecting both Ground is necessarily

Bitbox.ru | BitEdit.ru
All support questions: support@bitbox.ru
 Attention! Any incorrect actions with engine and
transmission control units can lead to their failure . You
are using BitBox software at your own risk.

Our team are not responsible for data loss, damages,

loss of profits or any other kind of loss while using (or
misusing) BitBox software.

For reading and writing ECU Honda Moto Keihin MGE, MGH, MJP, MKF (Type 5)
use special connection diagram:

Bitbox.ru | BitEdit.ru
All support questions: support@bitbox.ru
 Attention! Any incorrect actions with engine and
transmission control units can lead to their failure . You
are using BitBox software at your own risk.

Our team are not responsible for data loss, damages,

loss of profits or any other kind of loss while using (or
misusing) BitBox software.

For reading and writing ECU Honda Moto Keihin KYJ (Type 9) use special
connection diagram:

Warning: Connecting both Ground is necessarily

Bitbox.ru | BitEdit.ru
All support questions: support@bitbox.ru
 Attention! Any incorrect actions with engine and
transmission control units can lead to their failure . You
are using BitBox software at your own risk.

Our team are not responsible for data loss, damages,

loss of profits or any other kind of loss while using (or
misusing) BitBox software.

For reading and writing ECU Honda Moto Keihin K28 (Type 10) use special
connection diagram:

Bitbox.ru | BitEdit.ru
All support questions: support@bitbox.ru
 Attention! Any incorrect actions with engine and
transmission control units can lead to their failure . You
are using BitBox software at your own risk.

Our team are not responsible for data loss, damages,

loss of profits or any other kind of loss while using (or
misusing) BitBox software.

For reading and writing ECU Honda Moto Keihin MCA (Type 12) use special
connection diagram:

Warning: Connecting both Ground is necessarily

Bitbox.ru | BitEdit.ru
All support questions: support@bitbox.ru
 Attention! Any incorrect actions with engine and
transmission control units can lead to their failure . You
are using BitBox software at your own risk.

Our team are not responsible for data loss, damages,

loss of profits or any other kind of loss while using (or
misusing) BitBox software.

For reading and writing ECU Honda Moto Keihin HR3 (Type 14) use special
connection diagram:

For reading and writing ECU Honda Moto Keihin KTG (Type 15) use special
connection diagram:

Warning: Connecting both Ground is necessarily
