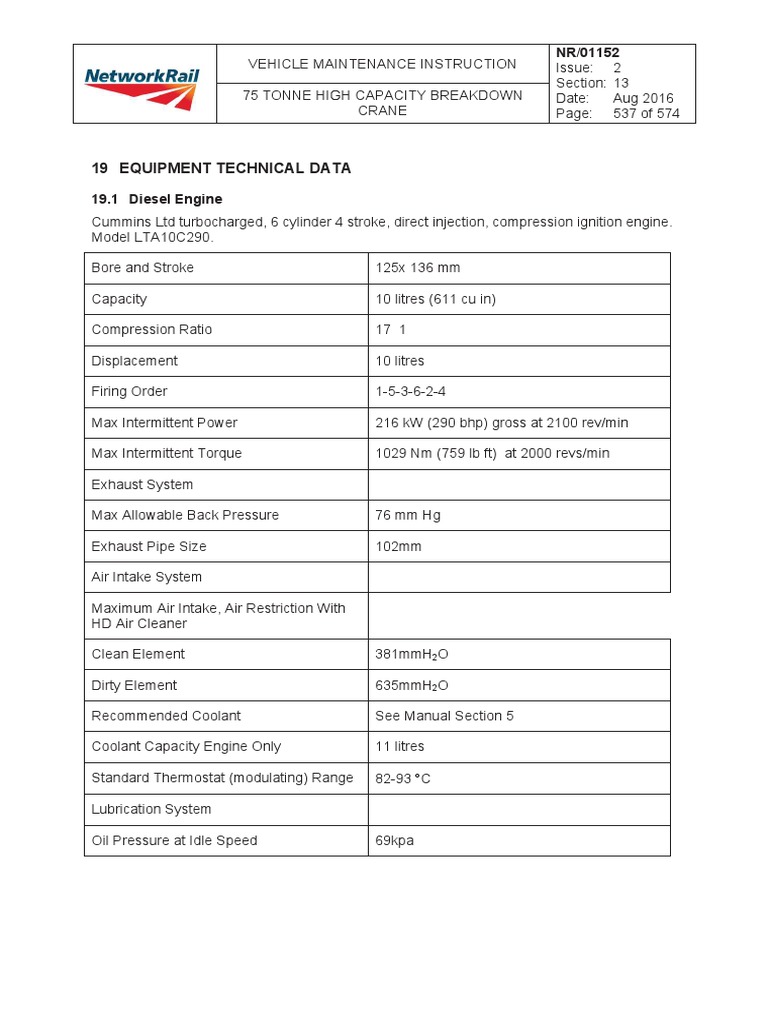

    NR/01152

    VEHICLE MAINTENANCE INSTRUCTION Issue: 2


    Section: 13
    75 TONNE HIGH CAPACITY BREAKDOWN Date: Aug 2016
    CRANE Page: 537 of 574

    19 EQUIPMENT TECHNICAL DATA

    19.1 Diesel Engine


    Cummins Ltd turbocharged, 6 cylinder 4 stroke, direct injection, compression ignition engine.
    Model LTA10C290.

    Bore and Stroke 125x 136 mm

    Capacity 10 litres (611 cu in)

    Compression Ratio 17 1

    Displacement 10 litres

    Firing Order 1-5-3-6-2-4

    Max Intermittent Power 216 kW (290 bhp) gross at 2100 rev/min

    Max Intermittent Torque 1029 Nm (759 lb ft) at 2000 revs/min

    Exhaust System

    Max Allowable Back Pressure 76 mm Hg

    Exhaust Pipe Size 102mm

    Air Intake System

    Maximum Air Intake, Air Restriction With


    HD Air Cleaner

    Clean Element 381mmH2O

    Dirty Element 635mmH2O

    Recommended Coolant See Manual Section 5

    Coolant Capacity Engine Only 11 litres

    Standard Thermostat (modulating) Range 82-93 qC

    Lubrication System

    Oil Pressure at Idle Speed 69kpa


    NR/01152
    VEHICLE MAINTENANCE INSTRUCTION Issue: 2
    Section: 13
    75 TONNE HIGH CAPACITY BREAKDOWN Date: Aug 2016
    CRANE Page: 538 of 574

    Oil Pressure at Rated Speed 207kpa -276kpa

    Oil Flow 125 L/min

    Maximum Allowable Oil Temperature 121 qC

    By-Pass Filter Capacity -Spin on Cartridge 2.6 litres

    Replaceable Element 11 litres

    Total System Capacity 38 litres

    Oil Pan Capacity High/Low 34-30 litres

    Dry Weight 897 kg

    Wet Weight 949 kg

    For any further information refer to Cummins Ltd Operation and Maintenance Manual
