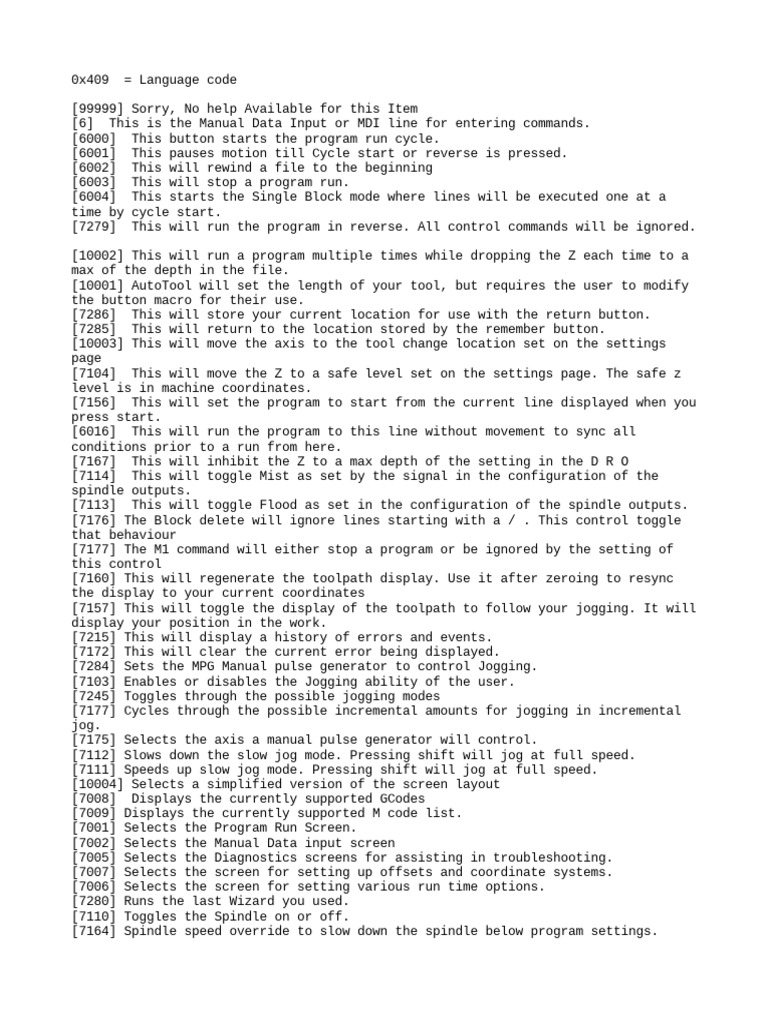

0x409 = Language code

[99999] Sorry, No help Available for this Item

[6] This is the Manual Data Input or MDI line for entering commands.
[6000] This button starts the program run cycle.
[6001] This pauses motion till Cycle start or reverse is pressed.
[6002] This will rewind a file to the beginning
[6003] This will stop a program run.
[6004] This starts the Single Block mode where lines will be executed one at a
time by cycle start.
[7279] This will run the program in reverse. All control commands will be ignored.

[10002] This will run a program multiple times while dropping the Z each time to a
max of the depth in the file.
[10001] AutoTool will set the length of your tool, but requires the user to modify
the button macro for their use.
[7286] This will store your current location for use with the return button.
[7285] This will return to the location stored by the remember button.
[10003] This will move the axis to the tool change location set on the settings
page
[7104] This will move the Z to a safe level set on the settings page. The safe z
level is in machine coordinates.
[7156] This will set the program to start from the current line displayed when you
press start.
[6016] This will run the program to this line without movement to sync all
conditions prior to a run from here.
[7167] This will inhibit the Z to a max depth of the setting in the D R O
[7114] This will toggle Mist as set by the signal in the configuration of the
spindle outputs.
[7113] This will toggle Flood as set in the configuration of the spindle outputs.
[7176] The Block delete will ignore lines starting with a / . This control toggle
that behaviour
[7177] The M1 command will either stop a program or be ignored by the setting of
this control
[7160] This will regenerate the toolpath display. Use it after zeroing to resync
the display to your current coordinates
[7157] This will toggle the display of the toolpath to follow your jogging. It will
display your position in the work.
[7215] This will display a history of errors and events.
[7172] This will clear the current error being displayed.
[7284] Sets the MPG Manual pulse generator to control Jogging.
[7103] Enables or disables the Jogging ability of the user.
[7245] Toggles through the possible jogging modes
[7177] Cycles through the possible incremental amounts for jogging in incremental
jog.
[7175] Selects the axis a manual pulse generator will control.
[7112] Slows down the slow jog mode. Pressing shift will jog at full speed.
[7111] Speeds up slow jog mode. Pressing shift will jog at full speed.
[10004] Selects a simplified version of the screen layout
[7008] Displays the currently supported GCodes
[7009] Displays the currently supported M code list.
[7001] Selects the Program Run Screen.
[7002] Selects the Manual Data input screen
[7005] Selects the Diagnostics screens for assisting in troubleshooting.
[7007] Selects the screen for setting up offsets and coordinate systems.
[7006] Selects the screen for setting various run time options.
[7280] Runs the last Wizard you used.
[7110] Toggles the Spindle on or off.
[7164] Spindle speed override to slow down the spindle below program settings.
[7163] Spindle Override to speed up the spindle beyond program settings.
[7183] Resets the spindle back to the program set speed.
[7109] Slows down the feedrate below program set feedrate.
[7108] Speeds up the feedrate beyond program set feedrate.
[6014] Resets feedrate to programmed feedrate
[6017] Goto Zeros moves all axes to zero. The Z will raise to the setting of the
Safe Z first if it is lower.
[7256] Selects a display of the machine G53 coordinates.
[7119] Enables or disables soft limits.
[6008] Zeros the X coordinate in the current coordinate system. Default is G54.
[6009] Zeros the Y coordinate in the current coordinate system. Default is G54.
[6010] Zeros the Z coordinate in the current coordinate system. Default is G54.
[6011] Zeros the fourth axis coordinate in the current coordinate system. Default
is G54.
[4007] Will turn green when the X axis is referenced.
[4008] Will turn green when the Y axis is referenced.
[4009] Will turn green when the Z axis is referenced.
[4010] Will turn green when the fourth axis is referenced.
[3059] Scales the X axis by the amount shown. For example 0.5 would be one half of
the normal X movement.
[3060] Scales the Y axis by the amount shown. For example 0.5 would be one half of
the normal Y movement.
[3061] Scales the Z axis by the amount shown. For example 0.5 would be one half of
the normal Z movement.
[3062] Scales the A axis by the amount shown. For example 0.5 would be one half of
the normal A movement.
[2000] This is the display of the X coordinates. It can be modified by the
selection of Machine coordinates button.
[2001] This is the display of the Y coordinates. It can be modified by the
selection of Machine coordinates button.
[2002] This is the display of the Z coordinates. It can be modified by the
selection of Machine coordinates button.
[2003] This is the display of the A coordinates. It can be modified by the
selection of Machine coordinates button.
[9000] This is a display of the GCode of the current loaded program.
[2024] This is the Tool number presently in the machine.
[2022] This is the diameter of the current tool.
[2023] This is the Height or Length of the current tool.
[2016] This is the current line number of the executing or paused program.
[2026] This will stop a program. The program cannot be restarted without rewinding.
[3078] Selection of the number of times to loop through a program in multipass
mode.
[3079] This is the distance the Min Z level will be decremented on each loop in
multipass.
[3080] Enables or disables the Z inhibit.
[5054] When Lit, this indicates you are in Constant Velocity mode. May be changed
in config/ State
[2014] Elapsed time of the current program run.
[7280] This will rerun the last Wizard program you ran form the Wizards menu item.
