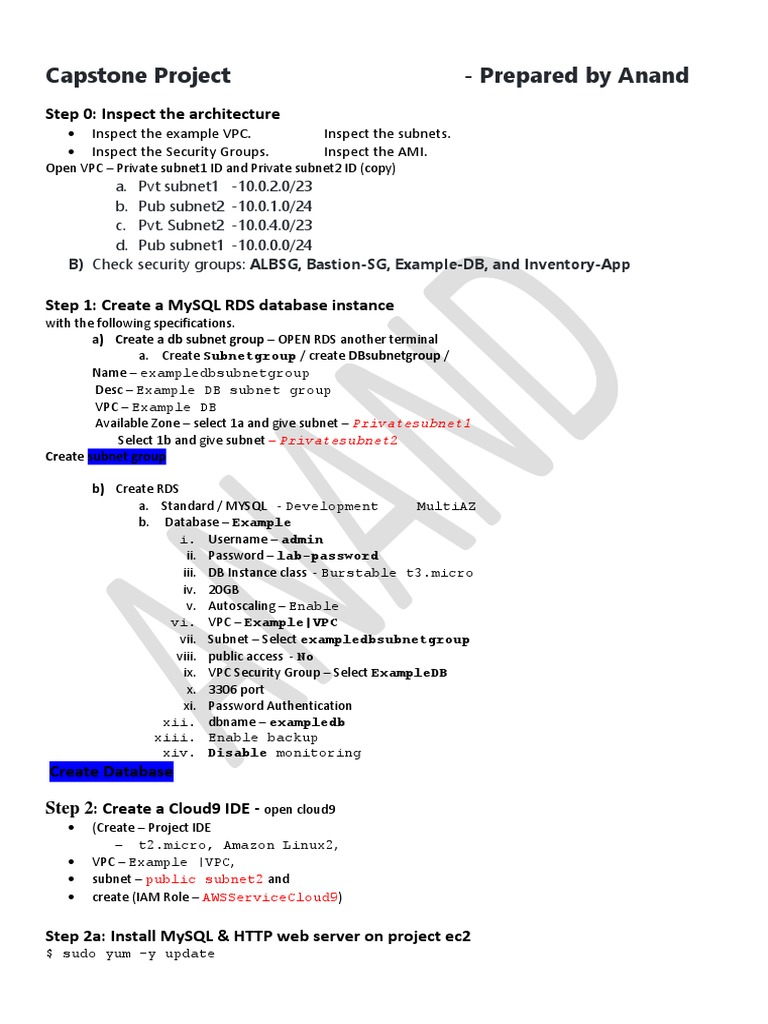

Capstone Project - Prepared by Anand

Step 0: Inspect the architecture

 Inspect the example VPC. Inspect the subnets.
 Inspect the Security Groups. Inspect the AMI.
Open VPC – Private subnet1 ID and Private subnet2 ID (copy)
a. Pvt subnet1 -10.0.2.0/23
b. Pub subnet2 -10.0.1.0/24
c. Pvt. Subnet2 -10.0.4.0/23
d. Pub subnet1 -10.0.0.0/24
B) Check security groups: ALBSG, Bastion-SG, Example-DB, and Inventory-App

Step 1: Create a MySQL RDS database instance

with the following specifications.
a) Create a db subnet group – OPEN RDS another terminal
a. Create Subnetgroup / create DBsubnetgroup /
Name – exampledbsubnetgroup
Desc – Example DB subnet group
VPC – Example DB
Available Zone – select 1a and give subnet – Privatesubnet1
Select 1b and give subnet – Privatesubnet2
Create subnet group

b) Create RDS
a. Standard / MYSQL - Development MultiAZ
b. Database – Example
i. Username – admin
ii. Password – lab-password
iii. DB Instance class - Burstable t3.micro
iv. 20GB
v. Autoscaling – Enable
vi. VPC – Example|VPC
vii. Subnet – Select exampledbsubnetgroup
viii. public access - No
ix. VPC Security Group – Select ExampleDB
x. 3306 port
xi. Password Authentication
xii. dbname – exampledb
xiii. Enable backup
xiv. Disable monitoring
Create Database

Step 2: Create a Cloud9 IDE - open cloud9

 (Create – Project IDE
– t2.micro, Amazon Linux2,
 VPC – Example |VPC,
 subnet – public subnet2 and
 create (IAM Role – AWSServiceCloud9)

Step 2a: Install MySQL & HTTP web server on project ec2
$ sudo yum -y update
$ sudo amazon-linux-extras install -y lamp-mariadb10.2-php7.2 php7.2

$ sudo yum install -y httpd mariadb-server

$ sudo systemctl start httpd

$ sudo systemctl enable httpd

$ sudo systemctl is-enabled httpd

Modify Security Group - ExampleDB

a. Add another 3306 port + SG (Web Access ) security group (Provide access to cloud9)

Step 2b: Get the Project Assets to project

A) Get project Resources ( copy link from the capstone project )

$ wget https://github.com/unix501/AWS-Capstone-
/archive/refs/heads/main.zip

$ wget https://aws-tc-largeobjects.s3-us-west-2.amazonaws.com/ILT-TF-200-ACACAD-20-
EN/capstone-project/Example.zip

Extract the files to the Apache www folder:

$ sudo unzip main.zip
$ cd example
$ sudo mv * /var/www/html (Verify all files copied)

 Open port 80 from the security group of the Cloud9 EC2 instance (all IPv4)
 Get the cloud9 EC2 public instance IP address and test that you can access the website

EXAMPLE SOCIAL RESEARCH ORGANIZTION

Step 3 : Importing the data into the RDS database (Cloud9)

Importing the data into the RDS database cloud9
get the SQLDump file:
$ wget https://aws-tc-largeobjects.s3-us-west-2.amazonaws.com/ILT-TF-200-
ACACAD-20-EN/capstone-project/Countrydatadump.sql
Connect to the RDS database, run this command:
$ mysql -u admin -p --host <rds-endpoint> (Copy from RDS which we created)
Test that you can access the RDS DB
use exampledb;
show tables;
Import the data into the RDS database.
$ mysql -u admin -p exampledb --host <rds-endpoint> < Countrydatadump.sql
Verify the tables
$ mysql -u admin -p --host <rds-endpoint>
use exampledb;
show tables; (table – countrydata_final is displayed)
select * from countrydata_final; (To view all records on screen)
exit;
$

Step 4: Create AMI of Cloud9 Instance (Ensure fully configured and

communicate with mysql) - MyAMI

Step 5 : Create an Application Load Balancer

  Create target group – Name -applelb/ internetfacing / ipv4 / example |VPC / 1a –
pubsub1, 1b – pubsub2 / Security group – Delete default and add ALBSG / Create Listner
appgroup /

Creating Listener appgroup / instances / 80 / Example |VPC / Target group – appgroup /

Next / Don’t select anything / just create target group appgroup Create ELB

 Modify launch Template using created AMI - ExampleLT - MyAMI

 Create an auto scaling group – Launch template – ExampleLT (Modify the ami
parameters)/ Next / VPC – Example |VPC / AZ – Privatesubnet1, privatesubnet2
/ next / LB – Attach to ELB /
o select appgroup|Http
o Healthchecks – select ELB Next
o Group Size – 2,2,4
o Policies – None Next Next
o Tags Name - key Value – Web Server Next

Step 6: Configure the system parameters in Parameter Store Systems Manager

On Cloud9 Web Server - /var/www/html/ verify the file get-parameters.php
Add the following parameters to the Parameter Store and set the correct values: Systems Manager / Parameters
(Tier Standard) / Create parameters .

/example/endpoint <endpoint> <string>

/example/username admin
/example/password lab-password
/example/database exampledb

Test the ALB

Go to ELB Copy DNS end point and verify web site (Web Site Launched successfully)
Select Query - Mobile Phones..

Submit - Congratulations

 Before
 

