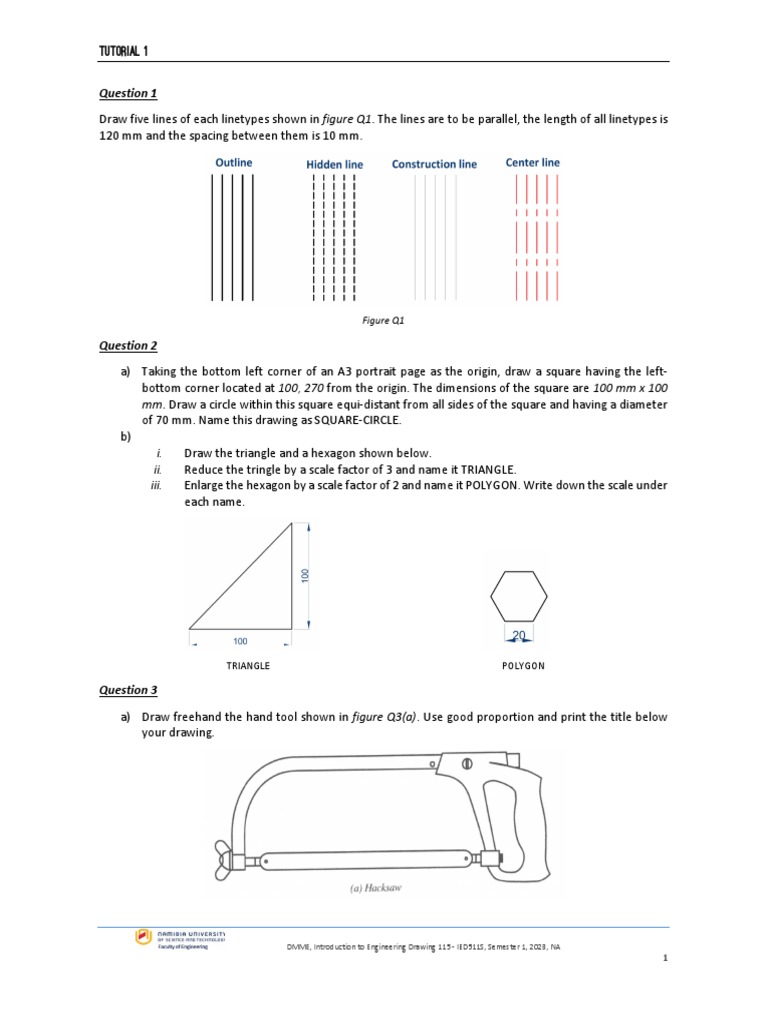

TUTORIAL 1

Question 1
Draw five lines of each linetypes shown in figure Q1. The lines are to be parallel, the length of all linetypes is
120 mm and the spacing between them is 10 mm.

Figure Q1

Question 2
a) Taking the bottom left corner of an A3 portrait page as the origin, draw a square having the left-
bottom corner located at 100, 270 from the origin. The dimensions of the square are 100 mm x 100
mm. Draw a circle within this square equi-distant from all sides of the square and having a diameter
of 70 mm. Name this drawing as SQUARE-CIRCLE.
b)
i. Draw the triangle and a hexagon shown below.
ii. Reduce the tringle by a scale factor of 3 and name it TRIANGLE.
iii. Enlarge the hexagon by a scale factor of 2 and name it POLYGON. Write down the scale under
each name.

TRIANGLE POLYGON

Question 3
a) Draw freehand the hand tool shown in figure Q3(a). Use good proportion and print the title below
your drawing.

DMME, Introduction to Engineering Drawing 115 - IED511S, Semester 1, 2023, NA

1
TUTORIAL 1

b) Draw the casting mould shown in figure Q3(b) using freehand techniques and insert the dimensions.

(b) Casting mould

Figure Q3

Question 4
a) Create freehand oblique drawing of an object in Figure Q4(a). (The object is shown as oblique
projection, so you must simply recreate the drawing by freehand drawing.)

Figure 4(a)

b) Create freehand orthographic views of an object in Figure Q4(b). (The object is shown as orthographic
projection, so you must simply recreate the views by freehand drawing.)

Figure 4(b)
