Faw FD280

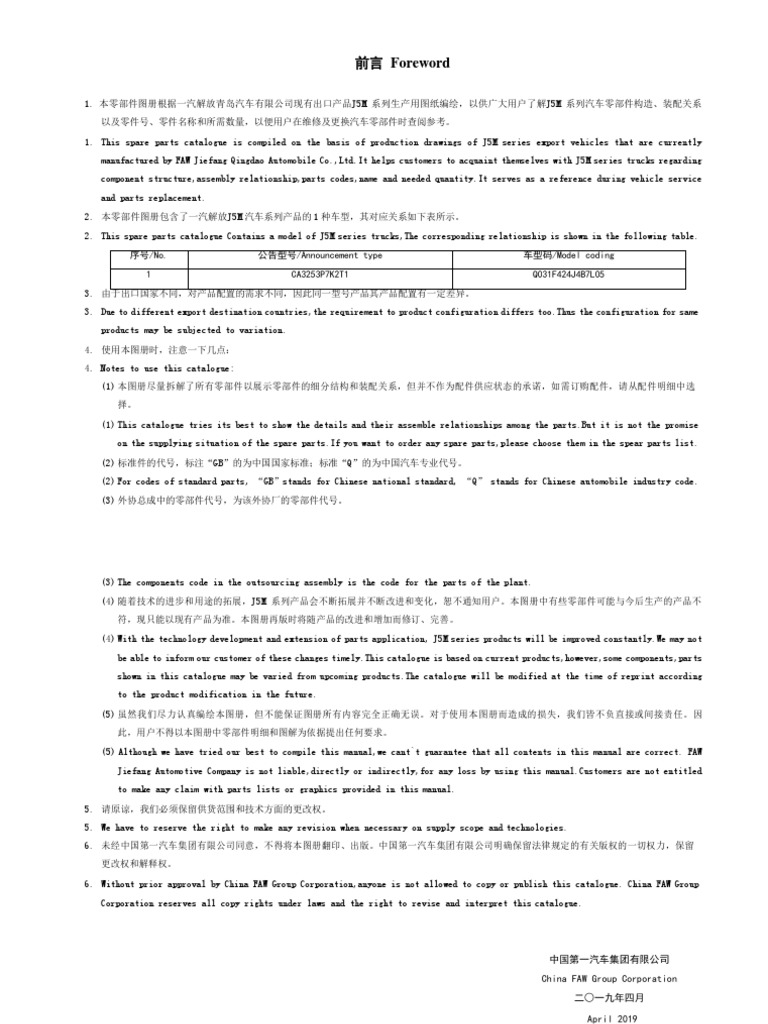

前言 Foreword
1. 本零部件图册根据一汽解放青岛汽车有限公司现有出口产品J5M 系列生产用图纸编绘，以供广大用户了解J5M 系列汽车零部件构造、装配关系

以及零件号、零件名称和所需数量，以便用户在维修及更换汽车零部件时查阅参考。
1. This spare parts catalogue is compiled on the basis of production drawings of J5M series export vehicles that are currently
manufactured by FAW Jiefang Qingdao Automobile Co.,Ltd.It helps customers to acquaint themselves with J5M series trucks regarding
component structure,assembly relationship,parts codes,name and needed quantity.It serves as a reference during vehicle service
and parts replacement.
2. 本零部件图册包含了一汽解放J5M 汽车系列产品的 1 种车型，其对应关系如下表所示。

2. This spare parts catalogue Contains a model of J5M series trucks,The corresponding relationship is shown in the following table.
序号/No. 公告型号/Announcement type 车型码/Model coding

1 CA3253P7K2T1 Q031F424J4B7L05
3. 由于出口国家不同，对产品配置的需求不同，因此同一型号产品其产品配置有一定差异。
3. Due to different export destination countries,the requirement to product configuration differs too.Thus the configuration for same
products may be subjected to variation.
4. 使用本图册时，注意一下几点：
4. Notes to use this catalogue:
(1) 本图册尽量拆解了所有零部件以展示零部件的细分结构和装配关系，但并不作为配件供应状态的承诺，如需订购配件，请从配件明细中选
择。
(1) This catalogue tries its best to show the details and their assemble relationships among the parts.But it is not the promise
on the supplying situation of the spare parts.If you want to order any spare parts,please choose them in the spear parts list.
(2) 标准件的代号，标注“GB”的为中国国家标准；标准“Q”的为中国汽车专业代号。
(2) For codes of standard parts, “GB”stands for Chinese national standard, “Q” stands for Chinese automobile industry code.
(3) 外协总成中的零部件代号，为该外协厂的零部件代号。
(3) The components code in the outsourcing assembly is the code for the parts of the plant.
(4) 随着技术的进步和用途的拓展，J5M 系列产品会不断拓展并不断改进和变化，恕不通知用户。本图册中有些零部件可能与今后生产的产品不
符，现只能以现有产品为准。本图册再版时将随产品的改进和增加而修订、完善。
(4) With the technology development and extension of parts application, J5M series products will be improved constantly.We may not
be able to inform our customer of these changes timely.This catalogue is based on current products,however,some components,parts
shown in this catalogue may be varied from upcoming products.The catalogue will be modified at the time of reprint according
to the product modification in the future.
(5) 虽然我们尽力认真编绘本图册，但不能保证图册所有内容完全正确无误。对于使用本图册而造成的损失，我们皆不负直接或间接责任。因
此，用户不得以本图册中零部件明细和图解为依据提出任何要求。
(5) Although we have tried our best to compile this manual,we cant`t guarantee that all contents in this manual are correct. FAW
Jiefang Automotive Company is not liable,directly or indirectly,for any loss by using this manual.Customers are not entitled
to make any claim with parts lists or graphics provided in this manual.
5. 请原谅，我们必须保留供货范围和技术方面的更改权。
5. We have to reserve the right to make any revision when necessary on supply scope and technologies.
6. 未经中国第一汽车集团有限公司同意，不得将本图册翻印、出版。中国第一汽车集团有限公司明确保留法律规定的有关版权的一切权力，保留
更改权和解释权。
6. Without prior approval by China FAW Group Corporation,anyone is not allowed to copy or publish this catalogue. China FAW Group
Corporation reserves all copy rights under laws and the right to revise and interpret this catalogue.
中国第一汽车集团有限公司
China FAW Group Corporation
二○一九年四月
April 2019
目录 Contents
主组：10 发动机 Engine 1703 变速操纵杆及防尘罩模块 Gearshift Operation Rod And Dustproof
Cover Module .......................................... 130
1000 发动机总成 Engine Assembly. ............................. 1
1703 变速操纵机构模块Gearshift Control Mechanism Module ...... 132
1001 发动机悬置模块总成 Engine Mount Module Assembly .......... 84
1703 取力器控制管路模块 PTO Control Pipe Module .............. 134
主组：11 供油系 Fuel Supply System
1704 变速箱悬置模块 Transmission Suspension Module ........... 136
1100 燃油箱与燃油管路模块总成 Fuel Tank And Pipeline Module .... 86
主组：22 传动轴 Drive Shaft
1100 进气系统随车模块总成 Air Intake System Module Assembly .... 90
2201 后桥传动轴及万向节总成 Rear Axle Drive Shaft And Universal
1108 油门操纵机构随车身模块总成 Throttle Control Mechanism With
Joint Assembly ........................................ 138
The Body Module Assembly .................................94
2205 中桥传动轴及万向节总成 Intermediate Axle Drive Shaft And
1119 中冷器逻辑总成 Intercooler Logic Assembly .............. 96
Universal Joint Assembly ............................... 142
主组：12 排气系 Exhaust System
主组：24 后桥 Rear Axle
1200 排气系统模块 Exhaust System Module ..................... 98
2400 后桥总成 Rear Axle Assembly ........................... 146
主组：13 冷却系 Cooling System
主组：25 中桥 Intermediate Axle
1300 冷却系模块 Cooling System Module. ....................... 102
2500 中桥总成 Intermediate Axle Assembly .................... 155
主组：16 离合器 Clutch
2508 轴间差速操纵管路模块 Intershaft Differential Control
1601 离合器总成及连接件模块 Clutch Assembly And Connection
Pipeline Module ....................................... 164
Module ............................................... 107
主组：28 车架 Frame
1602 离合器管路随车模块 Clutch Pipeline Module ............. 109
2800 车架模块 Frame ........................................ 166
主组：17 变速器 Transmission
2803 前保险杠逻辑总成 Front Bumper Logic Assembly ........... 174
1700 变速器总成 Transmission Assembly ...................... 111
2803 后防护模块 Rear Protection Module ...................... 176
主组：29 汽车悬架 Suspension Assembly 3506 干燥器进气系统模块 Dryer Inlet System Module ............ 228
2900 前悬架模块 Front Suspension Module .................... 178 3511 制动系统用冷凝器模块 Condenser Module For Brake
2900 后悬架模块 Rear Suspension Module ..................... 180 System ................................................ 230
主组：30 前轴 Front Axle 主组：37 电器设备 Electric-Appliance
3000 前轴模块 Front Axle Module. ........................... 185 3701 安全带及差速报警器结构模块 Seat Belt And Structure Module Of
3000 前轴总成 Front Axle Assembly .......................... 190 Differential Alarm .................................... 232
主组：31 车轮及轮毂 Wheel & Hub 3703 蓄电池及紧固件逻辑总成 Battery And Fastening Parts Logic
3100 轮胎模块 Tyre Module .................................. 196 Assembly .............................................. 234
主组：34 转向器 Steering Gear 3703 电源配电盒结构模块 Power Distribution Box Structure
3400 转向操纵及传动模块(车身部分） Steering Control and Module ................................................ 236
Transmission Module (Body Part) ........................ 199
3704 起动开关结构模块 Starting Switch Structure Module. ..... 238
3400 动力转向管路模块 Power Steering Pipeline Module. ........ 205 3711 前照灯结构模块 Headlamp Structure Module ............... 240
3400 转向操纵及传动模块 Steering Control and Transmission 3714 驾驶员阅读灯结构模块 Driver Reading Lamp Structure Module.242
Module ............................................... 208 3714 驾驶室室内灯结构模块 Cab Indoor Lamp Structure Module ... 244
主组：35 制动系 Brake Assembly 3714 卧铺阅读灯结构模块 Berth Reading Lamp Module ........... 246
3500 底盘制动模块 Brake Chassis Module ..................... 210 3714 后灯支架结构模块 Rear Combined Lamp Bracket Structure
3500 前横梁及前轴制动部件模块 Front Cross Member And Front Axle Module ................................................ 248
Brake Parts Module. ................................... 212 3721 电喇叭逻辑总成 Electric Horn Logic Assembly ............ 250
3500 中、后桥制动模块 Middle、Rear Axle Brake Module ........... 214 3722 保险丝盒结构模块 Fuse Box Structure Module .............. 252
3500 贮气筒组合模块 Air Reservoir Module ................... 216 3722 控制器盒底板逻辑总成 Logic Controller Box Plate Assembly..254
3500 驾驶室制动模块 Cab Brake Module ....................... 224 3724 车身电线束结构模块 Body Wire Harness Structure
Module ................................................ 256 3818 驾驶室翻转警报开关逻辑总成 Cargo Tilting Mechanism Alarm
3724 底盘电线束模块 Chassis Wire Harness Module .............. 258 Switch Assembly ....................................... 294
2724 大电流电线及搭铁线逻辑总成 Large Current Line & Bonding strap 3818 车门开关结构模块 Door Switch Structure Module ........... 296
Assembly............................................... 260 主组：39 随车工具及附件 Driver Tools & Accessories Assembly
3724 室内灯电线束逻辑模块 Indoor Lamp Harness Logic Assembly..262 3900 随车工具模块 Attached Tools Module ..................... 298
3724 警灯电线束逻辑总成 Warning Lamp Wire Harness Logic 3921 J5M出国车装饰膜逻辑总成 J5M Export Cars Decorative Film...301
Assembly............................................... 264 主组：50 车身（驾驶室） Body (Cab)
2724 固定线束支架结构模块 Fixed Wire Harness Bracket Module ...266 5000 驾驶室总成-无喷漆及装备 Cab Assembly-Painted, Not
3725 点烟器逻辑总成 Cigarette Lighter Logic Assembly ......... 268 Equipped .............................................. 303
3726 侧转向灯逻辑总成 Steering Lamp Assembly ............... 270 5001 驾驶室后悬置模块(驾驶室) Cab Rear Suspension Module（Cab）..313
3729 倒车蜂鸣器逻辑总成 Reversing Buzzer Logic Assembly. .... 272 5001 驾驶室前悬置模块 Cab Front Suspension Module ........... 315
3731 前示廓灯逻辑总成 Clearance Lamp Assembly .............. 274 5001 驾驶室后悬置模块 Cab Rear Suspension Module ............. 319
3735 组合开关结构模块 Combined Switch Structure Module ....... 276 5001 驾驶室支撑模块 Cab Support Module...................... 323
3735 操纵开关结构模块 Functional Switch Structure Module ...... 278 主组：51 车身（驾驶室）地板 Body (Cab) Floor
3754 电磁阀及熄火气管结构模块(排气制动用) Structure module of 5101 左小门装置模块 Left Small Door Device Module ........... 327
solenoid valve and flameout pipe ........................ 284 5103 一级脚踏板及支撑臂逻辑总成 Level 1 Pedal And Support Arm
3754 电磁阀结构模块 Solenoid Valve Structure Module ........... 286 Assembly .............................................. 329
3763 车辆速度警报灯堵盖逻辑总成 Vehicle Speed Alarm Lamp Plug 5103 左/右翼子板及加强板逻辑总成 Left Or Right Fender And
Cover Assembly ........................................ 290 Reinforcing Plate Logical Assembly ..................... 331
主组：38 仪器仪表 Instrument Device 5103 左/右二级脚踏板及装饰罩逻辑总成 Left\Right Stage Ii Foot

3801 仪表逻辑总成 Instrument Logic Assembly .................. 292 Pedal And Trim Cover Assembly .......................... 333
5103 发动机侧挡板模块 Engine Damper Module ................. 335 5402 侧围内饰件模块 Side Panel Interior Trimming Module ...... 374
5103 第一轴挡泥板模块 1St Shaft Mudguard Module .............. 337 主组：56 后围 Rear Wall
5107 堵塞及盖子模块 Plug and Cover Module .................... 339 5602 后围内饰件模块 Rear Panel Interior Trimming Module ...... 378
5109 门槛护板逻辑总成 Door Frame Guard Logic Assembly ........ 341 主组：57 顶盖 Top Cover
5109 地板防声垫模块 Acoustic Floor Mat Module. ............... 343 5702 顶盖内饰件模块 Top Cover Interior Trimming Module ...... 380
5109 地板地毯模块 Floor Carpet Module. ..................... 345 5704 顶盖侧装饰罩总成 Top Cover Side Decoration Cover Assembly.383
5109 隔热垫模块 Insulating Mat Module. ..................... 347 主组：61 前侧面车门 Front Side Vehicle Door
主组：52 风窗 Windshield 6100 手动车门内饰件装配模块 Manual Door Interior Trimming Assy
5201 前风窗上装饰板及密封条逻辑总成 Front Window Upper Trim Panel Module ................................................ 385
And Sealing Strip Assembly .............................. 349 主组：68 驾驶员座 Driver Seat
5205 刮水器模块 Wiper Module ............................... 351 6800 驾驶员空气座椅模块 Driver Air Seat Module .............. 392
5206 风窗玻璃及密封条逻辑总成 Windshield and Seal Strip 主组：69 前座 Passenger Seat
Assembly............................................... 353 6900 乘客座椅模块 Passenger Seat Module ..................... 394
5207 洗涤器模块 Washer Module .............................. 355 主组：70 卧铺 Sleeper
主组：53 前围 Front Wall 7000 卧铺模块 Sleeper Module ................................ 396
5301 前围护面逻辑总成 Front Wall Outer Panel Assembly ....... 357 主组：79 无线电设备 Radio System
5301 前围立柱内外装饰板逻辑总成 Front Panel Pillar Inside And 7901 收放机结构模块 Cassette Radio Structure Module. ......... 398
Outside Trim Logic Assembly............................. 361 主组：81 空气调节设备 Air Conditioning System
5302 前围外板翻转逻辑总成 Front Panel Tilting Assembly ....... 363 8100 车身空气调节设备模块 Body Air Conditioning Equipment ... 400
5310 仪表板合件模块 Instrument Panel Unit Module ............. 365 8101 底盘空气调节设备模块 Chassis Air Conditioner Module ..... 406
主组：54 侧围 Side Wall 主组：82 附件 Accessory

8201 内后视镜模块 Inner Rearview Mirror Module ............... 409
8202 后视镜模块 Rearview Mirror Module ....................... 411
8203 烟灰盒总成 Ashtray Assy ................................ 413
8204 遮阳板模块 Sun Visor Module............................. 415
8212 安全带逻辑总成 Safety Belt Logic Assembly.............. 417
8219 俯视镜逻辑总成 Overhead Mirror Logic Assembly .......... 419

1000410F-Q241 发动机总成(CA6DL1-28)-传感器组件 Engine Assembly-Sensor Assy
1000410F-Q241 发动机总成(CA6DL1-28)-传感器组件 Engine Assembly-Sensor Assy
序号零件代号 Part NO. 零件名称及规格 Part Name And Standards 版本用量车型 Models
Order Edition Oty
1000410F-Q241 CA6DL1-28发动机总成（带空调，订货号 Engine Assembly A.4 1 Q031F424J4B7L05
1 3810020B29D 传感器-机油压力表 Sensor gauge oil pressure 1
2 3818010A29D 传感器-水温表 Sensor-water temperature gauge 1
1000410F-Q241 发动机总成(CA6DL1-28)-低压油管组件 Engine Assembly-Fuel Line,Low Pressure Assy
1000410F-Q241 发动机总成(CA6DL1-28)-低压油管组件 Engine Assembly-Fuel Line,Low Pressure Assy
Order Edition Oty
1104000-670-0000 低压油管组件 Fuel Line,Low Pressure Assy 1
1 1104030C29D 燃油管总成（一） Fuel pipe assy(A) 1
2 1104040C29D 燃油管总成（二） Fuel pipe assy(B) 1
3 1104060A29D 润滑机油管总成 Lubricant Pipe Assembly 1
4 1104050A29D 喷油器回油管总成 Oil Line 1
5 X340310X16 铜垫圈 10X16 Copper Washer 4
6 1104061-29D 铰接螺栓 Hingle Bolt 1
8 X3451.1M14X1.5 铰接螺栓 M14X1.5 Articulation Bolt 1
1000410F-Q241 发动机总成(CA6DL1-28)-电气设备组件 Engine Assembly- Electrical Equipment Assembly
1000410F-Q241 发动机总成(CA6DL1-28)-电气设备组件 Engine Assembly- Electrical Equipment Assembly
Order Edition Oty
3724000-671-2382 电气设备组件 Electrical Equipment Assembly 1
1104041-470-1A495JA 尼龙扎带-燃油管 Hexagon nut,style Ⅰ 6
3724026-470-0000 发动机线束支架3 Wire Harness Bracket 3 2
3724026-600-0263 发动机线束支架 Engine Wiring Harness Bracket 3
3724030-671-2382 发动机电线束总成 Engine Wiring Harness Assy 1
1000410F-Q241 发动机总成(CA6DL1-28)-发电机组件 Engine Assembly-Generator Assy
1000410F-Q241 发动机总成(CA6DL1-28)-发电机组件 Engine Assembly-Generator Assy
Order Edition Oty
3701000-624-4080W 发电机组件 Generator Assy 1
1 Q1841235F36 六角法兰面螺栓 Hexagon Flange Bolt 1
2 3701323-600-0263 调节螺栓-发电机 Adjusting Bolt 1
3 3701322A600-0263 发电机支架 Bracket 1
5 3701013-600-0263A 发电机皮带 Generator Belt 2
6 3701010-600-0263 交流发电机总成 Alternator Assembly 1
7 Q32012F36 六角法兰面螺母 Hexagon Flange Nut 2
8 3701324-600-0263 发电机限位块 Locating Block -Generator 1
9 Q150B10140F36 六角头螺栓 Hexagon Head Bolt 1
10 Q1821055TF2 六角法兰面螺栓 Hexagon Flange Bolt 3
1000410F-Q241 发动机总成(CA6DL1-28)-发动机制动组件 Engine Assembly- Engine Braking Assembly
1000410F-Q241 发动机总成(CA6DL1-28)-发动机制动组件 Engine Assembly- Engine Braking Assembly
Order Edition Oty
1024000-600-000Z 发动机制动组件 Engine Braking Assembly 1
1024010A600-000Z 发动机制动总成 Engine Braking Assembly 2
1024021C600-000Z 发动机制动线束 Engine Braking Wiring Harness 1
1024022A600-000Z 发动机制动线束支架 Linbracket -Engine Braking Wiring Harness 1
1024023-600-000Z 空心管 Pipe 6
3724031-630-000Y 高温扎带-制动线束 Cable Ties 3
Q1841065F36 六角法兰面螺栓 Hexagon Flange Bolt 4
1000410F-Q241 发动机总成(CA6DL1-28)-放水开关组件 Engine Assembly- Water Drain Cock Assy
1000410F-Q241 发动机总成(CA6DL1-28)-放水开关组件 Engine Assembly- Water Drain Cock Assy
Order Edition Oty
1305000-29D 放水开关组件 Water Drain Cock Assy 1
1305010-29D 放水开关 Water Drain Switch 1
1305013A29D 放水开关手柄 Drain Cock Handle 1
1305031-29D 支架-放水开关 Bracket 1
Q5003225F36 开口销 Split Pin 1
1000410F-Q241 发动机总成(CA6DL1-28)-风扇组件 Engine Assembly-Fan Assy
1000410F-Q241 发动机总成(CA6DL1-28)-风扇组件 Engine Assembly-Fan Assy
Order Edition Oty
1308000-600-2071W 风扇组件 Fan Component Element
1 1308040-29DW 风扇支架总成 Fan Bracket Assembly 1
6 1308052-671-2382 风扇传动轴 Fan Transmission Shaft 1
7 1308051-600-0263 风扇皮带轮 Pulley, Fan 1
8 Q33408F36 1型全金属六角锁紧螺母 Self-Locking Nut 6
9 1308053-600-401P 双头螺柱 Stud, Double End Plain 4
10 Q1821065F36 六角法兰面螺栓-细杆 Hexagon Flange Bolt- Fine Thread 4
11 1308032-29DA 风扇皮带 Fan Belt 2
1308010-420-203BX 风扇及风扇离合器总成 Fan And Fan Clutch Harness Assembly 1
Q32010F36 六角法兰面螺母 Hexagon Flange Nut 4
1000410F-Q241 发动机总成(CA6DL1-28)-高压油管组件 Engine Assembly-High Pressure Line Assy
1000410F-Q241 发动机总成(CA6DL1-28)-高压油管组件 Engine Assembly-High Pressure Line Assy
Order Edition Oty
1 1129DDDB29DJ 高压油管组总成 High pressure line 1
7 1129065A29DJ 高压油管管夹总成1 High pressure pipe clamp assy 1 1
8 1129075A29DJ 高压油管管夹总成2 High pressure pipe clamp assy 2 1
9 1129085-29DJ 高压油管管夹总成3 High pressure pipe clamp assy 3 2
10 1129095-29DJ 高压油管管夹总成4 High pressure pipe clamp assy 4 1
11 Q1840812F36 六角法兰面螺栓 Bolt with flange 2
1129090-29DJ 高压油管管夹总成5 High pressure pipe clamp assy 5 1
1000410F-Q241 发动机总成(CA6DL1-28)-活塞连杆组件 Engine Assembly-Piston and Connecting Rod Assy
1000410F-Q241 发动机总成(CA6DL1-28)-活塞连杆组件 Engine Assembly-Piston and Connecting Rod Assy
Order Edition Oty
1004000-670-0000W 活塞连杆组件 Piston And Connecting Rod Assy 6
1 1004BBBA29DA 活塞环 Ring 6
2 1004011-670-0000H 活塞 Piston-Eng 6
3 1004018-29D 活塞销 Pin, Piston 6
4 1004020-670-0000HY 胀断连杆总成 Connecting rod assy 6
5 1004023-29DBZ 连杆螺栓 Conrod Bolt 12
6 1004024-670-0000H 连杆小头衬套 Bush 6
7 L6000000-PJLW 连杆轴瓦 Connecting Rod Bearing 1
8 G893.145 挡圈45 Circlip 12
1000410F-Q241 发动机总成(CA6DL1-28)-机油冷却器组件 Engine Assembly-Oil Cooler Assy
Order Edition Oty
1013000-672-2074W 机油冷却器组件 Oil Cooler Assembly 1
1 1013026-29D 安全阀螺塞 Safety Valve Plug 1
3 1013028-29D 安全阀弹簧 Safety Valve Spring 1
4 1013027-29D 阀芯-机油冷却器旁通阀 Valve Cartridge 1
6 1013023-29D 调压阀阀芯 Valve Cartridge -Pressure-Adjusting Valve 1
7 1013024-29D 调压阀弹簧 Pressure-Adjusting Valve Spring 1
8 1013033-29D 螺栓-机油冷却器体 Bolt 7
9 Q1290870 双头螺柱 Stud, Double End Plain 2
10 Q1290840 双头螺柱 Stud, Double End Plain 1
11 Q734B800180 O形橡胶密封圈 Rubber sealing O ring 4
14 1013022-29D 机油滤清器连接螺母 Joint Nut 2
21 1013010-29D 机油冷却器总成 Oil Cooler Assy 1
23 Q184B0825 六角法兰面螺栓 Hexagon Flange Bolt 4
26 1013021-29D 机油冷却器盖板 Oil Cooler Cover 1
29 Q40308 弹簧垫圈 Spring Washer 3
5 1013038-29D 内六角螺塞 M24x1.5 Plug 2
13 1012010-29D 旋装式机油滤清器滤芯 Oil Filter Cartridge 2
17 1013603-29D O形橡胶密封圈 Rubber sealing O ring 3
19 1013037C29D 垫片-连接水管 Gasket 1
20 1013031B29D 连接水管 Connecting Pipe 1
22 1013011B36D 机油冷却器体 Oil coo1er body 1
25 1013036B29D 垫片-连接水管 Shim 1
28 Q341B08F36 I型六角螺母－细牙 Hexagon Nut 3
Order Edition Oty
30 Q40108F36 平垫圈 Plain Washer 3 GPCA1250P7K2L7T1YA80-
31 Q617B14F36 六角头螺塞 Hexagon-headed plug 1 Q241-1DP-#5
1013039-29D 内六角螺塞 M27x1.5 Plug 3
X340314X20 铜垫圈 14X20 Copper Washer 1
X345524PB 组合垫圈 Combination Washer 1
1000410F-Q241 发动机总成(CA6DL1-28)-机油收集器组件 Engine Assembly-Oil Suction Assy
1000410F-Q241 发动机总成(CA6DL1-28)-机油收集器组件 Engine Assembly-Oil Suction Assy
Order Edition Oty
1010000-600-3025 机油收集器组件 Oil Collector Assembly 1
1 1010010C600-3025 机油收集器总成 Oil Collector Assembly 1
1010023-53D 吸油管衬套 Oil pipe bush 1
1000410F-Q241 发动机总成(CA6DL1-28)-进排气管组件 Engine Assembly-Intake and Exhaust Manifold Assy
1000410F-Q241 发动机总成(CA6DL1-28)-进排气管组件 Engine Assembly-Intake and Exhaust Manifold Assy
Order Edition Oty
1008000-671-2072W 进排气管组件 Air Intake\Exhaust Pipe Assembly 1
1 1008041F600-0263 排气歧管(一) Exhaust manifold，front(一) 2
2 1008046A29D 排气管紧固螺栓 Bolt 12
3 1008043-29DJ 排气管密封环 Laminated Sealing Ring 8
4 1008042E600-0263 排气歧管(二) Exhaust manifold，rear(二) 1
5 1008047-29DB 双头螺柱-增压器 Stud 4
6 1008044-29DX 排气管密封垫片 Seal Washer 6
8 1008023A671-0382 进气接管 Intake Connecting Pipe 1
9 1008019-29D 垫片-进气接管 Gasket 3
11 1008013-29D 垫片-进气管右盖板 Gasket 1
12 1008012-29D 进气管右盖板 Right Plate -Intake Pipe 1
14 1008018-29D 进气管后盖板 Rear Plate -Intake Pipe 1
17 1008048-29D 套管-排气管螺栓 Drivepipe-Exhaust shaft bolt 12
1008051A671-0382 中冷器进气管支架 Intake Pipe Bracket 1
1008061A621-0000 排气管隔热板 Heat Insulating Board 1
1008112-671-2382 出气管-压气机 Outlet Pipe 1
1008113-671-2382 卡箍 Clamp 1
1008114-671-2382 增压器连接胶管 Connecting Rubber Hose 1
Q1200860F36 双头螺柱 Stud, Double End Plain 1
T6767506 强力软管夹箍 Reinforced Hose Clamp 1
T6768906 强力软管夹箍 Reinforced Hose Clamp 1
1000410F-Q241 发动机总成(CA6DL1-28)-空气力口热器组件 Engine Assembly-Air Heater Assy
1000410F-Q241 发动机总成(CA6DL1-28)-空气力口热器组件 Engine Assembly-Air Heater Assy
Order Edition Oty
1 3750010A29D 空气加热器总成 Air heater assy 1
2 3750001-29D 空气加热器搭铁线总成 Connecting wire 1
1000410F-Q241 发动机总成(CA6DL1-28)-空气压缩机组件 Engine Assembly-Air Compressor Assy
1000410F-Q241 发动机总成(CA6DL1-28)-空气压缩机组件 Engine Assembly-Air Compressor Assy
Order Edition Oty
3509000-671-2010 空气压缩机组件 Air Compressor Module 1
1 3509050-29D 机油进油管总成-空压泵 Lubricating oil inlet pipe assembly-air compressor pump 1
4 X3451.1M14X1.5 铰接螺栓 M14X1.5 Articulation Bolt 2
7 3509030A671-0382 空压泵进水管总成 Water inlet pipe assembly of the air compressor pump 1
9 Q1841035TF2 六角法兰面螺栓 Hexagon Flange Bolt 3
10 3509010B671-2010 空气压缩机总成 Air Compressor Assy 1
11 1002063-29D O型密封圈-PTO盖板 O Seal Ring 1
12 3509020A671-0382 空压泵回水管总成 Pneumatic Pump Water Return Pipe Assy 1
13 3509041A671-0382 进气胶管-空气压缩机 Air Inlet Rubber Pipe 1
14 Q67638F36 蜗杆传动式软管环箍 Worm drive type hose clamp 2
3509034-671-0382 铰接螺栓 Hingle Bolt 2
1000410F-Q241 发动机总成(CA6DL1-28)-空调压缩机组件 Engine Assembly- Air Compressor Assembly
1000410F-Q241 发动机总成(CA6DL1-28)-空调压缩机组件 Engine Assembly- Air Compressor Assembly
Order Edition Oty
8104000-600-0367 空调压缩机组件 Air Compressor Assembly 1
8104010B600-0367 空调压缩机总成 Air Compressor Assembly 1
8104011-600-0263 空调支架 Air Conditioning Bracket 1
8104012-600-0263 螺栓-空调压缩机 Bolt 2
1000410F-Q241 发动机总成(CA6DL1-28)-喷油泵组件 Engine Assembly-Fuel Injection Pump Assy
Order Edition Oty
1111000-672-2072W 喷油泵组件 Fuel Injection Pump Assy 1
1 1111010-672-0000W 喷油泵总成 Fuel injection pump assy 1
2 1111101-29D 喷油泵支架-喷油泵 Fuel Injection Pump Bracket 1
5 1111102-29D 喷油泵支架-气缸体 Fuel Injection Pump Bracket 1
8 1111228A29D 喷油泵中间法兰 Intermediate Flange 1
9 Q1201030F36 双头螺柱 Stud, Double End Plain 4
11 1111216-29D 喷油泵传动齿轮 Injection pump gear 1
13 1111011-29D O型密封圈-喷油泵 O-ring, fuel injector pump 1
14 Q32010F36 六角法兰面螺母 Hexagon Flange Nut 8
1108401A600-0367 油门拉线支架 Throttle Cable Bracket 1
1111055-29D 增压补偿器管总成 Supercharger Compensator Linking Pipe 1
1111069-29D 铰接螺栓 Hingle Bolt 2
1108060-600-0367 停油电磁阀支架总成 Stop Oil Solenoid Valve Bracket Assy 1
1108064-600-0367 停油电磁阀支架垫圈 Stop Oil Solenoid Valve Bracket Washer 1
1108065-600-0367 停油支架总成 Stop Oil Bracket 1
1108070-600-0367 油门操纵手柄总成 Throttle Control Handle Assembly 1
1108080-600-0367 回位弹簧支架总成 Retraction Spring Bracket Assy 1
1108083-600-3000 油门弹簧 Throttle Spring 2
1108084-600-3000 橡胶套-油门弹簧 Rubber Sleeve 2
3753010B600-0263 气动断油器总成 Pneumatic Cut-off Device Assy 1
Q1420616F36 六角头螺栓及弹簧垫圈组合件 Hexagon Head Bolt And Washer Unit 2
Q1460825F36 六角头螺栓弹簧垫圈及平垫圈组合件 Hexagon Head Bolt And Washer Unit 1
Q150B0620TF2 六角头螺栓 Hexagon Head Bolt 2
Order Edition Oty
Q150B0625TF2 六角头螺栓 Hexagon Head Bolt 4 Q031F424J4B7L05
Q218B0640TF2 内六角圆柱头螺钉 Hexagon socket head cap screw 1
Q340B06T13F2 1型六角螺母 Heavy Hexagon 1
Q40106F36 平垫圈 Plain Washer 1
Q40306 弹簧垫圈 Spring Washer 5
Q50106F36 锁销 Lock Pin 1
1000410F-Q241 发动机总成(CA6DL1-28)-喷油器组件(二) Engine Assembly-Fuel Injector Assy(Ⅱ)
1000410F-Q241 发动机总成(CA6DL1-28)-喷油器组件(二) Engine Assembly-Fuel Injector Assy(Ⅱ)
Order Edition Oty
1 1112030A29DW 高压油管接管总成 High pressure connector to the nozzle 6
2 1112031-29D 中间压紧螺母-高压油管接管 Nut-HHp clamping 6
1000410F-Q241 发动机总成(CA6DL1-28)-喷油器组件(一) Engine Assembly-Fuel Injector Assy(I)
1000410F-Q241 发动机总成(CA6DL1-28)-喷油器组件(一) Engine Assembly-Fuel Injector Assy(I)
Order Edition Oty
1112000-672-2074W 喷油器组件 Injector Assy 6
1 1112013K29D 喷油器压板螺栓 Injector Pressure Plate Bolt 6
2 G8498 球面垫圈 8 Balling Washer 6
3 1112011-29D 喷油器压板 Injector pressing plate 6
4 1112010-670-0000 喷油器总成 Injector 1
5 1112307-29D 喷油器调整垫片 Injector Adjustment Shims 6
1000410F-Q241 发动机总成(CA6DL1-28)-起动机组件 Engine Assembly-Starter Assy
1000410F-Q241 发动机总成(CA6DL1-28)-起动机组件 Engine Assembly-Starter Assy
Order Edition Oty
1 3708010A29DJ 起动机总成 Starter assy 1
1000410F-Q241 发动机总成(CA6DL1-28)-气缸盖罩总成 Engine Assembly-Cylinder Head Cover Assy
1000410F-Q241 发动机总成(CA6DL1-28)-气缸盖罩总成 Engine Assembly-Cylinder Head Cover Assy
Order Edition Oty
1003020-36DR 气缸盖垫片总成 Cylinder head gasket assembly 1
1 1003031E600-000Z 气缸盖罩 Cylinder Head Cover 1
2 1003036-29D 密封圈 Seal Ring 1
3 1003037-29D 罩盖 Clamp-Hose-2-Cylinderhead Cover 1
4 1003035-600-000Z 挡油板总成 Resist Oil Plate 1
1000410F-Q241 发动机总成(CA6DL1-28)-气缸盖总成 Engine Assembly-Cylinder Head Assy
1000410F-Q241 发动机总成(CA6DL1-28)-气缸盖总成 Engine Assembly-Cylinder Head Assy
Order Edition Oty
1003000-671-2072W 气缸盖组件 Cylinder Head Assy
1 L6722074AW-PJGG 气缸盖总成 Cylinder Head Assy 1
2 Q72240F36 碗型塞片 Bowl Plug Plate 1
3 1003016A29D 喷油器铜套 Injector Copper Sleeve 6
5 Q72222F36 碗形塞片 Cup Plug Sheet 6
6 Q72226F36 碗形塞片 Cup Plug Sheet 16
7 1003014-29DFP 气门导管 Valve guide 24
8 1003013-36DA 排气门座 Exhaust Valve Seat 12
9 1003012-36DA 进气门座 Intake Valve Seat 12
1003018C29D O形圈 Plug, O Ring 6
1000410F-Q241 发动机总成(CA6DL1-28)-气缸盖组件 Engine Assembly-Cylinder Head Assy
1000410F-Q241 发动机总成(CA6DL1-28)-气缸盖组件 Engine Assembly-Cylinder Head Assy
Order Edition Oty
1 Q1860840F36 六角法兰面螺栓－加大系列 Hexagon Flange Bolt 1
5 1003046-36DB 螺栓-气缸盖 Bolt, cylinder head 26
6 1003031E600-000Z 气缸盖罩 Cylinder Head Cover 1
7 1003041A600-000ZH 垫密条-上气缸盖罩盖 Seal Strip 1
8 L6722074AW-PJGG 气缸盖总成 Cylinder Head Assy 1
9 1003020-36DR 气缸盖垫片总成 Cylinder head gasket assembly 1
10 1003057-29D 螺栓-前吊耳 Bolt 1
12 1003058A29D 前吊耳-气缸盖 Front lifting eye-cylinder 1
13 Q340B08F36 Ⅰ型六角螺母 Nut 1
14 1003059-29D 后吊耳-气缸盖 Rear Hanger-Cylinder Head 1
15 1003105-600-0367 减震螺钉总成 Damping Spring Screw 1
16 1003061C600-000Z 气缸盖罩下框架 Cylinder Head Cover 1
1003047-600-000ZX 气缸盖罩垫片 Washer 1
1003066A81D 减振弹簧 Damping Spring 17
1003068-600-000Z 罩盖螺栓 Cover bolt 17
1000410F-Q241 发动机总成(CA6DL1-28)-气缸体部件 Engine Assembly-Cylinder Block Assy
1000410F-Q241 发动机总成(CA6DL1-28)-气缸体部件 Engine Assembly-Cylinder Block Assy
Order Edition Oty
1002000-600-2071W 气缸体组件 Cylinder Block Assy
1 L6000000-PJJT 气缸体总成 Crankcase Complete Assembly 1
2 1002023-29D 闷头－气缸体 Plug 2
3 1002022A29D 封油套－气缸体 Seal, Oil 1
4 Q72240F36 碗型塞片 Bowl Plug Plate 5
5 1002026-29D 六角头螺塞 Hexagon-headed plug 2
6 X340327X38 铜垫圈27Ｘ38 Copper Washer 2
7 Q5210826 圆柱销 Cylindrical Pin 2
8 1002021-29D 起重螺栓 Lifting bolt 2
10 1002013K29D 主轴承螺栓 Main Bearing Bolt 14
13 1006024B29DH 前凸轮轴衬套 Front CamShaft Bushing 1
14 1006028B29DH 中间凸轮轴衬套 Middle CamShaft Bushing 5
16 1006029B29DH 后凸轮轴衬套 Camshaft Sleeve(Rear) 1
1002086-29D 压板 Pressure Plate 1
1002087A29D 密封塞 Seal Plug 1
Q1860816F36 六角法兰面螺栓－加大系列 Hexagon Flange Bolt 1
Q72224F36 碗形塞片 Cup Plug Sheet 1
1000410F-Q241 发动机总成(CA6DL1-28)-气缸体组件 Engine Assembly-Cylinder Block Assy
Order Edition Oty
1 1002056A29D 垫片-曲轴前油封座 Gasket 1
3、5 L6000000-PJZW 主轴瓦 Main Bearing 1
4 1002200-29DH 活塞冷却喷嘴部件 Cooling Nozzle Component 6
6 L6000000-PJJT 气缸体总成 Crankcase Complete Assembly 1
7 1002081A621-JF10 梯形钢板 Ladder-Shaped Reinforced Plate 1
8 1002067-29D 盖板-飞轮壳 Cover - Flywheel Housing 1
11 1002043A29D 双头螺柱-飞轮壳 Stud, Double End Plain 10
11 1002084B202-2030 双头螺柱 Stud, Double End Plain 2
12 1002016B29DH 气缸套 Cylinder Sleeve 6
13 1002017-29D O型橡胶密封圈-气缸套 Rubber O-Ring Seal 12
14 1002092-29D 盖板-凸轮腔 Plate 3
15 1002036D29D 止推片 Main Bearing Axial 4
17 1002076-36D 齿轮室罩盖盖板 Plate of gear casing cover 1
19 1002061-602-2010 齿轮室罩盖-飞轮壳 Gear Housing Shroud 1
22 1017023-29D 盖板 Plate 1
24 1002068B29D 飞轮壳橡胶堵塞 Rubber plug for flywheel casing 1
25 1002066-29D 指针－飞轮壳 Index 1
26 Q2140606F36 十字槽盘头螺钉 Cross Recessed Pan Head Screw 2
1002096-29D 垫片-凸轮腔盖板 Gasket 3
1118094-29DZ 垫片-增压器回油管 Gasket for oil return pipe of turbocharger 1
Order Edition Oty
Q1840612F36 六角法兰面螺栓 Hexagon Flange Bolt 2 GPCA1250P7K2L7T1YA80-
Q1840820F36 六角法兰面螺栓 Hexagon Flange Bolt 2 Q241-1DP-#5
1000410F-Q241 发动机总成(CA6DL1-28)-气门机构组件 Engine Assembly-Valve Mechanism Assy
1000410F-Q241 发动机总成(CA6DL1-28)-气门机构组件 Engine Assembly-Valve Mechanism Assy
Order Edition Oty
1007000-671-2072W 气门机构组件 Valve Mechanism Assy 1
1 1007100-672-2074W 摇臂机构总成 Rocker Arm Mechanism Assembly 1
3 1007050J29D 推杆总成 Push Rod 12
4 1007061-29D 挺柱 Tappet 12
5 1007012B29DA 横臂 Cross Arm 6
6 1007028-29D 气门锁块 Valve split collet 48
7 1007024-29D 气门弹簧座 Retainer, Valve Spring 24
8 1007022-29D 排气门弹簧 Valve Exhaust Spring 12
9 1007035A29D 气门导管密封圈总成 Valve Tube Sealing Assembly 24
11 1007016B36DC 排气门 Valve Exhaust 12
12 1007021-29D 进气门弹簧 Intake Valve Spring 12
13 1007011B36DC 进气门 Intake Valve 12
1007015A600-000Z 排气门横臂总成 Valve Exhaust Cross Arm Assembly 6
1007110-672-2074W 进气门摇臂总成 Valve Intake Cross Arm Assembly 6
1007112-29D 调整螺栓-气门摇臂 Adjusting Bolt -Valve Rocker 12
1007113A29D 锁紧螺母-气门调整螺栓 Lock Nut 12
1007120-672-2074W 排气门摇臂总成 Rocker Arm Assembly 6
1000410F-Q241 发动机总成(CA6DL1-28)-曲轴飞轮总成(二) Engine Assembly-Crankshaft and Flywheel Assy(Ⅱ)
1000410F-Q241 发动机总成(CA6DL1-28)-曲轴飞轮总成(二) Engine Assembly-Crankshaft and Flywheel Assy(Ⅱ)
Order Edition Oty
1 1005122-29D 齿环 Ring gear l
2 1005120-600-0263 飞轮附带齿环总成 Flywheel With Ring gear Assembly 1
3 1005060-29DN 后油封 Rear oil sealing 1
4 1005031-29D 定位销-主动齿轮及飞轮 Pin—driving gear and flywheel 1
5 G27860305 球轴承60305-2RS Ro11ing bearing 60305-2RS 1
6 1005071K29D 飞轮螺栓 Bolt-flywheel 10
1000410F-Q241 发动机总成(CA6DL1-28)-曲轴飞轮总成(一) Engine Assembly-Crankshaft and Flywheel Assy(I)
1000410F-Q241 发动机总成(CA6DL1-28)-曲轴飞轮总成(一) Engine Assembly-Crankshaft and Flywheel Assy(I)
Order Edition Oty
1005000-600-2071W 曲轴及飞轮组件 Crankshaft And Flywheel Assy 1
1 1005048K29D 减振器螺栓 Shock Absorber Bolt 6
3 1005046A29D 皮带轮-曲轴 Pulley 1
4 1005190-29DY 硅油减振器 Silicone oil damper 1
5 1005400-29DF 前油封及座总成 Front Oil Seal And Seat Assy 1
6 1005015-29D 曲轴附带机油泵驱动齿轮总成 Crankshaft With Lubricating Pump Driving Gear-Crankshaft Assy 1
7 1005039-29D 机油泵驱动齿轮-曲轴 Lubricating Pump Driving Gear-Crankshaft 1
8 1005037A29D 曲轴正时齿轮 Crankshaft Timing Gear 1
1000410F-Q241 发动机总成(CA6DL1-28)-曲轴箱通风组件 Engine Assembly-Crankshaft Ventilation Assy
1000410F-Q241 发动机总成(CA6DL1-28)-曲轴箱通风组件 Engine Assembly-Crankshaft Ventilation Assy
Order Edition Oty
1014000-602-206DATZ 曲轴箱通风组件 Crankshaft Ventilation D43Assembly 1
1 1014036-29D 密封圈-油气分离器支架 Seal Ring 1
2 1014021-600-000Z 支架-油气分离器 Bracket 1
3 1014037-29D 螺栓-油气分离器支架 Bolt 3
4 1014014A600-0367 密封圈-油气分离器 Seal Ring 1
6 1014010A600-0367 油气分离器总成 Oil-Gas Seperator Assembly 1
7 1014022-600-000Z 回油管-油气分离器到油底壳 Fuel Return Pipe 1
1014023-600-0367 夹子-回油管 Clip 1
1014024B600-0367 螺栓套 Bolt Sleeve 1
1014025-671-0382 通气管总成 Breather Pipe Assy 1
1014029A600-000Z 连接管-通气管总成 Connecting Pipe 1
1014038-600-0367 螺栓-油气分离器 Bolt 2
Q40108F36 平垫圈 Plain Washer 1
Q676B25F36 夹箍 Clamp 2
Q676B29F36 蜗杆传动式软管环箍 Worm drive type hose clamp 2
T67417246 塑料箍带 Plastic Fastening Strap 2
1000410F-Q241 发动机总成(CA6DL1-28)-燃油滤清器组件 Engine Assembly-Fuel Filter Assy
1000410F-Q241 发动机总成(CA6DL1-28)-燃油滤清器组件 Engine Assembly-Fuel Filter Assy
Order Edition Oty
1117000-611-2436W 燃油滤清器组件 Fuel Filter Assembly 1
1 1117010A29DB 旋装式燃油滤清器总成 Fuel Filter Assembly 1
1117050A29DB 燃油粗滤芯总成 Fuel Unrefine Filter Cartridge Assembly 1
1117060A29DB 燃油精滤芯总成 Refined Oil Filter Cartridge Assembly 1
4 1117015C29D 支架总成-燃油滤清器总成 Bracket Assy 1
1000410F-Q241 发动机总成(CA6DL1-28)-水泵组件 Engine Assembly-Water Pump Assy
1000410F-Q241 发动机总成(CA6DL1-28)-水泵组件 Engine Assembly-Water Pump Assy
Order Edition Oty
1307000-621-2070 水泵组件 Water Pump Assy 1
1 1307010-621-0000H 水泵总成 Water Pump Assembly 1
3 1307019-29D 螺栓-水泵 Bolt 3
1307071-671-2382 后回水管上连接支架 Upper Connecting Bracket -Rear Returning Tube 1
1307072A600-0263 后回水管下连接支架 Lower Connecting Bracket -Rear Returning Tube 1
1307073-600-0263 前回水管后连接支架 Rear Connecting Bracket -Front Returning Tube 1
1307074A600-0263 前回水管前连接支架 Front Connecting Bracket -Front Returning Tube 1
1307081-670-0000 六角头螺塞 Hexagon-headed plug 1
1307082-670-0000 六角头螺塞 Hexagon-headed plug 1
1000410F-Q241 发动机总成(CA6DL1-28)-梯形框架总成 Engine Assembly-Ladder Frame Assy
1000410F-Q241 发动机总成(CA6DL1-28)-梯形框架总成 Engine Assembly-Ladder Frame Assy
Order Edition Oty
1 1002081A621-JF10 梯形框架 Ladder frame 1
2 Q72226 碗型塞片 Bowl-shaped plug plate 1
3 Q1821060 六角法兰面螺栓—细杆 Bolt with flange-thin 19
4 Q1821065 六角法兰面螺栓—细杆 Bolt with flange-thin 6
1000410F-Q241 发动机总成(CA6DL1-28)-调温器组件 Engine Assembly-Thermostat Assy
1000410F-Q241 发动机总成(CA6DL1-28)-调温器组件 Engine Assembly-Thermostat Assy
Order Edition Oty
1306000-671-2382 调温器组件 Thermostat Assembly 1
2 1306023-29D 中间接管 Middle Connecting Pipe 1
3 1306024-29D 罩壳-中间接管 Cover Housing 1
4 1306029-29D 螺栓-调温器 Bolt 1
5 Q618B03F36 六角头锥形螺塞 Hexagon Tapered Plug 2
6 1306021B29D 调温器体 Thermostat Body 1
7 1306026A29D 垫片 Gasket 1
8 1306013-600-070A 调温器盖 Thermostat Cover 1
10 1306011A29D 密封环-调温器 Sealing ring of thermostat 2
11 1306010-29D 蜡式调温器总成 Thermostat Assembly 2
1306029-671-0382 螺栓-调温器 Bolt 3
Q617B14F36 六角头螺塞 Hexagon-headed plug 1
1000410F-Q241 发动机总成(CA6DL1-28)-凸轮轴及正时齿轮组件(二) Engine Assembly-Camshaft and Timing Gear Assy(Ⅱ)
1000410F-Q241 发动机总成(CA6DL1-28)-凸轮轴及正时齿轮组件(二) Engine Assembly-Camshaft and Timing Gear Assy(Ⅱ)
Order Edition Oty
1 Q1821045TF2 六角法兰面螺栓-细杆 Hexagon Flange Bolt- Fine Thread 2
2 1006053-36D 正时中间齿轮轴 Timing Middle-Gear Shaft 1
3 1006060-29D 正时中间齿轮总成 Timing intermedia gear assembly 1
4 1006021-29D 正时齿轮-凸轮轴 Timing gear--camshaft 1
5 1006052-36D 止推片-正时中间叠齿轮 Main Bearing Axial 1
6 1006056-36D 螺栓-正时中间叠齿轮 Bolt 4
7 1006051-36D 正时中间叠齿轮轴 Timing Middle-Gear Shaft 1
8 1006040D29D 正时中间叠齿轮总成 Timing Middle-Gear Shaft assembly 1
9 1006017K29D 紧固螺栓-凸轮轴正时齿轮 Bolt-camshaft timing gear 1
10 G70M10X35-10.9 内六角圆柱螺钉M10Ｘ35-10.9级 Screw, Socket Head Cap 1
11 1006054-36D 止推片-正时中间齿轮 Main Bearing Axial 1
1006044D29D 衬套-正时中间叠齿轮 Bushing 1
1006047-29D 从动齿轮-空压泵 Driven gear-air compress pump 1
1006058-611-0431 垫片-正时中间叠齿轮 Gasket 1
1006062-29D 衬套-正时中间齿轮 Bushing 1
Q5280406 弹性圆柱销 Elastic Cylindrical Pin 4
1000410F-Q241 发动机总成(CA6DL1-28)-凸轮轴及正时齿轮组件(一) Engine Assembly-Camshaft and Timing Gear Assy(I)
1000410F-Q241 发动机总成(CA6DL1-28)-凸轮轴及正时齿轮组件(一) Engine Assembly-Camshaft and Timing Gear Assy(I)
Order Edition Oty
1006000-672-2074W 凸轮轴及正时齿轮组件 Camshaft and Timing Gear Assy 1
1 1006030-29D 堵盖总成-凸轮轴衬套 Plug Cover Assy-Cam Shaft Bushing 1
2 1006016-29D 凸轮轴 Camshaft 1
5 1006018-29D 凸轮轴止推片 Support 1
6 1006033-29D 堵盖挡板 Baffle -Plug Cover 1
1000410F-Q241 发动机总成(CA6DL1-28)-涡轮增压器组件 Engine Assembly-Turbocharger Assy
1000410F-Q241 发动机总成(CA6DL1-28)-涡轮增压器组件 Engine Assembly-Turbocharger Assy
Order Edition Oty
1118000-600-2071W 涡轮增压器组件 Turbocharger Assembly 1
1 1118010-670-0000H 涡轮增压器总成 Kit Turbocharger 1
2 1118060E600-0263 增压器进油管总成 Oil-in pipe assembly turbocharger 1
3 1118080A670-0000 增压器回油管总成 Oil flow pipe turbocharger 1
4 1118091A29DR 垫片-增压器 Gasket-turbocharger 1
5 1118094-29DZ 垫片-增压器回油管 Gasket for oil return pipe of turbocharger 2
8 X345514PB 组合垫圈 Combination Washer 3
9 1118073-29D 螺母-增压器 Nut -Supercharger 4
10 Q1840816 六角法兰面螺栓 Hexagon Flange Bolt 6
11 1118096A29D 铰接螺栓 Hingle Bolt 1
1017022-29D 垫片-离心式机油滤清器 Gasket-Spin-on filter assembly 1
1118085-700-0000 增压器回油管座 Supercharger Oil Return Pipe Seat 1
Q72210F36 碗形塞片 Cup Plug Sheet 1
1000410F-Q241 发动机总成(CA6DL1-28)-悬置总成 Engine Assembly-Suspension Assy
1000410F-Q241 发动机总成(CA6DL1-28)-悬置总成 Engine Assembly-Suspension Assy
Order Edition Oty
1 1001032A600-070A 右前悬置支架 RiShtfrontsuspensionbracket 1
2 1001031A602-2010 左前悬置支架 Left frontsuspensionbracket 1
3 Q1821250F36 六角法兰面螺栓 Boltwithflange 2
4 1001033-29D 螺栓-前悬置支架 Bolt-frontsuspensionbracket 1
1001034-29D 螺栓-前悬置支架(M12x135) Bolt-frontsuspensionbracket 1
5 Q1821260F36 六角法兰面螺栓 Boltwithflange 4
1000410F-Q241 发动机总成(CA6DL1-28)-油底壳总成 Engine Assembly-Oil Sump Assy
1000410F-Q241 发动机总成(CA6DL1-28)-油底壳总成 Engine Assembly-Oil Sump Assy
Order Edition Oty
1009000-672-2074W 油底壳组件 Oil Pan Assy 1
1 1009010A671-207A 油底壳总成 Oil Pan Assy 1
1009031-29D 油底壳密封垫片 Seal Gasket，Oil Pan 1
3
1009031-29DZ 油底壳密封垫片 Seal Gasket，Oil Pan 1
4 1009024-29D 垫板-油底壳 Backing Board 4
5 1009026-29D 中间垫板-油底壳 Middle gasket-Oil sump 2
6 1009060A29D 机油标尺管总成 Tube 1
7 1009053A29D 机油标尺管密封圈 Sealing ring of oil disptick pipe 1
9 1009070B671-207A 机油标尺总成 Dipstick 1
1009022A29D 六角头放油螺塞 Oil Drain Plug 1
Q72320a 密封垫圈 Washer, Sealing 1
1000410F-Q241 发动机总成(CA6DL1-28)-张紧轮组件 Engine Assembly-Tension Wheel Assy
1000410F-Q241 发动机总成(CA6DL1-28)-张紧轮组件 Engine Assembly-Tension Wheel Assy
Order Edition Oty
1023000-624-YT1T 张紧轮组件 Tension Pulley Module 1
1 Q33412F36 1型金属六角锁紧螺母 Hex Lock Nut 1
2 1023016-29D 调整螺栓 Adjusting Bolt 1
3 1023010-29DW 张紧轮总成 Tensioning Roller Assembly 1
4 1023021-29D 张紧轮压盘 Pressure Disc -Tensioning Roller 1
5 1023022-29D 垫块-张紧轮 Backing Block 2
1000410F-Q241 发动机总成(CA6DL1-28)-转向泵组件 Engine Assembly- Steering Pump Assy
1000410F-Q241 发动机总成(CA6DL1-28)-转向泵组件 Engine Assembly- Steering Pump Assy
Order Edition Oty
3407000-624-YT20 转向泵组件 Steering Pump Assy 1
1 3407024B81D 垫片-动力转向泵 Seal gasket-power steering pump 1
3407022-601-0322 盖板-动力转向泵 Plate-power steering pump 1
1000410F-Q241 发动机总成(CA6DL1-28)-机油泵总成 Engine Assembly-Oil Pump Assy
1000410F-Q241 发动机总成(CA6DL1-28)-机油泵总成 Engine Assembly-Oil Pump Assy
Order Edition Oty
1011000A29D 机油泵组件 Oil Pump Assy 1
1 1011010B29D 机油泵总成 Oil pump assembly 1
2 1011014A29D 从动齿轮-机油泵 Driven gear-lubricating oil pump 1
3 1011013-29D 衬套-机油泵 Bushing 1
1011032-29D 阀芯-机油泵安全阀 Valve Cartridge 1
1011033-29D 机油泵安全阀弹簧 Oil pump Safty Valve Spring 1
1011045-29D 垫片-机油泵主动轴 Gasket 1
X340322X28 铜垫圈22Ｘ28 Copper Washer 1
Q5220814 圆柱销 Cylindrical Pin 1
Q617B22F36 六角头螺塞 Hexagon-headed plug 1
1001M01—D4001—001 @ùÇ Î :f En i ne Mount: Modu I e Assemb I y
11
A
3 ’T
10
4/5
8
9
6
16
14/ 15
18
1001M01-D4001-001 发动机悬置模块 Engine Mount Module Assembly
序号版本用量
零件代号 Part NO. 零件名称及规格 Part Name And Standards 车型 Models
Order Edition Oty
1001M01-D4001-001 发动机悬置模块总成 Engine Mount Module Assembly B.2 Q031F424J4B7L05
1 CQ15116100T 六角头螺栓 Hexagon Head Bolt A.2 2
2 1001030-2H 上盖总成－发动机前悬置 Upper Cover Assy-Engine Front Mount A.7 2
3 1001025-D4001 发动机前悬置软垫总成 Front mounting cushion assembly B.1 2
4 1001037-D4001 左前悬置支架 Front Suspension Left Support A.2 1
5 1001038-D4001 右前悬置支架 Front Suspension Lh Bracket A.2 1
6 Q32916T 1型非金属嵌件六角锁紧螺母 Prevailing Torque Type Hexagon Nut(with Non-metallic Insert)，Style A.1 2
7 CQ1501055TS 六角头螺栓 Hexagon Head Bolt A.2 8
8 Q40310 弹簧垫圈 Spring Washer B.1 8
9 CQ34010 六角螺母 Heavy Hexagon A.1 8
10 Q1841450TS 六角法兰面螺栓粗杆(标准型) Hexagon Flange Bolt Thick Rod (Standard Type) A.2 10
11 1001060-D9800 后悬置托架软垫总成 Rear Suppension Bracket Cushion Assy E.1 2
12 1001015-D9800 后悬置软垫总成 Holder Cushion Assy(Rh) C.1 2
13 1001055-D9800 后悬置托架总成 Rear Suppension Bracket Assy E.1 2
14 1001062-D4001 右后悬置支架 Right Bracket A.2 1
15 1001061-D4001 左后悬置支架 Engine Rear Suspension Left Bracket C.1 1
16 Q1851865TS 六角头凸缘螺栓 Hexagon Flange Bolt A.2 2
17 Q1841435TS 六角头凸缘螺栓 Hexagon Flange Bolt A.1 2
20 1001028-2H 垫圈－发动机前悬置 Washer-Engine Front Mount A.7 2
1100M01—0609N—001 %} ¡j—*ÿ%ï @Ë t •› Fue I Tank And P i pe I i ne Modu I e Assemb I y—1
14 '
6
6
16
14
12 40
1100M01—0609N—001 @} ¡j—°ÿ@ï @Ë t •› Fue I Tank And P i pe I i ne Modu I e Assemb I y—2
33
35
18
2
29
25
38
Öî
1100M01-Q609N-001 燃油箱与燃油管路模块总成 Fuel Tank And Pipeline Module Assembly
序号版本用量
Order Edition Oty
1100M01-Q609N-001 燃油箱与燃油管路模块总成 Fuel Tank And Pipeline Module Assy A.7 Q031F424J4B7L05
1 1101015G-D205A 柴油箱本体总成 Diesel Tank Assembly A.2 1
2 3806040-D205B 燃油传感器总成 Fuel Sensor Assy C.1 1
3 1103010-Q205 燃油箱盖总成（附带加油口座及钥匙） Fuel Tank Cover Assy D.1 1
4 1101105-DE001 前托架总成-燃油箱 Front Bracket Assy-Fuel Tank A.2 2
5 1101130-D205A 紧固带总成-燃油箱 Fastening Belt Assy-Fuel Tank E.1 1
6 1101134-D205A 衬垫-燃油箱紧固带 Cushion -Fuel Tank Fastening Band A.4 2
7 1101117-D810 衬垫-燃油箱支架 Cushion -Bracket For Fuel Tank E.1 2
8 Q5101265 平头销 Flat Pin A.2 2
9 Q5004020 开口销 Split Pin A.1 2
10 1101117-D205A 上衬垫-燃油箱支架 Upper Gasket-Fuel Tank Bracke E.1 2
11 1101108-D810 塑料定位钉-支架衬垫 Plastic positioning pin-Bracke Gasket B.2 8
12 1101109-D810 螺母-紧固带 Nut-Fastening Belt E.4 2
13 CQ1500830 六角头螺栓 Hexagon Head Bolt A.1 4
14 CQ32614 六角头凸缘锁紧螺母 Hexagon Flange Lock Nut A.1 6
15 1101135-D205A 紧固带总成-燃油箱 Fastening Belt Assy-Fuel Tank G.1 1
16 Q1841440 六角法兰面螺栓粗杆(标准型) Hexagon Flange Bolt Thick Rod (Standard Type) A.1 6
17 Q40308 弹簧垫圈 Spring Washer A.1 4
18 1105021A-DG004 燃油滤清器支架 Fuel Filter Bracket B.1 1
21 CQ1461240 组合螺栓 Assembling Bolt A.1 2
22 CQ34012 六角螺母 Heavy Hexagon B.1 2
23 1105010-322 燃油粗滤器总成(式样图) Fuel Pre-Filter Assy H.1 1
24 1105080-50A 排水杯总成(式样图) Drainage Cup Assembly C.3 1
25 1105050-50A 滤芯总成(式样图) Filter Assembly C.3 1
27 Q40112 垫圈 Washer A.1 2
1100M01-Q609N-001 燃油箱与燃油管路模块总成 Fuel Tank And Pipeline Module Assembly
序号版本用量
Order Edition Oty
30 1104301-363 进排气管 Intake Pipes And Exhaust Pipes C.1 1 Q031F424J4B7L05
31 1104261-1H 保护圈 Guard Ring B.3 1
32 1104266-365 限位片 Limit piece C.1 1
33 3724015-240 塑料扎带总成 Plastic Tie Band Assembly A.5 6
34 1104061-367 空心螺栓 Hollow Bolt C.1 2
35 CQ72318T5 垫密圈 Washer A.1 4
36 1104130-Q609N 进油管总成-发动机至燃油粗滤器 Oil Inlet Pipe Assembly-engine to fuel oil strainer C.1 1
37 1104250-Q609N 回油管总成 Oil Return Pipe Assembly C.1 1
38 3506033-D79C 保护圈 Guard Ring B.2 1
39 1104120-DF201 进油管总成-燃油箱至燃油粗滤器 Oil Inlet Pipe Assembly-The fuel tank to fuel oil strainer A.2 1
1100M02—DF11—001 @n ź)ÿ[iåżń{Ø:I •› A i r I nt:ake Syst:em Modu I e—1
12
0
10
11
2
10
12'
3
2
1100M02—DF11—001 @n ?)?[iå??{g:f •› A i r I nt:ake Syst:em Modu I e—2
17
16
14
15
.*
24
25
26
3* 30
28
6
1100M02-DF11-001 进气系统随车模块总成 Air Intake System Module Assembly
序号版本用量
Order Edition Oty
1100M02-DF11-001 进气系统随车模块总成 Air Intake System Module Assembly E.2 Q031F424J4B7L05
1 1109250A242 旋风筒式进气管总成（式样图） Cyclone Socket Type High Intake Pipe Assembly A.5 1
2 1109260-D486E 连接软管总成-空滤器 Connecting Hose Assembly-Air Filter A.5 1
3 1109210A242 蜗杆传动式软管夹箍总成（式样图） Worm Drive Type Hose Clamp Assembly A.4 1
4 1109220A242 减震支架总成 Shock Absorbing Bracket Assembly C.1 4
5 1109227-375 下体过渡支架 Low Body Transition Bracket B.2 1
6 CQ1460830 组合螺栓 Assembling Bolt B.2 2
7 1109228-362 上体右过渡支架 Upper Body Right Transition Bracket C.3 1
8 1109229-362 上体上过渡支架 Upper Body Right Transition Bracket C.3 1
10 Q40210 大垫圈 Large Washer A.1 8
13 1109270-D959E 底座总成(式样图) Pedestal Assembly D.1 1
14 CQ676190B 蜗杆传动式软管夹箍B型 Worm Drive Type Hose Clamp Type B A.1 1
15 1109276-Q720 减震垫片 Absorber Gasket A.4 1
16 1109010-D959E 空气滤清器总成 Air Filter Assembly B.6 1
17 主滤芯 Main Filter Element 1
18 安全滤芯 Safety Filter Element 1
19 1109370-DF50 空滤器托架总成 Air Filter Bracket Assembly A.7 1
25 1109356-D453E 连接胶管-空滤器出口 Connecting Rubber Hose A.6 1
27 1109357-DF11 进气管 Intake Pipe Assy A.2 1
29 1109351-60A 连接管-发动机 Connecting Pipe B.4 1
1100M02-DF11-001 进气系统随车模块总成 Air Intake System Module Assembly
序号版本用量
Order Edition Oty
30 1109366-Q803 支架 Bracket A.4 1 Q031F424J4B7L05
1108M01—081 2—001 f$j I”Ç) É Ê @ Throt:t: I e Cont:ro I Mechan i sm h i t:h The Body Modu I e
13
1108M01-Q812-001 油门操纵机构随车身模块 Throttle Control Mechanism With The Body Module Assembly
序号版本用量
Order Edition Oty
1108M01-Q812-001 油门操纵机构随车身模块 Throttle Control Mechanism With The Body Module Assembly A.4 Q031F424J4B7L05
4 1108011-50A 密封垫-油门踏板 Washer-Accelerator Pedal A.4 1
6 Q5100614 平头销 Flat Pin A.1 2
7 T67437676 塑料箍带 Plastic Fastening Strap A.1 1
8 1108010-50A 油门机械踏板总成(附带油门开关) Throttle Mechanical Pedal Assembly A.2 1
9 3754035-A01 油门开关总成 Throttle Switch Assembly B.2 1
10 1108015-50A 油门机械踏板分总成(式样图) Throttle Mechanical Pedal Subassembly A.3 1
11 1104280-15 单管夹总成 Single Pipe Clamp Assy A.4 2
14 1108410-Q812 油门操纵拉索总成 Throttle Operation Cable Assy C.1 3
1119M01—0609N—001 ¢•î¿âä4üÊ Î :f › •› I ntercoo I er P i pe I i ne Modu I e Assemb I y
3
1119M01-Q609N-001 中冷器管路模块总成 Intercooler Pipeline Module Assembly
序号版本用量
Order Edition Oty
1119M01-Q609N-001 中冷器管路模块总成 Intercooler Pipeline Module Assembly A.3 Q031F424J4B7L05
1 T6769006 强力软管夹箍 Reinforced Hose Clamp A.1 4
2 1119050-Q609N 波纹连接管总成 Corrugated Connecting Pipe Assembly A.2 1
3 1119060-Q609N 中冷器出气胶管总成 Intercooler Outlet Rubber Pipe Assembly A.2 1
1200M01—0616—001 }// § t Exhaust Syst:em Modu I e—1
A
23 1g
16 12 i i 14
4
4
7
16
15
2
1200M01—0616—001 }// § t Exhaust Syst:em Modu I e—2
16is
25 20
2T
28
30
32
1200M01-Q616-001 排气系统模块 Exhaust System Module
序号版本用量
Order Edition Oty
1200M01-Q616-001 排气系统模块 Exhaust System Module A.3 Q031F424J4B7L05
1 1203090-382 箍带总成-消声器 Band Assembly-Muffler B.2 2
2 1201010-Q241 消声器总成 Muffler Assy C.1 1
3 1203050-Q625 支架总成-消声器 Bracket Assembly-Muffler C.4 1
18 1203041-1H 卡箍-消声器悬挂 Clamp B.4 3
19 1203015-Q616 进气管后段总成-消声器 Air Intake Pipe Rear Section-Muffler A.3 1
20 L1203075-50A 卡环总成 Circlip Assembly C.2 4
21 1203040-50A 伸缩节总成 Telescopic Joint Assembly L.1 1
22 1203010-Q616 进气管前段总成-消声器 Air Intake Pipe Front Section-Muffler A.4 1
23 1203035-Q616 支架总成-消声器进气管 Bracket Assy A.3 1
25 1203038-Q616 支架-排气管 Bracket A.2 1
27 3523013-50A 消声器进气管密封垫 Inlet Pipe Gasket A.1 1
28 3523010-50A 排气制动阀总成 Air Exhausting Brake Valve Assembly B.6 1
29 3523014-263 垫片 Gasket A.4 1
1200M01-Q616-001 排气系统模块 Exhaust System Module
序号版本用量
Order Edition Oty
30 3523012-263 卡箍 Clamp E.1 2 Q031F424J4B7L05
31 CQ1500840F19 六角头螺栓 Hexagon Head Bolt A.2 2
32 CQ32608F19 六角头凸缘锁紧螺母 Hexagon Flange Lock Nut A.2 2
1300M01—0609N—001 )¿É§, ÎR:f Coo I i n Syst:em Modu I e Assemb I y—1
5/6
20
10
1300M01—0609N—001 )¿ §, }R:f Coo I i n Syst:em Modu I e—2
32
yg 32
52
55
53
A
28
“ 26
" ’38ᵉ
37 A
23 8 8
34
33
56
35
39 29 21/22 23
1300M01—0609N—001 )¿ §, }R:f Coo I i n Syst:em Modu I e—3
1300M01-Q609N-001 冷却系模块 Cooling System Module Assembly
序号版本用量
Order Edition Oty
1300M01-Q609N-001 冷却系模块 Cooling System Module Assembly A.5 Q031F424J4B7L05
1 1119010-DF003 中冷器总成 Intercooler Assembly C.1 1
2 1301010-DE003B 散热器总成 Radiator Assembly C.1 1
3 1309010-DS086Z 风扇护风罩总成 Fan Wind Shield Assembly A.3 1
4 1119021-DG001A 中冷器上支架 On Cooler Bracket C.1 2
5 1302010-D488 散热器悬置左支架总成 LH Bracket -Radiator Suspension D.1 1
6 1302015-D488 散热器悬置右支架总成 RH Bracket -Radiator Suspension D.1 1
9 1302030-D488 散热器悬置垫块总成 Radiator Suspension Backing Block Assy A.6 2
13 1302905-D229 拉板下支架总成 Draw Plate Lower Bracket Assembly A.5 2
14 1302020-D229 散热器拉板总成 Draw Plate-Radiator A.3 2
15 1302050-01 拉杆软垫总成 Link Cushion Assembly A.2 2
16 1302052-01 垫圈 Washer A.2 2
19 1302017-D229 拉板下支架 Draw Plate Lower Bracket A.8 2
24 1311040A242 膨胀箱固定支架总成 Expansion Tank Fixing Bracket Assembly B.3 1
25 1311032-DA01 回水前胶管 Water Return Pipe（Front） B.3 1
26 3406442A382 隔热管 Insulation Pipe B.2 1
27 1311010-Q204 塑料膨胀箱总成 Plastic Expansion Tank Assembly G.1 1
28 CQ67516 蜗杆传动式软管夹箍 Worm Drive Type Hose Clamp A.1 8
29 CQ67535B 重型蜗杆传动式软管夹箍 Heavy-duty Worm Drive Type Hose Clamp A.2 6
1300M01-Q609N-001 冷却系模块 Cooling System Module Assembly
序号版本用量
Order Edition Oty
30 CQ1420820 组合螺栓 Assembling Bolt A.1 4 Q031F424J4B7L05
32 1311023-Q408 后除气胶管 Rear Degassing Rubber Pipe B.4 2
33 1311060-8E 双管夹箍总成 Double Pipe Clamp Assembly A.2 2
34 Q68622 单管夹子 Single Pipe Clip A.1 2
35 1311029-D453 支架 Bracket A.6 2
36 1311040-Q417 后回水连接钢管总成 Rear Water Return Connecting Steel Pipe Assy A.1 1
37 1311045A263 前回水连接钢管总成 Front Water Return Connecting Steel Pipe Assy A.1 1
38 1311043A263 中间胶管 Middle Rubber Pipe A.4 1
39 1311046-DG082A 前回水胶管 Front Water Return Rubber Pipe A.2 1
40 1311025-138 发动机除气管总成 Engine Degassing Pipe Assy E.1 1
41 1311024-249 除气空心螺栓 Degassing Hollow Bolt E.1 1
42 CQ72314T5 垫密圈 Washer A.1 2
43 1311026-362 发动机除气管 Engine Degassing Pipe A.5 2
44 1311023-Q422 散热器前除气胶管 Radiator Front Degassing Rubber Pipe A.3 1
45 1311023-8E 后除气胶管 Rear Degassing Rubber Pipe A.1 1
46 1311036-Q413 回水管接头 Joint Of Water Return Pipe C.3 1
47 1303021-Q413 散热器出水胶管 Radiator Water Outlet Rubber Pipe B.6 1
48 1303011A-Q413 散热器进水胶管 Radiator Water Inlet Rubber Pipe A.3 1
51 3506056-8K9 管夹 Clip B.2 1
52 3506033-X141 橡胶保护圈 Rubber Protection Ring A.2 1
56 3506045-D481 管线夹总成 Pipe Clip Assembly A.2 1
1601M01—0241—001 ¡It¡ §§,**.. @ ] ] @t C Iutch Assemb I y And Connect: i on Modu I e
/ 2
1
1601M01-Q241-001 离合器总成及连接件模块 Clutch Assembly And Connection Module
序号版本用量
Order Edition Oty
1601M01-Q241-001 离合器总成及连接件模块 Clutch Assembly And Connection Module E.2 Q031F424J4B7L05
1 1601100E5H 离合器从动盘、盖及分离轴承总成 Clutch Driven Disc、Cover With Release Bearing Assy F.1 1
2 128959 从动盘总成 Driven Disc Assy 1
3 170002-31 带拉环盖总成 Strap-on-ring cover assembly 1
4 125481 分离轴承总成 Release Bearing Assy 1
5 Q40310 弹簧垫圈 Conical Spring Washer B.1 12
1602M04—0857—001 ï«ÿ@ @Ê Ê Î :f C I ut:ch P i pe I i ne Modu I e
2
10
1602M04-Q857-001 离合器管路随车模块 Clutch Pipeline Module
序号版本用量
Order Edition Oty
1602M04-Q857-001 离合器管路随车模块 Clutch Pipeline Module B.2 Q031F424J4B7L05
1 1602220-D161 油管总成-离合器 Oil Pipe Assembly-Clutch A.8 1
2 1602237-263 带橡胶圈管夹子 Pipe Clip with Rubber Ring A.4 1
7 1602217-Q488 软管支架-前横梁 Hose Bracket-Front Cross Member B.4 1
1602M05-47B-001 离合助力器及支架模块 Clutch Booster and Bracket Module A.2
8 1602300A70A 离合器助力泵及联接件总成 Clutch Booster And Connecting Assembly C.1 1
1700945-Q609A 变速器带取力器总成（CA9TB160M）-变速器齿轮及轴 Transmission With PTO Assembly-Transmission gears and shafts
Order Edition Oty
1700945-Q609A 变速器带取力器总成 Transmission With PTO Assembly 1 Q031F424J4B7L05
1 8878262 端盖-一轴 Input Shaft End Cover 1
2 X8878099 油封-油泵 Oil Seal-Oil Pump 1
1701110-A2K 第一轴及轴承总成 First shaft and bearing assembly 1
3 1701131-A2K 卡环-一轴后轴承 Circlip-Input Shaft Rear Bearing 1
1701132-A2K 卡环-一轴后轴承 Circlip-Input Shaft Rear Bearing 选装
4 1701125-A2K 带止动环圆柱滚子轴承 Cylindrical Roller Bearing With Stop Ring 1
5 1701112-A2K/E 第一轴-变速器 Input Shaft-Transmission 1
6 1701116-A2K 润滑油联结管销-一轴 Lubricating Oil Connecting Pipe Pin-Input Shaft 1
1701300-A2K 第二轴总成 Output Shaft Assy 1
7 1701445-A2K 滚针轴承-二轴 Needle Bearing-Output Shaft 1
8 1701302-A2K 衬套-二轴 Bushing-Output Shaft 1
9 1701367-A2K/H 同步锥-二三、四五档 Synchronizing Cone-2/3/4/5 Gear 4
10 1701376-A2K 同步环-二三、四五档 Synchronizer Ring-2/3/4/5 Gear 4
11 1701421-A2K 卡环-四、五档齿座 Circlip-4/5 Clutch Hub 1
1701422-A2K 卡环-四、五档齿座 Circlip-4/5 Clutch Hub 选装
1701410-A2K 同步器总成-三、四档 Synchronizer Assembly 1
12 1701411-A2K/G 齿座-四、五档 4Th\5ThClutch Hub 1
Order Edition Oty
1701370-A2K 同步器总成-一、二档 Synchronizer Assembly 1 Q031F424J4B7L05
13 1701379-A2K 滚柱-同步器 Roller-Synchronizer 6
14 1701327-A2K 支座-同步器 Bracket-Synchronizer 18
15 1701326-A2K 弹簧-同步器 Spring-Synchronizer 18
16 1701372-A2K/G 齿套-二三、四五档 Gear Bush Of 2/3/4/5 Speed 2
17 1701398-A2K 衬套-第四档齿轮 Bush-Fourth Speed Gear 1
18 1701315-A2K 滚针轴承-一档齿轮 Needle Bearing - I Speed Gear 2
19 1701391-A2K/E 第四档齿轮-二轴 Fourth Speed Gear-Output Shaft 1
20 1701388-A2K 衬套-第三档齿轮 Bush-3Rd Gear 1
21 1701385-A2K 滚针轴承-第三档齿轮 Needle Bearing-3Rd Gear 1
22 1701381-A2K/E 第三档齿轮-二轴 3Rd Gear-Output Shaft 1
23 1701371-A2K/F 齿座-二、三档 2Nd/3Rd Gear Seat 1
24 1701365-A2K 滚针轴承-第二档齿轮 Needle Bearing-2Nd Gear 2
25 1701361-A2K/E 第二档齿轮-二轴 2Nd Gear-Output Shaft 1
26 1701301-A2K/G 第二轴-变速器 Transmission Output Shaft 1
27 1701311-A2K/E 一档齿轮-二轴 1St Gear-Output Shaft 1
28 1701317-A2K/E 结合齿圈-一、倒档 1St/Reverse Coupling Gear Ring 2
1701320-A2K 爬、倒档同步器总成 Synchronizer Assembly 1
29 1701322-A2K/H 齿套-一、倒档 Bush-Reverse 1
30 1701321-A2K/F 齿座-一、倒档 Gear Seat-Reverse 1
31 1701328-A2K 换向球-同步器 Reverse Ball Valve 3
32 1701331-A2K 卡环-一、倒档齿座 Circlip-1\Reverse Speed Gear Seat 1
1701332-A2K 卡环-一、倒档齿座 Circlip-1\Reverse Speed Gear Seat 选装
33 1701345-A2K 滚针轴承-倒档 Needle Roller Bearing-Reverse Gear 1
34 1701341-A2K/D 齿轮-倒档 Gear-Reverse Gear 1
35 1701351-A2K 止推垫圈 Thrust Washer 1
36 1701355-A2K 带止动环圆柱滚子轴承-二轴 Cylindrical Roller Bearing With Stop Ring-Output Shaft 1
37 1701461-A2K 定位盘-二轴后轴承 Locating Disc-Output Shaft Rear Bearing 1
Order Edition Oty
38 1701468-A2K 内六角沉头螺钉 Hexagon Socket Head Screws 4 Q031F424J4B7L05
U8878601 行星齿轮总成 Planetary Gear Assembly 1
39 1701539-A2K 销-行星齿轮轴 Pin-Planet Gear Shaft 5
40 1701532-A2K 行星齿轮轴 Planet Gear Shaft 5
41 1701537-A2K 止推垫片-行星齿轮 Thrust Washer-Planet Gear 10
42 1701535-A2K 滚针轴承 Needle Bearing 5
43 1701531-A2K/E 行星齿轮 Planet Gear 5
44 1701451-A2K 导油套 Oil Guide Sleeve 1
45 1701525-A2K 行星齿轮架轴总成 Planet Bracket Shaft 1
46 1701456-A2K/D 太阳轮 Sun Wheel 1
47 1701458-A2K 定位挡板 Positioning Fender 1
48 1701459-A2K 螺钉 Screw, Twelve Point Cap 1
49 1701546-A2K 齿圈 Gear Ring 1
50 1701548-A2K 止动环-齿圈 Stop Ring-Gear Ring 1
51 1701561-A2K 同步锥-副箱高档 Synchronizing Cone-Grade Gear Box 1
52 1701541-A2K 止动环 Stop Ring 1
53 1701554-A2K 同步环-副箱同步器 Synchronizer Ring-Auxiliary Gearbox Synchronizer 2
54 1701568-A2K 止动环-球轴承 Stop Ring ?Ball Bearing 2
55 1701565-A2K 球轴承-副箱同步器 Ball Bearing-Auxiliary Gearbox Synchronizer 1
56 1701543-A2K 止动环 Stop Ring 1
57 1701551-A2K 齿座-副箱同步器 Gear Seat-Auxiliary Gearbox Synchronizer 1
58 1701559-A2K 滚柱-副箱同步器 Roller-Auxiliary Gearbox Synchronizer 9
U8878556 行星齿轮带行星架轴总成 Planet Gear 1
U8878534 高低档切换同步器总成 Synchronizer Assembly 1
59 1701552-A2K 齿套-副箱同步器 Gear Bush-Auxiliary Gearbox Synchronizer 1
60 1701562-A2K 同步锥-副箱低档 Synchronizing Cone-Deputy Box LowerSpeed 1
61 1701563-A2K 弹性圆柱销-低档同步锥 Elastic Cylindrical Pin-Lower Speed Synchronizer Cone 1
62 1701571-A2K 固定盘 Fixed Disk 1
63 CQ1700820 六角头头部带孔导径螺栓 Bolt 6
64 1701573-A2K 销钉-固定盘 Pin-Fixed Disk 10
Order Edition Oty
65 1701571-BQ533 计数轮 Counter Wheel 1
66 1701643B435J 隔套 Spacer 1
67 1701585-A2K 球轴承 Bearing, Ball 1
68 1701605-A0L-C00/E 油封总成 Oil Seal Assy 1
1701660-53A 突缘防尘罩总成 Dustproof Cover 1
（69 1701612-A2K 防尘罩 Dustproof Cover 1
70 8878676 突缘 Flange 1）
71 1701616-A2K 压板 Pressure Plate 1
72 1701618-A2K 六角头螺栓 Hexagon Head Bolt 1
1701210-A2K 中间轴总成 Countershaft Assy 1
73 1701231-A2K 卡环-中间轴前轴承 Circlip-Input Shaft Front Bearing 1
1701232-A2K 卡环-中间轴前轴承 Circlip-Input Shaft Front Bearing 选装
74 1701241-A2K 垫圈 Washer 1
75 1701225-A2K 圆锥滚子轴承 TAPERED ROLLER BEARING 2
76 1701213-A2K/D 减速齿轮-中间轴 Deceleration Gear - Intermediate Shaft 1
77 1701212-A2K/E 第四档齿轮-中间轴 Fourth Speed Gear- Intermediate Shaft 1
78 1701211-A2K/F 中间轴-变速器 Countershaft -Transmission 1
79 1701246-A2K 盖-中间轴后轴承 Cover-Intermediate Shaft Rear Bearing 1
80 1701248-A2K 内六角沉头螺钉 Hexagon Socket Head Screws 4
81 1701487-A2K 止推垫片-惰轮 Thrusing Washer-Pulley, Idler 2
82 1701485-A2K 滚针轴承-惰轮 Needle Bearing-Pulley, Idler 2
83 1701483-A2K 隔环-惰轮滚针轴承 Spacer Ring-Idler Needle Bearing 1
84 1701482-A2K 惰轮轴-倒档 Shaft-Reverse Gear 1
85 1701481-A2K/D 惰轮-倒档 Idler-Reverse Gear 1
Order Edition Oty
86 1701489-A2K 卡环-惰轮轴 Circlip-Shaft 1 Q031F424J4B7L05
87 Q50510250 钢丝锁线 Locking Wire 3
88 CQ1511455T 六角头突缘螺栓 Hexagon Head Flange Bolt 4
89 CQ34114 螺母 Nut 4
91 1701254-A2K 调整垫片-垫圈 Adjusting Gasket 1
1701251-A2K 调整垫片-垫圈 Adjusting Gasket 选装
1700945-Q609A 变速器带取力器总成（CA9TB160M）-变速器顶盖 Transmission With PTO Assembly-Transmission Top Cover
Order Edition Oty
1700945-Q609A 变速器带取力器总成 Transmission With PTO Assembly A.3 1 Q031F424J4B7L05
1702110-BQ542/B 顶盖总成 Top Cover Assembly A.3 1
1 DMX-9-1001 螺母 Nut 1
2 1701022-A2K 弹簧垫圈 Spring Washer 1
3 8878768-Q824F 换挡臂 Gearshift Arm 1
4 DMX-8-1007 六角螺栓 HEXAGON SCREW 1
5 1702126-Q824F O形环 O-Ring 1
6 1702120-Q824F 换挡轴及花键套总成 Gearshift Shaft And Sleeve Assy 1
7 X8875259 保护罩 Protective Cover 1
9 1702129-1H 紧固螺钉 Fastening Screw 1
10 1702115-Q824F 顶盖分总成 Top Cover Sub Assy 1
11 8880986-Q664 支承套 Supporting sleeve 1
12 8874819-Q664 气缸弹簧 Cylinder Spring 1
13 1702130-Q664 气缸总成 Cylinder Assy 1
14 1701755-A8L 90°弯管接头 90°Connector 1
15 8880986 止动柱塞 Stop Plunger 1
16 1702147-BQ517 倒车弹簧 Reverse Spring 1
17 X8880301 螺盖 Screw Bar 1
18 X2014210 通气塞 Breather Plug 1
19 Z8881880 壳体-选档 Transmission Housing-Selector 1
20 DMX-8-0853 螺栓 Bolt 4
21 DX8871486 塞片 Shim 1
22 ZX8881871 衬套 Bushing 1
23 Z8881872 拨杆 Shift Fork 1
24 Z8881873 选档轴 Selector Shaft 1
25 ZX8881874 衬套 Bushing 1
26 Z8881875 定位套 Locating Sleeve 1
27 X8881481 油封-换挡轴 Oil Seal-Gearshift Shaft 1
28 DMX-8-1007 六角螺栓 HEXAGON SCREW 1
Order Edition Oty
29 Z37677-Q824F 选档臂 Selector Arm 1 Q031F424J4B7L05
31 DMX-9-1001 螺母 Nut 1
32 1702121-Q664 换挡花键轴 Gearshift Spline Shaft 1
33 37422-Q664 换挡拨头 Gear Shift Selector 1
34 X8871378-53A 销钉 Pin 1
35 X8874450 直径25.0外卡环 25.0 Outer Circlip 1
36 8876566 弹簧挡片 Spring Baffle 1
37 1702148-BQ517/A 阻尼弹簧 Damping Spring 1
38 8876567 弹簧挡片 Spring Baffle 1
39 X8874450 直径25.0外卡环 25.0 Outer Circlip 1
40 X8880639 O 形环—端盖 O-Ring 1
41 8880477 端盖 End Cover 1
42 MX-8-0810 螺钉 Screw, Twelve Point Cap 4
43 1701016-A2K 定位销-顶盖 Dowel, Pin 2
44 CQ1501040 螺栓-紧固变速箱上盖用 Bolt 1
45 1707084BA2K 吊耳 Bracket 1
46 8880638 密封垫—顶盖到壳体 Washer 1
47 DMX-8-1003 M10×35六角螺钉 Hex Nut 3
1700945-Q609A 变速器带取力器总成（CA9TB160M）-变速器选择器装置 Transmission With PTO Assembly-Transmission selector device
1700945-Q609A 变速器带取力器总成（CA9TB160M）-变速器选择器装置 Transmission With PTO Assembly-Transmission selector device
Order Edition Oty
U8878546 HHD/T选择器装置 Selector device 1
1 8878254 变速叉-第3、4速 GEAR SHIFT FORK-3/4Speed 1
U8875939 选择器装置组件 Selector device assembly 1
2 1702041-A2K 销-选、换档 PIN-Gearshift/Selector 1
3 Q50510250 钢丝锁线 Locking Wire 1
4 1702039-A2K 紧固螺钉 Fastening Screw 1
5 1702038-A2K 导块-选、换档 Guide Block-Gearshift/Selector 1
6 1702033-A2K 板-换档 Plate-Gearshift 1
7 8878326-CA 双H叉轴 Double-H Fork Shaft 1
8 1702034-A2K 互锁板 Interlocking Plate 1
9 8878297 变速叉-第1、2速 GEAR SHIFT FORK-1/2Speed 1
10 8878252 变速叉—爬行档、倒档 GEAR SHIFT FORK-Creeping/Reverse 1
1700945-Q609A 变速器带取力器总成（CA9TB160M）-挡数控制 Transmission With PTO Assembly-Control of gear number
1700945-Q609A 变速器带取力器总成（CA9TB160M）-挡数控制 Transmission With PTO Assembly-Control of gear number
Order Edition Oty
1707760-BQ551 挡数控制 HH Filter Regulator with Bracket Assembly 1
1 1701810-739 过滤调整器带支架总成 Fixing Bracket 1
2 8880659 固定架 Round Head Screw 1
3 X8880151 圆头螺钉 Nylon Pipe 2
4 X8881545 尼龙管 90ºElbow Connector 3
5 1701755-A8L 90º弯管接头 Bracket 2
6 1707761-BQ549/B 支架-随动阀 Range Gear Shift Valve Assembly 1
7 1702310A10S/A 高低档换挡气阀总成 Hexagon Flange Bolt 1
8 Q1840645 六角头凸缘螺栓 Spring Washer 4
10 Q40312 弹簧垫圈 Handle Assembly 1
11 1703020-BQ509 手柄总成 Air Pipe Assy 1
12 1703010-BQ109 气管总成 Hose Clamp 1
13 8876407 软管夹 1
1700945-Q609A 变速器带取力器总成（CA9TB160M）-分离叉总成 Transmission With PTO Assembly-Release Fork Assy
1700945-Q609A 变速器带取力器总成（CA9TB160M）-分离叉总成 Transmission With PTO Assembly-Release Fork Assy
Order Edition Oty
1602420A70A/B 分离叉总成 Release Fork Assy 1
1 Q43042 孔用弹性挡圈 Spring Collar For Hole 2
2 1602424A70A 密封垫圈 Washer, Sealing 2
3 1602422A70A 分离叉轴 Release Fork Shaft 1
4 1602423A70A 隔套 Spacer 2
5 1602432-A2K 六角头法兰螺栓 Screw, Hex Flange Head Cap 1
6 1602416A70A 分离叉-离合器 Release Fork--Clutch 1
7 1602433-A2K 六角头法兰螺栓 Screw, Hex Flange Head Cap 1
8 Q43125 轴用弹性挡圈 Circlip for Shaft 2
9 GE25ES 向心关节轴承 Radial spherical plain bearing 1
10 1602421A70A 分离叉支架 Separation fork bracket 1
1700945-Q609A 变速器带取力器总成（CA9TB160M）-离合器及变速器壳体 Transmission With PTO Assembly-Clutch and transmission
housing
housing
Order Edition Oty
3 1701165-A2K 油泵总成 Pump Assembly 1
8 X2011035 O型橡胶密封圈 Rubber O-Ring Seal 2
10 1701018-A2K 盖板-底取力器孔 Cover Plate-Bottom Take Power 1
U8878628 前壳体总成 Front Housing Assembly 1
11 8878618 前壳体 Front Housing 1
12 1701036-BSX203 铭牌 Nameplate 1
13 Q2140405 十字槽平圆头螺钉 Screw 2
14 1701014-A2K U型塞片 U Shim 1
15 8882415 衬套-选、换档叉轴 Bushing 2
16 1701037-A2K 定位销 Dowel, Pin 3
17 1701029-A2K 六角法兰面螺栓 Hexagon Flange Bolt 20
19 1701734-A2K 压盖 Gland 1
20 1701733-A2K 密封垫片 Seal Washer 1
21 1701732-BQ511/A 支座弹簧 Bracket Seat Spring 1
22 1701731-A2K 空档销 Neutral Pin 1
24 1701070-A2K 导油管总成 Guiding Pipe 1
25 1701065-A2K 吸油管总成 Oil Suction Pipe 1
26 1701067-A2K 螺钉 Screw, Twelve Point Cap 1
1701030-BQ549 中间壳体总成 Transmission Housing 1
27 1701033-A2K 衬套-副箱叉轴 Bushing-Secondary Gearbox Fork Shaft 1
housing
Order Edition Oty
28 1701031-BQ549/C 中壳体 Middle Transmission Housing 1 Q031F424J4B7L05
29 1701041-A2K 加油塞 Oil Filler 1
30 1701042-A2K 垫圈-加、放油 Washer 2
31 1701491-A2K 盖板-惰轮孔 Cover Plate-Idler Hole 1
33 1701027-A2K 六角法兰面螺母 Hexagon Flange Nut 22
34 1701748-A2K 钢球 Steel Ball 2
35 1701741-A2K 互锁销 Interlock Pin 1
37 3774010G685 空挡开关总成 Neutral Switch Assy 1
38 2771532 倒车灯开关总成 Reverse Lamp Switch Assy 2
39 1701024-A2K 盖塞 Plug 6
41 CQ40110 垫圈 Washer 6
45 1701514-A2K 磁铁 Magnet 1
46 1701765-A2K 放油塞总成 Oil Drainage Plug Assembly 1
U8878630 后壳体总成 Rear House Assy 1
47 8878622 后壳体 Rear Housing 1
48 1701056-A2K 垫圈-滤网总成 Washer-Strainer Assy 1
49 1701050-A2K 滤网总成 Strainer Assy 1
50 1701711-A2K 吊耳 Bracket 4
54 1702525-BQ500 快插三通接头 Three way connector 1
56 4207010-BQ525 取力器总成 Power Take-Off Assy 1
59 1701513-A2K 销钉 Pin 1
60 1701515-A2K 导油管总成-副箱 Guiding Pipe-Deputy Tank 1
61 X8875292 O型橡胶密封圈-衬套 Rubber O-Ring Seal 1
62 X8871258 O型橡胶密封圈-衬套 Rubber O-Ring Seal 1
63 1701517-A2K 衬套-副箱叉轴 Bushing-Secondary Gearbox Fork Shaft 1
U8878648 后壳总成 Rear Housing 1
64 8878547-CA 叉轴-高低档 Fork shaft 1
65 1701651-A2K 换挡拨叉-副箱高、低档 Gearshfit Fork-Deputy Box High/Lower Speed 1
66 1701656-A2K 平行切口销 Pin 1
housing
Order Edition Oty
67 X8878166 O型橡胶密封圈-活塞 Rubber O-Ring Seal-Piston 1 Q031F424J4B7L05
68 14345 O型橡胶密封圈 Rubber O-Ring Seal 1
69 1701661-A2K 活塞-气缸 Piston 1
70 1701666-A2K 六角螺母 Heavy Hexagon 1
71 X8878164 O 形环 O-Ring 1
72 1701671-A2K 盖-气缸 Cover- Cylinder 1
73 CQ1211650TS 双头螺栓 Stud 2
74 CQ34116 螺母 Nut 2
76 1702171-BQ549/B 垫板-悬置支架 Backing Board 1
77 1701586-BQ533 后盖-变速器 Rear Cover 1
1701630-53A 后盖油封总成 Rear Cover Oil Seal Assy 1
80 1701591-BSX500 后盖-安装油封用 Rear Cover 1
82 Q18410115 六角法兰面螺栓粗杆 Hexagon Flange Bolt Thick Rod 2
83 8878696 外壳-离合器 Clutch Housing 1
84 1601031A70A 观察孔盖板 Cover 1
85 DMX-7-1806 M18X90 六角头法兰螺栓 Screw, Hex Flange Head Cap 9
86 1701028-BSX200 堵塞 Plug 1
87 3724150-BAS1/D 变速箱电线束总成 Transmission Harness 1
88 T67427936 黑色扎带总成 Black Ties Assembly 4
89 3802020-BQ905 电子式车速传感器总成 Electronic Vehicle Speed Sensor Assembly 1
90 3724023-BSX800 L型支架 L Bracket 2
91 Q7342416B O型橡胶密封圈(1701591-BSX500有O型圈 Rubber O-Ring Seal 2
1703M01—0609N—001 §F¿jgt)§§ @§ @{ :f Gea r sh i ft: Oper at: i on Rod And Dust:proof Cover
3
1703M01-Q609N-001 变速操纵杆及防尘罩模块 Gearshift Operation Rod And Dustproof Cover Module
序号版本用量
Order Edition Oty
1703M01-Q609N-001 变速操纵杆及防尘罩模块 Gearshift Operation Rod And Dustproof Cover Module A.3 Q031F424J4B7L05
1 1703005-Q609N 变速操纵杆机构及防尘罩总成 Gearshift Operation Rod Mechanism And Dustproof Cover Assy C.1 1
2 1703331-D450F 供气管总成-变速器(随变速箱带） Air Supply Pipe Assy-Transmission B.7 0
3 1703015-398 上防尘护罩底座总成 Pedestal Assy-Upper Dustproof Cover B.2 1
4 CQ35118 六角薄螺母 Hexagon Thin Nut A.1 1
5 1703040-Q107 变速手柄总成（一汽CA9TB160M变速箱用 Variable Speed Controller Assembly B.6 0
7 1703012-Q812 上防尘护套 Upper Dust-Proof Cover A.2 1
1703M10—0609N—001 §Êjgt) É t (K ) Gea r sh i It: Cont: ro I Mechan i sm Modu I e (Chass i s)
11
10
7
8
12
1703M10-Q609N-001 变速操纵机构模块(底盘) Gearshift Control Mechanism Module(Chassis)
序号版本用量
Order Edition Oty
1703M10-Q609N-001 变速操纵机构模块 Gearshift Control Mechanism Module B.2 Q031F424J4B7L05
1 1703170-Q609N 换档软轴总成 Shifting Shaft Assy A.2 1
2 1703180-Q609N 选档软轴总成 Gear-Select Flexible Shaft Assy A.2 1
3 3506010-Q96 螺旋形护套 Spiral Sheath A.2 2
5 1703192-DU300 软轴固定支架 Flexible Shaft Fixing Bracket A.2 1
7 1703241-E3 软轴夹 Flexible Shaft Clip A.4 2
10 1703185-DU212 选换档软轴支架总成 Gear Selector\Gearshift Shaft Bracket Assembly A.3 1
12 3724115-Q8E 塑料扎带总成 Plastic Tie Band Assembly A.4 8
13 Q80512 卡套式锥螺纹直通接头体 Straight Thread Connector A.1 1
1703M70—0351N—001 PT0 Contro I P i pe Modu I e
1703M70-Q351N-001 取力器控制管路模块 PTO Control Pipe Module
序号版本用量
Order Edition Oty
1703M70-Q351N-001 取力器控制管路模块 PTO Control Pipe Module A.4 Q031F424J4B7L05
2 QF1A0500800B 卡套式气制动尼龙管总成 Air Brake Nylon Pipe Assembly A.2 1
1704M01—0609N—001 ÿÿj Î :f Transm i ss i on Suspens i on Modu I e
1704M01-Q609N-001 变速箱悬置模块 Transmission Suspension Module
序号版本用量
Order Edition Oty
1704M01-Q609N-001 变速箱悬置模块 Transmission Suspension Module A.4 Q031F424J4B7L05
1 1706011B363 钢板弹簧-变速器悬置 Leaf Spring-Transmission Suspension A.5 1
2 1706012B363 加强板-变速器悬置 Reinforcement Plate-Transmission Suspension B.1 1
3 1706017-DH108 钢板弹簧左支架-变速器悬置 Leaf Spring Left Bracket-Transmission Suspension A.2 1
4 1706018-DH108 钢板弹簧右支架-变速器悬置 Leaf Spring Right Bracket-Transmission Suspension A.2 1
2201010—80A /*tn)É{ga $lÎl@ @ , •› Rear Ax I e Dr i ve Shaft And Un i ver sa I Jo i nt Assemb I y—1
’ ° °°
.&....
”°°"°* ”* >
”””””””””” A
2201010—80A /"'o{Éfgù $lÎ]@ @ •. Rear Ax I e Dr i ve Shaft: And Un i ver sa I Jo i nt Assemb I y—2
18
ll
4 12
10
1
4
2201010-80A 后桥传动轴及万向节总成 Rear Axle Drive Shaft And Universal Joint Assembly
序号版本用量
Order Edition Oty
1 2201010-80A 后桥传动轴及万向节总成 Rear Axle Drive Shaft And Universal Joint Assembly E.1 1 Q031F424J4B7L05
2201071-1H 平衡片 Balance Tab 按需
2
3 2201060-1050 后桥传动轴及万向节分总成 Rear Axle Drive Shaft And Universal Joint Subassy 1
2201041-80A 挡圈 Circlip 8
4 2201044-80A 挡圈 Circlip 8
5 2201030-1050 十字轴及滚针轴承总成 Cross Shaft And Needle Bearing Assembly 1
6 2201015-80A 后桥传动轴焊接叉及花键套管总成 Rear Axle Drive Shaft Welding Fork And Spline Sleeve Assembly 1
7 2201022-80A 焊接叉 Welding Fork 1
8 2201058-80A 花键套管 Spline Bush 1
9 2201023-80A 突缘叉 Flange Fork 1
10 CQ70001 直通式滑脂嘴 Grease Nozzle 1
11 2201050-1050 花键轴叉及万向节总成 Spline Shaft Fork And Universal Joint Assembly 1
12 2201030-1050 十字轴及滚针轴承总成 Cross Shaft And Needle Bearing Assembly 1
13 2201020-80A 花键轴叉总成 Spline Shaft Fork Assembly 1
14 2201070-80A 防尘罩及油封总成 Dust Cover And Seal Assembly 1
15 2201065-80A 油封总成 Oil Seal Assy 1
16 2201066-80A 防尘罩 Dustproof Cover 1
17 2201024-80A 花键轴叉 Spline Shaft Fork 1
2201010-80A 后桥传动轴及万向节总成 Rear Axle Drive Shaft And Universal Joint Assembly
序号版本用量
Order Edition Oty
18 2201023-80A 突缘叉 Flange Fork 1 Q031F424J4B7L05
2205010—ü627 ¢°{Ç{ $ @ @ , •› Intermed i ate Ax I e Dr i ve Shaft And Un i ver sa I
Jo i nt Assemb I y—1
20
’ ° °°
..........
B
2205010—0627 g* /Ç{gù $ @ @ , •. I nt:ermed i at:e Ax I e Dr i ve Shaft And Un i ver sa I
Jo i nt: Assemb I y—2
15
6
’4
l
2205010-Q627 中桥传动轴及万向节总成 Intermediate Axle Drive Shaft And Universal Joint Assembly
Order Edition Oty
1 2205010-Q627 中桥传动轴及万向节总成 Intermediate Axle Drive Shaft And Universal Joint Assembly A.10 1 Q031F424J4B7L05
2 2205020C6H 花键轴叉总成 Spline Shaft Fork Assembly 1
3 2205024C6H 花键轴叉 Spline Shaft Fork 1
4 2205070C6H 防尘罩及油封总成 Dust Cover And Seal Assembly 1
5 2205065C6H 油封总成-防尘罩 Oil Seal Assembly-Dustproof Cover 1
6 2205066C6H 防尘罩 Dustproof Cover 1
2205041C6H 挡圈 Circlip 按需
7 2205044C6H 挡圈 Circlip 按需
8 2205030C6H 十字轴及滚针轴承总成 Cross Shaft And Needle Bearing Assembly 2
9 2205023-50A 突缘叉 Flange Fork 2
10 CQ70001 通式滑脂嘴 Grease Nozzle 1
11 2205060-Q627 中桥传动轴及万向节分总成 Intermediate Axle Drive Shaft And Universal Joint Assembly 1
12 2201059B761 堵盖-花键套管 Stopper-Spline Sleeve 1
13 2205022 焊接叉 Welding Fork 1
14 2205018-Q627 轴管 Shaft Pipe 1
15 2201055B761 花键 Spline 1
16 2201058B761 花键轴套管 Spline Shaft Sleeve 1
2201071-50A 平衡片 Balance Tab 按需
17
2205010-Q627 中桥传动轴及万向节总成 Intermediate Axle Drive Shaft And Universal Joint Assembly
Order Edition Oty
2205071C6H 平衡片 Balance Tab 按需 Q031F424J4B7L05
2205072C6H 平衡片 Balance Tab 按需
18
19 CQ1611455T 六角头螺栓 Hexagon Head Bolt 8
20 Q32914 1型非金属嵌件六角锁紧螺母 Prevailing Torque Type Hexagon Nut(with Non-metallic Insert)，Style 1 8
2400010-Q774 后桥总成（457冲焊桥，5.286）-后桥主减速器总成 Rear Axle Assembly-Rear Axle Main Reducer Assy
Order Edition Oty
2400010-Q774 后桥总成（457冲焊桥，5.286） Rear Axle Assembly A.3 1 Q031F424J4B7L05
1 SQ2402119-A01 螺栓-紧固差速器轴承盖 Bolt For Bearing Cover Of Differential 4
2 SQ2402019D1H-10 盖-差速器轴承 Cover - Differential Bearing 2
3 2402018D1H-10 减速器外壳 Reducer Outer House 1
4 Q62510 加油螺塞 Oil Filler Plug 2
5 2402049D1H 轴承座-主动锥齿轮 Bearing Seat-Drive Cone Gear 1
6 2402097D1H 调整垫圈-主动锥齿轮轴承座（t=0.5） Adjusting Washer 1
2402098D1H 调整垫圈-主动锥齿轮轴承座(t=0.2) Adjusting Washer 1
2402099D1H 调整垫圈-主动锥齿轮轴承座(t=0.1) Adjusting Washer 1
7 42708K 无保持架圆柱滚子轴承 Not Cage Cylindrical Roller Bearing 1
8 S2402036M5H 主动锥齿轮 Drive Bevel Gear 1
9 9278/9220 圆锥磙子轴承-主动锥齿轮 Bearing 1
10 30613B(27713EK)（27713E 圆锥磙子轴承-主动锥齿轮 Bearing 1
11 2402091-D1HB1 调整垫圈-主动锥齿轮轴承 Adjusting Washer-Drive Bevel Gear Bearing 1
12 2401081D1HB1 调整垫圈-主动锥齿轮轴承(3.07-3.09) Adjusting Washer-Drive Bevel Gear Bearing 1
2401082D1HB1 调整垫圈-主动锥齿轮轴承(3.17-3.19) Adjusting Washer-Drive Bevel Gear Bearing 1
13 2402055D1H 油封总成-主动锥齿轮 Oil Seal Assy-Drive Cone Gear 1
14 W2402065B09D-HL 主动锥齿轮突缘总成 Flange Assy Of Driving Bevel Gear 1
15 S2402071K5H 螺母-主动锥齿轮突缘 Nut-Drive Bevel Gear Flange 1
16 CQ1501440 螺栓-紧固主动锥齿轮轴承座 Bolt -Bearing Seat Of Driving Cone Gear 8
17 2403038A31 平垫圈 Plain Washer 8
18 S2402940M5H 主从动锥齿轮副（5.286） Driving And Driven Bevel Gear 1
19 2402063D1HB2 螺栓-紧固从动锥齿轮与差速器左壳 Bolt - From Driven Cone Gear To Left Housing 12
20 2403017D1H-20 左壳-差速器 Left Housing -Differentilal 1
Order Edition Oty
21 2403018D1H-20 右壳-差速器 Right Housing -Differentilal 1 Q031F424J4B7L05
22 2403023D1H 螺栓-紧固差速器壳 Bolt 12
23 594A/592A 轴承总成 Bearing Assy 2
24 CQ1501020 螺栓- 止动片 Bolt 4
26 SQ2403072B01D 止动片-调整环 Retaining Sheet -Adjusting Ring 2
27 2403071D1H 调整环 Adjusting Ring 2
28 2403053D1H 垫片-半轴齿轮 Washer-Half Axle Gear 2
29 2403051D1HB1 半轴齿轮 Axle Shaft Gear 2
30 2403058D1H 垫片-行星齿轮 Washer-Planet Gear 4
31 2403056D1H 行星齿轮 Planet Gear 4
33 2403061D1H 十字轴-差速器 Cross Shaft-Differential 1
2400010-Q774 后桥总成（457冲焊桥，5.286）-后桥总成 Rear Axle Assembly-Rear Axle Assembly
2400010-Q774 后桥总成（457冲焊桥，5.286）-后桥总成 Rear Axle Assembly-Rear Axle Assembly
序号版本用量
Order Edition Oty
1 SQ2401010B16D 后桥壳总成 Rear Axle Housing Assembly 1
2 W2401024B10D 后轮毂内轴承档圈 The Inner Rear Wheel Hub Bearing Retainer 2
3 CQ61806 螺塞 Plug, Threaded 1
4 Q62104 放油螺塞 Oil Drain Plug 1
5 SQ2401068B-A01 橡胶通气塞总成 Vent Plug Assembly 1
6 2403090D1H 半轴油封总成 Axle Shaft Oil Seal Assy 2
7 2401053-4E 螺母-后轮毂轴承 Nut-Rear Nave Bear 2
8 2401058-4E 锁片 Lock Shim 2
9 CQ1500816 螺栓 Bolt 6
11 2402010M5H-QD 减速器及差速器总成 Main Reductor and Differential Assembly 1
12 2402016D1H 螺栓-紧固减速器用 Bolt 8
14 S2403082K5HB1 右半轴 Right Half Shaft 1
15 S2403081K5HB1 左半轴 Left Half Shaft 1
16 2403084B01D 垫密片-半轴 Gasket-Half Shaft 2
17 2403083-4EB1 螺栓-半轴 Bolt 20
18 SQ3502565B03D- SBL 后制动鼓总成 Rear Brake Drum Assembly 2
19 3502010-1H-JR 后左制动器总成 Rear Brake Assy (Left) 1
20 3502020-1H-JR 后右制动器总成 R.R. Brake Assy 1
21 CQ1501435 螺栓 Bolt 8
23 W3506327B05D 后桥气管支架 Air Pipe Bracket 1
24 Q150B1018 螺栓 Bolt 2
2400010-Q774 后桥总成（457冲焊桥，5.286）-制动鼓总成 Rear Axle Assembly-Brake Drum Assembly
2400010-Q774 后桥总成（457冲焊桥，5.286）-制动鼓总成 Rear Axle Assembly-Brake Drum Assembly
序号版本用量
Order Edition Oty
1 SQ3502571B01D 后制动鼓 Rear Brake Drum 2
2 W3104011B01DB1 后轮毂 Rear Hub 2
3 30621 轮毂内轴承 Inner Bearing, Hub 2
4 7819E 轮毂外轴承 Outer Bearing, Hub 2
5 W3104045B01D 轮毂油封 Nave Oil Seal Assy 2
6 3104051-4EC1- SBL 车轮螺栓 Wheel Bolt 2
7 W3104070F102A 车轮螺母 Wheel Nut 20
8 3103071-4E 螺母 Nut 20
2400010-Q774 后桥总成（457冲焊桥，5.286）-制动器总成 Rear Axle Assembly-Brake Assembly
2400010-Q774 后桥总成（457冲焊桥，5.286）-制动器总成 Rear Axle Assembly-Brake Assembly
Order Edition Oty
1 3502026-4E 左制动支架 LH Brake Bracket 1
3502027-4E 右制动支架 RH Brake Bracket 1
2 3501396-4E 衬套 Bushing 2
3 3502391-4E 后制动蹄片 Rear Brake Shoe Lining 2
4 3502407-4E 摩擦片 Friction Plate 8
5 W3502151BZW5-1 后左制动凸轮 Rear Left Brake Cam 1
W3502152BZW5-1 后右制动凸轮 Rear Right Brake Cam 1
6 3501134-4E-JR 凸轮垫圈 Gasket Of Cam 2
7 3502436-4E 回动弹簧 Retracting Spring 2
8 3502082-Q805 蹄片轴 Shoe Shaft 4
9 3501086-4E 蹄片轴挡板 Baffle 2
10 CQ1501016 螺栓 Bolt 2
12 3502031-A0A 后制动左上（右下）挡尘盘 Dust-Proof Pan Of Rear Brake Left Upper (Right Lower) 2
13 3502032-A0A 后制动左下（右上）挡尘盘 Dust-Proof Pan Of Rear Brake Left Lower (Right Upper) 2
14 3502135BOM4 左支架总成-后制动凸轮 Left Bracket-Rear Brake Cam 1
3502235BOM4 右支架总成-后制动凸轮 Right Bracket-Rear Brake Cam 1
15 3502120-1H 油封-制动支架 Oil Seal Assy- Brake Bracket 2
16 3502121-1H 关节轴承-凸轮轴支架 Knuckle Bearing-Camshaft Bracket 1
17 3502122-1H 油封-凸轮轴支架 Oil Seal Assy-Camshaft Bracket 2
18 3501156-01 调整垫圈 Adjusting Washer 按需
19 W3502210BOM2 左调整臂总成 Left Adjusting Arm Assy 1
W3502220BOM2 右调整臂总成 Right Adjusting Arm Assy 1
20 Q5006035 开口销 Split Pin 2
21 Q150B1635T 螺栓-紧固后制动支架用 Bolt-Tightening Brake Bracket 16
22 Q150B0610 螺栓-挡尘盘用 Bolt 16
2500010-Q774 中桥总成（457冲焊桥，5.286）-制动鼓总成 Middle Axle Assembly-Brake Drum Assembly
2500010-Q774 中桥总成（457冲焊桥，5.286）-制动鼓总成 Middle Axle Assembly-Brake Drum Assembly
Order Edition Oty
2500010-Q774 中桥总成（457冲焊桥，5.286） Middle Axle Assembly A.3 1 Q031F424J4B7L05
1 SQ3502571B01D 后制动鼓 Rear Brake Drum 2
2 W3104011B01DB1 后轮毂 Rear Hub 2
3 30621 轮毂内轴承 Inner Bearing, Hub 2
4 7819E 轮毂外轴承 Outer Bearing, Hub 2
5 W3104045B01D 轮毂油封 Nave Oil Seal Assy 2
6 3104051-4EC1- SBL 车轮螺栓 Wheel Bolt 2
7 W3104070F102A 车轮螺母 Wheel Nut 20
8 3103071-4E 螺母 Nut 20
2500010-Q774 中桥总成（457冲焊桥，5.286）-制动器总成 Middle Axle Assembly-Brake Assembly
2500010-Q774 中桥总成（457冲焊桥，5.286）-制动器总成 Middle Axle Assembly-Brake Assembly
Order Edition Oty
1 3502026-4E 左制动支架 LH Brake Bracket 1
3502027-4E 右制动支架 RH Brake Bracket 1
2 3501396-4E 衬套 Bushing 2
3 3502391-4E 后制动蹄片 Rear Brake Shoe Lining 2
4 3502407-4E 摩擦片 Friction Plate 8
5 W3502151BZW5-1 后左制动凸轮 Rear Left Brake Cam 1
W3502152BZW5-1 后右制动凸轮 Rear Right Brake Cam 1
6 3501134-4E-JR 凸轮垫圈 Gasket Of Cam 2
7 3502436-4E 回动弹簧 Retracting Spring 2
8 3502082-Q805 蹄片轴 Shoe Shaft 4
9 3501086-4E 蹄片轴挡板 Baffle 2
10 CQ1501016 螺栓 Bolt 2
12 3502031-A0A 后制动左上（右下）挡尘盘 Dust-Proof Pan Of Rear Brake Left Upper (Right Lower) 2
13 3502032-A0A 后制动左下（右上）挡尘盘 Dust-Proof Pan Of Rear Brake Left Lower (Right Upper) 2
14 3502135BOM4 左支架总成-后制动凸轮 Left Bracket-Rear Brake Cam 1
3502235BOM4 右支架总成-后制动凸轮 Right Bracket-Rear Brake Cam 1
15 3502120-1H 油封-制动支架 Oil Seal Assy- Brake Bracket 2
16 3502121-1H 关节轴承-凸轮轴支架 Knuckle Bearing-Camshaft Bracket 1
17 3502122-1H 油封-凸轮轴支架 Oil Seal Assy-Camshaft Bracket 2
18 3501156-01 调整垫圈 Adjusting Washer 按需
19 W3502210BOM2 左调整臂总成 Left Adjusting Arm Assy 1
W3502220BOM2 右调整臂总成 Right Adjusting Arm Assy 1
21 Q150B1635T 螺栓-紧固后制动支架用 Bolt-Tightening Brake Bracket 16
22 Q150B0610 螺栓-挡尘盘用 Bolt 16
2500010-Q774 中桥总成（457冲焊桥，5.286）-中桥总成 Middle Axle Assembly-Middle Axle Assembly
Order Edition Oty
1 SQ2501010B16D 中桥外壳总成 Middle Axle Housing Assy 1
2 Q62104 放油螺塞 Oil Drain Plug 1
3 SQ2401068B-A01 橡胶通气塞总成 Vent Plug Assembly 1
4 2402071D1H 螺母—紧固轴间差速器突缘 Nut-Intershaft Differential Flange 1
5 W2402065B09D 轴间差速器突缘总成 Intershaft Differential Flange Assy 1
6 2402055D1H 轴间差速器油封总成 Intershaft Differential Oil Sealing Assy 1
7 Q430140 挡圈—轴间差速器轴承 Circlip-Deep Groove Ball Bearing 1
8 6313K 轴间差速器轴承 Deep Groove Ball Bearing 1
9 S2507011K5H 外壳—轴间差速器 Housing-Intershaft Differential 1
10 CQ61803 放油螺塞 Oil Drain Plug 1
11 CQ61803 加油螺塞 Oil Filler Plug 1
12 CQ1501455 螺栓——紧固轴间差速器外壳 Bolt - Intershaft Differential Outer Housing 8
14 S2507013K5H 垫密片——轴间差速器外壳 Gasket 1
15 S2507057K5HB1-30 前壳——轴间差速器 Front Housing -Intershaft Differential 1
16 CQ1601475 螺栓-紧固轴间差速器壳 Blot 8
18 2403053A31 垫片-前半轴齿轮 Washer-Front Half Axle Gear 1
19 2403051A31 前半轴齿轮-轴间差速器 Front Half Shaft Gear-Inter-Axle Diferential 1
20 2403056A31 行星齿轮-轴间差速器 Planetary Gear - Intershaft Differential 4
21 S2403058A31 垫片-行星齿轮 Washer-Planet Gear 4
22 2403061A31A1 十字轴-轴间差速器 Cross Shaft-Inter-Axle Diferential 1
23 S2507068K5H 后半轴齿轮-轴间差速器 Rear Shaft Gear-Intershaft Differential 1
24 S2507072K5H 垫片-后半轴齿轮 Shim - Rear Axle Half Axle 1
25 S2507058K5HB1-20 后壳-轴间差速器 Rear Housing -Intershaft Differential 1
26 S2502126K5H 轴承座-主动圆柱齿轮 Front Bearing Seat-Driving Cylindrical Gear 1
27 S2502131K5H 调整垫片-主动圆柱齿轮轴承座（t=0.5 Adjusting Washer - Driving Cylindrical Gear Bearing Seat（t=0.5） 2
S2502132K5H 调整垫片-主动圆柱齿轮轴承座（t=0.2 Adjusting Washer - Driving Cylindrical Gear Bearing Seat（t=0.2） 3
S2502133K5H 调整垫片-主动圆柱齿轮轴承座（t=0.1 Adjusting Washer - Driving Cylindrical Gear Bearing Seat（t=0.1） 4
Order Edition Oty
S2502134K5H 调整垫片-主动圆柱齿轮轴承座（t=0.0 Adjusting Washer - Driving Cylindrical Gear Bearing Seat（t=0.05） 4 Q031F424J4B7L05
28 CQ1501020 螺栓-紧固圆柱齿轮外壳堵盖 Bolt - Plug Cover 2
30 S2502122K5H 堵盖-圆柱齿轮外壳 Plug Cover - Outer Housing Of Cylindrical Gear 1
31 SQ2502124K5H O形圈 Plug, O Ring 1
32 S2502121K5H 外壳-圆柱齿轮 Shell - Cylindrical Gear 1
33 CQ1501440 螺栓-紧固圆柱齿轮外壳 Blot 13
35 30215（7215E）主动圆柱齿轮轴承总成 Drive Cylindrical Gear Bearing Assy 1
36 2402071D1H 螺母-紧固从动圆柱齿轮 Bolt - Driven Cylindrical Gear 1
37 S2502107K5H 主动圆柱齿轮 Driving Cylindrical Gear 1
38 S2502108K5H 从动圆柱齿轮 Driven Cylindrical Gear 1
39 30613B（27713EK）圆锥滚子轴承 TAPERED ROLLER BEARING 1
40 30215（7215E）主动圆柱齿轮轴承总成 Drive Cylindrical Gear Bearing Assy 1
41 CQ1501440 螺栓-紧固主动锥齿轮轴承座 Bolt -Bearing Seat Of Driving Cone Gear 8
43 S2502049K5H 轴承座-主动锥齿轮 Bearing Seat-Drive Cone Gear 1
44 S2502097K5H 调整垫片-主动锥齿轮轴承座 Adjusting Washer - Driving Conical Gear Bearing Seat 1
S2502098K5H 调整垫片-主动锥齿轮轴承座 Adjusting Washer - Driving Conical Gear Bearing Seat 1
S2502099K5H 调整垫片-主动锥齿轮轴承座 Adjusting Washer - Driving Conical Gear Bearing Seat 1
45 2402081D1HB1 调整垫圈-主动锥齿轮轴承 Adjusting Washer-Drive Bevel Gear Bearing 1
2402082D1HB1 调整垫圈-主动锥齿轮轴承 Adjusting Washer-Drive Bevel Gear Bearing 1
2402091D1H 调整垫圈-主动锥齿轮轴承 Adjusting Washer-Drive Bevel Gear Bearing 1
2402092D1H 调整垫圈-主动锥齿轮轴承 Adjusting Washer-Drive Bevel Gear Bearing 1
Order Edition Oty
46 S2502161K5H 贯通轴 Pass-Through Shaft A.3 1 Q031F424J4B7L05
47 9278/9220 圆锥滚子轴承 TAPERED ROLLER BEARING 1
48 S2502036M5H 主动锥齿轮(速比：5.286) Drive Bevel Gear 1
49 42708K 主动锥齿轮圆柱滚子轴承总成 Cylindrical Roller Bearing Assy 1
50 S2508052K5H 齿套-轴间差速锁 Gear Sleeve - Intershaft Diferential Lock 1
51 SQ2508010K5H 轴间差速锁总成 Intershaft Diferential Lock Assy 1
52 CQ1501030 螺栓-紧固外壳 Bolt 4
54 CQ5241226 圆柱销-减速器外壳 Straight pin 2
55 S2502018K5H-10 减速器外壳 Reducer Outer House 1
58 Q62510 方头锥形加油螺塞 Squared Head Taper Plug 1
59 2403071D1H 调整环 Adjusting Ring 2
60 594A/592A 差速器轴承总成 Differential Bear Assy 2
61 2403023D1H 螺栓-紧固差速器壳 Bolt 12
62 SQ2402063D1H 螺栓-紧固从动锥齿轮与差速器左壳 Bolt - From Driven Cone Gear To Left Housing 12
63 2403017D1H-20 左壳-差速器 Left Housing -Differentilal 1
64 2403053D1H 垫片-半轴齿轮 Washer-Half Axle Gear 2
65 2403051D1HB1 半轴齿轮 Axle Shaft Gear 2
66 2403058D1H 垫片-行星齿轮 Washer-Planet Gear 4
67 2403056D1H 行星齿轮 Planet Gear 4
68 2403061D1H 十字轴-差速器 Cross Shaft-Differential 1
69 2403018D1H-20 右壳-差速器 Right Housing -Differentilal 1
70 S2502037M5H 从动锥齿轮(速比：5.286) Driven Cone Gear 1
71 CQ1501020 螺栓-止动片 Bolt-Stopper Shim 4
73 SQ2403072B01D 止动片-调整环 Retaining Sheet -Adjusting Ring 2
74 SQ2402119-A01 螺栓-紧固差速器轴承盖 Bolt For Bearing Cover Of Differential 4
75 SQ2402029D1H-10 差速器轴承盖 Cone Gear Differential Bearing Cover 2
Order Edition Oty
76 2403083-4EB1 螺栓-半轴 Bolt 20 Q031F424J4B7L05
77 S2403082K5HB1 右半轴 Right Half Shaft 1
S2403081K5HB1 左半轴 Left Half Shaft 1
78 2403084B01D 垫密片-半轴 Gasket-Half Shaft 2
79 2403090D1H 半轴油封总成 Axle Shaft Oil Seal Assy 2
80 S2402071K5H 螺母-紧固贯通轴突缘 Nut-Fastening Through Shaft Flange 1
81 W2502165B09D-HL 突缘-贯通轴 Pass-Through Shaft Flange 1
82 Q150B1445 螺栓-紧固贯通轴轴承盖 Bolt -Fixing Bearing Cover Of Pass-Through Shaft 3
84 S2502170K5H 贯通轴油封总成 Run-Through Shaft Oil Seal Assy 1
85 S2502168K5H 轴承盖-贯通轴 Bearing Cap-Throughout Shaft 1
86 S2502171K5H 调整垫片-贯通轴轴承盖（t=0.5） Adjusting Gasket 1
S2502172K5H 调整垫片-贯通轴轴承盖（t=0.2） Adjusting Gasket 1
S2502173K5H 调整垫片-贯通轴轴承盖（t=0.1） Adjusting Gasket 1
87 30211（7211E）贯通轴轴承总成 Thru Shaft Bearing Assy 1
88 S2502169K5H 垫圈-贯通轴突缘 Washer - Thru Shaft Flange 1
89 30211（7211E）贯通轴轴承总成 Thru Shaft Bearing Assy 1
2508M01-Q800-001 轴间差速操纵管路模块 Intershaft Differential Control Pipeline Module
序号版本用量
Order Edition Oty
2508M01-Q800-001 轴间差速操纵管路模块 Intershaft Differential Control Pipeline Module C.2 Q031F424J4B7L05
1 2508090-Q96 输气管总成-电磁阀接差速锁气缸 Air Pipe Assembly-Solenoid Valve to Differential Lock Cylinder A.3 1
2800M01—0351—001 @{ I Frame Modu I e—1
A B
.’e
23
2
2800M01—0351—001 :f Frame Modu I e—2
30 28
28
25
28
3T
3
17 -'% -
32
35
34
2800M01—0351—001 I Frame Modu I e—3
40
41
40
42
42
48
50 43/44
52
2800M01—0351—001 @{ I Frame Modu I e—4
28 56
30 28
57
25 58
28
53
54
60
63
66
6
5 68
67
65
70
2800M01—0351—001 :f Frame Modu I e—5
73
75 76
8
63
79
83%
84
2800M01-Q351-001 车架模块 Frame Module
Order Edition Oty
2800M01-Q351-001 车架模块 Frame Module A.5 Q031F424J4B7L05
1 2806016-Q417 插销座 Pin Seat B.5 1
2 2806011-Q468 插销 Pin A.3 1
7 2806016-01 拖钩 Towing Hook A.3 1
8 2806018-01 弹簧锁片 Spring Lock Sheet A.3 1
15 2802121-Q627 下护板 Lower Protection Plate J.1 1
18 2800010-Q351 车架及支架总成 Frame and Bracket Assembly C.1 1
19 2801082-D420N 前横梁 Front Cross Member A.2 1
20 Q4501438 半圆头铆钉 Round Head Rivet A.1 12
21 2801023-DF39 左纵梁加长梁 Extended Beam - Left Rail A.2 1
22 2801024-DF39 右纵梁加长梁 Extended Beam - Right Rail A.2 1
24 Q1841640T 六角法兰面螺栓粗杆(标准型) Hexagon Flange Bolt Thick Rod (Standard Type) A.1 12
25 2801152-368 中三横梁 Middle Three Beam F.1 2
27 2801153-DF001 弯横梁左下连接板 Bent Hollow Beam Left Lower Connecting Plate C.1 1
29 2801158-DF001 弯横梁右上连接板 Bent Hollow Beam Right Upper Connecting Plate A.2 2
Order Edition Oty
30 2801154-DF001 弯横梁右下连接板 Bent Hollow Beam Right Lower Connecting Plate A.2 1 Q031F424J4B7L05
31 2801157-DF001 弯横梁左上连接板 Bent Hollow Beam Left Upper Connecting Plate C.1 2
32 2801182-DE001 后横梁 Rear Cross Member E.1 1
36 2801183-Q734 左连接板-后横梁 Left Connecting Plate-Rear Cross Member C.1 1
38 2801184-Q734 右连接板-后横梁 Right Connecting Plate-Rear Cross Member A.2 1
39 2801132-DF001 横梁 Beam W.1 1
41 2801133-DF001 连接板 Connecting Plate A.2 4
43 2902441-DF001 左前支架-前钢板弹簧 Left Front Bracket-Front Leaf Spring D.1 1
44 2902442-DF001 右前支架前钢板弹簧 Right Front Bracket-Front Leaf Spring A.3 1
45 2902517-242 螺栓（承认图） Bolt A.4 4
46 2902617-242 螺母 Nut A.4 4
48 T32714T SPL六角小法兰面防松螺母 SPL Small Hexagon Flange Lock Nut A.2 6
49 2902436-X112 限位支架 Limit Bracket A.3 2
51 2801037-Q148A 支架 Bracket C.7 4
53 2801153-DE001 弯横梁左下连接板 Bent Hollow Beam Left Lower Connecting Plate C.1 1
55 2801154-DE001 弯横梁右下连接板 Bent Hollow Beam Right Lower Connecting Plate A.2 1
56 2801170-Q144 平衡悬挂横梁总成 Balance Suspension Cross Beam Assy A.5 1
57 2801173-Q144 垫板-平衡悬挂横梁 Backing Board C.1 1
58 2801171-Q144 前横梁-平衡悬挂 Front Cross Member C.1 1
59 2801172-Q144 后横梁-平衡悬挂 Rear Cross Member E.1 1
Order Edition Oty
60 Q4501450 半圆头铆钉 Round Head Rivet A.1 24 Q031F424J4B7L05
62 2801177-Q148A 下垫板-平衡悬挂横梁 Lower Backing Plate-Balance Suspension Cross Beam A.2 2
64 2801041-D367A 内上加强板－左纵梁 Inner Upper Reinforced Plate-Left Rail C.1 1
66 2801042-D367A 内上加强板－右纵梁 Inner Upper Reinforced Plate-Right Rail A.2 1
67 2801043-DZ300 内下加强板-左纵梁 Inner Lower Reinforced Plate-Left Rail I.1 1
68 2801044-DZ300 内下加强板 Inner Lower Reinforced Plate A.2 1
70 2919111-5H 支架-后悬架上反作用杆与车架连接 Bracket B.3 2
72 2905411-DH105 上支架-前减振器 Upper Bracket-Front Damper A.2 2
74 2801047-Q148A 外下加强板-纵梁 Outer Lower Reinforced Plate A.2 2
75 2801051-D362A 货箱连接板 Cargo Connecting Plate C.1 2
79 2801022-Q351 右纵梁 Right Rail A.2 1
80 2801032-Q351 内加强板-右纵梁 Inner Reinforced Plate-Right Rail A.2 1
81 2801031-Q351 内加强板-左纵梁 Inner Reinforced Plate-Left Rail A.2 1
82 2801021-Q351 左纵梁 Left Rail A.2 1
83 2912434-D647N 垫板 Backing Board A.2 4
85 CQ34114T 六角螺母 Heavy Hexagon A.1 4
2803G02—398 [/*I #’ Front Bumper Lo ’ic Assembly
13
2803G02-398 前保险杠逻辑总成 Front Bumper Logic Assembly
序号版本用量
Order Edition Oty
2803G02-398 前保险杠逻辑总成(带大灯防护网) Front Bumper Logic Assembly C.2 Q031F424J4B7L05
1 2803010-398 前保险杠总成 Front Bumper Assy A.4 1
2 2803275-398 左前保险杠固定支架总成 LH Front Fixing Bracket Assembly A.3 1
3 2803280-398 右前保险杠固定支架总成 RH Front Fixing Bracket Assembly A.3 1
4 2803065-398 左大灯支架总成 Left Headlamp Bracket Assy D.1 1
5 2803070-398 右大灯支架总成 Right Headlamp Bracket Assy A.3 1
6 2803335-398 左大灯护网总成 Left Headlamp Protective Wet A.3 1
7 2803340-398 右大灯护网总成 Right Headlamp Protective Wet A.3 1
15 Q2360616F6 十字槽平圆头组合螺钉 Cross Recessed Button Head Screw A.1 1
2809M09—D49—001 J°°§ Î, Î :f Rea r Pr of:ect: i on Modu I e
°
2809M09-D49-001 后防护模块 Rear Protection Module
序号版本用量
Order Edition Oty
2809M09-D49-001 后防护模块 Rear Protection Module C.2 Q031F424J4B7L05
1 2809091-Q111 左连接板 Left Connecting Plate B.6 1
2 2809092-Q111 右连接板 Right Connecting Plate A.1 1
9 3925020-DF11 右车辆尾部标志板 Right Vehicle Tail Sign Board A.2 1
10 3925015-DF11 左车辆尾部标志板 Left Vehicle Tail Sign Board E.1 1
12 2809015-Q333 后防护横梁总成 Rear Protection Cross Member Assembly B.4 1
14 2809213-240 端头-后防护横梁 End Head-Rear Protection Cross Member A.5 2
15 2809214-240 卡扣-后防护 Buckle-Rear Rear Protection A.5 4
2900M01—D588—001 jÏiî Î t Front Suspens i on Modu I e
10 20
18
23
10
13
2900M01-D588-001 前悬架模块 Front Suspension Module
序号版本用量
Order Edition Oty
2900M01-D588-001 前悬架模块 Front Suspension Module A.3 Q031F424J4B7L05
1 2902471-318 销-前钢板弹簧前支架 Pin-Front Steel Spring Bracket C.1 1
2 CQ70190 弯颈式滑脂嘴 Grease Nozzle A.1 2
5 CQ34112 六角螺母 Hexagon Nut A.1 6
6 2902471-362 销-前钢板弹簧支架 Pin-Front Leaf Spring Bracket F.1 1
9 2905010-D650 前减振器总成 Front Shock Absorber Assembly B.8 2
15 2902450-D4001 后支架总成-前钢板弹簧 Rear Bracket Assy-Front Leaf Spring A.3 2
16 2902444-D4001 后支架-前钢板弹簧 Rear Bracket-Front Leaf Spring C.1 2
17 2912121-03 衬套-后钢板弹簧 Bush-Leaf Spring A.2 2
19 CQ39714 六角法兰面螺母 Hexagon Flange Nut A.1 6
21 2902466-D4001 吊环-前钢板弹簧 Ring-Front Leaf Spring E.1 2
22 2902481-50A 销-前钢板弹簧后支架 PIN A.4 4
23 CQ70145 弯颈式滑脂嘴 Grease Nozzle A.1 4
2900M02—CD558L—001 /* Î :f Rea r Suspens i on Modu I e—1
’4
’3
’4
2900M02—CD558L—001 J"° @{ I Rear Suspens i on Modu I e—2
A B
15 i6
17 20
13
1
18
11
11
2900M02—CD558L—001 /* :f Rear Suspens i on Modu I e—3
32
22
24
2900M02-CD558L-001 后悬架模块 Rear Suspension Module
序号版本用量
Order Edition Oty
2900M02-CD558L-001 后悬架模块 Rear Suspension Module C.2 1 Q031F424J4B7L05
2900915-CD558L 平衡悬架钢板弹簧座及后钢板弹簧以及 Suspension Balance Leaf Spring Seat And Rear Leaf Spring Suspension C.2 1
1 2919005-CD558L(KRT) 中桥反作用杆总成（修理包） Intermediate Axle Reaction Rod Assembly C.1 3
2 2919010-CD558L(KRT) 后桥上反作用杆总成（修理包） Rear Axle Upper Reaction Rod Assembly A.2 1
3 2919015-CD558L(KRT) 后桥下反作用杆总成（修理包） Rear Axle Lower Reaction Rod Assembly C.1 2
4 2919162-5H 螺栓 Bolt A.1 12
5 T32718T SPL六角小法兰面防松螺母 SPL Small Hexagon Flange Lock Nut A.2 18
6 2919173-5H 螺栓 Bolt A.1 4
7 2918910-CD900Z 平衡悬架轴及钢板弹簧座总成 Suspension Balance Shaft And Leaf Spring Seat Assy D.1 1
8 2919161-5H 螺栓 Bolt B.3 2
9 2912411-CD558L U型螺栓-紧固后钢板弹簧用 U-bolt-for Fastening Rear Leaf Spring D.1 8
10 2912406-CD900Z 盖板-后钢板弹簧 Cover Plate-Rear Leaf Spring A.4 2
11 2912413-D603U 螺母-紧固U形螺栓用 Nut-For Fastening U-bolt B.4 16
13 Q32918T 1型非金属嵌件六角锁紧螺母 Prevailing Torque Type Hexagon Nut(with Non-metallic Insert)，Style A.2 26
17 2912439-5H 横向限位板-后钢板弹簧 Cross Locating Board-Rear Leaf Spring B.3 4
20 2912430-D79 后钢板弹簧软垫总成 Rear Leaf Spring cushion assembly C.1 4
21 2912431-01 固定板-后钢板弹簧软垫 Fixed Plate-Rear Leaf Spring cushion A.2 4
22 2912010-CD558L 后钢板弹簧总成（10片22MM） Rear Leaf Spring Assy D.1 2
23 2912010-CD558L-1 后钢板弹簧总成第一片 Rear Leaf Spring Assembly 1# Piece 2
24 2912010-CD558L-2 后钢板弹簧总成第二片 Rear Leaf Spring Assy 2
25 2912010-CD558L-3 后钢板弹簧总成第三片 Rear Leaf Spring Assembly 3# Piece 2
26 2912010-CD558L-4 后钢板弹簧总成第四片 Rear Leaf Spring Assembly 4# Piece 2
27 2912010-CD558L-5 后钢板弹簧总成第五片 Rear Leaf Spring Assembly 5# Piece 2
28 2912010-CD558L-6 后钢板弹簧总成第六片 Rear Leaf Spring Assembly 6# Piece 2
2900M02-CD558L-001 后悬架模块 Rear Suspension Module
序号版本用量
Order Edition Oty
29 2912010-CD558L-7 后钢板弹簧总成第七片 Rear Leaf Spring Assy 7Th Leaf 2 Q031F424J4B7L05
30 2912010-CD558L-8 后钢板弹簧总成第八片 Rear Leaf Spring Assembly 8# Piece 2
31 2912010-CD558L-9 后钢板弹簧总成第九片 Rear Leaf Spring Assembly 9# Piece 2
32 2912010-CD558L-10 后钢板弹簧总成第十片 Rear Leaf Spring Assembly 10# Piece 2
3000M01—0857—004 $ :f Front: Ax I e Modu I e—1
15
16
3000M01—0857—004 g$É{ t Front: Ax I e Modu I e—2
.W “
23
3000M01—0857—004 $ :f Front: Ax I e Modu I e—3
26
28
38
3000M01-Q857-004 前轴模块 Front Axle Module
序号版本用量
Order Edition Oty
3000M01-Q857-004 前轴模块（A1H，右置，830簧距，无AB Front Axle Module A.6 Q031F424J4B7L05
1 3003010-Q813 转向纵拉杆总成 Steering Drag Link Assembly C.1 1
2 3003060-A1S 接头总成-转向拉杆 Joint Assembly-Steering Drag Link B.3 1
3 3003056-8E 环箍 Clamp B.3 1
7 3003016-Q813 转向纵拉杆 Steering Drag Link C.1 1
8 3003025-1H 接头总成-转向纵拉杆 Connector Assembly-Steering Drag Link F.1 1
9 3003056-1H 环箍 Clamp A.2 1
13 CQ38720 六角槽形扁螺母 Hexagon Slotted Flat Nut A.1 1
15 CQ38722 六角槽形扁螺母 Hexagon Slotted Flat Nut A.1 3
17 3000010-D233F 前轴总成（A1H，改簧距，右置，SPL） Front Axle Assembly C.1 1
18 2902432-40 软垫-前钢板弹簧 Cushion-Front Leaf Spring D.1 2
19 2902411-228 U形螺栓-紧固前钢板弹簧用 U-bolt-For Fastening Front Leaf Spring B.3 4
20 2902413-03 螺母-紧固U形螺栓用 Nut-For Fastening U-bolt A.2 8
21 2905431-D215 下连接销-前减振器 Lower Connecting Pin-Front Shock Absorber I.1 1
24 2902406-Q101 盖板-前钢板弹簧 Cover-Front Leaf Spring A.3 2
25 2902010-D362 前钢板弹簧总成（12片） Front Leaf Spring Assy (Pieces) C.1 2
26 2912121-03 衬套-后钢板弹簧 Bush-Leaf Spring 4
27 2902201-D362 前钢板弹簧总成第一片 1St Leaf 2
28 2902202-D362 前钢板弹簧总成第二片 Front Leaf Spring Assy 2
29 2902203-D362 前钢板弹簧总成第三片 3Th Leaf 2
3000M01-Q857-004 前轴模块 Front Axle Module
序号版本用量
Order Edition Oty
30 2902204-D362 前钢板弹簧总成第四片 4Th 2 Q031F424J4B7L05
31 2902130-D362 前钢板弹簧总成第五片及夹箍总成 Front Leaf Spring Assembly 5# Piece and Clamp Assembly 2
32 2902207-D362 前钢板弹簧总成第六片 Front Leaf Spring Assembly 6# Piece 2
33 2902208-D362 前钢板弹簧总成第七片 Front Leaf Spring Assembly 7# Piece 2
34 2902209-D362 前钢板弹簧总成第八片 Front Leaf Spring Assembly 8# Piece 2
35 2902135-D362 前钢板弹簧总成第九片及夹箍总成 Front Leaf Spring Assembly 9# Piece and Clamp Assembly 2
36 29022012-D362 前钢板弹簧总成第十片 Front Leaf Spring Assembly 10# Piece 2
37 29022013-D362 前钢板弹簧总成第十一片 Front Leaf Spring Assembly 11# Piece 2
38 29022014-D362 前钢板弹簧总成第十二片 Front Leaf Spring Assembly 12# Piece 2
39 2902161-D215 中心螺栓 Middle Bolt 2
40 CQ34114 螺母 Nut 2
3000010-D233F 前轴总成（A1H，改簧距，右置，SPL）-前桥组件 Front Axle Assembly -Front Axle Assembly
3000010-D233F 前轴总成（A1H，改簧距，右置，SPL）-前桥组件 Front Axle Assembly -Front Axle Assembly
Order Edition Oty
3000010-D233F 前轴总成（A1H，改簧距，右置，SPL） Front Axle Assembly C.1 1 Q031F424J4B7L05
1 3103011-242 前轴 Front Axle 1
10 3001036-4E 止柱 Stop Rod 2
11 CQ34116 螺母 Nut 2
12 3001041-4E 调整垫圈 Adjusting Washer 2
13 3001044-4E 主销 Knuckle Pin 2
14 3001046-4E 楔形锁销 Wedge Lock Pin 2
15 CQ34014 螺母 Nut 2
17 3001047-4E 盖板 Plate 4
18 3001048-4E 垫密片 -盖板 Gasket - Cover Plate 4
19 CQ1500814 螺栓 Bolt 8
25 3003054-174 转向横拉杆 Steering Tie Rod 1
26 3003055-1H 左接头总成 Left Connector Assembly 1
27 3003060-1H 右接头总成 Right Connector Assembly 1
28 CQ38722 螺母 Nut 2
30 3003056-1H 紧固夹 Clamp 2
31 CQ1501460 螺栓 Bolt 2
32 CQ34014 螺母 Nut 2
46 329910A-1 止推轴承 Thrust Bearing 2
3000010-D233F 前轴总成（A1H，改簧距，右置，SPL）-制动器组件Front Axle Assembly- Brake Assembly
Order Edition Oty
3000010-D233F 前轴总成（A1H，改簧距，右置，SPL） Front Axle Assembly C.1 1 Q031F424J4B7L05
2 3001015-A1H 左转向节及衬套总成 Left Steering Knuckle And Bushing Assy 1
2.1 3001021-A1H 左转向节 Left Knuckle 1
2.2 3001026-4E 衬套 -转向节 Bushing 2
3 3001020-A1H 右转向节及衬套总成 Right Steering Knuckle And Bushing Assy 1
3.1 3001022-A1H 右转向节 Right Knuckle 1
3.2 3001026-4E 衬套 -转向节 Bushing 2
4 3001034-Q488 转向节上臂 Steering Knuckle Upper Arm 1
5 Q5510832 键 Key 3
6 3001031-174 左转向节臂 Left Steering Knuckle Arm 1
7 3001032-174 右转向节臂 Right Steering Knuckle Arm 1
8 CQ38736 螺母 Nut 3
21 3001064-AOS 锁紧垫圈 Washer 2
22 3001063-AOS 锁环 Locking Ring 2
23 3001061-367 调整螺母 Adjusting Nut 2
24 3001066-AOS 螺钉及波形垫片 Screw And Wave Gasket 6
34 3103045-4E 油封总成 Oil Seal Assy 2
35 3103066-4E 盖-前轮轮毂 Cover - Front Wheel Hub 2
36 3103067-4EA1 垫密片-前轮轮毂 Washer 2
37 CQ1500816 螺栓 Bolt 10
39 3103011-4E 前轮毂 Front Hub 2
40 3501571-4E 前制动鼓 Front Brake Drum 2
41 3103051-4EB1 车轮螺栓 Wheel Bolt 20
42 CQ34120 内螺母 Inner Nut 20
43 3103070-4E 车轮螺母 Wheel Nut 20
44 7311E 滚子轴承 Roller Bearing 2
45 7314EK 滚子轴承 Roller Bearing 2
47 3501010-242H 前左制动器总成 Front Left Brake Assembly 1
Order Edition Oty
47 3501020-242H 前右制动器总成 Front Right Brake Assembly 1 Q031F424J4B7L05
47.1 3501110-242H 前左气室支架组件 Front Left Brake Air Chamber Bracket 1
3501120-242H 前右气室支架组件 Front Right Brake Air Chamber Bracket 1
47.1.1 3501127-242H 左支架 Left Bracket 1
3501128-242H 右支架 Right Bracket 1
47.1.2 3502129-Q805 衬套 Bushing 2
47.1.3 3502145-Q805 油封总成 Oil Seal Assy 4
47.2 3501015-Q805 前左底板组件 F.L. Bottom Plate 1
3501016-Q805 前右底板组件 F.R. Bottom Plate 1
47.2.1 3501021-Q805 前左制动支架 Front LH Brake Bracket 1
3501022-Q805 前右制动支架 Front RH Brake Bracket 1
47.2.2 3502129-Q805 衬套 Bushing 2
47.3 3501390-Q805 蹄铁带摩擦片组件 Shoe with Friction Plate Assembly 4
47.3.1 3501391-Q805 蹄铁焊合组件 Shoe Iron Welding Assembly 4
47.3.1.1 3501396-Q805 面板 Panel 4
47.3.1.2 3501394-Q805 腹板组件 Abdomen Plate Assembly 2
47.3.1.2 3501399-Q805 腹板组件 Abdomen Plate Assembly 2
47.3.1.2 3502399-Q805 腹板 Abdomen Plate 8
47.3.1.2 3501401-Q805 支销侧板 Pin Side Panel 8
47.3.1.2 3501403-Q805 滚轮侧板 Roller Side Panel 8
47.3.2 3501407-Q805 摩擦片A Friction Plate A 4
47.3.3 3501408-Q805 摩擦片B Friction Plate B 4
47.3.4 3501409-X117 铆钉 Rivet 32
47.4 3501031-Q805 前制动挡尘盘 Front Brake Dust Brake Disc 2
47.5 Q1500612 螺栓 Bolt 16
47.6 Q40306 弹簧垫圈 Spring Washer 16
47.7 Q33212 螺母 Nut 4
47.8 CQ1501014 螺栓 Bolt 8
47.9 CQ34010 螺母 Nut 8
47.10 Q40310 弹簧垫圈 Spring Washer 8
Order Edition Oty
47.11 3501034-02 胶堵 Rubber Plug 4 Q031F424J4B7L05
47.12 CQ70001 滑脂嘴 Grease Nozzle 2
47.13 3501393-Q805 挂销 Pin 4
47.14 3501082-Q805 蹄铁销 Shoe Pin 4
47.15 3501397-Q805 滚轮 Roller 4
47.16 3501398-Q805 扭力弹簧 Torsional Spring 4
47.17 3502437-Q805 拉紧弹簧 Strainspring 4
47.18 3501436-X117 回动弹簧 Retracting Spring 2
47.19 3501151-242H 前左刹车凸轮 Front Left Brake Cam 1
3501152-242H 前右刹车凸轮 Front Right Brake Cam 1
47.20 CQ70002 油杯盖 Oil Cup Cover 2
47.21 3502154-Q805 调整臂调整垫圈1 Adjusting Washer-Adjusting Arm 1 2
47.24 Q5006060 开口销 Split Pin 2
47.25 3502157-Q805 凸轮垫圈1 Gasket Of Cam 1 2
47.26 3502156-Q805 凸轮垫圈2 Gasket Of Cam 2 2
48 3501205-B242 左调整臂总成 Left Adjusting Arm Assy 1
3501210-B242 右调整臂总成 Right Adjusting Arm Assy 1
49 3519110-362 左气室 Left Chamber 1
3519115-362 右气室 Right Chamber 1
50 CQ1501245 螺栓 Bolt 4
52 Q5101238 平头销 Flat Pin 2
53 Q40112 平垫圈 Plain Washer 2
55 CQ70145 弯径滑脂嘴 Bent Diameter Grease Nipple 2
56 CQ1501440T 螺栓 Bolt 16
3100M01—0774—001 tf;§ø{Ø:f Tyre Modu I e—1
1
3
4
3100M01—0774—001 tf;§ø{Ø:f Tyre Modu I e—2
4
3100M01-Q774-001 轮胎模块 Tyre Module
序号版本用量
Order Edition Oty
3100M01-Q774-001 11.00R20-18PR轮胎模块(通用花纹11， 11.00R20-18PR Tyre Module A.3 Q031F424J4B7L05
1 3101010-Q101C 车轮及轮胎总成 Wheel and Tyre Assembly A.2 11
2 3106010-Q101C 11.00R20 18层级轮胎（成套） 11.00R20 18 Lays Tyre A.1 11
3 3101015-Q101 8.00V-20车轮轮辋与轮辐总成 8.00V-20 Wheel Rim and Spoke Assembly A.3 11
4 3101027-Q101 弹性挡圈-8.00V-20车轮 Snap Ring A.1 11
5 3102010-1H 车轮盖总成 Wheel Cover Assembly A.2 2
6 3101078-D96F 车轮螺母护罩 Wheel Nut Cover A.2 60
3400M01—0778—001 tÇ@) É @Î ù ( @) St:eer i n Cont ro I and Transm i ss i on (Body Part:) —1
14
10
lô 23
17 0
48
2T 28/29/30/31
6
25
3
"W
20 39
14
18
37
2’ 28/29/30/31
35 25
3
2T
A B
80
58 54
56 52
57
43
73
T2
48
68
6
70
61 78
3400M01-Q778-001 转向操纵及传动模块(车身部分）Steering Control and Transmission Module (Body Part)
Order Edition Oty
3400M01-Q778-001 转向操纵及传动模块(车身部分,J5M708 Steering Control and Transmission Module (Body Part) A.3 Q031F424J4B7L05
1 3402010-D818 方向盘及按纽总成 Steering Wheel And Button Assy D.1 1
2 3721015-D818 喇叭按钮总成 Horn Button Assembly A.10 1
3 3402015-D818 方向盘总成 Steering Wheel Assy B.2 1
4 3403067-Q778 转向柱防尘罩 Dustproof Cover-Steering Pillar A.2 1
5 3403068-Q812 压板 Pressure Plate C.1 1
9 3403055-D850 转向柱支柱总成 Steering Pillar Column Assy D.1 1
11 3402021-15 弹性销 Spring Pin A.4 1
12 3403052-15 套 Sleeve Spring Coupling A.1 1
13 3403053-15 套 Sleeve Spring Coupling A.1 1
14 3404010-Q812 转向轴及传动轴总成 Steering Shaft & Transmission Shaft Assy E.1 1
17 Q40420 轻型弹簧垫圈 Light Type Spring Washer A.1 1
18 3404025-15 转向轴上轴承总成 Steering Shaft Upper Bearing Assy A.4 1
19 3404015-15 转向柱管与支架总成 Steering Column And Bracket Assembly A.4 1
20 3404020-15 上转向轴总成 Upper Steering Shaf Assy A.4 1
21 3404023-15 锁紧螺母 Lock Nut A.4 1
22 180204 球轴承 Bearing, Ball A.1 1
23 3404032-15 万向节叉 Universal Joint Fork A.4 1
24 3404031-15 十字轴 Cross Shaft B.3 2
25 3404033-15 十字轴油封 Oil Seal-Cross Shaft A.4 8
26 3404040-15 滚针轴承总成 Needle Bearing Assy A.4 8
27 3404022-15 螺塞 Plug, Threaded A.4 2
28 3404041-15 孔用弹性挡圈 Spring Collar For Hole A.4 8
Order Edition Oty
30 3404043-15 孔用弹性挡圈 Spring Collar For Hole A.1 8 Q031F424J4B7L05
32 3404048-15 万向节叉 Universal Joint Fork A.4 1
33 3404030-Q812 传动轴及万向节叉总成 Transmission Shaft And Universal Joint Fork Assy B.1 1
34 3404035-Q812 滑动套与万向节叉总成 Split Pin And Universal Joint Fork Assy A.2 1
36 3404033-01 螺栓-转向万向节叉用 Bolt-Universal Joint Fork A.2 2
37 3404053-15 密封盖 SEALING CAP A.4 1
38 3404049-15 垫片 Gasket A.4 2
39 3404046-15 防尘罩 Dustproof Cover A.4 1
40 3404047-15 防尘圈 Seal A.4 1
41 3403010-Q812 转向柱支架及铰链总成 Steering Pillar Bracket And Hinge Assy A.3 1
42 3403230-D488 护板支架D总成 Fender Bracket D Assembly A.3 1
43 3403225-D488 护板支架C总成 Fender Bracket C Assembly A.3 1
47 3403090-D850 锁止手柄总成 Locking Handle Assy B.2 1
48 3403098-Q812 螺母 Nut A.2 1
49 3403109-15 垫片 Gasket A.4 1
50 3403036-15 螺旋弹簧 Spiral Spring A.4 1
51 3403095-15 垫片及限位片总成 Gasket And Stop Gasket Assy A.4 1
52 3403060-15 右杆总成 Right Rod Assy A.1 1
53 3403075C116 套及垫片总成 Sleeve And Gasket Assy A.4 1
54 3403050-15 左杆总成 Left Rod Assy A.4 1
55 3403030-15 螺栓及垫片总成 Bolt And Gasket Assy A.4 1
58 3403033-15 杆 Rod A.4 2
Order Edition Oty
60 3403026-15 套 Sleeve Spring Coupling B.3 1 Q031F424J4B7L05
63 3403027-15 波形垫片 Wave Gasket A.4 1
65 3403015-D850 转向柱支架总成 Steering Pillar Bracket Assy E.1 1
66 3403034-15 销钉 Pin A.4 1
67 3403074-15 螺旋弹簧 Spiral Spring A.4 1
68 Q50108 锁销 Lock Pin A.1 1
69 Q50110 锁销 Lock Pin A.1 2
70 3403108-15 销钉 Pin A.4 1
77 CQ1480814A 组合螺栓 Assembling Bolt A.1 2
78 CQ2714825 十字槽盘头自攻螺钉 Cross Recessed Pan Head Tapping Screw A.1 1
79 3403215-D488 护板支架A总成 Fender Bracket A Assembly A.3 1
80 3403220-D850 护板支架B总成 Fender Bracket B Assembly A.3 1
3400M02—0351—001 ùñ $Ç @@Ë Î :f Power St:eer i n ' P i pe I i ne Modu I e
3 18
'29
27
2
25 18
lg
t
( 3
15
20
10
3400M02-Q351-001 动力转向管路模块 Power Steering Pipeline Module
序号版本用量
Order Edition Oty
3400M02-Q351-001 动力转向管路模块（6DL,单前,右置，全Power Steering Pipeline Module A.3 Q031F424J4B7L05
1 3406440-Q655 回油管总成 Oil Return Pipe Assembly B.4 1
2 3406022-91 空心螺栓 Hollow Bolt B.4 2
3 3406322A8E 组合密封垫圈 Compound Seal Washer A.2 4
5 3506263-271 箍带 Fuel pipe clamp A.4 1
6 3406030-367 高压软管总成 High Pressure Hose Assy A.2 1
7 3406021-91 空心螺栓 Hollow Bolt B.4 2
8 3406321A8E 组合密封垫圈 Compound Seal Washer A.4 4
9 3506025-D481 管线夹总成（式样图） Pipe Clip Assembly C.1 1
13 3407020A367 动力转向油泵总成 Power Steering Pump Assembly B.2 1
14 3407024-26D 密封垫-动力转向油泵 Sealing Gasket D.1 1
16 3406010-D958 进油管总成 Oil Inlet Pipe assembly A.4 1
21 3406111-Q616 支架 Bracket B.1 1
22 Q68830 单管夹子 Single Pipe Clip A.1 1
24 3408010-348 动力转向油罐总成 Power Steering Oil Tank Assembly G.1 1
25 3408016-5P 托架-动力转向油罐 Tray-Power Steering Oil Tank A.5 1
27 3408020-DF04 过渡支架总成-动力转向油罐 Transition Bracket A.4 1
3400M02-Q351-001 动力转向管路模块 Power Steering Pipeline Module
序号版本用量
Order Edition Oty
30 CQ34012 六角螺母 Heavy Hexagon B.1 2 Q031F424J4B7L05
3400M03—0687—001 tÇ@)ÿ,âÉ @Î ù Î :f St:eer i n ' Cont: ro I and Transm i ss i on Modu I e
2
3400M03-Q687-001 转向操纵及传动模块 Steering Control and Transmission Module
序号版本用量
Order Edition Oty
3400M03-Q687-001 转向操纵及传动模块 Steering Control and Transmission Module B.2 Q031F424J4B7L05
1 3400920-Q687 转向器及转向臂总成 Steering Gear and Steering Arm Assembly A.3 1
2 3411010-Q448 动力转向器总成 Power Steering Mechanism Assy F.1 1
3 3003041-Q687 转向臂 Steering Knuckle Arm A.2 1
4 3403016-Q812 转向器托架 Tray Assembly Of Steering Gear A.2 1
3500M00—0351N—001 /f\„„*°'*§/]fi)){Bt;$t Brake Chass i s Modu I e
Qui ck Re1ease Balve
12
A ir Reserve i r ’4
2 Air Control Unit

Brake Chambers
Air Reservoir
24
BrakP Chamber
3500M00-Q351N-001 底盘制动模块 Brake Chassis Module
序号版本用量
Order Edition Oty
3500M00-Q351N-001 底盘制动模块 Brake Chassis Module A.5 Q031F424J4B7L05
1 QF1C1204000DG 快插和卡套式气制动尼龙管总成 Quick Insert And Air Brake Nylon Pipe Assembly A.2 1
2 QF1E500Z2900 卡套式气制动聚四氟乙烯管和尼龙管总 Air Brake Nylon Pipe Assembly A.2 1
3 3506120-DM942 管路支架总成 Bracket Of Pipe Line Assembly A.3 2
4 3506100-Q351NQ 管束总成 Pipe Bundle Assembly E.1 1
5 3506427-Q402 垫块 Backing Block C.10 1
9 3506055-D481 管线夹总成 Pipe Clip Assembly G.1 1
11 3506423-240 支架-固定空气管用 Bracket-Fixing Air Pipe E.1 1
14 QF2B4013 塑料护套 Plastic Shield A.2 1
15 3506025-D481 管线夹总成 Pipe Clip Assembly C.1 1
16 3406107-D96 护垫 Pad C.1 1
20 3506010-Q126A 螺旋型护套 Spiral Sheath A.2 1
24 3506010-DG001 输气软管总成 Air Hose Assembly A.2 2
3500M01—0609N—001 jfi\}g@@j)i}}{$ !]? ${ t Front Cross Member And Front Ax I e Brake Part:s
A
3500M01-Q609N-001 前横梁及前轴制动部件模块 Front Cross Member And Front Axle Brake Parts Module
序号版本用量
Order Edition Oty
3500M01-Q609N-001 前横梁及前轴制动部件模块 Front Cross Member And Front Axle Brake Parts Module A.4 Q031F424J4B7L05
1 3516010-D569EA 快放阀及其管接头总成 Quick Release Valve And Pipe Connector Assembly A.2 1
2 3720010-240 制动灯开关总成 Brake Lamp Switch Assembly A.4 1
8 3506423-05 单管夹 Single Pipe Clip A.4 4
9 3506310-Q620 输气管总成-前快放阀接左前ABS电磁阀 Air Pipe Assembly A.5 1
10 3506320-Q620 输气管总成-前快放阀接右前ABS电磁阀 Air Pipe Assembly A.3 1
11 1703192-D814 带橡胶圈管夹子 Pipe Clip with Rubber Ring A.13 1
12 3506209-1H 弯管接头 Elbow Connector C.3 2
13 CQ35320 六角较扁螺母 Hexagon Flat Nut A.1 2
3500M02—D9383¥A—001 g* , / I)7s @if M i dd I e › Rear Ax I e Brake Modu I e
11
10
17
14
4
16
3500M02-D9383WA-001 中、后桥制动模块 Middle、Rear Axle Brake Module
序号版本用量
Order Edition Oty
3500M02-D9383WA-001 中、后桥制动模块 Middle、Rear Axle Brake Module A.3 Q031F424J4B7L05
1 3516010-DE001 快放阀带管接头及支架总成 Quick Release Valve with Its Pipe Connector and Bracket Assembly C.1 1
5 3506010-Q126A 螺旋型护套 Spiral Sheath A.2 4
6 3506025-D481 管线夹总成（式样图） Pipe Clip Assembly C.1 1
9 QF1A1201200G 卡套式气制动尼龙管总成 Air Brake Nylon Pipe Assembly A.2 2
11 3506115-D481 组合塑料扎带总成 Plastic Tie Band Assembly A.4 4
13 3506430-Q630 输气管总成-行车继动阀出气口接气室1 Air Pipe Assembly A.2 1
14 3550033-Q469S 保护圈 Guard Ring A.2 1
15 QF1C1201450BR 快插和卡套式气制动尼龙管总成 Quick Insert And Air Brake Nylon Pipe Assembly A.2 1
16 3518010-D888WA 左行车继动阀及其管接头总成 Left Relay Valve and Its Pipe Connector Assembly A.2 1
17 3720010-240 制动灯开关总成 Brake Lamp Switch Assembly A.4 1
3500M10—D9383¥A—001 fjÉ" É @{ t A i r Reservo i r Modu I e—1
14
12
37
3500M10—D9383¥A—001 )*,É É @{ t A i r Reservo i r Modu I e—2
24
30
36
25
3T
38
34
25 3233
36
' 36* 3o29

3
45
6
46
48
4
80
78
76 ° °
9 .
66
% 72
68 69
11
86
83
86
87 3
935
30
36’
3500M10-D9383WA-001 贮气筒组合模块 Air Reservoir Module
序号版本用量
零件代号 Part NO. 零件名称及规格 Part Name And Standards Edition Oty 车型 Models
Order
3500M10-D9383WA-001 贮气筒组合模块 Air Reservoir Module A.3 Q031F424J4B7L05
3 3506140-DH001 输气管总成-供气单元驻车腔接驻车继动Air Pipe Assembly A.2 1
5 3513801-D481 盖板-贮气筒及蓄电池支架 Cover Plate-Air Reservoir And Battery Bracket C.4 1
12 3513900-DH002AWA 供气单元总成 Air Supply Unit Assembly D.1 1
13 3506135-DE001 输气管总成-空气处理单元21、22口接贮Air Pipe Assembly E.1 2
14 3513085-D481 紧箍带总成 Tight Strap Assembly A.5 2
15 CQ35318 六角较扁螺母 Hexagon Flat Nut B.1 3
17 3506230-DE001 输气管总成-空气处理单元23口接供气单Air Pipe Assembly I.1 1
18 3506210-DE001 输气管总成-空气处理单元21口接供气单Air Pipe Assembly A.2 1
19 3506220-DE001 输气管总成-空气处理单元22口接供气单Air Pipe Assembly C.1 1
20 3506240-DE001 输气管总成-空气处理单元24口接供气单Air Pipe Assembly C.1 1
21 3513026-D481 U型板-紧固模块支架用 U-Plate-For Fastening Module Bracket I.1 2
22 3513114-D481B 螺条-紧固蓄电池用 Ribbon-For Fixing Battery I.1 2
23 3513411-1066 隔垫-贮气筒 Gasket-Reservoir C.1 2
24 3513500-D481AW 左贮气筒及其管接头总成 Left Air Reservoir and Its Pipe Connector Assembly I.1 1
25 3513700-D814 检测接头（式样图） To Detect Joint A.10 2
26 3757020-D814 气压警报开关附带密封圈总成 Air Pressure Warning Switch & Seal Ring Assembly A.3 2
27 3513050-D481AW 左贮气筒总成 Left Air Reservoir Assembly G.1 1
28 3513403-D814 O型圈（ф22） O-ring （ф22） A.10 2
29 3513403-50A 异型密封圈 Special Shaped Seal Ring C.1 5
Order Edition Oty
30 3513407-50A 卡环 Circlip F.1 5 Q031F424J4B7L05
31 3513406-50A 螺套 Threaded Sleeve F.1 5
32 3513401-D814 挡圈（ф22） Circlip （ф22） A.12 2
33 Q80222 卡套式管接头用六角薄螺母 Hexagon Thin Nut for Bite Type Tube Fitting A.2 2
34 3513407-D814 弯管接头 Elbow Connector A.8 2
35 3513408-50A 密封圈 Seal Ring E.1 6
36 3513100-240 放水阀总成 Water Drainage Valve Assembly A.4 5
37 3513600-D481AW 右贮气筒及其管接头总成 Right Air Reservoir and Its Pipe Connector Assembly G.1 1
38 3513060-D481AW 右贮气筒总成 Right Air Reservoir Assembly G.1 1
39 3513010-D4001 贮气筒模块右支架总成 Air Reservoir Module Right Bracket Assembly A.3 1
40 3513020-D4001 贮气筒模块左支架总成 Air Reservoir Module Right Bracket Assembly A.4 1
41 3513028-D481 托架 Bracket T.1 1
42 3513016-D4001 外右固定板 Union Right Fixing Plate J.1 1
43 3513015-DH001 垫板总成-蓄电池 Cushion Plate Assy-Battery A.2 1
44 3513060-D480 连接总成 Joint Assembly C.1 2
45 3506423-05 单管夹 Single Pipe Clip A.4 1
47 CQ1501430 六角头螺栓 Hexagon Head Bolt B.1 4
54 3513030-D481 外托板总成 Union Carrying Plate Assy D.2 1
56 CQ33210 2型全金属六角自锁螺母 2 Self-Locking Metal Nut A.2 2
57 3513111-D481 支架-贮气筒用 Bracket-For Reservoir B.4 1
Order Edition Oty
60 CQ1500820 六角头螺栓 Hexagon Head Bolt A.1 3 Q031F424J4B7L05
61 3513022-D481 支架-固定金属气管用 Bracket-Fixing Air Brake Meter Pipe A.4 1
62 CQ151C1225 六角头螺栓 Hexagon Head Bolt A.2 3
64 3515011-D481 支架-空气处理单元用 Bracket-For Air Handling Unit B.4 1
65 3515010-Q720CWA 干燥器带四回路阀总成 Dry And Four-Circuit Valve Assy A.3 1
66 3506405-367 直通管接头总成-后制动 Straight Pipe Connector Assembly-Rear Brake A.4 3
67 Q81414 卡套式隔壁直角接头体 Bulkhead Right Angle Connector-Ferrule Type A.2 1
68 3518020-D491EWA 驻车继动阀及其管接头总成 Parking Relay Valve with Pipe Joint Assembly D.1 1
69 3757050A240 气手制动警报开关总成 Hand Brake Warning Switch Assembly C.1 1
70 3506215-DF401 空气管带支架总成 Air Pipe With Bracket Assembly C.1 1
71 3506215-D491F 后空气管总成-空气压缩机接干燥器 Rear Air Pipe Assy-Air compressor to Combination Air Dryer A.3 1
72 3506216-D491F 后空气管-空气压缩机接干燥器 Rear Air Pipe-Air compressor to Combination Air Dryer A.2 1
73 Q80114 卡套式管接头用螺母 Nut, Bite Type Tube Fitting A.2 2
74 Q80014 卡套 Ferrule A.1 2
79 3506206-DF401 双管夹 Double Pipe Clamp A.2 4
80 3506219-DG001 螺旋管支架一 Spiral Pipe Bracket 1 A.2 1
81 3506229-DG001 螺旋管支架二 Spiral Pipe Bracket 2 C.1 1
82 3513081-10A 支架-贮气筒 Bracket-Air Reservoir E.1 2
83 3513086-01 环箍-贮气筒 Hoop-Air Reservoir B.2 2
85 Q32010 六角法兰面螺母 Hexagon Flange Nut A.2 4
86 CQ1501060Q 六角头螺栓 Hexagon Head Bolt A.1 2
87 3513100-D783EW 小贮气筒及管接头总成 Small Air Reservoir with Pipe Connector Assembly A.3 1
88 3513010-D486NSW 后横梁小贮气筒总成 Rear Cross Member Small Air Reservoir Assembly A.2 1
89 3513421-50A 堵塞（M22） Plug A.2 1
3500M50—0687N¥—001 % !]? :f Cab Brake Modu I e—1
12
8
3500M50—0687NP—001 % !]? :f Cab Brake Modu I e—2
20
w
21
??
29 o
18a 9
32 1
19
25
34 37
3
A
37
37
33 41 4
’ 36 3
3500M50-Q687NW-001 驾驶室制动模块 Cab Brake Module
序号版本用量
Order Edition Oty
3500M50-Q687NW-001 驾驶室制动模块(J5M新内饰、组合踏板 Cab Brake Module A.3 Q031F424J4B7L05
1 3508010-Q687NW 手制动阀带管束总成 Hand Brake Valve With pipe Assembly A.3 1
2 L3508030-398 手动阀支架总成 Hand Brake Valve Bracket Assembly B.2 1
3 3508026-D203 防尘罩-手动阀支架 Dustproof Cover A.4 1
8 1311060-8E 双管夹箍总成 Double Pipe Clamp Assembly A.2 1
12 8101732-Q402 暖风水管管夹 Heater Water Pipe Clip A.3 1
13 1703241-D013 直臂双管夹子 Straight Arm Double-Pipe Clamp A.4 1
15 8107417-Q3 泄水软管密封套 Outlet Hose Sealing Sleeve B.2 1
16 3504020-Q687NW 制动踏板及离合踏板总成(J5M新内饰、 Brake Pedal & Clutch Pedal Assembly H.1 1
18 3514010-D488EWA 制动阀及管接头总成 Brake Valve And Pipe Connector Assembly A.2 1
19 3504015-D828 支架及组合踏板总成 Bracket And Pedal Assembly A.2 1
20 Q33010 全金属六角法兰面锁紧螺母 All-Metal Prevailing Torque Hexagon Nut With Flange A.1 2
22 Q81408 卡套式隔壁直角接头体 Bulkhead Right Angle Connector-Ferrule Type A.2 1
23 3506210-D828A 输气管总成 Air Pipe Assembly B.3 1
25 QF1A0500700G 卡套式气制动尼龙管总成 Air Brake Nylon Pipe Assembly A.2 1
26 3724506-50 塑料电线夹子 Plastic Wire Clip A.5 2
27 1602100-D9800 贮油杯总成 Oil Storage Cup Assembly G.1 1
28 CQ1740616 六角头头部带槽螺栓 Hexagon Head Bolt A.1 1
29 Q40406 轻型弹簧垫圈 Light Type Spring Washer A.1 1
3500M50-Q687NW-001 驾驶室制动模块 Cab Brake Module
序号版本用量
Order Edition Oty
30 Q40206 大垫圈 Large Washer A.1 1 Q031F424J4B7L05
32 1602110-D6000C 离合器总泵总成（式样图） Master Cylinder Assy - Clutch A.2 1
33 3754030-Q812 离合器开关总成 Clutch Switch Assembly A.3 1
34 3506400-D828 多路接头总成 Multi-way Joint Assembly A.7 1
35 3506404-367 多路接头 Multi-way Joint B.3 1
36 3506418-D850 螺堵 Plug A.10 1
37 3506G06-50A M16快插接头体逻辑总成 M16 Fast Plug Connector Body Logic Assembly A.1 4
38 3506406-50A 螺套 Threaded Sleeve E.1 1
39 3506407-50A 卡环 Circlip G.1 1
40 3506408-50A 密封圈 Seal Ring C.1 1
41 3506403-50A 异型密封圈 Special Shaped Seal Ring C.1 1
3506M05—0609N—001 T) ff=@ É Î t Dryer InIet System Modu I e
2 B 13
10
15
3506M05-Q609N-001 干燥器进气系统模块 Dryer Inlet System Module
序号版本用量
Order Edition Oty
3506M05-Q609N-001 干燥器进气系统模块 Dryer Inlet System Module A.6 Q031F424J4B7L05
1 3506020-Q417F 氟橡胶输气软管总成 Fluorine rubber gashose Assembly A.2 1
2 3506215-DF005 后空气管总成 Rear Air Pipe Assembly A.3 1
3 Q80114 卡套式管接头用螺母 Nut, Bite Type Tube Fitting A.2 6
4 Q80014 卡套 Ferrule A.1 6
5 3506216-DF005 后空气管 Rear Air Pipe A.2 1
6 3506123-DU212 空气管用支架 Pipe Clip Bracket A.2 1
7 Q80314 卡套式直通接头体 Ferrule-Type Direct Connecter A.1 3
8 3506206-05 管夹子-空气管 Clip-Air Pipe B.4 4
9 3506207-4E 衬套-空气管 Bushing-Air Pipe A.4 4
13 3506210-Q609N 中空气管总成 Middle Air Pipe Assy A.3 1
14 3506211-Q609N 中空气管 Middle Air Pipe A.2 1
15 3506205-D9380 前空气管总成 Front Air Pipe Assembly B.1 1
16 3506206-D9380 前空气管 Front Air Pipe C.1 1
17 3506207-382 空气管用支架 Pipe Clip Bracket B.2 1
18 3506208-D453 空气管用衬套 Air Pipe Bushing A.5 1
3511M01—DG001—001 gl]fid, § @) )s/ }@t Condenser Modu I e For Brake System
11
3511M01-DG001-001 制动系统用冷凝器模块 Condenser Module For Brake System
序号版本用量
Order Edition Oty
3511M01-DG001-001 制动系统用冷凝器模块 Condenser Module For Brake System B.2 Q031F424J4B7L05
1 QF1D140094L0375 卡套式气制动金属气管总成 Quick Insert And Air Brake Meter Pipe Assembly A.2 1
5 3511200-DG001 冷凝器及支架总成 Condenser & Bracket Assembly E.1 1
6 3511023-DG001 冷凝器支架 Condenser Bracket E.1 1
7 3511020-DG001 冷凝器-制动系统用 Condenser E.1 1
8 3511022-D464 U型螺栓2-紧固冷凝器用 U-Bolt 2-Fastening Condenser C.1 1
9 3511021-D464 U型螺栓1-紧固冷凝器用 U-Bolt 1-Fastening Condenser D.1 1
11 3511024-DG001 橡胶护套 Rubber Sheath E.1 1
3701M01—0856—001 zc@ @ /§ Seat Be I t And Structure Of D i fferent iaI A I arm
3701M01-Q856-001 安全带及差速报警器结构模块 Seat Belt And Structure Module Of Differential Alarm
序号版本用量
Order Edition Oty
3701M01-Q856-001 安全带及差速报警器结构模块 Seat Belt And Structure Module Of Differential Alarm B.2 Q031F424J4B7L05
1 3701015-Q856 安全带及差速报警器 Seat Belt And Differential Alarm A.2 1
2 Q2360520 十字槽平圆头组合螺钉 Cross Recessed Button Head Screw A.1 2
3 Q40105 垫圈 WASHER A.1 2
3703M02—DS086—001 N@fk@ $ Bath:ery And Fast:en i n ' Part:s Lo ic Assemb I y
4
3703M02-DS086-001 蓄电池及紧固件逻辑总成 Battery And Fastening Parts Logic Assembly
序号版本用量
Order Edition Oty
3703M02-DS086-001 蓄电池及紧固件逻辑总成(出国车用) Battery And Fastening Parts Logic Assembly C.2 Q031F424J4B7L05
1 3724180-240 电线总成-连接蓄电池用 Wire Assembly-Connected Battery E.1 1
3 3703162-D9801 蓄电池上压板 Battery Upper Platen A.2 2
4 3703160-DG016 蓄电池压板总成 Battery Platen Assembly A.3 2
5 3703010-DT012 免维护蓄电池总成 Maintenance Free Battery Assembly A.2 2
3703M05—D588E—001 @) /@ §n } :f Power D i st:r i but: i on Box St:r uct:ure Modu I e
12
18
1
3703M05-D588E-001 电源配电盒结构模块 Power Distribution Box Structure Module
序号版本用量
Order Edition Oty
3703M05-D588E-001 电源配电盒结构模块 Power Distribution Box Structure Module A.3 Q031F424J4B7L05
2 3703160-Q198 支架总成-电源配电盒 Bracket Assembly-Power Distribution Box A.2 1
7 3722080-Q648 电源配电盒及附带设备总成 Power Distribution Box and Attached Device Assembly C.2 1
9 Q2140612 十字槽盘头螺钉 Cross Recessed Pan Head Screw A.1 4
11 3736010-50A 电源总开关总成 Power Master Switch Assembly B.3 1
12 3708020-50A 大功率继电器总成（100A） Large Power Relay Assembly B.2 1
13 3722082-240 橡胶密封圈 Rubber Seal Ring A.1 1
16 3741070-240 五脚继电器总成（20A) Relay Assembly A.4 1
17 37-5107001 四脚继电器总成（70A） Four Feet Relay Assembly（20A） A.2 1
18 37-ACM33222 四脚继电器总成（20A） Four Feet Relay Assembly（20A） A.2 1
3704M01—081 2—001 $gü @ ÉnÏ Ï :f St:a rt: i n Sw i t:ch St:ruct:ure Modu I e
4
A
3
A
3704M01-Q812-001 起动开关结构模块 Starting Switch Structure Module
序号版本用量
Order Edition Oty
3704M01-Q812-001 起动开关结构模块 Starting Switch Structure Module B.2 Q031F424J4B7L05
1 6105175E109 左锁芯总成 Left Lock Cylinder Assembly B.5 1
2 6105180E109 右锁芯总成 Right Lock Cylinder Assembly B.2 1
3 6105190-E312 钥匙总成 Key Assembly E.1 2
4 3704010-Q812 起动开关总成 Starting Switch Assembly E.1 1
5 3604121-D539E 点火锁装饰盖 Ignition Lock Decorative Cover B.6 1
3711M01—0395—001 jfi} f„+•.itT?« T1t t Head I amp St:ruct:ure Modu I e
A
3711M01-Q395-001 前照灯结构模块 Headlamp Structure Module
序号版本用量
Order Edition Oty
3711M01-Q395-001 前照灯结构模块 Headlamp Structure Module C.2 Q031F424J4B7L05
1 3711015-Q395 左前照灯总成 Left Front Headlamp Assy B.2 1
2 3711020-Q395 右前照灯总成 Right Headlamp Assembly A.2 1
3714G03—240 % 18@.IJ?iis »itT?é$ @t Dr i ver Read i n Lamp Structure Modu I e
3714G03-240 驾驶员阅读灯结构模块 Driver Reading Lamp Structure Module
序号版本用量
Order Edition Oty
3714G03-240 驾驶员阅读灯逻辑总成 Driver Reading Lamp Assy B.2 Q031F424J4B7L05
1 3714030-240 驾驶员阅读灯总成 Driver Reading Lamp Assy D.2 1
3714M01—0145—001 % @ §n$ t Cab Indoor Lamp St: r uct:ure Modu I e
1
3714M01-Q145-001 驾驶室室内灯结构模块 Cab Indoor Lamp Structure Module
序号版本用量
Order Edition Oty
3714M01-Q145-001 驾驶室室内灯结构模块 Cab Indoor Lamp Structure Module B.2 Q031F424J4B7L05
1 3714010-240 驾驶室室内灯总成 Cab Indoor Lamp Assembly B.2 1
3714M03—0145—001 l?')'t$j I I } :f S I eeper Read i n ' Lamp St:ruct:ure Modu I e
3
3714M03-Q145-001 卧铺阅读灯结构模块 Berth Reading Lamp Module
序号版本用量
Order Edition Oty
3714M03-Q145-001 卧铺阅读灯结构模块(240平顶用） Berth Reading Lamp Module B.2 Q031F424J4B7L05
1 3714020-240 左卧铺阅读灯总成 Left Berth Reading Lamp Assy A.4 1
2 3714025-240 右卧铺阅读灯总成 Right Berth Reading Lamp Assy A.4 1
3716M03—D647N—001 /"«1T6 Nt?o $ I Rear Comb i ned Lamp Bracket Structure Modu I e
12
1
3716M03-D647N-001 后灯支架结构模块 Rear Combined Lamp Bracket Structure Module
Order Edition Oty
3716M03-D647N-001 后灯支架结构模块 Rear Combined Lamp Bracket Structure Module F.2 Q031F424J4B7L05
1 3716017-362 支架-号牌板用 Bracket-For Plate C.4 1
4 3716025-D647N 左组合后灯支架总成 Left Rear Combined Lamp Bracket Assembly B.2 1
6 3716030-D647N 右组合后灯支架总成 Right Rear Combined Lamp Bracket Assembly A.5 1
3716M04-D647C-001 后灯防护网结构模块 Rear Headlamp Protective Wet Structure Module C.2
10 3716040-D647N 后灯防护网总成 Rear Headlamp Protective Wet Assy C.4 2
3716M02-DL02-001 后灯结构模块 Rear Lamp Structure Module A4
13 3716020-DL02 右组合后灯总成（见左总成） Right Rear Combined Lamp Assembly A.2 1
14 3716015-DL02 左组合后灯总成 Left Rear Combined Lamp Assembly A.2 1
3721G01—240 @48Î8)Ï $ •› E I ect r i c Horn Lo i c Assemb I y
9
A
3
3721G01-240 电喇叭逻辑总成 Electric Horn Logic Assembly
序号版本用量
Order Edition Oty
3721G01-240 电喇叭逻辑总成 Electric Horn Logic Assembly H.2 Q031F424J4B7L05
1 3721920-116 低音电喇叭附带支架总成 Bass Horn with Bracket Assembly C.1 1
2 3721211-240 电喇叭支架 Electric Horn Bracket B.3 2
3 3721020-116 低音电喇叭总成 Bass Horn Assembly C.2 1
4 3721910-116 高音电喇叭附带支架总成 High-pitched Horn with Bracket Assembly C.1 1
5 3721010-116 高音电喇叭总成 High-pitched Horn Assembly E.1 1
6 3703201-D850 内外锯齿锁紧垫圈 Lock Washer A.2 2
3722M01—D488—001 ]@[ § $1 Fuse Box Structure Modu I e
’3
B
10
3722M01-D488-001 保险丝盒结构模块 Fuse Box Structure Module
序号版本用量
Order Edition Oty
3722M01-D488-001 保险丝盒结构模块 Fuse Box Structure Module C.2 Q031F424J4B7L05
1 3722065-D488 保险丝盒总成附带继电器 Fuse Box Assembly with Relay D.6 1
2 3722010-D488 保险丝盒总成 Fuse Box Assembly D.4 1
3 3711030-240 四脚继电器总成（20A） Four Feet Relay Assembly（20A） A.4 9
4 3722110-417 主继电器总成 Main Relay Assembly B.2 1
5 3741070-240 五脚继电器总成（20A) Relay Assembly A.4 4
10 3722014-D488Y 铭牌-保险丝盒 Nameplate-Fuse Box E.1 1
3722M02—D817—001 ]ggl] @$ •› Log i c Contro I I er Box P I ate Assemb I y
3
3722M02-D817-001 控制器盒底板逻辑总成 Logic Controller Box Plate Assembly
序号版本用量
Order Edition Oty
3722M02-D817-001 控制器盒底板逻辑总成 Controller Box Bottom Plate Logic Assembly B.2 Q031F424J4B7L05
2 Q1840825 六角头凸缘螺栓 Hexagon Flange Bolt A.2 2
3 3722060-D817 控制器盒底板附带控制器 Controller Box Floor With Controller D.1 1
4 3720030-240 制动灯断丝控制器总成 Brake Lamp Broken Wire Controller Assembly A.4 1
5 3741060-240 间歇刮水控制器总成 Intermittent Wiper Controller Assembly A.4 1
6 3818080-240 冷却液液位控制器总成 Coolant Level Controller Assembly A.4 1
7 3722016-367 控制器盒底板 Controller Box Bottom D.3 1
8 3726030-367 闪光器 Flasher C.3 1
10 Q40105 垫圈 Washer A.1 10
11 3802030-D123 车速设置器总成 Vehicle Speed Setting Device Assembly A.4 1
3724M01-Q649N-001 车身电线束结构模块 Body Wire Harness Structure Module
序号版本用量
Order Edition Oty
3724M01-Q649N-001 车身电线束结构模块 Body Wire Harness Structure Module A.3 Q031F424J4B7L05
1 3724010-Q649N 车身电线束总成 Body Wire Harness Assembly C.1 1
2 3724407-Q8E 单管夹子-固定车身线束用 Single Pipe Clip-For Fixing Body Harness A.2 4
3724M03—0351 N—001 $ @//@ @t Chass i s fl i re Harness Modu I e
“ 1
3724M03-Q351N-001 底盘电线束模块 Chassis Wire Harness Module
序号版本用量
Order Edition Oty
3724M03-Q351N-001 底盘电线束模块 Chassis Wire Harness Module A.3 Q031F424J4B7L05
1 3724045-Q351N 底盘电线束总成 Chassis Wire Harness Module A.2 1
2 3724049-1H 护套 Shield A.2 1
3724M04—0609N—001 §î;@î%@?§;Q) Î Î $ •› Lar 'e Cur rent Lıne & Bond ı n strap Assy
3724M04-Q609N-001 大电流电线及搭铁线逻辑总成 Large Current Line & Bonding strap Assembly
序号版本用量
Order Edition Oty
3724M04-Q609N-001 大电流电线及搭铁线逻辑总成 Large Current Line & Bonding strap Assembly A.3 Q031F424J4B7L05
2 3703201-D850 内外锯齿锁紧垫圈 Lock Washer A.2 4
4 3724200-D598 搭铁线总成 Bonding Strap Assembly C.1 1
5 3724175-D783E 电线总成-电源总开关接蓄电池 Wire Assembly-Power Master Switch Connected with Battery F.1 1
8 3724070-DY014 搭铁线总成-发动机接车架 Bonding strap Assembly-Engine Connected with Frame A.2 1
3724M08-D4001-001 起动机接电源总开关结构模块 Starter Connected Power Supply General Switch Structure Module A.3
10 3724185-D018 电线总成-起动机接电源总开关 Wire Assembly-Motor Connected with Power Master Switch E.1 1
3724M08—0655—001 !fi) l?JitT@?£ Bi fi $q •w› Indoor Lamp Harness Lo i c Assemb I y
to £f Speaker
Connect t
Cl
onnect to Left
Connect to erh Reading Lamp
fire Harnes
Connect to Cab Readi

Loop (Right) COnnect to Left
Clearance Lamp
Connect to Cab Read ing

Lamp
onnect to Indoor Lamp
3724M08-Q655-001 室内灯电线束逻辑总成 Indoor Lamp Harness Logic Assembly
序号版本用量
Order Edition Oty
3724M08-Q655-001 室内灯电线束逻辑总成 Indoor Lamp Harness Logic Assembly B.2 Q031F424J4B7L05
1 3724050-Q655 室内灯电线束总成 Indoor Lamp Harness Assembly C.4 1
3724M08-Q857J-001 警灯电线束逻辑总成 Warning Lamp Wire Harness Logic Assembly
序号版本用量
Order Edition Oty
3724M08-Q857J-001 警灯电线束逻辑总成 Warning Lamp Wire Harness Logic Assembly A.3 Q031F424J4B7L05
1 3724050-Q857J 警灯线束总成 Warning Lamp Wire Harness Assembly E.1 1
3724M11—081 2—001 6 gÉ @@ Éo$ t F i xed ù i re Ha r ness Br acket: Modu I e
2
3724M11-Q812-001 固定线束支架结构模块 Fixed Wire Harness Bracket Module
序号版本用量
Order Edition Oty
3724M11-Q812-001 固定线束支架结构模块 Fixed Wire Harness Bracket Module A.3 Q031F424J4B7L05
2 3406027-D850 单管夹 Single Pipe Clip A.4 1
6 3724527-8E 塑料电线夹子 Plastic Wire Clip A.1 4
8 DXJ501D-37 锁式电线夹子 Lock Type Wire Clip A.1 1
10 3506033-D79C 保护圈 Guard Ring B.2 3
12 3724033-Q88 橡胶密封圈 Rubber Seal Ring A.2 3
13 3724033-D849 橡胶密封圈 Rubber Seal Ring B.2 1
3725M01—0237—001 .,+'..îüâäiÊ $ • C i ar et:t:e L i ht:er Lo i ca I Assemb I y
3725M01-Q237-001 点烟器逻辑总成 Cigarette Lighter Logical Assembly
序号版本用量
Order Edition Oty
3725M01-Q237-001 点烟器逻辑总成 Cigarette Lighter Logical Assembly B.2 Q031F424J4B7L05
1 3725010-240 点烟器插头总成 Cigarette Lighter Plug Assembly A.4 1
2 3725020-D9872 点烟器插座总成 Cigarette Lighter Socket Assembly A.2 1
3726G02A1 09 )Jn.I) $ •› Steer i n ' Lamp Assemb I y
A
3726G02A109 侧转向灯逻辑总成 Steering Lamp Assembly
序号版本用量
Order Edition Oty
3726G02A109 侧转向灯逻辑总成 Steering Lamp Assembly A.1 Q031F424J4B7L05
1 3726030A109 侧转向灯总成 Side Turn Signal Lamp Assembly D.1 2
3729G01—362 Rever s i n Buzzer Lo i c Assemb I y
4 2
3729G01-362 倒车蜂鸣器逻辑总成 Reversing Buzzer Logic Assembly
序号版本用量
Order Edition Oty
3729G01-362 倒车蜂鸣器逻辑总成 Reversing Buzzer Logic Assembly F.2 Q031F424J4B7L05
1 3729050-116 倒车蜂鸣器总成 Reversing Buzzer Assembly C.3 1
3 Q41106 内外齿弹性垫圈 Spring Washer A.2 1
3731G01A1 09 jfjfi\PritTi?¥?i.•› C I earance Lamp Assemb I y
A
3731G01A109 前示廓灯逻辑总成 Clearance Lamp Assembly
序号版本用量
Order Edition Oty
3731G01A109 前示廓灯逻辑总成 Clearance Lamp Assembly B.3 Q031F424J4B7L05
1 CQ2214225F6 十字槽盘头自攻螺钉和平垫圈组合件 Cross Recessed Pan Head Tapping Screw and Plain Washer Subassembly A.2 4
2 3731025A109 前示廓灯总成 Front Clearance Lamp Assembly D.1 2
3 5201045-E18 端封式嵌装密封塑料螺母 Plastic Nut C.1 4
3735M01—081 2N—001 ?E[@@ §n$ {Øt Comb i ned Sw i t:ch St:r uct:ure Modu I e
3
3735M01-Q812N-001 组合开关结构模块 Combined Switch Structure Module
序号版本用量
Order Edition Oty
3735M01-Q812N-001 组合开关结构模块 Combined Switch Structure Module B.1 Q031F424J4B7L05
2 3735010-Q812N 组合开关总成 Combined Switch Assembly A.3 1
3 3735040-Q812 刮水器及辅助制动开关总成 Wiper And Auxiliary Brake Switch Assembly E.1 1
4 3735045-362 组合开关支架总成 Combined Switch Bracket Assembly A.4 1
5 3735116-D160 橡胶密封圈 Rubber Seal Ring B.2 2
6 3735035-Q812N 前照灯及变光开关总成 Headlights And Dimming Switch Assembly A.2 1
3735M02—D490E—001 )j,tÉ @ Én$ t Cont: ro I Sw i t:ch St:ruct:ure Modu I e
7
6
3735M02-Q649N-001 操纵开关结构模块 Functional Switch Structure Module
序号版本用量
Order Edition Oty
3735M02-Q649N-001 操纵开关结构模块(八联一) Functional Switch Structure Module A.3 Q031F424J4B7L05
1 3735020-D490E 八联功能开关总成 Eight-Link Functiaon Switch Assembly D.1 1
2 3735022-D488 八联功能开关固定边框 Eight-Link Functiaon Switch Fixed Frame B.2 1
3 3726050-D488 危险警报开关总成 Hazard Alarm Switch Assembly D.1 1
4 3732060-D488 前雾灯开关总成 Front Fog Lamp Switch Assembly D.1 1
5 3750050-D488 预热开关总成 Preheat Switch Assembly D.1 1
6 3732070-D488 后雾灯开关总成 Rear Fog Lamp Switch Assembly D.1 1
7 3721120-D488 喇叭转换开关总成 Horn Switch Assembly D.1 1
8 3834010-D488 轴间差速开关总成 Axial Differential Switch Assembly D.1 1
9 3735021-D488 功能开关盖板 Functional Switch Cover Plate B.2 2
3735M03—06490D—001 } /@ÊÊÉá{Ú} :f (] ]' “) Cont: ro I Sw i t:ch St: r ucture Modu I e
A
1
A
3735M03-Q649QD-001 操纵开关结构模块(八联二) Control Switch Structure Module
序号版本用量
Order Edition Oty
3735M03-Q649QD-001 操纵开关结构模块(八联二) Control Switch Structure Module A.3 Q031F424J4B7L05
1 3735025-Q351N 八联功能开关总成 Eight-Link Functiaon Switch Assembly A.3 1
2 3735022-D488 八联功能开关固定边框 Eight-Link Functiaon Switch Fixed Frame B.2 1
3 3734040-Q609N 警灯开关总成 Alarm light switch assembly E.1 1
4 3772030-D362E 驻车取力器开关总成 Parking And Power Switch Assembly D.1 1
5 3772040-D362E 取力器开关总成 Power Take Off Switch Assembly D.1 1
6 3735021-D488 功能开关盖板 Functional Switch Cover Plate B.2 5
3735M04—0649N—001 )j,t?,l/,@3Ê? t ( $ @ ) Cont: ro I Sw i t:ch St:r uct:ure Modu I e
3
3
3735M04-Q649N-001 操纵开关结构模块 Control Switch Structure Module
序号版本用量
Order Edition Oty
3735M04-Q649N-001 操纵开关结构模块(四联开关) Control Switch Structure Module A.3 Q031F424J4B7L05
1 3735030-D4001 四联功能开关总成 Quadruple Switch Assembly Functiaon A.5 1
2 3735023-D488 四联功能开关固定边框 Four-Link Functiaon Switch Fixed Frame B.2 1
3 3735021-D1001 功能开关盖板 Functional Switch Cover Plate A.2 4
3754M01—D4003E—001 @§g{\ÄQj¢?,¿J¿-q,p??f}??{@1§ ()][-q,$I]?d@)
Structure modu I e of so I eno i d va I ve and f I ameout p ipe
’
”›*"'"
0’’ ’ ’
8
3754M01-D4003E-001 电磁阀及熄火气管结构模块(排气制动用) Structure module of solenoid valve and flameout pipe
序号版本用量
Order Edition Oty
3754M01-D4003E-001 电磁阀及熄火气管结构模块(排气制动用Structure module of solenoid valve and flameout pipe A.3 Q031F424J4B7L05
1 3754020-D9802B 电磁阀附带支架总成 Solenoid Valve with Bracket Assembly A.2 1
2 3754011-D9801 电磁阀支架 Solenoid Vavle Bracket A.2 1
3 3754010-D9801C 电磁阀总成 Solenoid Valve Assembly C.1 1
8 QF1A0501900B 快插和卡套式气制动尼龙管总成 Quick Insert And Air Brake Nylon Pipe Assembly A.2 1
3754M01—D9801—001 @ /j) t So I eno i d Va I ve St: ruct:ure Modu I e
3754M01-D9801-001 电磁阀结构模块 Solenoid Valve Structure Module
序号版本用量
Order Edition Oty
3754M01-D9801-001 电磁阀结构模块 Solenoid Valve Structure Module A.3 Q031F424J4B7L05
1 3754020-D9801 电磁阀及附带支架总成 Solenoid Valve with Bracket Assembly A.3 1
3 3754010-D9801 电磁阀总成 Solenoid Valve Assembly C.1 1
3754M03—D11—001 @§/j{\g?\!f{ :t ( @) So I eno i d Va I ve St r ucture
(For D i fferent ia I Lock)
1
3754M03-D11-001 电磁阀结构模块(差速锁用) Solenoid Valve Structure Module (For Differential Lock)
序号版本用量
Order Edition Oty
3754M03-D11-001 电磁阀结构模块(差速锁用) Solenoid Valve Structure Module (For Differential Lock) C.2 Q031F424J4B7L05
1 3754020-D9801 电磁阀及附带支架总成 Solenoid Valve with Bracket Assembly A.3 1
3 3754010-D9801 电磁阀总成 Solenoid Valve Assembly C.1 1
3763G01—382 ?¡ $j}§/g )§ I $ • Veh i c I e Speed A I arm Lamp P I u Cover Assemb I y
1
3
::«2
3763G01-382 车辆速度警报灯堵盖逻辑总成 Vehicle Speed Alarm Lamp Plug Cover Assembly
序号版本用量
Order Edition Oty
3763G01-382 车辆速度警报灯堵盖逻辑总成 Vehicle Speed Alarm Lamp Plug Cover Assembly D.2 Q031F424J4B7L05
1 3763020-382Q 车辆速度警报灯堵盖附带密封垫总成 Vehicle Speed Alarm Lamp Plug Cover & Sealing Washer Assembly A.6 3
3 5201045-E18 端封式嵌装密封塑料螺母 Plastic Nut C.1 6
3801M01—D817—001 { ' @$ •› Inst:r ument: Lo i c Assemb I y
2
3801M01-D817-001 仪表逻辑总成 Instrument Logic Assembly
序号版本用量
Order Edition Oty
3801M01-D817-001 仪表逻辑总成 Instrument Logic Assembly B.2 Q031F424J4B7L05
1 3801010-D821H 仪表总成 Instrument Assembly F.1 1
3818G02—271 % !fi!g\\$$ §@ $ • Car 'o T i I t i n Mechan i sm A I arm Sw i tch Assemb I y
3818G02-271 驾驶室翻转警报开关逻辑总成 Cargo Tilting Mechanism Alarm Switch Assembly
序号版本用量
Order Edition Oty
3818G02-271 驾驶室翻转警报开关逻辑总成 Cargo Tilting Mechanism Alarm Switch Assembly B.2 Q031F424J4B7L05
1 3818040-271 驾驶室翻转警报开关总成 Cargo Tilting Mechanism Alarm Switch Assembly A.4 1
3818M02—0145—001 ?i l”\@ t Door Sw i tch Structure Modu I e
A
3818M02-Q145-001 车门开关结构模块 Door Switch Structure Module
序号版本用量
Order Edition Oty
3818M02-Q145-001 车门开关结构模块 Door Switch Structure Module B.2 Q031F424J4B7L05
1 3818060-50 车门警报开关总成 Door Alarm Switch Assembly A.4 2
2 3818062-50 车门开关调整垫片 Door Switch Adjustment Gasket A.4 2
3 3818065-50 车门开关罩总成 Door Switch Cover Assembly A.1 2
GP3900N00-0145-005-#2 Attached Too I s Modu I e
10
13
3
14
16
’20
2 2 2
4
28 29
27
26
GP3900M00-Q145-005-#2 随车工具模块-#2 Attached Tools Module-#2
序号版本用量
Order Edition Oty
GP3900M00-Q145-005-#2 随车工具模块-#2 Attached Tools Module-#2 A.1 Q031F424J4B7L05
1 3926001-D840 随车文件袋（式样图） Document Bag C.1 1
2 3715010-Q50 工作灯总成 Work Lamp Assembly A.3 1
3 3903891-D849 拓印贴（式样图） Rubbing plaster B.4 2
4 3904051-Q84 警示牌 Warning Sign I.1 1
5 3900945-Q145 随车工具袋总成 Tool Bag Assembly E.2 1
6 3901680-A1 两用起子总成 Dual-purpose Screwdriver Assembly B.2 1
7 3901510-01 鲤鱼钳总成 Slip-joint Pliers Assembly A.2 1
8 3915010-01 活动扳手总成 Adjustable Wrench Assembly A.2 1
9 3901010-01 工具袋 Tool Bag B.3 1
10 3901421-01 冲子 Punch A.2 1
11 3901311-01 21X24双头扳手 21X24 Double End Spanner A.2 1
12 3916107-4A 46”单头呆扳手-转向机螺母用 46 Single Head Stay Wrench-Steering Machine Nut A.4 1
13 3916101-1H 车轮用套筒扳手 Wheels With A Socket Wrench B.3 1
14 3916206-132 加力套杆 Torque Rod Sets A.1 1
15 3916301-01 气门芯修复螺纹扳手 Valve Core To Fix Screw Spanner A.2 1
16 3917010-240 轮胎充气装置总成 Tyre Inflation Device Assy A.4 1
17 3916115-8E 旋装式滤清器扳手 Rotary Filter Wrench A.2 1
18 3916201-01 杆 Rod B.3 1
19 3916258-01A1 扳手 Wrench A.1 1
20 Q5220416 圆柱销（d公差h8） Cylindrical Pin A.1 1
21 3916104-85 后钢板弹簧U形螺栓用套筒扳手 Leaf Spring After U Bolt With A Socket Wtench A.4 1
22 3916104-01 钢板弹簧U型螺栓用套筒扳手 Leaf Spring U Bolt With A Socket Wtench B.3 1
23 3916251-1H 前轴转向节螺母套筒扳手 Front Axle Steering Knuckle Nut Socket Wrench A.2 1
24 3916104-57 套筒扳手-后钢板弹簧U型螺栓用 Leaf Spring After U Bolt With A Socket Wtench A.1 1
25 3916103-4E 后轮轮毂轴承螺母套筒扳手 Rear Hub Bearing Nut Box Spanner C.1 1
26 3916203-01 起重器摇臂及轮胎撬棍 Jack Rocker Arm and Tyre Clawbar B.3 1
27 3900020-V02 三角警告牌总成（式样图） Triangle Warning Reflector Assembly A.2 1
28 3913030-Q402 20t油压手动千斤顶总成 20 T Hydraulic Manual Jack Assembly B.8 1
29 3904026-01QC 铭牌 Nameplate F.1 1
GP3900M00-Q145-005-#2 随车工具模块-#2 Attached Tools Module-#2
序号版本用量
Order Edition Oty
30 3904027-D160 铭牌铆钉 Nameplate Rivet E.1 2 Q031F424J4B7L05
31 3S3921081-SW7 标牌 Sign A.1 1
3921G01—Y34 J5Mi::l:j z ?fi§j?iE§@ $ •› JSM Export Cars Decor at i ve F i I m Assemb I y
3921G01-Y34 J5M出国车装饰膜逻辑总成 J5M Export Cars Decorative Film Assembly
序号版本用量
Order Edition Oty
3921G01-Y34 J5M出国车装饰膜逻辑总成 J5M Export Cars Decorative Film Assembly A.2 Q031F424J4B7L05
1 S3921105-Y34 装饰膜-左侧车门 Left Door Decorative Film A.1 1
2 S3921110-Y34 装饰膜-右侧车门 Right Door Decorative Film A.1 1
3 S3921125-Y34 装饰膜-左侧侧围 Left Panel Decorative Film A.1 1
4 S3921130-Y34 装饰膜-右侧侧围 Right Panel Decorative Film A.1 1
GP5000030—E312—002—#5 % gfi!,**.› — 6 @ @—#5 Cab Assemb I y—Not Pa i nted or Equ i pped—1
1/10
4/1
6/15 8 Q
7/16
5/14
2/11
GP5000030—E312—002—#5 % g&,**.w› — @ @—#5 Cab Assemb I y—Not Pa i nted or Equ i pped—5
48
44
5
GP5000030—E312—002—#5 %3gfi!,*'.w — 6 @ @—#5 Cab Assemb I y—Not Pa i nted or Equ i pped—6
GP5000030-E312-002-#5 驾驶室总成-无喷漆及装备-#5 Cab Assembly-Not Painted or Equipped
Order Edition Oty
GP5000030-E312-002-#5 驾驶室总成-无喷漆及装备-#5 Cab Assembly-Not Painted or Equipped A.1 Q031F424J4B7L05
1 6100055-E02 左车门总成 Left Door Assy E.2 1
2 6100085-E02 左车门焊接总成 Left Door Welded Assy A.4 1
3 6101015-E02 左车门外板焊接总成 Welded Left Door Outer Plate Assy B.5 1
4 6101115-E02 左车门里板焊接总成 Welded Left Door In The Plate Assy B.5 1
5 6101075E109 左车门玻璃导轨焊接总成 Welded Left Rear Door Glass Guide Assy E.1 1
6 6106015E109 左车门上铰链总成 Left Door Upper Hinge Assembly E.1 1
7 6106035E109 左车门下铰链总成 Lower Hinge Assembly A.1 1
9 6106062E109 车门下铰链调整垫片 Door Upper Hinge Adjusting Washer A.4 2
10 6100060E109 右车门总成 Right Door Assembly E.2 1
11 6100090E109 右车门焊接总成 Right Door Welded-On Assy A.1 1
12 6101020E109 右车门外板焊接总成 Welded Right Door Outer Plate Assy A.1 1
13 6101120E109 右车门里板焊接总成 Welded Right Door In The Plate Assy A.1 1
14 6101080E109 右车门玻璃导轨焊接总成 Welded Right Rear Door Glass Guide Assy C.2 1
15 6106020E109 右车门上铰链总成 Right Door Upper Hinge Assembly A.1 1
16 6106040E109 右车门下铰链总成 Lower Hinge Assembly A.1 1
17 GP5000040-E312-002-#5 驾驶室焊接总成-#5 Cab Welding Assembly A.1 1
18 5400010-E31A 后侧围总成(暂缺) Rear Side Panel Assy A.4 1
19 5401025E109 左侧围外板总成 Left Side Wall Outer Board Assy E.2 1
20 5401085E109 左侧围内板总成 Left Sidewall Inner Plate Assy E.2 1
21 5401045-240 左门上梁内板总成 Left Door Upper Beam Inner Plate Assy B.2 1
22 5401030E109 右侧围外板总成 Right Side Wall Outer Board Assy D.2 1
23 5401090E109 右侧围内板总成 Right Sidewall Inner Plate Assy E.2 1
24 5401050-240 右门上梁内板总成 Right Door Upper Beam Inner Plate Assy B.4 1
25 5401062-240 右支架-固定车内扶手 Right Bracket Assy-Fixed Interior Handle A.1 1
26 5401060-Q447 左支架总成-固定车内扶手 Left Bracket Assy-Fixed Interior Handle A.3 1
27 5301531-E312 油门踏板支架 Accelerating Pedal Bracket C.1 1
28 5600010-E31A 后围总成 Rear Panel Assembly A.3 1
29 5601010-240 后围内板总成 Rear Wall Inner Plate Assy A.1 1
Order Edition Oty
30 5601010AA15 后围外板总成 Rear Wall Outer Plate Assy A.1 1 Q031F424J4B7L05
31 5601014-Q90 后流水槽 Rear Wall Side Drip Slot A.1 1
32 5601017-240 后窗帘导轨支架 Rear Curtain Rail Bracket A.4 2
33 Q39806 通孔式嵌装塑料螺母 Plastic Nut A.1 2
34 CQ4400408 开口型扁圆头抽芯铆钉 Flat Round Head Self-Plugging Rivet A.1 4
35 5300010-E312 前围焊接总成 Front Panel Welding Assembly A.3 1
36 5301130-E312 前围内板横梁总成 Front Panel Interior Plate Cross Member Assembly B.2 1
37 5301110-E312 前围内板总成 Front Wall Inner Plate Assy B.2 1
38 5201031-E312 下外板-前风窗 Lower Outside Panel -Front Windshield C.1 1
39 5301160-E312 右前围支柱总成 Right Front Pole Assy A.3 1
40 5301155-E312 左前围支柱总成 Left Front Pole Assy A.3 1
41 5301145-E312 前围内板加强梁总成 Front Wall Inner Plate Reinforced Beam Assy B.2 1
42 5201010-A15 前风窗上板总成 Upper Plate Assembly, Front Windshield E.2 1
43 5100010-E312G 地板总成 Floor Assy A.4 1
44 5101540E109 右边梁总成 Right Side Beam Assy A.1 1
45 5101535-E30 左边梁总成 Left Side Beam Assy A.5 1
46 5101512AA20 右前上挡泥板 Right Front Upper Mudguard A.2 1
47 5101050-E312 右地板总成 Right Floor Assy G.1 1
48 5101231B170 后地板 Rear Floor B.1 1
49 5101150-E312 中地板总成 Middle Floor Assembly B.2 1
50 5101511AA20 左前上挡泥板 Upper Mud-Proof Board A.2 1
51 5101045-E312 左地板总成 Left Floor Assy A.3 1
52 5101340-E312G 地板梁总成 Floor Beam Assembly A.3 1
53 5101420-50 右中纵梁总成 Right Longitudinal Beam A.1 1
54 5101415-50 左中纵梁总成 Left Longitudinal Beam A.1 1
55 5101345-E03 左前纵梁焊接总成 Left Front Rail Welding Assembly B.4 1
56 5101366-E42 地板前横梁 Floor Front Cross Member D.1 1
57 5101350B109 右前纵梁焊接总成 Right Front Tail Welding Assembly A.4 1
58 5101440-A15 后横梁总成 Rear Cross Member Assy D.2 1
59 5101396-E33F 铰接轴 Articulated Shaft A.6 1
Order Edition Oty
60 5700010-Q857A 顶盖总成 Top Cover Assembly A.7 1 Q031F424J4B7L05
61 5701011-A15 顶盖 Top Cover A.4 1
62 5701015AA15 右上支架总成-空气滤清器 Right Upper Bracket Assy A.1 1
63 5701018-50 螺母-天线 Nut-Antenna A.4 1
64 5701035-A15 左支架总成-固定顶盖侧装饰罩 Left Bracket Assy-Fixed Top Cover Side Decoration Cover A.1 1
65 5701040-A15 右支架总成-固定顶盖侧装饰罩 Right Bracket Assy-Fixed Top Cover Side Decoration Cover A.1 1
66 5701015-240 顶盖横梁总成 Roof Beam Assembly B.7 1
67 5701040-240 顶盖纵梁焊接总成 Roof Rail Assembly A.4 1
69 3727162-Q857 右警灯支架 Right light bracket A.1 1
5001G02—A15 % @/"'o@@ $ •› —% Cab Rea r Mount: i n Assemb I y
5001G02-A15 驾驶室后悬置逻辑总成-驾驶室 Cab Rear Mounting Assembly
序号版本用量
Order Edition Oty
5001G02-A15 驾驶室后悬置逻辑总成-驾驶室 Cab Rear Mounting Assembly D.2 Q031F424J4B7L05
1 5001450B109 锁栓支架总成 Lock Pin Bracket A.7 1
2 5001320B109 驾驶室后支架总成 Cabin Rear Bracket Assembly A.7 2
5001M01—0241—001 % :f Cab Front: Suspens i on Modu I e—1
5001M01—0241—001 % :f Cab Front: Suspens i on Modu I e—2
21
16
35
34
2
2
2(
5001M01-Q241-001 驾驶室前悬置模块 Cab Front Suspension Module
序号版本用量
Order Edition Oty
5001M01-Q241-001 驾驶室前悬置模块(螺旋弹簧) Cab Front Suspension Module B.2 Q031F424J4B7L05
1 5001011-D453F 驾驶室铰接左支架 Left Bracket-Cab Hingle E.4 1
2 5001012-D453F 驾驶室铰接右支架 Right Bracket-Cab Hingle A.2 1
3 5001016-1H 驾驶室铰接软垫盖板 Cab Articulated Cushion Cover Plate A.2 2
4 5001020B242 减震器总成－前悬置 Shock Absorber Assembly-Before The Suspension C.4 2
12 5001013-D453F 垫片-铰接支架 Gasket-Hinge Bracket A.10 2
14 5001040-D453F 驾驶室前悬置总成 Before The Cab Suspension Assembly D.2 1
15 5001041-Q824A 边套-前悬置 Front Cover-Before The Suspension B.2 8
16 5001110-D453F 稳定杆与下托架总成-前悬置 Stabilizer Bar And Bottom Bracket Assembly-Before The Suspension D.1 1
17 5001085B109 左上托架总成-前悬置 Upper Left Bracket Assembly-Before The Suspension H.1 1
18 5001090-Q447 右上托架总成-前悬置 Upper Right Bracket Assembly-Before The Suspension H.1 1
19 5001076-Q824B 前悬置弹簧 Front Suspension Spring E.1 2
20 5001072B109 弹簧座 Spealing spacer-pressure relief valve A.4 2
21 5001061B109 左后销轴－前悬置 Left Rear Pin-Before The Suspension A.4 2
22 5001050-Q824A 后铰接软垫总成-前悬置 Articulated Soft Mat After Assembly-Before The Suspension B.2 2
23 5001066B109 后套管－前悬置 After The Casing-Before The Suspension C.3 2
27 5001075B109 固定杆软垫总成-前悬置弹簧 Soft Mat Fixed Rod Assembly-Before The Suspension Springs A.4 2
5001M01-Q241-001 驾驶室前悬置模块 Cab Front Suspension Module
序号版本用量
Order Edition Oty
30 Q700B06 直通式滑脂嘴 Grease Nozzle A.1 2 Q031F424J4B7L05
31 5001051-Q824B 前销轴-前悬置 Before The Pin-Before The Suspension A.2 2
33 5001045-Q824A 前铰接软垫总成-前悬置 Front Hinge Soft Pad Assembly-Before The Suspension B.2 2
34 5001052-Q824B 前套管-前悬置 Before The Casing-Before The Suspension A.2 2
35 5001056B109 前限位块 Front Locating Block B.2 2
5001M02—D588—001 %1 Cab Rea r Suspens i on Modu I e—1
12
3T
38
.5/6
39
40
5001M02—D588—001 % @ I Cab Rear Suspens i on Modu I e—2
3
5001M02-D588-001 驾驶室后悬置模块 Cab Rear Suspension Module
序号版本用量
Order Edition Oty
5001M02-D588-001 驾驶室后悬置模块 Cab Rear Suspension Module B.2 Q031F424J4B7L05
1 5001226-Q408 螺栓 -后悬立梁 Bolt-Rear Suspension Beam F.1 4
2 5001210-D588 驾驶室后悬置梁带浮动梁总成 Cab Rear Suspension Beam With Floating Beam Assembly F.2 1
3 5001072B109 弹簧座 Spealing spacer-pressure relief valve A.4 2
4 5001073B109 内弹簧座 Inside TheSpring Seat A.4 4
5 5001230-D588 左后悬置立梁总成 Left Rear Suspension Beam Assembly A.3 1
6 5001225-D588 左后悬置立梁总成 Left Rear Suspension Beam Assembly A.3 1
7 5001251A301 限位上支架-后悬置 Limit Upper Bracket B.2 2
8 5001252-362 限位下支架-后悬置 Limit Lower Bracket A.4 2
9 5001265A301 限位块总成－后悬置 Limit Block Assy A.1 2
10 5001270A301 后悬浮梁总成 Rear Suspention Beam Assembly A.1 1
11 5001301A301 弹簧-后悬置 Spring D.1 2
12 5001305A301 减振器总成 Shock Absorber Assy A.4 2
13 5001306-362 减振器销-后悬置 Shock Absorber Pin A.4 2
14 5001307-362 限位套-后悬置减振器 Limiting Sleeve A.4 4
15 5001309A301 挡片-后悬置减振器 Retainer A.1 4
16 5001315B109 橡胶座总成 Rubber Seat Assy A.4 2
5001M02-D588-001 驾驶室后悬置模块 Cab Rear Suspension Module
序号版本用量
Order Edition Oty
30 CQ1511285 六角头螺栓 Hexagon Head Bolt A.1 2 Q031F424J4B7L05
32 5001410-Q447 驾驶室液压锁总成 Cab Hydraulic Lock Assembly A.1 1
5001M03—0857N—001 % @) I Cab Support Modu I e—1
2?
10
28
5001M03—0857N—001 % @) I Cab Support Modu I e—2
30
29 B
5001M03-Q857N-001 驾驶室支撑模块 Cab Support Module
序号版本用量
Order Edition Oty
5001M03-Q857N-001 驾驶室支撑模块(电动举升全浮) Cab Support Module A.5 Q031F424J4B7L05
1 5001901-Q857N 液压系统工艺合件 Hydraulic System Technical Parts A.3 1
2 5001120-Q857N 驾驶室翻转液压缸总成 Cab Flip Hydraulic Cylinder Assembly A.2 1
3 5001150-DC010 驾驶室电动液压泵总成 Cab electric hydraulic pump assembly C.1 1
4 5001128B242 大垫圈-液压缸下固定点 Big Washer-The Hydraulic Cylinder Fixed Piont B.2 1
5 5001127B242 限位套B-液压缸下固定点 Limit Set B-The Hydraulic Cylinder Fixed Piont E.1 1
6 Q32918 1型非金属嵌件六角锁紧螺母 Prevailing Torque Type Hexagon Nut(with Non-metallic Insert)，Style A.1 1
7 5001121-Q695 驾驶室支撑托架 Cab Support Bracket A.6 1
8 5002016-Q802 销轴-液压缸上固定点 Pivot-Hydraulic Cylinder Upper Fixed Point C.1 1
9 5001122B242 限位套A－液压缸上固定点 Limit set A - Hydraulic Cylinder Upper Fixed Point K.1 1
10 5001123B242 限位套B－液压缸上固定点 Limit Set B - Hydraulic Cylinder Upper Fixed Point K.1 1
11 Q32916 1型非金属嵌件六角锁紧螺母 Prevailing Torque Type Hexagon Nut(with Non-metallic Insert)，Style A.1 1
12 5001255-D9383N 液压泵支撑臂总成 Hydraulic pump support arm assembly A.3 1
16 5001175-DC010 油管总成 Oil Pipe Ass C.1 1
17 5001200-362 油管总成-连接手动泵与三通接头体 Tubing Assembly- Hand Pump To Tee joint A.1 1
18 5001205-382 油管总成-连接三通接头体与液压缸 Tubing Assembly- Tee joint To Hydraulic Cylinder A.1 1
19 5001195-D170F 油管总成-连接液压泵和液压缸 Oil Pipe Ass B.4 2
20 5001185-362 油管总成-过渡油管 Tubing Assembly- Transition Tubing B.4 1
21 5001141-Q620 单管夹 Single Pipe Clip A.5 2
22 1104261-Q333 保护圈-油管 Protective Ring-Oil Pipe A.2 2
23 3735080-DC010 液压翻转开关总成 hydraulic Tipping Switch Assembly A.2 1
29 5002075-DC010 电动液压泵总成-驾驶室举升 Electric hydraulic Pump Assy-Cargo Lifting C.1 1
5001M03-Q857N-001 驾驶室支撑模块 Cab Support Module
序号版本用量
Order Edition Oty
30 5001101-D79T 驾驶室翻转操作说明牌 Cab Flip Instructions A.2 1 Q031F424J4B7L05
31 Q68612 单管夹片 Clamp A.1 2
5101M01—E23—001 Ê ] l”Ç Î t Left Sma I I Door Devi ce Modu I e
4 3 ,%
8
5101M01-E23-001 左小门装置模块 Left Small Door Device Module
序号版本用量
Order Edition Oty
5101M01-E23-001 左小门装置模块 Left Small Door Device Module C.2 Q031F424J4B7L05
1 5101615-50 左小门总成 Left Small Door Assy B.2 1
6 5101693-50 凹卡片底片 Notched Card Negative A.4 1
7 5101691-50 凹卡片 Notched Card A.4 1
8 5101657-50 挡块 Stoppers C.1 2
5103G02—0417 — @§2[§a{§@ @) $ •› Leve 1 1 Peda I And Support Arm Assemb I y
8 2
7
12
3
5103G02-Q417 一级脚踏板及支撑臂逻辑总成 Level 1 Pedal And Support Arm Assembly
序号版本用量
Order Edition Oty
5103G02-Q417 一级脚踏板及支撑臂逻辑总成 Level 1 Pedal And Support Arm Assembly A.2 Q031F424J4B7L05
1 5103225-Q417 左支撑臂总成-一级脚踏板 LH Support Arm Assembly-Level 1 Pedal B.8 1
2 5103230-Q417 右支撑臂总成-一级脚踏板 RH Support Arm Assembly-Level 1 Pedal A.2 1
3 5103211-362 左一级脚踏板护罩 LH Level 1 Pedal Protective Cover B.6 1
4 5103212-362 右一级脚踏板护罩 RH Level 1 Pedal Protective Cover A.1 1
5 5103207-362 左一级脚踏板 Left Level 1 Pedal A.7 1
6 5103208-362 右一级脚踏板 Right Level 1 Pedal A.1 1
13 Q40508 组合件用弹簧垫圈 Spring Washer A.1 8
5103G07—A15 ?¿/@%T}§Qd§ \ $ , •› Left Or R i 'ht Fender And Re i nforc i n P I ate
Assembly
11
11
1 14
10
12
ll
5103G07-A15 左/右翼子板及加强板逻辑总成 Left Or Right Fender And Reinforcing Plate Logical Assembly
序号版本用量
Order Edition Oty
5103G07-A15 左/右翼子板及加强板逻辑总成 Left Or Right Fender And Reinforcing Plate Logical Assembly D.2 Q031F424J4B7L05
1 5103017-A15 左翼子板 Left Fender C.1 1
2 5103018-A15 右翼子板 Right Fender A.1 1
3 5103191E109 左翼子板前密封条 Left Front Sealing Strip A.4 1
4 5103192E109 右翼子板前密封条 Right Front Sealing Strip A.1 1
5 5103193E109 左翼子板后密封条 Left Fender Rear Sealling Strip A.4 1
6 5103194E109 右翼子板后密封条 Right Fender Rear Sealling Strip A.1 1
7 5103042-A15 加强板B-右翼子板 Reinforcing Plate B-Right Fender A.4 1
8 5103041-A15 加强板B-左翼子板 Reinforcing Plate B-Left Fender A.1 1
13 5103032-A15 加强板A-右翼子板 Reinforcing Plate A-Right Fender A.1 1
14 5103031-A15 加强板A-左翼子板 Reinforcing Plate A-Left Fender A.4 1
5103G08—A15 ?¿/@1tQ§t[§ @ $/@ Left/R i 'ht Sta 'e I i Foot Peda I And Tr i m Cover
Assemb I y
’3
’3
1
5103G08-A15 左/右二级脚踏板及装饰罩逻辑总成 Left/Right Stage Ii Foot Pedal And Trim Cover Assembly
序号版本用量
Order Edition Oty
5103G08-A15 左/右二级脚踏板及装饰罩逻辑总成 Left\Right Stage Ii Foot Pedal And Trim Cover Assembly C.2 Q031F424J4B7L05
1 5103268A109 右二级脚踏板 Right Stage Ii Foot Pedal Assembly A.1 1
2 5103267A109 左二级脚踏板 Left Stage Ii Foot Pedal Assembly A.7 1
4 5103261-1H 密封条 Seal Strip B.2 2
5 5103217-E43A 左二级脚踏板上装饰罩 Upper Trim Cover-Left Stage Ii Foot Pedal A.4 1
6 5103218-E43A 右二级脚踏板上装饰罩 Upper Trim Cover-Right Stage Ii Foot Pedal A.2 1
5103M05—452U—001 , 5103M0ô—0634—001 @ù n/,)) Î t En i ne Damper Modu I e
5103M05-452U-001、5103M06-Q634-001 发动机侧挡板模块 Engine Damper Module
序号版本用量
Order Edition Oty
5103M05-452U-001 左侧发动机侧挡板模块 Left Engine Damper Module C.2 Q031F424J4B7L05
1 5103411-Q634 左侧发动机挡板 Left Engine Damper C.1 1
5103M06-Q634-001 右侧发动机挡板模块 Right Engine Damper Module C.2
4 5103422-Q634 右侧发动机挡板 Right Engine Damper H.1 1
5103M07—D9383N—001 @—tltl) ,@u$@ I 1St Shaft Mudguar d Modu I e
’3
5103M07-D9383N-001 第一轴挡泥板模块 1St Shaft Mudguard Module
序号版本用量
Order Edition Oty
5103M07-D9383N-001 第一轴挡泥板模块 1St Shaft Mudguard Module A.3 Q031F424J4B7L05
1 5103315-Q408 左后挡泥板支撑臂总成 Left Rear Mudguard Support Arm Assy F.4 1
2 5103370-Q655 挡泥板总成 Mudguard Assy C.1 1
4 5103320-432 右后挡泥板支撑臂总成 Right Rear Mudguard Support Arm Assy A.5 1
5 5103390-Q655 挡泥板总成 Mudguard Assy A.2 1
5107M01—E312—001 I@@ t PIu and Cover Modu I e
5107M01-E312-001 堵塞及盖子模块 Plug and Cover Module
序号版本用量
Order Edition Oty
5107M01-E312-001 堵塞及盖子模块 Plug and Cover Module A.3 Q031F424J4B7L05
1 5107023-50 堵塞Ⅱ PlugⅡ A.4 8
2 5107029-A15 堵塞Ⅶ-地板 PlugⅦ-Floor B.4 1
3 5107031-Q50 密封膜A Seal Film A A.2 0
5109G04—A15 I”1 iB)#Td $ •› Door Frame Guard Lo i c Assemb I y
5109G04-A15 门槛护板逻辑总成 Door Frame Guard Logic Assembly
序号版本用量
Order Edition Oty
5109G04-A15 门槛护板逻辑总成 Threshold Guard Logical Assembly E.2 Q031F424J4B7L05
1 5109241E109 左门槛前部护板 Left Front Guard The Threshold D.1 1
2 5109242E109 右门槛前部护板 Right Front Guard The Threshold A.1 1
3 5109243E109 左门槛后部护板 Threshold Of The Left Rear Guard F.1 1
4 5109244E109 右门槛后部护板 Threshold Of The Right Rear Guard A.1 1
7 5109247-Q50 线束夹 Wire Clip A.2 10
9 Q40108F6 垫圈 Washer A.1 4
5109M01—0448—001 tÉ § @ Ï t Acoust: i c FI oor Mat: Modu I e
2 3
5109M01-Q448-001 地板防声垫模块 Acoustic Floor Mat Module
序号版本用量
Order Edition Oty
5109M01-Q448-001 地板防声垫模块 Acoustic Floor Mat Module B.2 Q031F424J4B7L05
1 5109111-50 左前地板防声垫 Left Front Acoustic Floor Mat A.4 1
2 5109112-Q447 右前地板防声垫 Right Front Acoustic Floor Mat A.2 1
3 5109114-Q448 中地板后防声垫 Middle Floor Lower Acoustic Mat A.2 1
4 5109116-E06 后地板密封垫 After The Floor Seal B.4 2
5109M02—E31 2—001 tÉ Ï Ï :f F I oor Carpet: Modu I e
'
5109M02-E312-001 地板地毯模块 Floor Carpet Module
序号版本用量
Order Edition Oty
5109M02-E312-001 地板地毯模块 Floor Carpet Module A.3 Q031F424J4B7L05
1 5109231-E312 中地板地毯 In The Floor Carpet E.1 1
2 5109221-E312 左地板地毯 Left The Floor Carpet C.1 1
3 5109222-E312 右地板地毯 Right The Floor Carpet C.1 1
5109M04—E30—001 Insu I at i n Mat Modu I e
1
5109M04-E30-001 隔热垫模块 Insulating Mat Module
序号版本用量
Order Edition Oty
5109M04-E30-001 隔热垫模块 Insulating Mat Module A.3 Q031F424J4B7L05
1 5109311-E30 地板隔热垫 Floor Insulating Mat C.6 1
2 5109312-50 隔热垫后固定夹 Rear Hot-Proof Cushion Clamp B.4 2
3 5109313-50 隔热垫中间固定片 Insulating Mat Fixed Piece In The Middle A.4 2
5201G01—A15 jfij)?l,@_k§?ig{§Q $ , •› Front fi i ndow Upper Tr i m Pane I And Sea I i n
St r i p Assemb I y
1
5201G01-A15 前风窗上装饰板及密封条逻辑总成 Front Window Upper Trim Panel And Sealing Strip Assembly
序号版本用量
Order Edition Oty
5201G01-A15 前风窗上装饰板及密封条逻辑总成 Front Window Upper Trim Panel And Sealing Strip Assembly H.2 Q031F424J4B7L05
1 5201041-A15 上装饰板 Upper Trim Panel H.1 1
2 5201045-A15 密封条总成-上装饰板 Sealing Strip Assembly-Upper Trim Panel C.1 1
3 5201042-E48 橡胶密封垫 Washer A.2 2
4 6101191-01 小防水膜-车门里板 Small Waterproof Membrane-Door Inner Plate A.2 3
5 5201053-A17 密封膜C－风窗上外板 Seal Film C-Windshield Upper Outside Panel E.1 2
6 5201051-A17 密封膜A－风窗上外板 Seal Film A-Windshield Upper Outside Panel E.1 2
5205M01—E312—001 QI) / @t ù i per Modu I e
3
5205M01-E312-001 刮水器模块 Wiper Module
序号版本用量
Order Edition Oty
5205M01-E312-001 刮水器模块 Wiper Module A.4 Q031F424J4B7L05
3 5205010-E312 刮水器总成 Wiper Assembly C.1 1
4 5205060-E42 刮片总成 Wiper Blade A.2 2
5 5205020-50 电机总成 Motor Assembly A.4 1
5206G01—A15 Windshield and Seal Strip Assembly
5206G01-A15 风窗玻璃及密封条逻辑总成 Windshield and Seal Strip Assembly
序号版本用量
Order Edition Oty
5206G01-A15 风窗玻璃及密封条逻辑总成 Windshield and Seal Strip Assembly E.3 Q031F424J4B7L05
1 5206011-Q90AJ1 前风窗玻璃（夹层玻璃） Front Windshield A.1 1
2 5206015-E48 前风窗密封条总成-夹层玻璃 Seal Strip-Front Windshield A.2 1
5207M01—E312—001 Scr ubber Modu I e
1
5207M01-E312-001 风窗洗涤器模块 Windshield Washer Module
序号版本用量
Order Edition Oty
5207M01-E312-001 风窗洗涤器模块 Windshield Washer Module A.4 Q031F424J4B7L05
1 5207902-Q448 风窗洗涤器及水箱支架总成 Scrubber And Water Tank Assy B.2 1
2 5207030-Q448 洗涤器水箱支架总成 Scrubber Water Tank Assy B.2 1
3 5207010-Q448 风窗洗涤器总成 Windshield Scrubber Assy A.1 1
6 5207045-E312 风窗洗涤器软管总成 Windshield Scrubber Hose Assembly C.1 1
5301M01—E31 2—002 jf!¡ 7 @ $ Front: fia I I Out:er Pane I Lo i c Assemb I y—1
11 1
10
30
1/32
21
18 ›/7
x<
13
17
5301M01—E31 2—002 jf!¡ 7 @ $ Front: fia I I Out:er Pane I Lo i c Assemb I y—2
A
25/26
20
22 ° A
4
19
5301M01-E312-001 前围护面逻辑总成 Front Wall Outer Panel Assembly
序号版本用量
Order Edition Oty
5301M01-E312-002 前围护面逻辑总成(全浮-全钢前围) Front Wall Outer Panel Assembly A.3 Q031F424J4B7L05
1 5301060-A15 密封条总成A-前围外板 Sealing Strip Assy A-Front Panel A.1 2
2 5301065-A15 密封条总成B-前围外板 Sealing Strip Assy B-Front Panel A.1 1
3 5301141-A17 堵塞-前围内板 Plug-Front Wall Inner Plate A.4 2
4 5301043-A17 缓冲块-前围外板 Buffer Block-Front Panel A.4 2
5 5702066-50 方头密封圈螺母 Square Ring Nut A.4 6
6 5301045-E312 左铰链总成 LH Hinge Assy A.3 1
7 5301050-E312 右铰链总成 RHHinge Assy A.3 1
8 5301210-D453F 右托架总成-前围外板 Right Support Bracket A.2 1
9 5301205-D453F 左托架总成-前围外板 Left Bracket Assy B.4 1
10 5302054-B45 螺钉轴 Screw Shaft D.1 2
11 L5301011-Q109 FAW英文字母 FAW English Letter A.2 1
12 5301203-D453F 撑管-中下装饰板 Stay tube B.4 1
14 5301027-X159 前标志 Front Sign B.2 1
15 5301029-A15 通风格栅-前围外板 Air Vent Grilling C.1 1
16 5301020-E312 前围外板总成 Front Panel Assembly C.1 1
18 5301206-D453F 中下装饰板-前围外板 Middle and lower decorative panels A.10 1
19 5301085-E312F 左前侧外板总成 Left Front Side Panel Assembly A.2 1
20 5301090-E312F 右前侧外板总成 Right Front Side Panel Assembly A.2 1
21 5301207-D453F 左前侧下装饰板 Left front lower decorative panel A.7 1
22 5301208-D453F 右前侧下装饰板 right front lower decorative panel A.2 1
25 5302121-A15 左装饰膜-前侧外板 Lfet Decorative Film A.4 1
26 5302122-A15 右装饰膜-前侧外板 Right Decorative Film A.1 1
27 5301061-E312 左上支架-撑杆 LH Upper Bracket C.1 1
28 5301062-E312 右上支架-撑杆 RH Upper Bracket A.2 1
5301M01-E312-001 前围护面逻辑总成 Front Wall Outer Panel Assembly
序号版本用量
Order Edition Oty
30 5301060-E312 撑杆总成 Brace Rod Assembly E.1 2 Q031F424J4B7L05
31 5301063-E312 左下支架-撑杆 Left Lower Bracket-Brace Rod C.1 1
32 5301064-E312 右下支架-撑杆 Right Lower Bracket-Brace Rod A.2 1
5301M02—E312—001 }}j 7 I í T1l?JfI •tÊ?t td ,•w› Front Pane I P i I I ar I ns i de And Outs i de Tr i m
Assembly
6 /9
5301M02-E312-001 前围立柱内外装饰板逻辑总成 Front Panel Pillar Inside And Outside Trim Logic Assembly
序号版本用量
Order Edition Oty
5301M02-E312-001 前围立柱内外装饰板逻辑总成 Front Panel Pillar Inside And Outside Trim Logic Assembly A.3 Q031F424J4B7L05
1 5301205-E312 左前立柱内装饰板总成 Left Front Inside Pillar Trim Assembly A.3 1
2 5301211-E06I A柱内腔密封泡沫 A- Pillar Seal Foam Block A.6 2
3 5301301-240 堵盖-前立柱装饰板 Plug Cover-Front Pillar Trim C.1 6
4 5301216-50 卡子 Clip A.4 4
6 Q40604 组合件用平垫圈 Plain Washer for Combined Part A.1 4
7 5301210-E312 右前立柱内装饰板总成 Right Front Inside Pillar Trim Assembly A.3 1
8 5301075-A15 左前立柱外装饰板总成 Left Front Outside Pillar Trim Assembly B.2 1
9 5301080-A15 右前立柱外装饰板总成 Right Front Outside Pillar Trim Assembly B.2 1
12 6100011-50 胶带标记 Tape Marking B.4 6
5302M01—E312—001 jfi\ 7 ?]•{§g]]$ $ •› Front: Pane I T i II: i n Assemb I y
13
2
19
5302M01-E312-001 前围外板翻转逻辑总成 Front Panel Tilting Assembly
序号版本用量
Order Edition Oty
5302M01-E312-001 前围外板翻转逻辑总成 Front Panel Tilting Assembly B.2 Q031F424J4B7L05
1 5302015-E312 左支架总成-柱销锁 Left Bracket Assembly A.3 1
2 5302020-E312 右支架总成-柱销锁 Right Bracket Assembly A.3 1
4 CQ1460820F6 组合螺栓 Assembling Bolt A.1 4
5 5302035-E312 拉线总成 Bowden Cable Assembly C.1 1
6 5302039-240 密封套 Sealing Sleeve D.1 1
7 5302030-E312 外板开启手柄总成 Outer Plate Release Handle Assembly C.1 1
9 3724011-A01 扎带型线束夹子 Wire Harness Clip B.2 3
11 5302020-Q447 左锁体总成-柱销锁 Left Lock Body Assembly-Lock Pin A.2 1
12 5302025-Q447 右锁体总成-柱销锁 Right Lock Body Assembly-Lock Pin A.2 1
13 5302010-E02 锁头总成－柱销锁 Cylinder Assembly A.4 2
15 5302051-240 左扶手 Left Arm A.5 1
16 5302053-240 左扶手盖 Left Arm Cover A.4 1
17 5302061-240 左橡胶垫A-扶手 Left Rubber Pad A-Handrail A.4 1
18 5302063-240 左橡胶垫B-扶手 Left Rubber Pad B-Handrail A.4 1
20 5302052-240 右扶手 Right Arm A.1 1
21 5302054-240 右扶手盖 Right Arm Cover A.1 1
22 5302062-240 右橡胶垫A-扶手 Right Rubber Pad A-Handrail A.1 1
23 5302064-240 右橡胶垫B-扶手 Right Rubber Pad B-Handrail A.1 1
5310M01—E31 2—001 { ' t I nst:r ument: Pane I Modu I e—1
16
1
10
A
20
+
22
1 21
18
21
2
8
2T
30 23
35 61
25
37
44
42
49
56
52 28
2T
28
4 2
51
48
63
64
69
U 68
78 •
74
T0
12
0
5310M01-E312-001 仪表板模块 Instrument Panel Module
序号版本用量
Order Edition Oty
5310M01-E312-001 仪表板模块 Instrument Panel Module A.6 Q031F424J4B7L05
1 5310050-E312 仪表板总成 Instrument Panel Assy C.1 1
2 5310055-E312 仪表板本体 Instrument Panel Body C.1 1
3 5310080-E312 中间风口总成 Intermediate tuyere assembly C.1 1
4 5310085-E312 装饰条总成-长 Decorative Strip assembly-Long A.3 1
5 5310075-E312 左风口总成 Left Air Outlet Assembly C.1 1
6 5310095-E312 左侧除霜风口总成 Left Dew Removable Air Outlet C.1 1
7 5310170-E312 保险丝盒盖总成 Fuse Box Cover Assembly C.1 1
8 5310100-E312 右侧除霜风口总成 Right Dew Removable Air Outlet C.1 1
9 5310023-Q3 簧片螺母 Spring Nut B.2 21
10 5310090-E312 装饰条总成-短 Decorative Strip assembly-Short A.3 1
11 5310070-E42 仪表支架总成 Instrument Bracket A.4 1
13 Q40106F6 垫圈 Washer A.1 22
14 CQ2743595 十字槽沉头自攻螺钉 Cross-Recessed Countersink Self-Tapping Screw A.1 7
17 8101510-E312 中央风道总成 Central Air Passage Assy C.1 1
18 8101520-E312 左风道总成 Transition Duct Assy (Left) C.1 1
19 8101530-E312 右风道总成 Transition Duct Assy (Rh) C.1 1
20 8101522-E312 中吹面风管 Blow-face Air Duck C.1 1
23 5310040-E312 仪表罩总成 Instrument Cover Assembly C.1 1
24 5310041-E312 仪表罩 Instrument Cover A.2 1
25 5310049-B45 塑料卡扣 Plastic Clip A.2 17
26 5310065-E312 仪表罩风口总成 Instrument Cover Tuyere Assembly A.2 1
27 CQ2714816F6 十字槽盘头自攻螺钉 Cross Recessed Pan Head Tapping Screw A.2 21
28 Q40105F6 垫圈 Washer A.2 26
29 5310077-E42 仪表罩堵盖 Stopper Cover Of Instrument Cover B.2 3
序号版本用量
Order Edition Oty
30 5310045-E312 空调面板总成 A\C Panel Assy A.3 1 Q031F424J4B7L05
31 5310044-E312 空调面板 A\C Panel C.1 1
32 5310065-E312 仪表罩风口总成 Instrument Cover Tuyere Assembly A.2 1
33 Q2140612F6 十字槽盘头螺钉 Cross Recessed Pan Head Screw A.2 24
35 CQ2744816F6 十字槽沉头自攻螺钉 Cross-Recessed Countersink Self-Tapping Screw A.2 6
36 CQ2714825F6 十字槽盘头自攻螺钉 Cross Recessed Pan Head Tapping Screw A.2 5
37 5310205-E312 左下护板总成 Left-Low Protect Panel Assy A.3 1
38 5310210-E312 左下挡板总成 Lower Baffle Assembly (Lh) A.3 1
39 5310110-E312 卡片盒总成 Card Box Assembly C.1 1
40 5310287-E312 左中下护板-高地板 Left-Mid-Low Backplate Assy C.1 1
41 5310240-E312 行驶记录仪面板带杂物盒总成 Traveling Data Recorder With Debris Box Assembly C.1 1
42 5310235-E312 行驶记录仪面板总成 Traveling Data Recorder Panel Assy A.3 1
43 5310241-E42 杂物盒 Debris Box A.3 1
45 5310290-E312 右中下护板总成-高地板 Right Middle Lower Protective Plate Assy A.3 1
46 5310260-E312 右下护板总成 Lower Guard Board (Rh) A.3 1
47 5310226-E18 护板堵盖 Guard wall cover C.1 4
49 5310230-E312 收放机面板总成 Radio-Cassette Panel Assembly A.3 1
50 5310220-E312 中下护板总成 Middle Lower Protective Plate Assy A.4 1
51 5310221-E312 中下护板 Middle Lower Guard Board C.1 1
52 5310225-E312 水杯座总成 Cup Holder Assy A.3 1
53 5310130-E312 烟缸总成 Ashtray Assembly A.3 1
54 5310263-E312 制动踏板装饰板-右下护板 Brake Pedal Decoration Plate-RH Lower Protective Plate C.1 1
55 5310262-E312 离合器踏板装饰板-右下护板 Clutch Pedal Decoration Plate-RH Lower Protective Plate C.1 1
56 5310551-B83 转向柱中间橡胶套 Middle Rubber Sleeve-Steering Pillar A.2 1
57 5310553-B83 中间橡胶套下卡接条 Lower Connecting Bar - Middle Rubber Sleeve C.1 1
58 5310552-B83 中间橡胶套上卡接条 Upper Connecting Bar - Middle Rubber Sleeve C.1 1
59 5310710-E312 前转向柱装饰罩总成 Front Steering Pillar Decoration Cover Assembly A.3 1
序号版本用量
Order Edition Oty
60 5310712-E312 后转向柱装饰罩 Rear Steering Pillar Decoration Cover C.1 1 Q031F424J4B7L05
61 CQ39406F6 盖形螺母 Cover Nut A.2 2
62 5310310-E312 仪表板横梁焊接总成 Instrument Panel Cross Member Welding Assembly E.1 1
63 5310325-E312 左固定支架总成 Left Fixing Bracket Assembly A.3 1
64 5310610-E312 左前上下车扶手焊接总成 Left Front Getting On Or Off Armrest Assembly C.1 1
65 5310470-E312 左下挡板左固定支架总成 Left Fixing Bracket Assembly For Left Lower Baffle A.3 1
66 5310175-E312 风机支架总成-仪表板 Heater Bracket -Instrument Panel A.3 1
67 5310475-E312 左下挡板右固定支架总成 Right Fixing Bracket Assembly For Left Lower Baffle A.3 1
68 5310370-E312 空调两箱固定支架总成 Fixing Bracket Assembly For Two cases A.3 1
69 5310480-E312 左中下护板固定支架总成-高地板 Fixing Bracket Assembly For Left-Mid-Low Backplate A.3 1
71 5310330-E312 右固定支架总成 RH Fixing Bracket Assembly A.3 1
72 5310615-E312 右前上下车扶手焊接总成 Right Front Getting On Or Off Armrest Assembly C.1 1
73 5310460-E312 右护板右下固定支架总成 Right Lower Fixing Bracket Assembly For Right panel A.3 1
74 5310530-E312 开启手柄固定支架总成 Fixing Bracket Assembly For Opening Handle A.3 1
75 5310465-E312 左下挡板中固定支架总成 Middle Fixing Bracket Assembly For Left Lower Baffle A.3 1
5402M10—E31—001 ny,)) {Ç{ t S i de Pane I I nd:er i or Tr i mm i n Modu I e—1
2/8
6 %
3/10
5402M10—E31—001 ny,)) {Ç{ t S i de Pane I I nd:er i or Tr i mm i n Modu I e—2
12/ 14
5402M10—E31—001 ny.)) {Ç{@t S i de Pane I Inter i or Tr i mm i n Modu I e—3
2l
21
19
5402M10-E31-001 侧围内饰件模块 Side Panel Interior Trimming Module
序号版本用量
Order Edition Oty
5402M10-E31-001 侧围内饰件模块 Side Panel Interior Trimming Module A.2 Q031F424J4B7L05
2 5402115-A17 左侧围内护板总成 Left Side Panel Inner Guard Board Assy F.1 1
3 5402175-240 左安全带罩总成 Left Safety Belt Cover Assembly D.2 1
5 5402165-E18 左上下车把手总成 Left Upper And Lower Handle Assembly E.1 1
8 5402120-A17 右侧围内护板总成 Rh Side Inner Guard Plate Assy D.2 1
9 5402170-E18 右上下车把手总成 Right Upper And Lower Handle Assembly A.3 1
10 5402180-240 右安全带罩总成 Right Safety Belt Cover Assembly D.2 1
12 5403023E109 左密封条-侧窗玻璃 Left Seal-Side Window Glass G.1 1
13 5403015-E01 左开启式侧窗总成 Start On Left Side Window Assembly A.5 1
14 5403024E109 右密封条-侧窗玻璃 Right Seal-Side Window Glass A.1 1
15 5403020-E01 右开启式侧窗总成 Start On Right Side Window Assembly A.3 1
17 5402085-240 左前侧窗帘总成 F.L curtian Assembly H.2 1
18 5402081-Q466 左前侧窗帘导轨 F.L Window Curtain Rail Assy A.2 1
19 5402083-240 前侧窗帘导轨堵头 Front curtian rain Steam A.1 2
20 5702083-50 凸按扣 Convex Buckle B.3 4
22 5402090-240 右前侧窗帘总成 F.R curtian Assembly H.2 1
23 5402082-Q466 右前侧窗帘导轨 F.R Window Curtain Rail Assy A.2 1
5602M10—0466—001 /"°p 1 } t Rear Pane I I nt:er i or T r i mm i n Modu I e
’9 13
5602M10-Q466-001 后围内饰件模块 Rear Panel Interior Trimming Module
序号版本用量
Order Edition Oty
5602M10-Q466-001 后围内饰件模块 Rear Panel Interior Trimming Module C.2 Q031F424J4B7L05
1 5601025-240 左扬声器支架总成 LH Loudspeaker Bracket Assembly B.3 1
2 5601030-240 右扬声器支架总成 RH Loudspeaker Bracket Assembly B.2 1
3 5310047-Q3 金属卡扣 Metal Buckle B.2 6
4 5602105-240 后围内护板带附件总成 Rear Panel Guard Plate with Accessories Assembly C.2 1
5 5602125-240 左扬声器罩总成 Lh Speaker Cover Assembly B.2 1
6 5602130-240 右扬声器罩总成 Rh Speaker Cover Assembly B.2 1
10 5402131-Q50 卡扣 Buckle D.1 2
12 5603012-240 密封条-后窗玻璃 Seal Strip-Rear Glass E.1 1
13 5603011-Q422G 后窗玻璃 Rear Glass A.1 1
14 5602050-240 后窗帘总成 Rear Front Door Curtain Assy H.2 1
15 5602011-240 后窗帘导轨 Rear Curtain Guide Rail Assy A.4 1
17 5602013-240 左后窗帘导轨堵头 Left Rear Front Door Curtain Steam A.4 1
18 5602014-240 右后窗帘导轨堵头 Right Rear Front Door Curtain Steam A.1 1
5702M10—0466—001 Iy, f{i{ I Top Cover Inter i or Tr imm i n Modu I e—1
6 16
12 4 “
8“
5702M10—0466—001 }y, } t Top Cover I nt:er i or Tr i mm i n Modu I e—2
22
23
24
5702M10-Q466-001 顶盖内饰件模块 Top Cover Interior Trimming Module
序号版本用量
Order Edition Oty
5702M10-Q466-001 顶盖内饰件模块 Top Cover Interior Trimming Module A.1 Q031F424J4B7L05
1 5702051-240 中央窗帘导轨 Central Curtain Rail A.4 1
2 5702053-240 中央窗帘导轨堵头 Central Curtain Rail Plug A.4 2
5 5702121-240 左放物盒 Left Stuff Box A.4 1
6 5702122-240 右放物盒 Right Stuff Box A.1 1
7 5402131-Q50 卡扣 Buckle D.1 2
11 5702010-Q466 顶盖前内护板带附件总成 Top Cover Front Inner Guard Board With Accessories Assembly C.2 1
12 5702055-240 左中央窗帘总成 Left Center Curtain Assembly H.2 1
13 5702060-240 右中央窗帘总成 Right Center Curtain Assembly H.2 1
14 5702020-240 顶盖后内护板带附件总成 Top Cover Rear Inner Guard Board With Accessories Assembly C.2 1
15 5702150-240 室内灯前装饰板总成 Room Lamp Front Trim Panel Assy A.1 1
17 5702066-50 方头密封圈螺母 Square Ring Nut A.4 7
19 5702130-240 车内扶手总成 Interior Handle Assembly B.6 1
21 5702160-240 室内灯后装饰板总成 Room Lamp Rear Trim Panel Assy A.1 1
22 5701020-50 车顶把手总成 Top Cover Handle Assembly D.2 2
23 5701023-Q50 罩-车顶把手 Cover-Top Cover Handle A.2 2
5704G01—A15 }yi, )ny,I) $ •› Top Cover S i de Decor at: i on Cover Assemb I y
4
5704G01-A15 顶盖侧装饰罩逻辑总成 Top Cover Side Decoration Cover Assembly
序号版本用量
Order Edition Oty
5704G01-A15 顶盖侧装饰罩逻辑总成 Top Cover Side Decoration Cover Assembly C.2 Q031F424J4B7L05
1 5704021-A15 左顶盖侧装饰罩 Left Top Cover Decoration Cover C.3 1
2 5704022-A15 右顶盖侧装饰罩 Right Top Cover Decoration Cover A.1 1
6100G01—E31 2 @? jzl” /} :f Manua I Door Inter ior Tr i mm i n Assy Modu I e—1
14
’47
11
” 12
17
18
22
8’
20
6
7
15
0
6100G01—E312 @fid?¡zI”\ $/{ /}@:I Manua I Door Inter ior Tr i mm i n ' Assy Modu I e—2
41
':m 52
53
’A 49
50
29 8
42
29 0
27 23
3 44
24
38
59
61
A 30
65
“63
/2
’8
58
60
66
40
% ’T8
49
69
50 70
2°
'42
44 56 68 48
"sr*
67
64
39
38 12
6100G01-E312 手动车门内饰件装配模块 Manual Door Interior Trimming Assy Module
序号版本用量
Order Edition Oty
6100G01-E312 手动车门内饰件装配模块 Manual Door Interior Trimming Assy Module A.3 Q031F424J4B7L05
3 6107015E109 左车门上防尘密封条总成 Left Door Upper Dust Seal Assembly D.1 1
4 6107105E109 左车门防水密封条 Left Door Upper Watertight Seal Strip Assembly E.1 1
5 6103191E109 左车门窗内密封条 Left Door Window Interior Seal Strip Assembly B.5 1
6 6101561E109 左车门里板盖板 Left Door Inner Plate Cover Plate C.4 1
7 6101027E109 左车门后窗框装饰膜 Left Door Rear Window Frame Decorative Film A.4 1
8 6103131E109 塑料衬套 Plastic Bushing A.4 4
10 6101085E109 左车门玻璃后下导轨总成 Left Door Glass Rear Lower Track Assembly A.4 1
11 6105221E109 左外手柄装配孔装饰罩A Left Outer Handle Assemble Hole Trim Cover A A.4 1
12 6104011E109 手柄支架总成 Handle Bracket Assembly E.1 2
13 6102031E109 卡扣-内饰板 Buckle-Trimming Board A.4 12
14 6103145E109 左车门窗玻璃滑槽及密封条总成 Left Door Window Glass Chute And Seal Strip Assembly B.6 1
15 6104105-Q126A 手柄总成-玻璃升降器 Handle Assembly-Glass Lifter G.2 2
16 6102160E109 车门内护板连接支架总成 Door Inner Guard Board Connecting Bracket Assy C.2 2
17 6105321E109 左外手柄装配孔装饰罩 Left Outer Handle Assemble Hole Trim Cover A.4 1
18 6103121E109 左车门窗玻璃 Left Door Window Glass A.5 1
19 6104015E109 左门玻璃升降器总成（手动） Left Door Manual Glass Lifter Assembly M.1 1
20 6101571E109 左车门里板连接板减震条 Left Door Plate Connecting Plate Article Damping G.1 1
21 6100011-50 胶带标记 Tape Marking B.4 4
23 6102015-E312 左门内饰板总成 Left Door Trimming Board Assy B.2 1
24 6105015-E312 左车门锁机构总成 Left Door Lock Mechanism Assy A.3 1
25 6105305-E312 左门内手柄总成 Left Door Interior Handle Assembly A.4 1
26 6105251E109 左密封套-内锁止按钮 Left Seal Cartridge-Inner Lock Button B.5 1
27 6105035-50 左锁体总成 Left Lock Body Assembly C.4 1
29 Q41406 锥形锯齿锁紧垫圈 Lock Washer A.1 10
序号版本用量
Order Edition Oty
30 6107110E109 右车门防水密封条 Right Door Upper Watertight Seal Strip Assembly A.1 1 Q031F424J4B7L05
32 CQ2764813 十字槽半沉头自攻螺钉 Cross-Recessed Half Countersunk Self-Tapping Screw A.1 5
34 Q39303 板簧螺母 Leaf Spring Nut A.1 1
35 6101585-A15 左车门外装饰罩总成 Left Vehicle Door Outer Trim Cover Assembly C.2 1
36 6101591-A15 左车门外装饰罩外板 Left Vehicle Door Outer Trim Cover Exterior Plate A.4 1
37 6101593-A15 左车门外装饰罩内板 Left Vehicle Door Outer Trim Cover Interior Plate B.4 1
38 Q2560616 十字槽半沉头螺钉 Cross Recessed Countersunk Head Screw A.1 6
39 Q2540516F6 十字槽沉头螺钉 Cross Recessed Countersunk Head Screw A.2 4
41 Q2540614 十字槽沉头螺钉 Cross Recessed Countersunk Head Screw A.1 4
44 Q2540510 十字槽沉头螺钉 Cross Recessed Countersunk Head Screw A.1 6
51 6103192E109 右车门窗内密封条 Right Door Window Interior Seal Strip Assembly B.1 1
52 6106100E109 车门限位器总成（带销轴） Check Assembly C.1 2
54 6102075E109 左车门内扶手总成 Left Door Armrests Assembly D.2 1
57 6107020E109 右车门上防尘密封条总成 Right Door Upper Dust Seal Assembly A.1 1
58 6101572E109 右车门里板连接板减震条 Right Door Plate Connecting Plate Article Damping A.1 1
59 6103150E109 右车门窗玻璃滑槽及密封条总成 Right Door Window Glass Chute And Seal Strip Assembly B.2 1
Order Edition Oty
60 6101562E109 右车门里板盖板 Right Door Inner Plate Cover Plate A.1 1 Q031F424J4B7L05
61 6105222E109 右外手柄装配孔装饰罩A Right Outer Handle Assemble Hole Trim Cover A A.1 1
62 6101090E109 右车门玻璃后下导轨总成 Right Door Glass Rear Lower Track Assembly A.1 1
63 6103122E109 右车门窗玻璃 Right Door Window Glass A.1 1
64 6102020-E312 右门内饰板总成 Right Door Trim Panel Assembly B.2 1
65 6105322E109 右外手柄装配孔装饰罩 Right Outer Handle Assemble Hole Trim Cover A.1 1
66 6101028E109 右车门后窗框装饰膜 Right Door Rear Window Frame Decorative Film A.1 1
67 6105020-E312 右车门锁机构总成 Right Door Lock Mechanism Assy A.4 1
68 6105040-50 右锁体总成 Right Lock Body Assembly D.5 1
69 6105252E109 右密封套-内锁止按钮 Right Seal Cartridge-Inner Lock Button A.1 1
70 6105310-E312 右门内手柄总成 Right Door Interior Handle Assembly A.3 1
71 6104020E109 右门玻璃升降器总成（手动） Right Door Manual Glass Lifter Assembly C.2 1
72 6101590-A15 右车门外装饰罩总成 Right Vehicle Door Outer Trim Cover Assembly C.2 1
73 6101592-A15 右车门外装饰罩外板 Right Vehicle Door Outer Trim Cover Exterior Plate A.1 1
74 6101594-A15 右车门外装饰罩内板 Right Vehicle Door Outer Trim Cover Interior Plate A.1 1
75 5301032-Q447 密封膜 Seal Film A.1 4
76 6102080E109 右车门内扶手总成 Right Door Armrests Assembly C.2 1
77 6101333E109 车门外板减振垫 Car Door Plate Damping Pad A.4 2
3746M01-Q145-002 动力车窗结构模块 Power Window Structure Module B.2
78 3746061-240 玻璃升降器开关盖板 Manual Glass Lifter Switch Cover Plate A.5 3
6800M01—E31 2—001 % g§i.@ t (@ ) Dr i ver A i r Seat Modu I e (R i ht Hand)
3
6800M01-E312-001 驾驶员空气座椅模块(右置） Driver Air Seat Module (Right Hand)
序号版本用量
Order Edition Oty
6800M01-E312-001 驾驶员空气座椅模块(右置） Driver Air Seat Module (Right Hand) A.3 Q031F424J4B7L05
1 6800901-Q499 驾驶员座椅装配合件总成 Driver Seat Loading Assemblies Assembly A.4 1
2 6800010-Q499 驾驶员座椅总成（空气座椅） Driver S Seat Assembly (Air Seat) H.2 1
3 6803060-Q499 座椅扶手总成 Seat Handrail Assy A.3 1
6900M01—E23—001 @@ }R:f Passen 'er Seal: Modu I e
6900M01-E23-001 乘客座椅模块 Passenger Seat Module
Order Edition Oty
6900M01-E23-001 乘客座椅模块 Passenger Seat Module B.2 Q031F424J4B7L05
1 6900010-Q688H 乘客座椅总成 Passage Seat Assy A.2 1
2 CQ1460820F6 组合螺栓 Assembling Bolt A.1 4
7000M01—E43—001 T |*f :f Lower S I eeper Modu I e
7000M01-E43-001 下卧铺模块 Lower Sleeper Module
序号版本用量
Order Edition Oty
7000M01-E43-001 下卧铺模块 Lower Sleeper Module A.3 Q031F424J4B7L05
1 7001010-E43 卧铺软垫总成-下卧铺 Sleeper Cushion Assembly F.1 1
7901M01—D8001—002 §g :f Casset:t:e Rad i o St: r uct:ure Modu I e
6
7901M01-D8001-002 收放机结构模块 Cassette Radio Structure Module
序号版本用量
Order Edition Oty
7901M01-D8001-002 收放机结构模块 Cassette Radio Structure Module A.3 Q031F424J4B7L05
1 7901010-D1001 收放机总成 Radio And Cassette Player Assy D.1 1
2 7901055-510 收放机支架总成 Cassette Radio Bracket Assembly D.4 1
5 7903010C109 天线总成 Antenna Assembly A.5 1
7 7901035-50 扬声器总成 Loudspeaker Assy A.5 2
8100M01—E31 2—001 ?j2.@ 1@@{ t Body A i r Cond i I: i on i n ' Equ i pment: Modu I e—1
2 8
33
6
15
10
18 17
23
8100M01—E312—001 ?j£@ @} :f Body A i r Cond i I: i on i n ' Equ i pment: Modu I e—4
30
6
1 28 A
35
8100M01-E312-002 车身空气调节设备模块(自动空调) Body Air Conditioning Equipment Module (Automatic Air Conditioning)
序号版本用量
Order Edition Oty
8100M01-E312-002 车身空气调节设备模块(自动空调) Body Air Conditioning Equipment Module (Automatic Air Conditioning) A.5 Q031F424J4B7L05
3 8101571-E18 外气滤清器堵塞 External Air Filter Clogging C.1 2
6 8101570C109 外气滤清器总成 External Air Filter Assembly G.1 1
7 8107076-E18 泄水软管-制冷器 Discharge Hose-Refrigrator A.2 1
8 8100015-E312 两箱总成-自动空调 Two cases Assembly-Automatic Air Conditioning C.1 1
9 8101110-E312 两器总成 Two cases Assembly A.2 1
10 8101040-E312 风机总成 Fan Assembly A.2 1
11 8101050-E312 状态转向器带摆杆总成 Status Steering Gear With Swinging Rod Assembly A.2 1
12 8101080-E312 调速模块 Speed Regulating Module A.2 1
13 8101030-E312 内外循环转向器带摆杆总成 Internal And External Circulation Status Steering Gear With Swinging A.2 1
14 8101060-E312 温度转向器带摆杆总成 Temperature Steering Gear With Swinging Rod Assembly A.2 1
15 8101250-E312 线束 Harness, Wiring A.2 1
16 8106010-E312 膨胀阀总成 Expansion Valve Assembly A.2 1
17 8101724-E312 吹司机右脚风道 Blow-RH Foot Air Duct Of Driver C.1 1
18 8101721-E312 吹司机左脚风道 Blow-LH Foot Air Duct Of Driver C.1 1
19 8101722-E312 吹司机左脚过渡风管 Blow-LH Foot Air Transit Duct Of Driver D.1 1
22 8100110-E312 空调操纵机构总成 Air Conditioner Control Mechanism Assembly C.1 1
24 8108011-A15 空调维修使用警示标签 Air Conditioner Maintenance Warning Label I.1 1
25 8108070-E312 挠性低压管总成A-制冷器至压缩机 Flexible Low Pressure Tube A-Refrigrator To Compressor E.1 1
27 8108140-E312 挠性高压管总成A-制冷器至冷凝器 Flexible High Pressure Tube A-Refrigrator to Condenser E.1 1
8100M01-E312-002 车身空气调节设备模块(自动空调) Body Air Conditioning Equipment Module (Automatic Air Conditioning)
序号版本用量
Order Edition Oty
30 8108071-E06I 空调双管夹箍 Air Conditioner Double Pipe Clamp C.4 1 Q031F424J4B7L05
31 8108157-A15 冷气管固定环箍 Air Conditioning Pipe Clamp A.4 1
32 8108160-A15 冷气管固定支架A总成 Air Cooler Pipe Fixing Bracket A Assembly A.2 1
33 8107077-50 软管密封圈-泄水软管 Hose Seal Ring-Discharge Hose A.4 1
34 8101735-DC001 暖风水管管夹 Heater Water Pipe Clip A.2 1
35 8108015-E312 空调管路固定支架总成 A\C Pipeline Fixing Bracket A.3 1
8100M02—0242N—002 )tÇ@:£¿ í]b-r›í§@{@t§ (tg?¡j6DL—@} — ) Chass i s A i r Cond i t: i oner—1
A
2
B
8100M02—0242N—002 )ÍÊ túz:ní]f]\-jcÍjj@{g:tg (tgújóDL—@} — ) Chass i s A i r Cond i t i oner—2
A D
20
18
17
8
8100M02-Q242N-002 底盘空气调节设备模块(锡柴6DL-全浮-空调) Chassis Air Conditioner Module
序号版本用量
Order Edition Oty
8100M02-Q242N-002 底盘空气调节设备模块(J5M右置新内饰 Chassis Air Conditioner Module B.2 Q031F424J4B7L05
1 8101735-DC001 暖风水管管夹 Heater Water Pipe Clip A.2 3
3 8101194-01 暖风出水接头 Connection C.1 1
5 8116712-E96 进水软管A-加热器 Intake hose A-heater D.1 2
6 8116710-Q242N 暖气管路支架焊接总成 Welding assembly of heating pipeline support A.2 1
7 8116713-D535E 回水软管 Water Return Hose D.1 1
8 8101712-DV400 进水软管 Water Inlet Hose C.1 1
11 8108101-D601 双管卡箍支架 Two Pipe Clamp Bracket D.4 1
13 8108011-D488E 空调管侧连接支架 Air Conditioner Tube Side Connecting Bracket E.1 1
16 5001166-Q430 支架 Bracket E.1 1
18 8108075-50A 环箍总成E Hoop assembly E A.2 1
20 8108022-D9800 空调管固定管夹 Air Conditioning Pipe Clamp C.1 2
21 8108720-DF003 双管卡箍支架总成 Two Pipe Clamp Bracket A.3 1
23 8108157-382 冷气管箍 Cold air pipe hoop B.2 1
24 8108155-382 冷气管固定支架总成 Cool Air Pipe Fixing Bracket A.2 1
25 8108080-Q242N 挠性高压管总成-压缩机至冷凝器 Flexible High Pressure Tube-Compressor to Condenser A.2 1
26 8108060-Q242N 挠性低压管总成-制冷器至压缩机 Flexible High Pressure Tube - Refrigerator to Compressor A.2 1
27 8108130-Q687N 挠性高压管及压力开关总成 Flexible High Pressure Tube And Pressure Switch C.1 1
29 8105015-DF200 冷凝器总成 Condenser Assembly A.2 1
8201M01—0422—001 [zjem / :f Inner Rearv i ew M i r ror Modu I e
8201M01-Q422-001 内后视镜模块 Inner Rearview Mirror Module
序号版本用量
Order Edition Oty
8201M01-Q422-001 内后视镜模块 Inner Rearview Mirror Module A.1 Q031F424J4B7L05
1 8201010-50 内后视镜总成 Inner Rearview Mirror Assembly A.7 1
8202M01—E02—001 J°°o j Ï $ •› Rearv i ew M i r ror Lo i c Assemb I y
5 6
i x
U
7
8
10
7
12 i •
13
1
8202M01-E02-001 后视镜逻辑总成 Rearview Mirror Logic Assembly
Order Edition Oty
8202M01-E02-001 后视镜逻辑总成 Rearview Mirror Logic Assembly C.2 Q031F424J4B7L05
2 8219010-E02 前下视镜总成 Front Lower View Mirror Assy C.1 1
3 8202020-E09 右外后视镜总成 Right Outer Rearview Mirror Assembly A.10 1
4 8202030-A17 右侧主镜片总成 Right Main Lens A.3 1
5 8202040-A17 右侧广角镜片总成 Right Angle Lens A.3 1
6 CQ2180830 内六角圆柱头螺钉 Hexagon socket head cap screw A.1 4
7 8202015-E09 左外后视镜总成 Left Outer Rearview Mirror Assembly A.11 1
8 8202056-E33 左上托架垫块 Left Upper Bracket Block A.5 1
9 8202057-E33 左下托架垫块 left Lower Bracket Block A.4 1
10 8202025-A17 左侧主镜片总成 Left Angle Lens A.3 1
11 8202035-A17 左侧广角镜片总成 Left Main Lens A.3 1
13 CQ2180850 内六角圆柱头螺钉 Hexagon socket head cap screw A.2 4
8203010—E42 Îğ Asht: r ay Assemb I y
1
8203010-E42 烟灰盒总成 Ashtray Assembly
序号版本用量
Order Edition Oty
1 8203010-E42 烟灰盒总成 Ashtray Assembly C.4 1 Q031F424J4B7L05
8204G01—240 @ $$g •› Sun V i sor Assemb I y
8204G01-240 遮阳板逻辑总成 Sun Visor Assembly
序号版本用量
Order Edition Oty
8204G01-240 遮阳板逻辑总成 Sun Visor Assembly B.2 Q031F424J4B7L05
1 8204015-240 左遮阳板总成 Left Sun Visor Assembly A.6 1
2 8204020-240 右遮阳板总成 Right Sun Visor Assembly A.1 1
8212M01—D848 3<:@ $ •. Safety Be I I: Lo i c Assemb I y
4
8212M01-D848 安全带逻辑总成 Safety Belt Logic Assembly
序号版本用量
Order Edition Oty
8212M01-D848 安全带逻辑总成 Safety Belt Logic Assembly C.2 Q031F424J4B7L05
1 8212015-A17 左安全带总成 Left Safety Belt Assembly A.3 1
2 8212025-240 左锁扣总成 Left Lock Catch Assy D.1 1
3 8212035-A17 外侧安全带总成 Outer Safety Belt Assembly M.1 2
4 8212020-A17 右安全带总成 Right Safety Belt Assembly B.2 1
5 8212030-240 右锁扣总成 Rh Lock Catch Assy A.1 1
8219G02—A17 {}jft• $ •› Over head M i r ror Lo i c Assemb I y
3 2
"•
8219G02-A17 俯视镜逻辑总成 Overhead Mirror Logic Assembly
序号版本用量
Order Edition Oty
8219G02-A17 俯视镜逻辑总成 Overhead Mirror Logic Assembly A.2 Q031F424J4B7L05
1 8219020-A17 俯视镜总成 Overhead Mirror Assembly C.1 1
2 CQ2180830F6 内六角圆柱头螺钉 Hexagon Socket Head Cap Screw A.1 2
4 Q40108F6 垫圈 Washer A.1 2

Faw FD280

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Faw FD280

Uploaded by

Copyright:

Available Formats

前言 Foreword

1. 本零部件图册根据一汽解放青岛汽车有限公司现有出口产品J5M 系列生产用图纸编绘，以供广大用户了解J5M 系列汽车零部件构造、装配关系

2. 本零部件图册包含了一汽解放J5M 汽车系列产品的 1 种车型，其对应关系如下表所示。

序号/No. 公告型号/Announcement type 车型码/Model coding

主组：30 前轴 Front Axle 主组：37 电器设备 Electric-Appliance

Assembly............................................... 260 主组：39 随车工具及附件 Driver Tools & Accessories Assembly

Assembly............................................... 264 主组：50 车身（驾驶室） Body (Cab)

主组：38 仪器仪表 Instrument Device 5103 左/右二级脚踏板及装饰罩逻辑总成 Left\Right Stage Ii Foot

主组：52 风窗 Windshield 6100 手动车门内饰件装配模块 Manual Door Interior Trimming Assy

5206 风窗玻璃及密封条逻辑总成 Windshield and Seal Strip 主组：69 前座 Passenger Seat

Assembly............................................... 353 6900 乘客座椅模块 Passenger Seat Module ..................... 394

5207 洗涤器模块 Washer Module .............................. 355 主组：70 卧铺 Sleeper

主组：53 前围 Front Wall 7000 卧铺模块 Sleeper Module ................................ 396

主组：54 侧围 Side Wall 主组：82 附件 Accessory

8202 后视镜模块 Rearview Mirror Module ....................... 411

8203 烟灰盒总成 Ashtray Assy ................................ 413

8204 遮阳板模块 Sun Visor Module............................. 415

8212 安全带逻辑总成 Safety Belt Logic Assembly.............. 417

8219 俯视镜逻辑总成 Overhead Mirror Logic Assembly .......... 419

Qui ck Re1ease Balve

2 Air Control Unit

' 36* 3o29

Connect to Cab Readi

Connect to Cab Read ing

You might also like
