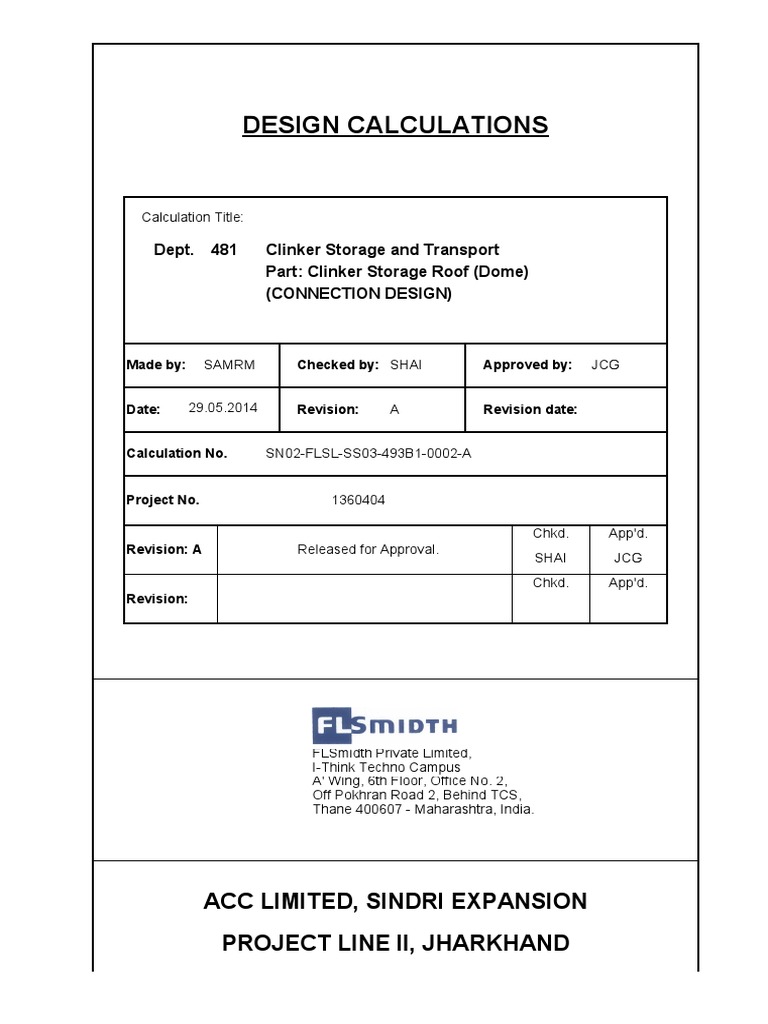

DESIGN CALCULATIONS

Calculation Title:

Dept. 481 Clinker Storage and Transport

Part: Clinker Storage Roof (Dome)
(CONNECTION DESIGN)

Made by: SAMRM Checked by: SHAI Approved by: JCG

Date: 29.05.2014 Revision: A Revision date:

Calculation No. SN02-FLSL-SS03-493B1-0002-A

Project No. 1360404

Chkd. App'd.
Revision: A Released for Approval.
SHAI JCG
Chkd. App'd.
Revision:

FLSmidth Private Limited,

I-Think Techno Campus
A' Wing, 6th Floor, Office No. 2,
Off Pokhran Road 2, Behind TCS,
Thane 400607 - Maharashtra, India.

ACC LIMITED, SINDRI EXPANSION

PROJECT LINE II, JHARKHAND
DESIGN CALCULATIONS
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

5.1 Structural Diagrams & Load Inputs

5.1.1 Whole Structure

5.1.2: Dead loads

DOME
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

LEVEL +38.00M

LEVEL ROOF
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

5.1.3 :Live loads

DOME

LEVEL +38.00M
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

LEVEL +38.00M

LEVEL ROOF
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

5.1.4 : Wind loads

WLX
DOME

LEVEL +38.00M
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

PENTHOUSE

MONORAIL SUPT
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

WLZ

DOME

LEVEL +38.00M
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

PENTHOUSE

MONORAIL SUPT
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

5.1.5: Earthquake loads

EQX
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

EQZ
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

EQY
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
 DESIGN CALCULATIONS

Calculation Title:

Dept. 481 Clinker Storage and Transport

Part: Clinker Storage Roof (Dome)

Made by: SHSP Checked by: AARSA Approved by: JCG

Date: 02.26.14 Revision: A Revision date:

Calculation No. SN02-FLSL-SS03-493B1-0001-A

Project No. 1360404

Chkd. App'd.
Revision: For ACC/TCE Approval
AARSA JCG

Chkd. App'd.
Revision:

FLSmidth A/S FLSmidth Private Limited,

Vigerslev Alle 77 I-Think Techno Campus
DK-2500 Valby A' Wing, 6th Floor, Office No. 2,
Tel: +45 3618 1000 Off Pokhran Road 2, Behind TCS,
Fax: +45 3630 1820 Thane 400607 - Maharashtra, India.

ACC LIMITED, SINDRI EXPANSION

PROJECT LINE II, JHARKHAND
DESIGN CALCULATIONS
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Checked by: Date: Project No. 1360404

AARSA SHAI 14/02/2014 Doc. No. Rev.

Calculation Index

Paragraph Subject Page No.

General Notes

1 Structural Design Overview

1.1.1 Description of Structure

1.1.2 Structural Material

1.2 Transfer of loads

1.2.1 Dynamic loads
1.2.2 Vertical load transfer to foundation

1.3 Borderlines and calculation references

1.4 QA form

2 Design Basis

2.1 Design conditions

2.1.1 Codes of Practice
2.1.2 Other regulations
2.1.3 Material properties
2.1.4 Geotechnical conditions
2.1.5 Natural conditions
2.1.6 Serviceability conditions
2.1.7 Load combinations

2.2 Loads
2.2.1 Dead loads
2.2.2 Live loads
2.2.3 Wind Load
2.2.4 Seismic loads
2.2.5 Snow loads
2.2.6 Other loads
2.2.6.1 Soil pressure & uplift
2.2.6.2 Temperature
2.2.6.3 Settlements

2.3 Requirements on functionality

3 Global Calculations

3.1 Statical Model

3.2 Load combination service load method

3.3 Load combination limit state method

3.4 Statics Check

 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Checked by: Date: Project No. 1360404

AARSA SHAI 14/02/2014 Doc. No. Rev.
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Checked by: Date: Project No. 1360404

AARSA SHAI 14/02/2014 Doc. No. Rev.

Paragraph Subject Page No.

4 Detailed calculations

4.1 Interaction Ratio & Deflection checks

4.2 Member Design

5 STAAD files for Clinker Storage Dome

5.1 Staad Input file

6 Structural Drawings
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome

Made by: Checked by: Date: Project No. 1360404

AARSA SHAI 14/02/2014 Doc. No. Rev.
 ACC Limited Sindri Expansion Project Page No. 1.0
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.:
Part : Clinker Storage Dome Steel Calculation

1.0 STRUCTURAL OVERVIEW

 ACC Limited Sindri Expansion Project Page No. 1.0
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.:
Part : Clinker Storage Dome Steel Calculation
 Project: ACC Sindri
Page
Dept. 481 - Clinker Storage and Transport
1.1.23
Part : Clinker Storage roof
Made by: Checked by: Date: Project No.
SHSP AARSA 02.14.14 Doc. No. 493B1-0001 Rev.
REFERENCE
1.1. Building description

1.1.1 Type, extent, dimensions & location of the structure.

This is the calculation of the steel roof structure for the clinker silo dept. 481.

Roof is supported on circular concrete silo wall (Top of concrete +25.050M). (approx)

Internal diameter of the silo is 45m.

Height of the roof is 12.95 meters. (approx)

At the top of the roof Structure(i.e. +38.00M LVL) a circular ring of 10m dia is provided

The roof structure of the silo, supports the conveyor, Penthouse and Bag filter.

The roof structure also supports monorail supporting structure, at level +45.50M

Roof of Penthouse is located at Level +53.804M H.P

Refer sketch on page

Reference Input Drawings are as follows:

Dwg. No: 10333322-5.0 General Arrangements

Dwg. No: 10333331-5.0
Dwg. No: 10333335-5.0
Dwg. No: 10333339-5.0
Dwg. No: 10333341-5.0
Dwg. No: 10336579-1.0 (481.BF050 Bag filter)
Dwg. No: 60129296-0.0 (214.BC180 Conveyor)
 Project: ACC Sindri
Page
Dept. 481 - Clinker Storage and Transport
1.1.24
Part : Clinker Storage roof
Made by: Checked by: Date: Project No.
SHSP AARSA 02.14.14 Doc. No. 493B1-0001 Rev.
REFERENCE

1.1.2 Staad Model

Overall Geometry

Level + 38.00 m
 Project: ACC Sindri
Page
Dept. 481 - Clinker Storage and Transport
1.1.25
Part : Clinker Storage roof
Made by: Checked by: Date: Project No.
SHSP AARSA 02.14.14 Doc. No. 493B1-0001 Rev.
REFERENCE

Level + 45.50 m

Penthouse
 Project: ACC Sindri
Page
Dept. 481 - Clinker Storage and Transport
1.1.26
Part : Clinker Storage roof
Made by: Checked by: Date: Project No.
SHSP AARSA 02.14.14 Doc. No. 493B1-0001 Rev.
REFERENCE

1.2. Structural system

The silo roof is calculated as a framed structure.

The 16 rafters are connected at the top to the compression ring beam (d = 10 m) and
at the other end simply supported at the silo wall

All supports are with sliding bearing to allow the radial movement

Between the top ring beam and the silo wall the rafters are further connected by three more
ring beams. The dome rings connected to rafter with simple shear connection.

1.3. Principal loads

Principal loads considered in the design are listed below

a. Dead loads

b. Equipment loads

c. Live loads

d. Wind loads

e. Earthquake loads

1.4. Transfer of loads

1.4.1 Vertical load transfer

All vertical loads are tranferred to compression ring at top. The compression ring
transfers the load to rafters which are supported on the silo concrete wall.

1.4.2 Horizontal load transfer

All lateral loads are transferred via vertical and horizontal bracing system.
In penhouse area all bracings are acting as compression/tension members
The rafters are acting as tension/compression/bending members.
The top ring is acting in compression/bending/torsion/tension.
The other dome rings are acting in tension/compression.
The x brace between rafters and dome rings act as tension braces.

1.5. Structural Sketches

See strucutural drawings in section 6.0

 1.1.27

Project: ACC Sindri

Page
Dept. 481 - Clinker Storage and Transport

Part : Clinker Storage roof

Made by: Checked by: Date: Project No.
SHSP AARSA 02.14.14 Doc. No. 493B1-0001 Rev.
REFERENCE
 QUALITY PLAN DESIGN
Enclosure
Project: ACC Limited, Sindri Expansion Project Line II, Jharkhand Page:
Date: 13/01/14
Rev : 0
Check Form - Structural Calculations

Check of Structural Calculations for department: 481 Clinker Storage Roof

note: Date / Initials

Approved: Date /

Not approved of
Initials
Pos Subject:
1 Are the calculations furnished with a front sheet plus necessary information about the
calulation basis ?
2 Is the chosen model practicable in the present situations ?
3 Are the conditions for the model present and is the model followed the all through
the calculation ?
4 Is the model practicable or is there a considerably more optimal model ?
5 Have the load conditions stated on FLS's drawings and in MEMO 2 been throughly
considered ?
6 Have the most critical combinations been scrutinized ?
7 Has possible resonance between the modal frequencies for the structure and machine
vibrations been scrutinized?
8 Has it for high rise structures been documented that the periods in the two horizontal
directions are within the interval which is the basis when estimating wind- and seismic loads?
9 Have the sign definitions and units for the calculation programme been respected?
10 Has the design basis(MEMO 2) been respected when preparing the calculations?
11 Have the requirements to load capacity and stiffness been satisfied for a limited number of
structural elements of which a failure would be fatal to the structure?
12 Have there at the interfaces between adjoining structures been paid due attention to possible
loads caused by settlements, relative movements, temperature deformations etc.?
13 Is the result of calculations, ie. member dimensions and shaping, reasonable compared
to the calculation basis- do the actual variations in the structure follow the
corresponding variation of loadings?
14 Do the concrete dimensions, reinforcement areas, steel sections, design of connections,
support conditions indicated on the drawings, complying with the calculations?
The extent of the check is determined according to the same guidelines as reffered to in item11

Present check form is not signed until all positions have been approved.

Checked: 15/01/2013 ……………………………..

 ACC Ramliya cement plant , Line 2 Page No. 2.0
6000TPD
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation

2. DESIGN BASIS
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome 2.1 .

Made by: Date: Checked by: Date: Project No. 1360404 Ref.
AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0

2.1 Design Conditions

2.1.1 Codes of practice.

a. Loads & forces

IS 875 - Part 1 to 5, IS 800 - 2007, IS1893 Part 4

2.1.2 Other regulations:-

a. F.L.Smidth instruction manual: Structural design and erection, 749500-E.
b. MEMO-2, Indian Code

2.1.3 Material properties:-

For concrete:-
1) For concrete:-
a) Grade of Concrete = 'C'
b) 28 days std comp. strength cubes:15x15x15cm = 30 N/mm2
c) Elastic Modulus, Ec = 27000 N/mm2
d) Poissons ratio = 0.17
e) Thermal expansion coefficient = 10-5 per oC

2) For Steel
Steel qualities and design strengths :
Steel quality
1 Rolled sections IS 2062 E250B equivalent to S235JR
2 a. Plates IS 2062 E250B equivalent to S235JR
2 b. Plates for built up sections IS 2062 E250B equivalent to S235JR
( for all main structures )
3 Anchor bolts Mild Steel IS 5624-1993
4 Connection bolts High tensile steel Class 8.8
5 Cold form sections Grade S250GD equivalent
6 Chequer Plate ( 6mm & 8 mm) S235JR
7 Grating - Mesh 30x 41 mm and bearing bars 30 x 3 mm
8 Metal Deck IS 513 (D), quality / IS 10748 – 1995 gr.2
(Basic design stress = 1250 kg/cm2)
Trapezoidal metal decking: PIL 44/130 – 1.0mm thick.

Other material properties:

Design Strength
t<=40 mm Py = 250 N/mm2 Pu = 420 N/mm2

40<t<=100 mm Py = 250 N/mm2 Pu = 420 N/mm2

Modulus of Elasticity: E = 210 kN/mm2

G = 81 kN/mm2
Poisson's Ratio = 0.30
Coefficient of Linear Expansion = 12 x 10-6 per oC
Partial safety factor for steel yielding => gm0 = 1.1
Partial safety factor for steel ultimate => gm1 = 1.25
Partial safety factor for connections => gm1 = 1.25
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome 2.2 .

Made by: Date: Checked by: Date: Project No. 1360404 Ref.
AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome 2.3 .

Made by: Date: Checked by: Date: Project No. 1360404 Ref.
AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0

2.1.4: Load combinations

 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. 481 Clinker Storage Dome 2.4 .

Made by: Date: Checked by: Date: Project No. 1360404 Ref.
AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0
 Project: ACC Limited, Sindri Expansion Page
Project Line II, Jharkhand
Dept. 481 Clinker Storage Dome 2.3

Made by: Date: Checked by: Date: Project No. 1360404

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
2.2 LOADS :-

The detailed load calculations are given in the sheets attached.

2.2.1 Dead loads:-

The detailed load calculations are given in the sheets attached.

2.2.2 Live loads:-

The detailed load calculations are given in the sheets attached.

2.2.3. Wind Loads:-

Wind loads shall be calculated according to IS 875 Part 3 - 1987.
The detailed load calculations are given in the sheets attached.

2.2.4 Seismic load:-

Earthquake load shall be calculated according to IS 1893 - Part 4
The detailed load calculations are given in the sheets attached.

2.2.5 Snow loads :- N/A

2.2.6 Other loads :-

2.2.6.1 Temperature:-
The detailed load calculations are given in the sheets attached.

2.3 Requirements on functionality :-

See detailed calculation section for deflection criteria
 Project: ACC Limited, Sindri Expansion Page
Project Line II, Jharkhand
Dept. 481 Clinker Storage Dome 2.4

Made by: Date: Checked by: Date: Project No. 1360404

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
 ACC Limited Sindri Expansion Project Page No. 3.0
Line II, Jharkand
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation

3. GLOBAL CALCULATION
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand
Dept. 481 Clinker Storage Dome Page 3.6 .

Made by: Date: Checked by: Date: Project No. 1360404 Ref.
AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0

3.1
3.1.1 Statical Model (Clinker Storage Dome)

The Clinker Stroage done is a steel structure with penhouse on top to support equipments and
conveyor gallery.
The modelling has been done centre to centre.

The dome rafter are supported on top of Silo walls

Dome support level +25.050M

Platform level & equipment & conveyor gallery support level +38.00M
Monorail support level +45.50M
Penthouse roof level +53.804M

Following load cases are considered for analysis of foundation in STAAD.

1. Dead load
1. Self Weight
2 . Equipment Dead Load

2. Live load
1. Live load
2. Dust load

3. Wind Load
1. Wind load in + X direction (Internal pressure & suction case)
2. Wind load in + Z direction (Internal pressure & suction case)
3. Wind load in - X direction (Internal pressure & suction case)
4. Wind load in - Z direction (Internal pressure & suction case)

4. Earthquake load
1. Earthquake load in + X direction
2. Earthquake load in + Z direction
3. Earthquake load in + Y direction
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand
Dept. 481 Clinker Storage Dome Page 3.7 .

Made by: Date: Checked by: Date: Project No. 1360404 Ref.
AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand
Dept. 481 Clinker Storage Dome Page 3.8 .

Made by: Date: Checked by: Date: Project No. 1360404 Ref.
AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0

3.2 : Load combination service load method

LC1: 1.0 DL + 1.0 L L

LC2: 1.0 DL + 0.8 LL + 0.8 WL
LC3: 1.0 DL + 0.8 LL + + 0.6 WL1 + 0.6WL2
LC4: 1.0 DL + 1.0 WL
LC5: 1.0 DL + 0.75 WL1 + 0.75WL2
LC6: 1.0DL + 0.8LL + 0.8EQ + 0.3 (0.8EQ in other direction)
LC7: 1.0DL + 1.0 EQ + 0.3 (EQ in other direction)

3.3 : Load combination limit state method

LC1: 1.5DL + 1.5LL1 + 1.5LL2 + 1.5LL4 + 1.5LL5

LC2: 1.5 DL + 1.5 EL1
LC3: 1.2 DL + 1.2 LL + 0.6 WL
LC4: 1.2 DL + 1.2 LL + 0.45 WL1 + 0.45 WL2
LC5: 1.2 DL + 1.2 LL + 1.2 WL
LC6: 1.5 DL + 1.5 WL
LC7: 0.9 DL + 1.5 EQ
LC8: 0.9 DL + 1.5 EQ + 0.3 (1.5 EQ in other direction)
LC9: 1.2 DL + 1.2 LL + 0.6 EQ + 0.3 (0.6 EQ in other direction)
LC10: 1.2 DL + 1.2 LL + 1.2 EQ + 0.3 (1.2 EQ in other direction)

3.4 Transfer of loads

See following pages for total load transfer calculations and Statics check
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand
Dept. 481 Clinker Storage Dome Page 3.9 .

Made by: Date: Checked by: Date: Project No. 1360404 Ref.
AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0
 ACC Limited Sindri Expansion Project Page No.
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 28.04.2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 28.04.2014 Doc. No.:
Part : Clinker Storage Dome Steel Calculation

CONNECTION DESIGN
 ACC Limited Sindri Expansion Project Page No.
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 28.04.2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 28.04.2014 Doc. No.:
Part : Clinker Storage Dome Steel Calculation
 ACC Limited Sindri Expansion Project Page No. 4.0
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation

4.1 Interaction Ratio & Deflection Checks

 ACC Limited Sindri Expansion Project Page No. 4.0
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation
 ACC Limited Sindri Expansion Project Page No. 4.0
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation

4.2 Steel Member Design

 ACC Limited Sindri Expansion Project Page No. 4.0
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation
 ACC Limited Sindri Expansion Project Page No. 4.0
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation

4.3 Connection Design

 ACC Limited Sindri Expansion Project Page No. 4.0
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page 4.18
Dept. 481 Clinker Storage Dome

Made by: Date: Checked by: Date: Project No. #REF!

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. #REF! Ref.

4.1 Design of Foundation

The design of foundations are attached.
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page 4.19
Dept. 481 Clinker Storage Dome

Made by: Date: Checked by: Date: Project No. #REF!

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. #REF! Ref.
 ACC Limited Sindri Expansion Project Page No.
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation

5.0 STAAD Files for Clinker Storage Dome

 ACC Limited Sindri Expansion Project Page No.
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation
 ACC Limited Sindri Expansion Project Page No.
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation

5.1 Structural Diagrams & Load Inputs

 ACC Limited Sindri Expansion Project Page No.
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation
 ACC Limited Sindri Expansion Project Page No.
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation

5.2 STAAD Input file

 ACC Limited Sindri Expansion Project Page No.
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

5.1 STAAD INPUT FILE COAL MILL FOUNDATION

STAAD SPACE
START JOB INFORMATION
ENGINEER DATE 16-Dec-13
JOB NAME SINDRI EXPANSION LINE II
JOB CLIENT ACC
JOB NO 1360404
JOB REV 0
JOB PART Coal Mill
ENGINEER NAME AARSA
JOB COMMENT * Plate elements
END JOB INFORMATION
INPUT WIDTH 79
SET NL 500
UNIT METER KN
JOINT COORDINATES
1 -3.775 0 0; 2 -1.375 0 0; 3 3.775 0 0; 4 -3.775 0 -2.1; 5 -1.375 0 -2.1;
6 3.775 0 -2.1; 7 -3.775 0 2.1; 8 -1.375 0 2.1; 9 3.775 0 2.1; 10 -3.019 0 0;
11 -0.55 0 -1.256; 12 -0.55 0 1.256; 13 -1.99 0 0; 14 -1.99 0 -0.65;
15 -1.99 0 0.65; 16 -0.76 0 0; 17 -0.76 0 -0.65; 18 -0.76 0 0.65;
19 -1.375 0 -1.345; 20 -1.375 0 1.345; 21 -2.54 0 -0.672; 22 -2.54 0 0.672;
23 -2.048 0 -1.165; 24 -2.048 0 1.165; 25 -0.466 0 -0.992; 26 -0.466 0 0.992;
27 0.153 0 -0.65; 28 0.153 0 0.65; 29 0.833 0 -0.65; 30 0.833 0 0.65;
31 1.062 0 -0.65; 32 1.062 0 0.65; 33 0.153 0 0; 34 0.833 0 0; 35 1.062 0 0;
36 -3.775 0 -0.672; 37 -3.775 0 0.672; 38 -3.019 0 -2.1; 39 -2.54 0 -2.1;
40 -3.019 0 2.1; 41 -2.54 0 2.1; 42 -2.048 0 2.1; 43 -3.775 0 1.345;
44 -3.775 0 1.165; 45 -3.775 0 -1.165; 46 -3.775 0 -1.345; 47 -2.048 0 -2.1;
48 -0.55 0 2.1; 49 -0.76 0 2.1; 50 -0.76 0 -2.1; 51 -0.55 0 -2.1;
52 3.775 0 -1.165; 53 3.775 0 -0.65; 54 3.775 0 0.65; 55 1.062 0 -2.1;
56 0.833 0 -2.1; 57 0.153 0 -2.1; 58 0.153 0 2.1; 59 3.775 0 1.165;
60 3.775 0 1.429; 61 3.775 0 -1.429; 62 0.833 0 2.1; 63 1.062 0 2.1;
64 -1.375 0 1.165; 65 -1.375 0 0.65; 66 -1.375 0 -0.65; 67 -1.375 0 -1.165;
68 -0.466 0 0; 69 -2.54 0 0; 70 -0.466 0 -0.65; 71 -0.466 0 0.65;
72 -0.76 0 -1.165; 73 -0.76 0 1.165; 74 -0.76 0 -1.40762; 75 -0.76 0 1.40762;
76 -3.019 0 -0.672; 77 -3.019 0 0.672; 78 -3.019 0 -1.345; 79 -3.019 0 -1.165;
80 -2.54 0 -1.345; 81 -2.54 0 -1.165; 82 -3.019 0 1.345; 83 -3.019 0 1.165;
84 -2.54 0 1.345; 85 -2.54 0 1.165; 86 -2.048 0 1.345; 87 -2.048 0 -1.345;
88 1.062 0 -1.165; 89 0.833 0 -1.165; 90 0.153 0 -1.165; 91 1.062 0 -1.429;
92 0.833 0 -1.429; 93 0.153 0 -1.429; 94 0.153 0 1.429; 95 0.153 0 1.165;
96 1.062 0 1.165; 97 0.833 0 1.165; 98 1.062 0 1.429; 99 0.833 0 1.429;
100 2.4185 0 -2.1; 101 2.4185 0 2.1; 102 1.74025 0 -2.1; 103 1.74025 0 2.1;
104 3.09675 0 -2.1; 105 3.09675 0 2.1; 106 3.43588 0 -2.1; 107 3.43588 0 2.1;
108 2.75763 0 -2.1; 109 2.75763 0 2.1; 110 2.07937 0 -2.1; 111 2.07937 0 2.1;
112 1.40113 0 -2.1; 113 1.40113 0 2.1; 114 3.43588 0 -0.65;
115 3.09675 0 -0.65; 116 2.75763 0 -0.65; 117 2.4185 0 -0.65;
118 2.07937 0 -0.65; 119 1.74025 0 -0.65; 120 1.40113 0 -0.65;
121 3.43588 0 0.65; 122 3.09675 0 0.65; 123 2.75763 0 0.65; 124 2.4185 0 0.65;
125 2.07937 0 0.65; 126 1.74025 0 0.65; 127 1.40113 0 0.65; 128 3.43588 0 0;
129 3.09675 0 0; 130 2.75763 0 0; 131 2.4185 0 0; 132 2.07937 0 0;
133 1.74025 0 0; 134 1.40113 0 0; 135 3.43588 0 -1.165; 136 3.09675 0 -1.165;
137 2.75763 0 -1.165; 138 2.4185 0 -1.165; 139 2.07937 0 -1.165;
140 1.74025 0 -1.165; 141 1.40113 0 -1.165; 142 3.43588 0 1.165;
143 3.09675 0 1.165; 144 2.75763 0 1.165; 145 2.4185 0 1.165;
146 2.07937 0 1.165; 147 1.74025 0 1.165; 148 1.40113 0 1.165;
149 3.43588 0 1.429; 150 3.09675 0 1.429; 151 2.75763 0 1.429;
152 2.4185 0 1.429; 153 2.07937 0 1.429; 154 1.74025 0 1.429;
155 1.40113 0 1.429; 156 3.43588 0 -1.429; 157 3.09675 0 -1.429;
158 2.75763 0 -1.429; 159 2.4185 0 -1.429; 160 2.07937 0 -1.429;
161 1.74025 0 -1.429; 162 1.40113 0 -1.429; 163 -1.375 0 -1.7225;
164 -3.775 0 -1.7225; 165 3.775 0 -1.7645; 166 -3.775 0 1.7225;
167 -0.55 0 1.7645; 168 -0.55 0 -1.7645; 169 3.775 0 1.7645;
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

170 -0.76 0 1.75381; 171 -0.76 0 -1.75381; 172 -2.019 0 0.9075;

173 -2.019 0 -0.9075; 174 -3.775 0 -0.336; 175 -3.775 0 0.9185;
176 -3.775 0 -0.9185; 177 3.775 0 -0.9075; 178 3.775 0 -0.325;
179 3.775 0 0.9075; 180 -1.375 0 0.9075; 181 -1.375 0 -0.9075;
182 -3.775 0 0.336; 183 3.775 0 0.325; 184 0.493 0 -2.1; 185 0.493 0 2.1;
186 -0.1985 0 -2.1; 187 -0.1985 0 2.1; 188 -1.0675 0 -2.1; 189 -1.0675 0 2.1;
190 -1.7115 0 -2.1; 191 -1.7115 0 2.1; 192 -3.397 0 -2.1; 193 -3.397 0 2.1;
194 -2.294 0 -2.1; 195 -2.294 0 2.1; 196 -2.7795 0 -2.1; 197 -2.7795 0 2.1;
198 -3.397 0 0; 199 -1.7115 0 0.65; 200 -1.7115 0 -0.65; 201 -1.99 0 0.333399;
202 -0.76 0 0.331607; 203 0.153 0 0.330277; 204 0.833 0 0.329286;
205 1.062 0 0.328953; 206 -1.7115 0 -1.165; 207 -2.54 0 -0.334201;
208 -1.7115 0 1.165; 209 -1.0675 0 -1.37631; 210 -1.0675 0 1.37631;
211 -2.294 0 -0.66216; 212 -2.294 0 0.66216; 213 -0.466 0 0.9075;
214 -2.7795 0 -0.672; 215 -2.7795 0 0.672; 216 -3.019 0 -0.334898;
217 -2.54 0 -0.910764; 218 -3.019 0 0.334899; 219 -2.54 0 0.910764;
220 -1.7115 0 1.345; 221 -2.294 0 1.165; 222 -2.294 0 -1.165;
223 -1.7115 0 -1.345; 224 -0.76 0 0.9075; 225 -0.76 0 -0.9075;
226 -0.1985 0 -1.165; 227 1.062 0 -0.9075; 228 0.833 0 -0.9075;
229 0.153 0 -0.9075; 230 0.153 0 0.9075; 231 -0.1985 0 1.165;
232 -0.1985 0 1.429; 233 -0.1985 0 -1.429; 234 0.833 0 0.9075;
235 1.062 0 0.9075; 236 -1.375 0 1.74742; 237 -1.375 0 0.332503;
238 -1.375 0 -0.332503; 239 0.493 0 0; 240 -0.1985 0 0; 241 -1.0675 0 0;
242 -1.7115 0 0; 243 -2.294 0 0; 244 -2.7795 0 0; 245 -1.0675 0 0.65;
246 0.493 0 -0.65; 247 -0.1985 0 -0.65; 248 -1.0675 0 -0.65; 249 0.493 0 0.65;
250 -0.1985 0 0.65; 251 -1.99 0 -0.333399; 252 -0.76 0 -0.331607;
253 0.153 0 -0.330277; 254 0.833 0 -0.329286; 255 1.062 0 -0.328953;
256 -1.0675 0 -1.165; 257 -2.54 0 0.334201; 258 -1.0675 0 1.165;
259 -0.466 0 -0.9075; 260 -0.466 0 -0.331179; 261 -0.466 0 0.331179;
262 -3.397 0 -0.672; 263 -3.397 0 0.672; 264 -3.019 0 -1.7225;
265 -3.019 0 -0.913764; 266 -2.54 0 -1.7225; 267 -3.019 0 1.73035;
268 -3.019 0 0.913764; 269 -2.54 0 1.73532; 270 -2.048 0 1.74043;
271 -3.397 0 1.345; 272 -2.7795 0 1.345; 273 -2.294 0 1.345;
274 -3.397 0 1.165; 275 -2.7795 0 1.165; 276 -3.397 0 -1.165;
277 -2.7795 0 -1.165; 278 -3.397 0 -1.345; 279 -2.7795 0 -1.345;
280 -2.294 0 -1.345; 281 -2.048 0 -1.7225; 282 0.493 0 -1.165;
283 1.062 0 -1.7645; 284 0.833 0 -1.7645; 285 0.153 0 -1.7645;
286 0.153 0 1.7645; 287 0.493 0 1.165; 288 0.493 0 1.429; 289 0.493 0 -1.429;
290 0.833 0 1.7645; 291 1.062 0 1.7645; 292 2.4185 0 -1.7645;
293 1.74025 0 -1.7645; 294 3.09675 0 -1.7645; 295 3.43588 0 -1.7645;
296 2.75763 0 -1.7645; 297 2.07937 0 -1.7645; 298 1.40113 0 -1.7645;
299 2.4185 0 1.7645; 300 2.4185 0 0.9075; 301 2.4185 0 0.326976;
302 2.4185 0 -0.326976; 303 2.4185 0 -0.9075; 304 1.74025 0 1.7645;
305 1.74025 0 0.9075; 306 1.74025 0 0.327965; 307 1.74025 0 -0.327964;
308 1.74025 0 -0.9075; 309 3.09675 0 1.7645; 310 3.09675 0 0.9075;
311 3.09675 0 0.325988; 312 3.09675 0 -0.325988; 313 3.09675 0 -0.9075;
314 3.43588 0 1.7645; 315 3.43588 0 0.9075; 316 3.43588 0 0.325494;
317 3.43588 0 -0.325494; 318 3.43588 0 -0.9075; 319 2.75763 0 1.7645;
320 2.75763 0 0.9075; 321 2.75763 0 0.326482; 322 2.75763 0 -0.326482;
323 2.75763 0 -0.9075; 324 2.07937 0 1.7645; 325 2.07937 0 0.9075;
326 2.07937 0 0.327471; 327 2.07937 0 -0.32747; 328 2.07937 0 -0.9075;
329 1.40113 0 1.7645; 330 1.40113 0 0.9075; 331 1.40113 0 0.328459;
332 1.40113 0 -0.328459; 333 1.40113 0 -0.9075; 334 -1.7115 0 -1.7225;
335 -2.294 0 -1.7225; 336 -2.7795 0 -1.7225; 337 -3.397 0 -1.7225;
338 -1.0675 0 -1.73815; 339 0.493 0 -1.7645; 340 -0.1985 0 -1.7645;
341 -1.0675 0 1.75062; 342 -1.7115 0 1.74393; 343 -2.294 0 1.73788;
344 -2.7795 0 1.73284; 345 -3.397 0 1.72643; 346 0.493 0 1.7645;
347 -0.1985 0 1.7645; 348 -2.294 0 -0.909223; 349 -2.7795 0 -0.912264;
350 -3.397 0 -0.916132; 351 -1.7115 0 -0.9075; 352 0.493 0 -0.9075;
353 -0.1985 0 -0.9075; 354 -1.0675 0 -0.9075; 355 0.493 0 -0.329782;
356 -0.1985 0 -0.330789; 357 -1.0675 0 -0.332055; 358 -1.7115 0 -0.332994;
359 -2.294 0 -0.333842; 360 -2.7795 0 -0.33455; 361 -3.397 0 -0.335449;
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

362 0.493 0 0.329782; 363 -0.1985 0 0.330789; 364 -1.0675 0 0.332055;

365 -1.7115 0 0.332994; 366 -2.294 0 0.333842; 367 -2.7795 0 0.33455;
368 -3.397 0 0.335449; 369 -2.294 0 0.909223; 370 -2.7795 0 0.912264;
371 -3.397 0 0.916132; 372 -1.7115 0 0.9075; 373 0.493 0 0.9075;
374 -0.1985 0 0.9075; 375 -1.0675 0 0.9075; 376 -1.375 0.05 0;
378 -3.019 0.05 0; 379 -0.55 0.05 -1.256; 380 -0.55 0.05 1.256;
381 -1.99 0.05 0; 382 -1.99 0.05 -0.65; 383 -1.99 0.05 0.65; 384 -0.76 0.05 0;
385 -0.76 0.05 -0.65; 386 -0.76 0.05 0.65; 387 -1.375 0.05 -1.345;
388 -1.375 0.05 1.345; 389 -2.54 0.05 -0.672; 390 -2.54 0.05 0.672;
391 -2.048 0.05 -1.165; 392 -2.048 0.05 1.165; 393 -0.466 0.05 -0.992;
394 -0.466 0.05 0.992; 395 0.153 0.05 -0.65; 396 0.153 0.05 0.65;
397 0.833 0.05 -0.65; 398 0.833 0.05 0.65; 401 -1.375 0.05 0.65;
402 -1.375 0.05 -0.65;
MEMBER INCIDENCES
1047 30 398; 1049 29 397; 1050 28 396; 1052 27 395; 1053 12 380; 1054 26 394;
1056 15 383; 1057 65 401; 1058 18 386; 1059 20 388; 1060 16 384; 1061 17 385;
1062 2 376; 1063 66 402; 1064 22 390; 1065 13 381; 1066 14 382; 1067 24 392;
1068 10 378; 1069 21 389; 1070 23 391; 1071 19 387; 1072 25 393; 1073 11 379;
ELEMENT INCIDENCES SHELL
711 164 337 192 4; 712 7 193 345 166; 713 5 163 338 188; 714 190 334 163 5;
715 106 295 165 6; 716 182 368 198 1; 717 1 198 361 174; 718 15 199 365 201;
719 172 372 199 15; 720 251 358 200 14; 721 14 200 351 173; 722 18 71 261 202;
723 224 213 71 18; 724 15 201 366 212; 725 18 202 364 245; 726 28 203 363 250;
727 249 362 203 28; 728 30 204 362 249; 729 32 205 204 30; 730 127 331 205 32;
731 173 351 206 23; 732 23 206 223 87; 733 214 360 207 21; 734 21 207 359 211;
735 86 220 208 24; 736 24 208 372 172; 737 67 256 209 19; 738 19 209 338 163;
739 20 210 258 64; 740 236 341 210 20; 741 212 369 172 15; 742 14 173 348 211;
743 14 211 359 251; 744 12 26 73 75; 745 232 231 26 12; 746 74 72 25 11;
747 11 25 226 233; 748 231 374 213 26; 749 26 213 224 73; 750 36 174 361 262;
751 217 349 214 21; 752 37 175 371 263; 753 257 367 215 22; 754 22 215 370 219;
755 264 336 196 38; 756 244 360 216 10; 757 10 216 361 198; 758 266 335 194 39;
759 211 348 217 21; 760 40 197 344 267; 761 10 218 367 244; 762 198 368 218 10;
763 41 195 343 269; 764 22 219 369 212; 765 42 191 342 270; 766 221 273 86 24;
767 43 166 345 271; 768 64 208 220 20; 769 20 220 342 236; 770 44 43 271 274;
771 172 369 221 24; 772 45 176 350 276; 773 87 280 222 23; 774 23 222 348 173;
775 46 45 276 278; 776 19 223 206 67; 777 163 334 223 19; 778 281 334 190 47;
779 48 187 347 167; 780 75 170 167 12; 781 12 167 347 232; 782 49 48 167 170;
783 245 375 224 18; 784 171 168 51 50; 785 70 259 225 17; 786 17 225 354 248;
787 168 340 186 51; 788 11 168 171 74; 789 233 340 168 11; 790 135 318 177 52;
791 259 353 226 25; 792 114 317 178 53; 793 255 332 120 31; 794 31 120 333 227;
795 121 315 179 54; 796 235 330 127 32; 797 283 298 112 55; 798 31 227 228 29;
799 284 283 55 56; 800 29 228 352 246; 801 285 339 184 57; 802 246 352 229 27;
803 27 229 353 247; 804 58 185 346 286; 805 28 230 373 249; 806 250 374 230 28;
807 142 149 60 59; 808 149 314 169 60; 809 156 135 52 61; 810 62 63 291 290;
811 30 234 235 32; 812 249 373 234 30; 813 63 113 329 291; 814 199 372 180 65;
815 65 180 375 245; 816 2 237 364 241; 817 242 365 237 2; 818 200 358 238 66;
819 66 238 357 248; 820 67 181 354 256; 821 206 351 181 67; 822 205 331 134 35;
823 35 134 332 255; 824 34 35 255 254; 825 204 205 35 34; 826 203 362 239 33;
827 33 239 355 253; 828 261 363 240 68; 829 68 240 356 260; 830 16 68 260 252;
831 202 261 68 16; 832 2 241 357 238; 833 201 365 242 13; 834 13 242 358 251;
835 257 366 243 69; 836 69 243 359 207; 837 65 245 364 237; 838 254 255 31 29;
839 253 355 246 27; 840 260 356 247 70; 841 70 247 353 259; 842 252 260 70 17;
843 66 248 354 181; 844 213 374 250 71; 845 71 250 363 261; 846 13 251 359 243;
847 16 252 357 241; 848 33 253 356 240; 849 34 254 355 239; 850 225 259 25 72;
851 244 367 257 69; 852 64 258 375 180; 853 265 350 262 76; 854 76 262 361 216;
855 218 368 263 77; 856 77 263 371 268; 857 279 336 264 78; 858 78 264 337 278;
859 79 78 278 276; 860 277 279 78 79; 861 214 349 265 76; 862 280 335 266 80;
863 80 266 336 279; 864 81 80 279 277; 865 222 280 80 81; 866 271 345 267 82;
867 82 267 344 272; 868 274 271 82 83; 869 83 82 272 275; 870 77 268 370 215;
871 272 344 269 84; 872 84 269 343 273; 873 275 272 84 85; 874 85 84 273 221;
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
875 8 189 341 236; 876 273 343 270 86; 877 86 270 342 220; 878 268 371 274 83;

879 219 370 275 85; 880 79 276 350 265; 881 81 277 349 217; 882 281 335 280 87;
883 223 334 281 87; 884 210 341 170 75; 885 258 210 75 73; 886 74 171 338 209;
887 72 74 209 256; 888 227 333 141 88; 889 88 141 162 91; 890 89 88 91 92;
891 228 227 88 89; 892 229 352 282 90; 893 90 282 289 93; 894 128 316 183 3;
895 162 298 283 91; 896 91 283 284 92; 897 92 284 339 289; 898 89 92 289 282;
899 289 339 285 93; 900 93 285 340 233; 901 90 93 233 226; 902 94 286 346 288;
903 232 347 286 94; 904 95 94 288 287; 905 231 232 94 95; 906 98 155 148 96;
907 96 148 330 235; 908 99 98 96 97; 909 97 96 235 234; 910 95 287 373 230;
911 291 329 155 98; 912 290 291 98 99; 913 288 346 290 99; 914 287 288 99 97;
915 292 296 108 100; 916 101 109 319 299; 917 110 297 292 100;
918 293 297 110 102; 919 103 111 324 304; 920 112 298 293 102;
921 294 295 106 104; 922 105 107 314 309; 923 108 296 294 104;
924 107 9 169 314; 925 109 105 309 319; 926 111 101 299 324;
927 113 103 304 329; 928 114 53 177 318; 929 312 317 114 115;
930 115 114 318 313; 931 322 312 115 116; 932 116 115 313 323;
933 302 322 116 117; 934 117 116 323 303; 935 327 302 117 118;
936 118 117 303 328; 937 307 327 118 119; 938 119 118 328 308;
939 332 307 119 120; 940 120 119 308 333; 941 121 54 183 316;
942 310 315 121 122; 943 122 121 316 311; 944 320 310 122 123;
945 123 122 311 321; 946 124 123 321 301; 947 300 320 123 124;
948 325 300 124 125; 949 125 124 301 326; 950 305 325 125 126;
951 126 125 326 306; 952 330 305 126 127; 953 127 126 306 331;
954 128 3 178 317; 955 311 316 128 129; 956 129 128 317 312;
957 321 311 129 130; 958 130 129 312 322; 959 301 321 130 131;
960 131 130 322 302; 961 326 301 131 132; 962 132 131 302 327;
963 306 326 132 133; 964 133 132 327 307; 965 331 306 133 134;
966 134 133 307 332; 967 313 318 135 136; 968 136 135 156 157;
969 323 313 136 137; 970 137 136 157 158; 971 303 323 137 138;
972 138 137 158 159; 973 328 303 138 139; 974 139 138 159 160;
975 308 328 139 140; 976 140 139 160 161; 977 333 308 140 141;
978 141 140 161 162; 979 142 59 179 315; 980 150 149 142 143;
981 143 142 315 310; 982 151 150 143 144; 983 144 143 310 320;
984 152 151 144 145; 985 145 144 320 300; 986 153 152 145 146;
987 146 145 300 325; 988 154 153 146 147; 989 147 146 325 305;
990 155 154 147 148; 991 148 147 305 330; 992 309 314 149 150;
993 319 309 150 151; 994 299 319 151 152; 995 324 299 152 153;
996 304 324 153 154; 997 329 304 154 155; 998 156 61 165 295;
999 157 156 295 294; 1000 158 157 294 296; 1001 159 158 296 292;
1002 160 159 292 297; 1003 161 160 297 293; 1004 162 161 293 298;
1005 164 46 278 337; 1006 341 189 49 170; 1007 171 50 188 338;
1008 175 44 274 371; 1009 176 36 262 350; 1010 372 208 64 180;
1011 351 200 66 181; 1012 182 37 263 368; 1013 339 284 56 184;
1014 185 62 290 346; 1015 340 285 57 186; 1016 187 58 286 347;
1017 191 8 236 342; 1018 337 264 38 192; 1019 193 40 267 345;
1020 335 281 47 194; 1021 195 42 270 343; 1022 336 266 39 196;
1023 197 41 269 344; 1024 199 65 237 365; 1025 201 13 243 366;
1026 202 16 241 364; 1027 203 33 240 363; 1028 204 34 239 362;
1029 360 244 69 207; 1030 366 257 22 212; 1031 214 76 216 360;
1032 367 218 77 215; 1033 348 222 81 217; 1034 219 85 221 369;
1035 375 258 73 224; 1036 225 72 256 354; 1037 353 229 90 226;
1038 228 89 282 352; 1039 374 231 95 230; 1040 373 287 97 234;
1041 358 242 2 238; 1042 355 254 29 246; 1043 356 253 27 247;
1044 357 252 17 248; 1045 349 277 79 265; 1046 268 83 275 370;
START GROUP DEFINITION
MEMBER
END GROUP DEFINITION
START USER TABLE
TABLE 1
UNIT MMS KN
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
GENERAL
130X130X10S

5806 310 9.36452 310 9.36452 2.87079e+007 1.94658e+007 206012 253744 -

183525 4354.5 4354.5 285004 366590 2.06012e+008 291.271
PG1000X400X30X20
42800 1000 21.4 400 53.5 7.03151e+009 3.20627e+008 9.12164e+006 1.4063e+007 -
1.60313e+006 32100 32100 1.4063e+007 1.60313e+006 9.12164e+012 957.2
PG800X300X30X16
29840 800 18.65 299.9 49.7499 3.2097e+009 1.35253e+008 6.02154e+006 -
8.02425e+006 901684 22380 22380 8.02425e+006 901684 6.02154e+012 762.7
STAR150X10
5806 299.9 9.67989 299.9 9.67989 2.37556e+007 1.94658e+007 206012 -
223970 183525 4354.5 4354.5 223970 183525 2.06012e+011 280.54
STAR90X8
2758 180 7.66111 179.9 7.66537 4.15795e+006 3.21216e+006 62814.2 65335.8 -
50474.3 2068.5 2068.5 65335.8 50474.3 6.28142e+010 164.678
STAR100X10
3806 199.9 9.51976 199.9 9.51976 7.15142e+006 5.38951e+006 133241 -
101136 76219.1 2854.5 2854.5 101136 76219.1 1.33241e+011 180.86
PG2000X450X40X25
84000 2000 21 450 93.3333 4.93248e+010 6.1e+008 2.74607e+007 4.93248e+007 -
2.71111e+006 63000 63000 4.93248e+007 2.71111e+006 2.74607e+013 1958
TABLE 2
UNIT MMS KN
GENERAL
STAR130I
5012 269.7 9.29181 269.7 9.29181 1.92627e+007 1.24211e+007 175595 -
194582 135124 3759 3759 421002 280601 1.75595e+008 251.116
TABLE 3
UNIT MMS KN
GENERAL
150X150X15S
8556 310 13.8 310 13.8 4.3685e+007 2.72977e+007 670959 386125 257365 -
6417 6417 407986 556949 6.70959e+008 282.4
TABLE 4
UNIT MMS KN
WIDE FLANGE
PG1000
39800 1000 20 350 30 6.32561e+009 2.15002e+008 8.80667e+006 20000 21000
PG1200
52500 1200 25 400 30 1.13017e+010 3.21484e+008 1.31375e+007 30000 24000
PG800
29840 800 16 300 30 3.2097e+009 1.35253e+008 6.41035e+006 12800 18000
END
UNIT METER KN
ELEMENT PROPERTY
711 TO 1046 THICKNESS 6
DEFINE MATERIAL START
ISOTROPIC CONCRETE
E 2.17185e+007
POISSON 0.17
DENSITY 25
ALPHA 1e-005
DAMP 0.05
*
ISOTROPIC STEEL
E 2.05e+008
POISSON 0.3
DENSITY 76.8195
ALPHA 1.2e-005
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
DAMP 0.03
*
ISOTROPIC DUMMYCONC

E 2.17185e+007
POISSON 0.17
DENSITY 0.01
ALPHA 1e-005
DAMP 0.05
END DEFINE MATERIAL
MEMBER PROPERTY AMERICAN
1047 1049 1050 1052 TO 1054 1056 TO 1073 PRIS YD 0.5
CONSTANTS
MATERIAL CONCRETE MEMB 711 TO 1046
MATERIAL DUMMYCONC MEMB 1047 1049 1050 1052 TO 1054 1056 TO 1073
*-----------------------------------------------------------------------------
SUPPORTS
711 TO 1046 PLATE MAT DIRECT Y SUBGRADE 46000 PRINT COMPRESSION
LOAD 1 EQ+X SEISMIC
SELFWEIGHT X 0.117 LIST 711 TO 1047 1049 1050 1052 TO 1054 1056 TO 1073
JOINT LOAD
* Motor Wind load
397 398 FX 1.17 FY -22.48
395 396 FX 1.17 FY 22.48
* Mill Housing load
387 TO 394 FX 2.73
389 390 FY 49.63
391 392 FY 22.85
387 388 FY -13.79
393 394 FY -58.7
* Mill load
381 TO 386 401 402 FX 4.56
384 TO 386 FY -85.11
381 TO 383 FY 85.11
* Foundation load at base
33 MZ -1664.78
PERFORM ANALYSIS
CHANGE
*------------------
LOAD 2 EQ+Z SEISMIC
SELFWEIGHT Z 0.117 LIST 711 TO 1047 1049 1050 1052 TO 1054 1056 TO 1073
*
JOINT LOAD
* Motor Wind load
396 398 FY -11.76 FZ 1.17
395 397 FY 11.76 FZ 1.17
* Mill Wind shear
387 TO 394 FZ 2.73
390 FY -17.76
389 FY 17.76
392 FY -30.79
391 FY 30.79
388 FY -35.55
387 FY 35.55
394 FY -26.22
393 FY 26.22
* Mill load
381 TO 386 401 402 FZ 4.56
383 386 401 FY -80.52
382 385 402 FY 80.52
* Foundation load at base
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
33 MX 1664.78
PERFORM ANALYSIS
CHANGE
*------------------

LOAD 3 EQ+Y SEISMIC

SELFWEIGHT Y 0.08 LIST 711 TO 1047 1049 1050 1052 TO 1054 1056 TO 1073
*
JOINT LOAD
* LOAD 5 DL1 DEAD LOAD
* Mill house foundation (Mill house & seperator) - Pt 1
387 TO 394 FY 1.87
* Gear foundation (Gear + Table + roller) - Pt 2
381 TO 386 401 402 FY 2.5
* Remaining mill wt - Pt 2
381 TO 386 401 402 FY 0.63
* Motor foundation (Motor wt) - Pt 6
395 TO 398 FY 0.8
* LOAD 7 LL2 LIVE LOAD
* Mill house foundation (Material in chute) - Pt 1
381 TO 386 401 402 FY 0.13
PERFORM ANALYSIS
CHANGE
*--------------------------------------------------------------------------------
LOAD 5 DL1 DEAD LOAD
* Foundation weight
SELFWEIGHT Y -1 LIST 711 TO 1046
JOINT LOAD
* Mill house foundation (Mill house & seperator) - Pt 1
387 TO 394 FY -23.375
* Gear foundation (Gear + Table + roller) - Pt 2
381 TO 386 401 402 FY -31.25
* Remaining mill wt - Pt 2
381 TO 386 401 402 FY -7.875
* Motor foundation (Motor wt) - Pt 6
395 TO 398 FY -10
PERFORM ANALYSIS
CHANGE
*------------------------------------------------------------------------------
LOAD 6 LL1 LIVE LOAD
JOINT LOAD
* Pull rod foundation (Lifting of rollers) - Pt 4
378 TO 380 FY -24
* Motor foundation (Nominal torque) - Pt 7
396 398 FY -0.92
395 397 FY 0.92
PERFORM ANALYSIS
CHANGE
*-------------------------------------------------------------------------------
LOAD 7 LL2 LIVE LOAD
JOINT LOAD
* Mill house foundation (Material in chute) - Pt 1
381 TO 386 401 402 FY -1.625
PERFORM ANALYSIS
CHANGE
*---------------------------------------------------------------------------
LOAD 8 LL4 LIVE LOAD
JOINT LOAD
* Mill house foundation (Torque rod connection-table) - Pt 8
* 1.5 x 56.4 Max limit
376 MY -84.6
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
* Gear foundation (Pull rod connection) - Pt 2
381 TO 386 401 402 FY -111.7
* Gear foundation(Gear box torque) - Pt 9
* 0.5 x 56.4 Min limit
376 MY 28.2

* Pull rod foundation (Pull rod connection) - Pt 3

378 TO 380 FY 298
* Motor foundation (Pull out torque) - Pt 7
396 398 FY -2.04
395 397 FY 2.04
PERFORM ANALYSIS
CHANGE
*------------------------------------------------------------------------------
LOAD 9 LL5 LIVE LOAD
JOINT LOAD
* Environmental Foundation (3 rollers) - Pt 10
376 FY -72
* Environmental Foundation (Grinding table) - Pt 12
376 MY -10.65
* Mill house foundation (Torque rod gear) - Pt 5
383 386 401 FY -28.98
382 385 402 FY 28.98
PERFORM ANALYSIS
CHANGE
*----------------------------------------------------------------------------------
LOAD 10 EL1 EXTREME LOAD
JOINT LOAD
* Environmental Foundation (3 rollers) - Pt 11
376 FY -282
* Environmental Foundation (Grinding table) - Pt 13
376 MY -27
* Gear foundation(Pull rod connection) - Pt 2
381 TO 386 401 402 FY -304.3
* Pull rod foundation (Pull rod connection) - Pt 3
378 TO 380 FY 812
PERFORM ANALYSIS
CHANGE
*---------------------------------------------------------------------------------
LOAD 17 WL+X WIND+X
JOINT LOAD
* Mill Wind shear
387 TO 394 FX 5.82
* Mill Wind Moments
389 390 FY 105.85
391 392 FY 48.73
387 388 FY -29.4
393 394 FY -125.18
* Motor Wind load
397 398 FX 0.5 FY -9.44
395 396 FX 0.5 FY 9.44
* Foundatin projected 1.5m wind load
33 FX 11.05 MZ -58
PERFORM ANALYSIS
CHANGE
*---------------------------------------------------------------------------
LOAD 18 WL-X WIND-X
JOINT LOAD
* Mill Wind shear
387 TO 394 FX -5.82
* Mill Wind Moments
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
389 390 FY -105.85
391 392 FY -48.73
387 388 FY 29.4
393 394 FY 125.18
* Motor Wind load
397 398 FX -0.5 FY 9.44

395 396 FX -0.5 FY -9.44

* Foundatin projected 1.5m wind load
33 FX -11.05 MZ 58
PERFORM ANALYSIS
CHANGE
*------------------------------------------------------------------------------
LOAD 19 WL+Z WIND+Z
JOINT LOAD
* Mill Wind shear
387 TO 394 FZ 5.82
* Mill Wind Moments
390 FY -37.88
389 FY 37.88
392 FY -65.66
391 FY 65.66
388 FY -75.81
387 FY 75.81
394 FY -55.91
393 FY 55.91
* Motor Wind load
396 398 FY -6.25 FZ 0.63
395 397 FY 6.25 FZ 0.63
* Foundatin projected 1.5m wind load
33 FZ 19.86 MX 104.26
PERFORM ANALYSIS
CHANGE
*----------------------------------------------------------------------------------
LOAD 20 WL-Z WIND-Z
JOINT LOAD
* Mill Wind shear
387 TO 394 FZ -5.82
* Mill Wind Moments
390 FY 37.88
389 FY -37.88
392 FY 65.66
391 FY -65.66
388 FY 75.81
387 FY -75.81
394 FY 55.91
393 FY -55.91
* Motor Wind load
396 398 FY 6.25 FZ -0.63
395 397 FY -6.25 FZ -0.63
* Foundatin projected 1.5m wind load
33 FZ -19.86 MX -104.26
PERFORM ANALYSIS
CHANGE
************************ULTIMATE LOAD COMBINATIONS**************************
****************************************************************************
LOAD 41 LL
REPEAT LOAD
6 1.0 7 1.0 8 1.0 9 1.0
*
LOAD 101 1.5DL + 1.5LL1 + 1.5LL2 + 1.5LL4 + 1.5LL5
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
REPEAT LOAD
5 1.5 6 1.5 7 1.5 8 1.5 9 1.5
*----------------------------------------------------
* Extreme load combinations
*----------------------------------------------------
LOAD 301 1.5DL + 1.5LL1 + 1.5LL2 + 1.5EL1
REPEAT LOAD

5 1.5 6 1.5 7 1.5 10 1.5

*----------------------------------------------------
* Wind load combinations
*----------------------------------------------------
LOAD 401 1.2DL + 1.2LL + 0.6WL+X
REPEAT LOAD
5 1.2 41 1.2 17 0.6
LOAD 402 1.2DL + 1.2LL + 0.6WL-X
REPEAT LOAD
5 1.2 41 1.2 18 0.6
LOAD 403 1.2DL + 1.2LL + 0.6WL+Z
REPEAT LOAD
5 1.2 41 1.2 19 0.6
LOAD 404 1.2DL + 1.2LL + 0.6WL-Z
REPEAT LOAD
5 1.2 41 1.2 20 0.6
*
LOAD 405 1.2DL + 1.2LL + 0.45WL+X + 0.45WL+Z
REPEAT LOAD
5 1.2 41 1.2 17 0.45 19 0.45
LOAD 406 1.2DL + 1.2LL + 0.45WL+X + 0.45WL-Z
REPEAT LOAD
5 1.2 41 1.2 17 0.45 20 0.45
LOAD 407 1.2DL + 1.2LL + 0.45WL-X + 0.45WL+Z
REPEAT LOAD
5 1.2 41 1.2 18 0.45 19 0.45
LOAD 408 1.2DL + 1.2LL + 0.45WL-X + 0.45WL-Z
REPEAT LOAD
5 1.2 41 1.2 18 0.45 20 0.45
*
LOAD 411 1.2DL + 1.2LL + 1.2WL+X
REPEAT LOAD
5 1.2 41 1.2 17 1.2
LOAD 412 1.2DL + 1.2LL + 1.2WL-X
REPEAT LOAD
5 1.2 41 1.2 18 1.2
LOAD 413 1.2DL + 1.2LL + 1.2WL+Z
REPEAT LOAD
5 1.2 41 1.2 19 1.2
LOAD 414 1.2DL + 1.2LL + 1.2WL-Z
REPEAT LOAD
5 1.2 41 1.2 20 1.2
*
LOAD 415 1.2DL + 1.2LL + 1.2WL+X + 0.9WL+X + 0.9WL+Z
REPEAT LOAD
5 1.2 41 1.2 17 0.9 19 0.9
LOAD 416 1.2DL + 1.2LL + 1.2WL-X + 0.9WL+X + 0.9WL+Z
REPEAT LOAD
5 1.2 41 1.2 17 0.9 20 0.9
LOAD 417 1.2DL + 1.2LL + 1.2WL+Z + 0.9WL+X + 0.9WL+Z
REPEAT LOAD
5 1.2 41 1.2 18 0.9 19 0.9
LOAD 418 1.2DL + 1.2LL + 1.2WL-Z + 0.9WL+X + 0.9WL+Z
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
REPEAT LOAD
5 1.2 41 1.2 18 0.9 20 0.9
*------------------------------------------------------
LOAD 501 1.5DL + 1.5WL+X
REPEAT LOAD
5 1.5 17 1.5
LOAD 502 1.5DL + 1.5WL-X
REPEAT LOAD

5 1.5 18 1.5
LOAD 503 1.5DL + 1.5WL+Z
REPEAT LOAD
5 1.5 19 1.5
LOAD 504 1.5DL + 1.5WL-Z
REPEAT LOAD
5 1.5 20 1.5
*
LOAD 505 1.5DL + 1.5WL+X + 1.13WL+X + 1.13WL+Z
REPEAT LOAD
5 1.5 17 1.13 19 1.13
LOAD 506 1.5DL + 1.5WL-X + 1.13WL+X + 1.13WL-Z
REPEAT LOAD
5 1.5 17 1.13 20 1.13
LOAD 507 1.5DL + 1.5WL+Z + 1.13WL-X + 1.13WL+Z
REPEAT LOAD
5 1.5 18 1.13 19 1.13
LOAD 508 1.5DL + 1.5WL-Z + 1.13WL-X + 1.13WL-Z
REPEAT LOAD
5 1.5 18 1.13 20 1.13
*
LOAD 511 0.9DL + 1.5WL+X
REPEAT LOAD
5 0.9 17 1.5
LOAD 512 0.9DL + 1.5WL-X
REPEAT LOAD
5 0.9 18 1.5
LOAD 513 0.9DL + 1.5WL+Z
REPEAT LOAD
5 0.9 19 1.5
LOAD 514 0.9DL + 1.5WL-Z
REPEAT LOAD
5 0.9 20 1.5
*
LOAD 515 0.9DL + 1.5WL+X + 1.13WL+X + 1.13WL+Z
REPEAT LOAD
5 0.9 17 1.13 19 1.13
LOAD 516 0.9DL + 1.5WL-X + 1.13WL+X + 1.13WL-Z
REPEAT LOAD
5 0.9 17 1.13 20 1.13
LOAD 517 0.9DL + 1.5WL+Z + 1.13WL-X + 1.13WL+Z
REPEAT LOAD
5 0.9 18 1.13 19 1.13
LOAD 518 0.9DL + 1.5WL-Z + 1.13WL-X + 1.13WL-Z
REPEAT LOAD
5 0.9 18 1.13 20 1.13
*-----------------------------------------
* Seismic load combinations
*-----------------------------------------
LOAD 601 1.5DL + 1.5EQ+X + 0.45EQ+Z + 0.45EQ+Y
REPEAT LOAD
5 1.5 1 1.5 2 0.45 3 0.45
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
LOAD 602 1.5DL + 1.5EQ+Z + 0.45EQ+X + 0.45EQ+Y
REPEAT LOAD
5 1.5 2 1.5 1 0.45 3 0.45
LOAD 603 1.5DL + 1.5EQ-X + 0.45EQ+Z + 0.45EQ+Y
REPEAT LOAD
5 1.5 1 -1.5 2 0.45 3 0.45
LOAD 604 1.5DL + 1.5EQ-Z + 0.45EQ+X + 0.45EQ+Y
REPEAT LOAD
5 1.5 2 -1.5 1 0.45 3 0.45

LOAD 605 1.5DL + 1.5EQ+X - 0.45EQ+Z + 0.45EQ+Y

REPEAT LOAD
5 1.5 1 1.5 2 -0.45 3 0.45
LOAD 606 1.5DL + 1.5EQ+Z - 0.45EQ+X + 0.45EQ+Y
REPEAT LOAD
5 1.5 2 1.5 1 -0.45 3 0.45
LOAD 607 1.5DL + 1.5EQ-X - 0.45EQ+Z + 0.45EQ+Y
REPEAT LOAD
5 1.5 1 -1.5 2 -0.45 3 0.45
LOAD 608 1.5DL + 1.5EQ-Z - 0.45EQ+X + 0.45EQ+Y
REPEAT LOAD
5 1.5 2 -1.5 1 -0.45 3 0.45
*
LOAD 611 1.5DL + 1.5EQ+X + 0.45EQ+Z - 0.45EQ+Y
REPEAT LOAD
5 1.5 1 1.5 2 0.45 3 -0.45
LOAD 612 1.5DL + 1.5EQ+Z + 0.45EQ+X - 0.45EQ+Y
REPEAT LOAD
5 1.5 2 1.5 1 0.45 3 -0.45
LOAD 613 1.5DL + 1.5EQ-X + 0.45EQ+Z - 0.45EQ+Y
REPEAT LOAD
5 1.5 1 -1.5 2 0.45 3 -0.45
LOAD 614 1.5DL + 1.5EQ-Z + 0.45EQ+X - 0.45EQ+Y
REPEAT LOAD
5 1.5 2 -1.5 1 0.45 3 -0.45
LOAD 615 1.5DL + 1.5EQ+X - 0.45EQ+Z - 0.45EQ+Y
REPEAT LOAD
5 1.5 1 1.5 2 -0.45 3 -0.45
LOAD 616 1.5DL + 1.5EQ+Z - 0.45EQ+X - 0.45EQ+Y
REPEAT LOAD
5 1.5 2 1.5 1 -0.45 3 -0.45
LOAD 617 1.5DL + 1.5EQ-X - 0.45EQ+Z - 0.45EQ+Y
REPEAT LOAD
5 1.5 1 -1.5 2 -0.45 3 -0.45
LOAD 618 1.5DL + 1.5EQ-Z - 0.45EQ+X - 0.45EQ+Y
REPEAT LOAD
5 1.5 2 -1.5 1 -0.45 3 -0.45
*----------------------------------------------------------------
LOAD 621 0.9DL + 1.5EQ+X + 0.45EQ+Z + 0.45EQ+Y
REPEAT LOAD
5 0.9 1 1.5 2 0.45 3 0.45
LOAD 622 0.9DL + 1.5EQ+Z + 0.45EQ+X + 0.45EQ+Y
REPEAT LOAD
5 0.9 2 1.5 1 0.45 3 0.45
LOAD 623 0.9DL + 1.5EQ-X + 0.45EQ+Z + 0.45EQ+Y
REPEAT LOAD
5 0.9 1 -1.5 2 0.45 3 0.45
LOAD 624 0.9DL + 1.5EQ-Z + 0.45EQ+X + 0.45EQ+Y
REPEAT LOAD
5 0.9 2 -1.5 1 0.45 3 0.45
LOAD 625 0.9DL + 1.5EQ+X - 0.45EQ+Z + 0.45EQ+Y
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
REPEAT LOAD
5 0.9 1 1.5 2 -0.45 3 0.45
LOAD 626 0.9DL + 1.5EQ+Z - 0.45EQ+X + 0.45EQ+Y
REPEAT LOAD
5 0.9 2 1.5 1 -0.45 3 0.45
LOAD 627 0.9DL + 1.5EQ-X - 0.45EQ+Z + 0.45EQ+Y
REPEAT LOAD
5 0.9 1 -1.5 2 -0.45 3 0.45
LOAD 628 0.9DL + 1.5EQ-Z - 0.45EQ+X + 0.45EQ+Y
REPEAT LOAD

5 0.9 2 -1.5 1 -0.45 3 0.45

*
LOAD 631 0.9DL + 1.5EQ+X + 0.45EQ+Z - 0.45EQ+Y
REPEAT LOAD
5 0.9 1 1.5 2 0.45 3 -0.45
LOAD 632 0.9DL + 1.5EQ+Z + 0.45EQ+X - 0.45EQ+Y
REPEAT LOAD
5 0.9 2 1.5 1 0.45 3 -0.45
LOAD 633 0.9DL + 1.5EQ-X + 0.45EQ+Z - 0.45EQ+Y
REPEAT LOAD
5 0.9 1 -1.5 2 0.45 3 -0.45
LOAD 634 0.9DL + 1.5EQ-Z + 0.45EQ+X - 0.45EQ+Y
REPEAT LOAD
5 0.9 2 -1.5 1 0.45 3 -0.45
LOAD 635 0.9DL + 1.5EQ+X - 0.45EQ+Z - 0.45EQ+Y
REPEAT LOAD
5 0.9 1 1.5 2 -0.45 3 -0.45
LOAD 636 0.9DL + 1.5EQ+Z - 0.45EQ+X - 0.45EQ+Y
REPEAT LOAD
5 0.9 2 1.5 1 -0.45 3 -0.45
LOAD 637 0.9DL + 1.5EQ-X - 0.45EQ+Z - 0.45EQ+Y
REPEAT LOAD
5 0.9 1 -1.5 2 -0.45 3 -0.45
LOAD 638 0.9DL + 1.5EQ-Z - 0.45EQ+X - 0.45EQ+Y
REPEAT LOAD
5 0.9 2 -1.5 1 -0.45 3 -0.45
*------------------------------------------------------------------
LOAD 641 1.2DL + 1.2LL + 0.6EQ+X + 0.18EQ+Z + 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 0.6 2 0.18 3 0.18
LOAD 642 1.2DL + 1.2LL + 0.6EQ+Z + 0.18EQ+X + 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 0.6 1 0.18 3 0.18
LOAD 643 1.2DL + 1.2LL + 0.6EQ-X + 0.18EQ+Z + 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 -0.6 2 0.18 3 0.18
LOAD 644 1.2DL + 1.2LL + 0.6EQ-Z + 0.18EQ+X + 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 -0.6 1 0.18 3 0.18
LOAD 645 1.2DL + 1.2LL + 0.6EQ+X - 0.18EQ+Z + 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 0.6 2 -0.18 3 0.18
LOAD 6441 1.2DL + 1.2LL + 0.6EQ+Z - 0.18EQ+X + 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 0.6 1 -0.18 3 0.18
LOAD 647 1.2DL + 1.2LL + 0.6EQ-X - 0.18EQ+Z + 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 -0.6 2 -0.18 3 0.18
LOAD 648 1.2DL + 1.2LL + 0.6EQ-Z - 0.18EQ+X + 0.18EQ+Y
REPEAT LOAD
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
5 1.2 41 1.2 2 -0.6 1 -0.18 3 0.18
*
LOAD 651 1.2DL + 1.2LL + 0.6EQ+X + 0.18EQ+Z - 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 0.6 2 0.18 3 -0.18
LOAD 652 1.2DL + 1.2LL + 0.6EQ+Z + 0.18EQ+X - 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 0.6 1 0.18 3 -0.18
LOAD 653 1.2DL + 1.2LL + 0.6EQ-X + 0.18EQ+Z - 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 -0.6 2 0.18 3 -0.18

LOAD 654 1.2DL + 1.2LL + 0.6EQ-Z + 0.18EQ+X - 0.18EQ+Y

REPEAT LOAD
5 1.2 41 1.2 2 -0.6 1 0.18 3 -0.18
LOAD 655 1.2DL + 1.2LL + 0.6EQ+X - 0.18EQ+Z - 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 0.6 2 -0.18 3 -0.18
LOAD 656 1.2DL + 1.2LL + 0.6EQ+Z - 0.18EQ+X - 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 0.6 1 -0.18 3 -0.18
LOAD 657 1.2DL + 1.2LL + 0.6EQ-X - 0.18EQ+Z - 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 -0.6 2 -0.18 3 -0.18
LOAD 658 1.2DL + 1.2LL + 0.6EQ-Z - 0.18EQ+X - 0.18EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 -0.6 1 -0.18 3 -0.18
*-------------------------------------------------------------------
LOAD 661 1.2DL + 1.2LL + 1.2EQ+X + 0.36EQ+Z + 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 1.2 2 0.36 3 0.36
LOAD 662 1.2DL + 1.2LL + 1.2EQ+Z + 0.36EQ+X + 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 1.2 1 0.36 3 0.36
LOAD 663 1.2DL + 1.2LL + 1.2EQ-X + 0.36EQ+Z + 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 -1.2 2 0.36 3 0.36
LOAD 664 1.2DL + 1.2LL + 1.2EQ-Z + 0.36EQ+X + 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 -1.2 1 0.36 3 0.36
LOAD 665 1.2DL + 1.2LL + 1.2EQ+X - 0.36EQ+Z + 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 1.2 2 -0.36 3 0.36
LOAD 666 1.2DL + 1.2LL + 1.2EQ+Z - 0.36EQ+X + 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 1.2 1 -0.36 3 0.36
LOAD 667 1.2DL + 1.2LL + 1.2EQ-X - 0.36EQ+Z + 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 -1.2 2 -0.36 3 0.36
LOAD 668 1.2DL + 1.2LL + 1.2EQ-Z - 0.36EQ+X + 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 -1.2 1 -0.36 3 0.36
*
LOAD 671 1.2DL + 1.2LL + 1.2EQ+X + 0.36EQ+Z - 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 1.2 2 0.36 3 -0.36
LOAD 672 1.2DL + 1.2LL + 1.2EQ+Z + 0.36EQ+X - 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 1.2 1 0.36 3 -0.36
LOAD 673 1.2DL + 1.2LL + 1.2EQ-X + 0.36EQ+Z - 0.36EQ+Y
REPEAT LOAD
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
5 1.2 41 1.2 1 -1.2 2 0.36 3 -0.36
LOAD 674 1.2DL + 1.2LL + 1.2EQ-Z + 0.36EQ+X - 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 -1.2 1 0.36 3 -0.36
LOAD 675 1.2DL + 1.2LL + 1.2EQ+X - 0.36EQ+Z - 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 1 1.2 2 -0.36 3 -0.36
LOAD 676 1.2DL + 1.2LL + 1.2EQ+Z - 0.36EQ+X - 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 1.2 1 -0.36 3 -0.36
LOAD 677 1.2DL + 1.2LL + 1.2EQ-X - 0.36EQ+Z - 0.36EQ+Y
REPEAT LOAD

5 1.2 41 1.2 1 -1.2 2 -0.36 3 -0.36

LOAD 678 1.2DL + 1.2LL + 1.2EQ-Z - 0.36EQ+X - 0.36EQ+Y
REPEAT LOAD
5 1.2 41 1.2 2 -1.2 1 -0.36 3 -0.36
*--------------------------------------------------------------------------
*----------------------------------------------------------------------
* SERVICEBILITY LOAD COMBINATIONS
*----------------------------------------------------------------------
* operating loads
*-------------------
LOAD 1001 1.0DL + 1.0LL
REPEAT LOAD
5 1.0 41 1.0
*--------------------
* Extreme loads
*--------------------
LOAD 1002 1.0DL + 1.0LL1 + 1.0LL2 + 1.0 EL1
REPEAT LOAD
5 1.0 6 1.0 7 1.0
*-------------------
* Wind loads
*--------------------
LOAD 2001 1.0DL + 0.8LL + 0.8WL+X
REPEAT LOAD
5 1.0 41 0.8 17 0.8
LOAD 2002 1.0DL + 0.8LL + 0.8WL-X
REPEAT LOAD
5 1.0 41 0.8 18 0.8
LOAD 2003 1.0DL + 0.8LL + 0.8WL+Z
REPEAT LOAD
5 1.0 41 0.8 19 0.8
LOAD 2004 1.0DL + 0.8LL + 0.8WL-Z
REPEAT LOAD
5 1.0 41 0.8 20 0.8
*
LOAD 2005 1.0DL + 0.8LL + 0.6WL+X + 0.6WL+Z
REPEAT LOAD
5 1.0 41 0.8 17 0.6 19 0.6
LOAD 2006 1.0DL + 0.8LL + 0.6WL+X + 0.6WL-Z
REPEAT LOAD
5 1.0 41 0.8 17 0.6 20 0.6
LOAD 2007 1.0DL + 0.8LL + 0.6WL-X + 0.6WL+Z
REPEAT LOAD
5 1.0 41 0.8 18 0.6 19 0.6
LOAD 2009 1.0DL + 0.8LL + 0.6WL-X + 0.6WL-Z
REPEAT LOAD
5 1.0 41 0.8 18 0.6 20 0.6
*
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
LOAD 2011 1.0DL + 1.0WL+X
REPEAT LOAD
5 1.0 17 1.0
LOAD 2012 1.0DL + 1.0WL-X
REPEAT LOAD
5 1.0 18 1.0
LOAD 2013 1.0DL + 1.0WL+Z
REPEAT LOAD
5 1.0 19 1.0
LOAD 2014 1.0DL + 1.0WL-Z
REPEAT LOAD
5 1.0 20 1.0
*

LOAD 2015 1.0DL + 0.75WL+X + 0.75WL+Z

REPEAT LOAD
5 1.0 17 0.75 19 0.75
LOAD 2016 1.0DL + 0.75WL+X + 0.75WL-Z
REPEAT LOAD
5 1.0 17 0.75 20 0.75
LOAD 2017 1.0DL + 0.75WL-X + 0.75WL+Z
REPEAT LOAD
5 1.0 18 0.75 19 0.75
LOAD 2018 1.0DL + 0.75WL-X + 0.75WL-Z
REPEAT LOAD
5 1.0 18 0.75 20 0.75
*---------------------
* Seismic loads
*---------------------
LOAD 4001 1.0DL + 0.8LL + 0.8EQ+X + 0.24EQ+Z + 0.24EQ+Y
REPEAT LOAD
5 1.0 6 0.8 1 0.8 2 0.24 3 0.24
LOAD 4002 1.0DL + 0.8LL + 0.8EQ+Z + 0.24EQ+X + 0.24EQ+Y
REPEAT LOAD
5 1.0 6 0.8 2 0.8 1 0.24 3 0.24
LOAD 4003 1.0DL + 0.8LL + 0.8EQ-X + 0.24EQ+Z + 0.24EQ+Y
REPEAT LOAD
5 1.0 6 0.8 1 -0.8 2 0.24 3 0.24
LOAD 4004 1.0DL + 0.8LL + 0.8EQ-Z + 0.24EQ+X + 0.24EQ+Y
REPEAT LOAD
5 1.0 6 0.8 2 -0.8 1 0.24 3 0.24
LOAD 4005 1.0DL + 0.8LL + 0.8EQ+X - 0.24EQ+Z + 0.24EQ+Y
REPEAT LOAD
5 1.0 6 0.8 1 0.8 2 -0.24 3 0.24
LOAD 4006 1.0DL + 0.8LL + 0.8EQ+Z - 0.24EQ+X + 0.24EQ+Y
REPEAT LOAD
5 1.0 6 0.8 2 0.8 1 -0.24 3 0.24
LOAD 4007 1.0DL + 0.8LL + 0.8EQ-X - 0.24EQ+Z + 0.24EQ+Y
REPEAT LOAD
5 1.0 6 0.8 1 -0.8 2 -0.24 3 0.24
LOAD 4008 1.0DL + 0.8LL + 0.8EQ-Z - 0.24EQ+X + 0.24EQ+Y
REPEAT LOAD
5 1.0 6 0.8 2 -0.8 1 -0.24 3 0.24
*
LOAD 4021 1.0DL + 1.0EQ+X + 0.3EQ+Z + 0.3EQY
REPEAT LOAD
5 1.0 1 1.0 2 0.3 3 0.3
LOAD 4022 1.0DL + 1.0EQ+Z + 0.3EQ+X + 0.3EQY
REPEAT LOAD
5 1.0 2 1.0 1 0.3 3 0.3
LOAD 4023 1.0DL + 1.0EQ-X + 0.3EQ+Z + 0.3EQY
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
REPEAT LOAD
5 1.0 1 -1.0 2 0.3 3 0.3
LOAD 4024 1.0DL + 1.0EQ-Z + 0.3EQ+X + 0.3EQY
REPEAT LOAD
5 1.0 2 -1.0 1 0.3 3 0.3
LOAD 4025 1.0DL + 1.0EQ+X - 0.3EQ+Z + 0.3EQY
REPEAT LOAD
5 1.0 1 1.0 2 -0.3 3 0.3
LOAD 4026 1.0DL + 1.0EQ+Z - 0.3EQ+X + 0.3EQY
REPEAT LOAD
5 1.0 2 1.0 1 -0.3 3 0.3
LOAD 4027 1.0DL + 1.0EQ-X - 0.3EQ+Z + 0.3EQY
REPEAT LOAD
5 1.0 1 -1.0 2 -0.3 3 0.3

LOAD 4028 1.0DL + 1.0EQ-Z - 0.3EQ+X + 0.3EQY

REPEAT LOAD
5 1.0 2 -1.0 1 -0.3 3 0.3
*******************************************************************************************
PERFORM ANALYSIS PRINT ALL
FINISH
*

5.2 STAAD Geometry Pictures

5.2.1 Whole Structure

 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

5.2.2: Dead loads

5.2.3 :Live loads

LL1
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

LL2

LL4
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

LL5

EL1
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

5.2.4 : Wind loads

WLX

WLZ
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.

5.2.5: Earthquake loads

EQX

EQZ
 Project: ACC Limited, Sindri Expansion
Project Line II, Jharkhand Page
Dept. Clinker
### Storage Dome

Made by: Date : Checked by: Date : Project No. 0

AARSA 14/02/2014 SHAI 14/02/2014 Doc. No. 0 Ref.
 ACC Limited Sindri Expansion Project Page No.
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation

6.0 Structural Drawings

 ACC Limited Sindri Expansion Project Page No.
Line II, Jharkand .
Project No.:- 1360404 Design By : AARSA Date : 14/02/2014
Dept : 481 Clinker Storage Dome Checked By : SHAI Date : 14/02/2014 Doc. No.: 0
Part : Clinker Storage Dome Steel Calculation
