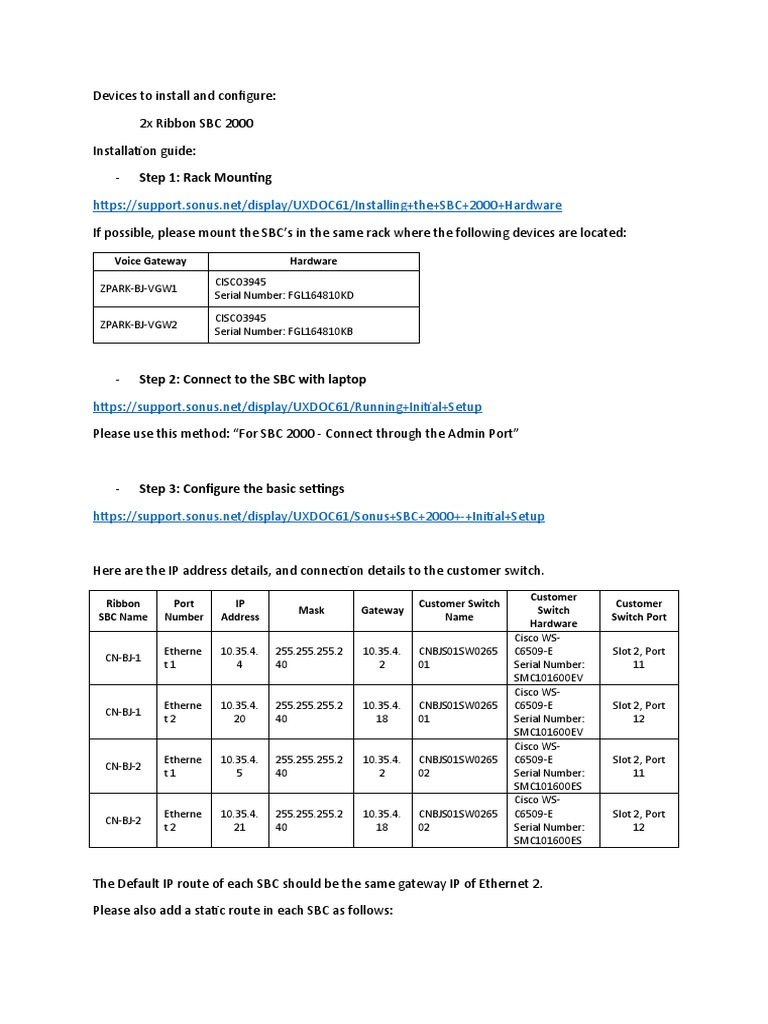

Devices to install and configure:

2x Ribbon SBC 2000

Installation guide:

- Step 1: Rack Mounting

https://support.sonus.net/display/UXDOC61/Installing+the+SBC+2000+Hardware

If possible, please mount the SBC’s in the same rack where the following devices are located:

Voice Gateway Hardware

CISCO3945
ZPARK-BJ-VGW1
Serial Number: FGL164810KD

CISCO3945
ZPARK-BJ-VGW2
Serial Number: FGL164810KB

- Step 2: Connect to the SBC with laptop

https://support.sonus.net/display/UXDOC61/Running+Initial+Setup

Please use this method: “For SBC 2000 - Connect through the Admin Port”

- Step 3: Configure the basic settings

https://support.sonus.net/display/UXDOC61/Sonus+SBC+2000+-+Initial+Setup

Here are the IP address details, and connection details to the customer switch.
Customer
Ribbon Port IP Customer Switch Customer
Mask Gateway Switch
SBC Name Number Address Name Switch Port
Hardware
Cisco WS-
Etherne 10.35.4. 255.255.255.2 10.35.4. CNBJS01SW0265 C6509-E Slot 2, Port
CN-BJ-1
t1 4 40 2 01 Serial Number: 11
SMC101600EV
Cisco WS-
Etherne 10.35.4. 255.255.255.2 10.35.4. CNBJS01SW0265 C6509-E Slot 2, Port
CN-BJ-1
t2 20 40 18 01 Serial Number: 12
SMC101600EV
Cisco WS-
Etherne 10.35.4. 255.255.255.2 10.35.4. CNBJS01SW0265 C6509-E Slot 2, Port
CN-BJ-2
t1 5 40 2 02 Serial Number: 11
SMC101600ES
Cisco WS-
Etherne 10.35.4. 255.255.255.2 10.35.4. CNBJS01SW0265 C6509-E Slot 2, Port
CN-BJ-2
t2 21 40 18 02 Serial Number: 12
SMC101600ES

The Default IP route of each SBC should be the same gateway IP of Ethernet 2.

Please also add a static route in each SBC as follows:

 SBC Destination IP Mask Gateway
CN-BJ-1 199.202.45.45 255.255.255.255 10.35.4.18
CN-BJ-2 199.202.45.45 255.255.255.255 10.35.4.18

Once it is finished, please follow this list of tasks:

- Take screenshots of each SBC configuration and ping tests

o Screenshot of firmware version, Serial Number and also MAC Address
o Screenshot of IP configuration
o Screenshot of routing configuration (default gateway and static route)
o Screenshot of successful ping test to each gateway IP from Ethernet 1 and Ethernet
2
- Ensure each SBC is labelled with the SBC name
- Ensure each SBC Power Socket is labelled with the SBC name
- Building name, floor number and room name where all devices are installed
- Take note of the Rack ID for each device:
o Rack ID of each SBC
o Rack ID of each customer switch
o Rack ID of Voice Gateways
- Take photos of each devices:
o Photos of each rack
o Close up photos of each SBC, front and back, showing labels and cables
o Close up photos of power socket of SBC (with label)
o Close up photos of front and back of customer switch showing labels and
connections to SBC
o Close up photos of front and back of voice gateways showing labels and cable
connections
