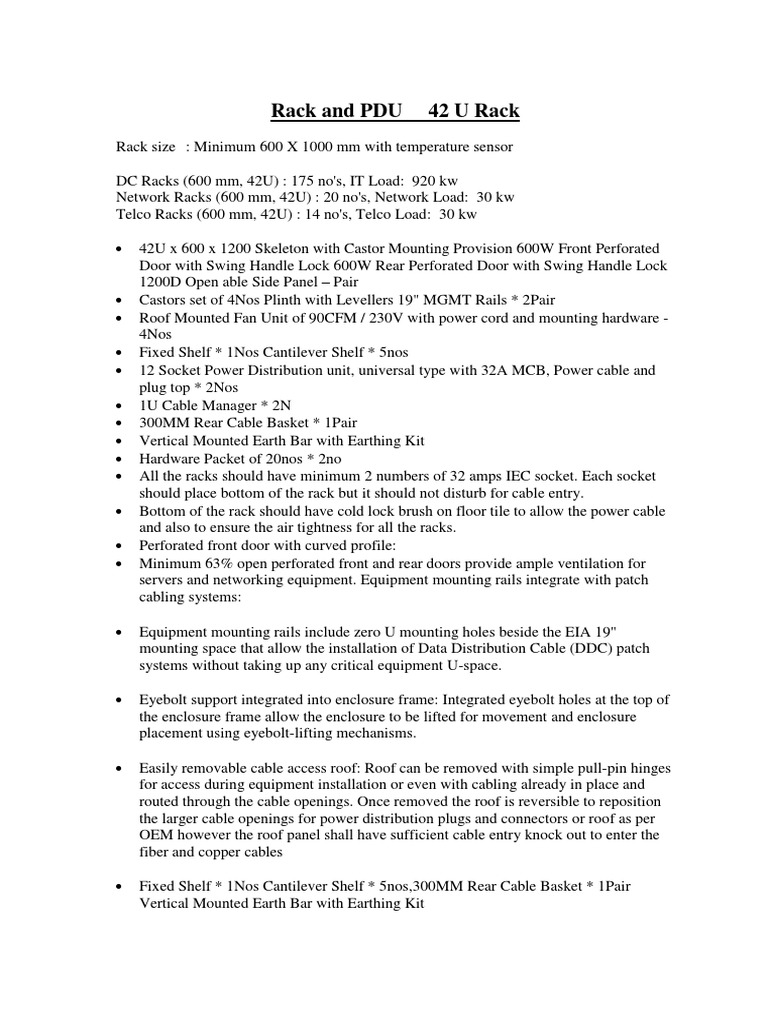

Rack and PDU 42 U Rack

Rack size : Minimum 600 X 1000 mm with temperature sensor

DC Racks (600 mm, 42U) : 175 no's, IT Load: 920 kw

Network Racks (600 mm, 42U) : 20 no's, Network Load: 30 kw
Telco Racks (600 mm, 42U) : 14 no's, Telco Load: 30 kw

 42U x 600 x 1200 Skeleton with Castor Mounting Provision 600W Front Perforated
Door with Swing Handle Lock 600W Rear Perforated Door with Swing Handle Lock
1200D Open able Side Panel – Pair
 Castors set of 4Nos Plinth with Levellers 19" MGMT Rails * 2Pair
 Roof Mounted Fan Unit of 90CFM / 230V with power cord and mounting hardware -
4Nos
 Fixed Shelf * 1Nos Cantilever Shelf * 5nos
 12 Socket Power Distribution unit, universal type with 32A MCB, Power cable and
plug top * 2Nos
 1U Cable Manager * 2N
 300MM Rear Cable Basket * 1Pair
 Vertical Mounted Earth Bar with Earthing Kit
 Hardware Packet of 20nos * 2no
 All the racks should have minimum 2 numbers of 32 amps IEC socket. Each socket
should place bottom of the rack but it should not disturb for cable entry.
 Bottom of the rack should have cold lock brush on floor tile to allow the power cable
and also to ensure the air tightness for all the racks.
 Perforated front door with curved profile:
 Minimum 63% open perforated front and rear doors provide ample ventilation for
servers and networking equipment. Equipment mounting rails integrate with patch
cabling systems:

 Equipment mounting rails include zero U mounting holes beside the EIA 19"
mounting space that allow the installation of Data Distribution Cable (DDC) patch
systems without taking up any critical equipment U-space.

 Eyebolt support integrated into enclosure frame: Integrated eyebolt holes at the top of
the enclosure frame allow the enclosure to be lifted for movement and enclosure
placement using eyebolt-lifting mechanisms.

 Easily removable cable access roof: Roof can be removed with simple pull-pin hinges
for access during equipment installation or even with cabling already in place and
routed through the cable openings. Once removed the roof is reversible to reposition
the larger cable openings for power distribution plugs and connectors or roof as per
OEM however the roof panel shall have sufficient cable entry knock out to enter the
fiber and copper cables

 Fixed Shelf * 1Nos Cantilever Shelf * 5nos,300MM Rear Cable Basket * 1Pair
Vertical Mounted Earth Bar with Earthing Kit
 Half-height/ full height quick release side panels reduce size and weight for easy
handling and access to equipment. Side panels are lockable utilizing a single key
with the doors. Split rear doors Structural stability:
o It should support 1250 - 1500 Kg Approximately.
o It should support minimum rolling load of 1000 Kgs
o Approvals UL certified
o RoHS Mounting Angle:
o Two Pairs of 19" Mounting Angles with U marking Standards and Materials
o Dimensions conform to EIA- 310E, IEC-60297-2
o Textured black RAL 9005
o Designed and Manufactured under ISO 9001 : 2008

PDU (32 A & 16 A)

o 12 Socket Power Distribution unit

o IP based Rack mount ,Metered, Zero U, 32A, 230V, Min. (18) C13 & (6) C19
sockets or more
o IP based Rack mount PDU, Metered, Zero U, 16A, 230V, (18) C13 & (2) C19
sockets or more
o IP PDU should support Strip Level metering
o IP PDU should support 1Ph, 230V 32A input current rating with connector type
IEC60309, PDU input breaker not required
o IP PDU should have standard hydraulic Magnetic circuit breaker
o IP PDU should have metering accuracy like +/-0.2A, +/-0.3V.
o IP PDU should provide monitoring Current, Voltage, KW, Kwh, KVA, PF,
Load%,
o IP PDU should have Temperature/humidity sensor port on PDU to connect to a
Temperature/Humidity sensor probe
o Each rack should have two sensors, one placed in front side and another sensor
placed in read side of the rack
o IP PDU should have local display and well-defined UI on web for monitoring and
management
o IP PDU should have alarm and outlet status LED
o IP PDU should support onboard data log, Threshold setting, Alerting features
o should allow cycling display to Switch the data display of current /Voltage /IP
/ID and operation on ID address setting
o IP PDU should support SNMP, HTTPS, DHCP
o IP PDU should have one 10/100mb Ethernet port and sensor ports
o The Operating temperature should be - 20 to +55 deg C.
o It should comply with CE (Europe),
o RoHS and safety standards like EN 60950-1:2006+A11:2009+A1:2010+A,
12:2011+A2:2013,
o EMC standard: EN 300 386 V1.6.1:2012.
o IP PDU should be firmware upgradable.
o IP PDU should have locking IEC receptacle and locking power cord
 compatibility
o Each rack should have two PDU
o The color of PDU, Rack & Sensor should be same and preferable color is black
The Powder coating process should be ROHS compliant.
