5.

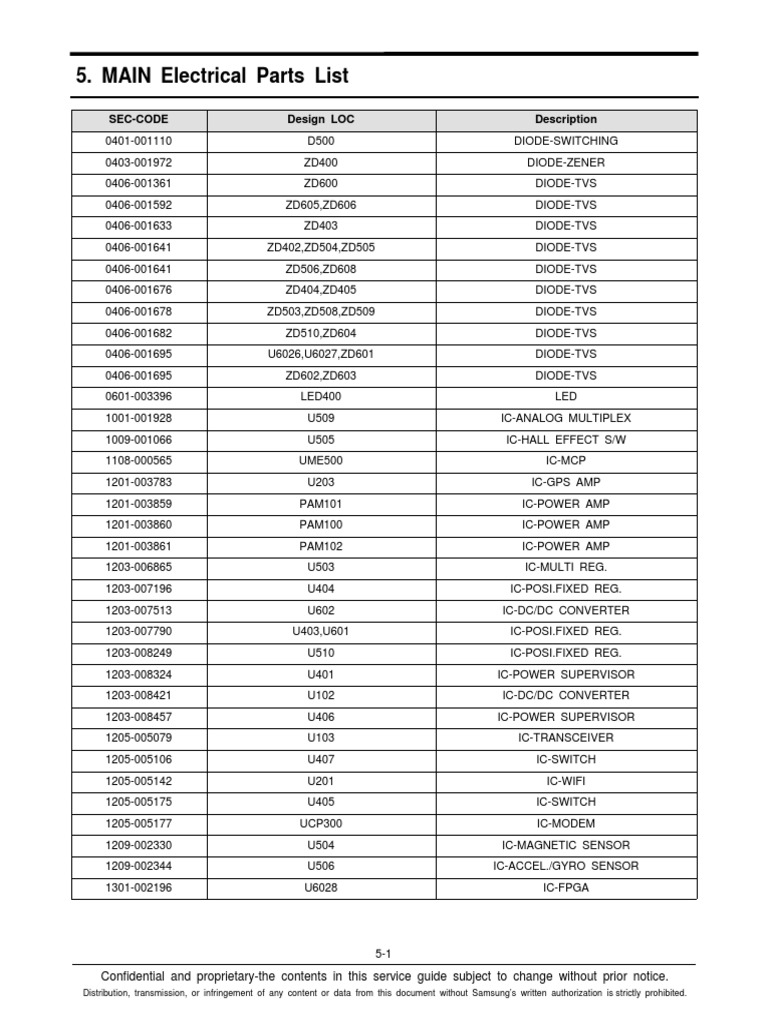

MAIN Electrical Parts List

SEC-CODE Design LOC Description

0401-001110 D500 DIODE-SWITCHING
0403-001972 ZD400 DIODE-ZENER
0406-001361 ZD600 DIODE-TVS
0406-001592 ZD605,ZD606 DIODE-TVS
0406-001633 ZD403 DIODE-TVS
0406-001641 ZD402,ZD504,ZD505 DIODE-TVS
0406-001641 ZD506,ZD608 DIODE-TVS
0406-001676 ZD404,ZD405 DIODE-TVS
0406-001678 ZD503,ZD508,ZD509 DIODE-TVS
0406-001682 ZD510,ZD604 DIODE-TVS
0406-001695 U6026,U6027,ZD601 DIODE-TVS
0406-001695 ZD602,ZD603 DIODE-TVS
0601-003396 LED400 LED
1001-001928 U509 IC-ANALOG MULTIPLEX
1009-001066 U505 IC-HALL EFFECT S/W
1108-000565 UME500 IC-MCP
1201-003783 U203 IC-GPS AMP
1201-003859 PAM101 IC-POWER AMP
1201-003860 PAM100 IC-POWER AMP
1201-003861 PAM102 IC-POWER AMP
1203-006865 U503 IC-MULTI REG.
1203-007196 U404 IC-POSI.FIXED REG.
1203-007513 U602 IC-DC/DC CONVERTER
1203-007790 U403,U601 IC-POSI.FIXED REG.
1203-008249 U510 IC-POSI.FIXED REG.
1203-008324 U401 IC-POWER SUPERVISOR
1203-008421 U102 IC-DC/DC CONVERTER
1203-008457 U406 IC-POWER SUPERVISOR
1205-005079 U103 IC-TRANSCEIVER
1205-005106 U407 IC-SWITCH
1205-005142 U201 IC-WIFI
1205-005175 U405 IC-SWITCH
1205-005177 UCP300 IC-MODEM
1209-002330 U504 IC-MAGNETIC SENSOR
1209-002344 U506 IC-ACCEL./GYRO SENSOR
1301-002196 U6028 IC-FPGA

5-1
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Main Electrical Parts List

1404-001724 TH100,TH300 THERMISTOR-NTC

2007-001306 R416 R-CHIP
2007-007107 R106 R-CHIP
2007-007193 R522,R526 R-CHIP
2007-007315 R303 R-CHIP
2007-007480 R536 R-CHIP
2007-007860 R105 R-CHIP
2007-007861 R107 R-CHIP
2007-008045 R415,R425,R430,R432 R-CHIP
2007-008052 R505,R506,R512,R513 R-CHIP
2007-008055 R507,R545,R546 R-CHIP
2007-008210 R101,R360 R-CHIP
2007-008403 R540 R-CHIP
2007-008419 R344,R345,R347,R521 R-CHIP
2007-008419 R525,R531 R-CHIP
2007-008420 R361 R-CHIP
2007-008516 R304,R305,R313,R314 R-CHIP
2007-008516 R318,R358,R413,R414 R-CHIP
2007-008516 R419,R420,R423,R516 R-CHIP
2007-008516 R523,R527,R543,R544 R-CHIP
2007-008516 R562,R602,R603,R605 R-CHIP
2007-008516 R606 R-CHIP
2007-008582 R102,R103 R-CHIP
2007-008588 R306,R307,R311,R312 R-CHIP
2007-008588 R315,R316,R319,R320 R-CHIP
2007-008588 R362,R363,R421,R422 R-CHIP
2007-008588 R609 R-CHIP
2007-008806 R104 R-CHIP
2007-009084 R359,R407 R-CHIP
2007-009155 R538 R-CHIP
2007-009157 R334,R400,R439 R-CHIP
2007-009170 R433 R-CHIP
2007-009212 R424 R-CHIP
2007-009223 R533 R-CHIP
2007-009233 R440 R-CHIP
2007-009315 R426,R427 R-CHIP
2007-009793 R534 R-CHIP

5-2
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
 Main Electrical Parts List

2007-009838 R436 R-CHIP

2007-009920 R308,R517 R-CHIP
2007-010182 R528,R530 R-CHIP
2007-010856 R418 R-CHIP
2007-011043 R302 R-CHIP
2007-011648 R435 R-CHIP
2203-000854 C479,C556,C557 C-CER,CHIP
2203-001153 C493 C-CER,CHIP
2203-005344 C285 C-CER,CHIP
2203-005682 C104,C112,C114,C127 C-CER,CHIP
2203-005682 C143,C144,C171,C225 C-CER,CHIP
2203-005682 C228,C529,C534,L116 C-CER,CHIP
2203-005682 L208,U100 C-CER,CHIP
2203-005717 C632 C-CER,CHIP
2203-005725 C102,C116,C136,C138 C-CER,CHIP
2203-005725 C474 C-CER,CHIP
2203-005729 C540,C541,C542,C633 C-CER,CHIP
2203-005729 C634,C635 C-CER,CHIP
2203-005731 C294,C547 C-CER,CHIP
2203-005732 C449,C450,C486,C546 C-CER,CHIP
2203-005732 C562,C563 C-CER,CHIP
2203-005734 C481 C-CER,CHIP
2203-005736 C170,C206,C208,C209 C-CER,CHIP
2203-005736 C211,C212,C214,L103 C-CER,CHIP
2203-005736 R211 C-CER,CHIP
2203-005789 C105,L211 C-CER,CHIP
2203-005806 C373,C407,C492 C-CER,CHIP
2203-006048 C108 C-CER,CHIP
2203-006194 C313,C314,C337,C353 C-CER,CHIP
2203-006305 C232,C233,C533,L100 C-CER,CHIP
2203-006379 C317,C336,C338,C346 C-CER,CHIP
2203-006379 C348,C349,C398 C-CER,CHIP
2203-006399 C321,C340,C342,C352 C-CER,CHIP
2203-006399 C365,C454,C473,C484 C-CER,CHIP
2203-006399 C485,C506,C527,C545 C-CER,CHIP
2203-006400 C224 C-CER,CHIP
2203-006410 L129 C-CER,CHIP

5-3
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Main Electrical Parts List

2203-006423 C150,C156,C157,C158 C-CER,CHIP

2203-006423 C161,C162,C163,C164 C-CER,CHIP
2203-006423 C165,C166,C168,C169 C-CER,CHIP
2203-006423 C304,C307,C308,C309 C-CER,CHIP
2203-006423 C310,C311,C312,C315 C-CER,CHIP
2203-006423 C316,C324,C326,C327 C-CER,CHIP
2203-006423 C328,C329,C330,C332 C-CER,CHIP
2203-006423 C335,C341,C360,C361 C-CER,CHIP
2203-006423 C367,C371,C372,C395 C-CER,CHIP
2203-006423 C396,C397,C400,C403 C-CER,CHIP
2203-006423 C427,C453,C490,C491 C-CER,CHIP
2203-006423 C500,C501,C511,C517 C-CER,CHIP
2203-006423 C535,C536,C537,C539 C-CER,CHIP
2203-006423 C552,C553,C554,C555 C-CER,CHIP
2203-006423 C605,C607,C608,C616 C-CER,CHIP
2203-006556 C106,C476 C-CER,CHIP
2203-006611 C229 C-CER,CHIP
2203-006642 C451,C452 C-CER,CHIP
2203-006648 C339,C347,C363,C364 C-CER,CHIP
2203-006648 C368 C-CER,CHIP
2203-006668 C333 C-CER,CHIP
2203-006712 C456 C-CER,CHIP
2203-006815 C362,C366 C-CER,CHIP
2203-006839 C103,C139,C606 C-CER,CHIP
2203-006841 C457,C472 C-CER,CHIP
2203-006872 C404,C434,C435,C436 C-CER,CHIP
2203-006872 C437,C469,C503,C505 C-CER,CHIP
2203-006872 C510,C621 C-CER,CHIP
2203-006968 C221 C-CER,CHIP
2203-006979 C468 C-CER,CHIP
2203-007194 C137,C223,C622 C-CER,CHIP
2203-007240 C200,C350,C358,C439 C-CER,CHIP
2203-007240 C440,C442,C443,C444 C-CER,CHIP
2203-007271 C113,C401,C405,C430 C-CER,CHIP
2203-007271 C431,C482 C-CER,CHIP
2203-007317 C154,C220,C222,C410 C-CER,CHIP
2203-007317 C411,C412,C418,C420 C-CER,CHIP

5-4
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
 Main Electrical Parts List

2203-007317 C425,C521,C523 C-CER,CHIP

2203-007369 C602 C-CER,CHIP
2203-007385 C205 C-CER,CHIP
2203-007391 C217,C218,C319,C370 C-CER,CHIP
2203-007391 C516 C-CER,CHIP
2203-007392 C101,C135 C-CER,CHIP
2203-007393 C153,C462,C464 C-CER,CHIP
2203-007449 C167,C320,C344,C345 C-CER,CHIP
2203-007449 C351,C354,C355,C356 C-CER,CHIP
2203-007449 C369,C402,C408,C409 C-CER,CHIP
2203-007449 C414,C415,C416,C419 C-CER,CHIP
2203-007449 C421,C422,C423,C424 C-CER,CHIP
2203-007449 C426,C428,C429,C458 C-CER,CHIP
2203-007449 C459,C460,C461,C487 C-CER,CHIP
2203-007449 C502,C512,C524,C526 C-CER,CHIP
2203-007449 C530,C531,C532,C543 C-CER,CHIP
2203-007449 C544,C619,C620,C623 C-CER,CHIP
2203-007449 C624,C625,C626 C-CER,CHIP
2203-007474 C201,C213,C219,C438 C-CER,CHIP
2203-007474 C455,C480 C-CER,CHIP
2203-007775 C483 C-CER,CHIP
2203-007781 C406,C441,C604,C611 C-CER,CHIP
2203-007781 C615 C-CER,CHIP
2203-007795 C470,C475,C610,C612 C-CER,CHIP
2203-007796 C463,C465,C488,C603 C-CER,CHIP
2203-007796 C609 C-CER,CHIP
2203-008094 C466 C-CER,CHIP
2203-008095 C504,C520,C522 C-CER,CHIP
2203-008097 C393,C394 C-CER,CHIP
2203-008123 BAT400 C-CER,CHIP
2203-008126 C109 C-CER,CHIP
2203-008177 C152 C-CER,CHIP
2203-008242 C305,C417,C494,C495 C-CER,CHIP
2203-008242 C496,C525,C618 C-CER,CHIP
2203-008243 C202,C203,C204,C207 C-CER,CHIP
2203-008243 C210,C215,C216 C-CER,CHIP
2203-008527 C111 C-CER,CHIP

5-5
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Main Electrical Parts List

2203-008529 C151 C-CER,CHIP

2203-008654 C471 C-CER,CHIP
2203-008759 C359,C432,C433,C445 C-CER,CHIP
2203-008759 C446,C447,C448 C-CER,CHIP
2203-008876 C477 C-CER,CHIP
2703-001231 L415 INDUCTOR-SMD
2703-002308 L413 INDUCTOR-SMD
2703-002309 L505 INDUCTOR-SMD
2703-002649 L125 INDUCTOR-SMD
2703-002903 L135 INDUCTOR-SMD
2703-002955 L122 INDUCTOR-SMD
2703-002961 L134 INDUCTOR-SMD
2703-004000 C230,L106,L107 INDUCTOR-SMD
2703-004012 L210 INDUCTOR-SMD
2703-004034 L104,L108,L117,L220 INDUCTOR-SMD
2703-004034 L223 INDUCTOR-SMD
2703-004035 C110,L105 INDUCTOR-SMD
2703-004036 L111 INDUCTOR-SMD
2703-004037 L118 INDUCTOR-SMD
2703-004038 C107,C133 INDUCTOR-SMD
2703-004073 L600,L602 INDUCTOR-SMD
2703-004193 L500,L501 INDUCTOR-SMD
2703-004286 L119 INDUCTOR-SMD
2703-004297 L409 INDUCTOR-SMD
2703-004299 L101 INDUCTOR-SMD
2703-004328 L204,L214 INDUCTOR-SMD
2703-004362 C100,L228 INDUCTOR-SMD
2703-004369 C122,L123 INDUCTOR-SMD
2703-004371 L126,L128 INDUCTOR-SMD
2703-004568 L133 INDUCTOR-SMD
2703-004684 L300 INDUCTOR-SMD
2703-004786 L414 INDUCTOR-SMD
2703-004976 L120,L121 INDUCTOR-SMD
2703-005056 L601 INDUCTOR-SMD
2703-005058 L109,L124 INDUCTOR-SMD
2703-005066 L400 INDUCTOR-SMD
2703-005116 L404 INDUCTOR-SMD

5-6
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
 Main Electrical Parts List

2703-005223 L401 INDUCTOR-SMD

2703-005224 L402,L403 INDUCTOR-SMD
2703-005252 L504 INDUCTOR-SMD
2801-005390 OSC400 CRYSTAL-SMD
2801-005397 OSC200 CRYSTAL-SMD
2901-001635 F600,F601,F602,F603 FILTER-EMI SMD
2901-001635 F604,F605,F606,F607 FILTER-EMI SMD
2901-001635 F608,F609 FILTER-EMI SMD
2904-002168 F204 FILTER-SAW
2904-002215 F102 FILTER-SAW
2909-001307 F202 FILTER-LC
2910-000228 F101 DUPLEXER-SAW
2910-000229 F100 DUPLEXER-SAW
2910-000321 F104 DUPLEXER-SAW
2910-000337 F103 DUPLEXER-SAW
3003-001138 MIC500 MIC MEMS
3301-001659 L216 BEAD-SMD
3301-001787 L516,L518 BEAD-SMD
3301-001789 L132,L605,L606,L607 BEAD-SMD
3301-001812 L502 BEAD-SMD
3301-001885 L507,L510,L511,L513 BEAD-SMD
3301-001885 L515,L517 BEAD-SMD
3301-001895 L227 BEAD-SMD
3301-001912 L410 BEAD-SMD
3301-001914 L408 BEAD-SMD
3301-002078 L506,L509 BEAD-SMD
3301-002228 L102 BEAD-SMD
3301-002235 L519,L520 BEAD-SMD
3301-002236 L405,L406,L407,L412 BEAD-SMD
3301-002236 L521 BEAD-SMD
3301-002248 L200 BEAD-SMD
3301-002254 L411 BEAD-SMD
3301-002286 L512,L514 BEAD-SMD
3301-002304 R607,R608 BEAD-SMD
3404-001460 TAC500,TAC501,TAC502 SWITCH-TACT
3705-001708 RFS101 CONNECTOR-COAXIAL
3705-001937 RFS100 CONNECTOR-COAXIAL

5-7
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Main Electrical Parts List

3708-003167 HDC602 CONNECTOR-FPC/FFC/PIC

3709-001698 SIM600 CONNECTOR-CARD EDGE
3711-007173 HDC301 HEADER-BOARD TO BOARD
3711-007467 HDC601 HEADER-BOARD TO BOARD
3711-008147 HDC600 CONNECTOR-HEADER
3711-008347 HDC500,HDC501 HEADER-BOARD TO BOARD
3711-008430 HDC400 HEADER-BOARD TO BOARD
3711-008591 BTC400 CONNECTOR-BATTERY
3712-001543 ANT200,ANT202,ANT500 CONNECTOR-TERMINAL
3712-001543 ANT501,ANT502,ANT503 CONNECTOR-TERMINAL
4709-002285 F201 FREQ-DISTRIBUTER
GH62-00030A GA1000,GA1001,GA1005 SOCKET-PCB GASKET
GH62-00030A GA1006,GA1007,GA1008 SOCKET-PCB GASKET
GH98-35932A SC101 ASSY COVER-SHIELD CAN PMIC
GH98-36045A SC100 ASSY COVER-SHIELD CAN RF_3G

Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.

5-8
Confidential and proprietary-the contents in this service guide subject to change without prior notice.
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
