6.

PCB DIAGRAM

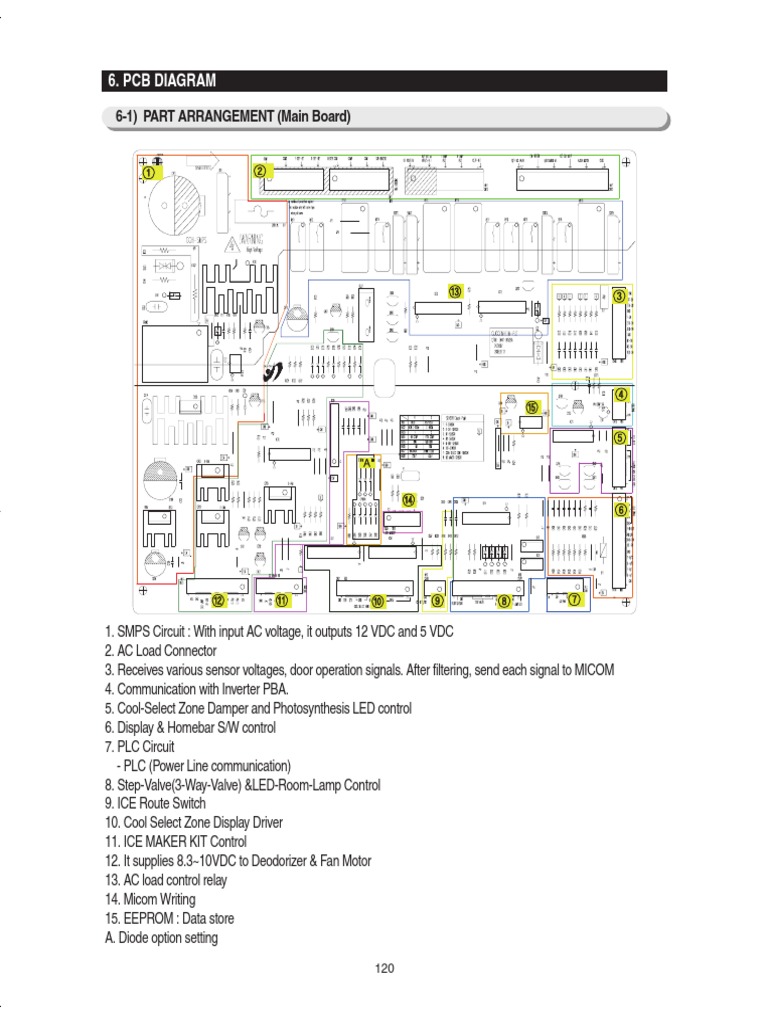

6-1) PART ARRANGEMENT (Main Board)

1. SMPS Circuit : With input AC voltage, it outputs 12 VDC and 5 VDC


2. AC Load Connector
3. Receives various sensor voltages, door operation signals. After filtering, send each signal to MICOM
4. Communication with Inverter PBA.
5. Cool-Select Zone Damper and Photosynthesis LED control
6. Display & Homebar S/W control
7. PLC Circuit
- PLC (Power Line communication)
8. Step-Valve(3-Way-Valve) &LED-Room-Lamp Control
9. ICE Route Switch
10. Cool Select Zone Display Driver
11. ICE MAKER KIT Control
12. It supplies 8.3~10VDC to Deodorizer & Fan Motor
13. AC load control relay
14. Micom Writing
15. EEPROM : Data store
A. Diode option setting
120
PCB DIAGRAM

6-2) Parts Layout (Inverter comp control Board)

1. Power supply: The power supply circuit makes the non-isolated 15V and 5V voltage source for the IPM drive
circuit and the MCU
2. Motor back-emf detection circuit: The motor back-emf detection circuit is to detect the zero-crossing point of
motor back-emf by sensing the 3-phase output voltage of the motor drive circuit.
3. MCU-IPM interface: This circuit is to interface between IPM and the MCU. The MCU feeds the gate control
signals for IGBTs to IPM and the IPM sends the status signal to the MCU.
4. Current detection circuit: The current detection circuit is to detect the DC link current by sensing the voltage of
the shunt resistor.
5. Comp. drive command circuit: The comp. drive command circuit is to transfer the external command signal to
the MCU.
6. IPM bootstrap circuit:The IPM bootstrap circuits make the floated 15V voltage source for the high-side IGBT
drive circuit of the IPM.

121
PCB DIAGRAM

6-3) Connector Arrangement & Description (Main Board)

122
PCB DIAGRAM

6-4) Connector Layout & Description (Inverter comp control Board)

123
