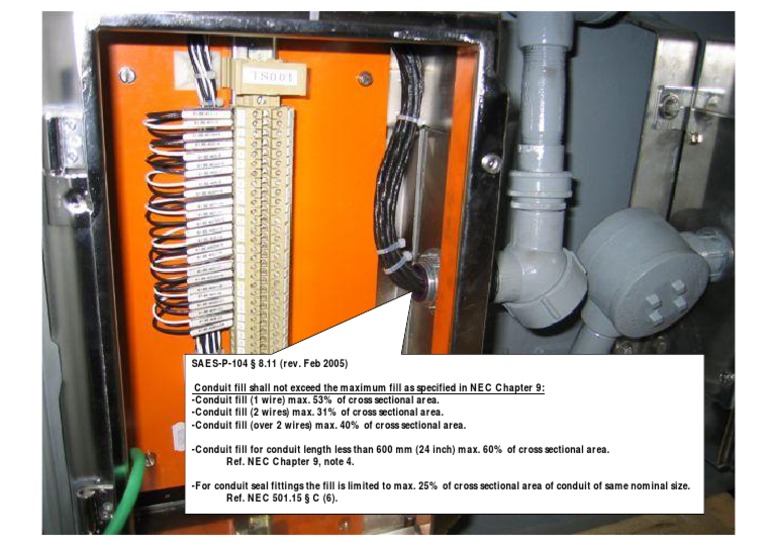

    SAES-P-104 § 8.11 (rev.

    Feb 2005)

    Conduit fill shall not exceed the maximum fill as specified in NEC Chapter 9:
    -Conduit fill (1 wire) max. 53% of cross sectional area.
    -Conduit fill (2 wires) max. 31% of cross sectional area.
    -Conduit fill (over 2 wires) max. 40% of cross sectional area.

    -Conduit fill for conduit length less than 600 mm (24 inch) max. 60% of cross sectional area.
    Ref. NEC Chapter 9, note 4.

    -For conduit seal fittings the fill is limited to max. 25% of cross sectional area of conduit of same nominal size.
    Ref. NEC 501.15 § C (6).
