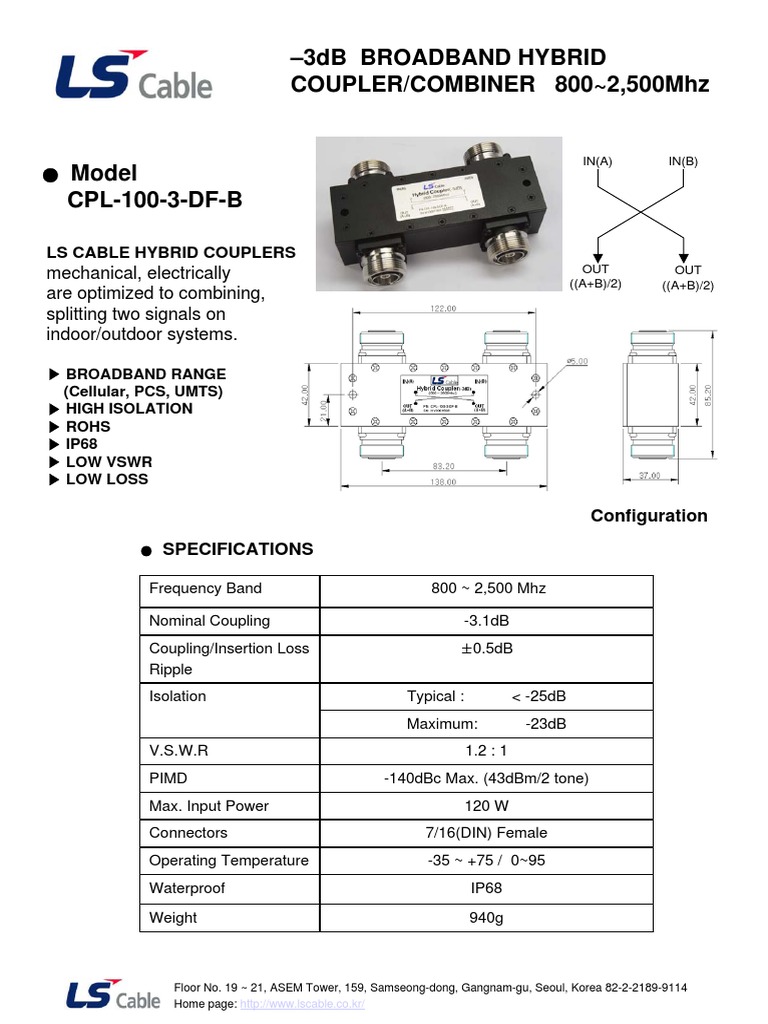

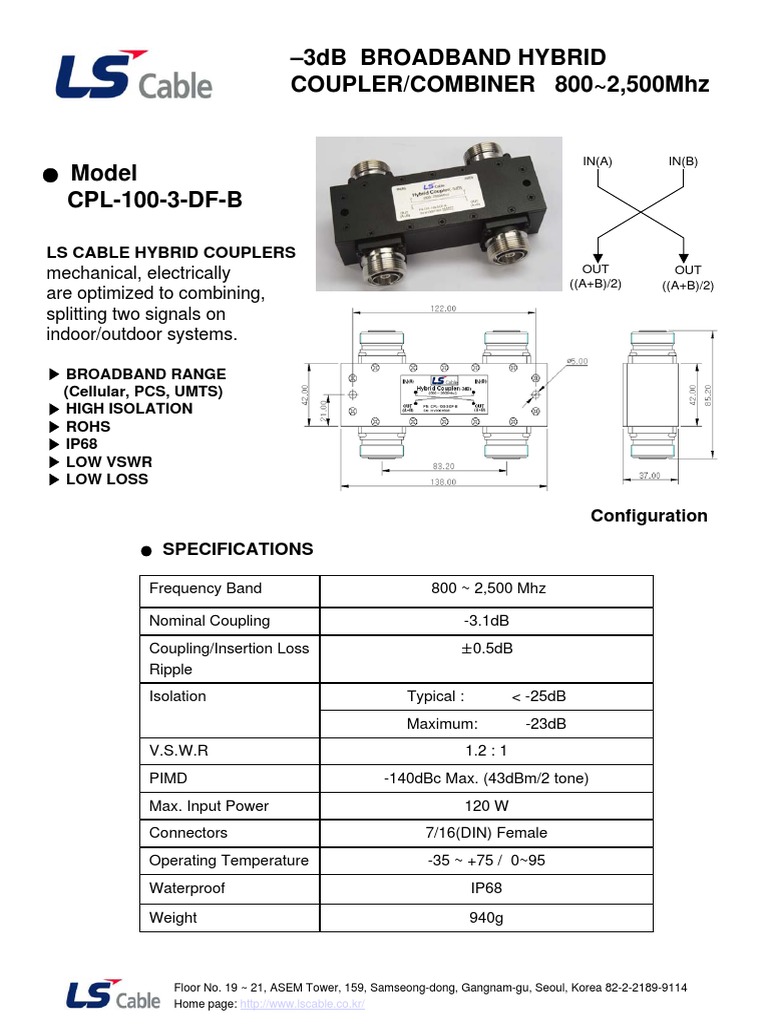

    –3dB BROADBAND HYBRID

    COUPLER/COMBINER 800~2,500Mhz

    IN(A) IN(B)
    ● Model
    CPL-100-3-DF-B

    LS CABLE HYBRID COUPLERS


    mechanical, electrically OUT OUT
    ((A+B)/2) ((A+B)/2)
    are optimized to combining,
    splitting two signals on
    indoor/outdoor systems.

    ▶ BROADBAND RANGE
    (Cellular, PCS, UMTS)
    ▶ HIGH ISOLATION
    ▶ ROHS
    ▶ IP68
    ▶ LOW VSWR
    ▶ LOW LOSS

    Configuration
    ● SPECIFICATIONS

    Frequency Band 800 ~ 2,500 Mhz

    Nominal Coupling -3.1dB


    Coupling/Insertion Loss ±0.5dB
    Ripple
    Isolation Typical : < -25dB
    Maximum: -23dB
    V.S.W.R 1.2 : 1
    PIMD -140dBc Max. (43dBm/2 tone)
    Max. Input Power 120 W
    Connectors 7/16(DIN) Female
    Operating Temperature -35 ~ +75 / 0~95
    Waterproof IP68

    Weight 940g

    Floor No. 19 ~ 21, ASEM Tower, 159, Samseong-dong, Gangnam-gu, Seoul, Korea 82-2-2189-9114
    Home page: http://www.lscable.co.kr/
