Lecture17 NoSQL Databases

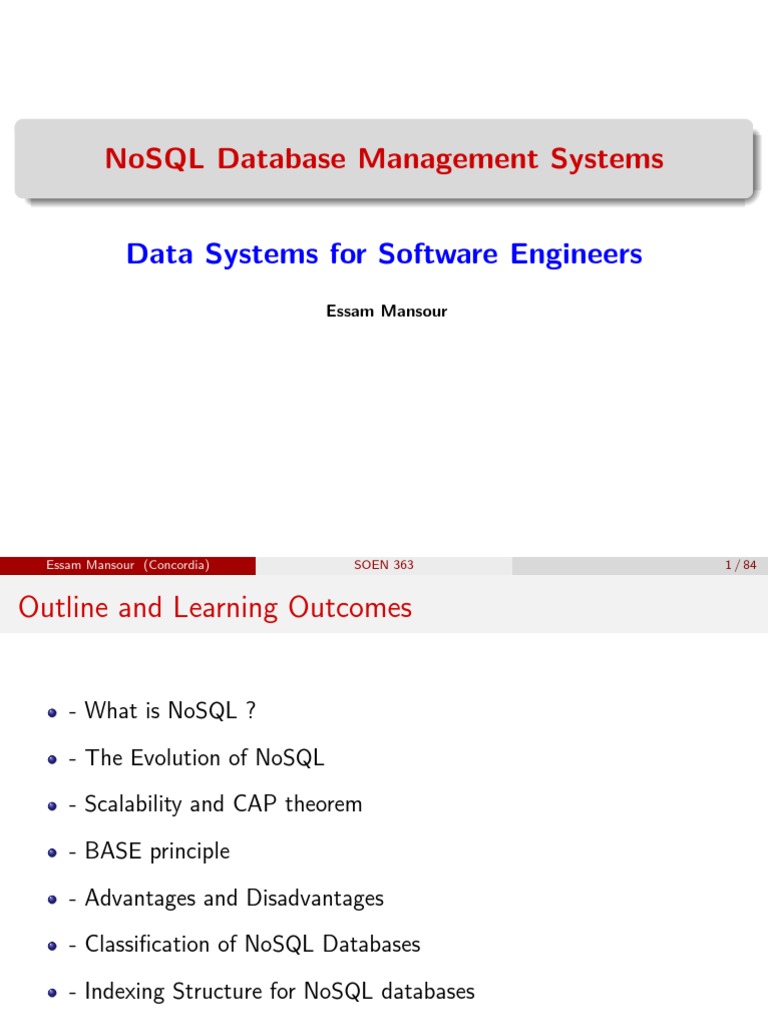

NoSQL Database Management Systems
Data Systems for Software Engineers

Essam Mansour
Essam Mansour (Concordia) SOEN 363 1 / 84

Outline and Learning Outcomes
- What is NoSQL ?
- The Evolution of NoSQL
- Scalability and CAP theorem
- BASE principle
- Advantages and Disadvantages
- Classification of NoSQL Databases
- Indexing Structure for NoSQL databases
- Cloud Spanner

Outline
- What is NoSQL ?
- BASE principle
- Cloud Spanner

Why NoSQL?

Why NoSQL?
For decades, relational database management systems (MySQL, Post-

greSQL, SQL Server, Oracle) have been considered as the one-size-fits-
all solution for providing data persistence and its retrieval for decades.
The ever increasing need for scalability and new application require-
ments have created new challenges for traditional RDBMS.
At some stage, there has been some dissatisfaction with this one-size-
fits-all approach in deploying the data storage tier for large scale online
web services.

What is NoSQL?
An umbrella term for all database management systems that don’t

follow the popular and well established RDBMS principles and
often relate to large data sets accessed and manipulated on a Web
scale1 .
NoSQL = Not ONLY SQL
NoSQL implies that more than one storage mechanism could be used
based on the needs.
1
Tiwari, S. (2011). Professional NoSQL. John Wiley & Sons.
What is NoSQL?
NoSQL is not a single product or even a single technology. It represents
a class of products and a collection of diverse, and sometimes related,
concepts about data storage and manipulation.
NoSQL database systems represent a new generation of low-cost, high

performance database software which is increasingly gaining more and
more popularity.

How it is different?
Don’t use SQL as a query language.

No Fixed Schema

No Join Operations
Expensive Operation for combination of records from two or more
tables
Requires fixed Schema and Strong Consistency

Allows Distributed, Fault-tolerant Architecture

NoSQL systems allow you to store your database on multiple nodes and
maintain high-speed performance.
Allows Linear Scalability

When you add more nodes, you get a consistent increase in performance.

Outline
- What is NoSQL ?
- BASE principle
- Cloud Spanner

Brief History
MultiValue Databases at TRW in 1965

DBM - AT&T in 1979
Carlo Strozzi used ”NoSQL” Term to name a lightweight open
source relational database with a different standard SQL inter-
face in 1998
Graph Database - Neo4j in 2000
Distributed Key/Value Store Google BigTable in 2004
Document Database - CouchDB started in 2005
Cloud Key/Value Data Store - Amazon Dynamo
Document Database - MongoDB in 2007
Facebook Cassandra Project in 2008
Project Voldemort by LinkedIn in 2008
Term NoSQL has been defined and reintroduced in 2009

NoSQL Evolution
World Wide Webs (Web 2.0) Companies started to face scalability
issues with the huge growing data and infrastructure.
Many companies came up with their own solutions to these problems
with new technologies like
Google: BigTable2
Apache: Cassandra3
Amazon: DynamoDB4
2
https://cloud.google.com/bigtable/
3
http://cassandra.apache.org/
4
https://aws.amazon.com/dynamodb/
NoSQL Evolution
The number of NoSQL Database Management Systems increased every

year with main goals on performance, reliability, consistency, and
enhancing search and read performance5 .
The success of the first NoSQL DBMS initiated the development of

more similar open-source and proprietary database systems.
Currently, there is a huge variety of cloud database systems available
Commercial: Amazon Simple DB, Amazon DynamoDB, Microsoft

Azure Table Storage.
Open Source: HBase, Cassandra, Voldemort, CouchDB, MongoDB
5
Sakr, S., Liu, A., Batista, D. M., Alomari, M. (2011). A survey of large scale data
management approaches in cloud environments. IEEE Communications Surveys &
Tutorials.
Where is NoSQL now?
BigTable Voldemort Cassandra HBase HBase

Outline
- What is NoSQL ?
- BASE principle
- Cloud Spanner

Limitations of the distributed databases are:
Consistency
Every node needs to always see the same data value at any given instance

Availability
The system should continue to operate even if nodes in a cluster crash
or some of the hardware/software parts are down at any time.

Partition Tolerance
The systems continues to operate in the presence of network partitions.

CAP Theorem:
Any distributed database with shared data, can have at most two of
the three desirable properties underlineConsistency, underlineAvail-
ability, and underlinePartition Tolerance

Availability + Partition Tolerance = Not Consistent

Consistency + Partition Tolerance = Not Available,
waiting...

Availability + Consistency = Not Partitioned

Outline
- What is NoSQL ?
- BASE principle
- Cloud Spanner

Reliable Database Transactions Control
Transaction control is important with respect to performance and con-

sistency in distributed computing environments.
Two Transaction Control Models are usually used which are:

ACID: used in RDBMS
BASE: used in many NoSQL Systems
The difference between these models is in the amount of effort required

by application developers and the location (tier) of the transactional
controls.

Example
You have two bank accounts ”Checking” and ”Savings”.
You want to transfer 1000$ from ”Savings” to ”Checkings” using the
transfer form on the bank website.

RDBMS Control Using ACID
Atomicity: The transaction must happen as an all or nothing.

Consistency: You shouldn’t have a report showing the withdrawal
from Savings account without addition to checkings. (ie. Database
should block all reports during atomic operations)
Isolation: each part of the transaction occurs without knowledge of
other parts.
Durability: Once the transaction is done, it should be permanent. (If
database crashes, all the done transactions must be restored from the
last backup points).

RDBMS Control Using ACID
The main focus of ACID systems is the integrity and consistency of
data above any other considerations.
Losing the availability by temporarily blocking mechanisms is the only
way to ensure the reliability and accuracy of the information given by
the system.
ACID system is said to be pessimistic as they must consider all possible
failure nodes in a computing environment.

Example
You are buying some items from a website that uses the ”Shopping
Cart” and ”CheckOut” constructs.
The issue here is that if you have used the ACID transaction control
system, you may prevent some customers from taking an order and
block them for a while so you may lose this customer.

NoSQL Control Using BASE
Basic Availability: It means that the system can be temporarily in-

consistent so that transactions are manageable and all information and
services are ”Basically Available”.
Soft-State: It means that some inaccuracies are allowed and data
may change during usage to reduce the amount of used resources for
the sake of availability.
Eventual Consistency: It means that at certain point when all the
service logic is executed, the system will turn into a consistent state6 .
6
Vogels, Werner. Eventually consistent. Communications of the ACM (2009)
NoSQL Control Using BASE
The main focus of BASE systems is the availability of services above

any other considerations. We should allow new data to be stored all
time even at the risk of being out of sync for a short period of time7 .
BASE systems tend to be simpler and faster than ACID as they don’t
require handling of many events by locking and unlocking resources like
in case of ACID systems
BASE system is said to be optimistic as it is assumed that all systems

will eventually catch up and become consistent.
7
Pritchett, Dan. BASE: An ACID alternative. ACM Queue (2008
Reliable Database Transactions Control

Outline
- What is NoSQL ?
- BASE principle
- Cloud Spanner

Advantages of NoSQL Databases:
Simple and Flexible Structure = Schema Free
Based on Key-Value Pairs
Some Store types include Column Store, Document Store, Object
Store, XML Store, Graph Store, etc.
It can allow storage of serialized objects into the database.
Open Source NoSQL databases don’t need expensive licensing fees
and can run on inexpensive hardware.
Expansion is always cheaper and easier than relational databases.
It depends on Horizontal scaling by distributing the load over more
nodes. On the contrary, Relational databases scale vertically by replac-
ing main host with a more powerful one.

Disadvantages of NoSQL Databases:
They don’t support the reliability features of relational databases
and ACID transaction control systems (Atomicity, Consistency, Isola-
tion, Durability).
They trade consistency for the sake of availability, performance and
scalability.
Each type of NoSQL databases always has a limited number of ap-
plications.
Incompatibility with the SQL queries and the need of a manual/propriet
querying language which adds more complexity.
They don’t support Joins/ Group By/ Order By/ ACID transac-
tions.

SQL Vs NoSQL

Outline
- What is NoSQL ?
- BASE principle
- Cloud Spanner

Classification of NoSQL Databases



Querying Data in NoSQL
Syntax Varies (No standard interface or language)
No set-based query language terms of constraints.
Procedural Program Languages such as Java, C, etc.
Application specifies retrieval path.
No query Optimizer

A directed Graph structure is used to represent the data.
The graph includes a set of nodes, each represents an object. Some
pairs of objects are connected by links (edges) representing relations
between objects.
It is used typically in social networking applications.
It allows developers to focus on relations between objects rather
than the objects themselves.
They are powerful for graph queries like (shortest path, connected
components, etc.)
Example: Neo4J8
8
https://neo4j.com/
Example:

Neo4j uses Cypher as a declarative graph query language
It allows expressive and efficient querying and updating of a property
graph.
Cypher is a relatively simple but still very powerful language in which
very complicated database queries can easily be expressed through
Cypher.

CREATE
The command CREATE will create a new node/edge

CREATE (a:Studentname:’Tarun’) -> (NODE)
CREATE (a:Studentname:’Bob’)-> (NODE)
CREATE (b:Cityname:’Tartu’, located In:’Estonia’)-> (NODE)
CREATE (c:Coursename:’Data Management’)-> (NODE)
CREATE (b)<-[:Live In]-(a)-[:Studysemester:’spring’]->(c) ->
(EDGE)

READ
The MATCH command will retrieve all the nodes with specific relation
MATCH (a)-[b]->(x) RETURN a,b,x

UPDATE
The MERGE command will merge some nodes together after

matching.
The SET command will update/insert some data to a node/edge
after matching.
MATCH (n:Cityname:’Tartu’)
SET n.population:’100k’
MATCH (n:Studentname:’Tarun’), (m:Studentname:’Bob’)
MERGE (n)-[:Friendship]->(m),
(m)-[:Friendship]->(n)
DELETE
The DELETE command will delete an edge/node after making a

Match
MATCH e = (n:Studentname:’Bob’)-[r]-(n:Studentname:’Tarun’)
DELETE e
MATCH (n:Studentname:’Bob’)
DELETE n

CREATE
Very similar to SQL commands
The INSERT command will perform an insert operation into a table.
INSERT INTO students (idNo, name, city) VALUES (87787, Tarun,

Tartu);

READ
The SELECT command will retrieve data from a given table.

These keywords help in forming the SELECT queries:
WHERE: This keyword will specify the location where data is to be
selected.
FROM: This keyword will specify the table to select from.
Examples:
SELECT * FROM students
SELECT city, name FROM students
SELECT name FROM students WHERE city = ’tartu’

UPDATE
The UPDATE command will update values of a certain key in the

table.
These keywords help in forming the update queries:
Where: This keyword will specify the location where data is to be
updated.
Set: This keyword will specify the updated value.
Must: This keyword includes the columns composing the primary key.
Example:
UPDATE students SET city = Tallinn WHERE idNo = 87787

DELETE
The DELETE command will delete an entry from a given table.

These keywords help in forming the DELETE queries:
WHERE: This keyword will specify the location where data is to be
deleted.
FROM: This keyword will specify the table to delete from.
Example:
DELETE FROM students WHERE city = ’tartu’

A hybrid of RDBMS and Key-Value stores.
Data is stored in columns as opposed to being stored in rows as in
Relational database management systems.
It consists of one or more column families that group certain columns
in the database and each key is used to identify and point to one
family.

Each column includes tuples of names and values comma sepa-
rated.
Fast Data Aggregation
Rows that correspond to a single column are stored as a single disk

entry which leads to faster access during read/write operations.
Example: HBase9
9
https://hbase.apache.org/
Example:
Country Product Sales
US Alpha 3000
US Beta 1250
ES Alpha 700
UK Alpha 450

CREATE
”Create” will create new table. Eg: create ’<table name>’,

’<column family name>’, ’<column family name>’, ...
”Put” will insert data into a table.
Example:
create ’student’, ’personal data’, ’courses’
Put ’student’,’87787’, ’personal data:name’,’Tarun’
Put ’student’,’87787’, ’personal data:city’,’Tartu’
Put ’student’,’87787’, ’courses:spring’,’Data Management’

READ
The ”get” command will retrieve data from a given table based on
some parameters
The ”scan” command will retrieve all data from a given table
get ’students’, ’87787’
get ’students’, ’87787’,COLUMN=>’personal data:city’
scan ’students’

UPDATE
The ”put” command will insert/overwrite/ update entries in a table.
put ’students’, ’87787’, ’personal data:city’, ’tallinn’

DELETE
The ”delete” command will delete an entry document from table.
delete ’students’, ’87787’, ’courses:spring’

It is similar to key-value stores in that they are schema-less and have
the same advantages/disadvantages.
The value of each key stored in the database is a ”document” with
many possible different encodings like XML, JSON, BSON (Binary
Encoded JSON).
Documents themselves can contain many different key-value pairs, key-
array pairs, or nested documents.
Documents can be indexed which leads to outperformance of
traditional file systems.
Example: MongoDB10
10
https://www.mongodb.com/
Example:

CREATE
The command ”db.collection.insert()” will perform an insert

operation into a collection of a document.

READ
The find() command will retrieve all the documents of the given
collection.
db.collection name.find()
If a document is to be retrieved based on some criteria. Then, we

should pass some parameters in the find() command
db.students.find(”idNo”:”87787”)

UPDATE
If a document is to be retrieved based on some criteria. Then, we

should pass some parameters in the update()command, and set the
new attributes using $set
The update() command will retrieve all the documents of the given
collection.
db.collection name.update()
db.student.update( ”idNo”: ”87787” ,$set: ”name”:”Tarun”)

DELETE
db.collection name.remove()
The remove() command will delete an entry document from a given

collection.
db.students.remove(”idNo”:”87787”)

NoSQL Databases11
11
http://nosql-database.org/
Outline
- What is NoSQL ?
- BASE principle
- Cloud Spanner

Indexing Structures for NoSQL Databases
The process of associating a key with the location of a corresponding

data record in a Database management system is called indexing.
The three of the most common methods used in the process of indexing
in NoSQL databases are:
B-Tree Indexing
T-Tree Indexing
O2-Tree Indexing

One Size Does Not Fit All
There has been a big debate between the proponents of the NoSQL
and RDBMS camps which is centered around the right choice for im-
plementing online transaction processing systems.
RDBMS proponents think that the NoSQL camp has not spent suffi-
cient time to understand the foundation of the transaction model,
The NoSQL camp argues that the domain specific optimization oppor-
tunities of NoSQL systems gives more flexibility to the developers.
However, they admit that making optimization decision requires a lot
of experience and can be very error-prone and dangerous if not done
by experts.

Outline
- What is NoSQL ?
- BASE principle
- Cloud Spanner

Cloud Spanner13
Spanner is Google’s globally distributed NewSQL database12 .
Cloud Spanner is the only enterprise-grade, globally-distributed, and

strongly consistent database service built for the cloud specifically
to combine the benefits of relational database structure with non-
relational horizontal scale.
This combination delivers high-performance transactions and strong

consistency across rows, regions, and continents with an industry-
leading 99.999% availability SLA, no planned downtime, and enterprise-
grade security.
Cloud Spanner revolutionizes database administration and management

and makes application development more efficient.
12
Corbett, James C., et al. Spanner: Google’s globally distributed database. ACM
Transactions on Computer Systems (TOCS), 2013
13
https://cloud.google.com/spanner/
Cloud Spanner14
14
https://cloud.google.com/spanner/
NewSQL
NewSQL is a combination of SQL and NoSQL15 .
It is a class of modern RDBMS that seeks to provide:

The same scalable performance of NoSQL systems for online transaction
processing (read-write) workloads.
Maintaining the ACID guarantees of a traditional database system.
NewSQL systems are relational databases designed to provide:

ACID compliance, real-time OLTP (Online Transaction Processing).
Conventional SQL-based OLAP (Online Analytic Processing) in Big Data

Environments.
15
Grolinger, Katarina, et al. Data management in cloud environments: NoSQL and
NewSQL data stores. Journal of Cloud Computing: advances, systems and applications,
2013
NewSQL
These Systems break through conventional RDBMS performance lim-

its by employing NoSQL style features such as column-oriented data
storage and distributed architectures, or by employing technologies like
in-memory processing, symmetric multiprocessing (SMP), or massively
parallel processing (MPP)

NewSQL

Three Eras of Databases
Current Market Status
Data
Data Warehouse
Warehouse RDBMS
RDBMS
RDBMS NoSQL
1985-1995
1995-2010 2010-Now
• RDBMS for transactions, Data Warehous

for analytics and NoSQL for …?
What’s next?

The End

Lecture17 NoSQL Databases

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Lecture17 NoSQL Databases

Uploaded by

Copyright:

Available Formats

NoSQL Database Management Systems

Data Systems for Software Engineers

Essam Mansour (Concordia) SOEN 363 1 / 84

- The Evolution of NoSQL

- Scalability and CAP theorem

- Advantages and Disadvantages

- Classification of NoSQL Databases

- Indexing Structure for NoSQL databases

Essam Mansour (Concordia) SOEN 363 2 / 84

- The Evolution of NoSQL

- Scalability and CAP theorem

- Advantages and Disadvantages

- Classification of NoSQL Databases

- Indexing Structure for NoSQL databases

Essam Mansour (Concordia) SOEN 363 3 / 84

Essam Mansour (Concordia) SOEN 363 5 / 84

For decades, relational database management systems (MySQL, Post-

Essam Mansour (Concordia) SOEN 363 6 / 84

An umbrella term for all database management systems that don’t

NoSQL database systems represent a new generation of low-cost, high

Essam Mansour (Concordia) SOEN 363 8 / 84

Don’t use SQL as a query language.

Essam Mansour (Concordia) SOEN 363 9 / 84

Essam Mansour (Concordia) SOEN 363 10 / 84

Requires fixed Schema and Strong Consistency

Essam Mansour (Concordia) SOEN 363 11 / 84

Allows Distributed, Fault-tolerant Architecture

Allows Linear Scalability

Essam Mansour (Concordia) SOEN 363 12 / 84

- The Evolution of NoSQL

- Scalability and CAP theorem

- Advantages and Disadvantages

- Classification of NoSQL Databases

- Indexing Structure for NoSQL databases

Essam Mansour (Concordia) SOEN 363 13 / 84

MultiValue Databases at TRW in 1965

Essam Mansour (Concordia) SOEN 363 15 / 84

The number of NoSQL Database Management Systems increased every

The success of the first NoSQL DBMS initiated the development of

Currently, there is a huge variety of cloud database systems available

Commercial: Amazon Simple DB, Amazon DynamoDB, Microsoft

Open Source: HBase, Cassandra, Voldemort, CouchDB, MongoDB

BigTable Voldemort Cassandra HBase HBase

Essam Mansour (Concordia) SOEN 363 18 / 84

- The Evolution of NoSQL

- Scalability and CAP theorem

- Advantages and Disadvantages

- Classification of NoSQL Databases

- Indexing Structure for NoSQL databases

Essam Mansour (Concordia) SOEN 363 19 / 84

Essam Mansour (Concordia) SOEN 363 20 / 84

Essam Mansour (Concordia) SOEN 363 21 / 84

Essam Mansour (Concordia) SOEN 363 22 / 84

Essam Mansour (Concordia) SOEN 363 23 / 84

Essam Mansour (Concordia) SOEN 363 24 / 84

Essam Mansour (Concordia) SOEN 363 25 / 84

Essam Mansour (Concordia) SOEN 363 26 / 84

- The Evolution of NoSQL

- Scalability and CAP theorem

- Advantages and Disadvantages

- Classification of NoSQL Databases

- Indexing Structure for NoSQL databases
