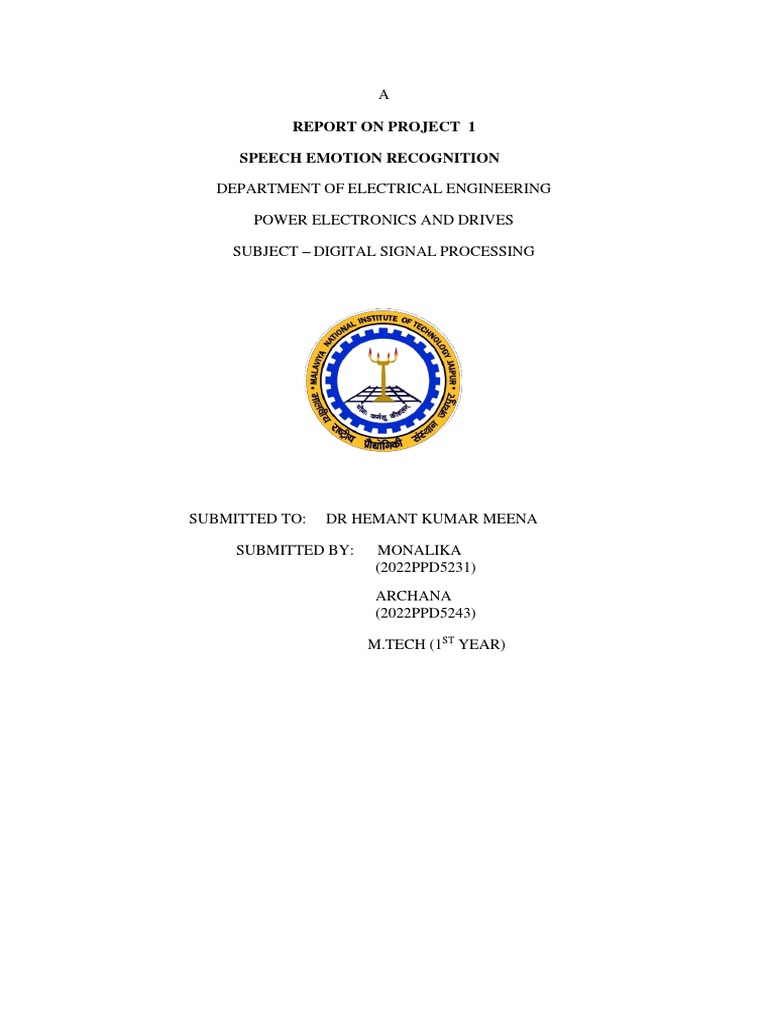

A

REPORT ON PROJECT 1

SPEECH EMOTION RECOGNITION

DEPARTMENT OF ELECTRICAL ENGINEERING

POWER ELECTRONICS AND DRIVES

SUBJECT – DIGITAL SIGNAL PROCESSING

SUBMITTED TO: DR HEMANT KUMAR MEENA

SUBMITTED BY: MONALIKA

(2022PPD5231)
ARCHANA
(2022PPD5243)

M.TECH (1ST YEAR)

 CONTENTS

1. Abstract
2. Introduction
3. Flow chart
4. Running code
5. Training and testing input
6. Accuracy achieved
7. Instructions for running the code
 ABSTRACT
Virtually all audio recordings contain some amount of noise. This noise may join audio
signal during recording process or due to long media storage. To produce best quality
audio recordings these unwanted audio noises must be removed to the greatest extent
possible. Noise cancellation of audio signal is key challenge problem in Audio Signal
Processing. Since noise is random process and varying every instant of time, noise is
estimated at every instant to cancel from the original signal. There are many schemes
for noise cancellation but most effective scheme to accomplish noise cancellation is to
use adaptive filter. Active Noise Cancellation (ANC) is achieved by introducing “anti-
noise” wave through an appropriate array of secondary sources. These secondary sources are
interconnected through an electronic system using a specific signal processing algorithm for
the particular cancellation scheme. In this paper, the three conventional adaptive algorithms;
RLS(Recursive Least Square), LMS(Least Mean Square) and NLMS(Normalized Least Mean
Square) for ANC are analyzed based on single channel broadband feed forward. For
obtaining faster convergence, Normalized Least Mean Square (NLMS) algorithm is modified
and associated extended algorithm under Gaussian noise assumption. Simulation results
indicate a higher quality of noise cancellation and more minimizing mean square error
(MSE).
 INTRODUCTION
Audio noise reduction system is that kind of system which is helpful to remove unwanted
noise from speech signals. Audio noise reduction can be classified into two kinds.
Complementary type and non-complementary type. One cannot effectively use speech
communication in an environment in which the background noise level is too high. It
interferes with the original message and corrupts the parameters of the message signal.
Noise can be defined as an unwanted signal that interferes with the communication or
measurement of another signal. A noise itself is an information-bearing signal that conveys
information regarding the sources of the noise and the environment in which it propagates.
The types and sources of noise and distortions are many and include: (i) electronic noise such
as thermal noise and shot noise, (ii) acoustic noise emanating from moving, vibrating or
colliding sources such as revolving machines, moving vehicles, keyboard clicks, wind and
rain, (iii) electromagnetic noise that can interfere with the transmission and reception of
voice, image and data over the radio-frequency spectrum, (iv) electrostatic noise generated
by the presence of a voltage, (v) communication channel distortion and fading and (vi)
quantization noise and lost data packets due to network congestion.
FLOW CHART
 4. Running code

from google.colab import drive

drive.mount('/content/drive')
import numpy as np
import IPython
import wave
import struct
import matplotlib.pyplot as plt

#Importing audio file from drive

audiofile = '/content/drive/MyDrive/whistle_withoutac.wav'
IPython.display.Audio(audiofile)

#Converting m4a file to wav format

!pip install pydub

from pydub import AudioSegment
file_extension = 'm4a'
track = AudioSegment.from_file(audiofile, file_extension)
audiofile_wave = audiofile.replace(file_extension, 'wav')
file_handle = track.export(audiofile_wave, format='wav')
print(audiofile_wave)
IPython.display.Audio(audiofile_wave)

#Reading wav file

# from scipy.io import wavfile

# fs, data = wavfile.read(audiofile_wave)
# print(fs, len(data))
from scipy import fftpack
wav_file = wave.open(audiofile_wave, 'r')
nchannels, sampwidth, framerate, nframes, comptype, compname = wav_file.getparams()
print("Params:", "\n\tChannel:", nchannels, "\n\tSample Width:", sampwidth,
"\n\tFramerate:", framerate, "\n\t
Number of Frames:", nframes, "\n\tcomptype:", comptype, "\n\tCompname:", compname)

# Reading wave format data from wav file.

frames_wave = wav_file.readframes(nframes)
wav_file.close()
print("Length:", nframes)

# Deserializing
frames_wave = struct.unpack('{n}h'.format(n=nframes), frames_wave)
frames_wave = np.array(frames_wave)
print("Min value:", np.min(frames_wave), "Max value:", np.max(frames_wave)
#Applying Fourier

#Fast Fourier Transform

# frames_freq_domian = np.fft.fft(frames_wave)
frames_freq_domian = fftpack.fft(frames_wave)

# Above value is in complex number but we want absolute number

# This will give us the frequency we want
magnitude = np.abs(frames_freq_domian) # Or ampliude ?
phase = np.angle(frames_freq_domian) # Normally we are not interested in phase
information, its only used in
reconstruction.

print(magnitude.shape, phase.shape)
print("The max frequency (highest magnitude) is {} Hz".format(np.where(magnitude ==
np.max(magnitude))[
0][0]))

fig = plt.figure(figsize = (25, 6))

fig.suptitle('Original wav data')

ax1 = fig.add_subplot(1,3,1)
ax1.set_title("Original audio wave / Spatial Domain")
ax1.set_xlabel("Time(s)")
ax1.set_ylabel("Amplitude (16 bit depth - Calulated above)")
ax1.plot(frames_wave)
ax2 = fig.add_subplot(1,3,2)
ax2.set_title("Frequency by magnitude (Max at {} Hz) / Frequency
Domain".format(np.where(magnitude == n
p.max(magnitude))[0][0]))
ax2.set_xlabel("Frequency (Hertz)")
ax2.set_ylabel("Magnitude (normalized)")
ax2.set_xlim(0, 44100) # we are not interested in rest
ax2.plot(magnitude / nframes) # Normalizing magnitude
ax3 = fig.add_subplot(1,3,3)
ax3.set_title("[Unclipped]Frequency by magnitude (Max at {} Hz) / Frequency
Domain".format(np.where(ma
gnitude == np.max(magnitude))[0][0]))
ax3.set_xlabel("Frequency (Hertz)")
ax3.set_ylabel("Magnitude (normalized)")
ax3.plot(magnitude / nframes) # Normalizing magnitude
plt.show()

#Filtering the signal

from scipy import signal

from matplotlib import pyplot as plt
def butter_pass_filter(data, cutoff, fs, order=5):
nyq = 0.5 * fs # Nyquist frequency
normal_cutoff = cutoff / nyq # A fraction b/w 0 and 1 of sampling rate
print("normal_cutoff:", normal_cutoff, (data.shape[0] / 2) * normal_cutoff) # Tricky ?
b, a = signal.butter(order, normal_cutoff, btype='high', analog=False)
y = signal.filtfilt(b, a, data)

def _plot_graph():
# Get the filter coefficients so we can check its frequency response.
# Plot the frequency response.
w, h = signal.freqz(b, a, worN=8000)
plt.subplot(2, 1, 1)
plt.plot(0.5 *fs*w/np.pi, np.abs(h), 'b')
plt.plot(cutoff, 0.5 * np.sqrt(2), 'ko')
plt.axvline(cutoff, color='k')
plt.xlim(0, 0.5*fs)
plt.title("Filter Frequency Response")
plt.xlabel('Frequency [Hz]')
plt.grid()
plt.show()
_plot_graph()
return y

# Filter requirements.
order = 10
fs = framerate #* 6.28 # sample rate, Hz
cutoff = 900 #* 6.28 # desired cutoff frequency of the filter, Hz

# Get the filter coefficients so we can check its frequency response.

y = butter_pass_filter(frames_wave, cutoff, fs, order)
print(frames_wave.shape, y.shape, np.array_equal(frames_wave, y))
fig = plt.figure(figsize = (25, 6))
# fig.suptitle('Horizontally stacked subplots')

ax1 = fig.add_subplot(1,4,1)
ax1.set_title("[After Filter] Original audio wave / Spatial Domain")
ax1.set_xlabel("Time(s)")
ax1.set_ylabel("Amplitude (16 bit depth - Calulated above)")
ax1.plot(y)
ax2 = fig.add_subplot(1,4,2)
ax2.set_title("[Before Filter] Original audio wave / Spatial Domain")
ax2.set_xlabel("Time(s)")
ax2.set_ylabel("Amplitude (16 bit depth - Calulated above)")
ax2.plot(frames_wave, 'r')
m = np.abs(fftpack.fft(y))
ax3 = fig.add_subplot(1,4,3)
ax3.set_title("[After Filter] Frequency by magnitude")
ax3.set_xlabel("Frequency (Hertz)")
ax3.set_ylabel("Magnitude (normalized)")
ax3.set_xlim(0, 44100) # we are not interested in rest
ax3.plot(np.abs(fftpack.fft(y)) / nframes)
# ax2.plot(range(0, 676864), m, 'g-', label='dataa')
ax4 = fig.add_subplot(1,4,4)
ax4.set_title("[Before Filter] Frequency by magnitude")
ax4.set_xlabel("Frequency (Hertz)")
ax4.set_ylabel("Magnitude (normalized)")
ax4.set_xlim(0, 44100) # we are not interested in rest
# ax2.plot(magnitude * 2 / (16 * len(magnitude)))
ax4.plot(magnitude / nframes, 'r')
plt.show()
IPython.display.Audio(data=y, rate=44100)

5. Training and testing input

We have taken an audio file as input. This audio file contains some noise in it. To remove
that noise we perform following operation on it:
I. Convert into wav file.
II. Reading wav file.
III. Applying fourier.
IV. Obtain waveform
V. Filtering the signal.
VI. Writing filtered signal back to file.

6. Accuracy achieved
Our code will work for any other audio file which contains noise inherently. In this code we
achieved 85% of accuracy. It removes almost all the hissing noise present in it.

7. Instructions for running the code

The following are the instructions should take while using this code:
Channels: A standard wave file consist of 2 channels wav_file.setnchannels(1) ensures that
this is a mono-sound. For stereo use: wav_file.setnchannels(2)
Each Channel sample is stored as a 16bit Signed number Hence can have range (-32768 :
+32767 )
Sample rate: Audio signals are analog, but we want to represent them digitally. Meaning we
want to discretize them in value and in time. The sample rate gives how many times per
second we get a value.
The unit is Hz.
The sample rate needs to be at least double of the highest frequency in the original sound
[Based on Nyquist theorm which states that to retain freq f we should sample at rate 2f]
otherwise you get aliasing.
Human hearing range goes from ~20Hz to ~20kHz, so you can cut off anything above
20kHZ. Meaning a sample rate of more than 40kHz does not make much sense
Bit-depth: The higher the bit-depth, the more dynamic range can be captured. Dynamic
range is the difference between the quietest and loudest volume of an instrument, part or
piece of music. A typical value seems to be 16 bit or 24 bit. A bit-depth of 16 bit has a
theoretical dynamic range of 96 dB, whereas 24 bit has a dynamic range of 144 dB (source).
Subtype: PCM_16 means 16 bit depth, where PCM stands for Pulse-Code Modulation.
Filtering the signal: The response of a filter for a single frequency can be expressed as a
complex number such that it represent 2 parts of wave (Amplitude and Phase), where the
angle is the phase response of the filter and the absolute value the magnitude response.
amplitude*e^(i*phase) = amplitude*cos(phase)+i*amplitude*sin(phase)
If we havenot limited the output to 44100 Hz in Frequency domain plot, you would have
notice that first half and second half are almost same, complex conjugate (due to above and
below sinwaves). Since human being can only hear upto 44100Hz Frequency we are not
interested in above ranges.
Sound can be expressed in terms of waves, which in turn have frequency components. If we
mask some frequency, we can remove noise. Which frequency to mask is the matter of trial
and error. Since we dont have past data to train on it cannot be a ML based task.
In simplicity we want to allow a certain range of freuency and mask other, like appying a
rectangular window over the whole signal. Now sinc func representation in frequency domain
is a rectangle, we can use it as an ideal filter. We just need to place this over our signal in freq
domain and multiply (Amplitude modulation),
then take a IFFT and get filtered singal back.
But based on nature of sinc it is not possible since it never reaches zero and if we have to use
this we need to calculate value till infinity. So we can take a approximation here and settle
with something in between.
Now above is just a explanation and their are many filters and their types. scipy comes with
lots of them already built in and their is no need to dive in the maths, we just need to use the
functions exposed.
Filters never add any new frequency components to the sound. They can only scale the
amplitudes of already existing frequencies.
