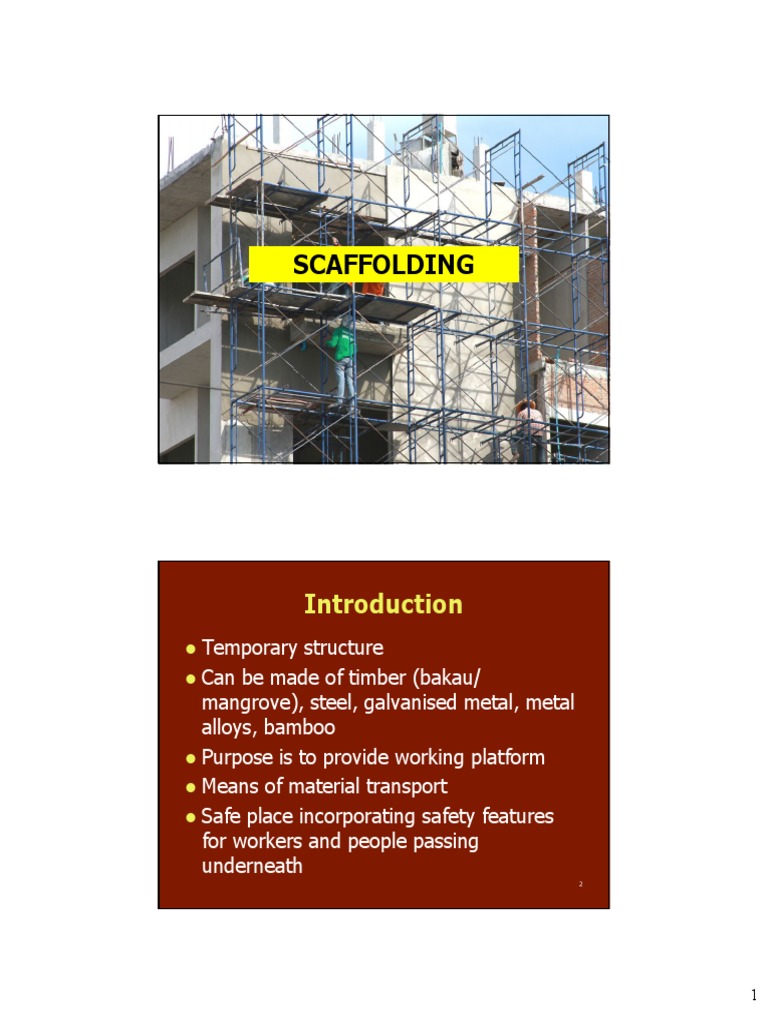

SCAFFOLDING

Introduction
 Temporary structure
 Can be made of timber (bakau/
mangrove), steel, galvanised metal, metal
alloys, bamboo
 Purpose is to provide working platform
 Means of material transport
 Safe place incorporating safety features
for workers and people passing
underneath
2

1
 Types of Scaffolds
 Putlogs Scaffolds
 Independent Tied scaffolds
 Mobiles
 Fixed Frame Scaffolds
 Suspended
 Cantilevered

Putlog Scaffold
 Mainly used for constructing or repairing
brickwork structures
 Supported in brickworks by putlogs and
ties
 Single working platform allowed
 Max load on platform is 275 kg/m2 which
is roughly equal to 140 bricks, 25 kg
mortar and 2 men
 Maximum safe height of scaffold is 30 m
4

2
 Putlog

Putlog Scaffold

End View

3
 Putlog Scaffold

Putlog inserted at least

80 mm into brickwork

A scaffold tied into a building. 9

4
 Independent Tied Scaffolds
 The whole load of scaffold are carried to the foundation
resting on the ground
 Tied to construction to ensure stability
 Can deal with 4 working platforms at one time therefore
greater consideration for design
 Classified as:
Light duty (only one working platform, max loading of 73
kg/m2)
General purpose (up to 4 working platform and max
loading of 180 kg/m2 on each platform) and
Heavy duty (2 working platforms of higher loading max
of 290 kg/m2)
10

Independent Tied Scaffolding

End View

11

5
 Scaffolding parts and terms
 Standard – uprights carry total load of
scaffold including man and material on the
platform
 Ledger – horizontal tubes connecting the
standard
 Putlog – transverse tube with one end
placed in a slot left in the construction
usually a gap in the mortar joint of a brick
wall
13

Scaffolding parts and terms (cont.)

 Baseplate – a square metal plate welded

to a short length of tube and fitted to the
bottom of a standard
 Soleplate – timber board on which
baseplates rest to avoid baseplate resting
directly on thin surface

14

6
Scaffolding parts and terms (cont.)

 Guard rail – an additional ledger connected

between standards where there is a working
platform to form a rail to prevent man falling
from the platform
 Scaffolding boards – timber boards placed
across the transoms or putlogs to create the
working platform
 Toeboard –timber boards placed on edge
against the standards at the edge of the working
platform to prevent materials or tools falling
over the edge
15

Scaffolding parts and terms (cont.)

 Toeboard clip – specially shaped clip which

retains the toeboard vertically and in position.
The clip fits around the standards
 Coupler – to hold together the various structural
components (i.e. the tubes) of the scaffold.
Should be load bearing
 Brace – diagonally placed connections either in
vertical or horizontal plane to ensure stability of
scaffold by removing the possibility of
movement

16

7
Scaffolding parts and terms (cont.)

 Tie – a mechanism used to connect and

tie in the scaffold to construction thus
avoiding collapse due to it moving away
from the building
 Ladder – mean of access to platform

17

Basic Scaffolding Fittings

18

8
30

31

9
 Mobiles
 Self-contained units
 Only one working platform of limited size
 Used where work needs to be moved
more frequently
 For light loads
 Used for maintenance, painting, finishing
interior
 Height of towers must not exceed three
times the shortest base dimension
32

Mobiles Scaffolding

33

10
 34

Fixed Frame Scaffolds

 Easy to install and
mobilise; strong and safe.
 Main frame:
 high-carbon steel,
 762 - 1,219mm wide,
 1,524 - 1,930mm tall.
 Transverse frame:
 to support working
platform
 to hold the main
frames
 1,829mm long
 745 - 1,050mm wide. 35

11
 Assembling Fixed Frames
Steps:
1. Start with proper assembling of the 1st row, then base
plates and vertical installation.
2. Test for vertical and horizontal levels; apply bracings.
3. Place the transverse frames on the main frames.
4. All base plates must be fixed on the ground supports.
5. Place all pin connectors, interlocks and wall ties.
6. Check all structures for stability.

37

Assembling Fixed Frames

38

12
 41

Suspended Scaffolds

42

13
Suspended Scaffolds

43

Suspended Multi Level

46

14
Cantilevered Scaffolds (Truss-out)

puncheon
Standards

47

Cantilevered Scaffolds (Truss-out)

 Restriction on the use of space at the

ground level
 Load are transferred totally to the building
 Ties are inside window openings
 Suitable for height up to 12m

48

15
 Power Scaffolds

49

Materials for Scaffoldings

 The quality for steel tube and coupler must
conform to specification MS (BS 1139 Part 1)
 Black steel tube, galvanised steel tube (48.3mm
diam, 4mm thick, 4.37kg/m),
 Aluminum aloy tube (48.3mm diam, 4.47mm
thick, 1.67kg/m)
 Timber – keruing or wood of equal or higher
strength
 Mangrove or bamboo should have the required
strength
50

16
 Materials for Scaffoldings
(cont.)
 Platform 38, 50, 63mm thick, 225mm
wide, 3.9m long
 Mechanical properties – should conform to
the required strength for tensile, yield and
elongation
 Approved connectors or couplers

51

Safety Features
(MS 426:1994) – Code of practice for safety and
health at work

 For a safe and secure structures Adequate

strength of material used
 Design load with a safety factor of at least 4
 During erections all parts must be securely fixed
 Standards are positioned vertically and ledgers
horizontally
 Base plates must be used to avoid settlements
of scaffolds 52

17
 Safety Features (cont.)
 Braced diagonally in both horizontal and vertical
planes to prevent swaying and displacements
 After erection of scaffolds the structure be
inspected and certified safe by a trained person
 A trained and experienced person must inspect
the scaffold once a week
 Inspection is also necessary after a rough or
cold weather

53

Scaffold Hazards

58

18
 Scaffolds Hazard

1. The planks are not cleated or secured against displacement

2. No guard rails and no toe boards 59

3. Gap between building and scaffolds exceed 300 mm

Scaffolds Hazard

60

19
Scaffolds Hazard

Is the scaffolds too

near to the
powerlines?

61

Scaffolds Hazard

Unstable
Loaded with blocks
Scaffold is not level
because it was erected
without base plates on an
uneven surface.

62

20
Scaffolds Hazard

Poor foundation: Scaffold end frames,

which have no base plates, erected
on top of scrap wood and unstable
cement blocks.

63

Scaffolds Hazard
This is a great example of
what can happen when
construction workers fail to
investigate the site where
their scaffold is being erected,
and base plates are not used.
The scaffold in question (now
taken down) punched a hole
through the downtown
sidewalk. The workers failed
to realize that the sidewalk
was only made from blacktop,
and it had a basement under
it. EXAMPLE OF POINT
LOADING!!

65

21
 Scaffolds Hazard

66

Scaffolds Hazard

Planking on this platform should be six planks wide, instead of only two.
Also, note that the planks are bowing because the bricks are loaded at 67
one point on the platform instead of being evenly distributed.

22
Scaffolds Hazard

Openings between
planks in platform
should not exceed
25 mm

68

70

23
Scaffolds Failure

71

73

24
