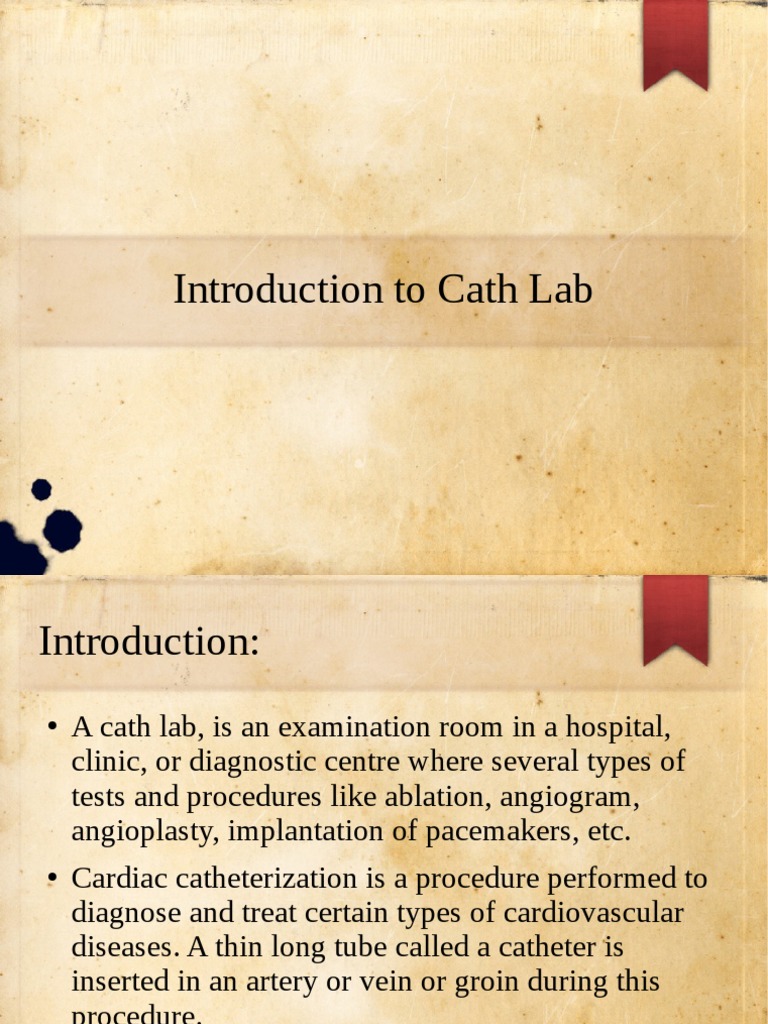

Introduction to Cath Lab

Introduction:
●
A cath lab, is an examination room in a hospital,
clinic, or diagnostic centre where several types of
tests and procedures like ablation, angiogram,
angioplasty, implantation of pacemakers, etc.
●
Cardiac catheterization is a procedure performed to
diagnose and treat certain types of cardiovascular
diseases. A thin long tube called a catheter is
inserted in an artery or vein or groin during this
procedure.
Importance of cath lab:
●
Diagnosing and fixing problems.
●
To evaluvate and conform the presence of CAD.
●
To determine the need of further management.
●
For Integrated patient care.
●
For multi- department apporach.
Types of Cath Lab.
●
There are two types of cath Lab.

1. Single Plane cath lab

2. Bi- Plane cath lab

Single Plane cath lab
Bi- Plane cath lab
Cath Lab Consist of:
●
Fluroscopy
●
Patient Couch
●
Image Intensifier
●
Viewing Monitor
●
Injection Pump
●
Catheters
●
Angioplasty ballons & Stunts
●
Defibrillator
●
Real time ECG, Blood Pressure, Spo2 Monitors.
Fluroscopy:
●
It is used to study of moving body structures
●
A continuous X-ray bean is passed through the
body. They are captured by a device called an
●
Intensifier and converted into light. The ligh at is
transmitted to a TV camera and displayc Video
monitor.
Intensifier:
●
It is an imaging component which converts x-rays
into a visible image.
Catheters:
●
A Flexible tube inserted through a narrow opening
into the body.
●
Types of catheters:
●
Judkins Catheter - JR, JL
●
Amplatz Catheter - AR, AL
●
TIG – Tiger Catheter
Coronary angiography:
●
Defination:
It is defined as the study of coronary
arteries, branches,collaterals, and treatment
stratergy for coranory artery disease with the help
of contrast medium under fluroscopy guidence.
Indications:
●
Suspected CAD
●
New onset angina
●
Unstable Angina
●
Positive TMT
●
Myocardial Infraction
●
Unstable angina post infract
●
Congenital heart disease
●
Valvular heart diseases
●
Evaluation before major surgical procedures
Contraindications:
●
Acute gastrointestinal Bleeding
●
Anticoagulation disorder
●
Electrolytes Imbalance
●
Infection and Fever
●
Medication Intoxication
●
Pregnancy
●
Renal Failure
●
Uncontroled CHF, HTN, arrythmias
Materials Used:
●
Puncture Needle
●
Surgical Blade
●
Sheath with Dilator 5F/6F
●
Guide wire
●
Manifold set and pressure line
●
10 ml Syringe
●
Diagnostic catheter
●
Local Anasthesia – 1-2 % Xylocaine
●
Contrast Medium – Omnipaque
●
Pressure recording device
●
Defibrillator
●
ECG machine
●
Pressure Injector
Complications:
●
Bleeding
●
Infection
●
Heart Block
●
Heart attack
●
Cardiac perforation
●
Contrast Reactions
●
Death
Interventional Procedures:
●
Balloon angioplasty or Percutaneous Transluminal
Coronary Angioplasty – PTCA
●
Stenting
●
Septal Closure devices
●
Thrombectomy
●
Balloon MitralValvuplasty
●
Balloon Aortic Valvuplasty
●
Atherectomy
Thank You..
