Technical Data

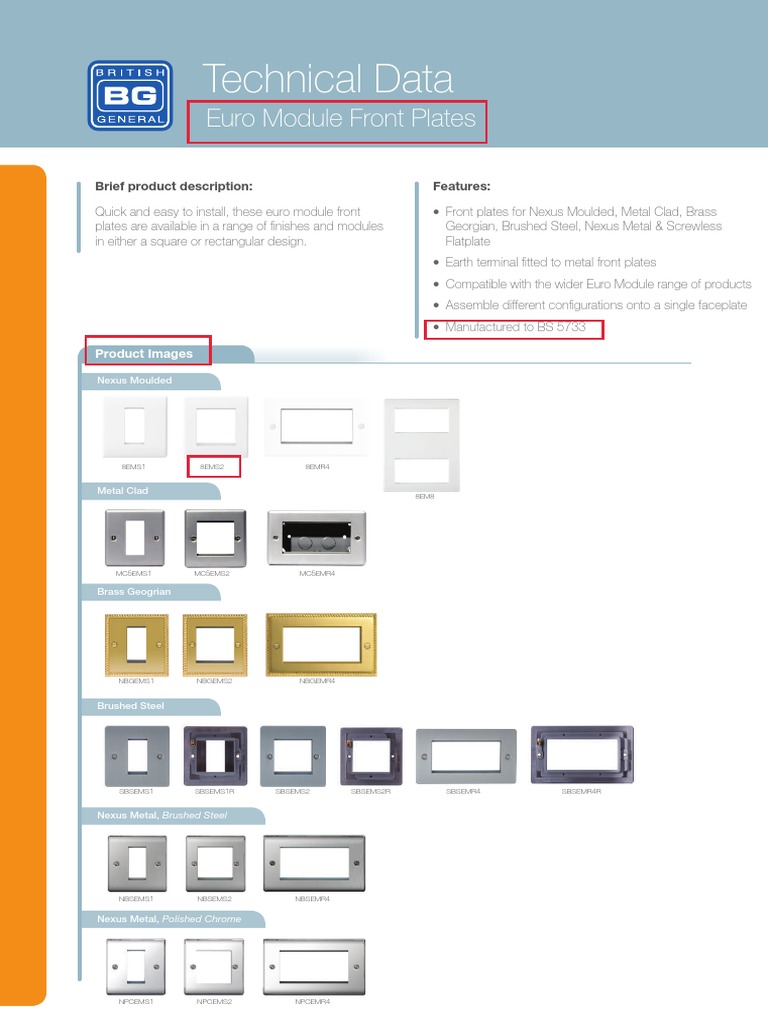

Euro Module Front Plates

Brief product description: Features:

Quick and easy to install, these euro module front • Front plates for Nexus Moulded, Metal Clad, Brass
plates are available in a range of finishes and modules Georgian, Brushed Steel, Nexus Metal & Screwless
in either a square or rectangular design. Flatplate
• Earth terminal fitted to metal front plates
• Compatible with the wider Euro Module range of products
• Assemble different configurations onto a single faceplate
• Manufactured to BS 5733

Product Images

Nexus Moulded

8EMS1 8EMS2 8EMR4

Metal Clad
8EM8

MC5EMS1 MC5EMS2 MC5EMR4

Brass Geogrian

NBGEMS1 NBGEMS2 NBGEMR4

Brushed Steel

SBSEMS1 SBSEMS1R SBSEMS2 SBSEMS2R SBSEMR4 SBSEMR4R

Nexus Metal, Brushed Steel

NBSEMS1 NBSEMS2 NBSEMR4

Nexus Metal, Polished Chrome

NPCEMS1 NPCEMS2 NPCEMR4

 Technical Data
13 Amp Socket Outlets

Brief product description: Features:

The subtle design will blend with any décor - suitable • White moulded round edge, sleek and slim with softly
for domestic or commercial installations. rounded edges
• Power socket for standard 3 pin UK plug
• Easy to install, supplied with fixing screws and
installation instructions
• Minimum mounting box depth: 25mm
• Flush LED power indicator on 825 & 826
• Twin earth fitted as standard to allow a double
earth facility for installations requiring high integrity
protective connection Ref. BS 7671:2008

Product Images

821 822 822DPOB 823

824 825 826

Technical Specifications

Standard(s) BS 1363 Part 2

ASTA Approval Yes, License Number 1013
Rating 13 Amp 250V~
Contact Gap 3.0mm minimum
Switch type (products 826 ,825 ,822 ,821)

Terminal Capacity - L & N 3 x 2.5mm² 3 x 4mm² 2 x 6.0mm²

RoHS Directive No
WEEE Directive No
Mounting Box Depth(Min) 25mm
Fixing Centres (60.3mm (821, 823, 825 products
(120.6mm (822, 822DPOB, 826 products
Size 86mm x 86mm x 31mm (821, 821DP, 823, 825 products)
146.5mm x 86mm x 31mm (822, 822DP, 822DPOB, 826 products)
13 Amp Socket Outlets

Installation Information
Safety Warning
For your safety, this product must be installed in accordance with local building regulations. If in any doubt, or where required by the law, consult a competent person who is registered with an
electrical self-certification scheme.
Further information is available online or from your Local Authority.
Please read carefully and use in accordance with these safety wiring instructions.
Before commencing any electrical work ensure the supply is switched off at the mains either by switching off the consumer unit or by removing the appropriate fuse. Wiring should be in accord-
ance with the latest edition of the IET regulations (BS 7671). To prevent fire hazard always use cable of the correct rating, size and type for the application.
Any bare earth wires must be covered with appropriate green/yellow sleeving.
Warning do not exceed the load rating of this device as stated on the rear of the product.
If in doubt consult a competent electrician.

Wire Identification – Twin & Earth Cable

EARTH = Green/Yellow Sleeving Technical Helpline: 03300 249 279
NEUTRAL = Black (pre Apr 04) / Blue (after Apr 04) If in doubt consult a competent electrician.
LIVE = Red (pre Apr 04) / Brown (after Apr 04)

The ends of the individual conductors should have the insulation removed by approx.12mm. Any bare earth conductors should be sleeved to within 12mm of the ends.
(These details are for general information only and conductor lengths may need to be trimmed in certain installations).

General Installation Instructions

1) If using the new product to replace an old one, note the cable connections and wire up new product in the same way as the old one, with Earthing as stated in these instructions.
2) Ensure the mounting box (metal or patress) for either flush or surface mounting is the appropriate size for the product.
3) Route the cable through the most suitable entry point of the mounting box. If a metal box is used, a protective cable grommet should be used.
4) Cables should be prepared so a sufficient conductor length reaches the terminals. Strip the ends of the individual conductors so that an adequate length enters the terminals.
5) Carefully arrange the wiring to lie along the edges of the product or box, keeping the central area clear.
6) To assist with the correct installation please consult the appropriate wiring diagram on this leaflet.
7) When connecting the new accessory ensure that only the bare end of the wire enters the terminal, and no bare wires are visible.
Always tighten the terminal screws securely, but do not overtighten.
An earth connection should always be made between the mounting box earth terminal, and the accessory earth terminal, where fitted. If this earth wire is bare, it is essential that it is sheathed
with a length of green/yellow sleeving.
8) Carefully position the accessory into the wall box, ensuring that no wires are trapped between the plate and the wall. Do not overtighten the screws. (Fit screw covers + clip-on)
9) Once work has been completed correctly, replace the fuse for the circuit, switch the power back on, and test.
The product is now ready for use.
* Note - If your installation uses a four lug metal mounting box, remove the top and bottom lugs or bend fully back.

1 Gang 13 Amp Switched Socket 1 Gang 13 Amp Unswitched Socket 2 Gang 13 Amp Switched Socket
This socket is fitted with with two linked terminals to provide Connect the cables as shown in the diagram. This socket is fitted with with two linked terminals to provide
a dual earth facility. This is for use in "clean earth" installations a dual earth facility.
where additional earth capacity is required to comply with This is for use in "clean earth" installations where additional
Regulation 607 of BS7671 IEE Wiring Regulations. earth capacity is required to comply with Regulation 607 of
Connect the cables as shown in the diagram. BS7671 IEE Wiring Regulations.
Connect the cables as shown in the diagram.

E E
L N
E
L N E L N

TO FUNCTIONAL EARTH
All earth wires must be
sleeved and terminated
All earth wires must be to the back box
sleeved and terminated
to the back box
All earth wires must be FROM SUPPLY
FROM SUPPLY sleeved and terminated
to the back box
FROM SUPPLY

LIVE
EARTH NEUTRAL
LIVE
EARTH NEUTRAL

LIVE
EARTH NEUTRAL
13 Amp Socket Outlets

Installation Information
2 Gang 13 Amp Unswitched Socket 2 Gang 13 Amp Switched Socket – Outboard Rockers
This socket is fitted with with two linked terminals to provide a dual earth facility. This socket is fitted with with two linked terminals to provide a dual earth facility. This is
This is for use in "clean earth" installations where additional earth capacity is required to for use in "clean earth" installations where additional earth capacity is required to comply
with Regulation 607 of BS7671 IEE Wiring Regulations.
comply with Regulation 607 of BS7671 IEE Wiring Regulations.
Connect the cables as shown in the diagram. Connect the cables as shown in the diagram.

All earth wires must be sleeved

and terminated to the back box
E E
L N

N E L

All earth wires must be TO FUNCTIONAL EARTH

sleeved and terminated
to the back box

FROM SUPPLY
FROM SUPPLY

LIVE
EARTH NEUTRAL LIVE
EARTH NEUTRAL
 Technical Data
20 Amp Double Pole Switches

Brief product description: Features:

The subtle design will blend with any décor - suitable • White moulded round edge, sleek and slim with
for domestic or commercial installations. softly rounded edges
2 depths of frontplate available to allow for flex outlet
• Ideal for equipment like water heaters
and concealed wiring options.
Switches are available with Neon Indicators, Flex • Easy to install, supplied with fixing screws and
Outlets & printed with WATER HEATER. installation instructions
• Flush LED power indicator on 831, 833 & 833WH
• Cable entry in lower edge with removable
blanking piece and reversible cord grip on
832 + 833 (832WH / 833WH)
• Frontplate printed WATER HEATER on
832WH & 833WH
• Minimum mounting box depth: 25mm
• Captive, backed out terminal screws for fast installation
• Screw covers for faultless appearance

Product Images

830 831 832 833 832WH 833WH

Technical Specifications

Standard(s) BS EN 60669-1
ASTA Approved Yes, License Number 1074
Rating 20 Amp 250V~
Switch Type Double pole
Contact Gap 3.0mm minimum
Terminal Capacity 3 x 2.5mm² 2 x 4.0mm² 1 x 6.0mm²
RoHS Directive No
WEEE Directive No
Mounting Box Depth(Min) 25mm
Fixing Centres 60.3
Size 86mm x 86mm x 25.5mm
20 Amp Double Pole Switches

Line Diagrams

830

830 831

833

832 833

832WH 833WH

Packaging Information

Cat No. Description Packaging Type Pack Quantity Barcode

Product Inner Box Outer Box Each Inner Outer Individual Inner Box Outer Box
Box Box
830 20A D.P. Switch Nexus PolyBag Nexus Inner Nexus Outer 1 10 100 5050765000970 5050765000987 5050765000994
831 20A D.P. Switch Nexus PolyBag Nexus Inner Nexus Outer 1 10 100 5050765001007 5050765001014 5050765001021
832 20A D.P. Switch Nexus PolyBag Nexus Inner Nexus Outer 1 10 100 5050765001038 5050765001045 5050765001052
833 20A D.P. Switch Nexus PolyBag Nexus Inner Nexus Outer 1 10 100 5050765001069 5050765001076 5050765001083
832WH 20A D.P. Switch
Nexus PolyBag Nexus Inner Nexus Outer 1 10 100 5050765001151 5050765001168 5050765001175
Water Heater
833WH 20A D.P. Switch Nexus PolyBag Nexus Inner Nexus Outer 1 10 100 5050765001182 5050765001199 5050765001205
Water heater & neon

Weights & Dimensions

Cat No. Description Dimension (W x L x H) cm Weight (g) CBM (m3)

Product Inner Box Outer Box Each Inner Outer Outer Box
Box Box
830 20A D.P. Switch 9.2 x 9.2 x 3.18 12.5 x 18 x 9.2 26 x 49.5 x 19 76 974 10200 0.0244
831 20A D.P. Switch 9.2 x 9.2 x 3.1 12.5 x 18 x 9.2 26 x 49.5 x 19 76 954 10000 0.0244
832 20A D.P. Switch 9.2 x 9.2 x 3.15 12.5 x 18 x 9.2 26 x 49.5 x 19 92 704 11400 0.0244
833 20A D.P. Switch 9.2 x 9.2 x 3.15 12.5 x 18 x 9.2 26 x 49.5 x 19 93.5 704 11400 0.0244
832WH 20A D.P. Switch 9.2 x 9.2 x 3.15 12.5 x 18 x 9.2 26 x 49.5 x 19 92 704 11400 0.0244
Water Heater
833WH 20A D.P. Switch 9.2 x 9.2 x 3.15 12.5 x 18 x 9.2 26 x 49.5 x 19 93.5 704 11400 0.0244
Water heater & neon
20 Amp Double Pole Switches

Installation Information
Safety Warning
For your safety, this product must be installed in accordance with local building regulations. If in any doubt, or where required by the law, consult a competent person who is registered with an
electrical self-certification scheme.
Further information is available online or from your Local Authority.
Please read carefully and use in accordance with these safety wiring instructions.
Before commencing any electrical work ensure the supply is switched off at the mains either by switching off the consumer unit or by removing the appropriate fuse. Wiring should be in accord-
ance with the latest edition of the IET regulations (BS 7671). To prevent fire hazard always use cable of the correct rating, size and type for the application.
Any bare earth wires must be covered with appropriate green/yellow sleeving.
Warning do not exceed the load rating of this device as stated on the rear of the product.
If in doubt consult a competent electrician.

Wire Identification – Twin & Earth Cable

EARTH = Green/Yellow Sleeving Technical Helpline: 03300 249 279
NEUTRAL = Black (pre Apr 04) / Blue (after Apr 04) If in doubt consult a competent electrician.
LIVE = Red (pre Apr 04) / Brown (after Apr 04)

The ends of the individual conductors should have the insulation removed by approx.12mm. Any bare earth conductors should be sleeved to within 12mm of the ends.
(These details are for general information only and conductor lengths may need to be trimmed in certain installations).

General Installation Instructions

1) If using the new product to replace an old one, note the cable connections and wire up new product in the same way as the old one, with Earthing as stated in these instructions.
2) Ensure the mounting box (metal or patress) for either flush or surface mounting is the appropriate size for the product.
3) Route the cable through the most suitable entry point of the mounting box. If a metal box is used, a protective cable grommet should be used.
4) Cables should be prepared so a sufficient conductor length reaches the terminals. Strip the ends of the individual conductors so that an adequate length enters the terminals.
5) Carefully arrange the wiring to lie along the edges of the product or box, keeping the central area clear.
6) To assist with the correct installation please consult the appropriate wiring diagram on this leaflet.
7) When connecting the new accessory ensure that only the bare end of the wire enters the terminal, and no bare wires are visible. Always tighten the terminal screws securely, but do not over-
tighten. An earth connection should always be made between the mounting box earth terminal, and the accessory earth terminal, where fitted. If this earth wire is bare, it is essential that it is
sheathed with a length of green/yellow sleeving.
8) Carefully position the accessory into the wall box, ensuring that no wires are trapped between the plate and the wall. Do not overtighten the screws. (Fit screw covers + clip-on)
9) Once work has been completed correctly, replace the fuse for the circuit, switch the power back on, and test.
The product is now ready for use.
* Note - If your installation uses a four lug metal mounting box, remove the top and bottom lugs or bend fully back.

20 Amp Switch Without Flex Outlet 20 Amp Switch With Flex Outlet Flex Outlet Method – Plastic Frontplates
This product has no cable entry, and should only be used for The flex outlet clamp arrangement comprises a fixed portion Connect the cables as shown in the diagram.
"hard" wired installations. integral to the main unit and a movable cord grip clamp
Connect the cables as shown in the diagram. portion, held in place by a screwed fixing. The appliance
cable exits through the large round aperture on the front face LIVE EARTH NEUTRAL
of the unit.
LIVE EARTH NEUTRAL
1. Prepare the flexible cable from the appliance as shown in FROM SUPPLY
the diagram below.*
60MM
FROM SUPPLY
N L N

E
E
L E
L N
12MM

E E

L N
*NOTE - The appliance cable may be either 3 core (with earth
as shown in diagram) of larger size diameter or 2 core (without
L N
earth) of smaller size diameter. TO APPLIANCE
2. Loosen the cord grip screw fixing and pass cable through
TO APPLIANCE
aperture from front face.
3. Connect wires as shown in diagram. LIVE
EARTH NEUTRAL
4. Adjust protrusion of cable in clamp so that wires are not
taught and then fully tighten clamp to securely grip cable All earth wires must be sleeved
LIVE
EARTH NEUTRAL outer sheath. DO NOT clamp on individual wires. and terminated to the back box
All earth wires must be sleeved Important
and terminated to the back box
The cable MUST be clamped tight on outer sheath to ensure
the cable connections are not damaged or disconnected
through subsequent movement of cable or appliance.
 Technical Data
20 Amp Flex Outlet Plate

Brief product description: Features:

A standard range of white moulded wall accessories • A standard design - suitable for
offering superb quality and exceptional value. domestic or commercial installations.
• Colour coded terminals for
easy installation
• Cable entry in lower edge with
removable reducer and
reversible cord grip 858 (rear)

• Terminals have 2 cable apertures

and screws for individual cables for
ease of wiring.

Technical Specifications

Standard(s) BS 5733
Rating 25 Amp 250V~
Terminal Capacity 2 x 2.5mm² 1 x 4mm²
RoHS Directive No
WEEE Directive No
Mounting Box Depth(Min) 25mm
Fixing Centres 60.3mm
Size 86mm x 86mm x 29.6mm

Packaging Information

Cat No. Description Packaging Type Pack Quantity Barcode

Product Inner Box Outer Box Each Inner Outer Individual Inner Box Outer Box
Box Box
858 20A Flex Outlet Plate Plain Bag Plain Inner Plain Outer 1 10 100 / 5021166954094 5021166954087
Bottom Entry

Weights & Dimensions

Cat No. Description Dimension (W x L x H) cm Weight (g) CMB (m3)

Product Inner Box Outer Box Each Inner Outer Outer Box
Box Box
858 20A Flex Outlet Plate 9.8 x 18.5 x 9.2 20.5 x 48.1 x 19.1 95 950 10300 0.018833555
Bottom Entry
20 Amp Flex Outlet Plate
Installation Information
Safety Warning
Before use please read carefully and use in accordance with these safety wiring instructions.
Before commencing any electrical work ensure the supply is switched off at the mains. Either by switching off the consumer unit or by removing the appropriate fuse.
Wiring should be in accordance with the latest edition of the IEE regulations (BS 7671).

Wire Identification – Twin & Earth Cable

EARTH = Green/Yellow Sleeving Technical Helpline: 0845 194 7584
NEUTRAL = Black (pre Apr 04) / Blue (after Apr 04) If in doubt consult a competent electrician.
LIVE = Red (pre Apr 04) / Brown (after Apr 04)

The ends of the individual conductors should have the insulation removed by approx.12mm. Any bare earth conductors should be sleeved to within 12mm of the ends.
(These details are for general information only and conductor lengths may need to be trimmed in certain installations).

General Installation Instructions

1) If using the new product to replace an old one, note the cable connections and wire up new product in the same way as the old one, with Earthing as stated in these instructions.
2) Ensure the mounting box (metal or patress) for either flush or surface mounting is the appropriate size for the product.
3) Route the cable through the most suitable entry point of the mounting box. If a metal box is used, a protective cable grommet should be used.
4) Cables should be prepared so a sufficient conductor length reaches the terminals. Strip the ends of the individual conductors so that an adequate length enters the terminals.
5) Carefully arrange the wiring to lie along the edges of the product or box, keeping the central area clear.
6) To assist with the correct installation please consult the appropriate wiring diagram on this leaflet.
7) When connecting the new accessory ensure that only the bare end of the wire enters the terminal, and no bare wires are visible.
Always tighten the terminal screws securely, but do not overtighten.
An earth connection should always be made between the mounting box earth terminal, and the accessory earth terminal, where fitted. If this earth wire is bare, it is essential that it is sheathed with
a length of green/yellow sleeving.
8) Carefully position the accessory into the wall box, ensuring that no wires are trapped between the plate and the wall. Do not overtighten the screws. (Fit screw covers + clip-on front-plate as
appropriate)
9) Once work has been completed correctly, replace the fuse for the circuit, switch the power back on, and test.
The product is now ready for use.
* Note - If your installation uses a four lug metal mounting box, remove the top and bottom lugs or bend fully back.

20 Amp Flex Outlet

Connect the cables as shown in the diagram. Before fitting the front-plate ensure that the load cable is securely retained by the cable clamp. If required the cable reducer can be removed so that
the appliance cable fits neatly within the entry aperture.

EARTH NEUTRAL
LIVE

FROM SUPPLY

L N

E E

TO APPLIANCE

LIVE NEUTRAL
EARTH

All earth wires must be sleeved

and terminated to the back box
 Technical Data
20A Push Switch Modules

: Brief product description Features:

20A Switch Modules for use with euro module flat • Terminal capacity 4 x 1.0mm², 4 x 1.5mm²,
.plates 2 x 2.5mm² & 1 x 4.0mm²
• Minimum mounting box depth 25mm
• Manufactured to BS EN 60669-1

Product Images

EMSW14X EMSW12KYW EMSW12ELW EMSW30KYW

Size

EMSW12X 2.5 x 5 x 3 cm
EMSW12KYX, EMSW12ELX, EMSW30KYX 2.5 x 5 x 1.8 cm

Line Diagrams

EMSW12W/B EMSW12KYW

EMSW12ELW EMSW30KYW
Nexus Grid 3

Inner Outer
Cat No. Description
Carton Carton
20 Amp 20AX Modules
White Chrome Brushed Black Polished
Steel Nickel Brass
G12 GPC12 GBS12 GBN12 GPB12 2 way, single pole 10 100
G13 GPC13 GBS13 GBN13 GPB13 Intermediate 10 100
G14 GPC14 GBS14 GBN14 GPB14 1 way retractive, SP (PRESS) 10 100
G12C* - - - - 2 way, single pole centre off 10 100
G30 GPC30 GBS30 GBN30 GPB30 20A double pole 10 100
G31* - - - - 20A DP + indicator 10 100

* For metal versions, select additional rocker accordingly • Alternative printed rocker covers available
• Terminal capacity 4 x 1.0mm2, 4 x 1.5mm2, 2 x 2.5mm2 • Clearly marked terminals with backed out captive screws for
& 1 x 4.0mm2 easy installation
• Manufactured to BS EN 60669-1 • 20 Amp, 20AX inductive rated
• Minimum mounting box depth 25mm *Fixed rocker, not interchangeable

G12 GPC14 GBS12 GPB12 G31

20 Amp 20AX Secret Key Modules

White Chrome Brushed Black Polished
Steel Nickel Brass
G12KY GPC12KY GBS12KY GBN12KY GPB12KY 2 way, single pole 10 100
G30KY GPC30KY GBS30KY GBN30KY GPB30KY Double pole 10 100
G12EL GPC12EL GBS12EL GBN12EL GPB12EL 2 way, single pole - printed ‘EMG LTG TEST’ 10 100
G30EL - - - - Double pole - printed ‘EMG LTG TEST’ 10 100

• Terminal capacity 4 x 1.0mm2, 4 x 1.5mm2, 2 x 2.5mm2 • Clearly marked terminals with backed out captive screws for
& 1 x 4.0mm2 easy installation
• Manufactured to BS EN 60669-1 • 20 Amp, 20AX inductive rated
• Minimum mounting box depth 25mm
• Supplied with key, spare keys available

G12EL GPC12KY GBS30KY GPB12KY G12KY

Accessories
GSCKY GSCKY Spare secret key (pack 10) 100pks 100pks 1000

• Compatible only with BG secret key switch grid modules

GSCKY

Email: sales@bgelectrical.uk www.bgelectrical.uk

 Technical Data
Luminaire Support Connector

Brief product description: Features:

The BG luminaire support connector provides plug-in • Moulded in matt white plastic
convenience and versatility for lighting installations. • Mechanical and electrical connection
The plug and socket interface provides an electrical • Supports up to 10kg load
connection in one easy click-in action. Luminaires can • Manufactured to BS5733 & BS6972
be plugged in without circuit isolation.

Product Images

Technical Specifications

Standard(s) BS5733 & BS6972

Rating 6 Amp 250V~
Terminal Capacity 2x4mm2, 3x2.5mm2, 4x1.5mm2, 5x1mm2, 5x0.75mm2
Protection IP20
Operating temperature -5 oC ~ + 40oC
Max Operating temperature 60 oC
Glow Wire test 850oC
Max weight load 5 Kg
Size (Assembly) 73.7mm (Dia) x 41.5mm (H)
Fixing Centres 50.8mm
Covered by RoHS Yes
Covered by WEEE directive No
Luminaire Support Connector
Line Diagrams

8.1±0.2 6.5±0.2
∅73.5±0.3

0.3
.8±

.15
50

±0
3.7
8.1±0.3 41.5±0.5

3.7
∅73.7±0.5 2

0.3
50.8±
7.1±0.2 30.5±0.3
35±0.3
56.2±0.3
40±0.3
 Technical Data
13 Amp Socket Outlets

Brief product description: Features:

A rugged, scratch resistant range, suitable for everyday • Flat profile with rounded edges
use in commercial and industrial environments.
• Colour coded terminals with backed out captive
Manufactured in heavy gauge steel and finished with screws for easy installation
epoxy powder coating.
• 2 Earth terminals

Product Images

MC521 MC522 MC523 MC524

Technical Specifications

Standard(s) BS 1363 Part 2

Rating 13 Amp 250V~
Contact Gap 3.0mm minimum
Switch type Double pole (MC521, MC522)
RoHS Directive No
WEEE Directive No
Terminal Capacity 3 x 2.5mm² 3 x 4mm² 2 x 6.0mm² (MC523, MC524)
Size 81.5mm x 81.5mm x 51mm (MC521)
142mm x 81.5mm x 51mm (MC522)
81.5mm x 81.5mm x 46mm (MC523)
142mm x 81.5mm x 46mm (MC524)

Packaging Information

Cat No. Description Packaging Type Pack Quantity Barcode

Product Inner Box Outer Box Each Inner Outer Individual Inner Box Outer Box
Box Box
MC521 13A 1G, SW SKT Plain PolyBag Plain Inner Plain Outer 1 10 50 / 5021166052196 5021166052189
MC522 13A 2G, SW SKT Plain PolyBag Plain Inner Plain Outer 1 5 25 / 5021166052295 5021166052288
MC523 13A 1G, SKT Plain PolyBag Plain Inner Plain Outer 1 10 50 / 5021166052394 5021166052387
MC524 13A 2G, SKT Plain PolyBag Plain Inner Plain Outer 1 5 25 / 5021166052493 5021166052486
13 Amp Socket Outlets
Weights & Dimensions

Cat No. Description Dimension (W x L x H) cm Weight (g) CMB (m3)

Product Inner Box Outer Box Each Inner Outer Outer Box
Box Box
MC521 13A 1G, SW SKT 16.6 x 25.8 x 8.3 17.6 x 45 x 27 14330 0.021384
MC522 13A 2G, SW SKT 14.5 x 25.8 x 8.3 15.5 x 45 x 27 11630 0.0188325
MC523 13A 1G, SKT 16.8 x 23.3 x 8.8 17.8 x 46.5 x 24.8 13370 0.02052696
MC524 13A 2G, SKT 14.5 x 25.8 x 8.3 15.5 x 45 x 27 11340 0.0188325

Installation Information
Safety Warning
Before use please read carefully and use in accordance with these safety wiring instructions.
Before commencing any electrical work ensure the supply is switched off at the mains. Either by switching off the consumer unit or by removing the appropriate fuse.
Wiring should be in accordance with the latest edition of the IEE regulations (BS 7671).

Wire Identification – Twin & Earth Cable

EARTH = Green/Yellow Sleeving Technical Helpline: 0845 194 7584
NEUTRAL = Black (pre Apr 04) / Blue (after Apr 04) If in doubt consult a competent electrician.
LIVE = Red (pre Apr 04) / Brown (after Apr 04)

The ends of the individual conductors should have the insulation removed by approx.12mm. Any bare earth conductors should be sleeved to within 12mm of the ends.
(These details are for general information only and conductor lengths may need to be trimmed in certain installations).

General Installation Instructions

1) If using the new product to replace an old one, note the cable connections and wire up new product in the same way as the old one, with Earthing as stated in these instructions.
2) Ensure the mounting box (metal or patress) for either flush or surface mounting is the appropriate size for the product.
3) Route the cable through the most suitable entry point of the mounting box. If a metal box is used, a protective cable grommet should be used.
4) Cables should be prepared so a sufficient conductor length reaches the terminals. Strip the ends of the individual conductors so that an adequate length enters the terminals.
5) Carefully arrange the wiring to lie along the edges of the product or box, keeping the central area clear.
6) To assist with the correct installation please consult the appropriate wiring diagram on this leaflet.
7) When connecting the new accessory ensure that only the bare end of the wire enters the terminal, and no bare wires are visible.
Always tighten the terminal screws securely, but do not overtighten.
An earth connection should always be made between the mounting box earth terminal, and the accessory earth terminal, where fitted. If this earth wire is bare, it is essential that it is sheathed
with a length of green/yellow sleeving.
8) Carefully position the accessory into the wall box, ensuring that no wires are trapped between the plate and the wall. Do not overtighten the screws. (Fit screw covers + clip-on)
9) Once work has been completed correctly, replace the fuse for the circuit, switch the power back on, and test.
The product is now ready for use.
* Note - If your installation uses a four lug metal mounting box, remove the top and bottom lugs or bend fully back.
1 Gang 13 Amp Switched Socket 1 Gang 13 Amp Unswitched Socket 2 Gang 13 Amp Switched Socket
This socket is fitted with with two linked terminals to provide Connect the cables as shown in the diagram. This socket is fitted with with two linked terminals to provide
a dual earth facility. This is for use in "clean earth" installations a dual earth facility.
where additional earth capacity is required to comply with This is for use in "clean earth" installations where additional
Regulation 607 of BS7671 IEE Wiring Regulations. earth capacity is required to comply with Regulation 607 of
Connect the cables as shown in the diagram. BS7671 IEE Wiring Regulations.
Connect the cables as shown in the diagram.

E E
L N
E
L N E L N

TO FUNCTIONAL EARTH
All earth wires must be
sleeved and terminated
All earth wires must be to the back box
sleeved and terminated
to the back box
All earth wires must be FROM SUPPLY
FROM SUPPLY sleeved and terminated
to the back box
FROM SUPPLY

LIVE
EARTH NEUTRAL
LIVE
EARTH NEUTRAL

LIVE
EARTH NEUTRAL
13 Amp Socket Outlets

Installation Information
2 Gang 13 Amp Unswitched Socket
This socket is fitted with with two linked terminals to provide a dual earth facility.
This is for use in "clean earth" installations where additional earth capacity is required to
comply with Regulation 607 of BS7671 IEE Wiring Regulations.
Connect the cables as shown in the diagram.

E E
L N

All earth wires must be TO FUNCTIONAL EARTH

sleeved and terminated
to the back box

FROM SUPPLY

LIVE
EARTH NEUTRAL
Nexus Grid 5

Inner Outer
Cat No. Description
Carton Carton
Front Plates - Nexus Metal
White Chrome Brushed Black
Steel Nickel
G81 GNPC1 GNBS1 GNBN1 1 gang 20 200
G82 GNPC2 GNBS2 GNBN2 2 gang 20 200
G83 GNPC3 GNBS3 GNBN3 3 gang 10 100
G84 GNPC4 GNBS4 GNBN4 4 gang 10 100
G86 GNPC6 GNBS6 GNBN6 6 gang 10 100
G88 GNPC8 GNBS8 GNBN8 8 gang 10 100
G89 - GNBS9 - 9 gang 10 100
G812 - GNBS12 - 12 gang 10 100

• Manufactured to BS 5733 • White plates supplied with covers to conceal fixing screws
• Front-plates match the power products of the White Moulded & • 6/8g grid surface/flush mounting box (MC503)
Nexus Metal ranges • 9/12g flush mounting wall box (HGS912)
• No visible plastic around rockers

G81 GNPC1 GNBS4 GNBN2

Front Plates - Screwless Flatplate

Chrome Brushed Black Polished
Steel Nickel Brass
GFPC1 GFBS1 GFBN1 GFPB1 1 gang 20 200
GFPC2 GFBS2 GFBN2 GFPB2 2 gang 20 200
GFPC3 GFBS3 GFBN3 GFPB3 3 gang 10 100
GFPC4 GFBS4 GFBN4 GFPB4 4 gang 10 100
GFPC6 GFBS6 GFBN6 GFPB6 6 gang 10 100
GFPC8 GFBS8 GFBN8 GFPB8 8 gang 10 100

• Manufactured to BS 5733 • Secure and easy “clip on, clip off” front plate design
• Note - 1, 3, 6g front-plate supplied with grid blanks • No visible plastic around rockers
(Screwless Only) • 6/8g grid surface/flush mounting box (MC503)
• Front-plates match the standard Flatplate screwless range
• Flat profile with rounded edges

GFPC1 GFBS8 GFBN2 GFPB6

Email: sales@bgelectrical.uk www.bgelectrical.uk

6 Nexus Grid
Inner Outer
Cat No. Description
Carton Carton
Front Plates - Metal Clad & Brass Georgian
Metal Brass
Clad Georgian
GMC1 GNBG1 1 gang 20 200
GMC2 GNBG2 2 gang 20 200
GMC3 GNBG3 3 gang 10 100
GMC4 GNBG4 4 gang 10 100
GMC6 - 6 gang 10 100
GMC8 - 8 gang 10 100

Metal Clad • Front plates match the standard metal clad range
• Manufactured to BS 5733 Brass Georgian
• A rugged, scratch resistant range, suitable for everyday use in • Manufactured to BS 5733
commercial and industrial environments • Cast brass plates with a rope effect detail
• Manufactured in heavy gauge steel and finished with epoxy • 6/8g grid surface/flush mounting box (MC503)
powder coating

GMC2 GMC3 GNBG2 GNBG4

Grid Frames
Nexus & Screwless
Metal Clad Flat Plate Only
GFR12 GFR12FP 1 & 2 gang 20 200
GFR34 GFR34FP 3 & 4 gang 10 100
(Use-2xGFR34) GFR68FP 6 & 8 gang 5 50
GFR12/34
• These frames are for all screwed plate versions
• Universal frame for Metal Clad, White Moulded, Nexus Metal &
Brass front plates
• Frames are supplied with spacers for use with the Metal Clad
front plates

GFR12/34/68FP
• These frames are for the screwless Flatplate versions
GFR12 GFR34FP • Fixed integrated plastic gasket to protect metal edges from
moisture
• Earth terminal(s) fitted as standard
• Captive fixing screws for ease of assembly

Boxes
MC501 Square surface mount box (1g & 2g grid) 10 100
MC502 Rectangular surface mount box (3g & 4g grid) 5 50
MC503 Double metal box - surface or flush mount (6g & 8g grid) 5 50
HGS912 Flush mount box (9g & 12g grid) 5 50

• Fitted with earth terminal

MC501 MC502 MC503

Telephone: (01952) 238 100 Fax: (01952) 238 180

 Technical Data
20 Amp 20 AX Switches

Brief product description: Features:

A range of IP rated accessories designed to protect • Clearly marked terminals with backed out
the potentially dangerous electricity supply in the most captive screws for easy installation
arduous of conditions
• 20 Amp, 20AX inductive rated
• Covers to seal the fixing screws
• Earth terminal in mounting box
• All cable entries in the 4 sides have removable
blanking caps.
• Housing will accept alternative switch
modules from the Grid range
• Neon indicator that can be wired to illuminate
when off or on depending on wiring blanking
caps.

Product Images

WP12 / WP30 WP14 WP42 WP42 Rear View WP12/30/42 Side View

Technical Specifications

Standard(s) BS EN 60669-1
Rating 20 Amp 250V~ (20AX - no derating for inductive or fluorescent loads)
Switch Type Single pole (WP12, WP14, WP42 products)
Double pole (WP30 products)
Contact Gap 3.0mm minimum
Terminal Capacity 4 x 1.0mm² 4 x 1.5mm² 2 x 2.5mm² 1 x 4.0mm²
IP Rating IP66
RoHS Directive No
WEEE Directive No
Number of 20mm cable entries 5 x 20mm. 1 in each of 3 sides and 2 in the remaining side
1 drill out entry 20/25mm in rear face
Size 91mm x 91mm x 67mm
20 Amp 20 AX Switches
Line Diagrams
91

44
91 67 44
WP12 / WP30
91

44
91 67 44
WP14
91

44

91 67 44
WP42

Packaging Information

Cat No. Description Packaging Type Pack Quantity Barcode

Product Inner Box Outer Box Each Inner Outer Individual Inner Box Outer Box
Box Box
WP12 20A 1G, 2 Way Printed Box / Printed Outer Box 1 / 10 5050765022132 / 5050765022231
WP42 20A 2G, 2 Way Printed Box / Printed Outer Box 1 / 10 5050765022149 / 5050765022248
WP14 20A 1G, 1W, "PRESS" Printed Box / Printed Outer Box 1 / 10 5050765022156 / 5050765022255
WP30 20A 1G, Double Pole Printed Box / Printed Outer Box 1 / 10 5050765022163 / 5050765022262

Weights & Dimensions

Cat No. Description Dimension (W x L x H) cm Weight (g) CMB (m3)

Product Inner Box Outer Box Each Inner Outer Outer Box
Box Box
WP12 20A 1G, 2 Way 10 x 7.5 x 10 / 40 x 22 x 12 170 / 210 0.01056
WP42 20A 2G, 2 Way 10 x 7.5 x 10 / 40 x 22 x 12 200 / 250 0.01056
WP14 20A 1G, 1W, "PRESS" 10 x 7.5 x 10 / 40 x 22 x 12 170 / 210 0.01056
WP30 20A 1G, Double Pole 10 x 7.5 x 10 / 40 x 22 x 12 180 / 210 0.01056
20 Amp 20 AX Switches
Installation Information
Safety Warning
Before use please read carefully and use in accordance with these safety wiring instructions.
Before commencing any electrical work ensure the supply is switched off at the mains. Either by switching off the consumer unit or by removing the appropriate fuse.
Wiring should be in accordance with the latest edition of the IEE regulations (BS 7671).

Wire Identification – Twin & Earth Cable

EARTH = Green/Yellow Sleeving Technical Helpline: 0845 194 7584
NEUTRAL = Black (pre Apr 04) / Blue (after Apr 04) If in doubt consult a competent electrician.
LIVE = Red (pre Apr 04) / Brown (after Apr 04)

The ends of the individual conductors should have the insulation removed by approx.12mm. Any bare earth conductors should be sleeved to within 12mm of the ends.
(These details are for general information only and conductor lengths may need to be trimmed in certain installations).

Product Application & Features

The Weatherproof Switch range comprises a robust polycarbonate enclosure incorporating a 1 or 2 gang Grid Switch Module arrangement. It provides a convenient & safe wall-mounted control
for outdoor equipment such as lighting, garden pond pumps, etc up to 20A current rating. Modules can be changed for others from the Grid range such as a 20A Double Pole or retractive
‘PRESS’ switch.
The enclosure is IP66 rated in use, which means that the sealed construction provides a very high level of protection against the ingress of both water & dust.
The Neon indicator can be used to illuminate the switch in a number of ways depending on wiring, & presence of supply Neutral.

1 GANG SWITCH 2 GANG SWITCH

1 GANG SWITCH – EXPLODED VIEW The 1 gang Switch has one Switch Module & one wide Rocker, the 2 gang has two
Switch Modules & two half-width Rockers. The internal arrangement is identical except 1
The Front Assembly comprises the Front Support, Switch Module(s) & Switch gang has a Blank Plate fitted in place of one Switch Module as shown below.
Rocker(s) which is mounted to the Rear Box using 4 captive fixing screws.
A Gasket Seal is located on the front edge of Rear Box. Re-usable Blank Plugs
are pre-fitted & are pushed out from the inside. Screw Covers are provided to
hide fixings after installation.

Safety Instructions – Important

Please Read ‘Changes To Building Regulations’
1. An outdoor location should be chosen ensuring adequate access to a mains supply circuit. The circuit MUST be protected by an appropriate fuse, circuit breaker or RCD (Residual Current
Device) in accordance with current IEE wiring regulations.
2. Where conduit is used for cable runs, water condensation MUST be prevented from collecting inside the unit & conduit. Drain holes MUST be drilled out (see Installation Instructions)
3. If metal conduit is used, earth continuity across the conduit must be maintained using appropriate connections (not supplied). An earth terminal in the Rear Box is provided as required.
4. Where outdoor cable runs occur, ensure cable recommended for outdoor installations is used. In general, rubber insulated cable & plastic M20 cable glands can be used. Alternatively standard
flat PVC twin & earth mains cable inside 20mm plastic or metal conduit may be used. Where necessary, SWA (Steel Wire Armoured) cable with metal cable glands should be used.
The outdoor use of unprotected flat PVC insulated cable is NOT recommended.
5. To ensure continued safe & proper weatherproof operation, unused cable entries MUST have Blank Plugs fitted.

Installation Instructions 4. Mount the Rear Box using No.8 screws in all four, or at least two diagonal positions on fixing
Ensure Safety Instructions Have Been Read First centres shown. The fixing holes are slotted to enable some rotation adjustment if required. Fit sup-
plied Bungs over all used fixing screw positions to seal aperture recesses.
The Rear Box has multiple cable entry positions on sides & one rear knockout
cable entry. One side has 2 cable entry positions. Four drain hole positions
are provided in relation to conduit positions as shown. Note position of earth
terminal.

5. Make cable entry into Rear Box as required. Only remove Blank Plugs for positions used. Ensure
adequate excess lengths of cable for connection to socket. Install & seal all cable glands & conduit
to manufacturer’s instructions. Ensure the Gasket Seal is properly fitted over front edge of Rear
Box.
6. Offer up Front Assembly to Rear Box to determine final lengths of cables & cut to suit. Strip outer
1. The unit should be mounted on a clean, rigid vertical surface suitable to ac- insulation as required & then trim insulation on individual wires 8-10mm to expose conductor ends.
cept screw type fixings. Surface should be reasonably flat as unevenness could 7. Each standard Switch Module is a 2-way, single pole type & has 3 clearly marked terminals: -
cause product damage or affect operation. COM, 2 WAY & 1 WAY as shown.
2. Undo fixing screws & remove Front Assembly from Rear Box.
3. For cable entry, decide if conduit is being used & entry positions. For side,
top or rear entry the lowermost drain hole position MUST be drilled out using a
5mm drill. ONLY ONE drain hole position must be drilled.
For bottom entry a drain hole MUST NOT be drilled in Rear Box, but a drain hole
MUST be drilled at lowermost point of conduit run.
For rear entry, remove rear knock-out. For extra sealing protection, a channel
around knock-out is provided to accept a bead of sealant (not supplied) when 2 GANG SWITCH
1 GANG SWITCH
fixing to mounting surface.
NOTE 7a) For ONE WAY Switching, wire the module as follows:-
The drilling out of a drain hole or removing rear knock-out will reduce the IP Connect LIVE wire to COM terminal
rating of the product. Connect SWITCHED LIVE wire to 1 WAY terminal
20 Amp 20 AX Switches
Installation Information
7b) For TWO WAY Switching using this Switch & another remote switch, wire the module as follows:-
On one switch:-
Connect LIVE wire to COM terminal
Connect SWITCHED LIVE wire to 1 WAY/L1 terminal
On remote switch, using 3–core cable between switches
Connect wire core 1 between COM terminals
Connect wire core 2 between 1 WAY/L1 terminals
Connect wire core 3 between 2 WAY/L2 terminals
Note - the colours of the wires will be dependent on the type of cable used. See Wire Identification section for reference.
If a supplied Module has been changed for another compatible Switch Module type from the Grid range, the appropriate wiring instructions for the changed Module must be followed.
8. The unit has Neon Indicator pre-wired between the COM terminal & terminal block, with a Link wire to 1 WAY terminal. The Neon can be wired in one of three ways depending on presence of
Neutral supply.
1. Power Mode: Neon ALWAYS ON when POWER is ON.
2. Switch Mode: Neon ONLY ON when switch is ON.
3. Locator Mode: Neon ONLY ON when switch is OFF.
All other connections should be as section 7.
Note – 2 Gang switch ONLY
For Locator & Switch Modes the Neon can ONLY be wired to work with one switch, it CAN NOT function with both switches.
9. Ensure all terminal screws are tight & all wires are neatly routed & not unduly stretched or pinched.
10. Any earth connections MUST be made & continuity maintained.
11. Where any earth conductor is a bare wire, it MUST be sleeved with green/Yellow sleeving.
12. After wiring Switch, refit Front Support onto Rear Box using fixing screws – DO NOT OVERTIGHTEN. Ensure the Gasket Seal is properly fitted over front edge of Rear Box before tightening
screws.
13. Fit Screw Covers to complete installation.
14. Switch power back on & check Switch is working. The product is now ready to use.
15. During life of product, any cleaning should only be carried out with a damp cloth using a mild solution of detergent & warm water. DO NOT USE solvent based cleaners as these may cause
damage.

Changes To Building Regulations – Important!

As from 1 January 2005, any electrical work done in domestic, fixed wiring installations in England and Wales, will have to follow new rules & changes to the Building Regulations Part P. These
rules have been introduced to help reduce the number of deaths, injuries and fires caused by faulty installations.
The installation work may be carried out by anyone providing it is in accordance with the Regulation standards.
Certain electrical work (non-notifiable or minor work) may be carried out without having to use a registered electrician or notify Local Authority Building Control, such as: -
• replacing any electrical fitting (for example, socket outlets, light fittings, control switches)
• adding fused spurs, sockets or lights to an existing circuit (but not in a kitchen, bathroom or outdoors)
• any repair or maintenance work
For minor work done by a non-qualified electrician, it is highly recommended it is checked by a qualified electrician to ensure it is safe.
For all other work (notifiable or major work) a Building Regulations application is required & it must be checked to make sure it is safe.
This may be done by either an electrician who is part of a competent person self-certification scheme, or by notifying the Local Authority Building Control Department who will make required
arrangements.
An application must be made to the Local Authority before commencing work such as: -
• adding a new circuit
• adding/altering any circuit in a room with water (kitchen, bathroom, etc)
• adding/altering any circuit outdoors (outdoor sockets, lights, etc)
Where work is done by a qualified electrician, they will be responsible for checking the work, & Local Authority does not need notification.
Where a qualified electrician or Local Authority is responsible for checking the work, they will provide a certificate or notice to confirm that the installation is tested & safe to use.
IT IS RECOMMENDED TO USE A QUALIFIED ELECTRICIAN
If there is any doubt whether electrical work needs notification of the Local Authority, they should be contacted first for advice.
 Technical Data
Weatherproof 13 Amp Socket Outlets

Brief product description: Features:

IP rated accessories designed to protect against water • IP66 Rated with plug in use, cover sealed
and dust ingress in the most arduous of conditions
• 13A sockets manufactured to BS 1363-2
• Switched sockets with power indicator
• Terminal capacity 3 x 2.5mm2, 3 x 4.0mm2
& 2 x 6.0mm2
• Supplied with multiple knock-out mounting box
• WP23L - Designed to fit large plug types,
transformers, adaptors
• WP23L- Adjustable socket position - top,
middle, bottom. *RCD not included
• High level of protection against ingress from
water jets & dust, the durable seals will maintain
integrity over the product’s life
• Robust construction:
Polycarbonate housing
High impact resistance
Long lasting, will not crack or fade

Product Images

WP21 WP21 Rear View WPL21 WP23 WP23L

WP22 WP24 WP21ES

Weatherproof 13 Amp Socket Outlets
Technical Specifications

Standard(s) BS 1363 Part 2

Rating 13 Amp 250V~
Switch Type Double pole (WP21, WPL21, WP22 products)
Contact Gap 3.0mm minimum (WP21, WPL21, WP22 products)
Terminal Capacity 3 x 2.5mm² 3 x 4mm² 2 x 6.0mm²
IP Rating IP66
RoHS Directive No
WEEE Directive No
Number of cable entries 5 x 20mm. 1 in each of 3 sides and 2 in the remaining side
1 drill out entry 20/25mm in rear face (WP21, WPL21, WP23 products)
8 x 20mm. 1 in each of the 2 sides and 3 in each of the top and bottom faces
1 drill out entry 20/25mm in rear face (WP22, WP24 products)
8 versatile entry options with M25 capability with an easy push out blank plug
design. One cut out entry option on rear (WP23L, WP21ES products)
Size 111mm x 154mm x 80mm (WP21, WPL21, WP23 products)
171mm x 154mm x 80mm (WP22, WP24 products)
RAL Colour RAL 7001

Line Diagrams

55
55

154
154

171 80 130 111 80 70

WP22 / WP24 WP21 / WP23

WPL21 WP21ES WP23L

Packaging Information

Cat No. Description Packaging Type Pack Quantity Barcode

Product Inner Box Outer Box Each Inner Outer Individual Inner Box Outer Box
Box Box
WP21 1G 13A, Sw Skt Printed Box / Printed Outer Box 1 / 10 5050765022170 / 5050765022279
WPL21 1G 13A, Sw Skt, Ind Printed Box / Printed Outer Box 1 / 10 5050765044721 / 5050765044844
WP22 2G 13A, Sw Skt, DP Printed Box / Printed Outer Box 1 / 10 5050765022200 / 5050765022309
WP23 1G 13A UnSw Skt Printed Box / Printed Outer Box 1 / 10 5050765022187 / 5050765022286
WP24 2G 13A UnSw Skt Printed Box / Printed Outer Box 1 / 10 5050765022194 / 5050765022293
WP21ES 1G 13A, ext Sw Skt Printed Box / Printed Outer Box 1 / 10 5050765044769 / 5050765044950
WP23L 1G 13A UnSw L Skt Printed Box / Printed Outer Box 1 / 10 5050765043212 / 5050765044943
Weatherproof 13 Amp Socket Outlets
Weights & Dimensions

Cat No. Description Dimension (W x L x H) cm Weight (g) CMB (m3)

Product Inner Box Outer Box Each Inner Outer Outer Box
Box Box
WP21 1G 13A, Sw Skt 12 x 9 x 16.5 / 47.5 x 35.5 x 14 330 / 4535 0.013
WPL21 1G 13A, Sw Skt, Ind 12 x 9 x 16.5 / 47.5 x 35.5 x 14 330 / 4535 0.012
WP22 2G 13A, Sw Skt, DP 18 x 9 x 16.5 / 47.5 x 35.5 x 20 480 / 6450 0.033
WP23 1G 13A UnSw Skt 12 x 9 x 16.5 / 47.5 x 35.5 x 14 320 / 4470 0.013
WP24 2G 13A UnSw Skt 18 x 9 x 16.5 / 47.5 x 35.5 x 20 470 / 6420 0.033
WP21ES 1G 13A, ext Sw Skt / /
WP23L 1G 13A UnSw L Skt / /

Installation Information
Safety Warning
Before use please read carefully and use in accordance with these safety wiring instructions.
Before commencing any electrical work ensure the supply is switched off at the mains. Either by switching off the consumer unit or by removing the appropriate fuse.
Wiring should be in accordance with the latest edition of the IEE regulations (BS 7671).

Wire Identification – Twin & Earth Cable

EARTH = Green/Yellow Sleeving Technical Helpline: 03300 249 279
NEUTRAL = Black (pre Apr 04) / Blue (after Apr 04) If in doubt consult a competent electrician.
LIVE = Red (pre Apr 04) / Brown (after Apr 04)

The ends of the individual conductors should have the insulation removed by approx.12mm. Any bare earth conductors should be sleeved to within 12mm of the ends.
(These details are for general information only and conductor lengths may need to be trimmed in certain installations).

Product Application & Features

The Weatherproof Socket range comprises a robust polycarbonate enclosure with durable integrated 1 or 2 gang Switched or Unswitched Sockets. It provides a convenient & safe wall-mounted
power point for outdoor equipment such as DIY & garden tools.
The enclosure is IP rated in use, which means that when the front cover is securely closed, the sealed construction provides a very high level of protection against the ingress of both water & dust.
Access to the socket is by means of the hinged front Cover, which for security reasons can also be locked by padlock (not supplied).

1 GANG SWITCHED SOCKET

1 GANG SWITCHED SOCKET – EXPLODED VIEW

The Front Assembly comprises Front Support, Switched Socket, Cover & Catch which is
mounted to a Rear Box using 4 captive fixing screws. A Gasket Seal is located on the front
edge of Rear Box. Re-usable Blank Plugs are pre-fitted & are pushed out from the inside.
Screw Covers are provided to hide fixings after installation.
2 GANG SWITCHED SOCKET

Safety Instructions – Important

Please Read ‘Changes To Building Regulations’
1. An outdoor location should be chosen ensuring adequate access to a mains supply circuit. The circuit MUST be protected by an appropriate fuse, circuit breaker or RCD (Residual Current
Device) in accordance with current IEE wiring regulations.
2. Where conduit is used for cable runs, water condensation MUST be prevented from collecting inside the unit & conduit. Drain holes MUST be drilled out (see Installation Instructions)
3. If metal conduit is used, earth continuity across the conduit must be maintained using appropriate connections (not supplied). An earth terminal in the Rear Box is provided as required. An earth
connection from supply circuit MUST be made to earth terminal of socket.
4. Where outdoor cable runs occur, ensure cable recommended for outdoor installations is used. In general, rubber insulated cable & plastic M20 cable glands can be used. Alternatively stand-
ard flat PVC twin & earth mains cable inside 20mm plastic or metal conduit may be used. Where necessary, SWA (Steel Wire Armoured) cable with metal cable glands should be used.
The outdoor use of unprotected flat PVC insulated cable is NOT recommended.
5. To ensure continued safe & proper weatherproof operation, the unit MUST not be left with the Cover raised open or the Catch left unlocked. Unused cable entries MUST have Blank Plugs
fitted.
Weatherproof 13 Amp Socket Outlets
Installation Information
Installation Instructions
Ensure Safety Instructions Have Been Read First
Both 1gang & 2 gang Rear Boxes have multiple cable entries on sides & one rear knockout cable entry. Drain hole positions are provided in relation to conduit positions as shown. Note
position of earth terminal.
Note
1 gang (as shown) has 4 drain hole & 5 cable entry positions.
2 gang (not shown) has 2 drain hole & 8 cable entry positions.

1. The unit should be mounted on a clean, rigid vertical surface suitable to accept screw
type fixings. Surface should be reasonably flat as unevenness could cause product
damage or affect operation.
2. Remove fixing screws & remove Front assembly from Rear Box.(If front assembly is
fitted to base)
3. For cable entry, decide if conduit is being used & entry positions.
For side, top or rear entry the lowermost drain hole position MUST be drilled out using a
5mm drill. ONLY ONE drain hole position must be drilled.

For bottom entry a drain hole MUST NOT be drilled in Rear Box, but a drain hole MUST be drilled at lowermost point of conduit run.
For rear entry, cut or drill out rear knock-out. For extra sealing protection, a channel around knock-out is provided to accept a bead of sealant (not supplied) when fixing to mounting surface.
Note
The drilling out of a drain hole or removing rear knock-out will reduce the IP rating of the product.
4. Mount the Rear Box using No.8 screws in all four, or at least two diagonal positions on fixing centres shown. The fixing holes are slotted to enable some rotation adjustment if required. Fit
supplied Bungs over all used fixing screw positions to seal aperture recesses.
5. Make cable entry into Rear Box as required. Only remove Blank Plugs for positions used.
Ensure adequate excess lengths of cable for connection to socket. Install & seal all cable
glands & conduit to manufacturer’s instructions. Ensure the Gasket Seal is properly fitted over
front edge of Rear Box
6. Offer up Front Assembly to Rear Box to determine final lengths of cables & cut to suit. Strip
outer insulation as required & then trim insulation on individual wires 10-12mm to expose
conductor ends.
7. Connect the wires to the correct socket rear terminals. The socket terminals are colour
coded for easier reference:-
Connect LIVE wire to BROWN LIVE (L) terminal
Connect NEUTRAL wire to BLUE NEUTRAL (N) terminal
Connect EARTH wire to GREEN/YELLOW (E) terminal
Note - the colours of the wires will be dependent on the type of cable used. See Wire Identification section for reference.
8. All earth connections MUST be made & continuity maintained. Note - the Socket has two linked earth terminals but only one needs to be used for this installation.
9. Where any earth conductor is a bare wire, it MUST be sleeved with green/Yellow sleeving.
10. Ensure all terminal screws are tight & all wires are neatly routed & not unduly stretched or pinched.
11. After wiring socket, refit Front Assembly onto Rear Box using fixing screws – DO NOT OVERTIGHTEN. Ensure the Gasket Seal is properly fitted over front edge of Rear Box before
tightening screws.
12. Fit Screw Covers to complete installation.
13. Switch power back on, check Socket is working & ensure Cover & Catch operate correctly. The product is now ready to use.
14. For security to prevent unwanted tampering with Socket, a lug feature with a 6mm hole is provided to accept a padlock or similar locking security device (not supplied)
15. During life of product, any cleaning should only be carried out with a damp cloth using a mild solution of detergent & warm water. DO NOT USE solvent based cleaners as these may
cause damage. It is recommended to ONLY clean the external surfaces with Cover closed. DO NOT get any water on Socket if Cover is open.

Changes To Building Regulations – Important!

As from 1 January 2005, any electrical work done in domestic, fixed wiring installations in England and Wales, will have to follow new rules & changes to the Building Regulations Part P. These
rules have been introduced to help reduce the number of deaths, injuries and fires caused by faulty installations.
The installation work may be carried out by anyone providing it is in accordance with the Regulation standards.
Certain electrical work (non-notifiable or minor work) may be carried out without having to use a registered electrician or notify Local Authority Building Control, such as: -
• replacing any electrical fitting (for example, socket outlets, light fittings, control switches)
• adding fused spurs, sockets or lights to an existing circuit (but not in a kitchen, bathroom or outdoors)
• any repair or maintenance work
For minor work done by a non-qualified electrician, it is highly recommended it is checked by a qualified electrician to ensure it is safe.
For all other work (notifiable or major work) a Building Regulations application is required & it must be checked to make sure it is safe.
This may be done by either an electrician who is part of a competent person self-certification scheme, or by notifying the Local Authority Building Control Department who will make required
arrangements.
An application must be made to the Local Authority before commencing work such as: -
• adding a new circuit
• adding/altering any circuit in a room with water (kitchen, bathroom, etc)
• adding/altering any circuit outdoors (outdoor sockets, lights, etc)
Where work is done by a qualified electrician, they will be responsible for checking the work, & Local Authority does not need notification.
Where a qualified electrician or Local Authority is responsible for checking the work, they will provide a certificate or notice to confirm that the installation is tested & safe to use.
IT IS RECOMMENDED TO USE A QUALIFIED ELECTRICIAN
If there is any doubt whether electrical work needs notification of the Local Authority, they should be contacted first for advice.
