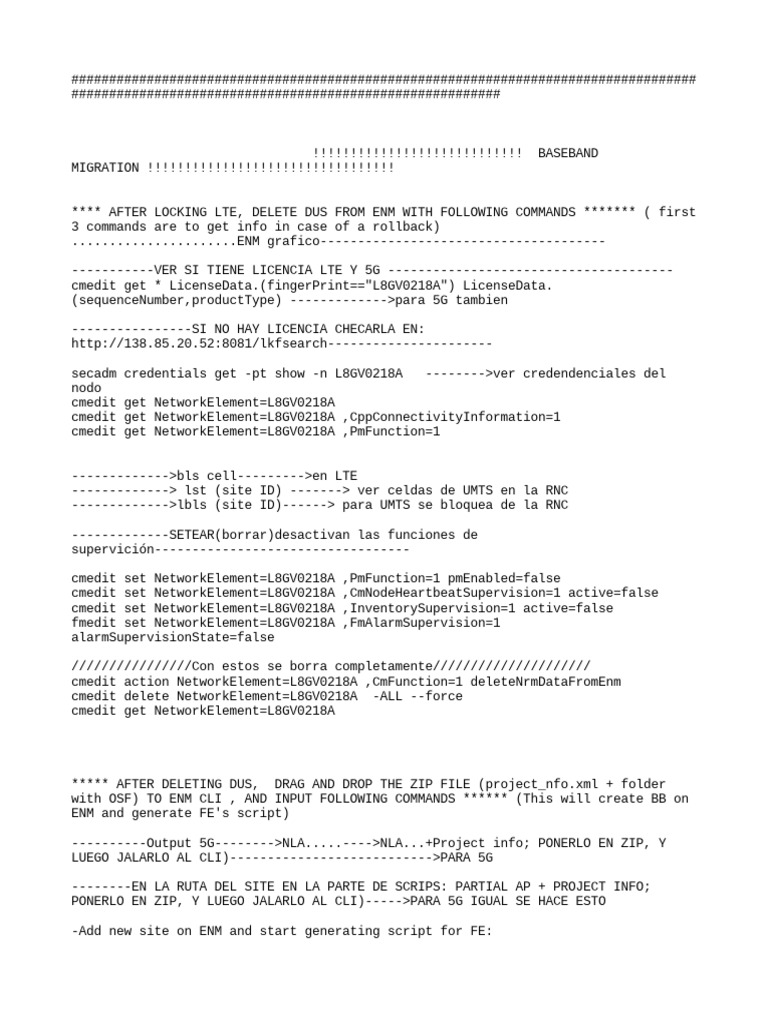

Baseband Guide

###################################################################################
#########################################################
!!!!!!!!!!!!!!!!!!!!!!!!!!!! BASEBAND
MIGRATION !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
**** AFTER LOCKING LTE, DELETE DUS FROM ENM WITH FOLLOWING COMMANDS ******* ( first
3 commands are to get info in case of a rollback)
......................ENM grafico--------------------------------------
-----------VER SI TIENE LICENCIA LTE Y 5G --------------------------------------

cmedit get * LicenseData.(fingerPrint=="L8GV0218A") LicenseData.
(sequenceNumber,productType) ------------->para 5G tambien
----------------SI NO HAY LICENCIA CHECARLA EN:

http://138.85.20.52:8081/lkfsearch----------------------
secadm credentials get -pt show -n L8GV0218A -------->ver credendenciales del

nodo
cmedit get NetworkElement=L8GV0218A
cmedit get NetworkElement=L8GV0218A ,CppConnectivityInformation=1
cmedit get NetworkElement=L8GV0218A ,PmFunction=1
------------->bls cell--------->en LTE

-------------> lst (site ID) -------> ver celdas de UMTS en la RNC
------------->lbls (site ID)------> para UMTS se bloquea de la RNC
-------------SETEAR(borrar)desactivan las funciones de

supervición----------------------------------
cmedit set NetworkElement=L8GV0218A ,PmFunction=1 pmEnabled=false

cmedit set NetworkElement=L8GV0218A ,CmNodeHeartbeatSupervision=1 active=false
cmedit set NetworkElement=L8GV0218A ,InventorySupervision=1 active=false
fmedit set NetworkElement=L8GV0218A ,FmAlarmSupervision=1
alarmSupervisionState=false
////////////////Con estos se borra completamente/////////////////////

cmedit action NetworkElement=L8GV0218A ,CmFunction=1 deleteNrmDataFromEnm
cmedit delete NetworkElement=L8GV0218A -ALL --force
***** AFTER DELETING DUS, DRAG AND DROP THE ZIP FILE (project_nfo.xml + folder
with OSF) TO ENM CLI , AND INPUT FOLLOWING COMMANDS ****** (This will create BB on
ENM and generate FE's script)
----------Output 5G-------->NLA.....---->NLA...+Project info; PONERLO EN ZIP, Y

LUEGO JALARLO AL CLI)--------------------------->PARA 5G
--------EN LA RUTA DEL SITE EN LA PARTE DE SCRIPS: PARTIAL AP + PROJECT INFO;

PONERLO EN ZIP, Y LUEGO JALARLO AL CLI)----->PARA 5G IGUAL SE HACE ESTO
-Add new site on ENM and start generating script for FE:
ap order file:L8GV0218A.zip
-View project details

ap view -n L8GV0218A
-Check AP progress
ap status -n L8GV0218A ------------------------------>la 2da vez p/ver si la
integracion se hizo
-Verify AP status -------------------->Este NO para 5G

ap status -p L8GV0218A_BB_Migration
-Download Script for FE

ap download -o -n L8GV0218A
==============ENVIAR AL FE, EL SITE INTALL FILE EN .ZIP ======================
***** AFTER FE IS DONE, CHECK IP CONTACT. IF WE HAVE, CHECK SYNC ON ENM ********
-Check Sync
cmedit get NetworkElement=L8GV0218A ,CmFunction=1 ------------------------------>la
2da vez p/ver si la integracion se hizo
-Sync if not sync'd

cmedit action NetworkElement=L8GV0218A ,CmFunction=1 sync
******** If is a 5G node we need to access with AMOS with following command

**********
*************en SECURE CRT PARA 5G -----------
amos -v exclude_preliminary=0 NVG08053A
******** to perform the following checks **********

alt
st cell
st sector
st fieldreplaceable
st rilink
st field
hget field prod ----->ver los seriales de los radios
lget ,(tn|ethernet|vlan)port=
get rilink ref2 ..................>Ver referencias
////// for Green Light Test ///////////
st rilink
st field
lget ,(tn|ethernet|vlan)port=
lpr router
st sync
sts
Make sure the rilinks on the NR 600 DU are deleted after testing is completed.
----------------------FOR
LTE---------------------------------------------------------------------
----------------------SECURE CRT(EN EL NODO DE
LTE)-----------------------------------------------------------------
******* WE SHOULD CHECK FOR ANY IMPORTANT ALARM AND IF ALL RADIOS ARE DEFINED,
AFTER THAT, START LOADING NETCONF SCRIPTS WITH THE FOLLOWING *******
---------------------ANTES DE CORRERLOS:--------------------------------------
netconf 03_TN_L8GV0218A _TMO_BB_Migration_OSS_TMobile_US_2017_06_14T08_23_25Z.xml

get Transport=1,QosProfiles=1,DscpPcpMap=1
lpr Transport=1,Synchronization=1,TimeSyncIO=
netconf 04_RN_ENBF_L8GV0218A
_TMO_BB_Migration_OSS_TMobile_US_2017_06_14T08_23_25Z.xml
get ENodeBFunction=1
get Transport=1,SctpEndpoint=1
netconf 05_RN_LRAN_L8GV0218A
lpr sectorequipment
get sect noofrx|nooftx
netconf 06_RN_L8GV0218A _TMO_BB_Migration_OSS_TMobile_US_2017_06_14T08_23_25Z.xml

pr ENodeBFunction=1,GeraNetwork=*.,GeranFrequency
lpr ulcompgroup
lpr externalutrancellfdd
pr TermPointtoMme
netconf 07_RN_NR_LRAN_L8GV0218A
pr fdd=.*,eutranfreqrel
pr fdd=.*,utranfreqrel
pr fdd=.*,geranfreq
get ^eutrancellfdd reservedby
cvms TN_RN_netconf_completed
netconf 08_FeatureActivation_L8GV0218A
invhlr
cvms 08_FeatureActivation_L8GV0218A
_TMO_BB_Migration_OSS_TMobile_US_2017_06_14T08_23_25Z
netconf PostInstall_L8GV0218A
pr CellSleepFunction=1
pr UeMeasControl
cvms PostInstall
*REMEMBER TO LOAD -------- SYSTEM COSTANTS
-----------
*AND ---------ERICSSON ONLY
*-------------------------PARAMETERS SCRIPT!!!
cvms paramters
-------------------- correrlo NC_TC SCRIPT

cvms NC_TC_Setting_RevA
l+ .log
run (ADIDIONAL SCRIPTS)(EXTERNAL Nodes)............SI viene
l-
lt all
cvms ADIDIONAL FEAUTURES
!!!!!!!!!!Copiar el .log q hice arriba y darle click en run t crrer el script q me

paso vic!!!!!!!!!!!!!!!!!11
!!!!!!!!!!!!!!!! cvms Prerestart_01_06!!!!!!!!!!!!!11
---------> st field
--++++++++ Restart the BB ++++++++--

acc FieldReplaceableUnit=1 restartunit
----------------->En SecureCRT
----------------->poll ------------------------------------------> PARA Q

AVISE CUANDO YA SE REINICIO
------->st cell (aun siguen abajo las celdas por q no las he desbloqueado)
---------->st ru-
---------->get . hub --------> ver los puertos donde estan conectados los PDUS
---------->hget rili ref ---------> ver cuales son las conexiones definidas
---------->alt
=========CHECAAR QUE LOS RADIOS NO ESTEN SWAPEADOS===========

>hget ru- data ---------> Ver serial number de los radios
------->COMPARAR CON LAS TABLAS DE LTE DE PRECHECKS EN, ISSUES SUMARY --> FIBER
LOSS
===================================================================================
====
190601-02:31:50 11.235.76.52 19.0c MSRBS_NODE_MODEL_19.Q1_372.27993.57_c346

stopfile=/tmp/1579
.

stopfile=/tmp/1579
===================================================================================
Proxy Adm State Op. State MO
===================================================================================
885 1 (UNLOCKED) 1 (ENABLED) Equipment=1,FieldReplaceableUnit=1
921 1 (UNLOCKED) 1 (ENABLED) Equipment=1,FieldReplaceableUnit=PDU-1
934 1 (UNLOCKED) 1 (ENABLED) Equipment=1,FieldReplaceableUnit=PDU-2
947 1 (UNLOCKED) 1 (ENABLED) Equipment=1,FieldReplaceableUnit=RU-1-1
977 1 (UNLOCKED) 0 (DISABLED) Equipment=1,FieldReplaceableUnit=RU-2-1
1004 1 (UNLOCKED) 1 (ENABLED) Equipment=1,FieldReplaceableUnit=SCU
===================================================================================
Total: 10 MOs
LVGY1201A> acl FieldReplaceableUnit=1

stopfile=/tmp/1579
===================================================================================
==============================
Proxy MO Action
Nr of Params
===================================================================================
==============================
885 FieldReplaceableUnit=1
resetUnitInstallation 0
885 FieldReplaceableUnit=1 restartUnit
3
885 FieldReplaceableUnit=1
writeRepairDelivNote 6
===================================================================================
==============================
!!!!!!!!!1LVGY1201A> acc FieldReplaceableUnit=1 restartUnit

stopfile=/tmp/1579
Call Action restartunit on following 1 MOs ?
===================================================================================
885 Equipment=1,FieldReplaceableUnit=1
===================================================================================
INFO: The RBS node LVGY1201A will be restarted.
REMINDER: If the node is being restarted to clear a fault, please make sure to run
"dcge" or "dcgm" BEFORE the node restart.
Call action restartunit on 1 MOs. Are you Sure [y/n] ? y
===================================================================================
==============================
Proxy MO Action
Nr of Params
===================================================================================
==============================
885 FieldReplaceableUnit=1 restartUnit
3
Parameter 1 of 3, restartRank (enumRef-ReqFieldReplaceableUnit.RestartRank):

Enter one of the following integers: 0:RESTART_WARM, 1:RESTART_COLD,
2:RESTART_COLDWTEST: 1
Parameter 2 of 3, restartReason (enumRef-ReqFieldReplaceableUnit.RestartReason):

Enter one of the following integers: 0:PLANNED_RECONFIGURATION,
1:UNPLANNED_NODE_EXTERNAL_PROBLEMS, 2:UNPLANNED_NODE_UPGRADE_PROBLEMS,
3:UNPLANNED_O_AND_M_ISSUE, 4:UNPLANNED_CYCLIC_RECOVERY,
5:UNPLANNED_LOCKED_RESOURCES, 6:UNPLANNED_COLD_WITH_HW_TEST,
7:UNPLANNED_CALL_PROCESSING_DEGRADATION, 8:UNPLANNED_LOW_COVERAGE,
31:OPERATOR_CLASSIFIED_PROBLEMS: 0
Parameter 3 of 3, restartInfo (string): reestart_BB

>>> Return value = null
===================================================================================
==============================
Total: 1 MOs attempted, 1 MOs actioned
!!!!!!!!!!LVGY1201A> poll ----------------->da un refresh de lo q esta pasando
!!!!!!!!!>lh mp ue print -admitted --------------------> ver trafico
***** GIVE A RESET TO BB. ATER THAT, SET TIME ZONE, CHECK THE FEATURES BELOW AND
ACTIVATE THEM IF NOT ALREADY, AND LOAD *******
>
----------------------------------------+++++++++++++++++++++++++++++++++++++++++++
+++++++
//should be set in following MOs: ==========SECURE CrT========

get SysM=1,CliTls=1 nodeCredential
get SysM=1,HttpM=1,Https=1 nodeCredential
get SysM=1,CliTls=1 trustCategory
get SysM=1,HttpM=1,Https=1 trustCategory
**** REMEMBER TO check the SW version!!! *****

>cvcu --------->ver q version de software tenemos
L19Q1.0-2 - CXP 902 4418/6_R60C63
GSM - RU/RRU - 75F

GSM - AIR32 - 87D
GSM - for radios 4499 - B1321R1G00 – its also known as CXP1040013/21 R1G – Also
known As G17.Q4.4.
UMTS - CXP9023291/6_R4DB01 used if UMTS is on mixedmode/AIR32/multicabinet/NGS.
Otherwise we can use R4FA05
LTE DUS - 18.Q3.0-8 (EC8) - CXP102051/27-R48C42
LTE BB5216/6630 - 18.Q3.0-7 (EC7) - CXP 902 4418/6 R48C108
SW for 5G
R9A21 this is for NR600
for ENDC activation:
1) For Configuration Based NR Leg Setup

Both eNB and gNB should be at least on MTR18.47
NR MTR18.47: CXP2010045/1_R10B35
LTE MTR18.47: CXP9024418/6_R56B31
2) For Measurement Based NR Leg Setup

NR MTR19.05 EC10: CXP2010045/1_R13B33

LTE MTR19.05 EC2: CXP9024418/6_R60C23
--------------------------------------------+++++++++++++++++++++++++++++++++++++++
++++++++++++++++
--- Setting Timezone ---
cmedit get L8GV0218A DateAndTime.*

cmedit set L8GV0218A DateAndTime timeZone=GMT
SUBNETWORK Region Time Zone DUS Time Zone BB Time Zone
Albuquerque Mountain US/Mountain GMT

Beltsville Eastern US/Eastern US/Eastern
Bloomfield Eastern US/Eastern US/Eastern
Boise Mountain US/Mountain GMT
Bothell West US/Pacific GMT
Charlotte Eastern US/Eastern US/Eastern
Draper Mountain US/Mountain GMT
EastProvidence Eastern US/Eastern US/Eastern
El Monte Eastern US/Pacific GMT
ElPaso Mountain US/Mountain GMT
Escondido West US/Pacific GMT
Fresno West US/Pacific GMT
Hawaii Hawaii US/Hawaii GMT
Irvine West US/Pacific GMT
LasVegas West US/Pacific GMT
Manhattan Eastern US/Eastern US/Eastern
Norfolk Eastern US/Eastern US/Eastern
Norton Eastern US/Eastern US/Eastern
Philadelphia Eastern US/Eastern US/Eastern
Riverside West US/Pacific GMT
SACRAMENTO West US/Pacific GMT
Salina Eastern US/Eastern US/Eastern
SanDiego West US/Pacific GMT
SanFrancisco West US/Pacific GMT
SantaClara West US/Pacific GMT
SimiValley West US/Pacific GMT
Stockton West US/Pacific GMT
Syosset Eastern US/Eastern US/Eastern
Torrance West US/Pacific GMT
Vegas West US/Pacific GMT
Wayne Eastern US/Eastern US/Eastern
WestOakland West US/Pacific GMT
WestSacramento West US/Pacific GMT
-----------------------------------++++++++++++++++++++++++++++++++++++++++++++++++
+++++++
---- Checking supervisions are active ---
cmedit get NetworkElement=L8GV0218A ,CmNodeHeartbeatSupervision=1

cmedit set NetworkElement=L8GV0218A ,CmNodeHeartbeatSupervision=1 active=true
cmedit get NetworkElement=L8GV0218A ,FmAlarmSupervision=1

alarmSupervisionState=true-----------------> para 5G DEBEN ESTAR
DESACTIVADAS(false)
----------------------SOLO para 5G no deben estar

activadas--------------------------------------------------
******** if is a NR 600 nodes then FM supervision must be set to false

************
cmedit get NetworkElement=L8GV0218A ,FmAlarmSupervision=1
If active is not false, to disable it, enter

alarmSupervisionState=false
***********************************************************************************
**
------------------------ESTAS PARA LTE SI DEBEN DE ESTAR

ACTIVAS---------------------------------------------
cmedit get NetworkElement=L8GV0218A ,InventorySupervision=1

cmedit set NetworkElement=L8GV0218A ,InventorySupervision=1 active=true

cmedit set NetworkElement=L8GV0218A ,PmFunction=1
pmEnabled=true------------------------------------------->PARA 5G DEBEN ESTAR
DESCATIVADAS
cmedit get NetworkElement=L8GV0218A ,CmFunction=1

------------------------Checar con >pst en el nodo en el

Secure--------------------------------------------------------------
---- Checking scanners (pst) ---
===================================================================================
=================
Proxy Job ReqState
CurrState Granul nrRdrs/Evts
===================================================================================
=================
6104 PmJob=PREDEF_Apc ACTIVE ACTIVE
900 8
6113 PmJob=PREDEF_Lrat ACTIVE ACTIVE
900 348
6462 PmJob=PREDEF_Rtn ACTIVE ACTIVE
900 59
6522 PmJob=PREDEF_Wrat ACTIVE ACTIVE
900 112
6635 PmJob=USERDEF-RadioNode_TMO_standard_CBS.Cont.Y.STATS ACTIVE ACTIVE
900 1908
9176 Lrat,EventJob=10000 STOPPED STOPPED
900 0
900 0
900 0
9179 Lrat,EventJob=10003 ACTIVE ACTIVE
900 24
900 0
900 31
===================================================================================
=================
CAROLINAS US/Eastern
LOS ANGELES GMT
NEW JERSEY US/Eastern
NEW YORK US/Eastern
SALT LAKE CITY GMT
cmedit get L8GV0218A PMICscannerinfo.(PMICScannerInfoId,status) -t
***********IN CASE WE NEED TO DELETE A PROJECT*************
cmedit delete Project=NAMEOFPROJECT -ALL –force
!!!!!!!!!!!!!!!!!!!!!!!!!!!!>invxrbg--------->Para ver lo q hay en el

gabinete!!!!!!!!!!!!!!!!!!!!
************IN CASE WE NEED TO ROLLBACK********************

cmedit create SubNetwork=ONRM_ROOT_MO,SubNetwork=Manhattan,MeContext=L8GV0218A
MeContextId=L8GV0218A ,neType=ERBS,platformType=CPP -ns=OSS_TOP -version=3.0.0
cmedit create NetworkElement=L8GV0218A
networkElementId=L8GV0218A ,neType=ERBS,platformType=CPP,ossPrefix="SubNetwork=ONRM
_ROOT_MO,SubNetwork=Manhattan,MeContext=L8GV0218A " -ns=OSS_NE_DEF -version=2.0.0
cmedit create NetworkElement=L8GV0218A ,CppConnectivityInformation=1
CppConnectivityInformationId=1,port=80,ipAddress="11.163.77.116" -ns=CPP_MED -
version=1.0.0
cmedit describe --netype ERBS
cmedit set NetworkElement=L8GV0218A ossModelIdentity="17B-H.1.260"
alarm enable L8GV0218A

cmedit set NetworkElement=L8GV0218A ,CmNodeHeartbeatSupervision=1 active=true
alarmSupervisionState=true
cmedit set NetworkElement=L8GV0218A ,InventorySupervision=1 active=true
cmedit set NetworkElement=L8GV0218A ,PmFunction=1 pmEnabled=true
cmedit get NetworkElement=L8GV0218A ,CmNodeHeartbeatSupervision=1
cmedit get NetworkElement=L8GV0218A ,FmAlarmSupervision=1 Login to gNB
amos -v exclude_preliminary=0 SITEID
******************************
ENDC integration
******************************
1. SW check
LTE: 6 R48C108->6_R57B28
5G: 1_R11B35

NR MTR18.47: CXP2010045/1_R10B35
LTE MTR18.47: CXP9024418/6_R56B31

NR MTR19.05 EC10: CXP2010045/1_R13B33

LTE MTR19.05 EC2: CXP9024418/6_R60C23
If needed, do the SW upgrade and dont forget to load post_upgrade script
2.-Check if cells are defined. If not, execute RN in gNB (should be in folder with
named "SITEID") Pre-Post CV
Try to unlock the cells, if not coming up, check get . cgi , should be the same
01_RN_GNBF
02_RN_GNBRP
03_RN_PP
04_RN
NNY01250B> st cell
190130-01:00:01 11.241.219.170 18.0j MSRBS_NODE_MODEL_18.Q4_365.732.51_568b

stopfile=/tmp/5121
$ssh_pid = 10992
Connected to 11.241.219.170
(SubNetwork=ONRM_ROOT_MO,SubNetwork=Syosset,MeContext=NNY01250B,ManagedElement=NNY0
1250B)
===================================================================================
===================================================================================
57 1 (UNLOCKED) 1 (ENABLED) GNodeBFunction=1,GUtranCell=MNY01250B11
62 1 (UNLOCKED) 0 (DISABLED) GNodeBRpFunction=1,GUtranDUCell=1
===================================================================================
Total: 2 MOs
3.- gNB Scripts Pre-Post CV

gNB_ENDC_Creation_18.49
Rename_Radio_sectorequipment_Site1
4.- LTE scripts once gutrancell is enabled Pre-Post cv

eNB_ENDC_Creation_LNY01133B_endc
LTE_PmFlexCounterFilter_endc
MFBI_Activation-B4withoutNativeB66
5.- 5G MMEs should be enabled in the LTE node
LNY01250B> st TermPointToGNB=
190130-00:58:13 11.241.219.180 18.0j MSRBS_NODE_MODEL_18.Q4_369.27947.53_a3c8

stopfile=/tmp/14972
===================================================================================
===================================================================================
2493 1 (UNLOCKED) 1 (ENABLED)
ENodeBFunction=1,GUtraNetwork=1,ExternalGNodeBFunction=1311536,TermPointToGNB=1
===================================================================================
Total: 3 MOs
#Login to gNB
1. SW check
LTE: 6 R48C108->6_R57B28
5G: 1_R11B35

NR MTR18.47: CXP2010045/1_R10B35
LTE MTR18.47: CXP9024418/6_R56B31

NR MTR19.05 EC10: CXP2010045/1_R13B33

LTE MTR19.05 EC2: CXP9024418/6_R60C23
01_RN_GNBF
02_RN_GNBRP
03_RN_PP
04_RN
NNY01250B> st cell

stopfile=/tmp/5121
$ssh_pid = 10992
1250B)
===================================================================================
===================================================================================
===================================================================================
Total: 2 MOs


stopfile=/tmp/14972
===================================================================================
===================================================================================
===================================================================================
Total: 3 MOs
Restart both nodes and leave 5G cells unlocked
###############################################################
###############################################################
cmedit get NetworkElement=L8GV0218A ,InventorySupervision=1

cmedit get NetworkElement=L8GV0218A ,CmFunction=1
CREDENTIALS
secadm credentials create --rootusername ne --rootuserpassword dummy --

secureusername rbs --secureuserpassword "B7sPmK" --normalusername rbs --
normaluserpassword B7sPmK -n L8GV0218A
***************
pmr -m 2 -r 212 | egrep -i "Acc_InitialERabEstabSuccRate|

Acc_InitialErabSetupSuccRate|Acc_InitialUEContextEstabSuccRate" \n
pmr -r 206 -m 1 | grep Av_CellAv \n
pmx EUtranCellFDD= pmRrcConnEstabAtt$|pmRrcConnEstabSucc$ -m .25 -a \n
*********************
ENDC activation steps:
Login to gNB
1. SW check
LTE: 6 R48C108->6_R57B28
5G: 1_R11B35

NR MTR18.47: CXP2010045/1_R10B35
LTE MTR18.47: CXP9024418/6_R56B31

NR MTR19.05 EC10: CXP2010045/1_R13B33

LTE MTR19.05 EC2: CXP9024418/6_R60C23
01_RN_GNBF
02_RN_GNBRP
03_RN_PP
04_RN
NNY01250B> st cell

stopfile=/tmp/5121
$ssh_pid = 10992
1250B)
===================================================================================
===================================================================================
===================================================================================
Total: 2 MOs



stopfile=/tmp/14972
===================================================================================
===================================================================================
===================================================================================
Total: 3 MOs
Restart both nodes and leave 5G cells unlocked
###############################################################
Green Light Test (GLT)
As part of this NR 600 GLT process we are getting more checks during the activity
that are very important for T-Mobile
1. Please make sure you are leaving the FieldReplaceableUnit unlocked. After the
GLT is completed. This could cause the RRU on LTE to go down if someone defines
back the rilinks on the NR 600 nodes.
2. NR 600 Rilinks must be deleted after the GLT is completed
3. Printouts needed on the body of the email shown below
// check 1G_FULL and UNLOCKED/ENABLED

hget EthernetPort=TN_A State|Mode|encap
//check 10G_FULL and UNLOCKED/ENABLED

hget EthernetPort=ERAN State|Mode|encap
// check SYNCHRONIZED
hget GnssInfo ReceiverStatus|noOf|tude
// check UNLOCKED/ENABLED GNSS_RECEIVER

hget RadioEquipmentClockReference=1 State|Type|encap
• Transport Check:
• Ethernet Transport Physical Layer.
hget EthernetPort=TN_A State|Mode|encap
• Expected output:
===================================================================================
==============================
MO admOperatingMode administrativeState encapsulation
operOperatingMode operationalState
===================================================================================
==============================
EthernetPort=TN_A 6 (1G_FULL) 1 (UNLOCKED) FieldReplaceableUnit=BB-
01,TnPort=TN_A 6 (1G_FULL) 1 (ENABLED)
===================================================================================
==============================
• IDL cable Physical Layer.
hget EthernetPort=ERAN State|Mode|encap
• Expected output:
===================================================================================
==============================
MO admOperatingMode administrativeState encapsulation
operOperatingMode operationalState
===================================================================================
==============================
EthernetPort=ERAN 9 (10G_FULL) 1 (UNLOCKED) FieldReplaceableUnit=BB-
01,TnPort=IDL_A1 9 (10G_FULL) 1 (ENABLED)
===================================================================================
==============================
• GPS Check
hget GnssInfo ReceiverStatus|noOf|tude
• Expected output, Synchronized with Satellites and position:
===================================================================================
==============================
MO altitude gnssReceiverStatus latitude
longitude noOfSatellitesInUse noOfSatellitesInView
===================================================================================
==============================
Synchronization=1,TimeSyncIO=1,GnssInfo=1 133.00 6 (SYNCHRONIZED) N 43 47.3357
W 70 46.4833 16 16
===================================================================================
==============================
hget RadioEquipmentClockReference=1 State|Type|encap
• Expected output, Unlocked, Enabled State:
===================================================================================
==============================
MO
administrativeState encapsulation operationalState syncRefType
===================================================================================
==============================
Synchronization=1,RadioEquipmentClock=1,RadioEquipmentClockReference=1 1 (UNLOCKED)
Synchronization=1,TimeSyncIO=1 1 (ENABLED) 7 (GNSS_RECEIVER)
===================================================================================
==============================
• Transport Check:
• Ethernet Transport Physical Layer.
cmedit get L8GV0218A EthernetPort.
(ethernetPortId==TN_A,admOperatingMode,operOperatingMode,administrativeState,operat
ionalState,encapsulation) -t
• IDL cable Physical Layer.
cmedit get L8GV0218A EthernetPort.
(ethernetPortId==ERAN,admOperatingMode,operOperatingMode,administrativeState,operat
ionalState,encapsulation) -t
• GPS Check
cmedit get L8GV0218A GnssInfo.
(altitude,gnssReceiverStatus,latitude,noOfSatellitesInUse) -t
cmedit get L8GV0218A RadioEquipmentClockReference.
(administrativeState,operationalState,encapsulation,syncRefType) -t
• Radio Checks:
cmedit get L8GV0218A FieldReplaceableUnit.
(FieldReplaceableUnitId==6*,productData,administrativeState,operationalState) –t
cmedit get L8GV0218A RiLink.
(availabilityStatus,operationalState,linkRate,riPortRef1,riPortRef2) –t

Baseband Guide

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Baseband Guide

Uploaded by

Copyright:

Available Formats

###################################################################################

-----------VER SI TIENE LICENCIA LTE Y 5G --------------------------------------

----------------SI NO HAY LICENCIA CHECARLA EN:

secadm credentials get -pt show -n L8GV0218A -------->ver credendenciales del

------------->bls cell--------->en LTE

-------------SETEAR(borrar)desactivan las funciones de

cmedit set NetworkElement=L8GV0218A ,PmFunction=1 pmEnabled=false

////////////////Con estos se borra completamente/////////////////////

----------Output 5G-------->NLA.....---->NLA...+Project info; PONERLO EN ZIP, Y

--------EN LA RUTA DEL SITE EN LA PARTE DE SCRIPS: PARTIAL AP + PROJECT INFO;

-View project details

-Verify AP status -------------------->Este NO para 5G

-Download Script for FE

==============ENVIAR AL FE, EL SITE INTALL FILE EN .ZIP ======================

-Sync if not sync'd

******** If is a 5G node we need to access with AMOS with following command

*************en SECURE CRT PARA 5G -----------

amos -v exclude_preliminary=0 NVG08053A

******** to perform the following checks **********

////// for Green Light Test ///////////

netconf 03_TN_L8GV0218A _TMO_BB_Migration_OSS_TMobile_US_2017_06_14T08_23_25Z.xml

netconf 06_RN_L8GV0218A _TMO_BB_Migration_OSS_TMobile_US_2017_06_14T08_23_25Z.xml

*REMEMBER TO LOAD -------- SYSTEM COSTANTS

*AND ---------ERICSSON ONLY

-------------------- correrlo NC_TC SCRIPT

cvms ADIDIONAL FEAUTURES

!!!!!!!!!!Copiar el .log q hice arriba y darle click en run t crrer el script q me

!!!!!!!!!!!!!!!! cvms Prerestart_01_06!!!!!!!!!!!!!11

--++++++++ Restart the BB ++++++++--

----------------->poll ------------------------------------------> PARA Q

=========CHECAAR QUE LOS RADIOS NO ESTEN SWAPEADOS===========

190601-02:31:50 11.235.76.52 19.0c MSRBS_NODE_MODEL_19.Q1_372.27993.57_c346

190601-02:32:25 11.235.76.52 19.0c MSRBS_NODE_MODEL_19.Q1_372.27993.57_c346

LVGY1201A> acl FieldReplaceableUnit=1

190601-02:33:09 11.235.76.52 19.0c MSRBS_NODE_MODEL_19.Q1_372.27993.57_c346

!!!!!!!!!1LVGY1201A> acc FieldReplaceableUnit=1 restartUnit

190601-02:34:05 11.235.76.52 19.0c MSRBS_NODE_MODEL_19.Q1_372.27993.57_c346

Parameter 1 of 3, restartRank (enumRef-ReqFieldReplaceableUnit.RestartRank):

Parameter 2 of 3, restartReason (enumRef-ReqFieldReplaceableUnit.RestartReason):

Parameter 3 of 3, restartInfo (string): reestart_BB

!!!!!!!!!!LVGY1201A> poll ----------------->da un refresh de lo q esta pasando

!!!!!!!!!>lh mp ue print -admitted --------------------> ver trafico

//should be set in following MOs: ==========SECURE CrT========

**** REMEMBER TO check the SW version!!! *****

L19Q1.0-2 - CXP 902 4418/6_R60C63

GSM - RU/RRU - 75F

for ENDC activation:

1) For Configuration Based NR Leg Setup

2) For Measurement Based NR Leg Setup

NR MTR19.05 EC10: CXP2010045/1_R13B33

cmedit get L8GV0218A DateAndTime.*

SUBNETWORK Region Time Zone DUS Time Zone BB Time Zone

Albuquerque Mountain US/Mountain GMT

---- Checking supervisions are active ---

cmedit get NetworkElement=L8GV0218A ,CmNodeHeartbeatSupervision=1

cmedit get NetworkElement=L8GV0218A ,FmAlarmSupervision=1

----------------------SOLO para 5G no deben estar

******** if is a NR 600 nodes then FM supervision must be set to false

If active is not false, to disable it, enter

------------------------ESTAS PARA LTE SI DEBEN DE ESTAR

cmedit get NetworkElement=L8GV0218A ,InventorySupervision=1

cmedit get NetworkElement=L8GV0218A ,PmFunction=1

cmedit get NetworkElement=L8GV0218A ,CmFunction=1

to perform the following checks **

REMEMBER TO check the SW version!!! *

*IN CASE WE NEED TO DELETE A PROJECT***

IN CASE WE NEED TO ROLLBACK********
