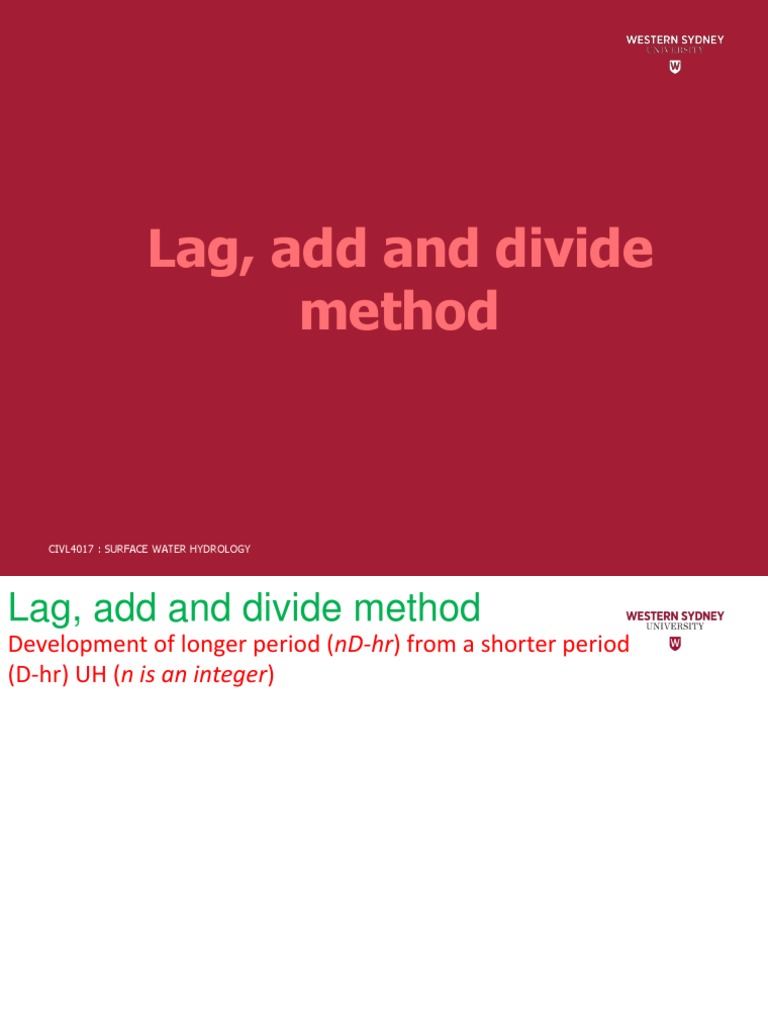

Lag, add and divide

method

CIVL4017 : SURFACE WATER HYDROLOGY


Lag, add and divide method
Development of longer period (nD-hr) from a shorter period
(D-hr) UH (n is an integer)

2
CIVL4017: SURFACE WATER HYDROLOGY
Lag, add and divide method
Development of longer period (nD-hr) from a shorter period (D-
hr) UH (n is an integer)

Steps:
1. Construct a D-hour unit hydrograph
2. Construct a second D-hour unit hydrograph by lagging the unit hydrograph
by D-hour
3. Construct a third D-hour unit hydrograph by lagging the unit hydrograph by
2D hours
4. Continue the steps above n number of times
5. Sum all unit hydrograph ordinates (superposition principle) to obtain
hydrograph ordinates of nD-hour duration and rainfall excess of n-mm
6. Divide the hydrograph ordinates obtained by n to obtain nD-hour unit
hydrograph (linearity principle)
3
CIVL4017: SURFACE WATER HYDROLOGY
Example:
# Develop 45 min UH from 15 min UH
given in table below.
Time 15-min UH ordinates
(minutes) (m3/s)
0 0.00
15 0.30
30 1.80
45 4.30
60 8.30
75 12.30
90 15.50
105 17.50
120 12.60
135 5.70
150 2.50
165 0.75
180 0.00
4
CIVL4017: SURFACE WATER HYDROLOGY
