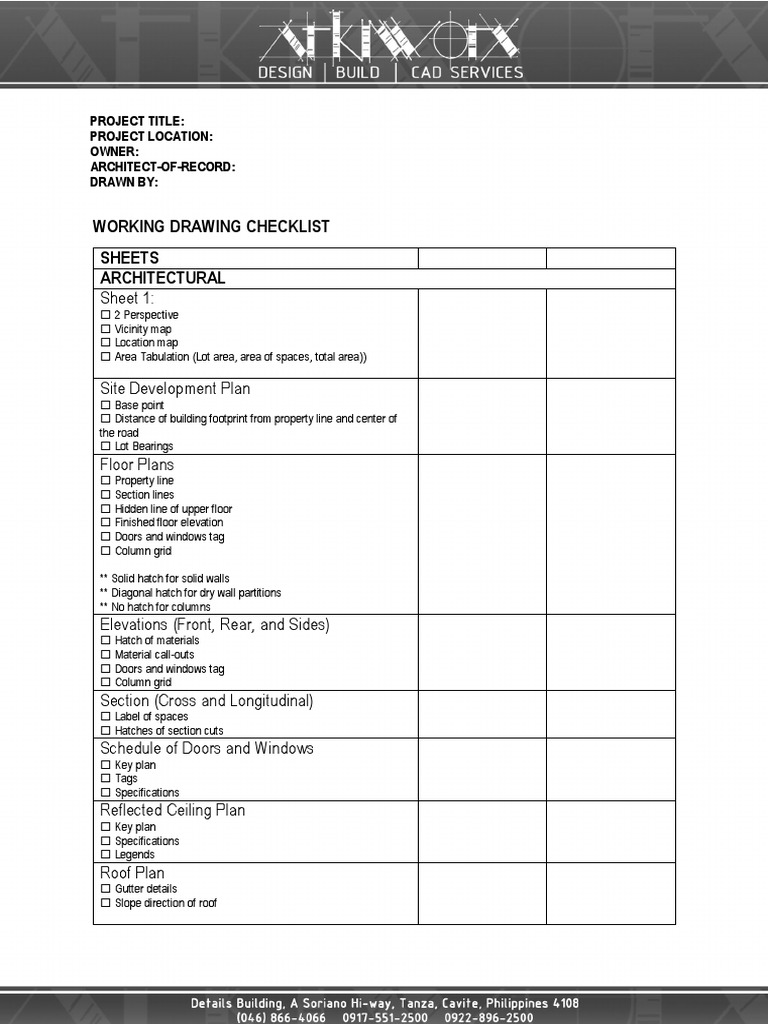

PROJECT TITLE:

PROJECT LOCATION:
OWNER:
ARCHITECT-OF-RECORD:
DRAWN BY:

WORKING DRAWING CHECKLIST

SHEETS
ARCHITECTURAL
Sheet 1:
 2 Perspective
 Vicinity map
 Location map
 Area Tabulation (Lot area, area of spaces, total area))

Site Development Plan

 Base point
 Distance of building footprint from property line and center of
the road
 Lot Bearings
Floor Plans
 Property line
 Section lines
 Hidden line of upper floor
 Finished floor elevation
 Doors and windows tag
 Column grid

** Solid hatch for solid walls

** Diagonal hatch for dry wall partitions
** No hatch for columns
Elevations (Front, Rear, and Sides)
 Hatch of materials
 Material call-outs
 Doors and windows tag
 Column grid
Section (Cross and Longitudinal)
 Label of spaces
 Hatches of section cuts
Schedule of Doors and Windows
 Key plan
 Tags
 Specifications
Reflected Ceiling Plan
 Key plan
 Specifications
 Legends
Roof Plan
 Gutter details
 Slope direction of roof
** if multi-level roofing, provide different roof plans for each level
Stair Details
 Plan
 Section
 Connections
 Specifications
 Railings
Toilet and Bath Details
 Plan
 Section A & B
 Distance of fixtures
 Location of floor drains
 Dimensions of niche
ELECTRICAL
Sheet 1:
 General notes
 Legends
 Location/Vicinity Map
 Panel diagram
 Riser diagram
 Service entrance diagram
Sheet 2 onwards:
 Lighting layout
 Power layout

** Location of panel board

** Homerun/Circuit tags
** Call-outs (location/height of outlets particularly if located over
the counter
PLUMBING
Sheet 1:
 General notes
 Legends
 Location/Vicinity Map
 Connection details
 Septic tank details
Sheet 2 onwards:
 Water supply layout and diagram
 Sanitary waste layout and diagram
 Soil pipe layout and diagram

** for layout indicate flow direction

** specifications
Notes:
1. Sheet content may vary depending on size of project.
2. Preferred minimum scale is 1:100mts
3. Double-check dimensions (round off to nearest hundredths if possible)
4. Double-check if title block is updated and revised.
5. Sheet numbers and content shall match what is drawn.

Working drawing procedure: (for electrical and plumbing)

Step 1: Print blank floor plans and manually sketch layouts. For initial checking of Ar. Raymund
Step 2: Proceed to CAD.
Step 3: Print layouts in A3 scratch. For checking of layout, scale, load schedule, and etc.
Step 4: Final revisions before printing on blueprint.
