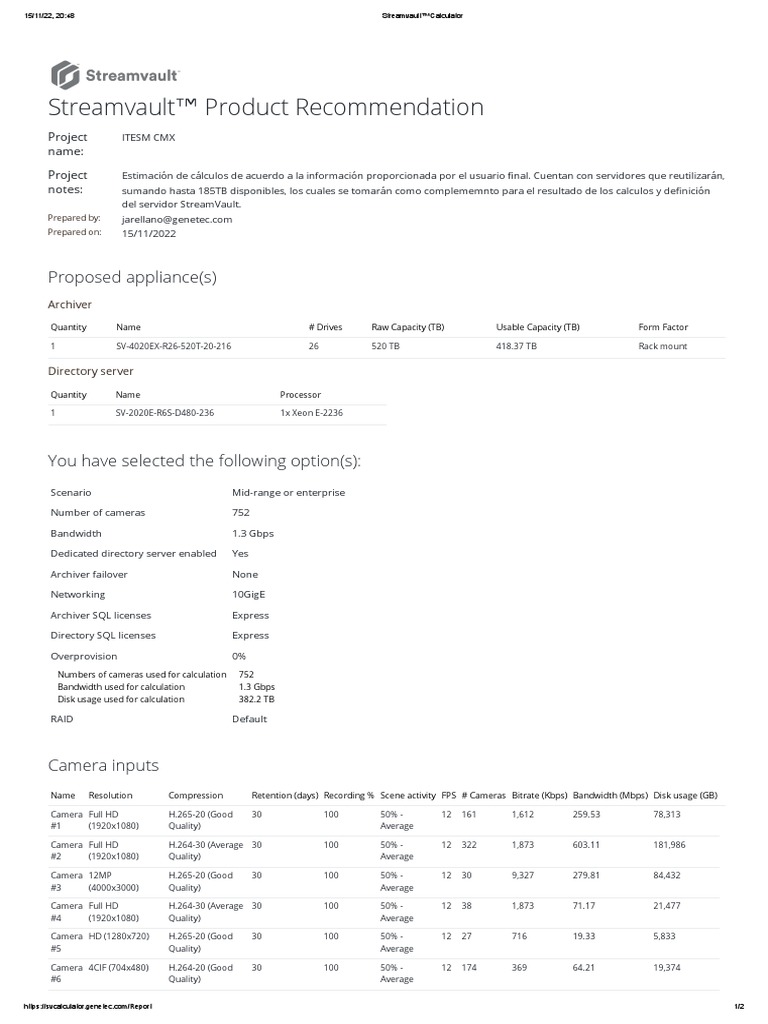

Streamvault™ Product Recommendation

Project ITESM CMX
name:

Project Estimación de cálculos de acuerdo a la información proporcionada por el usuario final.

Cuentan con servidores que reutilizarán,
notes: sumando hasta 185TB disponibles, los cuales se tomarán como complememnto para el resultado de los calculos y definición
del servidor StreamVault.
Prepared by: jarellano@genetec.com
Prepared on: 15/11/2022

Proposed appliance(s)
Archiver
Quantity Name # Drives Raw Capacity (TB) Usable Capacity (TB) Form Factor

1 SV-4020EX-R26-520T-20-216 26 520 TB 418.37 TB Rack mount

Directory server

Quantity Name Processor

1 SV-2020E-R6S-D480-236 1x Xeon E-2236

You have selected the following option(s):

Scenario Mid-range or enterprise

Number of cameras 752

Bandwidth 1.3 Gbps

Dedicated directory server enabled Yes

Archiver failover None

Networking 10GigE

Archiver SQL licenses Express

Directory SQL licenses Express

Overprovision 0%
Numbers of cameras used for calculation 752
Bandwidth used for calculation 1.3 Gbps
Disk usage used for calculation 382.2 TB

RAID Default

Camera inputs
Name Resolution Compression Retention (days) Recording % Scene activity FPS # Cameras Bitrate (Kbps) Bandwidth (Mbps) Disk usage (GB)

Camera Full HD H.265-20 (Good 30 100 50% - 12 161 1,612 259.53 78,313
#1 (1920x1080) Quality) Average

Camera Full HD H.264-30 (Average 30 100 50% - 12 322 1,873 603.11 181,986
#2 (1920x1080) Quality) Average

Camera 12MP H.265-20 (Good 30 100 50% - 12 30 9,327 279.81 84,432

#3 (4000x3000) Quality) Average

Camera Full HD H.264-30 (Average 30 100 50% - 12 38 1,873 71.17 21,477

#4 (1920x1080) Quality) Average

Camera HD (1280x720) H.265-20 (Good 30 100 50% - 12 27 716 19.33 5,833

#5 Quality) Average

Camera 4CIF (704x480) H.264-20 (Good 30 100 50% - 12 174 369 64.21 19,374
#6 Quality) Average

https://svcalculator.genetec.com/Report 1/2
15/11/22, 20:48 Streamvault™ Calculator

Name Resolution Compression Retention (days) Recording % Scene activity FPS # Cameras Bitrate (Kbps) Bandwidth (Mbps) Disk usage (GB)

TOTALS: 752 1.3 Gbps 382.2 TB

Product specifications

SV-4000E
Series

The Streamvault™ 4000E Series is a rackmount security appliance that Key Specs
delivers enterprise-grade performance and reliability. Its certified Windows Server Standard 2019 LTSC
hardware configurations and out of the box hardening against cyber Redundant power supplies
5-year hardware warranty with Keep Your Drive
threats simplifies the design and deployment of a new security system.
and Genetec Assurance with next-business day on-
With Security Center pre-loaded, you can deploy it in the field immediately
site service.
and get your system up and running faster.

Datasheet for
SV-4020EX-R26-520T-20-216
Hardware platform Dell PowerEdge R740xd2
OS drive 2x 240 GB SSD (RAID1) or better
Processor (2) Xeon Silver 4216
NIC (2) 1GbE RJ45 (2) 10GbE SFP+
Max capacity 2,220 Mbps / 850 cameras(Recording: 1,350 Mbps; Playback: 70 Mbps; Redirection: 800 Mbps)
Form factor 2U
Memory 32 GB
Power supply 2x 1100W (max 4100 BTU/hr)
iDRAC iDRAC9 Enterprise
Free expansion slots 1x LP
Storage NLSAS
RAID configuration Raid6Raid10Raid5Raid6WSpareTwoRaid6

Datasheet for
SV-2020E-R6S-D480-236
Hardware
Dell PowerEdge R340 OEMR XL
platform
OS drive (2) 480GB (RAID1)
Processor (1) Xeon E-2236
NIC (2) 1GbE RJ45
Free expansion
1 FH & 1 LP
slots
Form factor 1U
Max recording For 4 to 7 Drives: 300 Mbps / 300 cameras (Archiver Only) | 200 Mbps / 200 cameras (Archiver & Directory)For 8 to 18 Drives:
capacity 500 Mbps / 500 cameras (Archiver Only) | 400 Mbps / 200 cameras (Archiver & Directory)
Max redirection
150 Mbps
throughput
Max playback
For 4 to 7 Drives: 15 MbpsFor 8 to 18 Drives: 20 Mbps
throughput
Storage -
Memory 16 GB
Power supply 2x 350W (max 1340 BTU/hr)
iDRAC iDRAC9 Express
