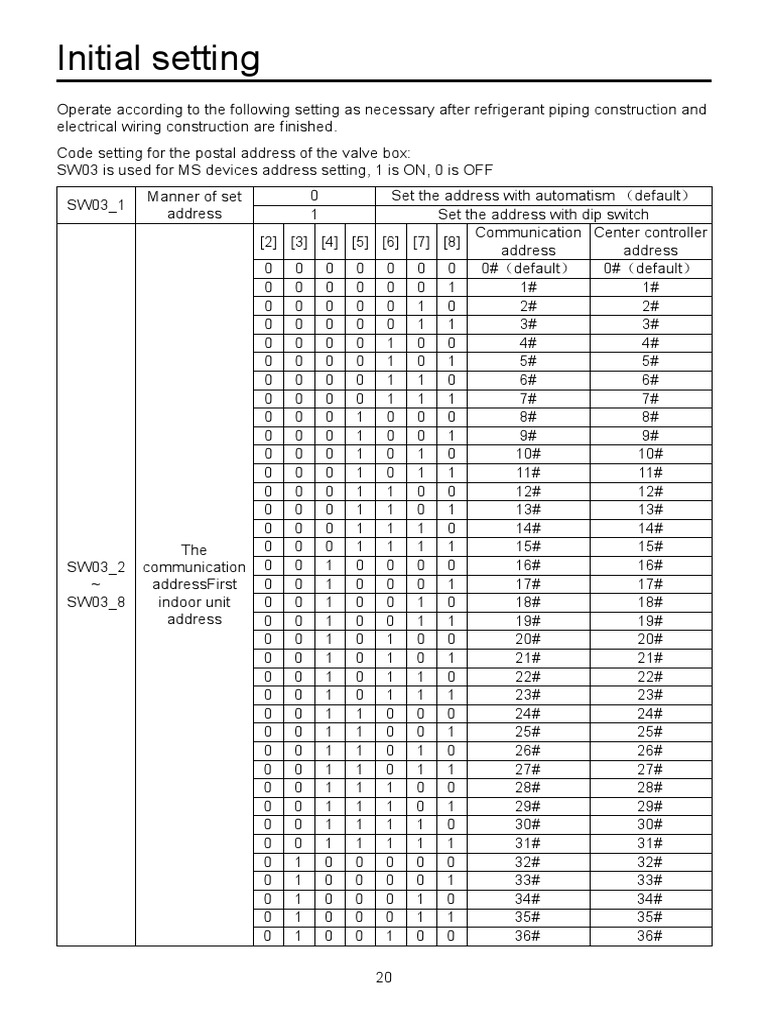

Operate according to the following setting as necessary after refrigerant piping construction and
electrical wiring construction are finished.
Code setting for the postal address of the valve box:
SW03 is used for MS devices address setting, 1 is ON, 0 is OFF
Manner of set 0 Set the address with automatism (default)
SW03_1
address 1 Set the address with dip switch
Communication Center controller
[2] [3] [4] [5] [6] [7] [8]
address address
0 0 0 0 0 0 0 0#(default) 0#(default)
0 0 0 0 0 0 1 1# 1#
0 0 0 0 0 1 0 2# 2#
0 0 0 0 0 1 1 3# 3#
0 0 0 0 1 0 0 4# 4#
0 0 0 0 1 0 1 5# 5#
0 0 0 0 1 1 0 6# 6#
0 0 0 0 1 1 1 7# 7#
0 0 0 1 0 0 0 8# 8#
0 0 0 1 0 0 1 9# 9#
0 0 0 1 0 1 0 10# 10#
0 0 0 1 0 1 1 11# 11#
0 0 0 1 1 0 0 12# 12#
0 0 0 1 1 0 1 13# 13#
0 0 0 1 1 1 0 14# 14#
The 0 0 0 1 1 1 1 15# 15#
SW03_2 communication 0 0 1 0 0 0 0 16# 16#
~ addressFirst 0 0 1 0 0 0 1 17# 17#
SW03_8 indoor unit 0 0 1 0 0 1 0 18# 18#
address 0 0 1 0 0 1 1 19# 19#
0 0 1 0 1 0 0 20# 20#
0 0 1 0 1 0 1 21# 21#
0 0 1 0 1 1 0 22# 22#
0 0 1 0 1 1 1 23# 23#
0 0 1 1 0 0 0 24# 24#
0 0 1 1 0 0 1 25# 25#
0 0 1 1 0 1 0 26# 26#
0 0 1 1 0 1 1 27# 27#
0 0 1 1 1 0 0 28# 28#
0 0 1 1 1 0 1 29# 29#
0 0 1 1 1 1 0 30# 30#
0 0 1 1 1 1 1 31# 31#
0 1 0 0 0 0 0 32# 32#
0 1 0 0 0 0 1 33# 33#
0 1 0 0 0 1 0 34# 34#
0 1 0 0 0 1 1 35# 35#
0 1 0 0 1 0 0 36# 36#
20
Initial setting
Communication Center controller
[2] [3] [4] [5] [6] [7] [8]
address address
0 1 0 0 1 0 1 37# 37#
0 1 0 0 1 1 0 38# 38#
0 1 0 0 1 1 1 39# 39#
0 1 0 1 0 0 0 40# 40#
0 1 0 1 0 0 1 41# 41#
0 1 0 1 0 1 0 42# 42#
0 1 0 1 0 1 1 43# 43#
0 1 0 1 1 0 0 44# 44#
0 1 0 1 1 0 1 45# 45#
0 1 0 1 1 1 0 46# 46#
The 0 1 0 1 1 1 1 47# 47#
communication 0 1 1 0 0 0 0 48# 48#
SW03_3
addressFirst 0 1 1 0 0 0 1 49# 49#
~SW03_8
indoor unit 0 1 1 0 0 1 0 50# 50#
address 0 1 1 0 0 1 1 51# 51#
0 1 1 0 1 0 0 52# 52#
0 1 1 0 1 0 1 53# 53#
0 1 1 0 1 1 0 54# 54#
0 1 1 0 1 1 1 55# 55#
0 1 1 1 0 0 0 56# 56#
0 1 1 1 0 0 1 57# 57#
0 1 1 1 0 1 0 58# 58#
0 1 1 1 0 1 1 59# 59#
0 1 1 1 1 0 0 60# 60#
0 1 1 1 1 0 1 61# 61#
0 1 1 1 1 1 0 62# 62#
0 1 1 1 1 1 1 63# 63#
1 0 0 0 0 0 0 0# 64#
1 0 0 0 0 0 1 1# 65#
1 0 0 0 0 1 0 2# 66#
… … … … … … … …… ……
1 1 1 1 1 1 0 62# 126#
1 1 1 1 1 1 1 63# 127#
21
