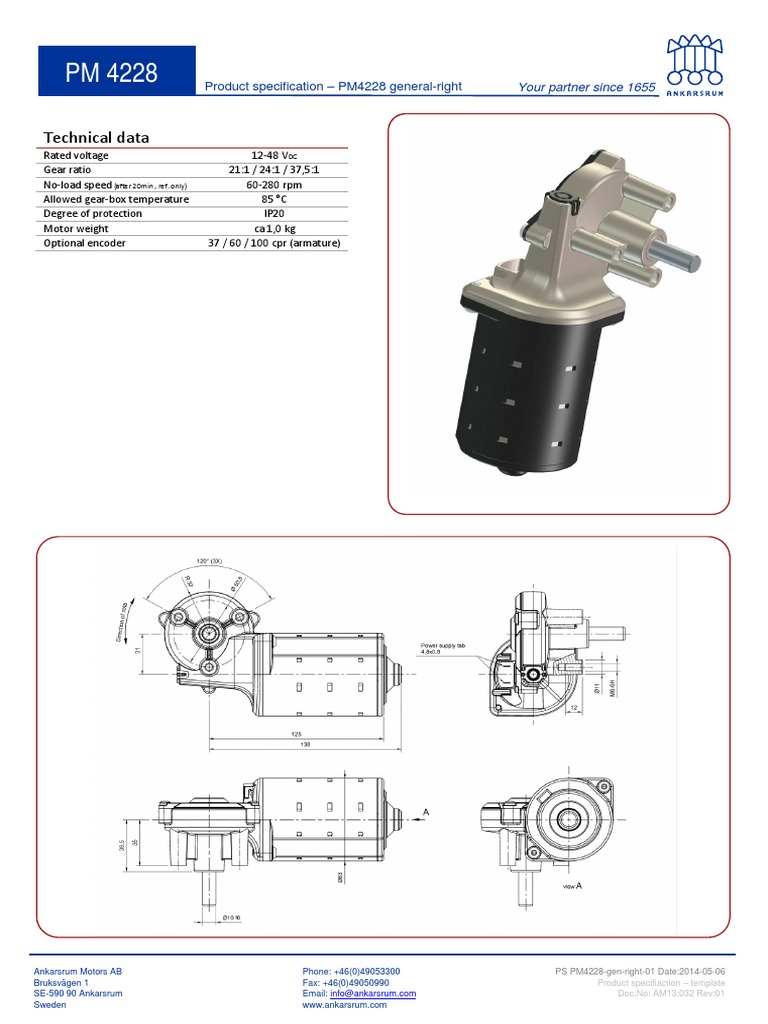

PM 4228 Product specification – PM4228 general-right Your partner since 1655


Technical data
Rated voltage  12‐48 VDC
Gear ratio   21:1 / 24:1 / 37,5:1
No‐load speed (after 20min , ref. only)  60‐280 rpm
Allowed gear‐box temperature  85 °C
Degree of protection  IP20
Motor weight  ca 1,0 kg
Optional encoder  37 / 60 / 100 cpr (armature)




Ankarsrum Motors AB   Phone: +46(0)49053300 PS PM4228-gen-right-01 Date:2014-05-06


Bruksvägen 1 Fax: +46(0)49050990 Product specifiaction – template
SE-590 90 Ankarsrum Email: info@ankarsrum.com Doc.No: AM13:032 Rev:01
Sweden www.ankarsrum.com
PM 4228 Product specification – PM4228 general-left Your partner since 1655


Technical data
Rated voltage  12‐48 VDC
Gear ratio   21:1 / 24:1 / 37,5:1
No‐load speed (after 20min , ref. only)  60‐280 rpm
Allowed gear‐box temperature  85 °C
Degree of protection  IP20
Motor weight  ca 1,0 kg
Optional encoder  37 / 60 / 100 cpr (armature)




Ankarsrum Motors AB   Phone: +46(0)49053300 PS PM4228-gen-left-02 Date:2014-05-06


Bruksvägen 1 Fax: +46(0)49050990 Product specifiaction – template
SE-590 90 Ankarsrum Email: info@ankarsrum.com Doc.No: AM13:032 Rev:01
Sweden www.ankarsrum.com
