3.

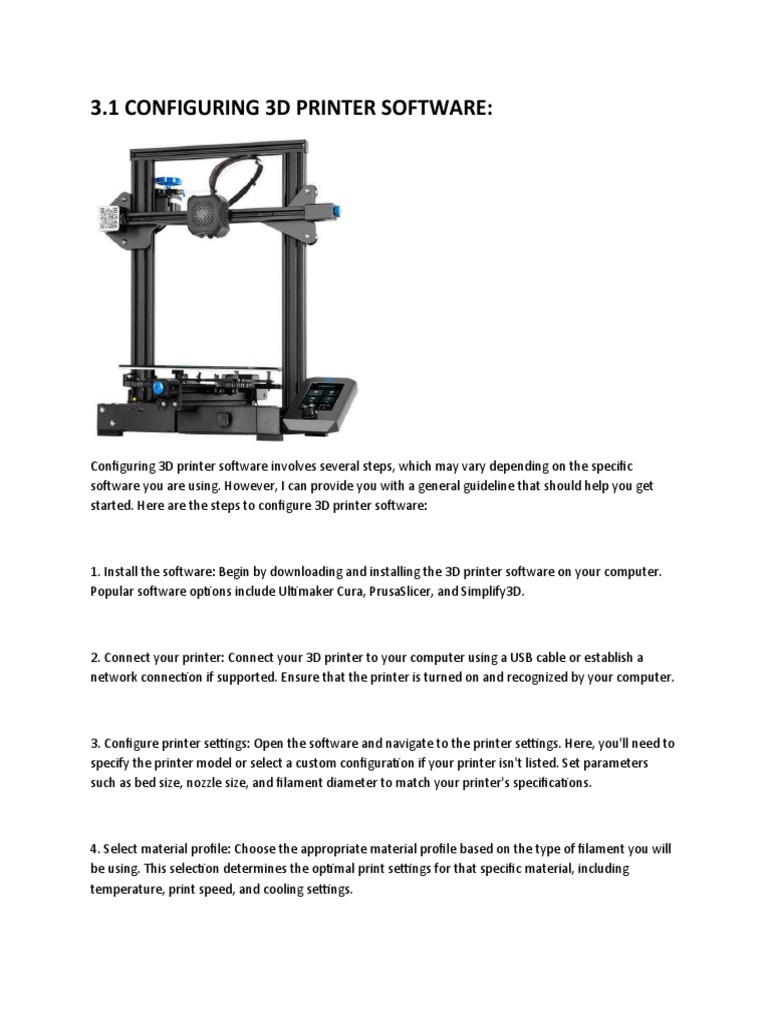

1 CONFIGURING 3D PRINTER SOFTWARE:

Configuring 3D printer software involves several steps, which may vary depending on the specific
software you are using. However, I can provide you with a general guideline that should help you get
started. Here are the steps to configure 3D printer software:

1. Install the software: Begin by downloading and installing the 3D printer software on your computer.
Popular software options include Ultimaker Cura, PrusaSlicer, and Simplify3D.

2. Connect your printer: Connect your 3D printer to your computer using a USB cable or establish a
network connection if supported. Ensure that the printer is turned on and recognized by your computer.

3. Configure printer settings: Open the software and navigate to the printer settings. Here, you'll need to
specify the printer model or select a custom configuration if your printer isn't listed. Set parameters
such as bed size, nozzle size, and filament diameter to match your printer's specifications.

4. Select material profile: Choose the appropriate material profile based on the type of filament you will
be using. This selection determines the optimal print settings for that specific material, including
temperature, print speed, and cooling settings.
5. Set slicing options: Slicing is the process of converting your 3D model into a set of instructions (G-
code) that the printer can understand. Configure slicing options such as layer height, infill density, wall
thickness, and support structures based on your desired print quality and object characteristics.

6. Fine-tune advanced settings: Depending on the software, you may have access to advanced settings
for further customization. These settings can include retraction distance, z-hop, acceleration, jerk
control, and more. Adjust these parameters based on your specific requirements or experiment to
optimize your prints.

7. Preview and slice the model: Load your 3D model file (typically in .STL or .OBJ format) into the
software. Review the model in the preview mode to ensure it appears as expected. Once satisfied,
initiate the slicing process to generate the G-code file.

8. Save and export G-code: After slicing, save the G-code file to your computer. This file contains the
instructions required for the 3D printer to create your object.

9. Transfer and print: Transfer the G-code file to your 3D printer, either by saving it to an SD card or
using the software's built-in transfer functionality. Load the filament, prepare the print bed, and initiate
the printing process according to your printer's instructions.

Remember that these steps provide a general overview, and the specific options and interfaces may vary
depending on the software you are using. It's recommended to consult the software's documentation or
user guide for detailed instructions tailored to your chosen software.

3.2 SETTING UP THE PRONTER FIRMWERE:

Setting up the firmware for your 3D printer typically involves the following steps:

1. Identify the firmware: Determine the firmware that your 3D printer uses. The most common firmware
options for 3D printers are Marlin, Repetier, and Smoothie. Check the manufacturer's documentation or
the printer's firmware settings to identify the firmware version.
2. Download the firmware: Visit the official website or repository of the firmware you identified in the
previous step. Download the latest stable release of the firmware that matches your printer model and
the version of the firmware.

3. Install Arduino IDE: If you're using firmware like Marlin, which is based on the Arduino platform, you'll
need to install the Arduino Integrated Development Environment (IDE) on your computer. Visit the
Arduino website (https://www.arduino.cc) and download the IDE for your operating system. Follow the
installation instructions provided by Arduino.

4. Open firmware in Arduino IDE: Launch the Arduino IDE and open the firmware file you downloaded.
The firmware files typically have the extension .ino or .h. Open the main file that corresponds to your
printer model and firmware version.

5. Configure firmware settings: Within the firmware files, you will find a configuration file that contains
various settings and parameters for your 3D printer. Locate this file, which is usually named
Configuration.h or Configuration adv.h, and open it in the Arduino IDE.

6. Customize firmware settings: Review and modify the firmware settings according to your specific
printer's specifications. These settings include options such as bed size, nozzle size, thermistor type, end
stop configuration, motor direction, and other hardware-specific parameters. Refer to your printer's
documentation or the firmware's documentation for guidance on the settings that need to be modified.

7. Compile the firmware: Once you have adjusted the settings, click on the compile button (checkmark
icon) in the Arduino IDE to compile the firmware. This step ensures that there are no syntax errors or
compilation issues in the firmware code.

8. Upload the firmware: Connect your 3D printer to your computer using a USB cable. Select the correct
board type and port from the Arduino IDE's Tools menu. Then, click on the upload button (arrow icon) in
the IDE to upload the firmware to your printer. Wait for the upload process to complete.

9. Test and verify: After uploading the firmware, disconnect the printer from the computer. Power on
your 3D printer and verify that it starts up correctly and displays the expected information on the LCD
screen (if applicable). Perform basic tests, such as homing the printer and moving the axes, to ensure
everything is functioning properly.

It's crucial to note that the process may vary depending on the specific firmware and printer model you
have. Always refer to the documentation provided by the firmware developers or the manufacturer of
your 3D printer for detailed instructions on firmware setup and configuration.

3.4 CALIBRATING THE PRINTER:

Calibrating your 3D printer is an essential step to ensure accurate and reliable prints. The calibration
process involves adjusting various parameters to optimize the printer's performance. Here are the key
areas to focus on when calibrating your 3D printer:

1. Leveling the print bed: Properly leveling the print bed ensures that the first layer adheres evenly
across the entire build surface. Follow your printer's instructions on how to level the bed, which usually
involves adjusting the bed screws or using automatic bed leveling if your printer supports it. Use a sheet
of paper or a feeler gauge to achieve the desired gap between the nozzle and the bed.

2. Extruder calibration: Accurate extrusion is crucial for achieving dimensional accuracy and preventing
issues like under-extrusion or over-extrusion. You can perform an extruder calibration by measuring the
amount of filament that gets extruded compared to the expected amount. This calibration typically
involves marking a certain length of filament, commanding the printer to extrude a specific amount, and
measuring the actual amount that gets extruded. Adjust the extrusion steps per millimeter (E-steps) in
the firmware based on the results to ensure accurate filament flow.

3. Flow rate calibration: Flow rate calibration helps fine-tune the amount of filament extruded during
printing. Print a calibration model, such as a single-walled cube or a calibration print specifically
designed for flow rate testing. Measure the wall thickness of the printed object and compare it to the
desired value. Adjust the flow rate or extrusion multiplier in your slicer settings to achieve the desired
wall thickness. Iterate the process until you achieve accurate and consistent results.

4. Temperature calibration: Different filaments require different temperature settings for optimal print
quality. Refer to the filament manufacturer's recommendations for temperature ranges and start with
the recommended values. Print a temperature tower or temperature calibration test to evaluate the
print quality at different temperature levels. Adjust the temperature settings and observe the changes in
print quality, such as stringing, layer adhesion, and surface finish, to find the optimal temperature for
your specific filament.

5. Retraction calibration: Retraction settings help reduce stringing and oozing between print moves.
Print a retraction test model, typically featuring multiple towers with different retraction distances and
speeds. Observe the results and fine-tune the retraction settings in your slicer to minimize stringing
while maintaining good print quality. Pay attention to the retraction distance, retraction speed, and
coasting settings, if available.

6. Print speed and acceleration calibration: Adjusting print speed and acceleration values can affect the
overall print quality, especially for complex models or small details. Experiment with different print
speeds and acceleration values to find the right balance between speed and print quality. Gradually
increase or decrease the speed and acceleration settings and evaluate the results until you achieve
satisfactory print quality.

Remember to document the changes you make during calibration, as it can be helpful for future
reference and troubleshooting. Calibration is an iterative process, and you may need to revisit and fine-
tune these settings as you gain more experience or encounter new filament types or printing conditions.

3.4 TROUBLESHOOTING COMMOM PROBLEMS :

When working with a 3D printer, you may encounter several common issues. Here are some
troubleshooting tips for addressing these problems:

1. Poor bed adhesion:

- Ensure the print bed is clean and free from debris or residue. Use isopropyl alcohol or another
suitable cleaning agent.

- Level the print bed properly to ensure the correct nozzle-to-bed distance.

- Consider using a suitable adhesive, such as hairspray or a specialized print bed adhesive, to improve
adhesion.

- Increase the bed temperature slightly to help the filament adhere better.

2. Warping or lifting of prints:

 - Use a heated print bed and ensure it reaches the appropriate temperature for the filament being
used.

- Apply a suitable bed adhesive to enhance adhesion.

- Enclose the printer or use a print enclosure to maintain a consistent temperature around the printed
object.

- Utilize a brim or raft to provide extra stability and adhesion to the print.

3. Stringing or oozing:

- Adjust retraction settings in the slicer software to reduce the amount of filament being pulled back
during non-print moves.

- Increase travel speed to minimize the time the nozzle spends in non-printing moves.

- Fine-tune the temperature to avoid excessive filament flow and reduce stringing.

- Check that the nozzle is clean and not clogged, as clogs can lead to filament leaks during printing.

4. Layer adhesion issues:

- Confirm that the print bed is level and the nozzle-to-bed distance is appropriate.

- Increase the bed temperature slightly to improve layer adhesion.

- Adjust the printing speed to allow sufficient cooling time between layers.

- Check that the filament diameter is correctly set in the slicer software to ensure accurate extrusion.

5. Under-extrusion or over-extrusion:

- Calibrate the extruder steps per millimeter (E-steps) to ensure accurate filament feeding.

- Verify that the filament diameter setting in the slicer matches the actual filament diameter.

- Clean or replace the nozzle if it is partially clogged.

- Adjust the extrusion multiplier in the slicer to fine-tune the amount of filament being extruded.

6. Misaligned or skewed prints:

 - Check that the printer's belts and pulleys are properly tensioned and aligned.

- Verify that the printer's axes move smoothly without obstruction.

- Ensure the frame of the printer is sturdy and not wobbling during printing.

- Calibrate the steps per millimeter (X, Y, Z) in the firmware to ensure accurate movement.

7. Nozzle clogging:

- Perform regular maintenance on the nozzle by cleaning it or using a cold-pull technique to remove
any clogs.

- Ensure the filament is dry, as moisture in the filament can cause clogs.

- Confirm that the filament diameter setting in the slicer matches the actual filament diameter.

- Use high-quality filaments that have a lower tendency to cause clogs.

8. Inconsistent extrusion or gaps in layers:

- Check the filament path for any obstructions, such as tangled filament or debris.

- Ensure that the extruder gear is clean and properly gripping the filament.

- Verify that the filament spool is not tangled or causing excessive friction during extrusion.

- Adjust the filament tension in the extruder to ensure consistent feeding.

Remember to consult your printer's manual and documentation for specific troubleshooting instructions
related to your model. Additionally, the online communities and forums dedicated to 3D printing can be
valuable resources for finding solutions to specific issues you may encounter.
