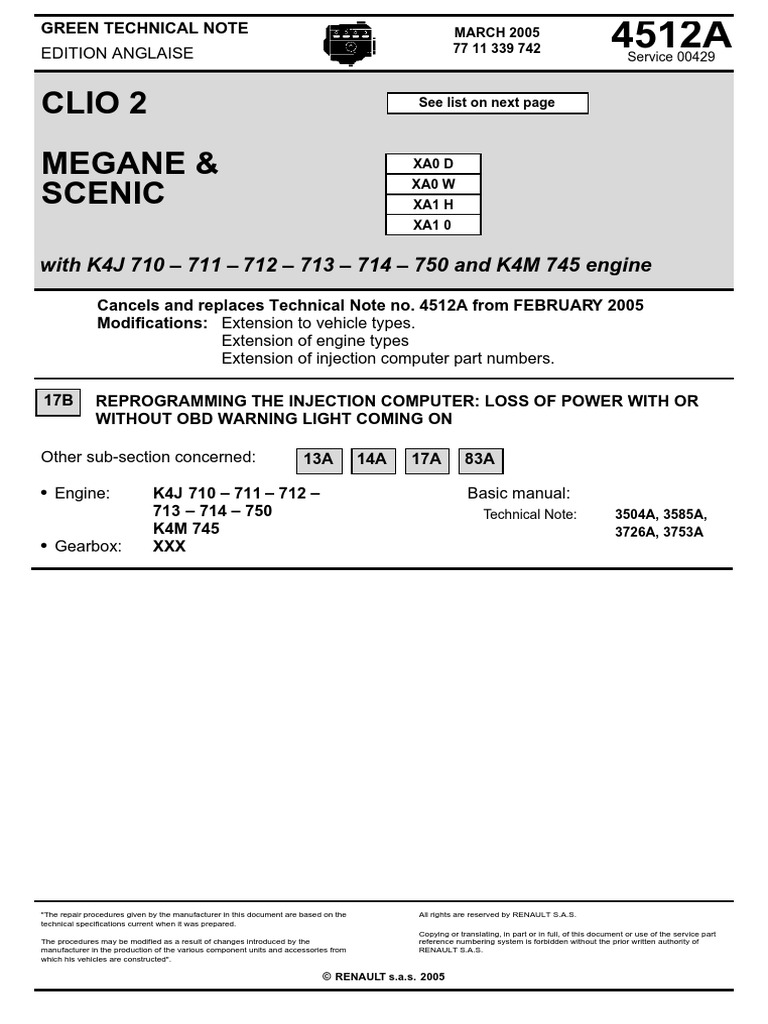

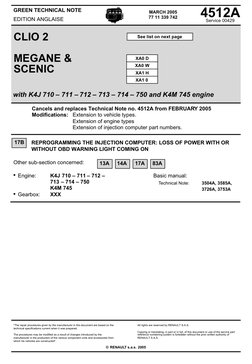

GREEN TECHNICAL NOTE

EDITION ANGLAISE
MARCH 2005
77 11 339 742 4512AService 00429

CLIO 2 See list on next page

MEGANE & XA0 D

XA0 W
SCENIC XA1 H
XA1 0

with K4J 710 – 711 – 712 – 713 – 714 – 750 and K4M 745 engine

Cancels and replaces Technical Note no. 4512A from FEBRUARY 2005
Modifications: Extension to vehicle types.
Extension of engine types
Extension of injection computer part numbers.

17B REPROGRAMMING THE INJECTION COMPUTER: LOSS OF POWER WITH OR

WITHOUT OBD WARNING LIGHT COMING ON

Other sub-section concerned: 13A 14A 17A 83A

●
Engine: K4J 710 – 711 – 712 – Basic manual:
713 – 714 – 750 Technical Note: 3504A, 3585A,
K4M 745 3726A, 3753A
●
Gearbox: XXX

"The repair procedures given by the manufacturer in this document are based on the
technical specifications current when it was prepared.
The procedures may be modified as a result of changes introduced by the
manufacturer in the production of the various component units and accessories from
which his vehicles are constructed".
All rights are reserved by RENAULT S.A.S.
Copying or translating, in part or in full, of this document or use of the service part
reference numbering system is forbidden without the prior written authority of
RENAULT S.A.S.

© RENAULT s.a.s. 2005

 117BSYSTEM
PETROL INJECTION
Injection programming 17B

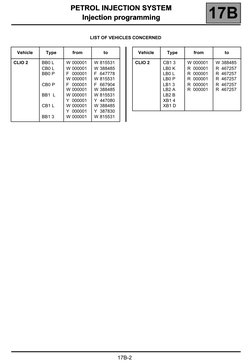

LIST OF VEHICLES CONCERNED

Vehicle Type from to Vehicle Type from to

CLIO 2 BB0 L W 000001 W 815531 CLIO 2 CB1 3 W 000001 W 388485

CB0 L W 000001 W 388485 LB0 K R 000001 R 467257
BB0 P F 000001 F 647778 LB0 L R 000001 R 467257
W 000001 W 815531 LB0 P R 000001 R 467257
CB0 P F 000001 F 667904 LB1 3 R 000001 R 467257
W 000001 W 388485 LB2 A R 000001 R 467257
BB1 L W 000001 W 815531 LB2 B
Y 000001 Y 447080 XB1 4
CB1 L W 000001 W 388485 XB1 D
Y 000001 Y 387830
BB1 3 W 000001 W 815531

17B-2
 PETROL INJECTION SYSTEM
Injection programming 17B

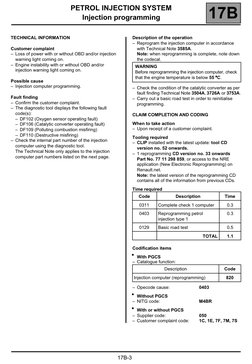

TECHNICAL INFORMATION Description of the operation
– Reprogram the injection computer in accordance
Customer complaint with Technical Note 3585A.
– Loss of power with or without OBD and/or injection Note: when reprogramming is complete, note down
warning light coming on. the codecal.
– Engine instability with or without OBD and/or WARNING
injection warning light coming on. Before reprogramming the injection computer, check
that the engine temperature is below 55 °C.
Possible cause
– Injection computer programming. – Check the condition of the catalytic converter as per
fault finding Technical Note 3504A, 3726A or 3753A.
Fault finding – Carry out a basic road test in order to reinitialise
– Confirm the customer complaint. programming.
– The diagnostic tool displays the following fault
code(s): CLAIM COMPLETION AND CODING
– DF102 (Oxygen sensor operating fault)
– DF106 (Catalytic converter operating fault) When to take action
– DF109 (Polluting combustion misfiring) – Upon receipt of a customer complaint.
– DF110 (Destructive misfiring)
Tooling required
– Check the internal part number of the injection
– CLIP installed with the latest update: tool CD
computer using the diagnostic tool.
version no. 52 onwards.
The Technical Note only applies to the injection
– 1 reprogramming CD version no. 33 onwards
computer part numbers listed on the next page.
Part No. 77 11 298 859, or access to the NRE
application (New Electronic Reprogramming) on
Renault.net.
Note: the latest version of the reprogramming CD
contains all of the information from previous CDs.
Time required
Code Description Time
0311 Complete check 1 computer 0.3
0403 Reprogramming petrol 0.3
injection type 1
0129 Basic road test 0.5
TOTAL 1.1

Codification items
●
With PGCS
– Catalogue function:
Description Code
Injection computer (reprogramming) 820

– Opecode cause: 0403

●
Without PGCS
– NITG code: M4BR
●
With or without PGCS
– Supplier code: 050
– Customer complaint code: 1C, 1E, 7F, 7M, 7S

17B-3
 PETROL INJECTION SYSTEM
Injection programming 17B
Part number before Part number before
Vehicle Vehicle
reprogramming reprogramming
CLIO 2 82 00 078 491 MEGANE 82 00 078 489
82 00 096 363 82 00 091 426
82 00 100 533 82 00 095 569
82 00 108 405 82 00 108 408
82 00 109 732 82 00 108 409
82 00 119 522 82 00 119 503
82 00 119 523 82 00 119 504
82 00 119 526 82 00 119 835
82 00 145 090 82 00 136 017
82 00 145 269 82 00 136 020
82 00 164 425 82 00 136 025
82 00 168 321 82 00 148 659
82 00 168 322 82 00 148 660
82 00 168 330 82 00 148 663
82 00 173 881 82 00 204 300
82 00 188 411 82 00 204 302
82 00 188 412 82 00 204 304
82 00 188 414 82 00 204 319
82 00 189 318 82 00 204 322
82 00 189 330 82 00 217 752
82 00 189 347 82 00 217 753
82 00 204 296 82 00 217 755
82 00 204 297 82 00 298 251
82 00 204 306 82 00 298 264
82 00 204 307
SCENIC 82 00 078 489
82 00 204 311
82 00 091 426
82 00 204 472
82 00 095 569
82 00 214 976
82 00 108 408
82 00 214 977
82 00 108 409
82 00 217 414
82 00 119 503
82 00 217 415
82 00 119 504
82 00 217 417
82 00 119 835
82 00 235 112
82 00 136 017
82 00 255 050
82 00 136 020
82 00 264 875
82 00 136 025
82 00 277 999
82 00 148 659
82 00 278 000
82 00 148 660
82 00 289 520
82 00 148 663
82 00 300 672
82 00 204 300
82 00 303 364
82 00 303 368 82 00 204 302
82 00 204 304
82 00 303 369
82 00 204 319
82 00 303 446
82 00 313 137 82 00 204 322
82 00 217 752
82 00 313 161
82 00 217 753
82 00 319 650
82 00 217 755
82 00 319 658
82 00 298 251
82 00 358 083
82 00 298 264
82 00 359 444
82 00 359 447
82 00 413 269
82 00 413 274
82 00 413 296
