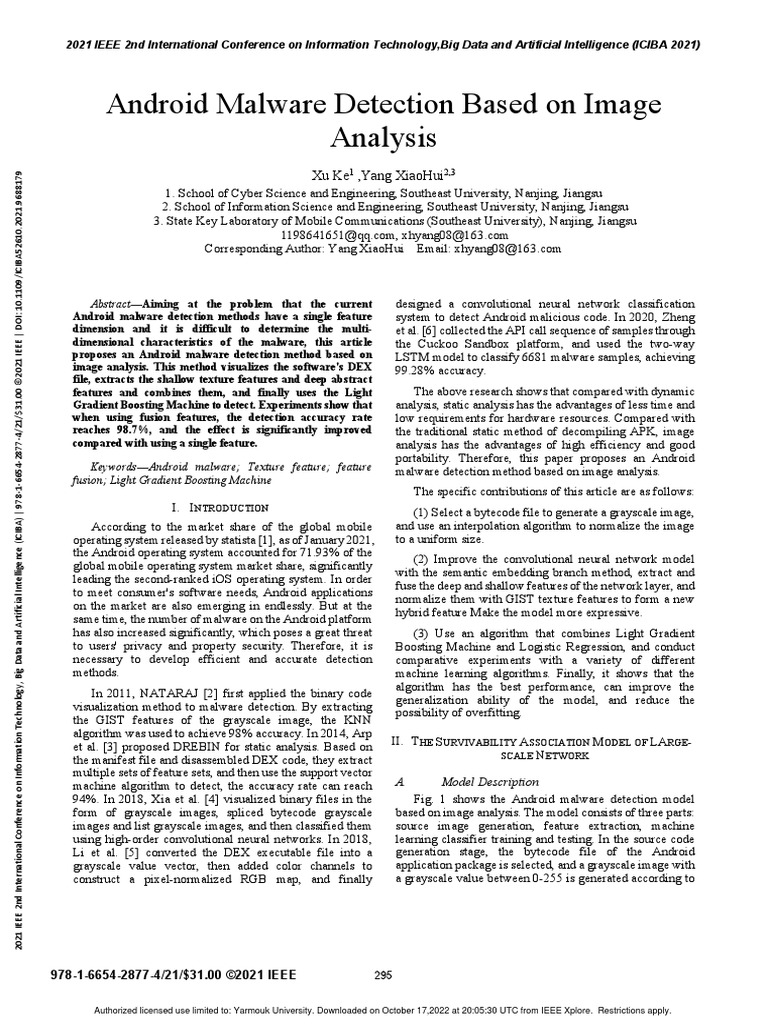

2021 IEEE 2nd International Conference on Information Technology,Big Data and Artificial Intelligence (ICIBA 2021)

Android Malware Detection Based on Image

Analysis
Xu Ke1 ,Yang XiaoHui2,3
2021 IEEE 2nd International Conference on Information Technology, Big Data and Artificial Intelligence (ICIBA) | 978-1-6654-2877-4/21/$31.00 ©2021 IEEE | DOI: 10.1109/ICIBA52610.2021.9688179

1. School of Cyber Science and Engineering, Southeast University, Nanjing, Jiangsu

2. School of Information Science and Engineering, Southeast University, Nanjing, Jiangsu
3. State Key Laboratory of Mobile Communications (Southeast University), Nanjing, Jiangsu
1198641651@qq.com, xhyang08@163.com
Corresponding Author: Yang XiaoHui Email: xhyang08@163.com

Abstract—Aiming at the problem that the current
Android malware detection methods have a single feature
dimension and it is difficult to determine the multi-
dimensional characteristics of the malware, this article
proposes an Android malware detection method based on
image analysis. This method visualizes the software's DEX
file, extracts the shallow texture features and deep abstract
features and combines them, and finally uses the Light
Gradient Boosting Machine to detect. Experiments show that
when using fusion features, the detection accuracy rate
reaches 98.7%, and the effect is significantly improved
compared with using a single feature.
Keywords—Android malware; Texture feature; feature
fusion; Light Gradient Boosting Machine
I. INTRODUCTION
According to the market share of the global mobile
operating system released by statista [1], as of January 2021,
the Android operating system accounted for 71.93% of the
global mobile operating system market share, significantly
leading the second-ranked iOS operating system. In order
to meet consumer's software needs, Android applications
on the market are also emerging in endlessly. But at the
same time, the number of malware on the Android platform
has also increased significantly, which poses a great threat
to users' privacy and property security. Therefore, it is
necessary to develop efficient and accurate detection
methods.
In 2011, NATARAJ [2] first applied the binary code
visualization method to malware detection. By extracting
the GIST features of the grayscale image, the KNN
algorithm was used to achieve 98% accuracy. In 2014, Arp
et al. [3] proposed DREBIN for static analysis. Based on
the manifest file and disassembled DEX code, they extract
multiple sets of feature sets, and then use the support vector
machine algorithm to detect, the accuracy rate can reach
94%. In 2018, Xia et al. [4] visualized binary files in the
form of grayscale images, spliced bytecode grayscale
images and list grayscale images, and then classified them
using high-order convolutional neural networks. In 2018,
Li et al. [5] converted the DEX executable file into a
grayscale value vector, then added color channels to
construct a pixel-normalized RGB map, and finally
designed a convolutional neural network classification
system to detect Android malicious code. In 2020, Zheng
et al. [6] collected the API call sequence of samples through
the Cuckoo Sandbox platform, and used the two-way
LSTM model to classify 6681 malware samples, achieving
99.28% accuracy.
The above research shows that compared with dynamic
analysis, static analysis has the advantages of less time and
low requirements for hardware resources. Compared with
the traditional static method of decompiling APK, image
analysis has the advantages of high efficiency and good
portability. Therefore, this paper proposes an Android
malware detection method based on image analysis.
The specific contributions of this article are as follows:
(1) Select a bytecode file to generate a grayscale image,
and use an interpolation algorithm to normalize the image
to a uniform size.
(2) Improve the convolutional neural network model
with the semantic embedding branch method, extract and
fuse the deep and shallow features of the network layer, and
normalize them with GIST texture features to form a new
hybrid feature Make the model more expressive.
(3) Use an algorithm that combines Light Gradient
Boosting Machine and Logistic Regression, and conduct
comparative experiments with a variety of different
machine learning algorithms. Finally, it shows that the
algorithm has the best performance, can improve the
generalization ability of the model, and reduce the
possibility of overfitting.
II. THE SURVIVABILITY ASSOCIATION MODEL OF LARGE-
SCALE NETWORK
A. Model Description
Fig. 1 shows the Android malware detection model
based on image analysis. The model consists of three parts:
source image generation, feature extraction, machine
learning classifier training and testing. In the source code
generation stage, the bytecode file of the Android
application package is selected, and a grayscale image with
a grayscale value between 0-255 is generated according to

978-1-6654-2877-4/21/$31.00 ©2021 IEEE 295

Authorized licensed use limited to: Yarmouk University. Downloaded on October 17,2022 at 20:05:30 UTC from IEEE Xplore. Restrictions apply.
the way of reading every 8 bits. On this basis, CNN is used
to extract multi-dimensional features of the picture and
GIST algorithm is used to extract texture features, and the
obtained features are fused. Finally, the input features are
preprocessed and put into different machine learning
classifiers for training and prediction.
Fig.1. Android malware detection model based on image analysis
B. Source Code File Generation
Android Application Package contains all the files
needed in the installation and execution. In the package, the
classes.dex file is a bytecode file running on the Dalvik
virtual machine, which contains the classes that the
program runs. It is the core of the entire Android program.
Therefore, it is feasible to determine the maliciousness of
the software by analyzing the DEX file.
1) Visualization of Bytecode File
The process of converting DEX files into grayscale
images is shown in Fig. 2. The DEX file is read per 8bit and
converted into a decimal number to generate an array. In
order to facilitate image generation, we convert the one-
dimensional array into a two-dimensional array with equal
rows and columns, and the gray value can be generated in
the range of 0-255. The grayscale image of the bytecode
file is shown in Fig. 3.
Fig.2. The process of converting dex files into grayscale images
Fig.3. Grayscale image of bytecode file
296
Authorized licensed use limited to: Yarmouk University. Downloaded on October 17,2022 at 20:05:30 UTC from IEEE Xplore. Restrictions apply.
2) Image Size Standardization
In order to facilitate subsequent processing, this paper
uses the bicubic interpolation algorithm [7] to scale
bytecode file images of different sizes to a uniform size.
Bicubic interpolation selects 16 pixels near the target point
P to calculate the pixel value of the new image. The
interpolation basis function is used to find the weight of
each point, and then the pixel values of these 16 points are
weighted and superimposed based on the weight, and
finally the pixel value of the point P in the new image is
obtained. Commonly used interpolation basis function is
shown as:
(𝑎𝑎 + 2)|𝑥𝑥|3 − (𝑎𝑎 + 3)|𝑥𝑥|2 + 1 𝑓𝑓𝑓𝑓𝑓𝑓 |𝑥𝑥| ≤ 1
𝑊𝑊(𝑥𝑥) = �𝑎𝑎|𝑥𝑥|3 − 5𝑎𝑎|𝑥𝑥|2 + 8𝑎𝑎|𝑥𝑥| − 4𝑎𝑎 𝑓𝑓𝑓𝑓𝑓𝑓 1 < |𝑥𝑥| < 2 (1)
0 𝑜𝑜𝑜𝑜ℎ𝑒𝑒𝑒𝑒𝑒𝑒𝑒𝑒𝑒𝑒𝑒𝑒
Among them, 𝑥𝑥 is the distance between the abscissa (or
ordinate) of two points, and 𝑎𝑎 is a fixed parameter. The
commonly used value of a is usually -0.5, -0.75, -1, and -1
is selected as the value of a in this article. Using this
function, we can calculate the pixel value of the new image.
Suppose the difference between the abscissa and ordinate
of the target point 𝑃𝑃 and one of the 16 nearby points 𝐿𝐿𝑖𝑖𝑗𝑗 is
𝑢𝑢 and 𝑣𝑣 respectively, then the weight of 𝐿𝐿𝑖𝑖𝑗𝑗 is 𝑊𝑊(𝑢𝑢) ∗
𝑊𝑊(𝑣𝑣). The contribution value 𝑑𝑑𝑖𝑖𝑖𝑖 of point 𝐿𝐿𝑖𝑖𝑗𝑗 is the pixel
value 𝑙𝑙𝑖𝑖𝑖𝑖 multiplied by 𝑊𝑊(𝑢𝑢) ∗ 𝑊𝑊(𝑣𝑣), that is 𝑑𝑑𝑖𝑖𝑖𝑖 = 𝑙𝑙𝑖𝑖𝑖𝑖 ∗
𝑊𝑊(𝑢𝑢) ∗ 𝑊𝑊(𝑣𝑣), at this time, the pixel value 𝑃𝑃𝑃𝑃𝑃𝑃𝑝𝑝 of point
𝑃𝑃 in the new image is:
𝑃𝑃𝑃𝑃𝑃𝑃𝑝𝑝 = ∑3𝑖𝑖= 0 ∑3𝑗𝑗=0 𝑑𝑑𝑖𝑖𝑖𝑖 (2)
Using the bicubic interpolation algorithm, we scale the
DEX file image to fixed sizes, which are 64*64, 28*128,
224*224 and 256*256. The above are the common input
image sizes of convolutional neural networks.
C. Convolutional Neural Network Feature
Extraction
1) Convolutional Neural Network Model
Convolutional neural network [8] (CNN) generally
consists of an input layer, a convolutional layer, an
excitation layer, a pooling layer, a fully connected layer,
and an output layer. Fig. 4 is the CNN network model used
in this article. Outside the dotted area is the basic
architecture of the CNN network model in this article,
which is composed of 6 convolutional layers, 3 pooling
layers, and 2 fully connected layers. Inside the dotted area
is the multi-layer feature fusion module, which fusion
pooling layer two and pooling layer three.

Fig.4. CNN network structure
2) Feature Map Selection
In the convolutional neural network, after layer-by-
layer mapping, the input image generally obtains the
unique result of feature extraction. In many works, the
efficient integration of multi-layer convolutional networks
and complementing each other can improve network
performance [9].
Zeiler et al. [10] once proposed a deconvolution
visualization process. The system showed how to visualize
the convolutional network and project the pixel space of the
input layer, so that the evolution of features during the
training process can be observed. Fig. 5, Fig. 6, Fig. 7 are
the feature pictures reconstructed after deconvolution of the
CNN network model architecture used in this article.
Fig. 5. Reconstruction of the first pooling layer
297
Authorized licensed use limited to: Yarmouk University. Downloaded on October 17,2022 at 20:05:30 UTC from IEEE Xplore. Restrictions apply.
Fig. 6. Reconstruction of the second pooling layer
Fig. 7. Reconstruction of the third pooling layer
It can be seen from the figures that the low-level feature
maps have higher resolution, and retain more position and
detail information, but at the same time, there are relatively
more noise parts. The high-level feature maps have
stronger semantic information, but the ability to perceive
details is poor. Therefore, we extract feature maps from the
above three-layer network, select three subsets of different
functional levels, use the tensor splicing operation in the
GoogleNet [11] network, and use them to train the entire
system. The results are shown in Table 1.
TABLE I RESULTS OF FUSION OF DIFFERENT FEATURE MAP
SUBSETS
Feature maps Accuracy
{Pool3} 0.933
{pool3, pool2} 0.944
{pool3, pool2, pool1} 0.943
Obviously, the classification quality of a model that
integrates multiple feature maps will be improved, but the
performance will often quickly saturate or even decline,
resulting in marginal effects. Moreover, simple tensor
splicing operations are not satisfactory enough to improve
accuracy. Therefore, this article will abandon the first
pooling layer in the feature layer fusion, and choose a new
feature fusion method, which can integrate more semantic
information and detailed information into the features.
3) CNN Feature Fusion
Zhang et al. [12] proposed ExFuse to solve the problem
of image semantic segmentation. The paper proposes the
Semantic Embedding Branch method, which can obtain
more detailed information from high-level features. The
specific process is shown in Fig. 8. This method is used in
the feature fusion module of this article. After the high-
level features go through a 3×3 convolution kernel, the up-
sampling method of bilinear interpolation is used to adjust
the size to make it consistent with the size of the upper-
level feature map. Finally, a new feature map is generated
by the element-wise phase multiplication method.
Fig. 8. Semantic Embedding Branch method
D. GIST Texture Feature Extraction
GIST [13] is a macroscopic way of describing image
features which can describe the contour and texture of an
image. This paper uses the GIST512 method to extract 512-
dimensional features. Use a filter bank with a convolution
kernel size of 4 and a direction dimension of 8 to form a
4×8 channel filter to perform Gabor filtering on the image,
and then we divide the image into 4×4 small blocks. Take
the average of each small block, and finally we get the 512-
dimensional GIST feature:
𝐺𝐺𝑔𝑔𝑔𝑔𝑔𝑔𝑔𝑔 �𝑥𝑥，𝑦𝑦� = 𝑐𝑐𝑐𝑐𝑐𝑐𝑐𝑐𝑐𝑐𝑐𝑐𝑛𝑛𝑛𝑛 [𝑓𝑓(𝑥𝑥, 𝑦𝑦)𝑔𝑔𝑚𝑚𝑚𝑚 (𝑥𝑥, 𝑦𝑦)]
𝑓𝑓 (𝑥𝑥, 𝑦𝑦) represents the pixel value of the image at (𝑥𝑥, 𝑦𝑦);
𝑔𝑔𝑚𝑚𝑚𝑚 (𝑥𝑥, 𝑦𝑦) represents a two-dimensional Gabor filter, and
𝑐𝑐𝑐𝑐𝑐𝑐𝑐𝑐𝑐𝑐𝑐𝑐𝑛𝑛𝑛𝑛 represents a filter bank with 𝑛𝑛𝑛𝑛 channels. In this
article, the value of 𝑛𝑛𝑛𝑛 is 32, with each image divided into
16 areas, there are a total of 512-dimensional features.
E. Improved LightGBM Algorithm
Both GBDT and Random Forest are an ensemble
algorithm whose main idea is to iteratively train multiple
weak classifiers to generate an optimal model. In 2016,
Chen Tianqi et al.[14] optimized the XGBoost algorithm
on the basis of GBDT, which has become one of the most
important algorithms in the field of machine learning. In
2017, Ke G et al.[15] proposed the LightGBM algorithm
based on XGBoost. Compared with XGBoost, this
algorithm has the advantages of less memory consumption,
Authorized licensed use limited to: Yarmouk University. Downloaded on October 17,2022 at 20:05:30 UTC from IEEE Xplore. Restrictions apply.
higher accuracy, and faster training speed. In 2014,
Facebook[16] proposed a method to integrate GBDT and
logistic regression model in advertising CTR prediction.
This article refers to this method and combines LR into the
LightGBM algorithm. The specific process is shown in Fig.
9.
Fig. 9. LightGBM and LR fusion algorithm model
Use the original sample features to train a LightGBM
model, and get 𝑛𝑛 trees, each tree has 𝑚𝑚1 , 𝑚𝑚2 , 𝑚𝑚3 , … … , 𝑚𝑚𝑛𝑛
leaf nodes. For an input sample, it will eventually fall into
a leaf node on each tree. We use one-hot encoding to finally
get a sparse vector of length 𝑚𝑚1 + 𝑚𝑚2 + 𝑚𝑚3 + ⋯ + 𝑚𝑚𝑛𝑛 .
With 𝑛𝑛 elements being one, the remaining elements are
zero. Combine this new feature with the normalized source
feature and use it as the input of the LR algorithm, we get
the final classification result. This method can make good
use of the nonlinear information extracted by LightGBM,
improve the generalization ability of the model, and reduce
the possibility of overfitting.
III. EXPERIMENT AND RESULT ANALYSIS
A. Experimental Environment
The experiment is done on a computing node with
(3) processor Intel(R) Core(TM) i7-10700K, memory
16GRAM, graphics card model NVIDIA GeForce RTX
3080 10G, and operating system Ubuntu 18.04.
B. Experimental Data
This article selects 5000 Android application software,
including 2500 benign applications and 2500 malicious
applications. Among them, the benign applications come
from Xiaomi's official application store, and the malicious
applications come from the Android virus database
provided by the Virus Share website [17], training set The
ratio to the test set is 4:1.
C. Evaluation Index
The evaluation index of the algorithm in the experiment
adopts the standard accuracy measures in the classification
298
algorithm: accuracy, precision, recall, F1-score to evaluate
the algorithm.
D. Experimental results
According to the content in section Ⅱ.B, four different
sizes of images are used as the input of the convolutional
neural network, and feature extraction is performed. In
order to verify the effectiveness of the improved feature
fusion method, the schemes in Table 2 are used for
comparative experiments. Each scheme is trained 5 times,
and the model with the smallest experimental loss value is
selected each time as the best model for a single training,
and 5 are calculated The average accuracy of the best model
on the validation set is obtained, and the final accuracy is
shown in Fig. 10. The maximum number of single
iterations of the trained neural network is set to 20, and the
batch_size of each incoming sample is set to 6. Under three
different feature extraction schemes, the average training
time of a single epoch is shown in Fig. 11.
TABLE Ⅱ THREE SCHEMES OF CNN FEATURE EXTRACTION
Scheme Scheme description
number
Scheme 1 Predict with the basic CNN network
model
Scheme 2 Use the concat function to merge the
second and the third pooling layer
Scheme 3 Use the SEB method to merge the
second and the third pooling layer
Fig. 10. The prediction accuracy of three different schemes
299
Authorized licensed use limited to: Yarmouk University. Downloaded on October 17,2022 at 20:05:30 UTC from IEEE Xplore. Restrictions apply.
Fig. 11. Training time of a single epoch under three different schemes
It can be seen from Fig. 11 that the accuracy of the
second scheme including two pooling layers is higher than
that of the first scheme including only the basic network,
which fully proves the effectiveness of the feature fusion of
the two convolutional layers. The improved feature fusion
scheme in this article has a certain improvement in
accuracy compared to the second simple splicing scheme
using concat. The accuracy rate is when the image pixel
size is 64*64, 128*128, 224*224, and 256*256. Increased
by 0.42%, 0.70%, 0.78%, 0.74% respectively. In most
cases, the detection accuracy increases with the continuous
increase of image resolution. Obviously, the improvement
of image accuracy allows us to collect more convolutions.
Characteristic information, thereby increasing the
performance of the model. However, when the image
resolution reaches 256*256, the improvement of accuracy
rate is not much better than that of the resolution of
224*224, and it even drops slightly in the case of scheme 3.
This shows that the number of samples is not large. In this
case, there are too many parameters that need to be trained,
which is prone to overfitting. From Fig. 12, we find that as
the image resolution increases, time and resources are
consumed more. Weighing the pros and cons of
performance and resource consumption, this article
chooses 224*224 resolution as the best input image size.
Select the source code image of the above size to train
the best convolutional neural network model, and then
intercept the input of the last layer of fully connected layer,
you can get a total of 128-dimensional convolutional neural
network features. According to the content in Section 2.4,
the GIST texture feature of the bytecode image is obtained
by the Gabor kernel function filter, which contains 512-
dimensional features. After the normalization operation, it
is spliced with the convolutional neural network features as
the improved LightGBM classifier enter. The parameters
of the light gradient boosting algorithm adopt the learning
rate of 0.05, the number of decision trees 100, and the
number of leaf nodes 31. Table 3 shows the detection
results of using the improved LightGBM classifier under
different features.
In order to verify the superiority of the method
proposed in this paper, this paper uses multiple machine
learning algorithms (SVM, RF, LightGBM) and improved features, API sequence features, etc., can improve accuracy
LightGBM to conduct comparative experiments, and the and achieve better detection algorithms.
indicators obtained are shown in Table 4.
REFERENCES
TABLE Ⅲ RESULTS OF LIGHTGBM+LR UNDER DIFFERENT [1] Mobile operating systems' market share worldwide from January
FEATURES 2012 to July 2020 [EB/OL]. https://
www.statista.com/statistics/272698/global-market-share-held-by-
Features Accurac Precisio Recall F1- mobile-operating-systems-since-2009/A
y n Score [2] NATARAJ L, KARTHIKEYAN S, JACOB G, et al. Malware
GIST 0.942 0.9422 0.9418 0.9419 Images:Visualization and Automatic Classification [C].ACM. 8th
International Symposium on Visualization for Cyber Security, July
20, 2011, Pittsburgh,Pennsylvania, USA. New York:ACM, 2011:4-
CNN 0.982 0.9820 0.9819 0.9819 11.
[3] Arp D, Spreitzenbarth M, Hubner M, et al. Drebin: Effective and
GIST+C 0.987 0.9869 0.9870 0.9870 explainable detection of android malware in your pocket[C].
NN Ndss.2014, 14: 23-26.
[4] Xia Xiaoling. Research on classification method of malicious code
TABLE Ⅳ RESULTS OF DIFFERENT CLASSIFICATION ALGORITHMS image and text features based on deep learning [D]. Harbin: Harbin
Institute of Technology,2018.
Algorith Accurac Precisio Recall F1- [5] Li Yuanyuan. Malicious code detection based on data
ms y n Score visualization[D]. Xi'an, Xidian University,2018.
SVM 0.931 0.9466 0.9272 0.9289 [6] Zheng Rui, Wang Qiuyun, Fu Jianming, et al. A malware family
classification model based on deep learning [J]. Journal of
Information Security,2020,5(1):1-9.
RF 0.959 0.9598 0.9601 0.9589 [7] Summary of image interpolation algorithms [EB/OL].
https://www.cnblogs.com/laozhanghahaha/p/12580822. html
lightGB 0.982 0.9819 0.9820 0.9819 [8] Kizhevsky A，SutskeVer I，Hinton G E. ImageNet Classification
M with Deep Convolutional Neural Networks[C]. Advances in Neural
Information Processing Systems, 2012:1097-1105.
lightGB 0.987 0.9869 0.9870 0.9870
[9] Deep feature fusion---high and low-level (multi-scale) feature
M+LR fusion[EB/OL].https://blog.csdn.net/xys430381_
Table 3 shows that the accuracy of the fusion feature 1/article/details/88370733.
detection using CNN+GIST is 98.7%. It is 0.5% higher [10] Zeiler M.D., Fergus R. (2014) Visualizing and Understanding
than using CNN features alone, and 4.5% higher than using Convolutional Networks[C]. ECCV 2014. ECCV 2014. Lecture
GIST features alone. It also has different degrees of Notes in Computer Science, vol 8689. Springer, Cham. pp 818-833
improvement in accuracy, recall, F1-Score and other [11] Christian Szegedy, Wei Liu, Yangqing Jia, Pierre Sermanet, Scott
Reed, Dragomir Anguelov, Dumitru Erhan, Vincent Vanhoucke,
indicators. Experiments have proved that using the fusion Andrew Rabinovich; Going Deeper With Convolutions[C].
features of CNN+GIST has a better effect on malware Proceedings of the IEEE Conference on Computer Vision and
detection. Table 4 shows that under the fusion features of Pattern Recognition (CVPR), 2015, pp. 1-9
GIST+CNN, the lightGBM+LR method performs best [12] Zhang Z., Zhang X., Peng C., Xue X., Sun J. ExFuse: Enhancing
under all indicators, and the improved lightGBM method is Feature Fusion for Semantic Segmentation[C]. In: Ferrari V.,
0.5% more accurate than the initial lightGBM. Compared Hebert M., Sminchisescu C., Weiss Y. (eds) Computer Vision –
ECCV 2018. ECCV 2018. pp 273-288
with other algorithms, the improved lightGBM method has
greater advantages. [13] Aude Oliva & Antonio Torralba. Modeling the Shape of the Scene:
A Holistic Representation of the Spatial Envelope[J]. January 22,
2001. pp 145-175
IV. CONCLUSIONS [14] Chen, Tianqi and Guestrin, Carlos. XGBoost: A Scalable Tree
This article selects bytecode files from the Android Boosting System[C]. Proceedings of the 22nd ACM SIGKDD
International Conference on Knowledge Discovery and Data
application package, and uses interpolation algorithm to Mining. August 2016, Pages 785–794
generate uniform-sized grayscale images, and extracts the [15] Ke G, Meng Q, Finley T, et al. Lightgbm: A highly efficient
texture features and deep-level features in them and gradient boosting decision tree[J]. Advances in neural information
performs feature fusion, and then uses the lightGBM+LR processing systems, 2017, 30: 3146-3154.
algorithm to build the model to achieve the Android [16] He, Xinran, J. Pan, Ou Jin, T. Xu, Bo Liu, Tao Xu, Yanxin Shi,
malware detection function. The experimental results show Antoine Atallah, R. Herbrich, S. Bowers and J. Q. Candela.
that combining the texture features of the image surface and “Practical Lessons from Predicting Clicks on Ads at Facebook.”
ADKDD'14 (2014).
the deep features extracted by the convolutional neural
[17] VirusShare.com - Because Sharing is Caring[EB/OL].
network can effectively improve the accuracy. In the https://virusshare.com
experiment, we found that the detection accuracy of the
deep features extracted by CNN is not high when the image
size is large. It is initially determined that the number of
samples is insufficient. The next step is to increase the size
of the data set, and further optimize the CNN model, while
trying to fuse Other features, such as bytecode sequence

300

Authorized licensed use limited to: Yarmouk University. Downloaded on October 17,2022 at 20:05:30 UTC from IEEE Xplore. Restrictions apply.
