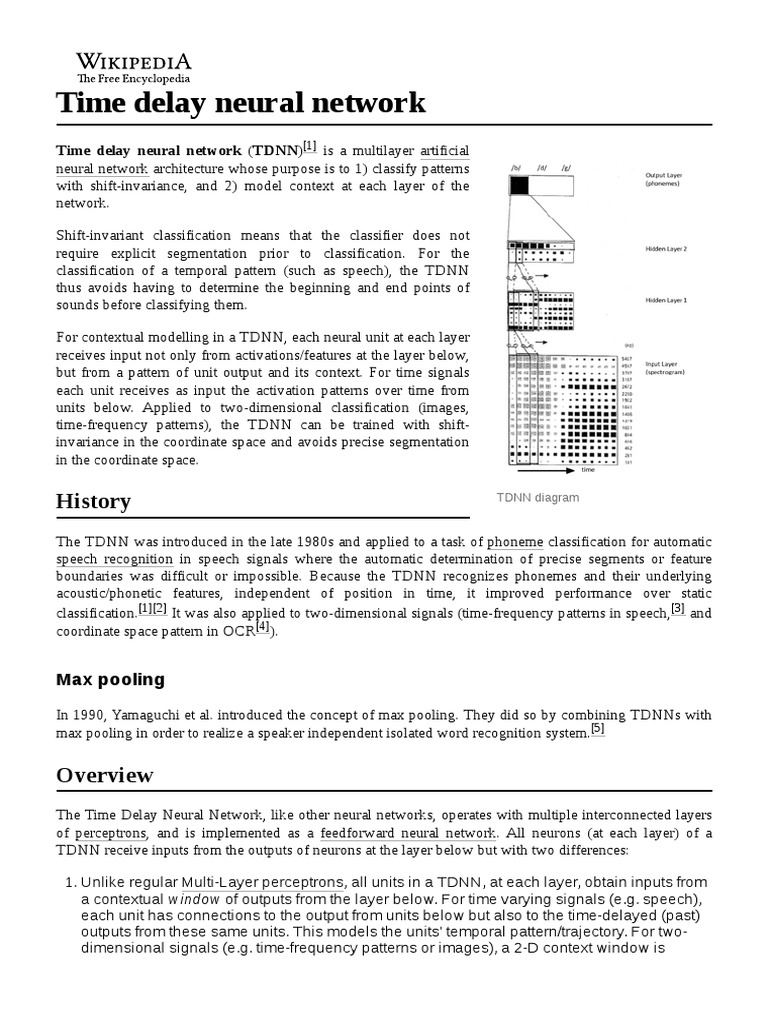

Time delay neural network

Time delay neural network (TDNN)[1] is a multilayer artificial

neural network architecture whose purpose is to 1) classify patterns
with shift-invariance, and 2) model context at each layer of the
network.

Shift-invariant classification means that the classifier does not

require explicit segmentation prior to classification. For the
classification of a temporal pattern (such as speech), the TDNN
thus avoids having to determine the beginning and end points of
sounds before classifying them.

For contextual modelling in a TDNN, each neural unit at each layer

receives input not only from activations/features at the layer below,
but from a pattern of unit output and its context. For time signals
each unit receives as input the activation patterns over time from
units below. Applied to two-dimensional classification (images,
time-frequency patterns), the TDNN can be trained with shift-
invariance in the coordinate space and avoids precise segmentation
in the coordinate space.

History TDNN diagram

The TDNN was introduced in the late 1980s and applied to a task of phoneme classification for automatic
speech recognition in speech signals where the automatic determination of precise segments or feature
boundaries was difficult or impossible. Because the TDNN recognizes phonemes and their underlying
acoustic/phonetic features, independent of position in time, it improved performance over static
classification.[1][2] It was also applied to two-dimensional signals (time-frequency patterns in speech,[3] and
coordinate space pattern in OCR[4]).

Max pooling

In 1990, Yamaguchi et al. introduced the concept of max pooling. They did so by combining TDNNs with
max pooling in order to realize a speaker independent isolated word recognition system.[5]

Overview
The Time Delay Neural Network, like other neural networks, operates with multiple interconnected layers
of perceptrons, and is implemented as a feedforward neural network. All neurons (at each layer) of a
TDNN receive inputs from the outputs of neurons at the layer below but with two differences:

1. Unlike regular Multi-Layer perceptrons, all units in a TDNN, at each layer, obtain inputs from
a contextual window of outputs from the layer below. For time varying signals (e.g. speech),
each unit has connections to the output from units below but also to the time-delayed (past)
outputs from these same units. This models the units' temporal pattern/trajectory. For two-
dimensional signals (e.g. time-frequency patterns or images), a 2-D context window is
 observed at each layer. Higher layers have inputs from wider context windows than lower
layers and thus generally model coarser levels of abstraction.
2. Shift-invariance is achieved by explicitly removing position dependence during
backpropagation training. This is done by making time-shifted copies of a network across
the dimension of invariance (here: time). The error gradient is then computed by
backpropagation through all these networks from an overall target vector, but before
performing the weight update, the error gradients associated with shifted copies are
averaged and thus shared and constraint to be equal. Thus, all position dependence from
backpropagation training through the shifted copies is removed and the copied networks
learn the most salient hidden features shift-invariantly, i.e. independent of their precise
position in the input data. Shift-invariance is also readily extended to multiple dimensions by
imposing similar weight-sharing across copies that are shifted along multiple
dimensions.[3][4]

Example

In the case of a speech signal, inputs are spectral coefficients over time.

In order to learn critical acoustic-phonetic features (for example formant transitions, bursts, frication, etc.)
without first requiring precise localization, the TDNN is trained time-shift-invariantly. Time-shift invariance
is achieved through weight sharing across time during training: Time shifted copies of the TDNN are made
over the input range (from left to right in Fig.1). Backpropagation is then performed from an overall
classification target vector (see TDNN diagram, three phoneme class targets (/b/, /d/, /g/) are shown in the
output layer), resulting in gradients that will generally vary for each of the time-shifted network copies.
Since such time-shifted networks are only copies, however, the position dependence is removed by weight
sharing. In this example, this is done by averaging the gradients from each time-shifted copy before
performing the weight update. In speech, time-shift invariant training was shown to learn weight matrices
that are independent of precise positioning of the input. The weight matrices could also be shown to detect
important acoustic-phonetic features that are known to be important for human speech perception, such as
formant transitions, bursts, etc.[1] TDNNs could also be combined or grown by way of pre-training.[6]

Implementation

The precise architecture of TDNNs (time-delays, number of layers) is mostly determined by the designer
depending on the classification problem and the most useful context sizes. The delays or context windows
are chosen specific to each application. Work has also been done to create adaptable time-delay TDNNs[7]
where this manual tuning is eliminated.

State of the art

TDNN-based phoneme recognizers compared favourably in early comparisons with HMM-based phone
models.[1][6] Modern deep TDNN architectures include many more hidden layers and sub-sample or pool
connections over broader contexts at higher layers. They achieve up to 50% word error reduction over
GMM-based acoustic models.[8][9] While the different layers of TDNNs are intended to learn features of
increasing context width, they do model local contexts. When longer-distance relationships and pattern
sequences have to be processed, learning states and state-sequences is important and TDNNs can be
combined with other modelling techniques.[10][3][4]

Applications

Speech recognition

TDNNs used to solve problems in speech recognition that were introduced in 1989[2] and initially focused
on shift-invariant phoneme recognition. Speech lends itself nicely to TDNNs as spoken sounds are rarely of
uniform length and precise segmentation is difficult or impossible. By scanning a sound over past and
future, the TDNN is able to construct a model for the key elements of that sound in a time-shift invariant
manner. This is particularly useful as sounds are smeared out through reverberation.[8][9] Large phonetic
TDNNs can be constructed modularly through pre-training and combining smaller networks.[6]

Large vocabulary speech recognition

Large vocabulary speech recognition requires recognizing sequences of phonemes that make up words
subject to the constraints of a large pronunciation vocabulary. Integration of TDNNs into large vocabulary
speech recognizers is possible by introducing state transitions and search between phonemes that make up a
word. The resulting Multi-State Time-Delay Neural Network (MS-TDNN) can be trained discriminative
from the word level, thereby optimizing the entire arrangement toward word recognition instead of
phoneme classification.[10][11][4]

Speaker independence

Two-dimensional variants of the TDNNs were proposed for speaker independence.[3] Here, shift-
invariance is applied to the time as well as to the frequency axis in order to learn hidden features that are
independent of precise location in time and in frequency (the latter being due to speaker variability).

Reverberation

One of the persistent problems in speech recognition is recognizing speech when it is corrupted by echo
and reverberation (as is the case in large rooms and distant microphones). Reverberation can be viewed as
corrupting speech with delayed versions of itself. In general, it is difficult, however, to de-reverberate a
signal as the impulse response function (and thus the convolutional noise experienced by the signal) is not
known for any arbitrary space. The TDNN was shown to be effective to recognize speech robustly despite
different levels of reverberation.[8][9]

Lip-reading – audio-visual speech

TDNNs were also successfully used in early demonstrations of audio-visual speech, where the sounds of
speech are complemented by visually reading lip movement.[11] Here, TDNN-based recognizers used
visual and acoustic features jointly to achieve improved recognition accuracy, particularly in the presence of
noise, where complementary information from an alternate modality could be fused nicely in a neural net.

Handwriting recognition

TDNNs have been used effectively in compact and high-performance handwriting recognition systems.
Shift-invariance was also adapted to spatial patterns (x/y-axes) in image offline handwriting recognition.[4]

Video analysis

Video has a temporal dimension that makes a TDNN an ideal solution to analysing motion patterns. An
example of this analysis is a combination of vehicle detection and recognizing pedestrians.[12] When
examining videos, subsequent images are fed into the TDNN as input where each image is the next frame
in the video. The strength of the TDNN comes from its ability to examine objects shifted in time forward
and backward to define an object detectable as the time is altered. If an object can be recognized in this
manner, an application can plan on that object to be found in the future and perform an optimal action.

Image recognition

Two-dimensional TDNNs were later applied to other image-recognition tasks under the name of
"Convolutional Neural Networks", where shift-invariant training is applied to the x/y axes of an image.

Common libraries
TDNNs can be implemented in virtually all machine-learning frameworks using one-
dimensional convolutional neural networks, due to the equivalence of the methods.
Matlab: The neural network toolbox has explicit functionality designed to produce a time
delay neural network give the step size of time delays and an optional training function. The
default training algorithm is a Supervised Learning back-propagation algorithm that updates
filter weights based on the Levenberg-Marquardt optimizations. The function is
timedelaynet(delays, hidden_layers, train_fnc) and returns a time-delay neural network
architecture that a user can train and provide inputs to.[13]
The Kaldi ASR Toolkit has an implementation of TDNNs with several optimizations for
speech recognition.[14]

See also
Convolutional neural network – a convolutional neural net where the convolution is
performed along the time axis of the data is very similar to a TDNN.
Recurrent neural networks – a recurrent neural network also handles temporal data, albeit in
a different manner. Instead of a time-varied input, RNNs maintain internal hidden layers to
keep track of past (and in the case of Bi-directional RNNs, future) inputs.
