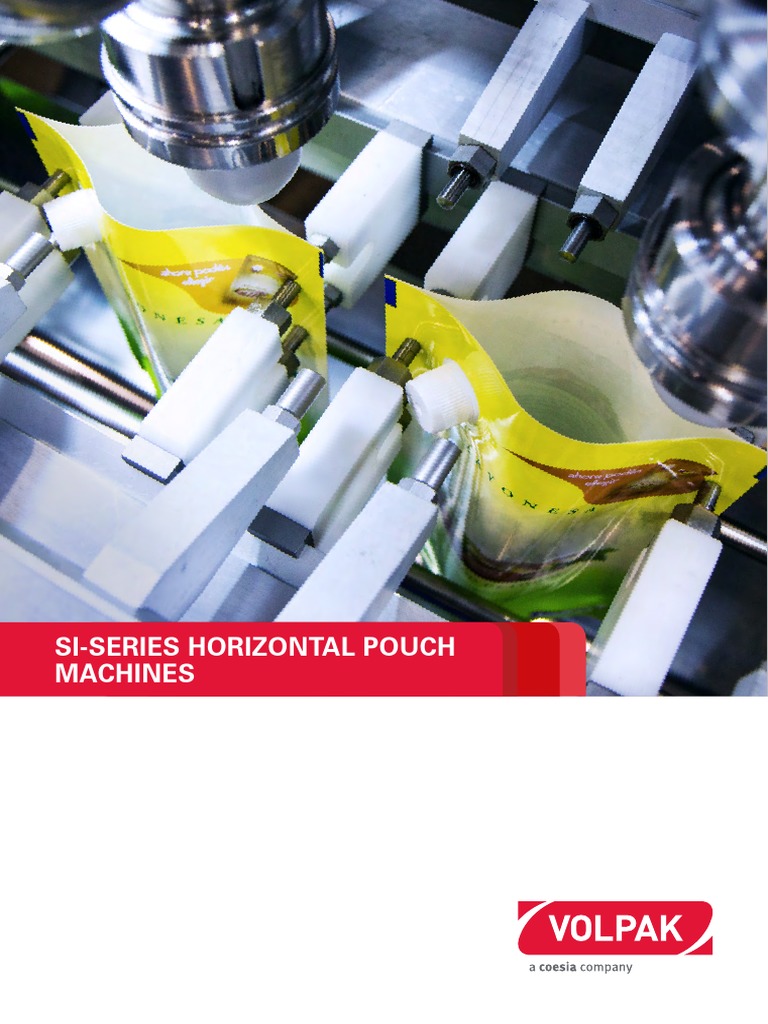

SI-SERIES HORIZONTAL POUCH

MACHINES
Volpak is one of the leading brand of horizontal FFS
machines for flexible packaging in the consumer goods
market. Volpak designs and manufactures automatic
packaging machines for: food & beverage, personal care,
home care, chemical and pharmaceutical markets.
VOLPAK headquarter is located in Barcelona (Spain).
VOLPAK is part of COESIA, a group of innovation-based
industrial solutions companies operating globally with
direct organization locally distributed and headquartered in
Bologna, Italy.

Together we will create your innovative flexible

packaging. Co-innovation is the way to achieve it.

MAXIMIZE O.E.E.
Designed to maximize Overall Equipment Effectiveness,
the performance of the SI-Series is continuously achieved
maintaining high rates of quality, minimizing product and
packaging waste.
Also low skilled operators, will find with the SI-Series the
right partner for the production goals.
ADVANCE REMOTE
ASSISTANCE: ARA
ARA, makes life easier
At Volpak, good service starts with planned prevention and
all SI machines are equipped with ARA, an Advance service
for Remote Assistance, developed by Volpak leveraging the
potential of the internet.
With a simple click, an experienced Volpak technician
immediately steps into the machine, being able to generate
a quick diagnosis and give assistance.
A flexible tool right where and when you need it, allowing
remote access to the PLC and direct interaction with
customer maintenance team members with the use of
common multimedia tools.
Feel safe with the most experienced engineers at your
disposal at any time, and ensure maximum machine
availability.
Be supported, feel supported.
FEATURES
UNWIND WITH AUTOMATIC FILM SPLICING (OPTIONAL)
• Unwinder designed with automatic NON STOP operation
reel splicing
• No downtimes
• Film waste reductions

SHORT CHANGE OVER TIME

• Rapid change over sealing jaws equipped with numeric
scales (Automatic adjustment optional)
• Patented for precise pouch positioning. 50% reduction of
charge over time
• Quick charge over of pouch gripping system
• Easy adjustment of opening and stretching station

Pouch positioning station for individual control of pouch position and minimisation of
format change time (Patented).
Top: Automatic reel splicer increases efficiency and minimises downtimes and material waste. Adjustment of position of mobile
Down: Servo roller film drive, with anti-misalignment system elements with numeric meters reducing
time for format change and set up.

OPTIMIZED OUTPUT
• New drive system for walking beam. Cycle optimized to
product type.
• Light weight design of walking beam. (Minimized inertia)

BENEFITS
• Increase OEE: 4-6%
• Less film waste on operation: 0,5%
• Less “skilled” operator dependant
• Reduced set up time: by -75%
• 4 times less material waste at setup
• Reduced changeover time: by -30%/-50%
• Increased output by +10%/+15%
FLEXIBLE: THE SUSTAINABLE
PACKAGING
Flexible packaging provides great environmental benefits to
manufacturers, distributors and consumers throughout the
package’s life cycle.
The flexible packaging produces less CO2 compared to
most of the packages in the market and it significantly
improves the product/packaging ratio, thus becoming the
most sustainable packaging.
The minimum volume of waste, once it has been
consumed, represents a considerable saving in the waste
collection process.

BENEFITS OF FLEXIBLE
PACKAGING
• Attractive brand presentation: different forms & shapes.
It can be tailored to fit your needs
• Long shelf life thanks to preservation of flavour, texture
minerals and vitamins, through use of barrier materials
• Easy to carry thanks to flexible and lightweight
characteristics
• Less waste volume
• Recloseable and reusable. Features such as zip
locks, spouts, and resealable seals make usage more
convenient
• Convenient
POUCH RANGE
SI-280
VERSATILE & RELIABLE
Is the ideal machine for stand up pouches of up to 600 ml
capacity offering flexibility in the change of format, with the
added capability to produce big pouches for up to 2,5 lit.
Compactness and reliability are also two of the
characteristics that best define the SI-280 model.
The new SI-280 turns changing format into a controlled
process by guiding the operator and leaving no room for
improvisation.

POUCH MODEL
ENHANCED EFFICIENCY
1. Reel
2. Film splicing
3. Unwinder 8

4. Gusset perforator 5

5. Band aligner
6. Forming triangle
7. Film guides
8. Zipper unwinder
9. Zipper seal
10. Zipper tacking
11. Bottom seal
12. Vertical seal
13. Tear notch 7
9 18

14. Photocell 2
10
7 20

15. Servo rollers for film transport 1 11

21
22
16. Knife 4
12
23
17. Knife and unitary cutting 3 13
14
18. Pouch opening 6
15
16 25
17
19. Bottom pouch opening 19

20. Fillings stations

21. Pouch stretching
22. Top sealing 24

23. Pouch reject station

24. Reject ramp
25. Discharge Belt

TECHNICAL DATA

SIMPLEX DUPLEX TRIPLEX

Pouch format (W x H x G) min. (mm) 75 x 90 x 30 75 x 90 x 30 80 x 110 x 30
max. (mm) 280 x 310 x 105 140 x 310 x 80 90 x 310 x 45

Volume with gusset max. (cc). 2500 600 150

Output (pouches/min) up to: 80 160 240

Film material Heatsealable

Reel dimensions (mm) Diam. max. 600

Width max. 750
Core diam. Standard 152 mm / Optional 70 mm
Electrical data 220, 380, 440 V / 50, 60 Hz

Machine dimensions (mm; L x A x H) 8035 x 1865 x 2150

Net weight Kg (approx.) 6000

The information in this brochure is aimed at providing a broad overview of the equipment.
Volpak reserves the right to make changes in the characteristics of its machines at any time.
SI-360
FLEXIBILITY & SPEED
The SI line has been designed for customers who require
high production levels without forgoing flexibility that will
allow them to operate with different formats. A SI-360 may
therefore be equipped to work in quadruplex at production
rates of 240 pouches per minute and with format change
thereafter to operate in triplex with a larger format.
The SI-360 Duplex version provides the option of working
with pouches of up to 1500 cc at a production rate of
around 100 pouches per minute.

POUCH MODEL
ENHANCED EFFICIENCY
1. Reel
2. Splicing table
3. Unwinder
4. Gusset perforator 5 7

5. Reel edge aligner

6. Forming triangle
7. Zipper unwinder
8
8. Film guides
9. Zipper sealer
10. Zipper cooler 8

11. Bottom seal 13

12. Zipper crushing 14

15
13. Vertical seals 9
16

10
14. Cooling plate 2 11

15. Tear notch 1 12

19

16. Photocell 4 21

23
17. Servo rollers for film transport 3
24

18. Knife 6
25
27
28
19. Pouch opening 17
20. Bottom opening 25. Top cooling 18
20
21. Filling stations 26. Reject ramp 22

22. Bottom vibrator 27. Zipper closing

26
23. Pouch stretching 28. Pouch holding 29

24. Top seal 29. Discharge Ramp

TECHNICAL DATA

DUPLEX TRIPLEX QUADRUPLEX

Pouch format (W x H x G) min. (mm) 120 x 110 x 30 85 x 110 x 30 85 x 110 x 30
max. (mm) 180 x 310 x 90 120 x 310 x 60 90 x 310 x 45

Volume with gusset max. (cc). 1500 500 200

Output (pouches/min) up to: 120 180 240

Film material Heatsealable

Reel dimensions (mm) Diam. max. 600

Width max. 745
Core diam. Standard 152 mm / Optional 70 mm
Electrical data 220, 380, 440 V / 50, 60 Hz

Machine dimensions (mm; L x A x H) 10000 x 2075 x 2420

Net weight Kg (approx.) 8600

The information in this brochure is aimed at providing a broad overview of the equipment.
Volpak reserves the right to make changes in the characteristics of its machines at any time.
