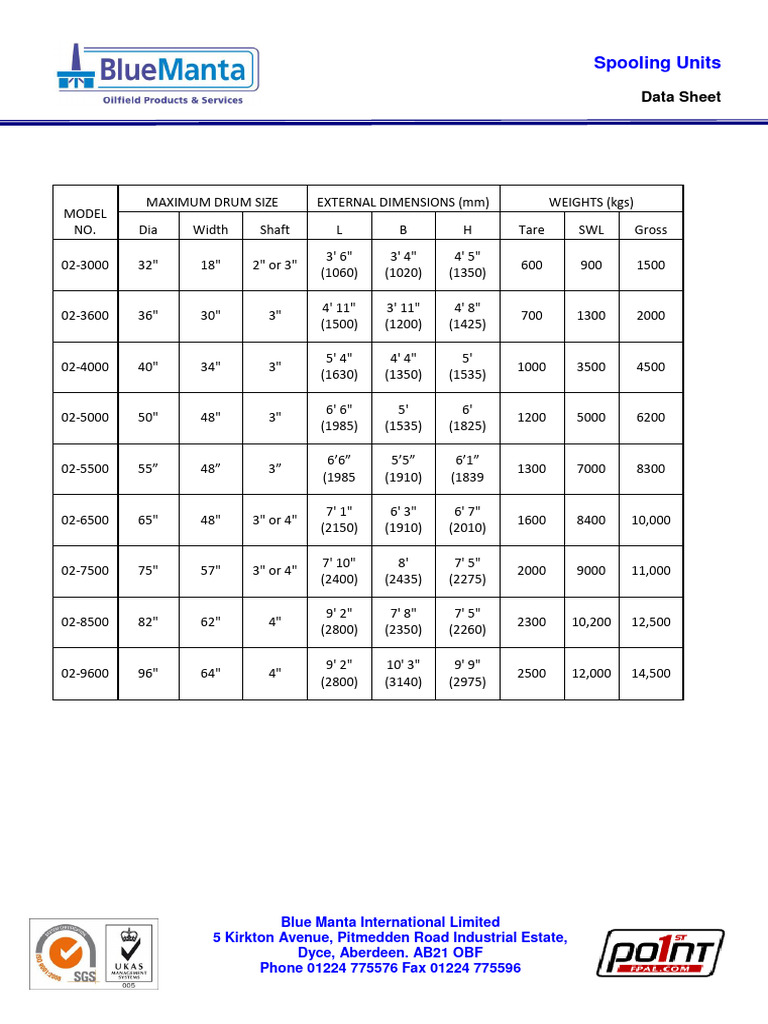

Spooling Units

Data Sheet

MAXIMUM DRUM SIZE EXTERNAL DIMENSIONS (mm) WEIGHTS (kgs)

MODEL
NO. Dia Width Shaft L B H Tare SWL Gross
3' 6" 3' 4" 4' 5"
02-3000 32" 18" 2" or 3" 600 900 1500
(1060) (1020) (1350)

4' 11" 3' 11" 4' 8"

02-3600 36" 30" 3" 700 1300 2000
(1500) (1200) (1425)

5' 4" 4' 4" 5'

02-4000 40" 34" 3" 1000 3500 4500
(1630) (1350) (1535)

6' 6" 5' 6'

02-5000 50" 48" 3" 1200 5000 6200
(1985) (1535) (1825)

6’6” 5’5” 6’1”

02-5500 55” 48” 3” 1300 7000 8300
(1985 (1910) (1839

7' 1" 6' 3" 6' 7"

02-6500 65" 48" 3" or 4" 1600 8400 10,000
(2150) (1910) (2010)

7' 10" 8' 7' 5"

02-7500 75" 57" 3" or 4" 2000 9000 11,000
(2400) (2435) (2275)

9' 2" 7' 8" 7' 5"

02-8500 82" 62" 4" 2300 10,200 12,500
(2800) (2350) (2260)

9' 2" 10' 3" 9' 9"

02-9600 96" 64" 4" 2500 12,000 14,500
(2800) (3140) (2975)
