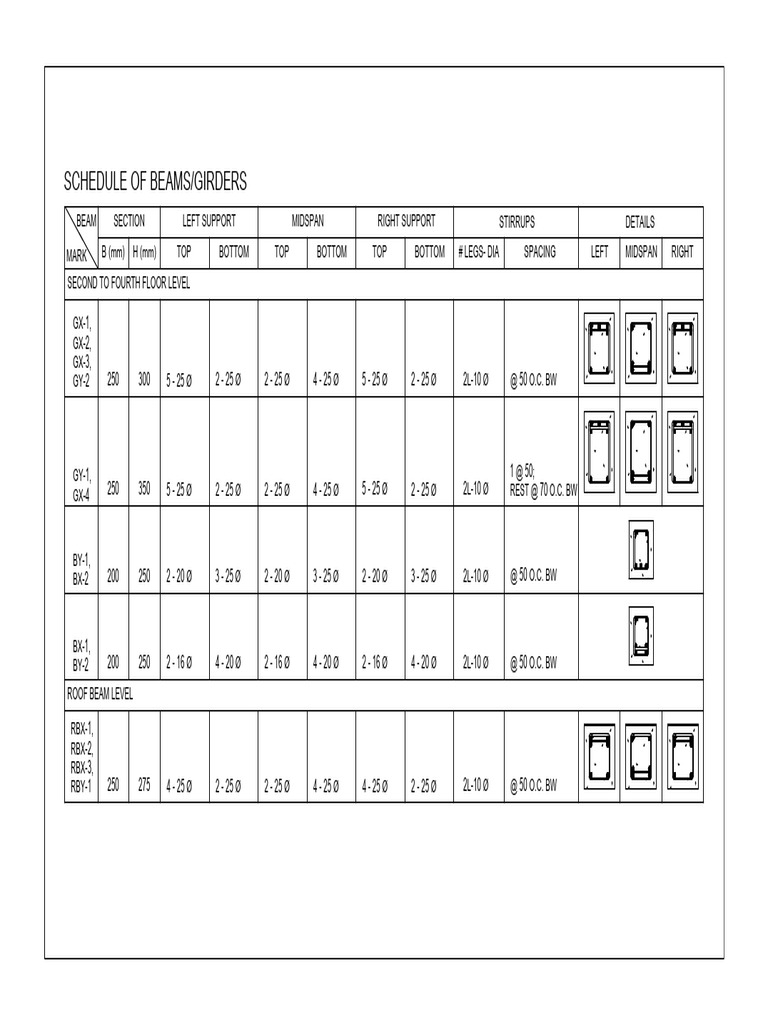

SCHEDULE OF BEAMS/GIRDERS

BEAM SECTION LEFT SUPPORT MIDSPAN RIGHT SUPPORT STIRRUPS DETAILS

MARK B (mm) H (mm) TOP BOTTOM TOP BOTTOM TOP BOTTOM # LEGS- DIA SPACING LEFT MIDSPAN RIGHT
SECOND TO FOURTH FLOOR LEVEL

GX-1,
GX-2,
GX-3,
GY-2 250 300 5 - 25 Ø 2 - 25 Ø 2 - 25 Ø 4 - 25 Ø 5 - 25 Ø 2 - 25 Ø 2L-10 Ø @ 50 O.C. BW

GY-1, 1 @ 50;
GX-4 250 350 5 - 25 Ø 2 - 25 Ø 2 - 25 Ø 4 - 25 Ø 5 - 25 Ø 2 - 25 Ø 2L-10 Ø REST @ 70 O.C. BW

BY-1,
BX-2 200 250 2 - 20 Ø 3 - 25 Ø 2 - 20 Ø 3 - 25 Ø 2 - 20 Ø 3 - 25 Ø 2L-10 Ø @ 50 O.C. BW

BX-1,
BY-2 200 250 2 - 16 Ø 4 - 20 Ø 2 - 16 Ø 4 - 20 Ø 2 - 16 Ø 4 - 20 Ø 2L-10 Ø @ 50 O.C. BW
ROOF BEAM LEVEL

RBX-1,
RBX-2,
RBX-3,
RBY-1 250 275 4 - 25 Ø 2 - 25 Ø 2 - 25 Ø 4 - 25 Ø 4 - 25 Ø 2 - 25 Ø 2L-10 Ø @ 50 O.C. BW
