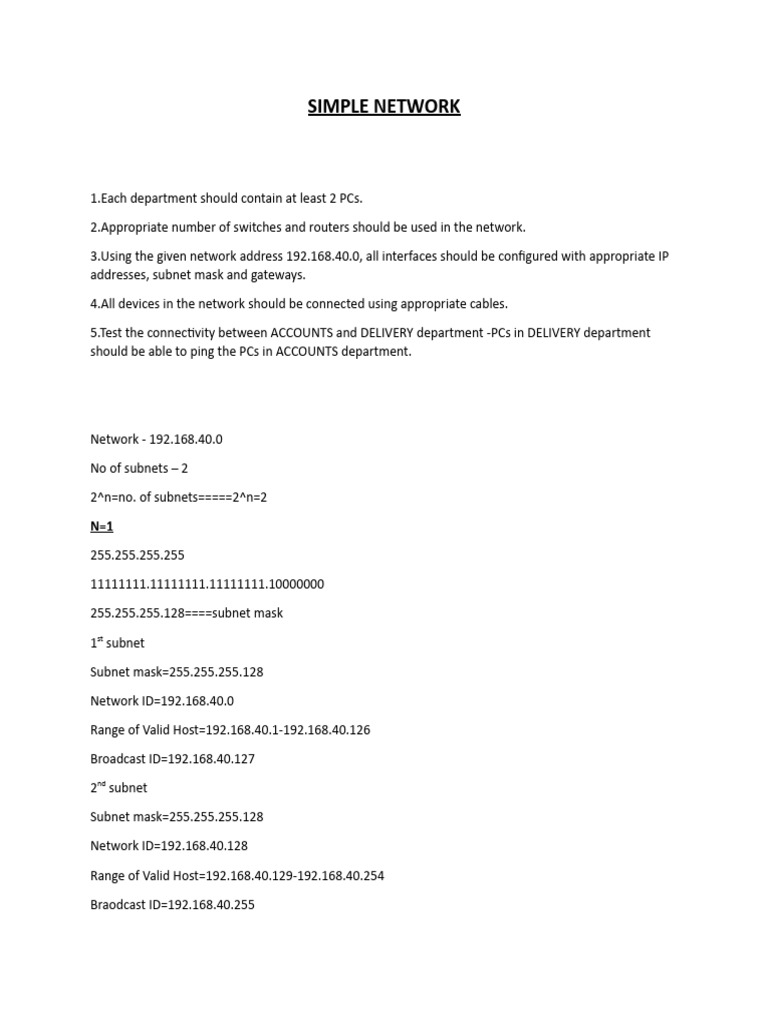

SIMPLE NETWORK

1.Each department should contain at least 2 PCs.

2.Appropriate number of switches and routers should be used in the network.

3.Using the given network address 192.168.40.0, all interfaces should be configured with appropriate IP
addresses, subnet mask and gateways.

4.All devices in the network should be connected using appropriate cables.

5.Test the connectivity between ACCOUNTS and DELIVERY department -PCs in DELIVERY department
should be able to ping the PCs in ACCOUNTS department.

Network - 192.168.40.0

No of subnets – 2

2^n=no. of subnets=====2^n=2

N=1

255.255.255.255

11111111.11111111.11111111.10000000

255.255.255.128====subnet mask

1st subnet

Subnet mask=255.255.255.128

Network ID=192.168.40.0

Range of Valid Host=192.168.40.1-192.168.40.126

Broadcast ID=192.168.40.127

2nd subnet

Subnet mask=255.255.255.128

Network ID=192.168.40.128

Range of Valid Host=192.168.40.129-192.168.40.254

Braodcast ID=192.168.40.255
 SOHO NETWORK

1.One Router and One Switch to be used (all Cisco products)

2.3 departments(Admin/IT,Finance/HR and Customer service/Reception)

3.Each department is required to be in different VLANS

4.Each department is required to have wireless network for the users

5.Host devices in the network are required to obtain IPV4 address automatically

6.Device in all the departments are required to communicate with each other

Base Network : 192.168.1.0

No.of Subnets=3

2^n=3 …..->n=2

1111111.11111111.11111111.11000000

New Subnet:255.255.255.192

Block Size:64

1st subnet

Network ID:192.168.1.0

Broadcast ID:192.168.1.63

Host Range: 192.168.1.1-192.168.1.62

2nd subnet

N ID:192.168.1.64

BID:192.168.1.127

H Range: 192.168.1.65-192.168.1.126
3rd subnet

NID:192.168.1.128

BID:192.168.1.191

H Range: 192.168.1.129-192.168.1.190
