CatalogoPecas R320LC 7

02/02/2016 Print canvas
1/1
02/02/2016 Parts Catalog

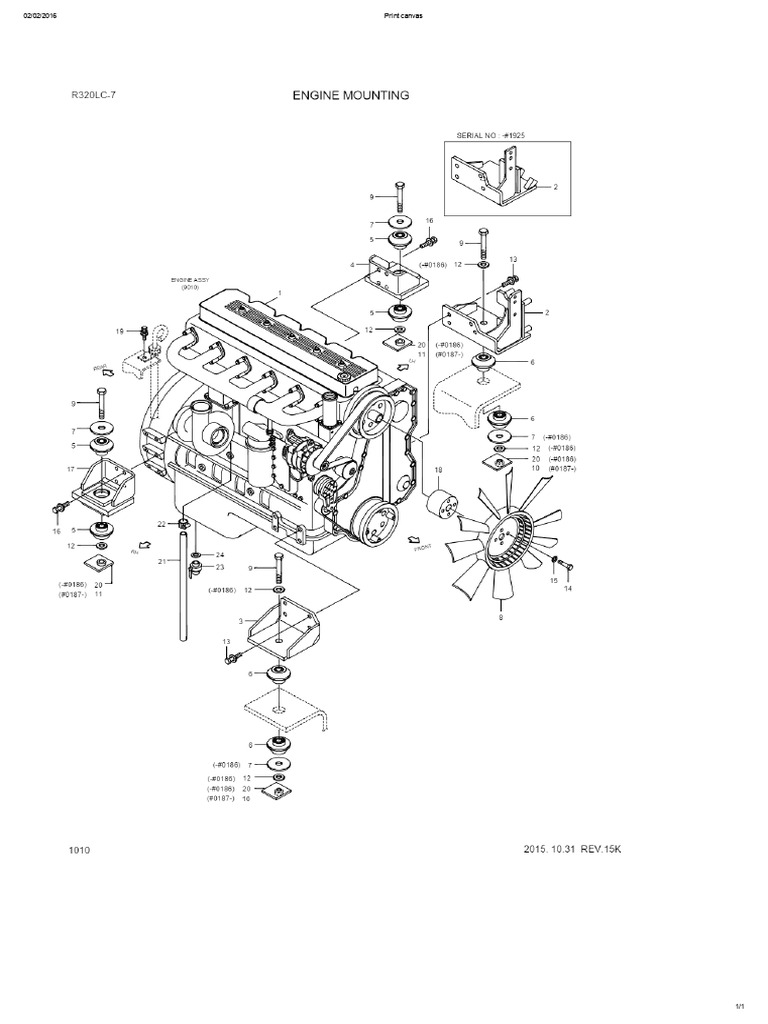

1 11N900010 Engine Assy 1 CUMMINS ENG

13N900010 Engine Assy 1 #3549 HCEC ENG
13N900011 Engine Assy 1 #3550 #3550 B HCEC, NOT USED
11N900070 Engine Assy 1 #3550 A HYUNDAI HM8.3
2 11NA00070 BracketEng & Comp 1 #1925
11NA00071 BracketEng & Comp 1 #1926 D
3 11NA00060 BracketRh, Fr 1
4 11NA00081 Mount WaLh,Eng 1
5 11N613065 RubberMount 4
6 11N613060 Resilient 4
7 11N800060 Washer 4 #0186
11N800060 Washer 2 #0187 A
8 11NA00110 Fan(Blade 11ea) 1 STD
11NA00030 Fan(Blade 9ea) 1 L/NOISE
9 S017241802 BoltHex 4
10 11NA00040 NutStopper 2 #0187
11 11N600160 NutStopper 2 #0187
12 S441240002 WasherHardened 6 #0186
S441240002 WasherHardened 2 #0187 A
13 S037123052 BoltW/Washer 8
14 S017101052 BoltHex 4 STD
S017101202 BoltHex 4 L/NOISE
15 S403102002 WasherPlain 4
17 11NA00051 Mount WaRh,Eng 1
18 SP9021 SpacerFan 1 L/NOISE
20 S205241002 NutHex 4 #0186
21 11E902070 HoseBreather 1
22 S520027000 ClampHose 1
23 11N400210 Drain ValveEngine Oil 1 #0161 #1997
11N900210 ValveOil Drain 1 #1998 D
24 31L840090 WasherCopper 1 #0161
Print this!
http://ceres.hhi.co.kr/ceres/pspaa9910.control?p_system_code=146388pspa&p_model=R320LC7&p_gcode=1010&p_ww=1260&p_hh=678 1/1
1/1
1 21EN32200 Accel Actuator(2950l) 1

2 11N960111 Bracket 1
3 11N960102 LeverThrottle 1
4 S20508100B NutHex 1 #1747
S27508000B NutSelf Locking 1 #1748 A
9 S403082002 WasherPlain 2 #1747
S411080006 WasherSpring 2 #1748 B
10 S015060452 BoltHex 1
11 S205061002 Nut 1
12 11N663040 LeverEmergency 1 #0028
11N663041 LeverEmergency 1 #0029 B
13 11N663050 Bracket 1
14 S141080142 ScrewFlat Hd 4
15 11N860180 CableThrottle 1 #0028
11N860191 CableThrottle 1 #0029 #2743 B
11N960130 CableThrottle 1 #2744 B
16 S491060252 PinClevis 1
17 S461160152 PinSplit 1
18 S593000902 ClipHarness 4 #0325 #1594
S593000802 ClipHarness 4 #1595 B
Print this!
1/1
2 11N820180 Precleaner 1 #0336

11N820181 Precleaner 1 #0337 B
21 1200104 . Clamp 1 #0854
3 11NA20010 Hose 1
4 11N920011 Pipe 1
5 11NA20031 Hose 1
6 14E701120 ClampHose 1 #0503
11LB40190 ClampHose 1 #0504 A
7 11E621250 ClampHose 2 #0503
11LB40220 ClampHose 2 #0504 A
8 11E621240 ClampHose 1 #0503
11LB40310 ClampT/Bolt 1 #0504 A
11 11LB40320 ClampHose 1 #0855 B
Print this!
1/1
1 11NA30011 Muffler Assy 1 #0007 STD

11NA30023 Muffler Assy 1 #0008 #1740 B STD
11NA30024 Muffler Assy 1 #1741 #3549 A STD
11NA30025 Muffler Assy 1 #3550 B STD
11NA30070 Muffler Wa 1 #0542 #1740 OPT, LOW NOISE
11NA30071 Muffler Wa 1 #1741 #3549 A OPT, LOW NOISE
11NA30072 Muffler Wa 1 #3550 B OPT, LOW NOISE
11 11NA30021 . Muffler 1 #0007 STD
12 11NA30060 . Tail Pipe 1 #0007 STD
2 11NA30030 BracketMuffler 1 STD
11NA30080 BracketMuffler 1 #0542 OPT, LOW NOISE
3 11NA30040 ConnectorExhaust 1
4 11N630050 Seal Clamp Assy 1 #2814
11LK50160 Seal Clamp Assy 1 #2815 B
5 11NA30050 BracketLift 1 STD ONLY
6 11N830160 ClampBand 2 STD ONLY
11NB31040 ClampBand 2 #0542 OPT, LOW NOISE
7 11EH32080 ClampExhaust Pipe 1 #0007
8 S037123526 BoltW/Washer 2 STD ONLY
10 S44110000B WasherHardened 4
11 S20510100B NutHex 4
Print this!
1/1
2 11N840021 Hose 1
3 11NA40151 Hose 1
4 14EA43120 Rod Assy 1 #0087
11N646150 Stay 1 #0088 B
5 11EN42340 Rod Assy 1 #0087
11N646130 Rod Assy 1 #0088 B
6 11N940192 Screen 1 #0552
11N940193 Screen 1 #0553 B
7 11NA40170 Pipe 1
8 11NA40181 BracketPipe 1
9 11N940160 Pipe 1
10 11N940170 BracketPipe 1
13 E1112504 20 Hose 1
14 11E542380 HoseVent 1
15 S017160402 BoltHex 4
20 11NA40240 UBolt 4
21 S572770006 ClampHose,Wire Type 4
23 11N843270 HoseCac 2
24 S275120002 NutSelf Locking 8
26 11NA40300 I/C & Condenser Assy 1 #1280 W/AIRCON
11NA40301 I/C & Condenser Assy 1 #1281 B W/AIRCON
261 11NA40071 . Intercooler Assy 1 #1280
11NA40072 . Intercooler Assy 1 #1281 B
262 11EM90050 . Condenser Assy 1
263 AP100212 . Bracket 2
264 AZ710006013 . Bolt 8
265 AB616003043 . NutHex 4
266 AP100236 . SpongeRubber 1
27 11NA40071 Intercooler Assy 1 #1280 W/O AIRCON
11NA40072 Intercooler Assy 1 #1281 B W/O AIRCON
28 S017100452 BoltHex 4
30 11NA40310 Screen Assy 1
31 11NA40320 Screen Assy 1
32 11N620350 ClampT/Bolt 4
33 S593000902 ClipHarness 2 #1594
36 S541180002 ClampTube 1 #1281
37 S035061626 BoltW/Washer 1 #1281
Print this!
1/1
* 11N940022 Radiator Total Assy 1 #1758

11N940200 Radiator Total Assy 1 #1759 B
1 11NA40030 . Radiator Assy 1 #0923
11NA40031 . Radiator Assy 1 #0924 #1758 B
11N943540 . Radiator Assy 1 #1759 B
11 11NA40230 .. Radiator 1
12 11EK42200 .. CapPressure 1
13 11EK42210 .. CockDarin 1
14 11EK42220 .. HoseDrain 1
2 11NA40043 . Frame Assy 1 #0923
11NA40044 . Frame Assy 1 #0924 B
3 11NA40250 . Shroud Assy 1
4 11NA40260 . Fan Guard 1
5 11N940062 . Oil Cooler Assy 1 #0001 #0848
11N940063 . Oil Cooler Assy 1 #0849 #1758 B
11N943510 . Oil Cooler Assy 1 #1759 B
6 11N943070 . Wire Net 1 #0001 NOT USED
11N940120 . Wire Net 1 #0001
7 S037102552 . BoltW/Washer 10 #1758
S037102556 . BoltW/Washer 10 #1759 A
8 S035082522 . BoltW/Washer 10 #1758
S035082526 . BoltW/Washer 10 #1759 A
9 S017121652 . BoltHex 4 #1758
S017121656 . BoltHex 4 #1759 A
10 S403122002 . WasherPlain 4 #1758
S40312200B . WasherPlain 4 #1759 A
11 S037122552 . BoltW/Washer 2 #1758
S037122556 . BoltW/Washer 2 #1759 A
12 S091060162 . BoltWing 2 #1758
S091060156 . BoltWing 2 #1759 A
13 S403062002 . WasherPlain 2 #0001 #1758 1 SET
14 11NA40330 . SpongeLh,Rh 2
Print this!
1/1
1 P020110003 Elbow90 1
2 11N950010 Hose Assy 1
4 11EM52320 Water Separator 1 #0439
11LB20300 Prefilter Assy 1 #0440 #0829 D
11NB70400 Prefilter Assy 1 #0830 D W/ F/WARMER
41 11LD20240 . HeadFilter 1 #0440
42 11LB20310 . Element AssyF/Filter 1 #0440
43 11LD20260 . Bowl AssyW/Knob 1 #0440 #0829
11NB70410 . Bowl AssyW/Heater 1 #0830 D
431 11NB70420 .. GasketDrain Knob 1 #0001 NOT SHOWN
5 11E952320 Fitting 1
6 11N850120 Hose Assy 1
7 P010110015 Connector 1
8 S631018001 ORing 2
9 S035082022 BoltW/Washer 2 #0489
10 11N650010 Connector 2 #0439
11NA50040 Connector 2 #0440 #1705 D
11QB50040 Connector 2 #1706 B
11 11N850111 Hose Assy 1 #0298
11N850112 Hose Assy 1 #0299 #0439 B
11N150020 Hose Assy 1 #0440 #0489 D
11M850030 Hose Assy 1 #0490 A
12 S543200002 ClampTube 3
13 S017100162 BoltHex 3
15 P392140000 WasherCopper 2 #0439
P392160000 WasherCopper 2 #0440 #1705 D
16 11EG52011 HoseFuel 1
17 S760041000 Grommet 2
18 11N970410 Fuel Warmer Kit 1 #0053 #0829 OPTION
181 392702300 . Heater 1
182 392666000 . ORing 1
N183 @ . Insert 1 #0001
N184 @ . Adapter 1 #0001
185 391902500 . Gasket 1
186 @ . Glue 1 #0053 NOT SHOWN
19 11N853040 Bracket 1 #0440 #0489
20 11LB20300 Prefilter Assy 1 #2556 W/O F/WARMER
201 11LD20240 . HeadFilter 1 #2556
202 11LB20310 . Element AssyF/Filter 1 #2556
203 11LD20260 . Bowl AssyW/Knob 1 #2556
21 11N850070 Plug 1 #2556 W/O F/WARMER
N @ Not Supplied Parts
Print this!
1/1
1 @ Fuel Tank Assy 1

11 31N803011 . Fuel Tank Wa 1 #0012
31N803012 . Fuel Tank Wa 1 #0013 #0109 B
31N803013 . Fuel Tank Wa 1 #0110 #0394 D
31N803014 . Fuel Tank Wa 1 #0395 #0796 A
31N803111 . Fuel Tank Wa 1 #0797 #0798 D
31N803112 . Fuel Tank Wa 1 #0799 B
111 E1311038 .. CapFiller 1 #0798
31N402120 .. Fuel Cap Assy 1 #0799 B
112 31N402110 .. CoverDrain 1
13 31E110300 . Strainer 1 #1740
31QA02080 . Strainer 1 #1741 B
14 E1310473 . GaugeLevel 1 #0010
31N602100 . GaugeLevel 1 #0011 #0109 B
31N602600 . GaugeLevel 1 #0110 D
15 31E53049 . Fitting 1
16 E1311006 . ValveNeedle 1
18 E1281053 . Gasket 1
110 S037103022 . BoltW/Washer 6
112 S632170001 . ORing 1
113 21NB10701 . SenderFuel 1 #1811
21QB10700 . SenderFuel 1 #1812 B
114 S161050162 . ScrewCross R/Round 5 #1226
S131051546 . ScrewW/Washer 5 #1227 A
115 P220430204 . PlugHex 1 W/O F/F PUMP
116 P090101208 . ConnectorHose 1 W/ F/F PUMP
2 31N801300 Shim(1.0t) 5
3 S017200502 BoltHex 4
4 S411200002 WasherSpring 4
5 91E660200 WasherHardened 4
6 S017120202 BoltHex 1 #0796
Print this!
1/1
2 11N690031 Control AssySemi 1 #1926

11N690331 Control Assy 1 #1926 HEATER
11N690431 Control AssyFatc 1 #1926 A/C&HEAT(AUTO)
3 11N890131 Suction Hose 1 #1926 EXCEPT HEATER
4 11N890050 Hose(B)Liquid 1 #1926 EXCEPT HEATER
5 11EK92080 HoseHeater 1 #1926 EXCEPT AIRCON
6 11L790140 HoseReturn 1 #1926 EXCEPT AIRCON
7 S017120256 BoltHex 4 #1926
8 S20506100B NutHex 1 #1926 EXCEPT HEATER
9 S411060006 WasherSpring 1 #1926 EXCEPT HEATER
10 S40306200B WasherPlain 1 #1926 EXCEPT HEATER
11 S20508100B NutHex 1 #1926 EXCEPT HEATER
12 S411080006 WasherSpring 1 #1926 EXCEPT HEATER
13 S40308200B WasherPlain 1 #1926 EXCEPT HEATER
14 S179050206 ScrewSocket Rd Hd 4 #1926
15 S40305200B WasherPlain 4 #1926
16 11EK92090 HoseDrain 1 #1926
17 S520020000 ClampHose 1 #1926 EXCEPT AIRCON
18 S572220006 ClampHose,Wire Type 2 #1926 EXCEPT AIRCON
19 S44112000B WasherHardened 4 #1926
20 73NB56400 Shim 4 #1926
21 S151040126 ScrewTapping 4 #1926
Print this!
1/1
1 11NA90010 Air Con & Heater Assy 1 #1925

11 11N690020 . Aircon & Heater Unit 1 #0586 SEE 1110
11N690021 . Aircon & Heater Unit 1 #0587 #1925 A
12 11N690030 . Control Assy 1 #0099
11N690031 . Control AssySemi 1 #0100 #1925 A
121 11N690850 .. DecalA/C & Heater 1 #0001 #1925
13 11N690040 . Compressor Assy 1 #1925
15 11N690060 . DrierReceiver 1 #1925
16 11N690070 . HoseDischarge 1 #1925
161 A3040003014 .. Charge Valve Assy 1 #1925
162 A3050002062 .. ORing 1 #1925
163 A3050002052 .. ORing 1 #1925
17 11N890040 . Hose(A)Liquid 1 #0007
11N693020 . Hose(A)Liquid 1 #0008 #0012 B
11NA90220 . Hose(A)Liquid 1 #0013 #1925 B
171 A3050002092 .. ORing 2 #1925
18 11N890050 . Hose(B)Liquid 1 #1925
181 A3050002092 .. ORing 2 #1925
19 11N890130 . HoseSuction 1 #1925
192 A3100692992 .. ORing 1 #1925
193 A3050002032 .. ORing 1 #1925
110 11N690110 . PulleyIdle 1 #1925
1101 A4760508002 .. BracketPulley 1 #1925
1102 A4700511012 .. PulleyIdle 1 #1925
1103 A8900518033 .. BoltTension 1 #0001 #1925
111 11N690120 . BracketR/Drier 1 #1925
112 11N800130 . VBelt 1 #1925
114 11N690340 . FilterRec 1 #0283 #1110 D SEE 6085
2 11L790140 HoseReturn 1 #1925
3 11EK92080 HoseHeater 1 #1925
5 11L790150 ValveHeater 2 #1925
7 S152040122 ScrewTapping 4 #1925
8 S551035146 TieWire 2 #1925
9 S520015000 ClampHose 5 #0012
S520015000 ClampHose 1 #0013 #1925 A
11 S015060162 BoltHex 2 #1925
13 S017100162 BoltHex 11 #1925
14 S017120252 BoltHex 4 #1925
15 S109080956 BoltSocket 3 #1925
16 S205061002 NutHex 3 #1925
17 S205081002 NutHex 1 #1925
18 S403062002 WasherPlain 2 #1925
19 S403082002 WasherPlain 2 #1925
20 S403102002 WasherPlain 11 #1925
21 S403122002 WasherPlain 8 #1925
22 S403052002 WasherPlain 4 #1925
23 S543400002 ClampTube 8 #1925
24 11N890100 Pulley 1 #1925
25 S017120452 BoltHex 4 #1925
26 S015080352 BoltHex 2 #1925
27 S520220006 ClampHose 4 #0013 #1925 B
28 S091060156 BoltWing 3 #0283 #1110
29 S403062006 WasherPlain 3 #0283 #1110
Print this!
1/1
1 11N691040 Comprssor Assy 1 #1926

2 11N690060 DrierReceiver 1 #1926
3 11N691110 Dis Hose Assy 1 #1926
4 11NA90220 Hose(A)Liquid 1 #1926
41 A3050002092 . ORing 2 #1926
5 11N690110 PulleyIdle 1 #1926
51 A4760508002 . BracketPulley 1 #1926
52 A4700511012 . PulleyIdle 1 #1926
53 A8900518033 . BoltTension 1 #1926
6 11N800130 VBelt 1 #1926
8 11L790150 ValveHeater 2 #1926
9 11N890100 Pulley 1 #1926
10 S109080856 BoltSocket 4 #1926
11 S40308200B WasherPlain 4 #1926
12 S411080006 WasherSpring 4 #1926
13 S035061526 BoltW/Washer 2 #1926
16 S20506200B NutHex 2 #1926
17 S411060006 WasherSpring 2 #1926
18 S40306200B WasherPlain 2 #1926
19 S037102026 BoltW/Washer 3 #1926
22 S572220006 ClampHose,Wire Type 2 #1926
23 S017120456 BoltHex 4 #1926
24 S40312200B WasherPlain 4 #1926
25 11N690120 BracketR/Drier 1 #1926
26 S038103556 BoltW/Washer 1 #1926
Print this!
1/1
* 11N690020 . Aircon & Heater Unit 1 #0586

1 AM121014000 .. Hvac CaseLow 1 #0586
2 AM111016010 .. Hvac CaseUpp 1 #0099
AH000089 .. Hvac CaseUpp 1 #0100 #0586 B
4 AM750010002 .. Evac InsulationLow 1 #0586
5 AM523001004 .. RodIntake 1 #0586
6 AW100014002 .. Blower Case Assy 1 #0586
7 AW700024004 .. RodDef/Foot 1 #0586
8 11N690700 .. Fan & Motor 1 #0586
81 AW220008002 ... Fan 1 #0001 #0586
82 AW210025001 ... Motor 1 #0001 #0586
9 4AH0886 .. Screw 3 #0586
10 11N690710 .. Motor ActVent 1 #0586
11 K500531 .. Screw 29 #0586
12 AW700023004 .. RodVent 1 #0586
13 11N690720 .. Motor ActTemp 1 #0586
14 11N690730 .. Valve AssyWater 1 #0586
15 A1654001002 .. SensorDuct 1 #0586
16 4AH0688 .. ClipCase 9 #0586
17 AM130002032 .. Intake Case Assy 1 #0586
18 11N690740 .. Motor ActIntake 1 #0586
19 11N690750 .. Resistor Assy 1 #0586
20 11N690760 .. Air FilterFresh 1 #0586
21 11N690770 .. Air FilterRefresh 1 #0586
22 K500533 .. Screw 2 #0586
23 3AH0770 .. ClampPipe 1 #0586
24 A1120507003 .. PlateSide 1 #0586
25 11N690780 .. Heater Core 1 #0586
26 11N690790 .. Evap Core Assy 1 #0586
261 A1110564001 ... Core AssyLami 1 #0586
262 A1117501004 ... BoltWrench,Hex 2 #0586
263 11N690800 ... ValveExpansion 1 #0586
264 A3050002122 ... ORing 3 #0586
265 A3050002112 ... ORing 1 #0586
266 A1120596002 ... Pipe Assy 1 #0586
267 A1150049002 ... InsulationCore 1 #0586
27 A3062013013 .. CapFlange 1 #0586
28 4AH0929 .. Clamp AssyHose 1 #0586
29 3AH1007 .. HoseWater 1 #0586
30 11N690810 .. Motor ActFoot/Def 1 #0586
31 4AH0643 .. HolderWire 6 #0586
32 11N690820 .. Relay 2 #0586
33 11N690830 .. Wiring Assy 1 #0586
34 A7100516013 .. HoseDrain 1 #0586
35 AE73000400Z2 .. PlateName 1 #0586
Print this!
1/1
* 11N690021 . Aircon & Heater Unit 1 #0587 A

1 AM121014000 .. Hvac CaseLow 1 #0587
2 AH000089 .. Hvac CaseUpp 1 #0587
5 AM523001004 .. RodIntake 1 #0587
6 AH000106 .. Blower Case Assy 1 #0587
7 AW700024004 .. RodDef/Foot 1 #0587
8 11N690700 .. Fan & Motor 1 #0587
81 AW220008002 ... Fan 1 #0587
82 AW210025001 ... Motor 1 #0587
9 AH000866 .. Screw 3 #0587
10 11N690710 .. Motor ActVent 1 #0587
11 K500531 .. Screw 28 #0587
12 AW700023004 .. RodVent 1 #0587
13 AH100311 .. Motor ActTemp 1 #0587
14 AH001160 .. VlaveWater 1 #0587
15 A1654001002 .. SensorDuct 1 #0587
16 4AH0688 .. ClipCase 9 #0587
17 AH000055 .. Intake Case Assy 1 #0587
171 11N690760 ... Air FilterFresh 1 #0587
172 11N690770 ... Air FilterRefresh 1 #0587
173 11N690820 ... Relay 1 #0587
19 AM860006012 .. Resistor Assy 1 #0587
22 K500533 .. Screw 2 #0587
23 AH000314 .. ClampH/Rad Pipe 1 #0587
24 A1120507003 .. PlateSide 1 #0587
25 11N690780 .. Heater Core 1 #0587
26 11N690790 .. Evap Core Assy 1 #0587 #1925
11N690791 .. Evap Core Assy 1 #1926 B
261 A1110564001 ... Core AssyLami 1 #0587 #1925
262 A1117501004 ... BoltWrench,Hex 2 #0587 #1925
263 11N690800 ... ValveExpansion 1 #0587 #1925
264 A3050002122 ... ORing 3 #0587 #1925
265 A3050002112 ... ORing 1 #0587 #1925
266 A1120596002 ... Pipe Assy 1 #0587 #1925
267 A1150049002 ... InsulationCore 1 #0587 #1925
268 A3062013013 ... CapFlange 1 #0587 #1925
28 AM270002013 .. ClampWater Hose 4 #0587
29 AH001288 .. HoseOutlet,Water 1 #0587
31 4AH0643 .. HolderWire 6 #0587
33 11N690830 .. Wiring Assy 1 #0587
34 A7100516013 .. HoseDrain 1 #0587
N35 AM990012013 .. Name Plate 1 #0587
36 AM800001043 .. HoseDrain 1 #0587
37 4CC3354Z .. ValveVacuum 1 #0587
38 AH000856 .. RodTemp 1 #0587
39 AH001287 .. HoseInlet,Water 1 #0587
40 AH001415 .. Heater PipeInlet 1 #0587
Print this!
1/1
1 11NA90210 Air Con Assy 1 #1925

11 11N690220 . Air Con Unit 1 #0099
11N690221 . Aircon Unit 1 #0100 #1925 A
12 11N690030 . Control Assy 1 #0099
11N690031 . Control AssySemi 1 #0100 #1925 A
121 11N690850 .. DecalA/C & Heater 1 #0001 #1925
13 11N690040 . Compressor Assy 1 #1925
15 11N690060 . DrierReceiver 1 #1925
16 11N690070 . HoseDischarge 1 #1925
162 A3050002062 .. ORing 1 #1925
163 A3050002052 .. ORing 1 #1925
17 11N890040 . Hose(A)Liquid 1 #0007
11N693020 . Hose(A)Liquid 1 #0008 #0012 B
11NA90220 . Hose(A)Liquid 1 #0013 #1925 B
171 A3050002092 .. ORing 2 #1925
18 11N890050 . Hose(B)Liquid 1 #1925
181 A3050002092 .. ORing 2 #1925
19 11N890130 . HoseSuction 1 #1925
192 A3100692992 .. ORing 1 #1925
193 A3050002032 .. ORing 1 #1925
110 11N690110 . PulleyIdle 1 #1925
1101 A4760508002 .. BracketPulley 1 #1925
1102 A4700511012 .. PulleyIdle 1 #1925
1103 A8900518033 .. BoltTension 1 #0001 #1925
111 11N690120 . BracketR/Drier 1 #1925
112 11N800130 . VBelt 1 #1925
114 11N690340 . FilterRec 1 #0283 #1110 D SEE 6085
7 S152040122 ScrewTapping 4 #1925
8 S551035146 TieWire 2 #1925
9 S520015000 ClampHose 1 #1925
11 S015060162 BoltHex 2 #1925
13 S017100162 BoltHex 8 #1925
14 S017120252 BoltHex 4 #1925
15 S105080956 BoltSocket 4 #1925
16 S203061002 NutHex 3 #1925
17 S203081002 NutHex 1 #1925
18 S403062002 WasherPlain 2 #1925
19 S403082002 WasherPlain 6 #1925
20 S403102002 WasherPlain 8 #1925
21 S403122002 WasherPlain 8 #1925
22 S403052002 WasherPlain 4 #1925
23 S543400002 ClampTube 5 #1925
24 11N890100 Pulley 1 #1925
25 S017120452 BoltHex 4 #1925
26 S015080352 BoltHex 2 #1925
28 S091060156 BoltWing 3 #0283 #1110
29 S403062006 WasherPlain 3 #0283 #1110
Print this!
1/1
1 11N691040 Comprssor Assy 1 #1926

2 11N690060 DrierReceiver 1 #1926
3 11N691110 Dis Hose Assy 1 #1926
4 11NA90220 Hose(A)Liquid 1 #1926
41 A3050002092 . ORing 2 #1926
5 11N690110 PulleyIdle 1 #1926
51 A4760508002 . BracketPulley 1 #1926
52 A4700511012 . PulleyIdle 1 #1926
53 A8900518033 . BoltTension 1 #1926
6 11N800130 VBelt 1 #1926
8 11L790150 ValveHeater 2 #1926
9 11N890100 Pulley 1 #1926
10 S109080856 BoltSocket 4 #1926
11 S40308200B WasherPlain 4 #1926
12 S411080006 WasherSpring 4 #1926
13 S035061526 BoltW/Washer 2 #1926
16 S20506200B NutHex 2 #1926
17 S411060006 WasherSpring 2 #1926
18 S40306200B WasherPlain 2 #1926
19 S037102026 BoltW/Washer 3 #1926
23 S017120456 BoltHex 4 #1926
24 S40312200B WasherPlain 4 #1926
25 11N690120 BracketR/Drier 1 #1926
26 S038103556 BoltW/Washer 1 #1926
Print this!
1/1
* 11N690220 . Air Con Unit 1 #0099

1 AM121014000 .. Hvac CaseLow 1 #0099
3 AM111016020 .. Hvac CaseUpp 1 #0099
5 AM523001004 .. RodIntake 1 #0099
7 AW700024004 .. RodDef/Foot 1 #0099
8 11N690700 .. Fan & Motor 1 #0099
81 AW220008002 ... Fan 1 #0001 #0099
82 AW210025001 ... Motor 1 #0001 #0099
9 4AH0886 .. Screw 3 #0099
10 11N690710 .. Motor ActVent 1 #0099
11 K500531 .. Screw 29 #0099
12 AW700023004 .. RodVent 1 #0099
15 A1654001002 .. SensorDuct 1 #0099
16 4AH0688 .. ClipCase 9 #0099
19 11N690750 .. Resistor Assy 1 #0099
21 11N690770 .. Air FilterRe 1 #0099
22 K500533 .. Screw 2 #0099
24 A1120507003 .. PlateSide 1 #0099
26 11N690790 .. Evap Core Assy 1 #0099
261 A1110564001 ... Core AssyLami 1 #0099
262 A1117501004 ... BoltWrench,Hex 2 #0099
264 A3050002122 ... ORing 3 #0099
265 A3050002112 ... ORing 1 #0099
266 A1120596002 ... Pipe Assy 1 #0099
27 A3062013013 .. CapFlange 1 #0099
31 4AH0643 .. HolderWire 6 #0099
32 11N690820 .. Relay 2 #0099
33 11N690830 .. Wiring Assy 1 #0099
34 A7100516013 .. HoseDrain 1 #0099
35 AE73000400Z2 .. PlateName 1 #0099
Print this!
1/1
* 11N690221 . Aircon Unit 1 #0100 A

1 AM121014000 .. Hvac CaseLow 1 #0100
2 AH000090 .. Hvac Case Upp Assy 1 #0100
5 AM523001004 .. RodIntake 1 #0100
7 AW700024004 .. RodDef/Foot 1 #0100
8 11N690700 .. Fan & Motor 1 #0100
81 AW220008002 ... Fan 1 #0100
82 AW210025001 ... Motor 1 #0100
9 AH000866 .. Screw 3 #0100
10 11N690710 .. Motor ActVent 1 #0100
11 K500531 .. Screw 22 #0100
12 AW700023004 .. RodVent 1 #0100
15 A1654001002 .. SensorDuct 1 #0100
16 4AH0688 .. ClipCase 9 #0100
172 11N690770 ... Air FilterRefresh 1 #0100
173 11N690820 ... Relay 1 #0100
19 AM860006012 .. Resistor Assy 1 #0100
22 K500533 .. Screw 2 #0100
24 A1120507003 .. PlateSide 1 #0100
26 11N690790 .. Evap Core Assy 1 #0100 #1925
11N690791 .. Evap Core Assy 1 #1926 B
261 A1110564001 ... Core AssyLami 1 #0100 #1925
262 A1117501004 ... BoltWrench,Hex 2 #0100 #1925
263 11N690800 ... ValveExpansion 1 #0100 #1925
264 A3050002122 ... ORing 3 #0100 #1925
265 A3050002112 ... ORing 1 #0100 #1925
266 A1120596002 ... Pipe Assy 1 #0100 #1925
267 A1150049002 ... InsulationCore 1 #0100 #1925
268 A3062013013 ... CapFlange 1 #0100 #1925
31 4AH0643 .. HolderWire 6 #0100
33 11N690830 .. Wiring Assy 1 #0100
34 A7100516013 .. HoseDrain 1 #0100
N35 AM990012013 .. Name Plate 1 #0100
36 AM800001043 .. HoseDrain 1 #0100
Print this!
1/1
1 11N690310 Heater Assy 1 #1925

11 11N690320 . Heater Unit 1 #0586
11N690321 . Heater Unit 1 #0587 #1925 A
12 11N690330 . Control Assy 1 #0099
11N690331 . Control Assy 1 #0100 #1925 A
121 11N690860 .. DecalHeater 1 #0001 #1925
114 11N690340 . FilterRec 1 #0283 #1110 D SEE 6085
2 11L790140 HoseReturn 1 #1925
3 11EK92080 HoseHeater 1 #1925
5 11L790150 ValveHeater 2 #1925
7 S152040122 ScrewTapping 4 #1925
8 S551035146 TieWire 2 #1925
9 S520015000 ClampHose 5 #0012
S520015000 ClampHose 1 #0013 #1925 A
13 S017100162 BoltHex 3 #1925
14 S017120252 BoltHex 4 #1925
20 S403102002 WasherPlain 3 #1925
21 S403122002 WasherPlain 4 #1925
22 S403052002 WasherPlain 4 #1925
23 S543400002 ClampTube 3 #1925
27 S520220006 ClampHose 4 #0013 #1925 B
28 S091060156 BoltWing 3 #0283 #1110
29 S403062006 WasherPlain 3 #0283 #1110
Print this!
1/1
8 11L790150 ValveHeater 2 #1926

Print this!
1/1
* 11N690320 . Heater Unit 1 #0586

1 AM121014000 .. Hvac CaseLow 1 #0586
2 AM111016010 .. Hvac CaseUpp 1 #0099
AH000089 .. Hvac Case Upp Assy 1 #0100 #0586 B
5 AM523001004 .. RodIntake 1 #0586
7 AW700024004 .. RodDef/Foot 1 #0586
8 11N690700 .. Fan & Motor 1 #0586
81 AW220008002 ... Fan 1 #0001 #0586
82 AW210025001 ... Motor 1 #0001 #0586
9 4AH0886 .. Screw 3 #0586
10 11N690710 .. Motor ActVent 1 #0586
11 K500531 .. Screw 29 #0586
12 AW700023004 .. RodVent 1 #0586
13 11N690720 .. Motor ActTemp 1 #0586
14 11N690730 .. Water Valve 1 #0586
16 4AH0688 .. ClipCase 9 #0586
19 11N690750 .. Resistor Assy 1 #0586
21 11N690770 .. Air FilterRe 1 #0586
22 K500533 .. Screw 2 #0586
23 3AH0770 .. ClampPipe 1 #0586
24 A1120507003 .. PlateSide 1 #0586
25 11N690780 .. Heater Core 1 #0586
28 4AH0929 .. Clamp AssyHose 1 #0586
29 3AH1007 .. HoseWater 1 #0586
31 4AH0643 .. HolderWire 6 #0586
32 11N690820 .. Relay 2 #0586
33 11N690830 .. Wiring Assy 1 #0586
34 A7100516013 .. HoseDrain 1 #0586
35 AE73000400Z2 .. PlateName 1 #0586
Print this!
1/1
* 11N690321 . Heater Unit 1 #0587 A

1 AM121014000 .. Hvac CaseLow 1 #0587
2 AH000086 .. Hvac Case Upp Assy 1 #0587
5 AM523001004 .. RodIntake 1 #0587
7 AW700024004 .. RodDef/Foot 1 #0587
8 11N690700 .. Fan & Motor 1 #0587
81 AW220008002 ... Fan 1 #0587
82 AW210025001 ... Motor 1 #0587
9 AH000866 .. Screw 3 #0587
10 11N690710 .. Motor ActVent 1 #0587
11 K500531 .. Screw 28 #0587
12 AW700023004 .. RodVent 1 #0587
13 AH100311 .. Motor ActTemp 1 #0587
14 AH001160 .. Water Vlave 1 #0587
16 4AH0688 .. ClipCase 9 #0587
172 11N690770 ... Air FilterRe 1 #0587
173 11N690820 ... Relay 1 #0587
19 AM860006012 .. Resistor Assy 1 #0587
22 K500533 .. Screw 2 #0587
23 AH000314 .. H/Rad Pipe Clamp 1 #0587
24 A1120507003 .. PlateSide 1 #0587
25 11N690780 .. Heater Core 1 #0587
28 AM270002013 .. ClampWater Hose 4 #0587
29 AH001288 .. Hose,OutletWater 1 #0587
31 4AH0643 .. HolderWire 6 #0587
33 11N690830 .. Wiring Assy 1 #0587
34 A7100516013 .. HoseDrain 1 #0587
N35 AM990012013 .. Name Plate 1 #0587
36 AM800001043 .. HoseDrain 1 #0587
38 AH000856 .. RodTemp 1 #0587
39 AH001287 .. Hose,InletWater 1 #0587
40 AH001415 .. Heater PipeInlet 1 #0587
Print this!
1/1
1 10N886400 Aircon & Heater(Fatc) 1 #0001

11 @ . Auto Aircon & Heater 1 SEE 1170
12 11N690430 . Control AssyFatc 1 #1192
11N690431 . Control AssyFatc 1 #1193 B
13 11N892040 . Compressor Assy 1
15 11N690060 . DrierReceiver 1
16 11N896110 . HoseDischarge 1
161 A3040003014 .. Charge Valve Assy 1
162 A3050002052 .. ORing 1
17 11NA90220 . Hose(A)Liquid 1
171 A3050002092 .. ORing 2
18 11N890050 . Hose(B)Liquid 1
181 A3050002092 .. ORing 2
19 11N896140 . HoseSuction 1
191 A3040004014 .. Charge Valve Assy 1
192 A3050002032 .. ORing 1
110 11N690110 . PulleyIdle 1
1101 A4760508002 .. BracketPulley 1
1102 A4700511012 .. PulleyIdle 1
111 11N690120 . BracketR/Drier 1
112 11E93503 10 . VBelt 1
113 11N690340 . FilterRec 1 #1110 SEE 6085
2 11N892310 HoseHeater 1
3 11EK92080 HoseHeater 1
4 11E992150 Adaptor 1
5 14L101350 ValveHeater 1
6 P392200000 WasherCopper 1
7 S152040122 ScrewTapping 4
8 S551035146 TieWire 2
10 S175050206 ScrewSocket Rd Hd 4
11 S015060162 BoltHex 2
13 S017100152 BoltHex 4
14 S017120256 BoltHex 4
15 S109080956 BoltSocket 4
16 S201061002 NutHex 3
17 S201081002 NutHex 1
24 11N892120 BracketComp 1
25 S017100702 BoltHex 3
26 11EH90100 Valve Assy 1
29 S091060152 BoltWing 3 #1110
30 S403062006 WasherPlain 3 #1110
33 S441120006 WasherHardened 4
34 73NB56400 Shim 4
Print this!
1/1
* 11N690420 . Air Con Unit 1 #0001 SEE 1160

1 AM121014000 .. Hvac CaseLow 1
2 AH000089 .. Hvac CaseUpp 1
3 AH000854 .. I/Pipe & T/Sensor 1
4 AM750010002 .. Evac InsulationLow 1
5 AM523001004 .. RodIntake 1
6 AH001694 .. Blower Case Assy 1
7 AW700024004 .. RodDef/Foot 1
8 11N690700 .. Fan & Motor 1
81 AH001412 ... Fan 1
82 AW210025001 ... Motor 1
9 AH000866 .. Screw 3
10 11N690710 .. Motor ActVent 1
11 K500531 .. Screw 28
12 AW700023004 .. RodVent 1
13 AH100311 .. Motor ActTemp 1
14 AH001160 .. VlaveWater 1
15 A1654001002 .. SensorDuct 1
16 4AH0688 .. ClipCase 9
17 AH000055 .. Intake Case Assy 1
171 11N690760 ... Air FilterFresh 1
172 11N690770 ... Air FilterRefresh 1
173 11N690820 ... Relay 1
18 11N690740 .. Motor ActIntake 1
19 AH001617 .. SealSponge 1
23 AH000314 .. ClampH/Rad Pipe 1
24 A1201507003 .. PlateSide 1
25 11N690780 .. Heater Core 1
26 11N690790 .. Evap Core Assy 1 #1925
11N690791 .. Evap Core Assy 1 #1926 B
261 A1110564001 ... Core AssyLami 1 #1925
262 A1117501004 ... BoltWrench,Hex 2 #1925
264 A3050002122 ... ORing 3 #1925
265 A3050002112 ... ORing 1 #1925
266 A1120596002 ... Pipe Assy 1 #1925
268 A3062013013 ... CapFlange 1 #1925
28 AH001853 .. ClampWater Hose 4
29 AH001288 .. HoseOutlet,Water 1
30 11N690810 .. Motor ActFoot/Def 1
31 4AH0643 .. HolderWire 6
33 AH100268 .. Wiring Assy 1
34 A7100516013 .. HoseDrain 1
35 AH001161 .. Name Plate 1
36 11EK92090 .. HoseDrain 1
37 4CC3354Z .. ValveVacuum 1
38 AH000856 .. RodTemp 1
39 AH001287 .. HoseInlet,Water 1
41 AW920002002 .. Power Tr 1
42 AH100312 .. SensorAmbient 2
Print this!
* @ Pre Heating Group 1 #0919

1 11N890500 Hydronic D5ws24v 1
N11 11N894100 . Pre Heater 1 #0001
13 11N894120 . PumpCoolant 1
2 11N890510 Universal Kit D5ws24v 1
21 11N894130 . ClampRubber 1
22 11N894140 . ClampRubber 1
23 11N894160 . Muffler 1
24 11N894170 . BrktMuffler 1
25 @ . HoseClamp 10
26 11N894150 . BrktHeater 1
28 @ . ClampHose 6
29 @ . Hose 3
210 @ . HosePlastic 1
211 11N894190 . Filter Fuel 1
212 @ . Hose 2
213 @ . HosePlastic 1
214 @ . ClampHose 4
215 @ . HoseExhaust 1
216 @ . HoseExhaust 1
217 @ . ClampExhast 3
218 @ . HoseIntake 1
219 @ . ClampIntake 1
220 @ . End Cap 1
221 @ . Stud Bolt 4
222 @ . Nut 5
223 @ . Washer 9
224 @ . BoltHex 1
225 @ . BoltHex 2
226 @ . BoltHex 3
227 @ . Bolt Screw 2
228 @ . Clamp 1
229 11N894250 . HarnessP/Heater 1
230 11N894260 . Fuse BoxP/Heater 1
231 @ . PipeConnector 2
3 11N890520 Mini Timer 12/24v 1
31 @ . Timer 1
32 @ . Cushion 1
33 @ . Bolt Screw 1
34 @ . Cap 1
4 11N894320 Reducer 2
5 11N894211 Hose 3
9 11N894240 Plate 1
10 11N894270 BracketF/Box 1
11 S131043046 ScrewW/Washer 1
12 21E906230 ClampQuick 2
13 11N894340 Bracket 1
15 11N894180 TeeFuel 1
16 11N894110 PumpFuel 1 #0001
Print this!
1/1
3 21N910012 HarnessFrame 1 #0052

21N910013 HarnessFrame 1 #0053 #0170 B
21N910014 HarnessFrame 1 #0171 #0311 B
21N910015 HarnessFrame 1 #0312 #0552 B
21N910016 HarnessFrame 1 #0553 #0829 B
21N910017 HarnessFrame 1 #0830 #1215 B
21N910018 HarnessFrame 1 #1216 #1984 B
21N910019 HarnessFrame 1 #1985 #2826 D
21N913010 HarnessFrame 1 #2827 B
31 21N401320 . LinkFusible(60a) 1 NOT SHOWN
32 21N401311 . LinkFusible(30a) 1 NOT SHOWN
33 21EA50550 . DiodeIn5406 1 NOT SHOWN
21 21N510050 HornLow 1 #1984
21N510051 HornLow 1 #1985 D
22 21N510060 HornHigh 1 #1984
21N510061 HornHigh 1 #1985 D
26 21N620211 Work Lamp Assy 1
261 S866240650 . Bulb 1 NOT SHOWN
28 E1275007 10 HoseOutlet 1 #0012
21N420550 HoseOutlet 1 #0013 B
30 21N620521 PlateHorn 1
33 S037101522 BoltW/Washer 23 #0220
S037101522 BoltW/Washer 25 #0221 A
37 21E900170 ClipHarness 20
44 S593000752 ClipHarness 1
47 25D110650 Clip Assy 4
48 S520027000 ClampHose 2 #0012
S520032000 ClampHose 3 #0013 B
60 21N620080 PlateClamp 1 #0221
Print this!
1/1
4 21NA10600 StrapEarth 1
5 21N810110 Cable(Master SwBatt) 1
6 21N810120 Cable(Batt(+)Relay) 1
7 21N810121 Cable(BattRelay) 1 #0009
21N810300 Cable(BattRelay) 1 #0010 #0019
21N810400 Cable(BattBatt Ry) 1 #0020 B
8 21N910100 Cable(RelayStarter) 1
9 E1251501 10 Battery 2
10 21EN30540 BracketBattery 1 #1343
21N842060 BracketBattery 1 #1344 D
11 21EN30551 CoverBattery 1
12 21E50003 10 RelayBattery 1 #2439
21QA70010 RelayBattery 1 #2440 #3549 A
21QA70011 RelayBattery 1 #3550 B
13 21N610181 CoverBatt Relay 1
20 21N620321 BuzzerTravel Alarm 1 #0552
21N620322 BuzzerTravel Alarm 1 #0553 B
23 21EG30630 Washer Tank Assy 1
231 21EG10130 . PumpMotor 1
232 21EG10140 . Tank 1
233 24L330660 . Cap 1
234 24L330670 . RubberBushing 1
236 24L330710 . Plate 1
24 21EM30581 HoseRubber 1
25 21L720100 SensorAir Cleaner 1
34 S017102502 BoltHex 2 #0052
S017102402 BoltHex 2 #0053 B
36 S593000902 ClipHarness 1 #1594
37 21E900170 ClipHarness 9
45 21EM30630 ClampQuick 5
46 25D110640 Clip Assy 3
47 25D110650 Clip Assy 2
54 21N821090 PlateConnector 1
57 21EM30570 ConnectorTube 1
Print this!
1/1
1 21N910040 Boom Wire Harness 1

21 S866240650 . Bulb 1 NOT SHOWN
3 21N620221 BracketLight 2
4 25D110640 Clip Assy 2
5 25D110650 Clip Assy 1
6 S593000902 ClipHarness 2 #1594
10 S552050203 ClampBand 4
Print this!
1/1
1 21N910021 HarnessEngine 1 #0052

21N910022 HarnessEngine 1 #0053 #1865 B
21N910023 HarnessEngine 1 #1866 #3549 B
21N910024 HarnessEngine 1 #3550 D
11 21LH30130 . Resistor 1 NOT SHOWN
2 21EH30720 StrapEarth 1
3 21N920020 Cable(FrameS/Motor) 1
N4 21E640030 Alternator Assy 1 #1865
4 21Q641000K Alternator Kit 1 #1866 #3549 B
41 21Q641000 . Alternator Assy 1 NOT SHOWN
42 21N843000 . HarnessAlternator 1 NOT SHOWN
4 21Q642001 Alternator Assy 1 #3550 A
5 21E121120 Wire LinkAlternator 1 #1865
6 21E35001 20 SwitchEng Oil Press 1
7 21E30042 03 SensorSpeed 1 #3188
21Q615800 03 SensorSpeed 1 #3189 A
8 21EN40100 SenderTemp 1
9 21EA50171 FittingTemp Sw 1
10 21EA50260 PackingTemp Sw 1
11 21N920052 BrakcetRelay 1
12 21N630120 RelayStart 1
13 E2250006 10 RelayHeater 1
14 21N920030 CableHeater 1
15 21EA00170 Plate 1
20 21L810360 Cable(AltEarth) 1
21 S552050203 ClampBand 8
22 S593000702 ClipHarness 2 #1594
27 21NA11170 HarnessPump Ps 1
28 21EG32200 SenderPressure 2 OPTION
29 21EG32210 SenderPressure 1 OPTION
30 21L700611 Adapter 1
301 21EN00520 . ORing 1
31 S203061002 NutHex 2
32 21EA00190 HarnessExt,Start Ry 1
Print this!
1/1
K14 21N800701 Electric Box Assy 1

141 21N800710 . Electric Box Wa 1
142 21N620152 . PlateFront Cover 1
143 S017100162 . BoltHex 5
144 S411100002 . WasherSpring 4
145 21N620180 . PadRubber 2
15 21N932100 Cpu Controller 1 #0034
21N932101 Cpu Controller 1 #0035 B
16 21L710500 SwitchMaster 1 #0578
21N410441 SwitchMaster 1 #0579 #1421 B
K16 21L710500 SwitchMaster 1 #1422 #1578 A
21L710501 SwitchMaster 1 #1579 #3529 B
21LM10501 SwitchMaster 1 #3530 B
17 21EN00420 DecalMaster Sw 1 #0578
21N410451 DecalMaster Switch 1 #0579 #1421 B
K17 21LD34180 DecalMaster Switch 1 #1422 #3529 D
21N540370 DecalMaster Switch 1 #3530 B
18 21E94018 Prolix Resistor 1 #1414
K18 21Q420100 Resistor Assy 1 #1415 A
31 S035061522 BoltW/Washer 7 #0053 #1505 A
S035061522 BoltW/Washer 4 #1506 #2826 A
S035061526 BoltW/Washer 3 #2827 A
47 25D110650 Clip Assy 1
K55 21N812040 DecalEmer Control 1
K58 21E40011 20 Relay Assy 1 #0053 #2826
22FV24110 20 Relay 1 #2827 B
K59 21N310080 DecalRelay 1 #0002
K61 S037102026 BoltW/Washer 2 #1506
K62 S593000902 ClipHarness 2 #2827
K 21N817200 Elec Box Kit Assy 1 #1506 #2826 SEE ILLUST
K 21N817201 Elec.Box Kit Assy 1 #2827 B SEE ILLUST
Print this!
1/1
1 21N600012 HarnessCab 1 #0552

21N600013 HarnessCab 1 #0553 D
2 21EH0011 Lamp AssyRoom 1 #2906
21N601600 Lamp AssyRoom 1 #2907 A
3 21N610400 Speaker 2
4 E1233022 SwitchDoor 1
5 21N600311 Nozzle 1
6 21M550250 Switch Assy 1 WIPER CUT SW
7 21N600301 Bracket Wa 1
8 21N610410 Antena 1 #1686
21N402840 Antenna 1 #1687 B
9 21N600210 Wiper Motor Kit Assy 1 #0507
21N601210 Wiper Motor Kit Assy 1 #0508 B
91 21N600220 . ArmWiper 1 #0507
21N601220 . ArmWiper 1 #0508 #1438 A
21N601221 . ArmWiper 1 #1439 B
911 21N601290 .. CamMotor 1 #0001
92 21N600230 . BladeWiper 1 #0507
21N601230 . BladeWiper 1 #0508 A
N93 21N600240 . MotorWiper 1 #0507
93 21N601280 . MotorWiper 1 #0508 D
94 21N600250 . BracketParking 1 #0507
21N601250 . BracketParking 1 #0508 D
95 21N821060 . Controller 1 #0507
21N601270 . ControllerW/Motor 1 #0508 #0804 A
21N601272 . ControllerW/Motor 1 #0805 B
N96 @ . Bracket & Link Assy 1 #0001 #0507
96 21N601260 . Bracket & Link Assy 1 #0508 A
961 21N601300 .. Cam BaseW/Motor 1 #0001
11 S015080166 BoltHex 3
13 21EM10890 HoseWasher Tank 1
14 E1711185 PlateNozzle Mtg 1
15 S161050166 ScrewCross R/Round 11
23 21N610420 Plate 2
24 21N610430 Seal 2
25 21N610440 Plate 2
28 21N600320 Grommet 1
29 21N810090 HarnessWiper 1
30 S890107508 TubePvc 1
31 S681410400 Grommet 2
32 S681460400 Grommet 1
33 21N422010 Ext HarnessUsb 1 #1828
Print this!
1/1
21N601320 Bracket Wa 1 #1111 OPTION
21N601330 Bracket Wa 1 #1111 OPTION
5 21N821021 CoverWiper Motor 1
21N601310 CoverWiper Motor 1 #1111 OPTION
7 21N822010 Cassette Radio 1 #0552 USA
71 375500043204 . Wire Assy20 H818 1 #0552
8 21N822020 Cassette Radio 1 #0552 EUROPE
81 375500043204 . Wire Assy20 H818 1 #0552
9 21N822030 Cassette Radio 1 #0552 GENERAL
91 375500043204 . Wire Assy20 H818 1 #0552
11 21N820010 Socket12v 1 OPTION
17 21N820201 DcDc Converter Assy 1 OPTION
18 21EH30720 StrapEarth 1
19 21N811160 HarnessConsole,Lh 1
20 21N811151 HarnessConsole,Rh 1 #0001 #0829
25 21N402810 HarnessConsole,Rh 1 #0230 B
21N811181 HarnessSide,Rh 1 #0001
301 S866240650 . Bulb 1 NOT SHOWN
31 @ Beacon Lamp Assy 1 #2100 OPTION
21Q430381 Beacon Lamp Assy 1 #2101 D OPTION
311 21EK10140 . Beacon Lamp 1 #2100 OPTION
21Q420700 . Beacon Lamp 1 #2101 D OPTION
3111 21EK10330 .. BulbH1, 70w 1 OPT, NOT SHOWN
312 21N800581 . BracketBeacon Lamp 1 #1118 OPTION
21N800581BG . BracketBeacon Lamp 1 #1119 #2100 D
21Q431000 . BracketTilt 1 #2101 D
313 21EK20240 . HarnessBeacon Lamp 1 #2100 OPTION
21N402830 . HarnessBeacon Lamp 1 #2101 D OPTION
314 S037102026 . BoltW/Washer 2 #2100 OPTION
315 S205101006 . NutHex 2 #2100 OPTION
316 S131051546 . ScrewW/Washer 3 #2100 OPTION
36 S661260300 CapRubber 1
37 21M550250 Switch Assy 1 SAFETY SW
38 21N821080 Plate 1
39 S890107508 TubePvc 1
43 21N401130 PlateClip 6
44 25D110660 Clip Assy 1
45 25D110650 Clip Assy 1
46 S591000802 ClipHarness 2 #0001
47 S161040106 ScrewCross R/Round 3 #0001
49 21N610450 PlateC/Radio Cover 1 #0553
50 21N840190 Ext.HarnessA/Ride Seat 1 #0384 AIR RIDE SEAT
N60 21N850010 Cassette Radio Assy 1 #0553 #1421 D STD
21N850050 Cassette Radio Assy 1 #1422 #1827 A STD
601 21N610480 . BracketLh 1 #0553 #1827
602 21N610490 . BracketRh 1 #0553 #1827
603 21N801600 . HarnessExt Wire 1 #0553 #1827
604 S141050102 . ScrewFlat Hd 4 #0553 #1827
61 21N840500 Cd Player Assy 1 #0553 #1827 OPTION
611 21N610480 . BracketLh 1 #0553 #1827
612 21N610490 . BracketRh 1 #0553 #1827
614 S141050102 . ScrewFlat Hd 4 #0553 #1827
62 21N840940 CoverDust 1 #0553
72 21N850100 Radio/Usb Player Assy 1 #1828 #2107 B
21N854000 Radio/Usb Player Assy 1 #2108 D
721 21LM31010 . Bracket L 1 #1828
722 21LM31020 . Bracket R 1 #1828
723 21LM31030 . CableMp3 1 #1828
724 21LM31040 . Cap 1 #1828
725 21LM31050 . Radio/Usb Body 1 #1828

726 21N850110 . HarnessExt,Wire 1 #1828 #2107
Print this!
1/1
* 21N830012 Cluster Assy 1 #0034

21N830013 Cluster Assy 1 #0035 B
1 21N830020 . CaseUpper 1
2 21N830030 . CaseLower 1
5 21N830070 . DecalSwitch 1 #0034
21N830071 . DecalSwitch 1 #0035 B
6 21N830081 . DecalDisplay 1
7 21N830090 . Light UnitBack 1 #0106
21N830091 . Light UnitBack 1 #0107 D
8 21N830150 . BoardMain 1
81 21N830160 .. RomCluster 1
N10 21N830180 . Lcd Unit 1
11 21N830230 . Switch Board Assy 1
Print this!
1/1
* 21N836000 Cluster Assy 1 #1111 #1138 UPGRADE CABIN

21N836001 Cluster 1 #1139 #2462 B UPGRADE CABIN
1 21N835100 . CaseUpper 1 #1111
2 21N830030 . CaseLower 1 #1111
3 21N835200 . Switch Assy 1 #1111
4 21N835300 . DecalSwitch 1 #1111
5 21N835400 . DecalLcd 1 #1111
6 21N835500 . BoardPower 1 #1111
N7 21N835600 . ModuleMain 1 #1111
N71 @ .. BoardMain 1 #1111
N72 @ .. ModuleLcd 1 #1111
* 21N836002 Cluster Assy 1 #2463 B
1 21N830022 . CaseUpper 1 #1111
2 21N830030 . CaseLower 1 #1111
3 21N836300 . Switch Assy 1 #1111
4 21N830072 . DecalSwitch 1 #1111
5 21N836100 . DecalLcd 1 #1111
6 21N835500 . BoardPower 1 #1111
N7 21N835601 . ModuleMain 1 #1111
N71 @ .. BoardMain 1 #1111
N72 @ .. ModuleLcd 1 #1111
8 21N835900 . CapUsb 1 #1111
Print this!
1/1
2 21N601320 Bracket Wa 1 #1111 UPGRADE CABIN

3 21N601330 Bracket Wa 1 #1111
4 S035061626 BoltW/Washer 5 #1111
5 21N601310 CoverWiper Motor 1 #1111 #1565
21N601311 CoverWiper Motor 1 #1566 B
6 S035081526 BoltW/Washer 4 #1111
9 21N840940 CoverDust 1 #1111
10 21E40008 LighterCigar 1 #1111
11 21N820010 Socket12v 1 #1111
12 21N411070 Hour Meter Assy 1 #1111
13 21E610460 Cover 3 #1111
14 21E640130 SwitchOver Load 1 #1111
15 21E920110 SwQuick Clamp 1 #1111
16 21N840910 SwRemote Control 1 #1111
17 21N820201 DcDc Converter Assy 1 #1111
19 21E630440 SwitchBeacon 1 #1111
20 S132061676 ScrewW/Washer 2 #1111
21 S132061546 ScrewW/Washer 1 #1111
22 21N620211 Work Lamp Assy 2 #1111
221 S866240650 . Bulb 1 #1111 NOT SHOWN
N23 20N841420BG Beacon Lamp Assy 1 #1111 #1678
23 21Q430380 Beacon Lamp Assy 1 #1679 #2100 D
21Q430381 Beacon Lamp Assy 1 #2101 B
231 21EK10140 . Beacon Lamp 1 #1111 #1678
21Q420700 . Beacon Lamp 1 #1679 A
2311 21EK10330 .. BulbH1, 70w 1 #1111 #1678 NOT SHOWN
21EK10330 . BulbH1, 70w 1 #1679 D NOT SHOWN
232 21N800581BG . BracketBeacon Lamp 1 #1111 #1678
21Q420600 . BracketTilt 1 #1679 #2100 D
21Q431000 . BracketTilt 1 #2101 B
233 21EK20240 . HarnessBeacon Lamp 1 #1111 #1678
21N402830 . HarnessBeacon Lamp 1 #1111 #1678
234 S037102026 . BoltW/Washer 2 #1111 #1678
235 S20510100B . NutHex 2 #1111
236 S131051546 . ScrewW/Washer 3 #1111
25 S131051046 ScrewW/Washer 4 #1111
26 S037102026 BoltW/Washer 1 #1111
27 S661260300 CapRubber 1 #1111
28 S890107508 TubePvc 1 #1111
30 21N840190 Ext.HarnessA/Ride Seat 1 #1111
32 21N840140 HarnessSide,Rh 1 #1111
33 21N610450 PlateC/Radio Cover 1 #1111
N34 21N850010 Cassette Radio Assy 1 #1111 #1421
21N850050 Cassette Radio Assy 1 #1422 #1827 A
341 21N610480 . BracketLh 1 #1111 #1827
342 21N610490 . BracketRh 1 #1111 #1827
344 S141050102 . ScrewFlat Hd 4 #1111 #1827
35 21N840500 Cd Player Assy 1 #1111 #1827
351 21N610480 . BracketLh 1 #1111 #1827
352 21N610490 . BracketRh 1 #1111 #1827
354 S141050102 . ScrewFlat Hd 4 #1111 #1827
36 S593000902 ClipHarness 1 #1111 #1594
37 21N443010 HarnessExtension 1 #1111
38 21N443020 SwitchSeat Heat 1 #1111
39 21N401190 PlateClip 1 #1111
44 21N447700BG BracketRh 1 #1579
45 21N447600BG BracketLh 1 #1579
46 21N447800 HarnessExt(Lamp) 2 #1111
47 S037102026 BoltW/Washer 2 #1579
57 21N850100 Radio/Usb Player Assy 1 #1828 #2107 B
21N854000 Radio/Usb Player Assy 1 #2108 D
571 21LM31010 . Bracket L 1 #1828
572 21LM31020 . Bracket R 1 #1828
573 21LM31030 . CableMp3 1 #1828
574 21LM31040 . Cap 1 #1828
575 21LM31050 . Radio/Usb Body 1 #1828
576 21N850110 . HarnessExt,Wire 1 #1828 #2107
Print this!
1/1
10 21E40008 LighterCigar 1 #1441

21LM07110 LighterCigar 1 #1442 #2549 A
12 21N411070 Hour Meter Assy 1 #0001 #2549
13 21E610460 Cover 3 #0645
21E610460 Cover 6 #0646 #2549 A
14 21E640130 SwitchOver Load 1 #2549
16 21N821050 SwRemote Control 1 #0552
21N840910 SwRemote Control 1 #0553 #2549 D
21 21N820502 SwitchMembrane 1 #0197
21N820503 SwitchMembrane 1 #0198 #0304 B
21N820504 SwitchMembrane 1 #0305 #0829 A
21N820505 SwitchMembrane 1 #0830 #3177 A
21N820506 SwitchMembrane 1 #3178 A
22 21N410430 Switch AssyIncl Key 1 #0019
21N410400 Switch AssyIncl Key 1 #0020 #2549 B
221 21N410430K100 . KeyStart 1 #0019 NOT SHOWN
21N410400K . KeyStart 1 #0020 #2549 B NOT SHOWN
23 21E630440 SwitchBeacon 1 #2549 OPT
24 21E630540 SwitchBreaker 1 #2549 OPT
26 S037102026 BoltW/Washer 1 #0784 #2549 OPT,HEATED SEAT
34 S131052042 ScrewW/Washer 4 #2549
39 21N443010 HarnessExtension 1 #0784 #2549 OPT,HEATED SEAT
40 21N443020 SwitchSeat Heat 1 #0784 #2549 OPT,HEATED SEAT
41 21N401190 PlateClip 1 #0784 #2549 OPT,HEATED SEAT
42 S593000902 ClipHarness 1 #0784 #1594 OPT,HEATED SEAT
S593000802 ClipHarness 1 #1595 #2549 B OPT,HEATED SEAT
Print this!
1/1
* 21N620311 Fuel Filler Pump 1 #1182

*1 21N620300 . Pump & Motor Assy 1
N1 @ .. Body 1
N2 @ .. Cover 1
N3 @ .. Screw 3
N4 @ .. WasherSpring 3
K5 21EM45050 .. ORing 1
K6 21EM45060 .. Rotor 1
K7 21EM45070 .. PlateVane 5
K8 21EM45080 .. SealOil 1
N10 @ .. HousingMotor 1
16 21EM45100 .. BoxSwitch 1
163 21EM45300 ... CoverSwitch 1
164 S161050166 ... ScrewCross R/Round 4
17 21EM45400 .. Check Valve Assy 1
18 21EM45500 .. WasherAl 2
19 21EM45600 .. Fitting 1
20 21EM45700 .. Fitting 1
21 21EM45800 .. NutElbow 1
22 21EM45900 .. Elbow 1
23 21EM46000 . Strainer Assy 1
24 S520027000 . ClampHose 4
25 21EM46100 . HoseInlet 1
21EM46101 . Hose 1
K 21EM46200 . Service Kit 1
N @ Not Individually Supplied
Print this!
1/1
* 21N620312 Fuel Filler Pump 1 #1183 B

1 21N620302 . Pump & Motor Assy 1 #1183
N11 @ .. Body 1 #1183
N12 @ .. CoverPump 1 #1183
N13 @ .. Screw 3 #1183
K14 21EM45050 .. ORing 1 #1183
K15 21EM45060 .. Rotor 1 #1183
K16 21EM45070 .. PlateVane 5 #1183
K17 21EM45080 .. SealOil 1 #1183
18 21EM45091 .. Decal 1 #1183
N19 @ .. CoverFront 1 #1183
N110 @ .. CoverRear 1 #1183
N111 @ .. Bearing 1 #1183
112 21EM45101 .. BoxSwitch 1 #1183
N113 @ .. CoverSwitch 1 #1183
N114 @ .. SwitchToggel 1 #1183
115 21EM45500 .. WasherAl 3 #1183
N116 @ .. Adapter 1 #1183
117 21EM45700 .. Fitting 1 #1183
118 21EM45800 .. NutElbow 1 #1183
119 21EM45900 .. Elbow 1 #1183
2 21EM46400 . Hose Assy 1 #1183
21 21M550260 .. ValveCheck 1 #1183
211 2P1SP01 ... Strainer Assy 1 #1183
23 S520027000 .. ClampHose 1 #1183
24 21EM46101 .. Hose 1 #1183
25 21EM46300 .. Cap Assy 1 #1183
K 21EM46201 Service Kit 1 #1183 ITEM 14 ~17
N @ Not Supplied Parts #1183
Print this!
1/1
1 21N820041 BodyFuse Box 1

2 21N820120 Seal 1
3 21N820191 Cover AssyFuse Box 1
31 21N820061 . CoverFuse Box 1
32 21N400632 . DecalFuse Box 1
4 21N820070 . Knob Assy 2
5 21N820080 . PadRubber 2
6 21N820150 . ORing 2
7 21N490010 Fuse & Bulb Kit 1 #0001 NOT SHOWN
71 21E149470 . Fuse5a 2
72 @ .. Fuse10a 2
73 @ .. Fuse15a 2
74 @ .. Fuse20a 2
75 @ .. Fuse30a 2
76 @ .. BulbH4,70/75w 2
77 @ .. BulbH1,70w 1
78 @ .. BulbH3,65w 2
79 @ .. Bulb5w 2
710 @ .. Bulb21w 2
711 @ .. Bulb10w 2
712 @ . Bulb10w 2
713 @ . BulbH3,70w 2
Print this!
1/1
2 11NA10011 Housing 1
3 11E916012 Coupling Assy 1 #3303
11E916013 Coupling Assy 1 #3304 B
* 11E915091K . Coupling Kit 1 #0001 #3303 SEE ILLUST
31 11E915080 . Hub 1 #3303
11E915081 . Hub 1 #3304 D
32 11E915091 . Element 1 #3303
11E915092 . Element 1 #3304 D
33 11E915101 . InsertA 4 #3303
11E915102 . InsertA 4 #3304 D
34 11E915111 . InsertR 4 #3303
11E915112 . InsertR 4 #3304 D
35 S107200502 . BoltSocket 8 #3303
S10920060D . BoltSocket 8 #3304 D
36 11E91507 10 . BoltClamping 2
37 S472800162 . PinSpring 12
5 S017100552 BoltHex 8
7 S017100602 BoltHex 4
Print this!
1/1
1 @ Hyd Tank Assy 1

11 31N801011 . Hyd Tank Wa 1 #0394
31N801012 . Hyd Tank Wa 1 #0395 #0768 A
31N801013 . Hyd Tank Wa 1 #0769 #1152 A
31N801014 . Hyd Tank Wa 1 #1153 D
111 31N801280 .. Cover AssySuction 1 #0001
112 31E640540 .. CoverReturn 2
113 S632170001 .. ORing 2 #0001
114 S632220001 .. ORing 1 #0001
12 31N801271 . PipeSuction 1
15 31N801200 . Strainer Assy 1
151 E1310214 20 .. Element 1
16 31E91019 . ElementReturn 2
17 31E91020 . SpringReturn 2
18 P220110104 . PlugHex 1
19 31EH00040 . Air Breather 1 #0629
31NA00040 . Air Breather 1 #0630 #3549 D
32QA00040 . BreatherAir 1 #3550 B
191 31EH00480 .. ElementAir Breather 1
110 E1310256 20 . ValveBypass 2
111 E1310473 . GaugeLevel 1 #3549
33Q602700 . GaugeLevel 1 #3550 B
112 E1310594 . Spring 1
113 31N603100 . Connector 1 #0001
114 E1310671 . Coupling 1
115 31E91051 . Fitting 1
116 S631018004 . ORing 1
117 31E90084 . FilterSpin 1 #3490
31E90086 . FilterSpin 1 #3491 B
1171 31E90127 .. HeadDrain Filter 1
1172 31E90126 .. CartridgeSpin Filter 1
118 S037102026 . BoltW/Washer 2 #0001
119 S632150001 . ORing 1
122 21EN40100 . SenderTemp 1
123 S037102512 . BoltW/Washer 24 #0109
S037102526 . BoltW/Washer 18 #0110 A
124 21EA50260 . PackingTemp Sw 1
126 S109080156 . BoltSocket 1 #3550
129 31EH00090 . Strainer 1
130 S602065004 . RingRetaining 1
131 S037103022 . BoltW/Washer 6 #0110
2 31N801300 Shim(1.0t) 5
3 S017200502 BoltHex 4
5 S017120202 BoltHex 2
6 91E660200 WasherHardened 4
Print this!
1/1
3 31N912110 Pipe AssySuction 1 #0790

31N912240 Pipe WaSuction 1 #0791 B
4 31N912120 Pipe Assy 1 #0215
31N912121 Pipe Assy 1 #0216 D
5 P630241315 Hose AssyThd Flg 1
6 31N912141 Pipe WaReturn 1 #0215
31N912142 Pipe WaReturn 1 #0216 #0790 D
31N912250 Pipe Assy 1 #0791 D
7 31N812151 Pipe Wa 1
8 31N912130 Pipe Wa 1 #0215
31N912131 Pipe Wa 1 #0216 #0790 D
31N812780 Pipe Wa 1 #0791 D
11 P980167330 Hose AssyOrfs,Flg 0x90 1 #0790
31N912260 Hose Assy 1 #0791 D
12 31N912170 Hose Assy 1 #0790
31N912270 Hose Assy 1 #0791 D
13 31N812200 Pipe Wa 2 #0242
31NA12050 Elbow 90Orfs 2 #0243 D
14 31E90142 20 Check Valve 1
15 31N712281 ValveCheck 1 #0001
25 P760101035 HoseRubber 1 #0790
P760101040 HoseRubber 1 #0791 D
26 P760072025 HoseRubber 3 #0552
P760072025 HoseRubber 1 #0553 #0790
27 31N611190 ClampHose Wire Type 4
S572640006 ClampHose,Wire Type 12 #0726 B
29 31E53001 10 ClampPipe 1
31 31N912161 Bracket 1
38 P173160104 FlangeHyd,Split 4
40 S631085001 ORing 1
41 S621021001 ORing 2
43 Y172006004 ORing 1
44 Y172003004 ORing(An 계열) 4
45 Y171024004 ORing 4
47 S109160406 Deleted... 4
52 S017100802 BoltHex 1
54 S205101002 NutHex 1 #0790
S205101002 NutHex 5 #0791 A
55 S411100002 WasherSpring 1 #0790
S411100002 WasherSpring 6 #0791 A
68 P010110008 Connector 1
72 S631044004 ORing 2
74 34L401120 Clamp 2
75 S017121002 BoltHex 2
76 S205121002 NutHex 2
78 31N91212SUB Pipe Sub Assy 1 #0001 #0215
31N912100 Pipe Sub Assy 1 #0216 D
79 31N812530 Bracket 1 #0001 #0790
80 31EA02150 ClampHose 2 #0001 #0075
31N812560 ClampHose 2 #0076 #0790 B
31N812560 ClampHose 4 #0791 A
81 S017100902 BoltHex 1 #0001 #0790
S017100856 BoltHex 2 #0791 D
82 S690039100 Grommet 2 #0001 #0790
S690039100 Grommet 4 #0791 A
85 P174160115 FlangeHyd,Split 4 #0243
88 P760072020 HoseRubber 2 #0553 #0790 D
P760072020 HoseRubber 3 #0791 #1206 A
31N813080 Hose 3 #1207 B
89 S403101006 WasherPlain 4 #0791
Print this!
1/1
* @ Upper Hyd PipingBase 1 #2403

1 31N912240 Pipe WaSuction 1 #2403
2 31N913100 Pipe Sub Assy 1 #2403
21 31N913110 . Pipe Assy 1 #2403
22 31E90142 . ValveCheck 1 #2403
23 31N712281 . ValveCheck 1 #2403
24 P010110008 . Connector 1 #2403
25 S109120456 . BoltSocket 2 #2403
26 S631044004 . ORing 2 #2403
27 Y172003004 . ORing 1 #2403
3 31N913120 Pipe Assy 1 #2403
4 31N812151 Pipe Wa 1 #2403
5 31N812780 Pipe Wa 1 #2403
6 31N913130 Hose AssyThd,Flg 0x0 1 #2403
7 31N913140 Hose Assy 1 #2403
8 31N913150 Hose Assy 1 #2403
9 P760101040 HoseRubber 1 #2403
10 31N813080 Hose 3 #2403
11 31N912161 Bracket 1 #2403
12 31NA12050 Elbow 90Orfs 2 #2403
15 34L401120 Clamp 2 #2403
16 31E53001 ClampPipe 1 #2403
17 31N812560 ClampHose 4 #2403
18 31N611190 ClampHose,Wire Type 4 #2403
20 S690039100 Grommet 4 #2403
21 S109120406 BoltSocket 8 #2403
22 S109120306 BoltSocket 16 #2403
23 S109100306 BoltSocket 8 #2403
24 S109160406 BoltSocket 4 #2403
25 S037103026 BoltW/Washer 2 #2403
26 S017121006 BoltHex 2 #2403
27 S017100806 BoltHex 1 #2403
28 S017100856 BoltHex 2 #2403
29 S205101006 NutHex 3 #2403
30 S205121006 NutHex 2 #2403
31 S403101006 WasherPlain 4 #2403
32 S403121006 WasherPlain 2 #2403
33 S411100006 WasherSpring 3 #2403
34 S631085001 ORing 1 #2403
35 S621021001 ORing 2 #2403
36 Y172003004 ORing 3 #2403
37 Y172006004 ORing 1 #2403
38 Y171024004 ORing 4 #2403
Print this!
1/1
9 31N812501 Hose AssyFlg 1

10 31N812491 Hose AssyFlg 1
16 31N812441 Hose AssyFlgxflg 1
17 31N812451 Hose AssyFlgxflg 1
20 31N812251 Hose AssyFlg 1 #0363
31N812252 Hose AssyOrfs 0x90 1 #0364 #1274 D
31N812253 Hose AssyFlg 0x90 1 #1275 #2195 D
P950167319 Hose AssyOrfs 0x45 1 #2196 D
21 31N812261 Hose AssyFlg 1 #0363
31N812262 Hose AssyOrfs 0x90 1 #0364 D
22 31N811312 Elbow90 1 #0363
31N816210 Elbow90,Flange 1 #0364 #2195 S
31N816210 Elbow90,Flange 2 #2196 A
33 31N140941 RubberT/Joint 1
34 31N140951 CoverT/Joint 1
35 31N140961 BracketT/Joint 1 #0001
P173120102 FlangeHyd,Split 2 #0364 #2195 A
P173120102 FlangeHyd,Split 4 #2196 A
41 S621021001 ORing 2 #0364 D
42 S621018001 ORing 2 #0363
45 Y171024004 ORing 10
46 Y171019004 ORing 2
51 S017140302 BoltHex 3 #0001
62 31N811322 Elbow90,Orfs 1 #0363
31N816220 Flange 1 #0364 #2195 D
86 X520110005 Elbow90,Orfs 1 #0364 #2195
87 S631029004 ORing 1 #0364 #2195
100 S411140002 WasherSpring 3 #0001
Print this!
1/1
* @ Upper Hyd PipingTravel 1 #2403

1 31N917000P Main Control Valve 1 #2403
2 31N910191 Swing Motor Assy 1 #2403
3 31Q811280 Hose Assy 1 #2403
4 31Q811330 Hose Assy 1 #2403
5 31Q811270 Hose Assy 1 #2403
6 31Q811290 Hose Assy 1 #2403
9 P930062016 Hose AssyOrfs 0x90 1 #2403
10 31N712400 ConnectorOrfs 1 #2403
11 31N913290 Elbow90,Flange 2 #2403
12 31N140941 RubberT/Joint 1 #2403
13 31N140951 CoverT/Joint 1 #2403
14 31N140961 BracketT/Joint 1 #2403
15 S520130000 ClampHose 1 #2403
18 S017140306 BoltHex 3 #2403
19 S017120406 BoltHex 3 #2403
20 S01720075D BoltHex 14 #2403
21 S109100306 BoltSocket 40 #2403
22 S109100306 BoltSocket 8 #2403
23 S037102026 BoltW/Washer 8 #2403
24 S411120006 WasherSpring 3 #2403
25 S411140006 WasherSpring 3 #2403
27 X700100103 PlugOrfs 1 #2403
28 S621012001 ORing 4 #2403
29 S621021001 ORing 6 #2403
30 Y171024004 ORing 10 #2403
31 Y171019004 ORing 2 #2403
Print this!
1/1
18 31N812430 Hose AssyFlg,0x90 1

19 31N812420 Hose AssyFlg,0x90 1 #0818
31N912280 Hose Assy 1 #0819 B
23 31N812270 Pipe Wa 1
24 31N812280 Pipe Wa 1
30 31EM12170 ClampPipe 3
32 31N812510 Bracket 1
41 S621021001 ORing 2
45 Y171024004 ORing 8
52 S017100802 BoltHex 1
54 S205101002 NutHex 1
57 S017100702 BoltHex 2
58 S017120402 BoltHex 3
60 S017200702 BoltHex 13 #0007
S017200752 BoltHex 14 #0008
S441200002 WasherHardened 14 #0008
64 P683167319 Hose AssyFlg 0x0 2
65 P010430015 Connector 1 #0215
31N712400 ConnectorOrfs 1 #0216 D
66 P400062010 Hose AssyCompact 1 #0215
67 31EM22090 Plug 1 #0215
X700100103 PlugOrfs 1 #0216 D
69 P683167318 Hose AssyFlg 0x0 2
70 31N812330 Hose AssyFlgxflg,0x90 2
71 31N812340 Hose AssyFlgxflg,0x90 2
84 S621012001 ORing 2 #0216
Print this!
1/1
* @ Upper Hyd PipingAttach 1 #2403

1 31N913210 Hose AssyFlg,0x90 1 #2403
2 31N913220 Hose Assy 1 #2403
3 31Q811350 Hose Assy 2 #2403
4 31Q811360 Hose Assy 1 #2403
5 31Q811370 Hose Assy 1 #2403
6 P683167319 Hose AssyFlg 0x0 2 #2403
7 P683167318 Hose AssyFlg 0x0 2 #2403
8 31N913270 Pipe Wa 1 #2403
9 31N913280 Pipe Wa 1 #2403
10 31EM12170 ClampPipe 3 #2403
11 31N812510 Bracket 1 #2403
13 S017100706 BoltHex 2 #2403
14 S017100806 BoltHex 1 #2403
15 S109100306 BoltSocket 40 #2403
16 S037103026 BoltW/Washer 2 #2403
17 S205101006 NutHex 2 #2403
18 S411100006 WasherSpring 3 #2403
19 S621021001 ORing 2 #2403
20 Y171024004 ORing 10 #2403
Print this!
1/1
4 31N822121 Terminal AssyC 1 #0215

31N824010 Terminal AssyC 1 #0216 D
41 31N822130 . Shuttle5 Port 2 #0215
31N824030 . Shuttle5 Port 2 #0216 D
42 31N822150 . Connector2 Nut 4 #0215
X540120002 . ConnectorB.H Type 4 #0216 D
43 S621120001 . ORing 12 #0216
5 31NB20021 Cross Assy 1 #0215
31NB20022 Cross Assy 1 #0216 D
6 31M651060 Shim(3.0t) 1 #0215
31M651061 Shim(3.2t) 1 #0216 B
7 31E70310 ClampHose 1
8 31N622110 ValveShockless 1 #0215
31N622370 ValveShockless 1 #0216 D
10 P010110003 Connector 1 #0215
X500110002 ConnectorOrfs 1 #0216 D
12 P020110001 Elbow90 1 #0215
X520110001 Elbow90,Orfs 1 #0216 D
13 P020110002 Elbow90 2 #0215
X520110002 Elbow90,Orfs 2 #0216 D
17 P320060606 TeeRun Type 2 #0215
X820065252 TeeR/Type,Orfs 2 #0216 D
19 31N822160 TeeSwivel Nut 1 #0215
20 S017100206 BoltHex 1 #0215
S037102026 BoltW/Washer 1 #0216 A
22 S037102552 BoltW/Washer 4 #0215
S037102526 BoltW/Washer 4 #0215 A
S035063046 BoltW/Washer Hex 4 #0216 A
24 S403062006 WasherPlain 4 #0215
25 S403102006 WasherPlain 1 #0215
26 S631011004 ORing 1
27 S631014004 ORing 6
30 P840062033 Hose AssySyn Thd 2 #0001 #0215
X400062033 Hose AssySynflex,Orfs 2 #0216 D
38 P850062041 Hose AssySyn 0x45 4 #0001 #0215
39 P850062028 Hose AssySyn 0x45 2 #0001 #0215
P920062028 Hose AssyOrfs 0x45 2 #0216 B
42 P860062014 Hose AssySyn 0x90 2 #0001 #0215
43 P860042016 Hose AssySyn 0x90 1 #0001 #0215
48 S621011001 ORing,Orfs 2 #0216
49 S621012001 ORing,Orfs 18 #0216
Print this!
1/1
6 31M651060 Shim(3.0t) 1 #0215

31M651061 Shim(3.2t) 1 #0216 B
7 31E70310 ClampHose 1
8 31N622110 ValveShockless 1 #0215
31N622370 ValveShockless 1 #0216 D
10 P010110003 Connector 1 #0215
12 P020110001 Elbow90 1 #0215
X520110001 Elbow90,Orfs 1 #0216 D
13 P020110002 Elbow90 1 #0215
X520110002 Elbow90,Orfs 1 #0216 D
16 P320060604 TeeRun Type 1 #0215
17 P320060606 TeeRun Type 1 #0215
18 31EG90540 TeeR/Type,S/Nut 1 #0215
20 S017100206 BoltHex 1 #0215
S037102026 BoltW/Washer 1 #0216 A
S035063046 BoltW/Washer Hex 4 #0216 A
24 S403062006 WasherPlain 4 #0215
25 S403102006 WasherPlain 1 #0215
26 S631011004 ORing 1
27 S631014004 ORing 6
37 P850062042 Hose AssySyn 0x45 4 #0001 #0215
39 P850062028 Hose AssySyn 0x45 2 #0001 #0215
40 P860062010 Hose AssySyn 0x90 1 #0001 #0215
41 P860042013 Hose AssySyn 0x90 1 #0001 #0215
44 P860062019 Hose AssySyn 0x90 1 #0001 #0215
45 P860062032 Hose AssySyn 0x90 1 #0001 #0215
46 P860062040 Hose AssySyn 0x90 1 #0001 #0215
47 P920062026 Hose AssyOrfs 0x45 2 #0216 B
48 S621011001 ORing,Orfs 2 #0216
49 S621012001 ORing,Orfs 16 #0216
Print this!
1/1
9 31EK20110 FilterLast Guard 1 #0215

31N625070 FilterLast Guard 1 #0216 D
10 P010110003 Connector 2 #0215
11 P010110012 Connector 1 #0215
13 P020110002 Elbow90 2 #0215
X520110002 Elbow90,Orfs 2 #0216 D
14 P020110011 Elbow90 2 #0215
X520110011 Elbow 90,Orfs 2 #0216 D
15 34E701710 Elbow90 2 #0215
31N722100 Elbow 90Long,Orfs 2 #0216 D
21 S017100306 BoltHex 4 #0215
S037103026 BoltW/Washer 4 #0216 A
25 S403102006 WasherPlain 4 #0215
26 S631011004 ORing 6
27 S631014004 ORing 4
49 S621012001 ORing,Orfs 12 #0216
Print this!
1/1
* @ Pilot Hyd PipingControl 1 #2403

2 31N824010 Terminal AssyC 1 #2403
22 31N824030 . Shuttle5 Port 1 #2403
23 X540120002 . ConnectorOrfs 6 #2403
5 X400062029 Hose AssySynf,Orfs 3 #2403
19 X420062030 Hose AssyOrfs 0x90 1 #2403
20 X420062036 Hose AssyOrfs 0x90 1 #2403
22 X500110002 ConnectorOrfs 2 #2403
25 X520110002 Elbow90,Orfs 1 #2403
28 X820065152 TeeR/Type,Orfs 3 #2403
29 X820065251 TeeR/Type,Orfs 1 #2403
30 X820065252 TeeR/Type,Orfs 1 #2403
31 X840525152 TeeR/Type,Swivel,Orfs 1 #2403
32 S037103026 BoltW/Washer 2 #2403
B S621012001 ORing 8 #2403
D S631014004 ORing 8 #2403
Print this!
1/1
* @ Pilot Hyd PipingControl 1 #2403

4 X400042026 Hose AssyOrfs 0x0 1 #2403
12 X420042007 Hose AssyOrfs 0x90 1 #2403
13 X420042010 Hose AssyOrfs 0x90 1 #2403
14 X420042014 Hose AssyOrfs 0x90 1 #2403
15 X420042015 Hose AssyOrfs 0x90 1 #2403
16 X420042016 Hose AssyOrfs 0x90 1 #2403
17 X420042019 Hose AssyOrfs 0x90 1 #2403
18 X420062010 Hose AssyOrfs 0x90 1 #2403
24 X520110001 Elbow90,Orfs 1 #2403
25 X520110002 Elbow90,Orfs 3 #2403
26 X520110012 Elbow90,Orfs 1 #2403
27 X820045151 TeeR/Type,Orfs 2 #2403
A S621011001 ORing 16 #2403
B S621012001 ORing 6 #2403
C S631011004 ORing 5 #2403
D S631014004 ORing 9 #2403
Print this!
1/1
4 31E540500 SwitchPressure 2 AUTO IDLE

6 31E511110 Adapter 1
8 P010110002 Connector 2 #0037
P010110002 Connector 1 #0038 #0215 A
11 P020110001 Elbow90 2 #0215
X520110001 Elbow90,Orfs 2 #0216 D
12 P020110002 Elbow90 1 #0215
X520110002 Elbow90,Orfs 1 #0216 D
14 P030110001 Elbow45 1 #0215
X530110001 Elbow45,Orfs 1 #0216 D
15 P101106044 ConnectorLong 1 #0215
X520110012 Elbow90,Orfs 1 #0216 D
17 P320040404 TeeRun Type 1 #0038 #0215
P010110006 Connector 1 #1486 D
24 X511108534 ConnectorLong,Orfs 1
28 X530110005 Elbow45,Orfs 1 #1485
P030110020 Elbow45 1 #1486 D
29 X820085308 TeeR/Type,Orfs 1 #0215
30 S621014001 ORing 3
32 S621021001 ORing 2
33 S631011004 ORing 5
34 S631014004 ORing 2
35 S631018004 ORing 2
37 S631029004 ORing 2
38 S551050203 ClampBand 10
45 P930082018 Hose AssyOrfs 0x90 1 #1274
46 P620082020 Hose AssyThd 0x90 1 #0215
P930082020 Hose AssyOrfs 0x90 1 #0216 #0790 D
P930082017 Hose AssyOrfs 0x90 1 #0791 #1274 D
48 P930162015 Hose AssyOrfs 0x90 1 #1485
31N822210 Hose Assy 1 #1486 D
50 P860062040 Hose AssySyn 0x90 1 #0001 #0215
51 X420062040 Hose AssyOrfs 0x90 1 #0216 #1274 D
X420062042 Hose AssyOrfs 0x90 1 #1275 D
57 P860042013 Hose AssySyn 0x90 1 #0038 #0215
59 P860042046 Hose AssySyn 0x90 1 #0001 #0215
60 P860042048 Hose AssySyn 0x90 1 #0001 #0215
X420042048 Hose AssyOrfs 0x90 1 #0216 #1274 D
63 P860042062 Hose AssySyn 0x90 1 #0001 #0215
66 P860062043 Hose AssySyn 0x90 1 #0001 #0215
X400062043 Hose AssySynf,Orfs 1 #0791 D
68 P010110012 Connector 1 #0215
69 S621011001 ORing 8 #0216
70 S621012001 ORing 4 #0216
71 P010430002 Connector 1 #1275
72 P840042026 Hose AssySyn Thd 1 #1275
73 31W570060 Connector 1 #1275
74 S653810002 NippleGrease 1 #1275
75 X420042050 Hose AssyOrfs 0x90 1 #1275
Print this!
1/1
2 31E30017 FilterLine 1
21 31E30018 10 . ElementLine Filter 1
3 31E33187 Accumulator 1
5 31EK11130 CouplingScrew 2
7 31EM20160 Adapter 1 #0215
31N622400 Adaptor 1 #0216 D
8 P010110002 Connector 5 #0215
9 P010110003 Connector 1 #0009
P010110013 Connector 1 #0010 #0215 B
10 P010110004 Connector 1 #0215
11 P020110001 Elbow90 2 #0215
X520110001 Elbow90,Orfs 2 #0216 D
12 P020110002 Elbow90 1 #0009
13 E1310603 Elbow90,Long 1 #0215
31N625110 Elbow90,Long 1 #0216 D
15 P020110012 Elbow90 1 #0010 #0215
X520110012 Elbow90,Orfs 1 #0216 D
17 P320040404 TeeRun Type 2 #0215
19 32E610460 TeeSwevel Nut 1 #0215
X840515151 TeeRun Type 1 #0216 D
20 X500110003 ConnectorOrfs 2
25 X520110003 Elbow90,Orfs 1
26 P020110004 Elbow90 1 #0215
X520110004 Elbow90,Orfs 1 #0216 D
30 S621014001 ORing 2 #0215
S621014001 ORing 3 #0216 A
31 S621018001 ORing 2 #0215
S621018001 ORing 4 #0216 A
33 S631011004 ORing 10
34 S631014004 ORing 2
35 S631018004 ORing 4
36 S631024004 ORing 2
38 S551050203 ClampBand 10
39 P220110103 PlugHex 1
40 31E920060 Fitting 1 #0326
31N624200 Connector 1 #0327 B
41 P391080000 WasherCopper 1 #0326
X321021001 RingEd 1 #0327 D
43 P910122012 Hose AssyOrfs 0x0 1
49 P620122017 Hose AssyThd 0x90 1 #0215
52 P860042008 Hose AssySyn 0x90 2 #0001 #0215
53 P860042009 Hose AssySyn 0x90 1 #0001 #0215
54 P860042010 Hose AssySyn 0x90 1 #0001 #0215
55 P860042011 Hose AssySyn 0x90 1 #0001 #0215
X420042011 Hose AssyOrfs 0x90 1 #0216 #0449
56 P860042012 Hose AssySyn 0x90 1 #0001 #0215
X420042012 Hose AssyOrfs 0x90 2 #0450 A
61 P860042053 Hose AssySyn 0x90 1 #0001 #0215
64 P620062018 Hose AssyThd 0x90 1 #0009
P860042018 Hose AssySyn 0x90 1 #0010 #0215 B
69 S621011001 ORing 16 #0216
Print this!
1/1
8 P010110002 Connector 5 #0037

P010110002 Connector 4 #0038 #0215 A
9 P010110003 Connector 1 #0009
11 P020110001 Elbow90 4 #0215
X520110001 Elbow90,Orfs 4 #0216 D
12 P020110002 Elbow90 1 #0010 #0215
X520110002 Elbow90,Orfs 1 #0216 D
16 P010110014 Connector 1 #0215
17 P320040404 TeeRun Type 1 #0215
18 P320060404 TeeRun Type 1 #0037
P010110013 Connector 1 #0038 #0215 D
27 X520110016 Elbow90,Orfs 1
30 S621014001 ORing 2 #0215
S621014001 ORing 4 #0216 A
33 S631011004 ORing 9 #0037
S631011004 ORing 8 #0038 A
34 S631014004 ORing 3
36 S631024004 ORing 2
38 S551050203 ClampBand 10
47 P933087020 Hose AssyOrfs 0x90 1 #0242
31N824100 Hose Assy 1 #0243 B
50 P930082023 Hose AssyOrfs 0x90 1 #0216 D
51 P860042006 Hose AssySyn 0x90 1 #0037
53 X420042009 Hose AssyOrfs 0x90 1 #0791
55 P860042011 Hose AssySyn 0x90 1 #0001 #0215
X420042011 Hose AssyOrfs 0x90 1 #0216 #0790
57 P860042013 Hose AssySyn 0x90 2 #0001 #0215
58 P860042021 Hose AssySyn 0x90 1 #0001 #0215
60 P860042048 Hose AssySyn 0x90 1 #0001 #0215
62 P420042056 Hose AssyComp 0x90 2 #0047
P620043056 Hose AssyThd 0x90 2 #0048 #0215 B
65 P420062052 Hose AssyComp 0x90 1 #0009
P840062052 Hose AssySyn Thd 1 #0010 #0215 B
67 P420062076 Hose AssyComp 0x90 1 #0009
P840062076 Hose AssySyn Thd 1 #0010 #0215 B
69 S621011001 ORing 14 #0216
70 S621012001 ORing 4 #0216
80 P620082023 Hose AssyThd 0x90 1 #0001 #0215
Print this!
1/1
* @ Pilot Hyd PipingBase 1 #2403

3 31E33187 Accumulator 1 #2403
4 31E540500 SwitchPressure 1 #2403
9 31W570060 Connector 1 #2403
10 X820065252 TeeR/Type,Orfs 1 #2403
12 X520110002 Elbow90,Orfs 2 #2403
14 X530110001 Elbow45,Orfs 1 #2403
15 X520110012 Elbow90,Orfs 1 #2403
18 P010430002 Connector 1 #2403
22 P010110006 Connector 1 #2403
24 X511108534 ConnectorLong,Orfs 1 #2403
28 P030110005 Elbow45 1 #2403
29 X810085353 TeeB/Type,Orfs 1 #2403
33 X420062028 Hose AssyOrfs 0x90 1 #2403
36 S621014001 ORing 1 #2403
37 S653810002 NippleGrease 1 #2403
39 P220110103 PlugHex 1 #2403 #2656
40 31N624200 Connector 1 #2403
41 X321021001 RingEd 1 #2403
45 P920082020 Hose AssyOrfs 0x45 1 #2403
46 P910082018 Hose AssyOrfs 0x0 1 #2403
48 31N822210 Hose Assy 1 #2403
51 X410062018 Hose AssyOrfs 0x45 4 #2403
58 X420042050 Hose AssyOrfs 0x90 1 #2403
63 X420042062 Hose AssyOrfs 0x90 1 #2403
70 S621012001 ORing 2 #2403
A S631011004 ORing 4 #2403
B S631014004 ORing 4 #2403
C S631018004 ORing 2 #2403
E S631029004 ORing 2 #2403
F S621011001 ORing 4 #2403
G S621012001 ORing 3 #2403
H S621014001 ORing 3 #2403
J S621021001 ORing 1 #2403
Print this!
1/1

2 31E30017 FilterLine 1 #2403
21 31E30044 . Body 1 #2403
5 31EK11130 CouplingScrew 1 #2403
7 31N622400 Adaptor 1 #2403
11 X520110001 Elbow90,Orfs 1 #2403
15 X520110012 Elbow90,Orfs 1 #2403
17 X820045151 TeeR/Type,Orfs 1 #2403
23 31Q620210 ConnectorOrfs 1 #2403
25 X520110003 Elbow90,Orfs 1 #2403
26 X520110004 Elbow90,Orfs 2 #2403
36 S621014001 ORing 1 #2403
43 P910122012 Hose AssyOrfs 0x0 1 #2403
44 P930082016 Hose AssyOrfs 0x90 1 #2403
47 P930127018 Hose AssyOrfs 0x90 1 #2403
49 P930122017 Hose AssyOrfs 0x90 1 #2403
50 P930082023 Hose AssyOrfs 0x90 1 #2403
53 X420042009 Hose AssyOrfs 0x90 1 #2403
54 X420042010 Hose AssyOrfs 0x90 2 #2403
55 X420042008 Hose AssyOrfs 0x90 1 #2403
56 X420042012 Hose AssyOrfs 0x90 2 #2403
69 S621011001 ORing 4 #2403
A S631011004 ORing 9 #2403
B S631014004 ORing 3 #2403
C S631018004 ORing 4 #2403
D S631024004 ORing 4 #2403
F S621011001 ORing 19 #2403
H S621014001 ORing 6 #2403
I S621018001 ORing 4 #2403
K S631008004 ORing 1 #2403
Print this!
1/1

4 31E540500 SwitchPressure 1 #2403
6 31E511110 Adapter 1 #2403
11 X520110001 Elbow90,Orfs 2 #2403
13 31N625110 Elbow90,Long 1 #2403
19 31N422150 TeeLong,Orfs 1 #2403
23 31Q620210 ConnectorOrfs 1 #2403
27 X820065152 TeeR/Type,Orfs 1 #2403
31 X420042007 Hose AssyOrfs 0x90 1 #2403
32 P930062015 Hose AssyOrfs 0x90 1 #2403
34 31N840100 ConnectorLong,Orfs 1 #2403
35 X840515151 TeeRun Type 1 #2403
38 S551050203 ClampBand 30 #2403
42 S035082526 BoltW/Washer 2 #2403
54 X420042010 Hose AssyOrfs 0x90 1 #2403
55 X420042008 Hose AssyOrfs 0x90 1 #2403
56 X420042012 Hose AssyOrfs 0x90 1 #2403
60 X420042048 Hose AssyOrfs 0x90 1 #2403
61 X420042051 Hose AssyOrfs 0x90 1 #2403
62 P930043056 Hose AssyOrfs 0x90 2 #2403
69 S621011001 ORing 2 #2403
70 S621012001 ORing 1 #2403
A S631011004 ORing 10 #2403
B S631014004 ORing 3 #2403
F S621011001 ORing 14 #2403
G S621012001 ORing 1 #2403
K S631008004 ORing 1 #2403
Print this!
1/1
* @ Travel Hyd Piping 1 #0455

3 31N140970 Gasket 1 #0455
4 P950167349 Hose AssyOrfsxflg 4 #0037
P980167351 Hose AssyOrfsxflg 0x90 4 #0038 #0455 B
5 P920082050 Hose AssyOrfs 0x45 2 #0455
6 P410042058 Hose AssyComp 0x45 2 #0215
X410042058 Hose AssySynflex,Orfs 2 #0216 #0455 D
7 P101104045 ConnectorLong 2 #0215
X511104515 ConnectorLong,Orfs 2 #0216 #0455 D
10 P310060404 TeeBranch Type 1 #0215
X810065151 TeeB/Type,Orfs 1 #0216 #0455 D
11 X810085353 TeeB/Type,Orfs 1 #0455
12 P173160104 FlangeSplit 8 #0455
13 Y171024001 ORing 4 #0455
14 S017240702 BoltHex 36 #0455
15 S037123022 BoltW/Washer 4 #0455
16 S109100306 BoltSocket 16 #0455
18 S551050203 ClampBand 15 #0455
19 S621014001 ORing 4 #0455
20 S621021001 ORing,Orfs 4 #0455
21 S631011001 ORing 2 #0455
22 S631014001 ORing 1 #0455
23 S631018001 ORing 3 #0455
24 S631029001 ORing 4 #0455
25 S760102200 Grommet 2 #0455
26 S760151224 Grommet 2 #0455
27 S621011001 ORing,Orfs 4 #0216 #0455
Print this!
1/1
* @ Travel Hyd Piping 1 #0456 D

3 31N140970 Gasket 1 #0456
4 P980167346 Hose AssyOrfs,Flg 0x90 4 #0456 #0818
P950167344 Hose AssyOrfs,Flg 0x45 4 #0819 B
5 P930082052 Hose AssyOrfs 0x90 2 #0456
6 X410042058 Hose AssyOrfs 0x45 2 #0456
8 31N840190 ConnectorLong,Orfs 2 #0456
9 32E900801 Flange Wa 4 #0456
10 X810065151 TeeB/Type,Orfs 1 #0456
11 X810085353 TeeB/Type,Orfs 1 #0456
13 Y171024004 ORing 8 #0456
14 S01724065D BoltHex 36 #0456 #3549
S01724070D BoltHex 36 #3550 D
15 S037123526 BoltW/Washer 4 #0456
16 S109100306 BoltSocket 16 #0456
18 S551050203 ClampBand 15 #0456
19 S621014001 ORing 4 #0456
20 S621021001 ORing 4 #0456
21 S631011004 ORing 2 #0456
22 S631014004 ORing 1 #0456
23 S631018004 ORing 3 #0456
24 S109120356 BoltSocket 16 #0456
25 S760102200 Grommet 2 #0456
26 S760151224 Grommet 2 #0456
27 S621011001 ORing 4 #0456
Print this!
1/1
* @ Lower PipingH/Walker #0008 #0455

3 31N140970 Gasket 1 #0008 #0455
4 P950167353FL Hose AssyOrfsxflg 4 #0008 #0037
P980167355 Hose AssyOrfsxflg 0x90 4 #0038 #0455 B
5 P920082054 Hose AssyOrfs 0x45 2 #0008 #0455
6 P410042062 Hose AssyComp 0x45 2 #0008 #0215
X410042062 Hose AssySynflex,Orfs 2 #0216 #0455 D
7 P101104045 ConnectorLong 2 #0008 #0215
X511104515 ConnectorLong,Orfs 2 #0216 #0455 D
8 X500110003 ConnectorOrfs 2 #0008 #0455
9 X500110005 ConnectorOrfs 4 #0008 #0455
10 P310060404 TeeBranch Type 1 #0008 #0215
X810065151 TeeB/Type,Orfs 1 #0216 #0455 D
11 X810085353 TeeB/Type,Orfs 1 #0008 #0455
12 P173160104 FlangeSplit 8 #0008 #0455
13 Y171024004 ORing 4 #0008 #0455
14 S01724065A BoltHex 36 #0008 #0455
15 S037123522 BoltW/Washer 4 #0008 #0455
16 S109100306 BoltSocket 16 #0008 #0455
17 S441240002 WasherHardened 36 #0008 #0455
18 S551050203 ClampBand 15 #0008 #0455
19 S621014001 ORing 4 #0008 #0455
20 S621021001 ORing,Orfs 4 #0008 #0455
21 S631011004 ORing 2 #0008 #0455
22 S631014004 ORing 1 #0008 #0455
23 S631018004 ORing 3 #0008 #0455
24 S631029004 ORing 4 #0008 #0455
25 S760102200 Grommet 2 #0008 #0455
26 S760151224 Grommet 2 #0008 #0455
27 S621011001 ORing,Orfs 4 #0216 #0455
Print this!
1/1
* @ Travel Hyd Piping 1 #0456 D

3 31N140970 Gasket 1 #0456
4 P950167348FL Hose AssyOrfs,Flg 0x45 4 #0456
5 P930082056 Hose AssyOrfs 0x90 2 #0456
6 X410042062 Hose AssyOrfs 0x45 2 #0456
9 32E900801 Flange Wa 4 #0456
10 X810065151 TeeB/Type,Orfs 1 #0456
11 X810085353 TeeB/Type,Orfs 1 #0456
13 Y171024004 ORing 8 #0456
14 S01724065A BoltHex 36 #0456 #3549
S01724070D BoltHex 36 #3550 D
15 S037123522 BoltW/Washer 4 #0456
16 S109100306 BoltSocket 16 #0456
18 S551050203 ClampBand 5 #0456
19 S621014001 ORing 4 #0456
20 S621021001 ORing 4 #0456
21 S631011004 ORing 2 #0456
22 S631014004 ORing 1 #0456
23 S631018004 ORing 3 #0456
24 S109120356 BoltSocket 16 #0456
25 S760102200 Grommet 2 #0456
26 S760151224 Grommet 2 #0456
27 S621011001 ORing 4 #0456
Print this!
1/1
* @ Boom Hyd PipingStd 1 #1215

4 31N950220 Pipe Assy 2 #1215
5 31N950240 Pipe Assy 1 #1215
6 31N950230 Pipe Assy 1 #1215
7 31N950211 Pipe Assy 1 #1215
8 31N950191 Pipe Assy 1 #1215
14 P680167322 Hose AssyFlg 0x0 2 #1215
26 31N650340 Clamp Assy 6 #1215
27 31N650300 Clamp Assy 4 #1215
28 31N650310 Clamp Assy 3 #1215
29 31N650320 Clamp Assy 1 #1215
30 31N550240 SpacerPipe 7 #0001 #1215
31 Y171024004 ORing 16 #1215
32 S017160752 BoltHex 20 #0075
S017160752 BoltHex 5 #0076 #1215 A
34 S109100356 BoltSocket 56 #1215
35 S411160002 WasherSpring 20 #1215
36 S651810002 NippleGrease 2 #1215
37 31E901320 FlangeSplit 3 #1215
40 S109100406 BoltSocket 8 #1215
41 S01716080A BoltHex 15 #0076 #1215 B
Print this!
1/1
* @ Boom Hyd PipingStd 1 #1216 D

4 31N950310 Pipe Assy 1 #1216 #2402
31N953110 Pipe Assy 1 #2403
5 31N950320 Pipe Assy 1 #1216 #2402
31N953120 Pipe Assy 1 #2403
6 31N950330 Pipe Assy 1 #1216 #2402 MADE OF 2 PIPES
31N953130 Pipe Assy 1 #2403
7 31N950340 Pipe Assy 1 #1216 #2402
31N953140 Pipe Assy 1 #2403
8 31N950350 Pipe Assy 1 #1216 #1740
31N950370 Pipe Assy 1 #1741 D
9 31N950360 Pipe Assy 1 #1216 #1740
31N950380 Pipe Assy 1 #1741 D
15 P680167325 Hose Assy 2 #1216
16 Y171024004 ORing 14 #1216
23 31N851170 Clamp Assy 2 #1216
24 31E701750 Clamp Assy 12 #1216
25 31E701711 Clamp Assy 12 #1216
27 31E901320 FlangeSplit 2 #1216
28 S01716080D BoltHex 2 #1216
30 S037123526 BoltW/Washer 24 #1216
31 S109100306 BoltSocket 56 #1216
33 S651810002 NippleGrease 3 #1216
Print this!
1/1

4 31N953310 Pipe Assy 2 #2403
5 31N953320 Pipe Assy 1 #2403
6 31N953330 Pipe Assy 1 #2403
7 31N953340 Pipe Assy 1 #2403
8 31N953350 Pipe Assy 1 #2403
14 P680167322 Hose AssyFlg 0x0 2 #2403
21 31N650340 Clamp Assy 6 #2403
22 31N650300 Clamp Assy 2 #2403
23 31N650310 Clamp Assy 3 #2403
24 31N650320 Clamp Assy 3 #2403
25 31N550240 SpacerPipe 9 #2403
26 Y171024004 ORing 16 #2403
27 S01716075D BoltHex 5 #2403
29 S109100356 BoltSocket 48 #2403
30 S411160006 WasherSpring 20 #2403
31 S651810002 NippleGrease 2 #2403
32 31E901320 FlangeSplit 10 #2403
33 S109100406 BoltSocket 8 #2403
34 S01716080D BoltHex 15 #2403
Print this!
1/1

9 P840042024 Hose AssySynf,Thd(0x0) 1 #1215
P840042063 Hose AssySyn Thd 1 #1215
18 P010430011 Connector 8 #1215
22 61E70059 Elbow90 2 #1215
23 31N850370 ClampHose 1 #1215
24 31N850380 ClampHose 2 #1215
25 31N850390 ClampHose 3 #1215
33 S035062022 BoltW/Washer 6 #1215
36 S651810002 NippleGrease 5 #1215
Print this!
1/1
* @ Boom Hyd PipingStd 1 #1216 D

17 P010430011 Connector 3 #1216
18 31NB50280 Fitting 2 #1216
19 31W570060 Connector 5 #1216
20 31N850370 ClampHose 1 #1216
21 31N850380 ClampHose 2 #1216
22 31N850390 ClampHose 3 #1216
29 S035062026 BoltW/Washer 6 #1216
33 S651810002 NippleGrease 5 #1216
Print this!
1/1

16 P010430011 Connector 3 #2403
17 31NB50280 Elbow90 2 #2403
18 31N850370 ClampHose 1 #2403
19 31N850380 ClampHose 2 #2403
20 31N850390 ClampHose 3 #2403
28 S035062026 BoltW/Washer 6 #2403
31 S651810002 NippleGrease 5 #2403
35 31W570060 Connector 5 #2403
Print this!
1/1
1 31N952111 Boom Cyl Assy Rh 1 #1364

31N952112 Boom Cyl Assy Rh 1 #1365 B
10 @ . Boon Cyl Sub Assy 1 SEE 4180, *1
11 31N890510 . ValveSafety Lock 1 #1122
31NA90570 . ValveSafety Lock 1 #1123 B
111 ZTAS00001 .. ValveRelief 1 #1122
DRV100A .. ValveRelief 1 #1123 B
112 ZTAS00002 .. Cap 1 #1122
DCP002A .. Cap 1 #1123 B
113 ZTAS00006 .. Seal Kit 1 #1122
AS5682 .. Seal Kit 1 #1123 B
12 31Y121090 . Pipe AssyRh 1
13 Y171024004 . ORing 2
14 S109120406 . BoltSocket 4
15 S109120506 . BoltSocket 4
16 @ . Band AssyRh 1 SEE 4180, #23
17 31N891530 .. FlangePluging 1
18 Y171024004 .. ORing 1
19 S109120506 .. BoltSocket 4
2 31N952121 Boom Cyl Assy Lh 1 #1364
31N952122 Boom Cyl Assy Lh 1 #1365 B
20 @ . Boon Cyl Sub Assy 1 SEE 4180, *1
31NA90570 . ValveSafety Lock 1 #1123 B
DRV100A .. ValveRelief 1 #1123 B
212 ZTAS00002 .. Cap 1 #1122
DCP002A .. Cap 1 #1123 B
213 ZTAS00006 .. Seal Kit 1 #1122
AS5682 .. Seal Kit 1 #1123 B
22 31Y121080 . Pipe AssyLh 1
23 Y171024004 . ORing 2
24 S109120406 . BoltSocket 4
25 S109120506 . BoltSocket 4
26 @ . Band AssyLh 1 SEE 4180, #23
27 31N891530 .. FlangePluging 1
28 Y171024004 .. ORing 1
29 S109120506 .. BoltSocket 4
3 P860042056 Hose AssySyn 0x90 1 #0001 #0215
4 P860062063 Hose AssySyn 0x90 1 #0001 #0215
5 P620047013 Hose AssyThd 0x90 1 #0033
P620047013 Hose AssyThd 0x90 2 #0034 #0089 A
P620047013 Hose AssyThd 0x90 3 #0090 #0215 A
P930047013 Hose AssyThd 0x90 3 #0216 D
6 P420042013 Hose AssyComp 0x90 1 #0033
7 P400042012 Hose AssyCompact 1 #0089
8 P603047042 Hose AssyThd 1 #0215
P913047042 Hose AssyThd 1 #0216 #1343 D
9 P010110002 Connector 4 #0089
P010110002 Connector 3 #0090 #0215 A
10 31EG90540 TeeR/Type,S/Nut 1 #0215
X840525252 TeeR/Type,Swivel,Orfs 1 #0216 #0818
11 31EK20270 TeeR/Type,S/Nut 1 #0089
31E690680 Tee 1 #0090 #0215 A
31N990550 TeeR/Type,Orfs 1 #0216 D
12 P320040404 TeeRun Type 3 #0215
13 S631011004 ORing 7
14 S552020102 ClampBand 10
15 31E550325 SwitchPressure 1 OVERLOAD WARN
151 31E550320 . SwitchPressure 1
152 21E550230 . HarnessExt 1
16 31E550330 ValveShut Off 1 #1343
17 31E550340 Connector 1 #1343
18 31E550350 Elbow90 1 #0215
31N690550 Elbow90,Orfs 1 #0216 D
19 S015050456 BoltHex 2 #1342
S015050506 BoltHex 2 #1343 D

20 S20505100B NutHex 2
21 S40305100B WasherPlain 2
23 S621011001 ORing 10 #0216
24 S621012001 ORing(Seal Lock Type) 2 #0216
Print this!
1/1
* @ Boom Hyd Piping #0013

4 31N950250 . Pipe Assy 2 #0013
5 31N950260 . Pipe Assy 1 #0013
6 31N950270 . Pipe Assy 1 #0013
7 31N950211 . Pipe Assy 1 #0013
8 31N950191 . Pipe Assy 1 #0013
14 P680167322 . Hose AssyFlg 2 #0013
17 P173160104 . FlangeSplit 14 #0013
26 31N650340 . Clamp Assy 6 #0013
27 31N650300 . Clamp Assy 4 #0013
28 31N650310 . Clamp Assy 3 #0013
29 31N650320 . Clamp Assy 1 #0013
30 31N550240 . SpacerPipe 7 #0013
31 Y171024004 . ORing 16 #0013
32 S017160752 . BoltHex 20 #0013 #0075
S017160752 . BoltHex 5 #0076 A
34 S109100356 . BoltSocket 48 #0013
35 S411160002 . WasherSpring 20 #0013
36 S651810002 . NippleGrease 7 #0013
37 31E901320 . FlangeSplit 10 #0013
40 S109100406 . BoltSocket 8 #0013
41 S01716080A . BoltHex 15 #0076
Print this!
1/1
* @ Boom Hyd Piping #0013

10 P840042025 Hose AssySynflex Thd 1 #0013
18 P010430011 Connector 8 #0013 #1226
P010430011 Connector 3 #1227 A
22 31NB50280 Elbow90 2 #0013
23 31N850370 ClampHose 1 #0013
24 31N850380 ClampHose 2 #0013
25 31N850390 ClampHose 3 #0013
33 S035062022 BoltW/Washer 6 #0013
36 S651810002 NippleGrease 5 #0013
42 31W570060 Connector 5 #1227 D
Print this!
1/1
1 @ Quick Clamp Assy 1 #1216 SEE 3460,3470

2 34EA91720 Solenoid Valve 1
21 34EA91720BLOCK . Manifold 1
22 GS044200NC . ValveSolenoid 1
23 CAP024LDT . Coil 1
3 31N490680 TerminalQ/Clamp 1
4 31NB95820 TerminalQ/Clamp 1 #1215
31N895770 TerminalQ/Clamp 1 #1216 #3549 B
31N895771 TerminalQ/Clamp 1 #3550 D
42 X540120001 . ConnectorOrfs 2
43 S621011001 . ORing 4
5 31NA95720 Pipe Assy 1 #2102 3.20 ARM
31N995720 Pipe Assy 1 #2103 D 3.20 ARM
31NA95740 Pipe Assy 1 #2102 2.20, 2.50 ARM
31N995740 Pipe Assy 1 #2103 D 2.20, 2.50 ARM
31NA95780 Pipe Assy 1 #2102 4.50 ARM
31N995780 Pipe Assy 1 #2103 D 4.50 ARM
6 31NA95730 Pipe Assy 1 #2102 3.20 ARM
31N995730 Pipe Assy 1 #2103 D 3.20 ARM
31NA95750 Pipe Assy 1 #2102 2.20, 2.50 ARM
31N995750 Pipe Assy 1 #2103 D 2.20, 2.50 ARM
31NA95790 Pipe Assy 1 #2102 4.50 ARM
31N995790 Pipe Assy 1 #2103 D 4.50 ARM
7 P913047040 Hose AssyOrfs 0x0 2 3.20 ARM
P913047021 Hose AssyOrfs 0x0 2 2.20 ARM
10 31NA95820 Hose Assy 1
12 34EA91811 ClampPipe 4
34EA91811 ClampPipe 3 2.10, 2.50 ARM
13 31N422170 TeeRun Type 1
15 X530110001 Elbow45,Orfs 2
16 S017100506 BoltHex 2
17 S01716085D BoltHex 1
S037103026 BoltW/Washer 3 2.10, 2.50 ARM
22 S554054300 ClampBand 30
23 S631011004 ORing 5
24 S621011001 ORing 12
25 X840525152 TeeR/Type,Swivel Orfs 1
26 S621012001 ORing 1
Print this!
1/1
* 31NA96810 Quick Clamp Assy 1 #1216

1 XKBN00236 . Body 1
2 XKBN00237 . Hitch Assy 1
3 XKBN00238 . Cylinder Assy 1
4 XKBN00229 . PinSafety 1
5 XKBN00163 . PinSnap 1
6 XKBN00230 . PinHitch 1
7 XKBN00231 . PinFrame 1
8 XKBN00009 . NippleGrease 3
9 XKBN00232 . PinCylinder 1
10 XKBN00167 . RingSnap 4
11 XKBN00233 . PinBracket 2
12 XKBN00234 . BoltHex 2
13 XKBN00080 . NutHex 4
14 XKBN00112 . HoseProtector 2
15 XKBN00016 . Elbow90 2
16 XKBN00235 . Wire Assy 1
17 XKBN00116 . LatchSpring 1
Print this!
1/1
* 31NA96860 Quick Clamp Assy 1 #1216

1 XKBN00241 . Body 1
2 XKBN00237 . Hitch Assy 1
3 XKBN00238 . Cylinder Assy 1
4 XKBN00229 . PinSafety 1
5 XKBN00163 . PinSnap 1
6 XKBN00230 . PinHitch 1
7 XKBN00231 . PinFrame 1
8 XKBN00009 . NippleGrease 3
9 XKBN00232 . PinCylinder 1
11 XKBN00233 . PinBracket 2
12 XKBN00234 . BoltHex 2
13 XKBN00080 . NutHex 4
14 XKBN00112 . HoseProtector 2
15 XKBN00016 . Elbow90 2
16 XKBN00235 . Wire Assy 1
18 XKBN00240 . PlateId 1
Print this!
1/1
2 31N960011 Hose AssyFlg 2 #0493

31N960012 Hose Assy 2 #0494 A
4 Y171024004 ORing 4
6 S651810002 NippleGrease 2
Print this!
1/1
* @ Arm Piping #0013

2 31N960030 Hose AssyFlg 2 #0013 #0493
31N960031 Hose AssyFlg 2 #0494 A
4 Y171024004 ORing 4 #0013
5 S109100356 BoltSocket 16 #0013
6 S651810002 NippleGrease 2 #0013
7 61E70059 Elbow90 1 #0013 #0493
8 31NB50280 Elbow90 2 #0013
9 31N850370 ClampHose 1 #0013
10 31N850380 ClampHose 2 #0013
11 P010430011 Connector 3 #0013 #0493
P010430011 Connector 5 #0494 A
P860042010 Hose AssySyn 0x90 1 #0494 #0529 D
P860042011 Hose AssySyn 0x90 1 #0530 B 2.2M
P860042013 Hose AssySyn 0x90 1 #2103 2.2M H/DUTY
13 P840042037 Hose AssySyn Thd 1 #0013 #0529 6.15M BOOM
P840042041 Hose AssySyn Thd 1 #0530 D 6.15M BOOM
P840042041 Hose AssySyn Thd 1 #0216 6.45M BOOM
14 P840042039 Hose AssySyn Thd 1 #0013 2.2M
P840042040 Hose AssySyn Thd 1 #2103 2.2M H/DUTY
15 S035062022 BoltW/Washer 3 #0013
Print this!
1/1

2 31N960020 Hose AssyFlg 2 #0013 #0493
4 Y171024004 ORing 4 #0013
5 S109100356 BoltSocket 16 #0013
6 S651810002 NippleGrease 2 #0013
7 61E70059 Elbow90 1 #0013 #0493
8 31NB50280 Elbow90 1 #0013
9 31N850380 ClampHose 1 #0013
10 P010430011 Connector 4 #0013 #0493
P010430011 Connector 3 #0494 A
P860042012 Hose AssySyn 0x90 1 #0494 D
14 S035062022 BoltW/Washer 2 #0013
15 31N850390 ClampHose 1 #0013
Print this!
1/1

2 P703167331 Hose AssyFlg 0x90 2 #0013 #0012
P703167333 Hose AssyFlg 0x90 2 #0013 #0493 B
3 P173160104 FlangeSplit 16 #0013
4 Y171024004 ORing 8 #0013
5 S109100356 BoltSocket 32 #0013
6 S651810002 NippleGrease 4 #0013
7 61E70059 Elbow90 1 #0013 #0493
8 31NB50280 Elbow90 1 #0013
9 31N850370 Clamp 1 #0013
10 31N850380 ClampHose 2 #0013
11 P010430011 Connector 2 #0013 #0493
P010430011 Connector 3 #0494 A
P860042027 Hose AssySyn 0x90 1 #0494 D
14 S035062022 BoltW/Washer 3 #0013
15 31E560030 Hose Assy 2 #0013 #0038
31NA60020 Hose AssyFlg 0x90 2 #0039 #0493 B
31NA60021 Hose AssyFlg 0x90 2 #0494 A
16 32E500190 Block 2 #0013
17 S109100906 BoltSocket 8 #0013 #0038
S109100756 BoltSocket 8 #0039 B
Print this!
1/1
* @ Arm Safety Lock Sys 1 #0818

1 31N952130 Arm Cylinder Assy Vlv 1 #0818
10 @ . Arm Cyl Sub Assy 1 #0818 SEE 4190, *1
112 ZTAS00002 .. Cap 1 #0818
113 P184162112 .. FlangePluging 1 #0818
114 Y171024004 .. ORing 1 #0818
115 S109120406 .. BoltSocket 4 #0818
116 ZTAS00005 .. Seal Kit 1 #0818
12 31N990630 . Pipe AssyR 1 #0818
K13 Y171024004 . ORing 2 #0818
14 S109120456 . BoltSocket 4 #0818
15 S109120606 . BoltSocket 4 #0818
16 @ . Band Assy 1 #0818 SEE 4190, #27
2 P860042154 Hose AssySyn 0x90 1 #0001 #0215 6.45M BOOM
P930042154 Hose AssyOrfs 0x90 1 #0216 #0818 D 6.45M BOOM
P860042150 Hose AssySyn 0x90 1 #0001 #0215 L/REACH
P930042150 Hose AssyOrfs 0x90 1 #0216 #0818 D L/REACH
3 P860062164 Hose AssySyn 0x90 1 #0001 #0215 6.45M BOOM
P930062164 Hose AssyOrfs 0x90 1 #0216 #0818 D 6.45M BOOM
P860062160 Hose AssySyn 0x90 1 #0001 #0215 L/REACH
P930062160 Hose AssyOrfs 0x90 1 #0216 #0818 D L/REACH
4 P010110002 Connector 1 #0215
X500110001 ConnectorOrfs 1 #0216 #0818 D
5 P010110012 Connector 1 #0215
X500110011 ConnectorOrfs 1 #0216 #0818 D
6 P220110102 Plug 1 #0818
7 P320040404 TeeRun Type 1 #0215
X820045151 TeeR/Type,Orfs 1 #0216 #0818 D
8 S631110004 ORing 4 #0818
9 S552020102 ClampBand 10 #0089
31L602460 ClampTube 6 #0090 #0818 A
10 31E70313 ClampHose 1 #0090 #0818
11 S621011001 ORing 2 #0216 #0818
12 S621012001 ORing(Seal Lock Type) 2 #0216 #0818
K 31Y119550 Seal Kit 1 #0818 SEE ILLUST
Print this!
1/1
* @ Arm Safety Lock Sys 1 #0818 D

1 31N952130 Arm Cylinder Assy Vlv 1 #0819 #1364
31N952131 Arm Cylinder Assy Vlv 1 #1365 #2529 B
31N952132 Arm Cylinder Assy,V/V 1 #2530 B
10 @ . Arm Cyl Sub Assy 1 #0819 SEE 4190, *1
11 31N690520 . ValveSafety Lock 1 #0819 #1182
31NA91570 . ValveSafety Lock 1 #1183 #2529 B
31Q955030 . ValveSafety Lock 1 #2530 B
111 ZTAS00001 .. ValveRelief 1 #0819 #1182
XKCH00001 .. ValveRelief 1 #1183 #2529 B
112 ZTAS00002 .. Cap 1 #0819 #1182
DCP002A .. Cap 1 #1183 #2529 B
113 P184162112 .. FlangePluging 1 #0819 #1182
114 XCAV00026 .. ORing 1 #0819 #1182
115 S109120406 .. BoltSocket 4 #0819 #1182
116 ZTAS00005 .. Seal Kit 1 #0819 #1182
XKCH00006 .. SealKit 1 #1183 #2529 B
12 31N990630 . Pipe AssyR 1 #0819 #2529
31Y135960 . Pipe AssyRv 1 #2530 B
K13 XCAV00026 . ORing 2 #0819
14 S109120456 . BoltSocket 4 #0819 #2529
S109120556 . BoltSocket 8 #2530 B
15 S109120606 . BoltSocket 4 #0819 #2529
16 @ . Band Assy 1 #0819 SEE 4190, #27
2 P930042112 Hose AssyOrfs 0x90 1 #0819 6.45M BOOM
P930042108 Hose AssyOrfs 0x90 1 #0819 L/REACH
3 P930062112 Hose AssyOrfs 0x90 1 #0819 6.45M BOOM
P930062108 Hose AssyOrfs 0x90 1 #0819 L/REACH
4 XKAY00817 Connector 1 #0819
5 XKAY00821 Connector 1 #0819
6 P220110102 PlugHex 1 #0819
7 X810045151 TeeB/Type,Orfs 1 #0819
8 S631110004 ORing 4 #0819
11 XKAY00800 ORing 4 #0819
12 XKAY00795 ORing 4 #0819
13 P930062052 Hose AssyOrfs 0x90 1 #0819
14 P910042050 Hose AssyOrfs 0x0 1 #0819
17 S551050203 ClampBand 15 #0819
Print this!
* @ S/Act Hyd Piping Kit 1 #0001 #1740 W/O ACCUM

N* 31N991110 S/Act Hyd Kit 1 #1740
*1 31N991010 . S/Act Piping Kit 1 #1740 6.45M+3.2M
*11 31N991210 .. S/Act Main Piping Kit 1 #1740 SEE 3620
*12 31N991310 .. Attach Piping Kit 1 #1740 SEE 3630
39 31EH90140 . Port Relief Valve 1 #1740 SEE 3620
40 21E630540 . SwitchBreaker 1 #1740 SEE 3620
* 31N991120 S/Act Hyd Kit 1 #1740 INCL 39,40
*11 31N991210 .. S/Act Main Piping Kit 1 #1740
*12 31N991320 .. Attach Piping Kit 1 #1740
Print this!
* @ S/Act Hyd Piping Kit 1 #1741 W/O ACCUM

N* 31N991111 S/Act Hyd Kit 1 #1741
39 31EM10060 . Port Relief Valve 1 #1741 SEE 3620
Print this!
* @ S/Act Hyd Piping Kit 1 #0001 #1740 WITH ACCUM

31N991610 S/Act Hyd Kit 1 #1740
39 31EH90140 . Port Relief Valve 1 #1740 SEE 3620
51 31EN91701 . Accumulator Kit 1 #1740 SEE 3630
* 31N991620 S/Act Hyd Kit 1 #1740 INCL 39,40,51
Print this!
* @ S/Act Hyd Piping Kit 1 #1741 WITH ACCUM

31N991611 S/Act Hyd Kit 1 #1741
Print this!
1/1
* @ S/Act Hyd Piping Kit 1 #0001 SEE 3600,3610

*1 @ . S/Act Piping Kit 1 SEE 3600,3610
*11 @ .. S/Act Main Piping Kit 1 SEE 3600,3610
1 31EM91540 ... Joint AssyHose 1
3 31N691230D ... Solenoid VlvBreaker 1 #0001
31 XKBN00192 .... CoilBreaker Sol 1 #0001 NOT SHOWN
4 31N691250 ... BracketSol Vlv 1
5 P973207334 ... Hose AssyOrfs 0x90 2 #0001
6 P933166025 ... Hose AssyOrfs 0x90 1
7 31NA92290 ... Hose Assy 1
8 P400042020 ... Hose AssyCompact 1
10 P420042020 ... Hose AssyComp 0x90 1
11 P420042030 ... Hose AssyComp 0x90 1
12 31N622030 ... TeeSwivel Nut 1
13 31NA92300 ... Pipe Assy 1
14 P010110002 ... Connector 1
15 X500110005 ... ConnectorOrfs 1
17 X530110006 ... Elbow45,Orfs 2
18 P020110002 ... Elbow90 2
19 31ER20040 ... TeeSwivel 1
20 S631011004 ... ORing 4
21 S631029004 ... ORing 1
22 S631038004 ... ORing 3
23 S621021001 ... ORing 2
24 S621025001 ... ORing 3
25 Y171027004 ... ORing 1
26 S109080456 ... BoltSocket 2
27 S109120656 ... BoltSocket 4
28 S109140406 ... BoltSocket 4
29 S037102522 ... BoltW/Washer 2
30 P220110102 ... PlugHex 1
31 21NB00200 ... HarnessExt 1
*12 @ .. Attach Piping Kit 1 SEE 3630
39 31EH90140 . Port Relief Valve 1 210bar
40 21E630540 . SwitchBreaker 1 BREAKER ONLY
Print this!
1/1
*1 33N990310 S/Act Main Piping Kit 1 #2438

1 31EM91540 . Joint AssyHose 1 #2438
3 31N691230D . Solenoid VlvBreaker 1 #2438
31 XKBN00192 .. CoilBreaker Sol 1 #2438
4 31N691250 . BracketSol Vlv 1 #2438
5 P973207334 . Hose AssyOrfs 0x90 2 #2438
6 P983166325 . Hose AssyOrfs 0x90 1 #2438
7 P923203027 . Hose AssyOrfs 0x45 1 #2438
8 P910042024 . Hose AssyOrfs 0x0 1 #2438
9 P910042066 . Hose AssyOrfs 0x0 1 #2438
10 P930042023 . Hose AssyOrfs 0x90 1 #2438
11 P930042056 . Hose AssyOrfs 0x90 1 #2438
12 P173160104 . FlangeHyd,Split 2 #2438
13 X500110001 . ConnectorOrfs 1 #2438
14 X500110006 . ConnectorOrfs 3 #2438
15 X530110005 . Elbow45,Orfs 1 #2438
16 X520110001 . Elbow90,Orfs 2 #2438
17 X820045151 . TeeR/Type,Orfs 1 #2438
18 X840515151 . TeeRun Type 1 #2438
19 Y171024004 . ORing 1 #2438
20 S631011004 . ORing 4 #2438
21 S631029004 . ORing 1 #2438
22 S631038004 . ORing 3 #2438
23 S621011001 . ORing 7 #2438
24 S621021001 . ORing 1 #2438
25 S621025001 . ORing 3 #2438
26 S109080456 . BoltSocket 2 #2438
27 S109100306 . BoltSocket 4 #2438
28 S109120656 . BoltSocket 4 #2438
29 S017100256 . BoltHex 2 #2438
30 S411080006 . WasherSpring 2 #2438
31 S411100006 . WasherSpring 2 #2438
40 XKBF01455 . Main Relief Valve 1 #2438
41 21E630540 . SwitchBreaker 1 #2438
Print this!
1/1
* @ S/Act Hyd Piping Kit 1 #0001 SEE 3600,3610

*1 @ . S/Act Piping Kit 1 SEE 3600,3610
*12 @ .. Attach Piping Kit 1 SEE 3600,3610
1 31NA92110 ... Pipe AssyLh 1 ARM 3.2M
31N992120 ... Pipe AssyLh 1 ARM 2.2M
31NA92120 ... Pipe AssyLh 1 ARM 2.5M
31NA92140 ... Pipe AssyLh 1 ARM 4.05M
31N992120 ... Pipe AssyLh 1 BM6.15+AM2.2
2 31NA92150 ... Pipe AssyRh 1 ARM 3.2M
31N992160 ... Pipe AssyRh 1 ARM 2.2M
31NA92160 ... Pipe AssyRh 1 ARM 2.5M
31NA92180 ... Pipe AssyRh 1 AMR 4.05M
31N992160 ... Pipe AssyRh 1 BM6.15+AM2.2
3 31NA92190 ... Pipe AssyLh 1
4 31NA92210 ... Pipe AssyRh 1
5 31N992230 ... Pipe AssyLh 1 BOOM 6.45M
31N992240 ... Pipe AssyLh 1 BOOM 6.15M
6 31N992250 ... Pipe AssyRh 1 BOOM 6.45M
31N992240 ... Pipe AssyLh 1 BOOM 6.15M
7 P703207337 ... Hose AssyFlg 0x90 2 ARM 3.2M
P703207332 ... Hose AssyFlg 0x90 2 ARM 2.2,2.5M
P703207340 ... Hose AssyFlg 0x90 2 ARM 4.05M
8 X710100107 ... CapHyd,Orfs 2
9 31EN92240 ... ValveStop 2
10 X530110006 ... Elbow45,Orfs 2
11 31EG91360 ... ClampStop Valve 2
12 31EG91400 ... ClampPipe 6 ARM 3.2M
31EG91400 ... ClampPipe 2 ARM 2.2M
31EG91400 ... ClampPipe 4 ARM 2.5M
31EG91400 ... ClampPipe 8 AMR 4.05M
13 S631038004 ... ORing 2
14 S017120702 ... BoltHex 12 ARM 3.2M
S107120702 ... BoltSocket 4 ARM 2.2M
S107120702 ... BoltSocket 8 ARM 2.5M
S107120702 ... BoltSocket 16 AMR 4.05M
15 S017120806 ... BoltHex 8
16 S411120002 ... WasherSpring 20 ARM 3.2M
S411120002 ... WasherSpring 12 ARM 2.2M
S411120002 ... WasherSpring 16 ARM 2.5M
S411120002 ... WasherSpring 24 AMR 4.05M
17 31NB92201 ... BracketClamp 2
18 S017120352 ... BoltHex 4
19 Y171027004 ... ORing 8
20 S109100406 ... BoltSocket 32
21 S173200106 ... FlangSplit 12
22 31N650320 ... Clamp Assy 3
23 31N550230 ... SpacerPipe 3
24 S01716080A ... BoltHex 3
25 S411160002 ... WasherSpring 3
26 31EK11130 ... CouplingScrew 2
27 S631011004 ... ORing 2
*11 @ .. S/Act Main Piping Kit 1 SEE 3620
51 31EN91701 . Accumulator Kit 1
A 32E692040 .. Accumulator 1 250bar
B 32E692050 .. Accumulator 1 140bar
C 31EN92260 .. Connector 1
D 31EN92280 .. Connector 1
E P392220000 .. WasherCopper 1
F P392180000 .. WasherCopper 1
G 32E692060 .. UBolt 2
H S071034330 .. UBolt 4
I 31EN92250 .. BracketAccum 2
Print this!
* @ D/Act Hyd Piping Kit 1 #0001 #1740 W/O ACCUM

31N991710 D/Act Hyd Kit 1 #1740
*1 31N992010 . D/Act Piping Kit 1 #1740 6.45BM+3.2AM
*11 31N991410 .. D/Act Main Piping Kit 1 #1740 SEE 3720
47 34E704720 . PedalSingle 1 #1740 SEE 3730
* 31N991720 D/Act Hyd Kit 1 #1740 INCL 4548
*11 31N991410 .. D/Act Main Piping Kit 1 #1740
Print this!
* @ D/Act Hyd Piping Kit 1 #1741 W/O ACCUM

31N991711 D/Act Hyd Kit 1 #1741
Print this!
* @ D/Act Hyd Piping Kit 1 #0001 #1740 WITH ACCUM

31N991810 D/Act Hyd Kit 1 #1740
Print this!
* @ D/Act Hyd Piping Kit 1 #1741 WITH ACCUM

31N991811 D/Act Hyd Kit 1 #1741
* 31N991821 . D/Act Hyd Kit 1 #1741 INCL 4551
* 31N991831 . D/Act Hyd Kit 1 #1741 INCL 4551
*1 31N992041 .. D/Act Piping Kit 1 #1741 6.45BM+4.05AM
Print this!
1/1
* @ D/Act Hyd Piping Kit 1 #0001 SEE 3700,3710

*1 @ . D/Act Piping Kit 1 SEE 3700,3710
*11 @ .. D/Act Main Piping Kit 1 SEE 3700,3710
2 31EM91620 ... Joint3 Way 1
3 31E995010 ... Bracket3 Way Joint 1
4 31N691230D ... Solenoid VlvBreaker 1 #0001
41 XKBN00192 .... CoilBreaker Sol 1 #0001 NOT SHOWN
5 31N691250 ... BracketSol Vlv 1
6 P973207334 ... Hose AssyOrfs 0x90 2
7 31N892221 ... Hose Assy 1
8 P923166024 ... Hose AssyOrfs 0x45 1
9 31N892231 ... Hose Assy 1
12 P420042094 ... Hose AssyComp 0x90 1
13 P420042066 ... Hose AssyComp 0x90 1
14 P420042024 ... Hose AssyComp 0x90 1
15 P420042060 ... Hose AssyComp 0x90 1
16 31N892290 ... Pipe WaOrfs 1
17 P173160104 ... FlangeHyd,Split 2
18 P010110002 ... Connector 3
19 P010110013 ... Connector 1
21 X530110005 ... Elbow45,Orfs 1
22 P020110001 ... Elbow90 4
23 P020110012 ... Elbow90 1
24 X520110005 ... Elbow90,Orfs 1
25 P320060406 ... TeeRun Type 1
26 32E610460 ... TeeSwevel Nut 1
27 Y171024004 ... ORing 2
28 S631011004 ... ORing 7
29 S631014004 ... ORing 3
30 S631029004 ... ORing 2
31 S631038004 ... ORing 3
32 S621021001 ... ORing 3
33 S621025001 ... ORing 3
34 S109080456 ... BoltSocket 2
35 S109100306 ... BoltSocket 4
36 S109100406 ... BoltSocket 4
37 S109120656 ... BoltSocket 2
38 S017080252 ... BoltHex 4
39 S017100252 ... BoltHex 2
40 S017120302 ... BoltHex 2
44 21NB00200 ... HarnessExt 1
*12 @ .. Attach Piping Kit 1 SEE 3630
45 31EM10060 . Port Relief Valve 1 210bar
46 31EM10180 . Port Relief Valve 1 280bar
47 34E704720 . PedalSingle 1 SEE 3730
48 21E630540 . SwitchBreaker 1 BREAKER ONLY
Print this!
1/1
*1 33N990410 D/Act Main Piping Kit 1 #2438

2 31EM91620 . Joint3 Way 1 #2438
3 31E995010 . Bracket3 Way Joint 1 #2438
4 31N691230D . Solenoid VlvBreaker 1 #2438
41 XKBN00192 .. CoilBreaker Sol 1 #2438
5 31N691250 . BracketSol Vlv 1 #2438
6 P973207334 . Hose AssyOrfs 0x90 2 #2438
7 P983166325 . Hose AssyOrfs 0x90 1 #2438
8 P953166323 . Hose AssyOrfs 0x45 1 #2438
9 P923203027 . Hose AssyOrfs 0x45 1 #2438
10 P910042074 . Hose AssyOrfs 0x0 1 #2438
11 P910042084 . Hose AssyOrfs,Thd(0x0) 1 #2438
12 P930042023 . Hose AssyOrfs 0x90 1 #2438
13 P930042056 . Hose AssyOrfs 0x90 1 #2438
14 P930042074 . Hose AssyOrfs 0x90 1 #2438
15 P930042094 . Hose AssyOrfs 0x90 1 #2438
16 P173160104 . FlangeHyd,Split 4 #2438
17 X500110001 . ConnectorOrfs 3 #2438
18 X500110006 . ConnectorOrfs 3 #2438
19 X530110005 . Elbow45,Orfs 1 #2438
20 X520110001 . Elbow90,Orfs 3 #2438
21 31N625110 . Elbow90,Long 1 #2438
22 X520110005 . Elbow90,Orfs 1 #2438
23 X820065152 . TeeR/Type,Orfs 1 #2438
24 X840515151 . TeeRun Type 1 #2438
25 Y171024004 . ORing 2 #2438
26 S631011004 . ORing 7 #2438
27 S631014004 . ORing 1 #2438
28 S631029004 . ORing 2 #2438
29 S631038004 . ORing 3 #2438
30 S621011001 . ORing 10 #2438
31 S621012001 . ORing 1 #2438
32 S621021001 . ORing 2 #2438
33 S621025001 . ORing 3 #2438
34 S109080456 . BoltSocket 2 #2438
35 S109100306 . BoltSocket 8 #2438
36 S109120656 . BoltSocket 2 #2438
37 S017080256 . BoltHex 4 #2438
38 S017100256 . BoltHex 2 #2438
39 S017120306 . BoltHex 2 #2438
40 S411080006 . WasherSpring 6 #2438
41 S411100006 . WasherSpring 2 #2438
42 S411120006 . WasherSpring 2 #2438
43 21NB00200 . HarnessExt 1 #2438
52 34E704720 . PedalSingle 1 #2438
53 21E630540 . SwitchBreaker 1 #2438
Print this!
1/1
* 34E704720 PedalSingle 1 #0001

1 J24D2001 . Case 1
2 J24D2002 . Pedal 1
3 J24D2003 . CoverPedal 1
4 J24D2004 . Cover 1
5 DU1010 . Bushing 2
6 J24D2005 . Cam 1
7 J24D2006 . Bellows 1
8 J24D2007 . Spool 2
9 S090601 . Shim(1.0t) 2
10 J24D2008 . SeatSpring 2
11 J97C1001 . Spring 2
12 J24D2010 . SeatSpring 2
13 J24D2011 . Stopper 2
14 J24D2012 . Plug 2
15 PO020 . ORing 2
16 DSP10 . SealDust 2
17 RSY10 . SealRod 2
18 J98H2001 . Spring 2
19 J24D2014 . RodPush 2
20 WBM0830 . BoltSocket 2
21 J24D2015 . ScrewSet 2
22 HNM10 . NutHex 2
23 J24D2016 . ShaftCam 1
24 SBM0812 . ScrewSet 1
26 J2J1002 . Block 1
27 PO012 . ORing 2
29 WPT38 . Plug 1
30 WPT18 . Plug 1
Print this!
1/1
* 31N910010 Main Pump 1

*1 @ . Main Pump Unit 1
NS012 XJBN00567 .. BlockCylinder 2
111 XJBN00015 .. ShaftDrive(F) 1
113 XJBN00153 .. ShaftDrive(R) 1
114 XJBN00367 .. CouplingSpline 1
123 XJBN00017 .. BearingRoller 2
124 XJBN00018 .. BearingNeedle 2
127 XJBN00019 .. SpacerBearing 3
NS151 XJBN00566 .. Piston 1
NS152 XJBN00565 .. Shoe 1
153 XJBN00020 .. PlateSet 2
156 XJBN00564 .. BushingSpherical 2
157 XJBN00541 .. SpringCylinder 18
211 XJBN00023 .. PlateShoe 2
S212 XJBN00012 .. PlateSwash 1
S214 XJBN00013 .. BushingTilting 1
251 XJBN00560 .. SupportS.P. 2
261 XJBN00025 .. Cover(Fr)Seal 1
271 XJBN00026 .. CasingPump 2
312 XJBN00027 .. BlockValve 1
S313 XJBN00557 .. PlateValve(R) 1
S314 XJBN00556 .. PlateValve(L) 1
325 XJBN00380 .. CasingValve 1
401 XJBN00028 .. Screw 8
406 XJBN00355 .. Screw 4
466 XJBN00356 .. Plug 2
468 XJBN00357 .. Plug 3
490 XJBN00032 .. Plug 30
NS531 XJBN00369 .. PinTilting 1
532 XJBN00033 .. PistonServo 2
534 XJBN00034 .. Stopper(L) 2
535 XJBN00035 .. Stopper(S) 2
N541 XJBN00036 .. Seat 4
N543 XJBN00037 .. Stopper 1 2
N544 XJBN00039 .. Stopper 2 2
545 XJBN00359 .. BallSteel 4
NS548 XJBN00360 .. PinFeed Back 1
K702 XJBN00040 .. ORing 2
K724 XJBN00044 .. ORing 16
K774 XJBN00906 .. SealOil 1 #0001
K789 XJBN00049 .. RingBack Up 2
K792 XJBN00050 .. RingBack Up 2
808 XJBN00364 .. Nut 4
824 XJBN00052 .. RingSnap 2
885 XJBN00053 .. Pin2 2
886 XJBN00365 .. PinSpring 4
901 XJBN00055 .. BoltEye 2
953 XJBN00654 .. ScrewSet 2
981 XJBN00391 .. Name Plate 1
983 XJBN00341 .. Pin 2
*2 XJBN00656 . Regulator 1
*3 XJBN00655 . Gear Pump 1
011 XJBN00563 Piston Assy 18 SEE ILLUST
013 XJBN00562 Cylinder AssyRh 1 SEE ILLUST
014 XJBN00561 Cylinder AssyLh 1 SEE ILLUST
030 XJBN00011 Swash Plate Assy 2 SEE ILLUST
530 XJBN00371 Tilting Pin Sub Assy 2 SEE ILLUST
K XJBN01108 Seal KitPump Unit 1 #0001 SEE ILLUST
Print this!
1/1
*2 XJBN00656 . Regulator 1

412 XJBN00448 .. Screw 2
413 XJBN00447 .. Screw 2
436 XJBN00446 .. Screw 2
438 XJBN00445 .. Screw 10
496 XJBN00032 .. Plug 5
601 XJBN00317 .. Casing 1
611 XJBN00579 .. LeverFeed Back 1
612 XJBN00315 .. Lever1 1
613 XJBN00314 .. Lever2 1
614 XJBN00313 .. PlugCenter 1
615 XJBN00312 .. PlugAdjust 1
621 XJBN00311 .. PistonCompensator 1
622 XJBN00346 .. CasePiston 1
623 XJBN00309 .. RodCompensator 1
624 XJBN00308 .. Seat(C)Spring 1
625 XJBN00307 .. SpringOuter 1
626 XJBN00306 .. SpringInner 1
N627 XJBN00305 .. Stem(C)Adjust 1 #0766
K627 XJBN01031 .. Stem(C)Adjust 1 #0767 D
628 XJBN00304 .. Screw(C)Adjust 1 #0766
K628 XJBN01025 .. Screw(C)Adjust 1 #0767 D
629 XJBN00303 .. Cover(C) 1
630 XJBN00302 .. NutLock 1
631 XJBN00657 .. Sleeve 1
641 XJBN00300 .. CoverPilot 1
642 XJBN00299 .. Screw(Qmc)Adjust 1
643 XJBN00298 .. PistonPilot 1
644 XJBN00297 .. Seat(Q)Spring 1
N645 XJBN00658 .. Stem(Q)Spring 1
646 XJBN00585 .. SpringPilot 1
647 XJBN00294 .. Stopper 1
648 XJBN00293 .. Piston(Qmc) 1
651 XJBN00292 .. Sleeve 1
652 XJBN00291 .. Spool 1
653 XJBN00290 .. SeatSpring 1
654 XJBN00289 .. SpringReturn 1
655 XJBN00288 .. SpringSet 1
656 XJBN00287 .. CoverBlock 1
732 XJBN00283 .. ORing 2 #0330
K732 XJBN00820 .. ORing 2 #0331 #0766 B
XJBN00820 .. ORing 1 #0767 A
K753 XJBN01026 .. ORing 1 #0767 D
801 XJBN00278 .. Nut 2 #0766
XJBN00278 .. Nut 1 #0767 A
K802 XJBN01027 .. Nut 1 #0767
874 XJBN00344 .. Pin 1
875 XJBN00273 .. Pin 4
887 XJBN00272 .. Pin 1
897 XJBN00343 .. Pin 1
898 XJBN00659 .. Pin 1
N925 XJBN00588 .. Screw(Qi)Adjust 1 #0766
K XJBN00972 Seal KitRegulator 1 #0001 SEE ILLUST
K XJBN01195 Regulator Kit 1 #0767

Print this!
1/1
*3 XJBN00655 . Gear Pump 1

307 XJBN00521 .. Poppet 1
308 XJBN00522 .. Seat 1
309 XJBN00523 .. Ring 1
310 XJBN00524 .. Spring 1
311 XJBN00525 .. ScrewAdjust 1
312 XJBN00334 .. NutLock 1
351 XJBN00660 .. CaseGear 1
353 XJBN00332 .. GearDrive 1
354 XJBN00331 .. GearDriven 1
355 XJBN00330 .. FilterReturn 1
361 XJBN00349 .. Case 1
433 XJBN00328 .. SocketFlange 2
466 XJBN00356 .. Plug 1
K700 XJBN00325 .. Ring 1
K XJBN01109 Seal KitGear Pump 1 #0001 SEE ILLUST
Print this!
1/1
*1 @ . Main Pump Unit 1

079 XJBN00382 .. Eppr Valve Assy 1 V9406285784
361 XJBN00546 ... ORing 1
362 XJBN00547 ... ORing 1
363 XJBN00548 ... ORing 1
325 XJBN00380 .. CasingValve 1 29232300032
407 XJBN00381 .. Screw 3
466 XJBN00356 .. Plug 1 OVP14
490 XJBN00032 .. Plug 3 PBP1162403
725 XJBN00362 .. ORing 4 OORBP11
732 XJBN00047 .. ORing 1
Print this!
1/1
* 31N910110 . Main Control Valve 1

N101 XJBN00242 .. CasingA 1
N102 XJBN00241 .. CasingB 1
N103 XJBN00646 .. Block 1
N104 XJBN00647 .. Block 1
165 XJBN00232 .. ORing 5 #0001
166 XJBN00231 .. ORing 3 #0001
167 XJBN00374 .. ORing 2 #0001
168 XJBN00283 .. ORing 1 #0001
251 XJBN00226 .. ValveControl 1 #0001
252 XJBN00225 .. ValveLock 2
254 XJBN00214 .. ValveLogic 1
266 XJBN00281 .. ORing 4 #0001
338 XJBN00188 .. Stopper 1
357 XJBN00186 .. Orifice 3
391 XJBN00249 .. SpoolTravel 1
401 XJBN00652 .. Spool 1
438 XJBN00173 .. Rod 1
511 XJBN00172 .. Poppet 3
551 XJBN00167 .. Plug 4
561 XJBN00363 .. ORing 4
601 XJBN00653 .. Main Relief Valve 1
602 XJBN00162 .. Port Relief Valve 1
974 XJBN00159 .. ScrewSocket 5
980 XJBN00362 .. ORing 1 #0001
981 XJBN00363 .. ORing 2 #0001
982 XJBN01017 .. ORing 1 #0001
Print this!
1/1
* 31N917000P Main Control Valve 1 #2403 #3549

31N917001P Main Control Valve 1 #3550 #3549 B
31N917002P Main Control Valve 1 #3550 B
N1 XKBF01038 . HousingP1 1 #2403 #3549
XKBF01614 . HousingP1 1 #3550 D
4 XKBF01585 . SpoolTravel 1 #2403
6 XKBF01442 . SpoolBoom 1 1 #2403
9 XKBF01444 . SpoolArm 2 1 #2403
11 XKBF01446 . SpoolArm Regen 1 #2403
12 XKBF01447 . SpoolBucket 1 #2403
16 XKBF00379 . Cover B1Pilot 3 #2403 #3549
XKBF00379 . Cover B1Pilot 4 #3550 A
20 XKBF00383 . Plug 4 #2403
21 XKBF00806 . Poppet 1 4 #2403
22 XKBF01546 . Poppet 1 #2403
23 XKBF01250 . Spring 1 5 #2403
24 XKBF01252 . Plug 4 #2403
25 XKBF01450 . Poppet 2 3 #2403
26 XKBF01451 . Spring 2 3 #2403
27 XKBF00442 . Holding KitB 1 #2403
271 XKBF01457 .. PoppetLock Valve 1 #2403
272 XKBF01340 .. SpringPoppet Signal 1 #2403
273 XKBF01426 .. GuidePoppet 1 #2403
274 XKBF01458 .. PoppetPilot 1 #2403
275 XKBF01459 .. SeatPoppet 1 #2403
276 XKBF00903 .. CRing 1 #2403
277 XKBF00905 .. RestrictorLock Vlv 1 #2403
278 XKBF00958 .. ORing 1 #2403
279 XKBF01283 .. ORing 1 #2403
2710 XKBF00962 .. RingBack Up 1 #2403
34 XKBF01256 . Holding KitA2 1 #2403 #3549
XKBF01619 . Holding KitA1 1 #3550 D
N341 XKBF01257 .. Block P1Holding 1 #2403 #3549
XKBF01620 .. Block P1Holding 1 #3550 D
342 XKBF00910 .. Piston 1 1 #2403
344 XKBF00912 .. Spring 1 1 #2403
345 XKBF00913 .. Piston 2 1 #2403
346 XKBF01248 .. Plug 1 #2403 #3549
347 XKBF01258 .. Plug 1 #2403
348 XKCG00060 .. ORing 1 #2403
3413 XKBF00931 .. Plug 1 #2403 #3549
3415 XKBF01265 .. BoltSocket 5 #2403
3416 XKBF00425 .. WasherSpring 5 #2403
42 XKBF00398 . Check Valve Assy 1 #2403
43 XKBF00399 . OrificeSignal 1 #2403
44 XKBF00922 . FilterCoin Type 1 #2403
47 XKBF00931 . Plug 2 #2403
50 XKCG00154 . ORing 2 #2403
51 XKBF00807 . Negative Control Vlv 1 #2403
52 XKBF00933 . Plug 4 #2403
53 XKBF01276 . Flange 1 #2403 #3549
55 XKBF01279 . Plug 1 #3550
59 XKBF00940 . ORing 4 #2403
63 XKBF01280 . ORing 1 #3550
65 XKBF01282 . ORing 7 #2403
67 XKBF01074 . ORing 3 #2403
68 XKBF00416 . ORing 5 #2403
73 XKBF01284 . BoltSocket 6 #2403 #3549
XKBF01284 . BoltSocket 8 #3550 A
75 XKBF01286 . BoltSocket 4 #2403 #3549
76 XKBF01287 . BoltSocket 2 #2403
78 XKBF01289 . BoltSocket 4 #2403
79 XKBF00425 . WasherSpring 6 #2403 #3549
XKBF00425 . WasherSpring 8 #3550 A
81 XKBF00427 . WasherSpring 4 #2403
83 XKBF00428 . Relief ValveOverload 1 #2403
84 XKBF01582 . Relief ValveOverload 1 #2403
85 XKBF01456 . ORing 1 #2403 #3549
86 XKBF00732 . PoppetCheck 1 #2403
87 XKBF00733 . SpringCheck 1 #2403

88 XKBF01295 . Plug 2 #2403
92 XKBF01543 . Plug 1 #2403
93 XKBF01542 . Poppet 1 #2403
94 XKBF01541 . Spring 1 #2403 #3549
Print this!
1/1
* @ Main Control Valve 1 SEE 4050

201 XJBN00229 . Cover 3 VZ40101148
203 XJBN00258 . Cover 2 VZ40103496
261 XJBN00213 . ORing 3 VZ50102761H50
262 XJBN00212 . ORing 2 VZ50102761H39
273 XJBN00210 . ScrewSocket 10
302 XJBN00649 . SpoolArm 1 1 #0001
305 XJBN00532 . SpoolSwing 1 #0001
307 XJBN00533 . SpoolBoom 2 1 #0001
310 XJBN00216 . SpoolTravel,Lh 1 #0043
XJBN00892 . SpoolTravel,Lh 1 #0044 B
392 XJBN00651 . Spool AssyBypass Cut 1 #0001
395 XJBN00177 . SpoolSwing Priority 1 #0001
Print this!
1/1
* @ Main Control Valve 1 #2403 SEE 4051

15 XKBF01242 Cover APilot 3 #2403
19 XKBF01244 Arm Regen Assy 1 #2403
191 XKBF01245 BlockRegen 1 #2403
192 XKBF01246 PistonCut Off 1 #2403
193 XKBF00919 StopperRegen 1 #2403
194 XKBF01247 SpoolRegen 1 #2403
195 XKBF00918 SpringRegen 1 #2403
196 XKBF01248 Plug 3 #2403
197 XKBF00420 BoltSocket Head 3 #2403
198 XKBF00425 Washer 3 #2403
199 XKBF01249 PinRegen 2 #2403
29 XKBF01592 ORing 1 #2403
30 XKBF01593 RingBack Up 1 #2403
31 XKBF01594 ORing 1 #2403
32 XKBF01595 Plug 1 #2403
45 XKBF00401 OrificePlug 1 #2403
51 XKBF00807 Negative Control Vlv 1 #2403
52 XKBF00933 Plug 1 #2403
57 XKBF00937 ORing 2 #2403
59 XKBF00940 ORing 1 #2403
67 XKBF01074 ORing 1 #2403
68 XKBF00416 ORing 5 #2403
73 XKBF01284 BoltSocket 8 #2403
79 XKBF00425 Washer 8 #2403
83 XKBF00428 Relief ValveOverload 2 #2403
89 XKBF01516 Plug 1 #2403
90 XKBF01588 PistonPilot 1 #2403
91 XKBF01518 Cover 1 #2403
Print this!
1/1

153 XJBN00238 . Plug 2
154 XJBN00237 . Plug 1
159 XJBN00234 . Plug 3 VZ50101400
164 XJBN00233 . ORing 1 OORBP14
169 XJBN00094 . ORing 2
201 XJBN00229 . Cover 1 VZ40101148
202 XJBN00228 . Cover 2 VZ50103504
204 XJBN00257 . Cover 2 VZ331400091
261 XJBN00213 . ORing 1 VZ50102761H50
264 XJBN00342 . ORing 2
332 XJBN00194 . Seat 2 VZ50103142
336 XJBN00190 . Bolt 1 VZ50101297
339 XJBN00187 . Stopper 1 VZ332600013
370 XJBN00184 . Spring 1
376 XJBN00182 . Spring 1 VZ033400168
511 XJBN00172 . Poppet 3 VZ036100026
515 XJBN00171 . Poppet 1 VZ036100015
516 XJBN00170 . Poppet 1 VZ036100028
521 XJBN00169 . Spring 4 VZ50101290
523 XJBN00168 . Spring 1 VZ033400294
551 XJBN00167 . Plug 7 #0043 OROMH27
XJBN00167 . Plug 6 #0044 A
552 XJBN00166 . Plug 1 VZ035600117
555 XJBN00244 . Check Valve Assy 1
561 XJBN00363 . ORing 9 #0043 OORBP24
XJBN00363 . ORing 8 #0044 A
602 XJBN00162 . Port Relief Valve 1
611 XJBN00243 . Relief VlvNega Con 2 #0043
XJBN00886 . Relief VlvNega Con 2 #0044 B
Print this!
1/1

N2 XKBF01230 . HousingP2 1 #2403 #3549
XKBF01615 . HousingP2 1 #3550 B
3 XKBF00366 . SpoolStraight 1 #2403
4 XKBF01585 . SpoolTravel 1 #2403
5 XKBF01584 . SpoolSwing 1 #2403
7 XKBF00370 . SpoolSwing Priority 1 #2403 #3549
XKBF01616 . SpoolSwing Priority 1 #3550 B
8 XKBF01443 . SpoolBoom 2 1 #2403 #3549
XKBF01624 . SpoolBoom 2 1 #3550 B
10 XKBF01583 . SpoolArm 1 #2403
13 XKBF00376 . SpoolOption 1 #2403
14 XKBF01241 . SpoolBc 1 #2403
16 XKBF00379 . Cover B1Pilot 4 #2403 #3549
XKBF00379 . Cover B1Pilot 5 #3550 A
24 XKBF01252 . Plug 2 #2403
27 XKBF00442 . Holding KitB 1 #2403
271 XKBF01457 .. PoppetLock Valve 1 #2403
272 XKBF01340 .. SpringPoppet Signal 1 #2403
274 XKBF01458 .. PoppetPilot 1 #2403
275 XKBF01459 .. SeatPoppet 1 #2403
276 XKBF00903 .. CRing 1 #2403
277 XKBF00905 .. RestrictorLock Vlv 1 #2403
278 XKBF00958 .. ORing 1 #2403
279 XKBF01283 .. ORing 1 #2403
2710 XKBF00962 .. RingBack Up 1 #2403
29 XKBF01592 . ORing 1 #2403
30 XKBF01593 . RingBack Up 1 #2403
31 XKBF01594 . ORing 1 #2403
32 XKBF01595 . Plug 1 #2403
34 XKBF01619 . Holding KitA1 1 #3550
N341 XKBF01620 .. Block P1Holding 1 #2403
342 XKBF00910 .. Piston 1 1 #2403
344 XKBF00912 .. Spring 1 1 #2403
345 XKBF00913 .. Piston 2 1 #2403
347 XKBF01258 .. Plug 1 #2403
348 XKCG00060 .. ORing 1 #2403
3415 XKBF01265 .. BoltSocket 5 #2403
35 XKBF01266 . Holding KitA2 1 #2403
N351 XKBF01267 .. Block P2Holding 1 #2403 #3549
352 XKBF00910 .. Piston 1 1 #2403
354 XKBF00912 .. Spring 1 1 #2403
355 XKBF00913 .. Piston 2 1 #2403
356 XKBF01248 .. Plug 1 #2403
357 XKBF01258 .. Plug 1 #2403
358 XKBF01259 .. ORing 1 #2403
3513 XKBF00931 .. Plug 1 #2403
3515 XKBF01265 .. BoltSocket 5 #2403
48 XKBF01273 . SpringBc Spool 1 #2403
49 XKBF01274 . PlugBc Spool 1 #2403
52 XKBF00933 . Plug 1 #2403
54 XKBF01277 . Plug 1 #2403
57 XKBF00937 . ORing 2 #2403
59 XKBF00940 . ORing 1 #2403
61 XKBF00989 . ORing 15 #2403
62 XKBF00680 . ORing 1 #2403
63 XKBF01280 . ORing 1 #2403
64 XKBF01281 . ORing 2 #2403
65 XKBF01282 . ORing 2 #2403
67 XKBF01074 . ORing 1 #2403
68 XKBF00416 . ORing 6 #2403
73 XKBF01284 . BoltSocket 8 #2403 #3549
XKBF01284 . BoltSocket 10 #3550 A
74 XKBF01285 . ORing 1 #2403
77 XKBF01454 . BoltSocket Head 4 #2403
79 XKBF00425 . WasherSpring 8 #2403 #3549
XKBF00425 . WasherSpring 10 #3550 A

81 XKBF00427 . WasherSpring 4 #2403
84 XKBF01582 . Relief ValveOverload #2403
Print this!
1/1

165 XJBN00232 . ORing 15 OORBG30
168 XJBN00230 . ORing 1
201 XJBN00229 . Cover 3 VZ40101148
203 XJBN00258 . Cover 2 VZ40103496
261 XJBN00213 . ORing 3 VZ50102761H50
262 XJBN00212 . ORing 2 VZ50102761H39
301 XJBN00224 . SpoolTravel,Rh/Doz 1 #0043
XJBN00893 . SpoolTravel,Rh 1 #0044 B
303 XJBN00254 . SpoolBoom 1 1 #0001
304 XJBN00650 . Bucket Spool 1 #0001
306 XJBN00251 . SpoolArm 2 1 #0001
309 XJBN00217 . SpoolOption 1 #0001
Print this!
1/1

15 XKBF01242 Cover APilot 5 #2403
17 XKBF01449 Cover B3Pilot 1 #2403 #3549
XKBF01618 . Cover B3Pilot 1 #3550 D
29 XKBF01592 ORing 1 #2403
31 XKBF01594 ORing 1 #2403
32 XKBF01595 Plug 1 #2403
43 XKBF00399 OrificeSignal 1 #2403
44 XKBF00922 FilterCoin Type 1 #2403
52 XKBF00933 Plug 4 #2403
54 XKBF01277 Plug 1 #2403
59 XKBF00940 ORing 4 #2403
62 XKBF00680 ORing 1 #2403
67 XKBF01074 ORing 1 #2403
68 XKBF00416 ORing 6 #2403
79 XKBF00425 Washer 12 #2403
84 XKBF01582 Relief ValveOverload 1 #2403
Print this!
1/1

154 XJBN00237 . Plug 2
155 XJBN00236 . Plug 1
158 XJBN00032 . Plug 1 PBP1162403
159 XJBN00234 . Plug 3 VZ50101400
164 XJBN00233 . ORing 2 00RBP14
165 XJBN00232 . ORing 1 00RBG30
167 XJBN00097 . ORing 1 00RBP18
169 XJBN00094 . ORing 2
202 XJBN00228 . Cover 2 VZ50103504
204 XJBN00257 . Cover 3 VZ331400091
209 XJBN00227 . Flange 2 VZ035800141
264 XJBN00342 . ORing 3
511 XJBN00172 . Poppet 2 VZ036100026
513 XJBN00539 . Poppet 1
516 XJBN00170 . Poppet 1 VZ036100028
521 XJBN00169 . Spring 2 VZ50101290
522 XJBN00246 . Spring 1
523 XJBN00168 . Spring 1 VZ033400294
551 XJBN00167 . Plug 3 OROMH27
552 XJBN00166 . Plug 1 VZ035600117
553 XJBN00165 . Plug 2 VZ035600042
554 XJBN00245 . Plug 1
Print this!
1/1

20 XKBF00383 Plug 3 #2403
21 XKBF00806 Poppet 1 3 #2403
23 XKBF01250 Spring 1 3 #2403
24 XKBF01252 Plug 3 #2403
25 XKBF01450 Poppet 2 1 #2403
26 XKBF01451 Spring 2 1 #2403
36 XKBF01503 Logic Valve Assy 1 #2403
38 XKBF01270 Valve AssyL/C OnOff 1 #2403
46 XKBF00400 Plug 3 #2403
53 XKBF01276 Flange 2 #2403
55 XKBF01279 Plug 1 #2403
56 XKBF01258 Plug 1 #2403
58 XKBF00939 ORing 3 #2403
60 XKBF00618 ORing 4 #2403 #3549
XKBF00618 ORing 1 #3550 A
63 XKBF01280 ORing 1 #2403
65 XKBF01282 ORing 3 #2403 #3549
XKBF01282 ORing 6 #3550 A
67 XKBF01074 ORing 3 #2403
85 XKBF01456 ORing 2 #2403
Print this!
1/1
N* 31N910131 Swing Motor Assy 1 #0037

31N910132 Swing Motor Assy 1 #0038 #1274 B
31N910133 Swing Motor Assy 1 #1275 #1485 D
*1 31N812010 . Swing Motor Unit 1 #1485
031 XKAH00121 .. ValveBrake 1 #1485
051 XKAH00122 .. ValveRelief 2 #1485
052 XKAH00115 .. Block 1 #1485
101 XKAH00162 .. ShaftDrive 1 #1485
106 XKAH00161 .. Spacer 3 #1485
111 XKAH00160 .. BlockCylinder 1 #1485
113 XKAH00159 .. BushingSpherical 1 #1485
114 XKAH00158 .. Spring 1 #1485
116 XKAH00157 .. RodPush 12 #1485
117 XKAH00156 .. Spacer F 1 #1485
118 XKAH00155 .. Spacer R 1 #1485
NS121 XKAH00154 .. Piston 9 #1485
NS122 XKAH00153 .. Shoe 9 #1485
123 XKAH00152 .. Retainer 1 #1485
124 XKAH00151 .. PlateShoe 1 #1485
131 XKAH00150 .. PlateValve 1 #1485
301 XKAH00149 .. Casing 1 #1485
303 XKAH00546 .. CasingValve 1 #0001 #1485
304 XKAH00147 .. CoverFront 1 #0597
XKAH00930 .. CoverFront 1 #0598 #1485 D
351 XKAH00146 .. Plunger 2 #1485
355 XKAH00145 .. Spring 2 #1485
401 XKAH00144 .. BoltSocket 4 #1485
432 XKAH00143 .. RingSnap 2 #1485
433 XKAH00142 .. RingSnap 1 #1485
437 XKAH00141 .. RingSnap 1 #1485
438 XKAH00140 .. RingSnap 1 #1485
443 XKAH00139 .. BearingRoller 1 #1485
451 XKAH00137 .. PinSpring 2 #1485
464 XKAH00136 .. PlugVp 1 #1485
468 XKAH00136 .. PlugVp 2 #1485
469 XKAH00135 .. Plug 2 #1485
K471 XKAH00134 .. ORing 1 #1485
K472 XKAH00133 .. ORing 1 #1485
K485 XKAH00052 .. ORing 1 #1485
K487 XKAH00052 .. ORing 2 #1485
K488 XKAH00132 .. ORing 2 #1485
K491 XKAH00131 .. SealOil 1 #0597
XKAH00929 .. SealOil 1 #0598 #1485 D
702 XKAH00130 .. PistonBrake 1 #1485
K706 XKAH00129 .. ORing 1 #1485
K707 XKAH00128 .. ORing 1 #1485
712 XKAH00127 .. SpringBrake 20 #1485
742 XKAH00126 .. PlateFriction 2 #1485
743 XKAH00125 .. PlateSeperation 3 #1485
744 XKAH00120 .. Plug 2 #1485
745 XKAH00119 .. Plug 1 #1485
746 XKAH00118 .. Plug 1 #1485
993 XKAH00124 .. Plug 1 #1485
994 XKAH00123 .. Plug 1 #1485
N*2 31N910150 . Swing Reduction Gear 1 #1485 SEE 4110, 4115
K XKAH00465 Seal Kit 1 #1485 SEE ILLUST
S XKAH00615KT Piston Assy 1 #0001 #1485 SEE ILLUST
Print this!
1/1
* 31N910190 Swing Motor Assy 1 #1486 #1812 D S/MOTOR TYPE 1

31N910191 Swing Motor Assy 1 #1813 B S/MOTOR TYPE 1
*1 31N812020 . Swing Motor Unit 1 #1486 C S/MOTOR TYPE 1
031 XKAH00121 .. ValveBrake 1 #1486
051 XKAH01155 .. Relief Valve 2 #1486
052 XKAH01151 .. BlockValve 1 #1486
101 XKAH01090 .. ShaftDrive 1 #1486
106 XKAH00161 .. Spacer 3 #1486
111 XKAH00160 .. BlockCylinder 1 #1486
113 XKAH00159 .. BushingSpherical 1 #1486 #3254
XKAH01621 .. BushingSpherical 1 #3255 B
114 XKAH00158 .. Spring 1 #1486
116 XKAH01079 .. RodPush 12 #1486
117 XKAH00156 .. Spacer F 1 #1486
118 XKAH00155 .. Spacer R 1 #1486
121 XKAH01162 .. Piston Assy 9 #1486
123 XKAH01081 .. Retainer 1 #1486
124 XKAH00151 .. PlateShoe 1 #1486
131 XKAH01161 .. PlateValve K1 1 #1486
301 XKAH00149 .. Casing 1 #1486
303 XKAH01160 .. CasingValve S1 1 #1486
304 XKAH00930 .. CoverFront 1 #1486
351 XKAH01159 .. Plunger S 2 #1486
355 XKAH01158 .. Spring 2 #1486
432 XKAH00143 .. RingSnap 2 #1486
433 XKAH00142 .. RingSnap 1 #1486
437 XKAH00141 .. RingSnap 1 #1486
438 XKAH00140 .. RingSnap 1 #1486
451 XKAH00137 .. PinSpring 2 #1486
464 XKAH01157 .. Plug AssyVp 1 #1486 INCL 485
469 XKAH01156 .. Plug AssyRo 2 #1486 INCL 488
K471 XKAH00134 .. ORing 1 #1486
K472 XKAH00133 .. ORing 1 #1486
K491 XKAH00929 .. SealOil 1 #1486
702 XKAH00130 .. PistonBrake 1 #1486
K706 XKAH00129 .. ORing 1 #1486
K707 XKAH00128 .. ORing 1 #1486
712 XKAH00127 .. SpringBrake 20 #1486
742 XKAH00126 .. PlateFriction 2 #1486
743 XKAH00125 .. PlateSeperation 3 #1486
744 XKAH01154 .. PlugDust 2 #1486
745 XKAH01153 .. PlugDust 1 #1486
746 XKAH01152 .. PlugDust 1 #1486
993 XKAH00124 .. Plug 1 #1486
994 XKAH00123 .. Plug 1 #1486
*2 @ . Swing Reduction Gear 1 #1486 SEE 4115
K XKAH01060 Seal Kit 1 #1486 SEE ILLUST
Print this!
1/1
* 31N910291 Swing Motor Assy 1 #2881

*1 31N810270 . Swing Motor Unit 1 #2881
1 XKAY01929 .. Body 1 #2881
2 XKAY01520 .. Shaft 1 #2881
3 XKAY01521 .. RingSnap 3 #2881
4 XKAY01522 .. Plate 3 #2881
5 XKAY01523 .. BearingRoll 1 #2881
6 XKAY01524 .. Cover 1 #2881
k7 XKAY01525 .. SealOil 1 #2881
k8 XKAY01526 .. ORing 1 #2881
9 XKAY00523 .. RingSnap 1 #2881
10 XKAY01527 .. PlateShoe 1 #2881
*11 XKAY01528 .. Rotory Kit 1 #2881
*111 XKAY01529 ... Block KitCyl 1 #2881
11 XKAY01530 .... BlockCylinder 1 #2881
12 XKAY01531 ... SeatSpring 1 #2881
13 XKAY01532 ... SpringCylinder 1 #2881
14 XKAY01533 ... RingSnap 1 #2881
15 XKAY01534 ... Pin 1 #2881
*112 XKAY01535 ... Retainer Kit 1 #2881
16 XKAY01536 .... GuideBall 1 #2881
17 XKAY01537 .... PlateSet 11 #2881
*113 XKAY01538 ... Piston Kit 1 #2881
18 XKAY01539 .... Pistion Assy 9 #2881
19 XKAY01540 .. Plate 3 #2881
20 XKAY01541 .. PlateFriction 2 #2881
k21 XKAY01542 .. ORing 1 #2881
k22 XKAY01543 .. ORing 1 #2881
23 XKAY01544 .. PistonBrake 1 #2881
24 XKAY01545 .. SpringB/P 20 #2881
25 XKAY01546 .. CoverRear 1 #2881
k26 XKAY01547 .. ORing 1 #2881
27 XKAY01875 .. BearingRoller 1 #2881
28 XKAY01549 .. RingSnap 1 #2881
29 XKAY00510 .. Pin 2 #2881
30 XKAY01550 .... PlateValve 1 #2881
31 XKAY01551 .. BoltWrench 4 #2881
32 XKAY00188 .. Plug 2 #2881
k33 XKAY01150 .. ORing 2 #2881
34 XKAY00186 .. Poppet 2 #2881
35 XKAY00187 .. Spring 2 #2881
36 XKAY01552 .. Reactionless Vlv Assy 2 #2881
37 XKAY01553 .. Plug 2 #2881
k38 XKAY01554 .. RingBack Up 2 #2881
k39 XKAY00320 .. ORing 2 #2881
k40 XKAY01555 .. ORing 2 #2881
41 XKAY01995 .. Relief Valve Assy 2 #2881
42 XKAY00150 .. Plug 2 #2881
k43 XKAY00151 .. ORing 2 #2881
44 XKAY00975 .. Plug 1 #2881
45 XKAY00548 .. Plug 1 #2881
46 XKAY00315 .. Time Delay Valve Assy 1 #2881
48 XKAY02141 .. GaugeLevel 1 #2881
49 XKAY01930 .. Name Plate 1 #2881
50 XKAY00277 .. Rivet 2 #2881
51 XKAY01219 .. Plug 1 #2881
*12 XKAY01558 .. Seal Kit 1 #2881 SEE ILLUST
Print this!
1/1
N*2 31N910151 . Swing Reduction Gear 1 #0037

31N910152 . Swing Reduction Gear 1 #0038 #1274
1 XKAQ00106 .. CasingFront 1 #0037
XKAQ00141 .. CasingFront 1 #0038 #0358 D
XKAQ00279 .. CasingFront 1 #0359 #0800 B
XKAQ00329 .. CasingFront 1 #0801 #1274 B
2 XKAQ00003 .. CasingMiddle 1 #1274
3 XKAQ00328 .. ShaftDrive 1 #0001 #1274
4 XKAQ00006 .. GearRing 2 1 #0037
XKAQ00172 .. GearRing 1 #0038 #1274 D
5 XKAQ00022 .. GearPlanet 2 3 #1274
6 XKAQ00012 .. Gear2 Sun 1 #1274
7 XKAQ00008 .. GearRing 1 1 #1274
8 XKAQ00024 .. GearPlanet 1 3 #0037
XKAQ00137 .. GearPlanet 1 3 #0038 #1274 D
9 XKAQ00009 .. Gear1 Sun 1 #1274
10 XKAQ00016 .. Carrier 1 #1274
* XKAQ00021 .. Pin Assy No.2 3 #0001 #1274
N11 XKAQ00060 ... Pin Assy2 3 #1274
N32 XKAQ00046 ... Bushing 2 3 #1274
12 XKAQ00059 .. WasherThrust 6 #1274
13 XKAQ00058 .. ButtonThrust 1 #1274
14 XKAQ00019 .. Pin 1 3 #0037
XKAQ00136 .. Pin Assy 1 3 #0038 #1274 D
15 XKAQ00057 .. PlateSide 1 3 #1274
16 XKAQ00056 .. Magnet 6 #1274
17 XKAQ00055 .. PlateSide 3 1 #1274
18 XKAQ00034 .. BarGauge 1 #1274
19 XKAQ00035 .. PipeGauge 1 #1274
20 XKAQ00108 .. RingSpacer 1 #0009
XKAQ00111 .. RingSpacer 1 #0010 #1274 D
21 XKAQ00053 .. PinKnock 4 #0037
XKAQ00053 .. PinKnock 2 #0038 #1274 A
22 XKAQ00028 .. BearingRoller 1 #1274
24 XKAQ00030 .. CageNeedle 3 #0037
25 XKAQ00052 .. BoltSocket 16 #1274
27 XKAQ00033 .. SealOil 1 #0037
XKAQ00138 .. SealOil 1 #0038 #0358 B
XKAQ00280 .. SealOil 1 #0359 #0800 B
XKAQ00330 .. SealOil 1 #0801 #1274 D
28 XKAQ00050 .. PinSpring 3 #1274
29 XKAQ00049 .. Plug 1 #1274
30 XKAQ00048 .. PinSpring 3 #1274
31 XKAQ00047 .. RingStop 1 #1274
33 XKAQ00045 .. RingStop 1 #1274
34 XKAQ00044 .. WasherLock 2 #0037
XKAQ00292 .. WasherLock 1 #0038 #1274 D
35 XKAQ00105 .. GearPinion 1 #1274
36 XKAQ00043 .. PlateLock 1 #0037
XKAQ00296 .. PlateLock 1 #0038 #1274 D
37 XKAQ00042 .. BoltHex 4 #0037
XKAQ00042 .. BoltHex 2 #0038 #1274 A
38 XKAQ00041 .. RingStop 3 #1274
39 XKAQ00040 .. PlateSide 2 3 #1274
40 XKAQ00109 .. Circlip 1 #1274
41 XKAQ00110 .. VSeal 1 #0038 #1274
42 XKAQ00143 .. Air Breather Assy 1 #0120 #1274 B
N @ Not Supplied Parts 1 #1274
Print this!
1/1
*2 31N910180 . Swing Reduction Gear 1 #1275 #1812 D

31N910181 . Swing Reduction Gear 1 #1813 B
1 XKAQ00427 .. Casing 1 #1275
2 XKAQ00428 .. ShaftDrive 1 #1275 #1812
XKAQ00759 .. ShaftDrive 1 #1813 B
4 XKAQ00119 .. SealOil 1 #1275
6 XKAQ00429 .. Carrier Assy2 1 #1275
7 XKAQ00430 ... Carrier2 1 #1275
8 XKAQ00431 ... GearPlanet2 4 #1275
9 XKAQ00432 ... Pin Assy2 4 #1275
N10 XKAQ00433 .... Pin2 1 #1275
N11 XKAQ00434 .... Bushing2 1 #1275
12 XKAQ00435 ... WasherThrust 8 #1275
13 XKAQ00050 ... PinSpring 4 #1275
14 XKAQ00436 .. GearSun2 1 #1275
16 XKAQ00438 .. Carrier1 1 #1275
17 XKAQ00439 .. GearPlanet1 4 #1275
18 XKAQ00440 .. Pin Assy 1 4 #1275
N19 XKAQ00441 .. Pin 1 1 #1275
N20 XKAQ00079 .. Bushing 1 1 #1275
21 XKAQ00417 .. Plate 1Side 4 #1275
22 XKAQ00416 .. Plate 2Side 4 #1275
23 XKAQ00041 .. RingStop 4 #1275
24 XKAQ00048 .. PinSpring 4 #1275
25 XKAQ00442 .. GearSun1 1 #1275
26 XKAQ00444 .. GearRing 1 #1275
27 XKAQ00443 .. PlateCover 1 #1275
28 XKAQ00445 .. Spacer 1 #1275 #1812
XKAQ00758 .. Spacer 1 #1813 B
30 XKAQ00072 .. PinKnock 2 #1275
31 XKAQ00447 .. Plate 3Thrust 1 #1275
33 XKAQ00043 .. PlateLock 1 #1275 #1812
XKAQ00757 .. PlateLock 1 #1813 B
34 XKAQ00064 .. BoltHex 8 #1275
35 XKAQ00042 .. BoltHex 2 #1275 #1812
XKAQ00756 .. BoltHex 4 #1813 B
36 XKAQ00292 .. WasherLock 1 #1275 #1812
38 XKAQ00049 .. Plug 1 #1275
39 XKAQ00066 .. Plug 2 #1275
40 XKAQ00167 .. PipeGauge 1 #1275
41 XKAQ00450 .. BarGage 1 #1275
42 XKAQ00143 .. PostAir Breather 1 #1275
Print this!
1/1
* @ Swing Motor Assy 1 #2881 SEE 4105

*2 31N910281 . Swing Reduction Gear 1 #2881
1 XKAQ00427 .. Casing 1 #2881
2 XKAQ00759 .. ShaftDrive 1 #2881
4 XKAQ00119 .. SealOil 1 #2881
7 XKAQ00430 .. Carrier2 1 #2881
9 XKAQ00432 .. Pin Assy2 4 #2881
N10 XKAQ00433 .. Pin2 1 #2881
N11 XKAQ00434 .. Bushing2 1 #2881
12 XKAQ00435 .. WasherThrust 8 #2881
13 XKAQ00050 .. PinSpring 4 #2881
14 XKAQ00436 .. GearSun2 1 #2881
16 XKAQ00438 .. Carrier1 1 #2881
18 XKAQ00440 .. Pin Assy1 4 #2881
N19 XKAQ00441 .. Pin1 1 #2881
N20 XKAQ00079 .. Bushing1 1 #2881
21 XKAQ00417 .. PlateSide 1 4 #2881
22 XKAQ00416 .. PlateSide 2 4 #2881
23 XKAQ00041 .. RingStop 4 #2881
24 XKAQ00048 .. PinSpring 4 #2881
25 XKAQ00442 .. GearSun1 1 #2881
26 XKAQ00444 .. GearRing 1 #2881
27 XKAQ00443 .. PlateCover 1 #2881
28 XKAQ00758 .. Spacer 1 #2881
30 XKAQ00072 .. PinKnock 2 #2881
31 XKAQ00447 .. PlateThrust3 1 #2881
33 XKAQ00757 .. PlateLock 1 #2881
34 XKAQ00064 .. BoltHex 8 #2881
35 XKAQ00756 .. BoltHex 4 #2881
37 XKAQ00049 .. Plug 1 #2881
38 XKAQ00066 .. Plug 2 #2881
39 XKAQ00800 .. Air Breather Assy 1 #2881
N40 XKAQ00631 .. Bushing2 4 #2881
Print this!
1/1
* 31N940010 Track Motor 1 #0455

*1 XJCK00123 . Travel Motor Unit 1 #0006
XJCK00139 . Travel Motor Unit 1 #0007 #0455 A
27 XJCK00045 .. Casing 1 #0455
28 XJCK00122 .. CoverRear 1 #0455
29 XJCK00121 .. BlockCylinder 1 #0455
30 XJCK00042 .. RetainerShoe 1 #0455
31 XJCK00041 .. PlateFriction 4 #0455
32 XJCK00040 .. PistonBrake 1 #0455
33 XJCK00039 .. PlateSeparating 5 #0455
34 XJCK00120 .. PlateValve 1 #0455
35 XJCK00037 .. Shaft 1 #0455
36 XJCK00036 .. Coupling 1 #0455
N37 XJCK00035 .. PlateSwash 1 #0455
N38 XJCK00034 .. Pivot 2 #0455
39 XJCK00077 .. HolderSpring 1 #0001 #0455
40 XJCK00119 .. Piston Assy 9 #0455
41 XJCK00031 .. DRing 1 #0455
42 XJCK00030 .. DRing 1 #0455
43 XJCK00029 .. ValveCheck 3 #0455
44 XJCK00028 .. RingRetainer 1 #0455
45 XJCK00027 .. RingRetainer 1 #0455
N46 XJCK00026 .. Shim 1 #0455
47 XJCK00025 .. Piston 1 #0455
48 XJCK00024 .. Ball 1 #0455
49 XJCK00023 .. JointBall 1 #0455
50 XJCK00022 .. SealPiston 1 #0455
51 XJCK00021 .. Restrictor 1 #0455
52 XJCK00020 .. Restrictor 1 #0455
53 XJCK00019 .. SealOil 1 #0455
54 XJCK00018 .. SpringCheck Vlv 3 #0455
55 XJCK00017 .. SpringCylinder 9 #0455
56 XJCK00016 .. SpringBrake 12 #0455
57 XJCK00015 .. Bearing 1 #0455
58 XJCK00014 .. Bearing 1 #0455
59 XJCK00013 .. ScrewCap 10 #0455
60 XJCK00012 .. PinParallel 1 #0455
61 XJCK00011 .. ORing 3 #0455
62 XJCK00010 .. ORing 2 #0455
63 XJCK00009 .. ORing 3 #0455
64 XJCK00008 .. ORing 1 #0455
65 XJCK00007 .. ORing 1 #0455
66 XJCK00137 .. Relief Valve 2 #0455
67 XJCK00005 .. Pilot Valve 1 #0455
68 XJCK00118 .. ValveBrake 1 #0455
69 XJCK00003 .. Plug 2 #0455 235541661880
70 XJCK00001 .. ORing 2 #0455 0401100011010
71 XJCK00076 .. PlugExpander 1 #0001 #0455
72 XJCK00075 .. Plug 4 #0001 #0455
73 XJCK00074 .. Plug 1 #0001 #0455
N*2 XJCK00136 . T/Reduction Gear 1 #0455
Print this!
1/1
* 31N940020BG Track Motor Assy 1 #0456 #1045 D

31N940021BG Track Motor Assy 1 #1046 #1796 B
31N940022 Track Motor Assy 1 #1797 #1856 D
31N940023 Track Motor Assy 1 #1857 #3222 A
31N940024 Travel Unit 1 #3223 #3549 A
31N940025 Travel Unit 1 #3550 B
*1 31N940030BG . Travel Motor 1 #0456 #1045
31N940031BG . Travel Motor 1 #1046 #1796 D
31N940032 . Travel Motor 1 #1797 #3222 D
31N940033 . Travel Motor 1 #3223 B
1 XKAY00197 .. CasingShaft 1 #0456 #1045
XKAY00962 .. CasingShaft 1 #1046 #3222 D
XKAY02052 .. CasingShaft 1 #3223 D
3 XKAY00199 .. ScrewOrifice 1 #0456
4 XKAY00200 .. ScrewOrifice 1 #0456
5 XKAY00201 .. PinSupport 2 #0456
6 XKAY00202 .. PinBrake 4 #0456
7 XKAY00203 .. Stopper(S) 1 #0456
8 XKAY00204 .. ORing 4 #0456
9 XKAY00205 .. RingBack Up 3 #0456
10 XKAY00206 .. PistonSwash 1 #0456
11 XKAY00207 .. Shaft 1 #0456
12 XKAY00208 .. SpacerBearing 1 #0456
13 XKAY00209 .. BearingRoller 1 #0456
14 XKAY00210 .. RingStop 1 #0456
* XKAY00211 .. Support Kit 1 #0456
N15 XKAY00212 .. Support 1 #0456
N16 XKAY00213 .. PlateSwash 1 #0456
17 XKAY00214 .. PistonSwash 1 #0456
18 XKAY00215 .. Stopper(L) 1 #0456
19 XKAY00216 .. ORing 1 #0456
* XKAY00218 .. Rotary Kit 1 #0456 #1796
XKAY01510 .. Rotary Kit 1 #1797 #2149 B
XKAY00218 .. Rotary Kit 1 #2150 B
*1 XKAY00219 ... Cylinder Block Kit 1 #0456 #1796
XKAY01509 ... Cylinder Block Kit 1 #1797 #2149 B
XKAY00219 ... Cylinder Block Kit 1 #2150 B
N21 XKAY00220 .... BlockCylinder 1 #0456 #1796
XKAY01504 .... BlockCylinder 1 #1797 #2149 D
XKAY00220 .... BlockCylinder 1 #2150 D
22 XKAY00221 .... SpringCylinder 9 #0456
23 XKAY00222 .... Spacer 1 #0456
67 XKAY00268 .... PlateValve 1 #0456 #1796
XKAY01505 .... PlateValve 1 #1797 #2149 D
XKAY00268 .... PlateValve 1 #2150 D
*2 XKAY00223 ... Retainer Kit 1 #0456
24 XKAY00224 .... GuideBall 1 #0456
25 XKAY00225 .... SetPlate 1 #0456
*3 XKAY00226 ... Piston Kit 1 #0456
N26 XKAY00227 .... Piston & Shoe Assy 9 #0456
27 XKAY00228 .. PlateFriction 2 #0456
28 XKAY00229 .. PlateSeparator 1 #0456
29 XKAY00230 .. RingPiston 1 #0456
30 XKAY00231 .. RingPiston 252 1 #0456
31 XKAY00232 .. RingPiston 278 1 #0456
32 XKAY00233 .. SpringBrake 10 #0456
33 XKAY01416 .. CasingValve 1 #0456 #1796
XKAY01506 .. CasingValve 1 #1797 D
34 XKAY00235 .. BearingNeedle 1 #0456
35 XKAY00236 .. ORing 1 #0456
36 XKAY00237 .. PinValve Plate 2 #0456
* XKAY00238 .. Spool KitC/Blc Valve 1 #0456
37 XKAY00239 ... SpoolC/Blc Valve 1 #0456
38 XKAY00240 ... ScrewOrifice 2 #0456
39 XKAY00241 .. Damping Check Assy 2 #0456
40 XKAY00242 .. SpringC/Blc Valve 2 #0456
41 XKAY00247 .. ORing 2 #0456
42 XKAY00244 .. PlungerC/Blc Valve 2 #0456
43 XKAY00245 .. SpringCheck 2 #0456
44 XKAY00246 .. StopperCheck 2 #0456
45 XKAY00247 .. ORing 4 #0456

47 XKAY00249 .. CapC/Blc Valve(R) 1 #0456
48 XKAY00250 .. CapC/Blc Valve(L) 1 #0456
49 XKAY00136 .. BoltSocket 8 #0456
51 XKAY00252 .. Seat 2 #0456
52 XKAY00253 .. BallSteel 2 #0456
53 XKAY00254 .. Stopper 2 #0456
54 XKAY00255 .. PlugHp 7 #0456
55 XKAY00256 .. ORing 7 #0456
56 XKAY00257 .. PlugHp 2 #0456
57 XKAY00672 .. Relief Valve Assy 2 #0456
58 XKAY00259 .. ORing 2 #0456
60 XKAY00261 .. RodSwash 1 #0456
61 XKAY00262 .. ORing 1 #0456
62 XKAY00263 .. ScrewLock 1 #0456
63 XKAY00279 .. NutHex 2 #0456
64 XKAY00265 .. SpoolSwash 1 #0456
65 XKAY00266 .. Plug 1 #0456
66 XKAY00267 .. ORing 1 #0456
68 XKAY00269 .. SpringSwash 1 #0456
69 XKAY00270 .. ORing 3 #0456
72 XKAY00273 .. ScrewLock 1 #0456
73 XKAY00274 .. SealOil 1 #0456
74 XKAY00275 .. RingLock 1 #0456
75 XKAY02056 .. Name Plate 1 #0456
76 XKAY00277 .. Rivet 2 #0456
K XKAY00278 Seal Kit 1 #0456 SEE ILLUST
*2 @ . T/Reduction Gear 1 #0456
Print this!
1/1
N*2 XJCK00136 . T/Reduction Gear 1 #0006

XJCK00081 . T/Reduction Gear 1 #0007 #0452
1 XJCK00135 .. Cover 1 #0006
XJCK00080 .. Cover 1 #0007 #0455 D
2 XJCK00134 .. Carrier 1 #0006
XJCK00141 .. Carrier 3 #0007 #0455 D
3 XJCK00133 .. PinCarrier 3 #0006
XJCK00142 .. PinCarrier 3 #0007 #0455 D
4 XJCK00068 .. BearingNiddle 3 #0455
5 XJCK00132 .. WasherThrust 6 #0455
6 XJCK00131 .. Planetary 3 #0455
7 XJCK00065 .. PinSpring 3 #0455
8 XJCK00064 .. PlateThrust 1 #0455
9 XJCK00130 .. GearSun 1 #0455
10 XJCK00129 .. GearSun 1 #0455
11 XJCK00128 .. Carrier 2 1 #0455
12 XJCK00060 .. PinCarrier 3 #0455
13 XJCK00059 .. BearingNiddle 3 #0455
14 XJCK00079 .. Planetary 3 #0001 #0455
15 XJCK00057 .. PinSpring 3 #0455
16 XJCK00126 .. WasherThrust 6 #0455
17 XJCK00125 .. GearRing 1 #0006
XJCK00078 .. GearRing 1 #0007 #0455 D
18 XJCK00124 .. Housing 1 #0455
19 XJCK00053 .. Bearing 2 #0455
20 XJCK00052 .. Shim 1 #0455
21 XJCK00051 .. WasherLock 2 #0455
22 XJCK00050 .. SupportRing 1 #0455
23 XJCK00049 .. SealFloating 1 #0455
24 XJCK00048 .. ScrewCap 18 #0455
25 XJCK00047 .. ScrewCap 25 #0455
26 XJCK00002 .. ScrewCap 2 #0455
Print this!
1/1
*2 31N840070BG . T/Reduction Gear 1 #0456 #1045 D

31N840071BG . T/Reduction Gear 1 #1046 #1856 D
31N840072 . T/Reduction Gear 1 #1857 #3222 B
31N840073 . T/Reduction Gear 1 #3223 #3549 D
31N840074 . T/Reduction Gear 1 #3550 B
2 XKAQ00173 .. SealFloating 1 #0456 #3222
XKAQ00803 .. SealFloating 1 #3223 A
3 XKAQ00174 .. Housing 1 #0456 #3222
XKAQ00802 .. Housing 1 #3223 D
4 XKAQ00175 .. BearingAngular 2 #0456
XKAQ00175AS .. BearingAngular 2 #0456 FOR AS ONLY
5 XKAQ00176 .. Shim 1 #0456 STD
XKAQ00992 .. Shim 1 #0456 0.5T
XKAQ00993 .. Shim 1 #0456 0.9T
XKAQ00994 .. Shim 1 #0456 1.0T
XKAQ00995 .. Shim 1 #0456 1.2T
6 XKAQ00177 .. Retainer 1 #0456
7 XKAQ00178 .. BoltWrench 17 #0456
8 XKAQ00179 .. Carrier AssyNo.3 1 #0456 #0890
XKAQ00398 .. Carrier 3 Assy 1 #0891 #3549 B
XKAQ00965 .. Carrier 3 Assy 1 #3550 B
81 XKAQ00180 ... CarrierNo.3 1 #0456 #0890
XKAQ00396 ... Carrier 3 1 #0891 #3549 B
XKAQ00966 ... Carrier 3 1 #3550 B
82 XKAQ00181 ... GearPlanetary No.3 4 #0456 #0890
XKAQ00389 ... Gear 3Planetary 4 #0891 B
83 XKAQ00182 ... NeedleNo.3 72 #0456 #0890
XKAQ00390 ... Needle 3 72 #0891 B
84 XKAQ00183 ... WasherThrust No.3 8 #0456 #0890
XKAQ00391 ... Washer 3Thrust 8 #0891 B
85 XKAQ00184 ... Pin 3 4 #0456
86 XKAQ00185 ... Pin 3Spring 4 #0456 #3549
XKAQ00967 ... Pin 3Spring 4 #3550 B
87 XKAQ00186 ... Gear 3Sun 1 #0456
88 XKAQ00187 ... Ring 3Snap 1 #0456
89 XKAQ00651 ... Pin 3Spring 4 #1730 #3549
XKAQ00399 .. Carrier Assy 2 1 #0891 #3549 B
XKAQ00969 .. No2 Carrier Ass'Y 1 #3550 B
91 XKAQ00189 ... CarrierNo.2 1 #0456 #0890
XKAQ00397 ... Carrier 2 1 #0891 #3549 B
XKAQ00970 ... No2 Carrier 1 #3550 B
92 XKAQ00190 ... GearPlanetary No.2 3 #0456 #0890
XKAQ00392 ... Gear 2Planetery 3 #0891 B
93 XKAQ00191 ... NeedleNo.2 45 #0456 #0890
XKAQ00393 ... Needle 2 45 #0891 B
95 XKAQ00193 ... Pin 2 3 #0456
96 XKAQ00194 ... Pin 2Spring 6 #0456 #3549
97 XKAQ00195 ... Gear 2Sun 1 #0456
98 XKAQ00196 ... Ring 2Snap 1 #0456
99 XKAQ00650 ... Pin 2Srping 6 #1730
XKAQ00400 .. Carrier 1 Assy 1 #0891 B
101 XKAQ00198 ... Carrier 1 1 #0456
102 XKAQ00199 ... Gear 1Planetary 3 #0456
103 XKAQ00200 ... BearingNeedle 3 #0456
105 XKAQ00202 ... Pin 1 3 #0456
11 XKAQ00203 .. Gear 1Sun 1 #0456
12 XKAQ00204 .. Plug 3 #0456
13 XKAQ00205 .. PinLock 4 #0456
14 XKAQ00206 .. GearRing 1 #0456 #1856
XKAQ00762 .. GearRing 1 #1857 B
16 XKAQ00208 .. RingThrust 1 #0456
17 XKAQ00209 .. Cover 1 #0456 #3549
XKAQ00973 .. Cover 1 #3550 B

18 XKAQ00210 .. Ring 2Thrust 1 #0456
20 XKAQ00212 .. MotorRing 1 #0456
21 XKAQ00213 .. Ring 3Thrust 1 #0456
22 XKAQ00214 .. Pad 1 #0456
23 XKAQ00215 .. Coupling 1 #0456
24 XKAQ00216 .. Name Plate 1 #0456
Print this!
1/1
* 31N820200 Rcv Sub AssyLh 1 #0001 #0215

31N824200 Rcv Sub AssyLh 1 #0216 D
31N820210 Rcv Sub AssyRh 1 #0001 #0215
31N824210 Rcv Sub AssyRh 1 #0216 D
*1 31N620061 . Rcv LeverLh 1
31N620071 . Rcv LeverRh 1
1 XKAY00077 .. Case 1 J95C1001
2 XKAY00065 .. Plug 4 WPT18
3 XKAY00064 .. Plug 1 J95C1002
K4 XKAY00063 .. ORing 1
*1 XKAY00615 .. Spool Kit 4 #0001
5 XKAY00062 ... Spool 4 J95C1003
6 XKAY00061 ... Shim 4 J95C1004
7 XKAY00060 ... Spring 4
8 XKAY00059 ... SeatSpring 4 J96C1009
9 XKAY00058 ... Stopper 4 4SET
10 XKAY00078 .. Spring 4
11 XKAY00056 .. Plug 4 #0383 J95C1008
K12 XKAY00055 .. SealRod 4 #0383 RSY10
K13 XKAY00054 .. ORing 4 #0383
14 XKAY00052 .. RodPush 4 #0383 J95C1009
*2 XKAY00608 .. Plug Kit(1,3) 1 #0384
11 XKAY00610 ... Plug 1 #0384 D
K12 XKAY00611 ... SealRod 1 #0384 D
K13 XKAY00054 ... ORing 1 #0384 A
14 XKAY00052 ... RodPush 1 #0384 A
15 XKAY00075 .. Plate 1 JA1G1002
16 XKAY00074 .. Bushing 1 JA1G1003
17 XKAY00049 .. Joint Assy 1 J95C1012
18 XKAY00073 .. Swash Plate 1 JA1G1004
19 XKAY00047 .. NutHex 1 J95C1014
20 XKAY00046 .. Nut 1 HNM141
*3 XKAY00617 .. Handle Kit(L) 1 #0001
XKAY00616 .. Handle Kit(R) 1 #0001
21 XKAY00044 ... ConnectorHandle 1 J97H2001
K22 XKAY00045 ... ORing 1
23 XKAY00043 ... Nut 1 HNM122
24 XKAY00042 ... Insert 1
25 XKAY00041 ... Boot 1 J97H2003
N26 XKAY00040 ... HandleLh 1
XKAY00076 ... HandleRh 1
27 XKAY00039 ... Switch Assy 1 1SET
28 XKAY00038 ... Screw 1 SAM10308
29 XKAY00037 ... Switch Assy 1
30 XKAY00036 ... CoverSwitch 1
40 XKAY00072 ... Boot 1 J97A5018
41 P010110012 . Connector 5 #0215
X500110011 . ConnectorOrfs 5 #0216 D
42 31EK20110 . FilterLast Guard 1 #0215
31N625070 . FilterLast Guard 1 #0216 D
43 S631011004 . ORing 6
44 S621012001 . ORing 6 #0216
K 91ER20050 Seal Kit 1 #0383 SEE ILLUST
K 91ER20051 Seal Kit 1 #0384 D
N @ Not Individually Supplied 1
Print this!
1/1
* 31N827200 Rcv Lever Sub AssyLh 1 #0902 AUSTR/NEWZL

31N827210 Rcv Lever Sub AssyRh 1 #0902 AUSTR/NEWZL
*1 31N620061 . Rcv LeverLh 1 #0902
31N620071 . Rcv LeverRh 1 #0902
1 XKAY00766 .. Case 1 #0902
2 XKAY00065 .. Plug 4 #0902
3 XKAY00768 .. Bushing 1 #0902
*1 XKAY00769 .. Spool Kit(1,3) 1 #0902
XKAY00770 .. Spool Kit(2,4) 1 #0902
N4 XKAY00771 ... Spool 4 #0902
N5 XKAY00772 ... Shim #0902
N6 XKAY00773 ... Spring(1,3) 2 #0902
N7 XKAY00774 ... Spring Seat(1,3) 2 #0902
8 XKAY00058 ... Stopper 4 #0902
N13 XKAY00781 ... Spring(2,4) 2 #0902
N14 XKAY00782 ... Spring Seat(2,4) 2 #0902
9 XKAY00775 .. Spring 4 #0902
*2 XKAY00776 .. Plug Kit(1,3) 1 #0902
XKAY00777 .. Plug Kit(2,4) 1 #0902
10 XKAY00778 ... Stopper(1,3) 2 #0902
11 XKAY00779 ... Spring 4 #0902
12 XKAY00780 ... Push Rod 4 #0902
N15 XKAY00783 ... Stopper(2,4) 2 #0902
16 XKAY00784 ... Plug 4 #0902
K17 XKAY00438 ... ORing 4 #0902
K18 XKAY00611 ... SealRod 4 #0902
19 XKAY00075 .. Plate 1 #0902
20 XKAY00786 .. Boot 1 #0902
21 XKAY00049 .. Joint Assy 1 #0902
22 XKAY00787 .. Swash Plate 1 #0902
23 XKAY00047 .. NutHex 1 #0902
*3 XKAY00788 .. Handle KitRh 1 #0902
XKAY00789 .. Handle KitLh 1 #0902
N24 XKAY00790 ... Nut 1 #0902
25 XKAY00330 ... HandleRh 1 #0902
XKAY00328 ... HandleLh 1 #0902
26 XKAY00044 ... ConnectorHandle 1 #0902
27 XKAY00043 ... Nut 1 #0902
28 XKAY00041 ... Boot 1 #0902
29 XKAY00327 ... Insert 1 #0902
30 XKAY00039 ... Switch Assy 1 #0902
31 XKAY00038 ... Screw 1 #0902
32 XKAY00037 ... Switch Assy 1 #0902
33 XKAY00036 ... CoverSwitch 1 #0902
34 XKAY00074 .. Bushing 1 #0902
41 X500110002 . ConnectorOrfs 5 #0902
42 31N625070 . FilterLast Guard 1 #0902
43 S631011004 . ORing 6 #0902
44 S621012001 . ORing 6 #0902
K XKAY00791 Seal Kit 1 #0902 SEE ILLUST
N @ Not Individually Supplied #0902
Print this!
1/1
* 31N620020 Rcv Pedal 1

1 XKAY00035 . Body(1) 1
2 XKAY00034 . Body(2) 1
3 XKAY00033 . Plug 4
4 XKAY00032 . Plug 2 WPT38
5 XKAY00031 . SeatSpring 4
6 XKAY00030 . Spring 4
7 XKAY00029 . SeatSpring 4 J24D2008
8 XKAY00028 . Spool 4
9 XKAY00027 . Stopper 4
11 XKAY00025 . GuideRod 4
12 XKAY00024 . ORing 4
13 XKAY00069 . RingSnap 4
14 XKAY00023 . RodPush 4
15 XKAY00022 . PinSpring 4
16 XKAY00021 . Seal 4
17 XKAY00020 . BallSteel 4
19 XKAY00068 . Plate 4
20 XKAY00018 . RingSnap 4
21 XKAY00017 . Plug 4
23 XKAY00067 . SealRod 4
24 XKAY00014 . SealDust 4
25 XKAY00013 . Cover 4
26 XKAY00012 . BoltWrench 4
27 XKAY00011 . Cam 2 J24D2005
28 XKAY00010 . Bushing 4 DU1010
29 XKAY00009 . ShaftCam 2 J24D2016
30 XKAY00008 . ScrewSet 2
31 XKAY00007 . ScrewSet 4 J24D2015
32 XKAY00006 . NutHex 4 HNM10
33 XKAY00005 . Bellows 2 J24D2006
34 XKAY00004 . Spacer 1
37 XKAY00001 . BoltSocket 4
Print this!
1/1
* 31N640021 Turning Joint 1

1 31N640910 . Hub 1
2 31N640920 . Shaft 1
3 31N240930 . Cover 1
4 31E30035 . Spacer 1
5 31E30036 . Shim 1
6 31E30037 . Shim 1
K7 31N640990 . SealSlipper 6
K8 S631112001 . ORing 1
K9 S631100004 . ORing 1
K10 S632120004 . ORing 1
K11 Y320100011 . RingWear 2
12 S601090004 . RingRetaining 1
13 P220430205 . PlugHex 4
14 S017120356 . BoltHex 4
K 31N640950 Seal Kit 1 SEE ILLUST
Print this!
1/1
* 31N950121 Cylinder Ass'Y,Lh 1 #1364

31N950122 Boom Cyl/D Ass'Y 1 #1365 B
31N950111 Cylinder Ass'Y,Rh 1 #1364
31N950112 Boom Cyl/D Ass'Y 1 #1365 B
*1 31Y119041 . Boom Cylinder Sub 1 #1364 WITHOUT PIPE
31Y119042 . Cylinder W/O Pipe 1 #1365 B WITHOUT PIPE
1 31Y120930 .. Tube Assy 1
2 31Y120980 .. Rod Assy 1 #1364
31Y120981 .. Rod Ass'Y 1 #1365 B
3 31Y121010 .. Gland 1
4 S732105045 .. Dd2 Bush 1
5 Y191112000 .. RingSnap 1
K6 Y220105011 .. SealRod 1
K7 Y180105120 .. RingBack Up 1
K8 Y240105013 .. RingBuffer 1
K9 Y110105011 .. WiperDust 1
10 Y190121000 .. RingSnap 1
K11 S631140004 .. ORing 1
K12 S641140003 .. RingBack Up 1
13 31YC23060 .. RingCushion 1
14 31Y108780 .. Piston 1
K15 S632090004 .. ORing 1
K16 S642090003 .. RingBack Up 2
K17 Y420150000 .. SealPiston 1
K18 Y310150100 .. RingWear 2
K19 Y440150000 .. RingDust 2
20 31YC66071 .. WasherLock 1
21 31YC61153 .. NutLock 1 #1364
31YC61154 .. NutLock 1 #1365 D
22 S109200904 .. BoltSocket 12
28 31YC11405 .. Bushing 2
29 Y000100100 .. SealDust 4 #0001
30 S114080184 .. ScrewSet,Hex Soc Hdl… 1 #1365
23 31Y121021 . Band Ass'Y,Lh 1
31Y121031 . Band Ass'Y,Rh 1
231 31Y121041 .. Band Sub Ass'Y,Lh 1
31Y121051 .. Band Sub Ass'Y,Rh 1
232 31YC32240 .. Band 1
233 S015120452 .. BoltHex 4
234 S411120002 .. WasherSpring 4
235 S071023430 .. UBolt 2
236 S201101002 .. NutHex 4
24 31Y121061 . Pipe Ass'YR,Lh 1
31Y121071 . Pipe Ass'YR,Rh 1
25 31Y119171 . Pipe AssyLh 1
31Y119181 . Pipe AssyRh 1
K26 Y171024004 . ORing 2
27 S107120554 . BoltSocket 8
K 31Y121100 Seal Kit 1 SEE ILLUST
Print this!
1/1
* 31N950130 Arm Cylinder Assy 1 #1364

31N950131 Arm Cylinder Assy 1 #1365 #2529 B
*1 31Y119050 . Arm Cylinder Sub 1 #1364 WITHOUT PIPE
31Y119051 . Arm Cylinder Sub 1 #1365 #2529 D WITHOUT PIPE
1 31Y119210 .. Tube Assy 1 #2529
2 31Y119230 .. Rod Assy 1 #0001 #2529
N20 @ ... SpearCushion 1 #0001 #2529
N21 @ ... ValveCheck 1 #0001 #2529
N22 @ ... SpringCoil 1 #0001 #2529
N23 @ ... RingStop 1 #0001 #2529
3 31Y119190 .. Gland 1 #2529
4 S732110045 .. BushingDd2 1 #2529
5 Y191117000 .. RingSnap 1 #2529
K6 Y220110011 .. SealRod 1 #2529
K7 Y180110020 .. RingBack Up 1 #2529
K8 Y240110013 .. RingBuffer 1 #2529
K9 Y110110011 .. WiperDust 1 #2529
10 Y190126000 .. RingSnap 1 #2529
K11 S631150004 .. ORing 1 #2529
K12 S641150003 .. RingBack Up 1 #2529
13 31YC23050 .. RingCushion 1 #2529
14 31Y108172 .. Piston 1 #2529
K15 S632095004 .. ORing 1 #2529
K16 S642095003 .. RingBack Up 2 #2529
K17 Y420160000 .. SealPiston 1 #2529
K18 Y310160200 .. RingWear 2 #2529
K19 Y440160002 .. RingDust 2 #2529
24 31YC66081 .. WasherLock 1 #2529
25 31YC61142 .. NutLock 1 #1364
31YC61144 .. NutLock 1 #1365 #2529 D
26 S109200904 .. BoltSocket 12 #2529
34 31YC11401 .. BushingPin 2 #2529
35 Y000100100 .. SealDust,Dli,Kpu 4 #0001 #2529
36 S114080204 .. ScrewSet 1 #1365 #2529
27 31Y119480 . Band Assy 1 #2529
271 31Y119490 .. Band Sub Assy 1 #2529
272 31YC31240 .. Band 1 #2529
273 S015120452 .. BoltHex 2 #2529
274 S411120002 .. WasherSpring 2 #2529
275 S071023430 .. UBolt 1 #2529
276 S201101002 .. NutHex 2 #2529
277 S411100002 .. WasherSpring 2 #2529
28 31Y108200 . Band AssyB 1 #2529
281 31Y108210 .. Band Sub AssyB 1 #2529
282 31YC32120 .. Band 1 #2529
283 S015120452 .. BoltHex 4 #2529
284 S411120002 .. WasherSpring 4 #2529
285 S071023430 .. UBolt 2 #2529
286 S201101002 .. NutHex 4 #2529
287 S411100002 .. WasherSpring 4 #2529
29 31Y119160 . Pipe AssyR 1 #2529
30 31Y108230 . Pipe AssyB 1 #2529
K31 Y171024004 . ORing 2 #2529
32 S107120554 . BoltSocket 4 #2529
33 S107100554 . BoltSocket 4 #2529
Print this!
1/1
* 31N950132 Arm Cylinder Assy 1 #2530 B

*1 31Y119052 . Arm Cyl Sub Assy 1 #2530 WITHOUT PIPE
1 31Y119211 .. Tube Assy 1 #2530
2 31Y119232 .. Rod Assy 1 #2530
3 31Y133051 .. Gland 1 #2530
4 S732110045 .. BushingDd2 1 #2530
5 Y191117000 .. RingSnap 1 #2530
K6 Y220110013 .. SealRod 1 #2530
K7 Y180110020 .. RingBack Up 1 #2530
K8 Y240110012 .. RingBuffer 1 #2530
K9 Y110110011 .. WiperDust 1 #2530
10 Y190126000 .. RingSnap 1 #2530
K11 S631150004 .. ORing 1 #2530
K12 31YCCP150 .. RingBack Up 1 #2530
13 31YC28105 .. RingCushion 1 #2530
14 31Y133090 .. Piston 2 #2530
K15 Y420160000 .. SealPiston 1 #2530
K16 Y310160203 .. RingWear 2 #2530
K17 Y440160102 .. RingDust 2 #2530
K18 S632085004 .. ORing 1 #2530
K19 31YCCG085 .. RingBack Up 2 #2530
20 31YC68060 .. NutLock 1 #2530
21 S114100164 .. ScrewSet 1 #2530
K22 31YC99H80 .. ORing 1 #2530
23 S109220904 .. BoltSocket 12 #2530
24 31YC11401 .. BushingPin 2 #2530
25 Y000100100 .. SealDust,Dli,Kpu 4 #2530
26 31YC2A060 .. ValveCheck 1 #2530
27 31YC99071 .. SpringCoil 1 #2530
K28 S631014004 .. ORing 1 #2530
29 P220110103 .. PlugHex 1 #2530
30 31Y133120 . Band AssyR 1 #2530
301 31Y133130 .. Band Sub Assy 1 #2530
302 31YC31530 .. Band 1 #2530
303 S015120452 .. BoltHex 2 #2530
304 S411120002 .. WasherSpring 2 #2530
305 S070053442 .. UBolt 1 #2530
306 S205101002 .. NutHex 2 #2530
307 S441100002 .. WasherHardened 2 #2530
31 31Y133140 . Band AssyB 1 #2530
311 31Y133150 .. Band Sub Assy 1 #2530
312 31YC31530 .. Band 1 #2530
313 S015120452 .. BoltHex 2 #2530
314 S411120002 .. WasherSpring 2 #2530
315 S070053442 .. UBolt 1 #2530
316 S205101002 .. NutHex 2 #2530
317 S411100002 .. WasherSpring 2 #2530
32 31Y133160 . Pipe AssyR 1 #2530
33 31Y108230 . Pipe AssyB 1 #2530
K34 Y171024004 . ORing 2 #2530
35 S107120554 . BoltSocket 4 #2530
36 S107100554 . BoltSocket Head 4 #2530
Print this!
1/1
* 31N960110 Bucket Cylinder Assy 1 #1364

31N960111 Bucket Cylinder Assy 1 #1365 B
*1 31Y119060 . Bucket Cylinder Sub 1 #1364 WITHOUT PIPE
31Y119061 . Bucket Cylinder Sub 1 #1365 D WITHOUT PIPE
1 31Y119370 .. Tube Assy 1
2 31Y119270 .. Rod Assy 1 #1364
31Y119271 .. Rod Assy 1 #1365 D
3 31Y115150 .. Gland 1
4 S732100040 .. BushingDd2 1
5 Y191107000 .. RingSnap 1
K6 Y220100011 .. SealRod,Iuh 1
K7 Y180100020 .. RingBack Up 1
K8 Y240100013 .. RingBuffer 1
K9 Y110100011 .. WiperDust 1
10 Y190114000 .. RingSnap 1
K11 S631130004 .. ORing 1
K12 S641130003 .. RingBack Up 1
13 31YC23040 .. RingCushion 1
14 31Y115160 .. Piston 1
K15 S632085004 .. ORing 1
K16 S642085003 .. RingBack Up 2
K17 Y420140000 .. SealPiston 1
K18 Y310140000 .. RingWear 2
K19 Y440140000 .. RingDust 2
20 31YC66061 .. WasherLock 1
21 31YC61133 .. NutLock 1 #1364
31YC61134 .. NutLock 1 #1365 D
22 S109180904 .. BoltSocket 12
29 31YC11390 .. BushingPin 2
30 Y000090000 .. SealDust 4 #0001
31 S112080164 .. ScrewSet Hex Socket 1 #1365
23 31Y119410 . Band Assy 2
231 31Y119420 .. Band Sub Assy 1
232 31YC31220 .. Band 1
233 S015120452 .. BoltHex 2
235 S071023430 .. UBolt 1
236 S201101002 .. NutHex 2
24 31Y119430 . Pipe AssyR 1
25 31Y108360 . Pipe AssyB 1
K26 Y171024004 . ORing 2
27 S107120554 . BoltSocket 4
28 S107100554 . BoltSocket Head 4
K 31Y119090 Seal Kit 1 SEE ILLUST
Print this!
1/1
* 31N820141 Solenoid Valve 1

1 31N820140BLOCK . Manifold 1
2 EDH044/320400 . ValveSolenoid 5
3 RC041/0.500 . ValveCheck 1
4 EDH04/27VHD . Coil 5
5 M0123 . OverloadManual 1
6 230.00.064.0 . Seal Kit 5
Print this!
1/1
1 81N810012 Sprocket 2 #0779

81N810013 Sprocket 2 #0780 #1118 B
81N810013BG Sprocket 2 #1119 D
5 81N819510 BoltSprocket 52 #0725
81E119650 BoltSprocket 52 #0726 #2925 B
81E119660 BoltSprocket 52 #2926 B
7 S017160952 BoltHex 8
8 S01720100A BoltHex 72
15 81N830010 Guard WaTrack 4 #1118
81N830010BG Guard WaTrack 4 #1119 D
16 S017200502 BoltHex 16
S441200006 WasherHardened 52 #2926 A
Print this!
1/1
* @ U/C MtgHigh Walker 2 #0008

1 81N836010BG T/Guard WaFr,Lh 2 #0008
2 81N836020BG T/Guard WaFr,Rh 2 #0008
3 81N836030BG T/Guard WaRr,Lh 2 #0008
4 81N836040BG T/Guard WaRr,Rh 2 #0008
5 S017240502 BoltHex 48 #0008
7 81N836130BG Spacer 12 #0008
8 S017243602 BoltHex 12 #0008
9 S207241002 NutHex 12 #0008
11 81N810012 Sprocket 2 #0008 #0779
81N810013 Sprocket 2 #0780 #1110 B
81N810013BG Sprocket 2 #1111 D
81N810070BG Sprocket 2 #1505 700MM, 2BAR
12 81N819510 BoltSprocket 52 #0008 #0725
81E119650 BoltSprocket 52 #0726 #2925 B
81E119660 BoltSprocket 52 #2926 B
13 S01720100A BoltHex 88 #0008
15 51N812110BG Cover WaT/Motor,Lh 1 #0008
16 51N812120BG Cover WaT/Motor,Rh 1 #0008
17 41N610100BG Cover 1 #0008
18 41E91306 10 Seal 1 #0008
19 S037102052 BoltW/Washer 2 #0008
20 S037123552 BoltW/Washer 8 #0008
21 51FD21011BG CoverBottom Wa 2 #0008
22 S037124552 BoltW/Washer 8 #0008
30 51N602640BG BoardFoot 4 #0008 700,710MM SHOE
51N602650BG BoardFoot 4 #0008 800MM SHOE
51N602660BG BoardFoot 4 #0008 900MM SHOE
31 S017120502 BoltHex 16 #0008
33 S207121002 NutHex 16 #0008
40 81N833010BG Guard WaTrack 4 #0008
Print this!
1/1
* 81N811010 RollerLower 18 #1118 STD

81N811010BG RollerLower 18 #1119 #1758 D STD
81N811011BG RollerLower 18 #1759 B STD
81N811010BG RollerLower 22 #1758 H/WALKER
81N811011BG RollerLower 22 #1759 B H/WALKER
81N811050 RollerLower 22 #1118 H/WALKER, DB
81N811050BG RollerLower 22 #1119 D H/WALKER, DB
1 81N811100 . Roller 1 #1758 STD, H/WALKER
81N811101 . RollerShell 1 #1759 B STD, H/WALKER
81N811100 . Roller 1 H/WALKER, DB
2 81N811110 . Shaft 1
3 81N811120 . Collar 2
4 81N811140 . Bushing 2
5 E18122030 . Seal Assy 2
N51 E18122080 .. Seal 4
N52 E18122090 .. ORing 4
6 81N811150 . Pin 2
7 81N811190 . ORing 2
8 81E52401 . Plug 1
Print this!
1/1
* 81E52003 30 RollerUpper 1 #1118

81E52003BG 30 RollerUpper 1 #1119 #1449 D
81E520031BG 30 RollerUpper 1 #1450 B
1 81E52301 10 . Roller Wa 1
2 81E52303 20 . Shaft 1
3 81E52305 10 . Bushing 1
4 81E52306 10 . Bushing 1
5 81E52302 10 . Cap 1
6 81E52307 20 . PlateThrust 1
7 81E52304 10 . Retainer 1
8 S632080001 . ORing 1
9 S632060001 . ORing 1
10 S601058001 . RingSnap 1
11 81E52312 10 . Pin 2
12 81E523090 . Seal Assy 1
N121 81E523100 .. Seal 2
N122 81E523110 .. ORing 2
13 81E52308 20 . PlateLock 1
14 S018100352 . BoltHex 6
16 E2822317 10 . Plug 1
Print this!
1/1
* 81N813010 Idler Assy 1 #1118

81N813010BG Idler Assy 1 #1119 #1961 D
81N813011BG Idler Assy 1 #1962 B
1 81N813100 . ShellIdler 1 #1961
81N813101 . ShellIdler 1 #1962 B
2 81N813120 . Bushing 2
3 81N813110 . ShaftIdler 1
4 S632085001 . ORing 2
5 81N813140 . Seal Assy 2
6 81N813130 . Bracket 2 #1961
81N813131 . Bracket 2 #1962 B
7 81N813180 . PinSpring 2
8 E2822407 20 . Plug 1
Print this!
1/1
* 81N826030 Track Chain Assy 1 #1110 600MM, INI

81N826030BG Track Chain Assy 1 #1111 #1884 D 600MM, INI
81N825030BG Track Chain Assy 1 #1433 #2788 600MM, KUT
81N826032BG Track Chain Assy 1 #2789 B 600MM, KUT
81N826040 Track Chain Assy 1 #1110 700MM, INI
81N827040 Track Chain Assy 1 #2788 700MM, 2BAR
81N827042BG Track Chain Assy 1 #2789 B 700MM, 2BAR
1 81N826600 . Track Link Assy 1
11 81N826100 .. Track LinkRh 48 #2788
81N826102 .. Track LinkRh 48 #2789 B
12 81N826110 .. Track LinkLh 48 #2788
81N826112 .. Track LinkLh 48 #2789 B
13 81N826140 .. Track PinRegular 47 #2788
81N826141 .. Track PinRegular 47 #2789 B
14 81N826150 .. BushingRegular 47 #2788
81N826151 .. Track BushRegular 47 #2789 B
15 81N826160 .. Track PinMaster 1 #2788
81N826161 .. Track PinMatster 1 #2789 B
16 81N826170 .. BushingMaster 1 #2788
81N826171 .. Track BushingMaster 1 #2789 B
17 81N826180 .. Spacer 2
18 81N826210 .. SealDust 94
1 81N827600 . Track Link Assy 1 700MM, 2BAR
11 81EH20111 .. Track LinkRh 47 #2788 700MM, 2BAR
81EH20111 .. Track LinkRh 48 #2789 A 700MM, 2BAR
12 81EH20121 .. Track LinkLh 47 #2788 700MM, 2BAR
81EH20121 .. Track LinkLh 48 #2789 A 700MM, 2BAR
13 81EH20150 .. Track PinRegular 47 700MM, 2BAR
14 81EH20170 .. BushingRegular 47 700MM, 2BAR
15 81EH20160 .. Track PinMaster 1 700MM, 2BAR
16 81EH20180 .. BushingMaster 1 700MM, 2BAR
17 81EH20190 .. Spacer 2 700MM, 2BAR
18 81EH20210 .. SealDust 94 700MM, 2BAR
19 81EH20131 .. Master LinkRh 1 #2788 700MM, 2BAR
110 81EH20141 .. Master LinkLh 1 #2788 700MM, 2BAR
111 81EH20200 .. PinClamping 1 #2788 700MM, 2BAR
K2 81N826610 . BoltTrack 192
81EH20020 . BoltTrack 192 700MM, 2BAR
K3 81N826620 . NutTrack 192
81EH20030 . NutTrack 192 700MM, 2BAR
4 81N826530 . ShoeTrack 48 #1110 600MM. INI
81N826530BG . ShoeTrack 48 #1111 #1884 D 600MM. INI
81N825530BG . ShoeTrack 48 #1433 #2788 600MM, KUT
81N826531 . ShoeTrack 48 #2789 D 600MM, KUT
81N826540 . ShoeTrack 48 #1110 700MM, INI
81N826540BG . ShoeTrack 48 #1111 #1884 D 700MM, INI
81N827540 . ShoeTrack 48 700MM, 2BAR
81N827540BG . ShoeTrack 48 #2788 700MM, 2BAR
81NB27542 . ShoeTrack 48 #2789 D 700MM, 2BAR
K 81N8T0000 Track Bolt & Nut Kit 192 #0001
K 81EHT0000 Track Bolt & Nut Kit 192 700MM, 2BAR

Print this!
1/1
* 81N815011 Adjust Component 2 #1118

81N815011BG Adjust Component 2 #1119 #1686 D
81N815012BG Adjust Component 2 #1687 #1961 B
81N815016BG Adjust Component 2 #3550 B
*1 81N814012 . T/Cylinder Assy 1 #1118
81N814012BG . T/Cylinder Assy 1 #1119 #1686 D
81N814016BG . T/Cylinder Assy 1 #3550 B
1 81N814300 .. Body Assy 1 #1686
81N814301 .. Body Assy 1 #1687 #2896 D
81N814302 .. Body Assy 1 #2897 #3373 D
81N814303 .. Body Assy 1 #3374 D
11 81N814100 ... Body 1 #1686 W/O PINHOLE
81N814101 ... Body 1 #1687 #2896 D W/O PINHOLE
81N814102 ... Body 1 #2897 #3373 D W/O PINHOLE
81N814103 ... Body 1 #3374 D W/O PINHOLE
12 81N814110 ... BarTie 1 #2896 W/O PINHOLE
81N814111 ... BarTie 1 #2897 #3373 D W/O PINHOLE
81N814112 ... BarTie 1 #3374 D W/O PINHOLE
13 81N814290 ... PinSpring 1
3 81N814120 .. Spring 1 #3373
81N814121 .. Spring 1 #3374 D
4 81N814130 .. Bracket 1 #1403
81N814131 .. BracketT/Cyl 1 #1404 #2896 B
81N814132 .. Bracket 1 #2897 #3549 D
81N814131 .. BracketT/Cyl 1 #3550 B
5 81E92015 10 .. NutLock 1 #1403
81E920151 .. NutLock 1 #1404 #2896 B
81E920152 .. NutLock 1 #2897 #3373 D
81E920153 .. NutLock 1 #3374 D
6 81E920160 .. PlateLock 1 #2896
81E920161 .. PlateLock 1 #2897 #3549 D
81E920160 .. PlateLock 1 #3550 B
7 S018120302 .. BoltHex 2
9 81E13104 20 .. PackingRod 1
10 81E13204 20 .. RingBack Up 1
11 81E13304 20 .. SealDust 1
12 81N814211 .. Rod 1
13 E1812013 30 .. ValveGrease 1 #2351
81N614240 .. ValveGrease 1 #2352 #3549 B
81Q614240 .. ValveGrease 1 #3550 B
14 81N814270 .. Tube 1 #2896
81N814271 .. Tube 1 #2897 D
15 S018160502 . BoltHex 4
*2 @ . Idler Assy 1 SEE 5040
Print this!
1/1
2 71N603551 StayCab 1 #0043

3 71N846000 Mirror 1 #0043
71N847000 Mirror & Stay AssyLh 1 #0044 #1118 D
71N847000BG Mirror & Stay AssyLh 1 #1119 #1423 D
71N847001BG Mirror & Stay AssyLh 1 #1424 B
71N847000BG Mirror & Stay AssyLh 1 #1111 #1423 UPGRADE CABIN
71N847001BG Mirror & Stay AssyLh 1 #1424 B
4 71E160340 HammerSafety 1
6 S017120656 BoltHex 8
10 S411100006 WasherSpring 4 #1867
11 S403102006 WasherPlain 4 #1867
12 S017100256 BoltHex 4 #1867
S037102526 BoltW/Washer 4 #1868 A
13 71N603560 RailHand 1
N14 71N610270 Plate 1 #1867
14 71N610271 Plate 1 #1868 B
15 S131051646 ScrewW/Washer 2 #1867
S037101526 BoltW/Washer 2 #1868 D
16 71N603632 Sun Visor Assy 1
161 S132060856 . ScrewW/Washer 4
Print this!
1/1
* 71N610001 Cab Assy 1 #0507 STD

71N610002 Cab Assy 1 #0508 #1110 A STD
71N610002BG Cab Assy 1 #1111 #1827 D STD
71N610003BG Cab Assy 1 #1828 D STD
73N610000 Cab Assy 1 #0162 #0507 FOG
73N610001 Cab Assy 1 #0508 #1110 A FOG
73N610001BG Cab Assy 1 #1111 #1827 D FOG
73N610002BG Cab Assy 1 #1828 D FOG
1 71N600011 . Cab Wa 1 #1827 STD
71N600011BG . Cab Wa 1 #1828 D STD
73N600010 . Cab Wa 1 #0162 #1827 FOG
73N600010BG . Cab Wa 1 #1828 D FOG
4 71N602400 . Sun Roof Wa 1 #1118
71N602400BG . Sun Roof Wa 1 #1119 D
14 71N602770 . Striker 1
19 71N602810 . Lining 1Head 1
20 71N602820 . Lining 2Head 1
21 71N602830 . RailHand 1 #0043
71N602831 . RailHand 1 #0044 #1118 D
71N602831BG . RailHand 1 #1119 D
22 71N602841 . Stopper 2
24 71N602860 . LatchRoof 1
25 71N602870 . BracketRoof 1
31 71N602920 . HookCoat 1
35 E1711147 . Handle 1
36 71EH13150 . BumperRubber 2
52 S772020300 . Weather Strip 1
58 71N603181 . StopperLh 1
59 71N603191 . StopperRh 1
60 71N603201 . SpringGas 2 #1872
71N603202 . SpringGas 2 #1873 B
68 E1711310 10 . PlugHeadliner 18
69 S491080162 . PinClevis 4 #1872
71Q603160 . PinClevis 4 #1873 B
70 S461200162 . PinSplit 4 #1872
S501070006 . PinSelf Locking 4 #1873 B
71 S403082006 . WasherPlain 4
74 S015080206 . BoltHex 4
81 S141060206 . ScrewFlat Hd 4
83 S203101006 . NutHex 4
91 S017160206 . BoltHex 3
96 S161050166 . ScrewCross R/Round 8
108 73N605000 . Guard Assy 1 #0162 #1118 FOG
73N605000BG . Guard Assy 1 #1119 D
1081 73N605010 .. Guard WaTop 1 #0162 #1118 FOG
73N605010BG .. Guard WaTop 1 #1119 D
1082 73N605020 .. Guard WaFront 1 #0162 #1118 FOG
73N605020BG .. Guard WaFront 1 #1119 D
1083 S441120006 .. WasherHardened 6 #0162 FOG
1084 S037122526 .. BoltW/Washer 8 #0162 FOG
1085 S017120306 .. BoltHex 6 #0162 FOG
*1 @ . Electric Cab Assy 1 SEE 2060
Print this!
1/1
* 76N410000 Cab Assy 1 #1111 UPGRADE CABIN

76N419000 Cab Assy 1 #1111 UPGRADEFOG
1 76N600010 . Cab Wa 1 #1111 UPGRADE CABIN
76N605010 . Cab Wa 1 #1111 UPGRADEFOG
4 71N602400BG . Sun Roof Wa 1 #1111
14 71N602770 . Striker 1 #1111
19 71N602810 . Lining(1)Head 1 #1111
20 71N602820 . Lining(2)Head 1 #1111
21 71N602831BG . RailHand 1 #1111
22 71N602841 . Stopper 2 #1111
24 71N602860 . LatchRoof 1 #1111
25 71N602870 . BracketRoof 1 #1111
31 71N602920 . HookCoat 1 #1111
35 E1711147 . Handle 1 #1111
36 71EH13150 . BumperRubber 2 #1111
52 S772020300 . Weather Strip 1 #1111
58 71N603181 . StopperLh 1 #1111
59 71N603191 . StopperRh 1 #1111
60 71N603201 . SpringGas 2 #1111 #1872
71N603202 . SpringGas 2 #1873 B
68 E1711310 10 . PlugHeadliner 18 #1111
69 S491080162 . PinClevis 4 #1111 #1872
71Q603160 . PinClevis 4 #1873 B
70 S461200162 . PinSplit 4 #1111 #1872
S501070006 . PinSelf Locking 4 #1873 B
71 S40308200B . WasherPlain 4 #1111
74 S015080206 . BoltHex 4 #1111
75 S411080006 . WasherSpring 4 #1111
78 S40305200B . WasherPlain 8 #1111
81 S141060206 . ScrewFlat Hd 4 #1111
82 S145080166 . ScrewFlat Hd 2 #1111
83 S203101006 . NutHex 4 #1111
84 S141040206 . ScrewFlat Hd 2 #1111
91 S017160206 . BoltHex 3 #1111
92 S411160006 . WasherSpring 3 #1111
93 S403162006 . WasherPlain 3 #1111
97 S411050006 . WasherSpring 8 #1111
101 S40308200B . WasherPlain 4 #1111
116 73N605000BG . Guard Assy 1 #1111 FOG TYPE
1161 73N605010BG .. Guard WaTop 1 #1111 FOG TYPE
1162 73N605020BG .. Guard WaFront 1 #1111 FOG TYPE
1163 S44112000B .. WasherHardened 6 #1111 FOG TYPE
1164 S037122526 .. BoltW/Washer 8 #1111 FOG TYPE
1165 S017120306 .. BoltHex 6 #1111 FOG TYPE
Print this!
1/1
* 72N610000 Cab Assy 1 #0162 #1118 ROOF TYPE

72N610000BG Cab Assy 1 #1119 D
1 71N600011 . Cab Wa 1 #0162 #1118
71N600011BG . Cab Wa 1 #1119 D
4 72N605000 . CoverSun Roof Assy 1 #0162
41 72N605010 .. CoverRoof 1 #0162
42 72N605020 .. Hinge 2 #0162
43 72N605030 .. PadRubber 2 #0162
44 S175060206 .. ScrewSocket Rd Hd 8 #0162
45 S291060006 .. Cap NutDomed 8 #0162
46 72N605040 .. PlateHinge 2 #0162
47 E1711147 .. Handle 1 #0162
48 S131052046 .. ScrewW/Washer 2 #0162
49 S131051556 .. ScrewW/Washer 2 #0162
410 S411050006 .. WasherSpring 4 #0162
411 S291050006 .. Cap NutDomed 6 #0162
412 72N605050 .. PlateHandle 2 #0162
413 72N605060 .. PadRubber 2 #0162
414 72N605070 .. Plate 1 #0162
415 71N603201 .. SpringGas 2 #0162 #1872
71N603202 .. SpringGas 2 #1873 B
416 71N602860 .. LatchRoof 1 #0162
418 S411060006 .. WasherSpring 8 #0162
419 72N605080 .. PadRubber 1 #0162
420 72N605090 .. Plate 1 #0162
421 S403082006 .. WasherPlain 4 #0162
422 72N605110 .. PlateGas Spring 2 #0162
423 72N605120 .. PadRubber 2 #0162
425 S491080162 .. PinClevis 4 #0162 #1872
71Q603160 .. PinClevis 4 #1873 B
426 S461200162 .. PinSplit 4 #0162 #1872
S501070006 .. PinSelf Locking 4 #1873 B
427 72N605100 .. PadRubber 1 #0162
14 71N602770 . Striker 1 #0162
19 71N602810 . Lining(1)Head 1 #0162
21 71N602831 . RailHand 1 #0162 #1118
71N602831BG . RailHand 1 #1119 D
22 71N602841 . Stopper 2 #0162
31 71N602920 . HookCoat 1 #0162
52 S772020300 . Weather Strip 1 #0162
58 71N603181 . StopperLh 1 #0162
59 71N603191 . StopperRh 1 #0162
68 E1711310 10 . PlugHeadliner 18 #0162
81 S141060206 . ScrewFlat Hd 4 #0162
82 S145080166 . ScrewFlat Hd 2 #0162
83 S203101006 . NutHex 4 #0162
84 S141040206 . ScrewFlat Hd 2 #0162
91 S017160206 . BoltHex 3 #0162
92 S411160006 . WasherSpring 3 #0162
93 S403162006 . WasherPlain 3 #0162
*1 @ . Electric Cab Assy 1 #0162 SEE 2060
Print this!
1/1
* 76N418000 Cabin Assy 1 #1111 UPGRADE CABIN

1 76N600010 . Cab Wa 1 #1111
4 72N605000 . CoverSun Roof Assy 1 #1111
41 72N605010 .. CoverRoof 1 #1111
42 72N605020 .. Hinge 2 #1111
43 72N605030 .. PadRubber 2 #1111
45 S291060006 .. Cap NutDomed 8 #1111
46 72N605040 .. PlateHinge 2 #1111
47 E1711147 .. Handle 1 #1111
48 S131052046 .. ScrewW/Washer 2 #1111
49 S131051556 .. ScrewW/Washer 2 #1111
410 S411050006 .. WasherSpring 4 #1111
411 S291050006 .. Cap NutDomed 6 #1111
412 72N605050 .. PlateHandle 2 #1111
413 72N605060 .. PadRubber 2 #1111
414 72N605070 .. Plate 1 #1111
415 71N603201 .. SpringGas 2 #1111 #1872
71N603202 .. SpringGas 2 #1873 B
416 71N602860 .. LatchRoof 1 #1111
418 S411060006 .. WasherSpring 8 #1111
419 72N605080 .. PadRubber 1 #1111
420 72N605090 .. Plate 1 #1111
421 S40308200B .. WasherPlain 4 #1111
423 72N605120 .. PadRubber 2 #1111
425 S491080162 .. PinClevis 4 #1111 #1872
71Q603160 .. PinClevis 4 #1873 B
426 S461200162 .. PinSplit 4 #1111 #1872
S501070006 .. PinSelf Locking 4 #1873 B
427 72N605100 .. PadRubber 1 #1111
14 71N602770 . Striker 1 #1111
19 71N602810 . Lining(1)Head 1 #1111
21 71N602831BG . RailHand 1 #1111
22 71N602841 . Stopper 2 #1111
31 71N602920 . HookCoat 1 #1111
52 S772020300 . Weather Strip 1 #1111
58 71N603181 . StopperLh 1 #1111
59 71N603191 . StopperRh 1 #1111
68 E1711310 10 . PlugHeadliner 18 #1111
81 S141060206 . ScrewFlat Hd 4 #1111
82 S145080166 . ScrewFlat Hd 2 #1111
83 S203101006 . NutHex 4 #1111
84 S141040206 . ScrewFlat Hd 2 #1111
91 S017160206 . BoltHex 3 #1111
92 S411160006 . WasherSpring 3 #1111
93 S403162006 . WasherPlain 3 #1111
Print this!
1/1
* @ Cab Assy 1 SEE 6020

17 71N602790 . Wall TrimLh 1
18 71N602801 . Wall TrimRh 1
38 71N603060 . Holder 1 #0260
71N603061 . Holder 1 #0261 D
39 71N603071 . Holder 1
40 71N603081 . Holder 1
41 71N603091 . Latch Assy 1
42 71N603101 . StopperLh 1
43 71N603111 . StopperRh 1
44 71N603121 . CoverRear 1
45 71N603131 . Duct AssyLh 1
46 71N603141 . Duct AssyRh 1
61 71N603210 . Insulation Foam 1
62 71N603220 . Insulation Foam 1
68 E1711310 10 . PlugHeadliner 11
74 S015080206 . BoltHex 2
85 71N603300 . Air Vent 6
86 71N603311 . Holder 1
87 S161080256 . ScrewRd Hd 3
94 71N620341 . RailHand 1
95 71N603601 . CoverBack Latch 1
100 S017100206 . BoltHex 5
102 S403062006 . WasherPlain 12
104 71N603660 . Sponge 1 #0036
105 71M820870 . HolderCup 1 #0036
106 S141040166 . ScrewFlat Hd 1 #0036
Print this!
1/1
* @ Cab Assy 1 #1111 SEE 6021

17 71N602790 . Wall TrimLh 1 #1111
18 76N602800 . Wall TrimRh 1 #1111
38 71N603061 . Holder 1 #1111
39 71N603071 . Holder 1 #1111
40 71N603081 . Holder 1 #1111
41 71N603091 . Latch Assy 1 #1111
42 71N603101 . StopperLh 1 #1111
43 71N603111 . StopperRh 1 #1111
44 73N620060 . Speaker Cover 1 #1111
45 76N603130 . Duct AssyLh 1 #1111
46 76N603140 . Duct AssyRh 1 #1111
61 71N603210 . Insulation Foam 1 #1111
62 71N603220 . Insulation Foam 1 #1111
68 E1711310 . PlugHeadliner 11 #1111
74 S035082026 . BoltW/Washer 2 #1111 #1565
S035082026 . BoltW/Washer 5 #1566 A
75 S411080006 . WasherSpring 2 #1111
77 S161060166 . ScrewCross Round 6 #1111 #1565
81 S141060206 . ScrewFlat Hd 4 #1111
85 71N603300 . Air Vent 6 #1111
86 71N603311 . Holder 1 #1111
94 71N620341 . RailHand 1 #1111
95 71N603601 . CoverBack Latch 1 #1111
97 S411050006 . WasherSpring 2 #1111
98 S411100006 . WasherSpring 5 #1111
99 S40310200B . WasherPlain 2 #1111
100 S017100206 . BoltHexagon Head 5 #1111
101 S40308200B . WasherPlain 2 #1111
102 S40306200B . WasherPlain 12 #1111 #1565
103 S411060006 . WasherSpring 6 #1111
105 71N603660 . Sponge 1 #1111
106 71M820870 . HolderCup 1 #1111
107 S141040166 . ScrewFlat Hd 4 #1111
109 S132061256 . ScrewW/Washer 27 #1111
110 S151050126 . ScrewTapping 2 #1111
111 73N620050 . Pillar CoverRh 1 #1111
112 73N620220 . Rear Duct CoverLh 1 #1111
113 73N620210 . Rear Duct CoverRh 1 #1111
114 73N620070 . Radio Cover 1 #1111
115 76N603160 . Fastener Assy 2 #1111
116 76N600021 . Bracket 1 #1566
117 S00206015B . ScrewTrus Head 11 #1566
Print this!
1/1

3 71N602201 . Front Window Wa 1 #1118
71N602201BG . Front Window Wa 1 #1119 D
7 71N602700 . Glass 1
8 71N602710 . Glass 1 #0260
71N602711 . Glass 1 #0261 D
10 71N602731 . Glass 1
11 71N602740 . Glass 1
12 71N602750 . Glass 1
26 71N602880 . Insulator 2
27 71N602891 . Latch Assy 1
28 71N602901 . Latch Assy 1
30 71EH10430 . Rubber 6
34 71N602950 . CoverAir Vent 1 #1118
71N602950BG . CoverAir Vent 1 #1119 D
47 71N603150 . Roller 4
49 71N603160 . Seal 2 #0001
50 71N603480 . SealFront 1
51 71N603172 . Weather Strip 1 #0260
71N603173 . Weather Strip 1 #0261 D
53 S781124602 . Seal 1
54 71N603010 . Weather Strip 1
56 71N603030 . Weather Strip 1
65 71N603250 . Seal 1
66 71N603261 . SealFront Glass 1
67 71N603040 . Seal 1
74 S015080206 . BoltHex 3
89 71N603320 . Ring 1
Print this!
1/1
* @ Cab Assy 1 #1111 SEE 6022

3 71N402200BG . Front Window Wa 1 #1111
7 71N402700 . Glass 1 #1111
8 71N602711 . Glass 1 #1111
10 71N602731 . Glass 1 #1111
11 71N602740 . Glass 1 #1111
12 71N602750 . Glass 1 #1111
26 71N602880 . Insulator 2 #1111
27 71N602891 . Latch Assy 1 #1111
28 71N602901 . Latch Assy 1 #1111
30 71EH10430 . Rubber 6 #1111
34 71N602950BG . CoverAir Vent 1 #1111
47 71N603150 . Roller 4 #1111
48 S40310100B . WasherPlain 4 #1111
49 71N603160 . Seal 1 #1111
50 71N603480 . SealFront 1 #1111
51 71N603173 . Weather Strip 1 #1111
53 S781124602 . Seal 1 #1111
54 71N603010 . Weather Strip 1 #1111
56 71N603030 . Weather Strip 1 #1111
57 S771036500 . Weather Strip 1 #1111
65 71N603250 . Seal 1 #1111
66 71N603261 . SealFront Glass 1 #1111
67 71N603040 . Seal 1 #1111
71 S40308200B . WasherPlain 1 #1111
74 S015080206 . BoltHex 3 #1111
75 S411080006 . WasherSpring 2 #1111
80 S141050206 . ScrewFlat Hd 4 #1111
89 71N603320 . Ring 1 #1111
101 S40308200B . WasherPlain 2 #1111
102 S40306200B . WasherPlain 8 #1111
103 S411060006 . WasherSpring 8 #1111
107 71N602960 . Rubber 1 #1111
Print this!
1/1

71N604000 . Side Door Assy 1 #0001 #1118
71N604000BG . Side Door Assy 1 #1119 D
2 71N602000 .. Side Door Wa 1 #1118
71N602000BG .. Side Door Wa 1 #1119 D
71N602000BG .. Side Door Wa 1 #1111 UPGRADE CABIN
9 71N602720 .. GlassDoor 1
13 71N602761 .. Handle Assy 1
131 71N603390 ... Handle 1
132 71N603400 ... HandleInner 1
133 71N603410 ... Latch 1
134 71N603420 ... Rod Assy1 1
135 71N603430 ... Rod Assy2 1
136 71N603440 ... Pin1 1
137 71N603450 ... Pin 2
138 P560050006 ... ERing 3
16 71N603650 .. Striker 1
23 71N602850 .. Handle 1
29 71N602910 .. Hinge 2 #1118
71N602910BG .. Hinge 2 #1119 D
291 S651060006 ... NippleGrease 1 #1565
S651060002 ... NippleGrease 1 #1566 B
30 71EH10430 .. Rubber 8
32 71N602930 .. Cover 1
33 71N602940 .. Cover 1
37 71N603000 .. Weather Strip 1
55 71N603020 .. Weather Strip 1
63 71N603230 .. Seal 1
64 71N603240 .. Seal 1
72 17E15146 .. BumperDoor 2
73 71EH10400 .. Screw 14
77 S161060166 .. ScrewCross R/Round 3
83 S203101006 .. NutHex 4
100 S017100206 .. BoltHex 2
102 S403062006 .. WasherPlain 3
Print this!
1/1

5 71N602500 . Sash AssyDoor 1
N51 71N602510 .. Sash 1
52 71N602520 .. Seal 1
53 71N602530 .. Glass 1
54 71N602540 .. Glass 1
55 71N602550 .. Lock Assy 2
56 71N602560 .. Hook 1
57 71N602570 .. Hook 1
58 71N602580 .. Sash 1
59 D19227C1 .. RivetBlind 6
6 71N602600 . Sash AssyLh 1
61 71N602610 .. Sash 1
62 71N602620 .. Seal 1
63 71N602630 .. Glass(Upper) 1
64 71N602640 .. Glass(Lower) 1
65 71N602550 .. Lock Assy 1
66 71N602570 .. Hook 1
67 71N602650 .. Stopper 2
68 71N602660 .. Sash 1
69 D19227C1 .. RivetBlind 3
610 S151030126 .. ScrewTapping 2
Print this!
1/1

15 71N602781 . Latch AssyBack 1
151 71EH11260 .. Lock Assy 1
152 71N603571 .. Lever Assy 1
153 71N603580 .. Rod 1
154 71N603590 .. Rod 1
155 71EH11210 .. Nut 1
156 S205081006 .. NutHex 1
157 71EH11250 .. PinRound 1
158 S431040002 .. WasherLock 1
159 71EH11240 .. PinRound 1
1510 S461050152 .. PinSplit 1
74 S015080206 . BoltHex 4
76 S161060206 . Screw 1
Print this!
1/1
2 71N620020 CoverSeat Base 1

23 71N620181 Tube 2
27 71N620210 HoseDefroster 1
28 71N620221 DuctDefroster 1
29 71N620230 ClampTube 2
31 71N620241 DuctVent 1
32 71N620251 DuctInlet 1
33 71N620261 DuctFoot 1
50 S161050206 ScrewRd Hd 4
58 S017100256 BoltHex 4
60 S161040086 ScrewRd Hd 2 #0087
S131040826 ScrewW/Washer 2 #0088 B
76 S017100166 BoltHex 2
78 71N620450 FilterSponge 2
Print this!
1/1
34 71N620271 Storage Box Wa 1 #0206

71N620470 Storage Box Assy 1 #0207 D
36 71N620291 Aircon CoverLow 1 #0010
361 S791016054 . GrommetPlate 1 #0010
N362 S791016010 . GrommetPlate 1 #0010
37 71N620301 CoverFilter 1 #0010
38 71N620311 Aircon CoverUp 1
40 71N620331 CoverDef,Hose 1
48 71N620360 HoseStorage Box 1
49 71N620370 ClipHose 2
58 S017100256 BoltHex 4 #0206
63 S091060166 BoltWing 3 #0010
65 S403062006 WasherPlain 3 #0010
67 S403102006 WasherPlain 8 #0206
S403102006 WasherPlain 4 #0207 A
71 E1711176 Ashtray 1
72 71N620380 Air Nozzle 1
73 71N620390 Magnetic 3
76 S017100166 BoltHex 4
82 S132061676 ScrewW/Washer 21 #0282
S132061676 ScrewW/Washer 17 #0283 A
83 71N620460 A/Con CoverLow Assy 1 #0011 #0206 A
71N620461 A/Con CoverLow Assy 1 #0207 #0282 D
831 71N620291 . Aircon CoverLow 1 #0011 #0206 A
71N620292 . Aircon CoverLow 1 #0207 #0282 D
8311 S791016054 .. GrommetPlate 1 #0011 #0282
N8312 S791016010 .. GrommetPlate 1 #0011 #0282
832 71N620301 . CoverFilter 1 #0011 #0282 SEE 1100
833 S091060166 . BoltWing 3 #0011 #0282 SEE 1100
834 S403062006 . WasherPlain 3 #0011 #0282 SEE 1100
84 S037102026 BoltW/Washer 4 #0207
85 S132062546 ScrewW/Washer 8 #0283 #0329
90 71N620292 Aircon CoverLow 1 #0283 D
901 71N621760 . Plate 1 #0283
902 S791016054 . GrommetPlate 1 #0283 A
N903 S791016010 . GrommetPlate 1 #0283 A
100 11N690340 FilterRec 1 #1111
101 S091060166 BoltWing 3 #1111
102 S40306200B WasherPlain 1 #1111
Print this!
1/1
* @ Cab Interior 1 #1111 UPGRADE CABIN

9 71N620221 DuctDefroster 1 #1111
10 S520055000 ClampHose 1 #1111
11 71N620241 DuctVent 1 #1111
12 71N620251 DuctInlet 1 #1111
20 71N620020 CoverSeat Base 1 #1111
23 S109080306 BoltSocket 4 #1111
24 S131040826 ScrewW/Washer 2 #1111
27 S132061546 ScrewW/Washer 4 #1111
33 71N620181 Tube 2 #1111
34 S520115000 ClampHose 4 #1111
35 71N620210 HoseDefroster 1 #1111
36 71N620230 ClampHose 2 #1111
37 S520055000 ClampHose 1 #1111
38 71N620261 DuctFoot 1 #1111
43 71N620450 FilterSponge 2 #1111
45 S037102526 BoltW/Washer 4 #1111
46 S131051546 ScrewW/Washer 4 #1111
52 S037102026 BoltW/Washer 2 #1111
53 S132061676 ScrewW/Washer 3 #1111
Print this!
1/1
N* 70N621310 Cabin Interior Group 1 #1111 UPGRADE CABIN

15 73N621060 Aircon Cover Assy 1 #1111
151 73N620080 . Aircon Cover 1 #1111
152 73N620280 . Hose CapAc 1 #1111
153 S151040156 . ScrewTapping 2 #1111
16 71N620390 Magnetic 2 #1111
20 E1711176 Ashtray 1 #1111
21 S151040166 ScrewTapping 2 #1111
22 71N620380 Air Nozzle 1 #1111
25 S40305200B WasherPlain 4 #1111
28 S00206015B ScrewTrus Head 13 #1111
29 73N621050 Aircon Cover Low 1 #1111
291 S791020055 . GrommetPlate 1 #1111
292 S791020012 . GrommetPlate 1 #1111
30 S037102026 BoltW/Washer 3 #1111
32 11N691340 FilterRec 1 #1111
33 S091060156 BoltWing 3 #1111
34 S40306200B WasherPlain 3 #1111
41 71N620360 HoseStorage Box 1 #1111
42 71N620370 ClipHose 2 #1111
Print this!
1/1
* 71N620430 Console Box AssyLh 1

1 71N620071 . Console BoxLow 1
2 71N620051 . C/Box Frame WaLh 1
21 71N621320 .. BracketTilt 1
22 S015060146 .. BoltHex 4
23 S403062006 .. WasherPlain 4
24 S731020025 .. BushingDu 2
3 71N620091 . Tilt Catch Assy 1
31 71N621420 .. Tilt CatchLow 1
32 71N621451 .. Tilt CatchUp 1
33 71N621460 .. Spring 1
34 71N621470 .. Pin 1
35 P560090002 .. Retaining RingE Type 1
4 71N620100 . CablePull 1
5 71N620120 . Tilt Lever Assy 1
51 71N621480 .. BracketLow 1
52 71N621510 .. BracketUp 1
6 21N820300 . SwitchMicro 1
7 71N620131 . Console BoxUp(Lh) 1
8 71N620141 . Safety Bracket Assy 1
81 71N621521 .. BracketLow 1
82 71N621560 .. BracketUp 1
83 71N621610 .. Spring 1
84 S731020010 .. BushingDu 1
9 S015050206 . BoltHex 4
13 S491060156 . PinClevis 1
14 S461080202 . PinSplit 1
15 S161060166 . ScrewCross Round 2
17 S175060162 . ScrewSocket Rd Hd 3
Print this!
1/1
3 71N620031 Tilt Locker Assy 1

31 71N621151 . Shaft 1
32 71N621160 . Plate 1
33 71N621170 . Spring 1
34 71N621180 . Plate Wa 1
35 S207161006 . NutHex 2
4 71N620040 SpringGas 1
6 S461160256 PinSplit 1
10 71N620081 Shaft 1 #0087
71N620082 Shaft 1 #0088 D
11 S601020004 RingRetaining 1
12 S661360400 CapRubber 1
15 71N620111 PlateCable 1
20 71N620151 CoverS/Lever 1
21 71N620161 RodSafety 1
35 71N620281 CapS/Lever 1
47 71N620351 KnobTilt 1
62 S261160006 NutWing 1
74 S403042006 WasherPlain 2 #0087
75 S175060166 ScrewSocket Rd Hd 1
Print this!
1/1
3 71N620031 Tilt Locker Assy 1

31 71N621151 . Shaft 1
32 71N621160 . Plate 1
33 71N621170 . Spring 1
34 71N621180 . Plate Wa 1
35 S207161006 . NutHex 2
8 71N620440 Console Box AssyRh 1
81 71N620071 . Console BoxLow 1
82 71N620061 . C/Box Frame WaRh 1
821 71N621320 .. BracketTilt 1
822 S015060146 .. BoltHex 4
823 S403062006 .. WasherPlain 4
824 S731020025 .. BushingDu 2
83 71N620091 . Tilt Catch Assy 1
831 71N621420 .. Tilt CatchLow 1
832 71N621451 .. Tilt CatchUp 1
833 71N621460 .. Spring 1
834 71N621470 .. Pin 1
84 71N620171 . Console BoxUp(Rh) 1 #0645
71N620172 . Console BoxUp(Rh) 1 #0646 B
85 S015050206 . BoltHex 4
10 71N620081 Shaft 1 #0087
71N620082 Shaft 1 #0088 D
11 S601020004 RingRetaining 1
15 71N620111 PlateCable 1
62 S205161006 NutHex 1
Print this!
1/1
* 73N421010 Console Box Assy(Lh) 1 #1111 UPGRADE CABIN

1 73N621020 . CoverC/Low Assy 1 #1111
11 73N620160 .. Console BoxLow 1 #1111
12 73N620230 .. PanelConsole Deco 1 #1111
2 73N421030 . FrameC/Box(Lh) 1 #1111
21 71N421320 .. PlateTilt 1 #1111
22 S015060146 .. BoltHex 4 #1111
23 S40306200B .. WasherPlain 4 #1111
24 S731020025 .. BushingDu 2 #1111
3 71N420090 . Tilt Catch Assy 1 #1111
31 71N421420 .. Tilt CatchLow 1 #1111
32 71N421450 .. Tilt CatchUp 1 #1111
33 71N621460 .. Spring 1 #1111
34 71N621470 .. Pin 1 #1111
35 P560090002 .. Retaining RingE Type 1 #1111
4 71N620100 . Pull Cable 1 #1111
5 71N420120 . Tilt Lever Assy 1 #1111
51 71N421480 .. BracketLow 1 #1111
52 71N621510 .. BracketUp 1 #1111
6 21N820300 . SwitchMicro 1 #1111
7 73N620140 . Console Box UpLh 1 #1111
8 71N620141 . Safety Bracket Assy 1 #1111
81 71N621521 .. BracketLow 1 #1111
82 71N621560 .. BracketUp 1 #1111
83 71N621610 .. Spring 1 #1111
84 S731020010 .. BushingDu 1 #1111
9 S015050206 . BoltHex 4 #1111
10 S40305200B . WasherPlain 8 #1111
12 S40306200B . WasherPlain 9 #1111
13 S491060156 . PinClevis 1 #1111
14 S461080202 . PinSplit 1 #1111
17 S175060162 . ScrewSocket Rd Hd 3 #1111
19 73N620200 . RingSafety Lever 1 #1111
Print this!
1/1
* @ Console Box 1 #1111 UPGRADE CABIN

21 71N620031 Tilt Locker Assy 1 #1111
211 71N621151 . Shaft 1 #1111
212 71N621160 . Plate 1 #1111
213 71N621170 . Spring 1 #1111
214 71N621180 . Plate Wa 1 #1111
215 S20516100B . NutHex 2 #1111
22 71N620040 SpringGas 1 #1111
23 S491080252 PinClevis 1 #1111
24 S461160252 PinSplit 1 #1111
27 71N620082 Shaft 1 #1111
28 S601020004 RingRetaining 1 #1111
30 71N620110 PlateCable 1 #1111
31 73N620180 Knob Safety Lever 1 #1111
32 71N620161 RodSafety 1 #1111
39 73N620190 CapSafety Lever 1 #1111
40 71N620351 KnobTilt 1 #1111
47 S20516100B NutHex 2 #1111
49 S035061526 BoltW/Washer 3 #1111
50 S015060156 BoltHex 4 #1111
51 S40306500B WasherPlain 4 #1111
54 S131040826 ScrewW/Washer 2 #1111
Print this!
1/1
* 73N621040 Console Box Assy(Rh) 1 #1111 UPGRADE CABIN

1 73N621020 . CoverC/Low Assy 1 #1111
11 73N620160 .. Console BoxLow 1 #1111
12 73N620230 .. PanelConsole Deco 1 #1111
2 71N620061 . C/Box Frame WaRh 1 #1111
21 71N621320 .. BracketTilt 1 #1111
22 S015060156 .. BoltHex 4 #1111
23 S40306200B .. WasherPlain 4 #1111
24 S731020025 .. BushingDu 2 #1111
3 71N620091 . Tilt Catch Assy 1 #1111
31 71N621420 .. Tilt CatchLow 1 #1111
32 71N621451 .. Tilt CatchUp 1 #1111
33 71N621460 .. Spring 1 #1111
34 71N621470 .. Pin 1 #1111
4 73N620150 . Console Box UpRh 1 #1111
5 S015050206 . BoltHex 4 #1111
6 S40305200B . WasherPlain 8 #1111
8 S40306200B . WasherPlain 4 #1111
21 71N620031 Tilt Locker Assy 1 #1111
211 71N621151 . Shaft 1 #1111
212 71N621160 . Plate 1 #1111
213 71N621170 . Spring 1 #1111
214 71N621180 . Plate Wa 1 #1111
215 S207161006 . NutHex 2 #1111
27 71N620082 Shaft 1 #1111
28 S601020004 RingRetaining 1 #1111
30 71N620111 PlateCable 1 #1111
47 S20516100B NutHex 2 #1111
49 S035061526 BoltW/Washer 3 #1111
Print this!
1/1
* 71N620011 Seat Base Assy 1 #0010

71N420011 Seat Base Assy 1 #0011 #0087 B
71N420012 Seat Base Assy 1 #0088 D
1 71N621011 . Seat BaseLow 1
2 71N621071 . Seat BaseUp 1 #0010
71N621072 . Seat BaseUp 1 #0011 #0087 B
71N621073 . Seat BaseUp 1 #0088 #0645 D
71N621074 . Seat BaseUp 1 #0646 B
3 71N621620 . Sliding Rail Assy 1 #0010
71N421620 . Sliding Rail Assy 1 #0011 #0087 B
71N421720 . Sliding Rail Assy 1 #0088 B
N31 71N621670 .. Slide AssyRh 1
N32 71N621680 .. Slide AssyLh 1
N33 71N621690 .. Lever Assy 1 #0010
71N421690 .. Lever Assy 1 #0011 B
34 S015060126 .. BoltHex 4
35 S403062006 .. WasherPlain 4
4 S107080306 . BoltSocket 4 #0010
S109080306 . BoltSocket 4 #0011 D
5 S017080256 . BoltHex 4
6 S205081006 . NutHex 4
Print this!
1/1
* 71EH30500 Seat Assy 1 #0033

1 H28004100D . Cushion Assy 1 #0033
2 H28004200E . Back Seat Assy 1 #0033
3 H28004300D . Leg Assy 1 #0033
4 H28001500C . Arm Rest AssyLh 1 #0033
5 H28002500C . Arm Rest AssyRh 1 #0033
6 H28003240C . Recliner Assy 1 #0033
7 H28004400 . Track Assy 1 #0033
8 H28003600 . Seat Belt Assy 1 #0033
9 H28004800 . Head Rest Assy 1 #0033
10 H95003906 . BushingNylon 1 #0033
11 W1123010303 . Bolt 5 #0033
12 W1128606203 . BoltW/Washer 2 #0033
13 W1123008183 . BoltW/Washer 4 #0033
14 W1339508003 . NutFlange 4 #0033
15 H950033462 . NutBush 1 #0033
17 W1122606123 . BoltW/Washer 1 #0033
Print this!
1/1
* 71N630500 Seat Assy 1 #0034 #0383

1 H28303100 . Cushion Assy 1 #0034 #0383
2 H28313200 . Back Assy 1 #0034 #0383
3 H28303300 . Leg Assy 1 #0034 #0383
31 H28003350 .. Damper 1 #0034 #0383 NOT SHOWN
4 H28300700 . Arm Rest AssyLh 1 #0034 #0383
5 H28005700A . Arm Rest AssyRh 1 #0034 #0383
6 H280032400 . Recliner Assy 1 #0034 #0383
7 H28213400 . Track Assy 1 #0034 #0383
8 H28003600 . Seat Belt Assy 1 #0034 #0383
9 H28303800 . Head Rest Assy 1 #0034 #0383
10 H95003906 . BushingNylon 1 #0034 #0383
11 W1123010303 . Bolt 5 #0034 #0383
12 W1128606203 . BoltW/Washer 2 #0034 #0383
13 W1123008183 . BoltW/Washer 4 #0034 #0383
14 W1339508003 . NutFlange 4 #0034 #0383
15 H950033462 . NutBush 1 #0034 #0383
17 W1122606123 . BoltW/Washer 1 #0034 #0383
18 H29313901A . Knob 1 #0034 #0383
19 W1231005123 . Bolt & S/Washer 1 #0034 #0383
Print this!
1/1
* 71N630700 Seat Assy 1 #0384 B

1 H28333100 . Cushion Assy 1 #0384
2 H28333200 . Back Assy 1 #0384
3 H28333300 . Leg Assy 1 #0384
31 H28333350 .. Damper 1 #0384 NOT SHOWN
4 H28300700A . Arm Rest AssyLh 1 #0384
5 H28305700B . Arm Rest AssyRh 1 #0384
6 H28003240D . Recliner Assy 1 #0384
7 H28334400 . Track Assy 1 #0384
8 H28003600 . Seat Belt Assy 1 #0384
9 H28333800 . Head Rest Assy 1 #0384
10 H95003906 . BushingNylon 1 #0384
11 W1123010303 . Bolt 6 #0384
12 W1128606203 . BoltW/Washer 2 #0384
13 W1123008183 . BoltW/Washer 4 #0384
14 W1339508003 . NutFlange 4 #0384
15 H950033462 . NutBush 1 #0384
17 W1122606123 . BoltW/Washer 1 #0384
18 H29313901A . Knob 1 #0384
19 W1231005123 . Bolt & S/Washer 1 #0384
Print this!
1/1
* 71N630600 Seat Assy 1 #0337 2" AIR RIDE

1 140907 . CushionSeat 1 #0337
2 140908 . BackrestCushion 1 #0337
3 140912 . Headrest 1 #0337
4 138691 . Bushing 2 #0337
5 200936 . ScrewSelf Tapping 6 #0337
6 140226 . CoverPlastic 1 #0337
7 138758 . Screw 1 #0337
8 141064 . HandleLumbar 1 #0337
N9 138747 . Toolhead Wheel 1 #0337
10 135786 . RivetBlind 3 #0337
11 138634 . Sling Spring Brake 1 #0337
12 138785 . Sticker 1 #0337
13 2048229 . BackrestGs.Scr 1 #0337
14 113290 . Washer 11 #0337
15 118558 . ScrewHexagon 1 #0337
16 104551 . RivetPop 1 #0337
17 138559 . Rods 1 #0337
18 138655 . Carrier 1 #0337
19 138614 . Winkel 1 #0337
20 141004 . Plate 2 #0337
21 2048616 . Rivet 2 #0337
22 1027240 . Sponge 1 #0337
23 140458 . CoverRh 1 #0337
24 2048504 . ScrewHexagon Head 4 #0337
25 1026762 . Arm Rest AssyRh 1 #0337
26 110291 . NutHexagon 11 #0337
27 110489 . WasherBlack 1 #0337
28 140684 . HoderSpring 1 #0337
29 131517 . SpringLeg 1 #0337
30 140695 . Lever 1 #0337
31 140694 . Handle 1 #0337
32 140697 . ScrewM8*18 1 #0337
33 140696 . Plate 1 #0337
34 136122 . ScrewM6*10 3 #0337
35 107719 . PlateRubber 1 #0337
36 1026763 . ArmrestLh 1 #0337
37 140457 . CoverLh 1 #0337
38 2048610 . Rivet 4 #0337
39 138835 . ProfileGliding 4 #0337
40 86601108 . Seat PlateGs.La 1 #0337
41 1077064 . AdjustmentTilting 1 #0337
42 1054392 . ScrewSelf Tapping 4 #0337
43 116226 . Spring 1 #0337
44 1101294 . AdjustmentSeat Depth 1 #0337
45 1053742 . Suspension System 1 #0337
46 132909 . Cover 2 #0337
47 902172 . Seat Belt 1 #0337
48 115419 . Bushing 2 #0337
49 113354 . Nut 2 #0337
50 113771 . Screw7/16 Inch 2 #0337
N51 S0051 . Bottom PlateGs.La. 1 #0337
N52 S0070 . Bottom PlateGs.La. 1 #0337
53 2048654 . ScrewCountersunk 6 #0337
Print this!
1/1
* 71N630800 Seat Assy 1 #0784 OPT,HEATED SEAT

1 H28335100 . Cushion Assy 1 #0784
2 H28335200 . Back Assy 1 #0784
3 H28333300 . Leg Assy 1 #0784
31 H28333350 .. Damper 1 #0784 NOT SHOWN
4 H28300700A . Arm Rest AssyLh 1 #0784
5 H28305700B . Arm Rest AssyRh 1 #0784
6 H28003240D . Recliner Assy 1 #0784
7 H28213400B . Track Assy 1 #0784
8 H28003600 . Seat Belt Assy 1 #0784
9 H28333800 . Head Rest Assy 1 #0784
10 H95003906 . BushingNylon 1 #0784
11 W1123010303 . Bolt 6 #0784
12 W1128606203 . BoltW/Washer 2 #0784
13 W1123008183 . BoltW/Washer 4 #0784
14 W1339508003 . NutFlange 4 #0784
15 H950033462 . NutBush 1 #0784
17 W1122606123 . BoltW/Washer 1 #0784
18 H29313901A . Knob 1 #0784
19 W1231005123 . Bolt & S/Washer 1 #0784
Print this!
1/1
* @ Seat 1 #0976
71N630900 Seat Assy 1 #0976
1 ZGBH00165 . Headrest 1 #0976
2 ZGBH00166 . BackrestGs.Scr 1 #0976
3 ZGBH00012 . Sticker 1 #0976
4 ZGBH00016 . Sponge 1 #0976
5 ZGBH00021 . Plate 2 #0976
6 ZGBH00017 . Winkel 1 #0976
7 ZGBH00019 . Rods 1 #0976
8 ZGBH00020 . Carrier 1 #0976
9 ZGBH00042 . ScrewHex Head 4 #0976
10 ZGBH00015 . Washer 10 #0976
11 ZGBH00024 . WasherBlack 1 #0976
12 ZGBH00053 . Screw 2 #0976
13 ZGBH00051 . Bush 2 #0976
14 ZGBH00052 . Nut 2 #0976
15 ZGBH00050 . Cover 2 #0976
16 ZGBH00167 . Seat Belt 1 #0976
17 ZGBH00168 . ScrewCountersunk 6 #0976
18 ZGBH00107 . Rivet 3 #0976
19 ZGBH00023 . Hex NutBlack 11 #0976
20 ZGBH00109 . Self Lock Nut 1 #0976
22 ZGBH00170 . CushionSeat 1 #0976
23 ZGBH00110 . Seat Plate Gs 1 #0976
24 ZGBH00171 . Cushion 1 #0976
25 ZGBH00172 . SwitchHeater 1 #0976
26 ZGBH00173 . Sticker 1 #0976
27 ZGBH00174 . HarnessWiring 1 #0976
28 ZGBH00175 . PlateAdapter,Rh 1 #0976
29 ZGBH00176 . PlateAdapter,Lh 1 #0976
30 ZGBH00177 . HandleLa 1 #0976
31 ZGBH00049 . KnobPlastic 1 #0976
32 ZGBH00178 . Rail AdditionalLh 1 #0976
33 ZGBH00179 . SuspensionMsg95g 1 #0976
34 ZGBH00180 . BracketLa 1 #0976
35 ZGBH00115 . Cylindric Head Screw 3 #0976
36 ZGBH00037 . ScrewSelf Tapping 10 #0976
37 ZGBH00004 . Bush 2 #0976
38 ZGBH00014 . ScrewHex Head 1 #0976
39 ZGBH00025 . Spring Holder 1 #0976
40 ZGBH00026 . SpringLeg 1 #0976
41 ZGBH00033 . Handle 1 #0976
42 ZGBH00027 . Lever 1 #0976
43 ZGBH00113 . Plate 1 #0976
44 ZGBH00112 . Screw 1 #0976
45 ZGBH00029 . Screw 3 #0976
46 ZGBH00108 . Arm RestRh 1 #0976
47 ZGBH00030 . Arm RestLh 1 #0976
48 ZGBH00181 . CoverLh 1 #0976
49 ZGBH00182 . CoverRh 1 #0976
50 ZGBH00038 . AdjustmentTilting 1 #0976
51 ZGBH00114 . AdjustmentSeat 1 #0976
52 ZGBH00039 . Spring 1 #0976
53 ZGBH00034 . Rivet 4 #0976
54 ZGBH00035 . ProfileGliding 4 #0976
55 ZGBH00055 . Screw 1 #0976
56 ZGBH00007 . Handle 1 #0976
N57 ZGBH00008 . WheelToolhead 1 #0976
58 ZGBH00010 . RivetBlind 3 #0976
59 ZGBH00011 . BrakeSling Spring 1 #0976
60 ZGBH00236 . Rail AdditionalRh 1 #0976
Print this!
1/1
39 71N620320 S/Box Cover Assy 1

391 71N621721 . S/Box CoverUp 1
392 71N621731 . S/Box CoverLow 1
393 71N621740 . Hinge 2
394 71N621750 . Plate 3
395 S161060146 . Screw 8
396 S141050106 . Screw 4
398 71N621900 . Hinge 2
399 S161050126 . Screw 4
3910 S403052006 . WasherPlain 4
3911 71N621920 . DoorPull 1 #0001
Print this!
1/1
* @ Storage Box Cover 1 #1111 UPGRADE CABIN

17 73N621070 S/Box Cover Assy 1 #1111
171 73N620090 . CoverStorage Box 1 #1111
172 71N621900 . Hinge 2 #1111
173 73N620400 . Plate 2 #1111
174 73N620410 . Rubber 1 #1111
175 S141040106 . ScrewFlat Hd 4 #1111
176 S161050106 . ScrewCross R/Rd 4 #1111
177 S40305200B . WasherPlain 4 #1111
Print this!
1/1
1 71N610103 Bottom Plate Assy 1 #0007

71N610104 Bottom Plate Assy 1 #0008 #0037 B
71N610105 Bottom Plate Assy 1 #0038 B
11 71N610112 . Bottom Plate Wa 1 #0007
71N610113 . Bottom Plate Wa 1 #0008 B
12 71N611100 . PadRubber 1
13 71N611110 . PadRubber 1
14 71N611120 . PadRubber 1
15 71N611130 . PadRubber 1
16 71N611140 . PadRubber 1
17 71E910660 . Cover 1 #0007
71E910661 . Cover 2 #0008 A
18 S017100166 . BoltHex 2 #0007
S017100166 . BoltHex 4 #0008 A
19 S403102006 . WasherPlain 2 #0007
S403102006 . WasherPlain 4 #0008 A
110 71E910630 . Grommet 1
111 71E910640 . Grommet 2
112 71N410940 . PadTravel Link 1 #0078
2 S207161006 NutHex 6
5 71N610130 BracketFoot Rest 1 STD
6 71N610300 Viscous Mount 6
7 S017100256 BoltHex 8 STD
8 S017100306 BoltHex 4
9 S403102006 WasherPlain 16 STD
10 S411100002 WasherSpring 12 STD
11 71E910650DA Washer 6
14 71N610141 MatFloor 1 #0007 STD
71N610280 MatFloor 1 #0008 B STD
15 71N610310 Foot Rest AssyLh 1
151 71N610150 . BracketFoot Rest,Lh 1
152 71N610161 . RubberFoot Rest,Lh 1
17 71N610320 Foot Rest AssyRh 1 STD
171 71N610170 . BracketFoot Rest 1 STD
172 71N610181 . RubberFoot Rest,Rh 1 STD
19 71N610190 BracketPedal,Lh 1
20 71N610201 RubberPedal,Lh 1
21 71N610210 BracketPedal,Rh 1
22 71N610221 RubberPedal,Rh 1
23 71N610230 LeverTravel,Lh 1
24 71N610240 LeverTravel,Rh 1
25 71N610251 KnobLever,Lh 1
26 71N610261 KnobLever,Rh 1
30 S206101006 NutHex 2
31 71N610130 BracketFoot Rest 1
32 71N610290 MatFloor 1 #0001 2PCS, 2WAY/PIP
33 S017100256 BoltHex 4 2PCS, 2WAY/PIP
34 S403102006 WasherPlain 12 2PCS, 2WAY/PIP
35 S411100006 WasherSpring 8 2PCS, 2WAY/PIP
39 71N410970 SpongeInsulation 1 #0078
Print this!
1/1
* @ Bottom Plate Sub Assy 1 #1111 UPGRADE CABIN

1 71N610105 Bottom Plate Assy 1 #1111
11 71N610113 . Bottom Plate Wa 1 #1111
12 71N611100 . PadRubber 1 #1111
13 71N611110 . PadRubber 1 #1111
14 71N611120 . PadRubber 1 #1111
15 71N611130 . PadRubber 1 #1111
16 71N611140 . PadRubber 1 #1111
17 71E910661 . Cover 1 #1111
18 S017100156 . BoltHex 4 #1111
19 S40310200B . WasherPlain 4 #1111
110 S411100006 . WasherSpring 4 #1111
111 71E910630 . Grommet 1 #1111
112 71E910640 . Grommet 2 #1111
113 71N410940 . PadTravel Link 1 #1111
2 71N610130 BracketFoot Rest 2 #1111
71N610130 BracketFoot Rest 1 #1111
3 73N610310 Foot RestLh 1 #1111
4 73N610320 Foot RestRh 1 #1111
5 S037102526 BoltW/Washer 8 #1111
S037102526 BoltW/Washer 4 #1111
6 73N610190 BracketPadal(Lh) 1 #1111
7 73N610210 BracketPedal(Rh) 1 #1111
8 S109100206 BoltSocket 4 #1111
9 S40310200B WasherPlain 4 #1111
10 73N620260 Pedal RubberLh 1 #1111
11 73N620270 Pedal RubberRh 1 #1111
12 71N610230 LeverTravel,Lh 1 #1111
13 71N610240 LeverTravel,Rh 1 #1111
14 S037103026 BoltW/Washer 4 #1111
15 71N610251 KnobLever,Lh 1 #1111
16 71N610261 KnobLever,Rh 1 #1111
17 S20610100B NutHex 2 #1111
18 71N410970 SpongeInsulation 1 #1111
55 73N620240 RubberFoot Rest(Lh) 1 #1111
56 73N620250 RubberFoot Rest(Rh) 1 #1111
61 71N610300 Viscous Mount 6 #1111
62 S037103026 BoltW/Washer 24 #1111
64 S20516100B NutHex 6 #1111
65 S403162006 WasherPlain 6 #1111
66 S411160006 WasherSpring 6 #1111
67 71E910650DA Washer 6 #1111
68 71N610141 MatFloor 1 #1111
71N610280 MatFloor 1 #1111
71N610290 MatFloor 1 #1111
Print this!
1/1
9 71N859100 Hood AssyMcv 1 #0796

72N959200 Hood AssyMcv 1 #0797 B
91 71N855202 . Hood WaMcv 1 #0796
72N959210 . Hood WaMcv 1 #0797 B
92 71E954150 . Handle 1
93 S205161002 . NutHex 4 #0796
S205161002 . NutHex 2 #0797 A
94 S681190400 . Grommet 2
95 S275160002 . NutSelf Locking 2 #0797
10 71NA58102 Support WaEng Hood 1
13 71N656400 Catch Assy 2 #1118
71N656400BG Catch Assy 2 #1119 D
14 71N855210 BracketMcv Hood,Lh 1
15 71N655221 BracketMcv Hood,Rh 1
16 71N656301 StayMcv Hood 1
20 E2310134 20 Shim(1.0t) 4
23 S501080002 PinSelf Locking 1
27 S40308200B WasherPlain 2
38 72N849200 Foot BoardF/Tank(A) 1 #0797
39 72N849300 Foot BoardF/Tank(B) 1 #0797
40 S037121556 BoltW/Washer 9 #0797
41 72N659200 StayMirror 1 #3255 OPT, FOR IRAN
42 S037123056 BoltW/Washer 4 #3255 OPT, FOR IRAN
Print this!
1/1
4 71N853163 CoverTank 1 #0001 #1322

71N853164 CoverTank 1 #1323 B
5 71N954101 Screen Assy 1
51 71N954111 . Screen Wa 1
52 71N954121 . Sponge 1 #0051
71N954122 . Sponge 1 #0052 C
53 71EM51580 . CapStud Bolt 12
6 71N954201 ScreenPump(T) 1 #0816
71N954202 ScreenPump(T) 1 #0817 D
7 71N954300 ScreenPump(B/F) 1 #0816
71N954301 ScreenPump(B/F) 1 #0817 D
8 71N954400 ScreenPump(B/R) 1 #0816
71N954401 ScreenPump(B/R) 1 #0817 D
11 71N866200 BarTorsion 2
12 71EG54960 StayEng Hood 1 #1118
71EG54960BG StayEng Hood 1 #1119 D
17 71N857101 SupportT/Cover 1
18 71N857200 SupportT/Cover 1
23 S501080002 PinSelf Locking 1
26 S44112000B WasherHardened 4 #3254
S40310500B WasherPlain 4 #3255 B
Print this!
1/1
* 71N952002 Side Cowl AssyLh 1 #0779 STD, BLACK

71N952002Y Side Cowl AssyLh 1 #0780 D STD, YELLOW
71N982000 Side Cowl AssyLh 1 #0001 #0779 AIR VENT, BLACK
71N982000Y Side Cowl AssyLh 1 #0780 D AIR VENT,YELLOW
3 71N952300 . Support WaLh,Fr 1
4 71N852322 . CoverPlate 1
5 71N952401 . Support AssyLh,M 1 #0146
71N952402 . Support AssyLh,M 1 #0147 D
51 71N952411 .. Support WaLh,M 1 #0146
71N952412 .. Support WaLh,M 1 #0147 D
52 71N852492 .. PlateLock 2
53 71EE53540 .. StopperB 2
54 71EH13150 .. BumperRubber 2
55 S035062022 .. BoltW/Washer 4
56 S037122052 .. BoltW/Washer 4
57 S40310200B .. WasherPlain 2 #2866
58 S20510100B .. NutHex 2 #2866
6 71NA52502 . Support WaLh/Rr 1
7 71N952601 . Base Plate WaLh 1
8 71N952701 . ScreenMcv 1 #0146
71N952702 . ScreenMcv 1 #0147 D
81 S791030074 . GrommetPlate 1
9 71NA52802 . Support WaE/G Hood 1
10 71N952901 . Bracket WaA/C 1
11 71N852950 . StaySide Cover 2
12 71N952980 . Support WaMcv Hood 1 #0146
71N952981 . Support WaMcv Hood 1 #0147 D
13 S681100400 . Grommet 2
14 S037122552 . BoltW/Washer 40 #0001 #0146
S037122552 . BoltW/Washer 41 #0147 A
15 11N822100 . Air Cleaner Sub Assy 1
151 11N822110 .. Air Cleaner Assy 1
1511 11N822120 ... Housing 1
1512 11N822130 ... Cap Wa 1
1513 11N822140 ... ElementOuter 1
1514 11N822150 ... ElementInner 1
1515 E2112105 10 ... ValveVacuum 1
1516 11EM21060 ... NutWing 2
1517 11EM21070 ... NutWing 1
152 11L12005 ... Clamp Assy 2
16 11N841070 . TankReservoir 1
161 MH100020 .. CapReservoir Tank 1
17 11N841080 . ClampReservoir Tank 1
18 E1112504 20 . Hose 1
19 S520015000 . ClampHose 1
20 S035082022 . BoltW/Washer 2
22 71N955101 . Hood WaA/C 1 #0146
71N955102 . Hood WaA/C 1 #0147 D
Print this!
1/1
1 71N862100 Side Cover AssyLh,Fr 1 #0779 BLACK

71N862100Y Side Cover AssyLh,Fr 1 #0780 D YELLOW
11 71N862110 . Side Cover WaLh,Fr 1
12 71EE52520 . Catch Assy 1 #0779 BLACK
74N852520 . Catch Assy 1 #0780 D YELLOW
13 71EE53531 . StopperA 1
14 S681100400 . Grommet 1
2 71N952200 Side Cover AssyLh/Rr 1 #0779 STD, BLACK
71N952200Y Side Cover AssyLh/Rr 1 #0780 D STD, YELLOW
21 71N952210 . Side Cover WaLh,Rr 1
22 71N952240 . SpongeLh,Rr 1
24 71EE53531 . StopperA 1
25 71EM51580 . CapStud Bolt 12 #0199
71EM51580 . CapStud Bolt 15 #0200 B
26 S681100400 . Grommet 1
21 71NA72200 Side Cover AssyLh(Rr) 1 #0001 #0779 AIR VENT, BLACK
71NA72200Y Side Cover AssyLh,Rr 1 #0780 D AIR VENT,YELLOW
211 71NA72210 . Side Cover WdLh(Rr) 1
212 71NA72240 . Sponge 1
214 71EE53531 . StopperA 1
216 S681100400 . Grommet 1
218 S035061522 . BoltW/Washer 4
Print this!
1/1
* 71NA53002 Side Cowl AssyRh 1 #0779 STD, BLACK

71NA53002Y Side Cowl AssyRh 1 #0780 D STD, YELLOW
71NA53010Y Side Cowl AssyRh 1 #0919 PRE HEATER
1 71NA53100 . Side Cover AssyRh 1 #0779 STD, BLACK
71NA53100Y . Side Cover AssyRh 1 #0780 D STD, YELLOW
11 71NA53110 .. Cover WaRh 1
12 71NA53130 .. SpongeRh 1
13 71NA53140 .. SpongeRh 1
14 71EE52520 .. Catch Assy 1 #0779 BLACK
74N852520 .. Catch Assy 1 #0780 D YELLOW
15 71EE53531 .. StopperA 1
16 71EM51580 .. CapStud Bolt 12
17 S681100400 .. Grommet 1
18 S772027500 .. Weather Strip 1
19 S035061622 .. BoltW/Washer 4
2 71NA53500 . Support AssyRh,Fr 1
21 71NA53510 .. Support WaRh,Fr 1
22 71N852492 .. PlateLock 1
23 71EE53540 .. StopperB 1
24 71EH13150 .. BumperRubber 1
25 S035062022 .. BoltW/Washer 2
26 S037122052 .. BoltW/Washer 2
27 S40310200B .. WasherPlain 1 #2866
28 S20510100B .. NutHex 1 #2866
3 71NA53201 . Support WaRr 1
71NA53900 . Support WaRr 1 #0919 PRE HEATER
4 71N953300 . Base Plate WaRh 1
5 71NA53402 . Hood WaPump 1
6 71N852950 . StaySide Cover 1
7 S681100400 . Grommet 1
* 71NA83000 Side Cowl AssyRh 1 #0001 #0779 AIR VENT, BLACK
71NA83000Y Side Cowl AssyRh 1 #0780 D AIR VENT,YELLOW
21 71NA73100 . Side Cover AssyRh 1
211 71NA73110 .. Side Cover WaRh 1
212 71NA73140 .. Sponge 1
213 71EE52520 .. Catch Assy 1 #0779 BLACK
74N852520 .. Catch Assy 1 #0780 D YELLOW
214 71EE53531 .. StopperA 1
215 71EM51580 .. CapStud Bolt 12
216 S681100400 .. Grommet 1
217 S772027500 .. Weather Strip 1
218 S035061622 .. BoltW/Washer 4
Print this!
1/1
* 71NA51501 Engine Hood Assy 1 #1118

71NA51501BG Engine Hood Assy 1 #1119 D
1 71NA51511 . Engine Hood Wa 1 #0032
71NA51512 . Engine Hood Wa 1 #0033 B
2 71N651101 . HingeEng Hood 2
3 71NA51701 . Sponge 1
4 71NA51710 . Sponge 2
5 71NA51720 . Sponge 1
6 71NA51730 . Sponge 1
7 71NA51740 . Sponge 1
8 71NA51750 . Sponge 1
9 71NA51760 . Sponge 1
11 71N651140 . StopperA 2
14 S132063052 . ScrewW/Washer 4
Print this!
1/1
1 41N915230 Under CoverCab,A 1 #0426

41N915231 Under CoverCab,A 1 #0427 #1118 D
41N915231BG Under CoverCab,A 1 #1119 D
2 41N815222 Under CoverCab,B 1 #1118
41N815222BG Under CoverCab,B 1 #1119 D
3 41N915211 Under CoverEngine 2 #1078
41N915211 Under CoverEngine 1 #1079 #1118 A
41N915211BG Under CoverEng 1 #1119 D
4 41N815242 Under CoverMcv 1 #1118
41N815242BG Under CoverMcv 1 #1119 D
5 41N915220 Under CoverPump 1 #1118
41N915220BG Under CoverPump 1 #1119 D
6 41N815261 Under CoverHyd 1 #1118
41N815261BG Under CoverHyd 1 #1119 D
7 41N815270 Under CoverFuel 1 #1118
41N815270BG Under CoverFuel 1 #1119 D
8 41N815280 Under CoverRad 1 #1118
41N815280BG Under CoverRadiator 1 #1119 D
9 41N610100 Cover 1
10 41E91306 Seal 1
11 S037102566 BoltW/Washer 52 #1078
S037102566 BoltW/Washer 51 #1079 A
12 S037102052 BoltW/Washer 2 #1182
S037102556 BoltW/Washer 2 #1183 B
13 41N915300 Under CoverEngine 1 #1079 #1118
41N915300BG Under Cover WaEng 1 #1119 D
14 S037103056 BoltW/Washer 4 #1079
Print this!
1/1
2 71N842005 Pipe Wa 1 #1118

71N842005BG Pipe Wa 1 #1119 D
21 S015080402 . BoltHex 2 #0043
22 S411080002 . WasherSpring 2 #0043
3 71N845000 StayMirror 1 #0043
4 71N846000 Mirror 1 #0043
71N848000 Mirror & Stay AssyRh 1 #0044 #0102 B
71N848001 Mirror & Stay AssyRh 1 #0103 #1118 B
71N848001BG Mirror & Stay AssyRh 1 #1119 #1423 D
41 71N847100 . Mirror 1 #0044 #1423
42 71N848100 . Stay AssyRh 1 #0044 #0102
71N848101 . Stay AssyRh 1 #0103 #1118 B
71N848101BG . Stay AssyRh 1 #1119 #1423 D
5 S390015040 ShimRound(0.5t) 4
6 S037122552 BoltW/Washer 8 #0796
S037122552 BoltW/Washer 14 #0797 A
7 71N844100 CoverFuel Tank 1 #0001
9 72N849100 Foot BoardTool Box 1 #0797
22 71N847101 Mirror 1 #1424
23 71N848102BG Stay AssyRh 1 #1424
Print this!
1/1
* 71N841003 04 Tool Box Assy 1 #0796

72N841000 Tool Box Assy 1 #0797 #0901 B
74N841001 Tool Box Assy 1 #0902 B
1 71N841105 03 . Tool Box Wa 1
2 71N841203 . Cover Wa 1 #0012
71N841204 . Cover Wa 1 #0013 #0796 D
74N841200 . Cover Wa 1 #0797 #0901 B
74N841201 . Cover Wa 1 #0902 D
3 71N841300 . Stay Wa 1
4 71N841700 . Catch Assy 1 #0012
71N841701 . Catch Assy 1 #0013 #0102 D
71N841702 . Catch Assy 1 #0103 #0901 B
N41 71N841720 .. UBolt 1 #0012
42 S205061002 .. NutHex 4 #0012
4 74N841700 . Catch Assy 1 #0902 D
5 71N841501 . Bracket 1 #0012
71N841502 . Bracket 1 #0013 #0901 D
74N841500 . Striker Assy 1 #0902 D
51 74N841560 .. Bracket Wa 1 #0902
52 74N841570 .. Bracket Wa 1 #0902
53 S035082526 .. BoltW/Washer 2 #0902
6 71N841321 . Gas Spring 1
7 S791030231 . GrommetPlate 1 #0012
S772030900 . Weather Strip 1 #0013 D
8 S491080252 . PinClevis 1
9 S461320252 . PinSplit 1
10 S035082022 . BoltW/Washer 4 #0012
S035082022 . BoltW/Washer 6 #0013 #0901 A
S035082022 . BoltW/Washer 4 #0902 A
12 71N841721 . Bracket 1 #0013 #0901
Print this!
1/1
1 41N850010 Grommet Kit(A) 1

11 S760031400 . Grommet 3 #0505
12 S760081800 . Grommet 2
13 S760111400 . Grommet 2
14 S760112010 . Grommet 2
2 S760041000 Grommet 8 #0051
41N870010 Grommet Kit(B) 1 #0052 #0890 D
41N870011 Grommet Kit(B) 1 #0891 D
21 S760041000 . Grommet 3 #0052 A
22 S760040800 . Grommet 6 #0052 #0890
S760040800 . Grommet 4 #0891 A
3 S760041400 Grommet 3 #0506 D
Print this!
1/1
1 41N921001 Counterweight Assy 1 STD

41N931000 Counterweight Assy 1 #0387 OPT,6.6TON
11 41N921011 . Counterweight Wa 1 STD
41N931010 . Counterweight Wa 1 #0387 OPT,6.6TON
12 41N821211 . Sponge(A) 1
13 41N821221 . Sponge(B) 1
14 41N821234 . Sponge(C) 1
15 41N821241 . Sponge(D) 1
16 41N821251 . Sponge(E) 1
17 41N821261 . Sponge(F) 1
19 61L12037 . WasherHardened 8
2 S391050100 ShimRound(1.0t) 6
3 S392050100 ShimRound(2.0t) 6
4 S018362002 BoltHex 4
5 41N821271 Spacer 4
10 41N900012 Upper Frame Wa 1 #1118 MCV TYPE 1
41N900012BG Upper Frame Wa 1 #1119 D MCV TYPE 1
41N904010 Upper Frame Wa 1 #2403 MCV TYPE 2
Print this!
1/1
1 51N811112 Cover WaT/Motor,Lh 1 #1118

51N811112BG Cover WaT/Motor,Lh 1 #1119 D
2 51N811122 Cover WaT/Motor,Rh 1 #1118
51N811122BG Cover WaT/Motor,Rh 1 #1119 D
3 41N610100 Cover 1
4 41E91306 Seal 1
7 51N611211 CoverBottom(A) 1 #1118 STD, 6MM
51N611211BG CoverBottom(A) 1 #1119 #2067 D STD, 6MM
51N611230 CoverBottom(A) 1 #0976 #1118 OPT, 8MM
51N611230BG CoverBottom(A) 1 #1119 D OPT, 8MM
8 51N611221 CoverBottom(B) 1 #1118 STD, 6MM
51N611221BG CoverBottom(B) 1 #1119 #2067 D STD, 6MM
51N611240 CoverBottom(B) 1 #0976 #1118 OPT, 8MM
51N611240BG CoverBottom(B) 1 #1119 D OPT, 8MM
10 51N820011 BoardFoot 1 #0010 700MM SHOE
51N602640 BoardFoot 1 #0011 #1118 D 700MM SHOE
51N602640BG BoardFoot 1 #1119 D 700MM SHOE
51N820051 BoardFoot 1 #0010 800MM SHOE
51N602650BG BoardFoot 1 #1119 D 750,800MM SHOE
51N820081 BoardFoot 1 #0010 900MM SHOE
51N602660BG BoardFoot 1 #1119 D
11 S017160552 BoltHex 16
13 S207161002 NutHex 10
14 51Q611210BG CoverBottom(A) 1 #2068 B STD, 6MM
20 51N900011 Lower Frame Wa 1 #0010
51N900012 Lower Frame Wa 1 #0011 #0975 D
51N900013 Lower Frame Wa 1 #0976 #1118 A
51N900013BG Lower Frame Wa 1 #1119 D
51N806012 Lower Frame Wa 1 #0008 #0975 HIGH WALKER
51N806013 Lower Frame Wa 1 #0976 #1118 A
51N905010 Lower Frame Wa 1 #0015 #1118 NARROW TRACK
21 S037124556 BoltW/Washer 8 #0976
Print this!
1/1
1 81N901020 Swing Bearing 1 #0005

81N901021 Swing Bearing 1 #0006 #0793 B
81N901022 Swing Bearing 1 #0794 B
11 82E910040 . SealSwing Bearing 1
2 E1805002 20 BoltReamer 3
3 S017240752 BoltHex 40
4 S017241202 BoltHex 35 #0005
S017241302 BoltHex 35 #0006 D
6 81N800030 PipeGrease,Lh 1 #0449
7 81N800040 PipeGrease,Rh 1 #0449
8 31EH00610 Fitting 2 #0449
81N600110 Elbow90 2 #0450 D
9 E1310626 10 Connector 2 #0449
81N600120 Connector 2 #0450 D
10 E2310349 10 Elbow90 2 #0449
81N600130 Elbow90 2 #0450 D
11 P391040000 WasherCopper 2 #0449
12 E2412603 10 Clamp 2 #0449
S543120002 ClampTube 2 #0450 D
13 S017100152 BoltHex 2 #0449
S037101556 BoltW/Washer 2 #0450 A
14 S411100002 WasherSpring 2 #0449
16 81N600250 TubeNylon 2 #0450 D
Print this!
1/1
* @ CabinProtector 1 #0939 OPTION

1 71N690300 Protector Wa 1 #0939 #1678
71N690301 Protector Wa 1 #1679 D
2 S037122556 BoltW/Washer 8 #0939
Print this!
1/1
1 61N900011 Pin Assy 1 #0854

61N900012 Pin Assy 1 #0855 #1118 B
61N900012BG Pin Assy 1 #1119 D
61N900012AS Pin Assy 1 #0001 FOR AS ONLY
2 61N801770 Pin Assy 1 #0854
61N801771 Pin Assy 1 #0855 B
3 61N900021 Pin 1 #0043
61N900060 Pin 1 #0044 #0854 D
61N900061 Pin Assy 1 #0855 B
4 61N801850 Pin Assy 4 #0134
61N801860 Pin Assy 4 #0135 #0854 D
61N801861 Pin Assy 4 #0855 #1118 B
61N801861BG Pin Assy 4 #1119 #2987 D
61N801861BG Pin Assy 2 #2988 A
5 61N900030 Pin Assy 1 #0571
61N900031 Pin Assy 1 #0572 B
6 61NA00030 PlateLock 1 #1118
61NA00030BG PlateLock 1 #1119 D
7 61N900040 PlateLock 2 #0043
8 61N810810 PlateLock 1
9 61N800170 SpacerPin 1 #2150
61Q800150 SpacerPin 1 #2151 B
10 61N800180 SpacerPin 4 #2150
61Q800160 SpacerPin 4 #2151 B
11 S017200302 BoltHex 5
12 S017160452 BoltHex 10 #0043
S017160452 BoltHex 4 #0044 A
13 61N800320 WasherHardened 5
14 S411160002 WasherSpring 10 #0043
S411160002 WasherSpring 4 #0044 A
15 S391110190 ShimRound(1.0t) 2 #0725
16 S391100170 ShimRound(1.0t) 2
17 S391090165 ShimRound(1.0t) 1
18 S391100165 ShimRound(1.0t) 1 #0001
19 S392100170 ShimRound(2.0t) 1 #0044 #0725
20 61N819030 StopperPin 2 #0044
21 S017161802 BoltHex 2 #0044
22 S205161002 NutHex 4 #0044
23 S390100200A ShimRound(0.5t) 1 #1724
24 S390110200A ShimRound(0.5t) 1 #1724
25 61N801890BG Pin Assy 2 #2988 D
Print this!
1/1
* 61N910102 Boom Assy(6.45m) 1 #1215

62N910100 Boom Assy(6.45m) 1 #1216 D
1 61N911012 . Boom Wa(6.45m) 1 #1215
N1 62N911010 . Boom Wa(6.45m) 1 #1216 D
2 61EN12141 . BushingBronze 2
3 S700110208 . SealDust 2 #0001 #2110
S700110209 . SealDust 2 #2111 D
4 S651810002 . NippleGrease 1
Print this!
1/1
* 61N910900 Boom Assy(6.45m) 1 #1040 #1215

62N910900 Boom Assy(6.45m) 1 #1216 D
1 61N919010 . Boom Wa(6.45m) 1 #1040 #1215
N1 62N919010 . Boom Wa(6.45m) 1 #1216 D
2 61EN12141 . BushingBronze 2 #1040
3 S700110208 . SealDust 2 #1040 #2110
S700110209 . SealDust 2 #2111 D
4 S651810002 . NippleGrease 1 #1040
Print this!
1/1
* 61N910200 Boom Assy 1

N1 61N912010 . Boom Wa 1
3 S700110208 . SealDust 2 #0001 #2110
S700110209 . SealDust 2 #2111 D
Print this!
1/1
* 61N920102 Arm Assy(3.2m) 1 #0215

61N920103 Arm Assy(3.2m) 1 #0216 #1215 D
61N920104 Arm Assy(3.2m) 1 #1216 B
1 61N921012 . Arm Wa(3.2m) 1 #0215
61N921013 . Arm Wa(3.2m) 1 #0216 #1215 D
N1 61N921014 . Arm Wa(3.2m) 1 #1216 #2315 B
1 61N921015 . Arm Wa(3.2m) 1 #2316 A
2 61EN13390 . Bushing 2 #0350
61EN17120 . Bushing 2 #0351 B
3 61EN13380 . Bushing 2
5 S700100208 . Dust SealDkiy Type 4
Print this!
1/1
* 61N920900 Arm Assy(3.2m)H/Duty 1 #1040 #1215

61N920901 Arm Assy(3.2m)H/Duty 1 #1216 B
1 61N929010 . Arm Wa(3.2m)H/Duty 1 #1040 #1215
N1 61N929011 . Arm Wa(3.2m)H/Duty 1 #1216 #2362 B
61N929012 . Arm Wa(3.2m)H/Duty 1 #2363 D
2 61EN17120 . Bushing 2 #1040
3 61EN13380 . Bushing 2 #1040
4 61EN12310 . BushingBronze 2 #1040
5 S700100208 . Dust SealDkiy Type 4 #1040
6 S700090206 . Dust SealDkiy Type 2 #1040
7 S651810002 . NippleGrease 2 #1040
Print this!
1/1
* 61N920200 Arm Assy(2.2m) 1 #0215

61N920201 Arm Assy(2.2m) 1 #0216 #1215 D
61N920202 Arm Assy(2.2m) 1 #1216 B
1 61N922010 . Arm Wa(2.2m) 1 #0215
61N922011 . Arm Wa(2.2m) 1 #0216 #1215 D
61N922012 . Arm Wa(2.2m) 1 #1216 B
2 61EN13390 . Bushing 2 #0350
61EN17120 . Bushing 2 #0351 B
3 61EN13380 . Bushing 2
Print this!
1/1
* 64N920200 Arm Assy 1 #2103

1 64N922010 . Arm Wa 1 #3024
64N922011 . Arm Wa 1 #3205 B
2 61Q604130 . Bushing 2 #2975
61QH89160 . Bushing 2 #2976 B
3 61Q604070 . Bushing 2
7 61Q921301 . Cover Plate 2
8 S109120256 . BoltSocket 8
Print this!
1/1
* 61N920300 Arm Assy(2.5m) 1 #0215

61N920301 Arm Assy(2.5m) 1 #0216 #1215 D
61N920302 Arm Assy(2.5m) 1 #1216 B
1 61N923010 . Arm Wa(2.5m) 1 #0215
61N923011 . Arm Wa(2.5m) 1 #0216 #1215 D
61N923012 . Arm Wa(2.5m) 1 #1216 #3204 B
61N923013 . Arm Wa 1 #3205 B
2 61EN13390 . Bushing 2 #0350
61EN17120 . Bushing 2 #0351 B
3 61EN13380 . Bushing 2
Print this!
1/1
* 61N920400 Arm Assy(4.05m) 1 #0215

61N920401 Arm Assy(4.05m) 1 #0216 #1215 D
61N920402 Arm Assy(4.05m) 1 #1216 B
1 61N924010 . Arm Wa(4.05m) 1 #0215
61N924011 . Arm Wa(4.05m) 1 #0216 #1215 D
61N924012 . Arm Wa(4.05m) 1 #1216 #3204 B
61N924013 . Arm Wa 1 #3205 B
2 61EN13390 . Bushing 2 #0350
61EN17120 . Bushing 2 #0351 B
3 61EN13380 . Bushing 2
Print this!
1/1
1 61N940010 Control Rod Assy 1 #1118

61N940010BG Control Rod Assy 1 #1119 D
11 61N940090 . Control Rod 1 #1118
61N940090BG . Control Rod 1 #1119 D
12 X124102100 . Bushing 2
13 X114902135 . Bushing 2 #0001
2 61N940020 Control LinkLh 1 #1118
61N940020BG Control LinkLh 1 #1119 #2586 D
61Q940020BG Control LinkLh 1 #2587 B
3 61N940030 Control LinkRh 1 #1118
61N940030BG Control LinkRh 1 #1119 #2586 D
61Q940030BG Control LinkRh 1 #2587 B
4 61NA40050 Pin 1 #0282
61NA40051 Pin 1 #0283 #0574 B
61NA40052 Pin 1 #0575 B
5 61NA40060 Pin 1 #0854
61NA40061 Pin 1 #0855 B
6 61NA40070 Pin 1 #0282
61NA40071 Pin 1 #0283 #0574 B
61NA40072 Pin 1 #0575 B
7 61NA40080 Pin 1 #0574
61NA40081 Pin 1 #0575 B
8 S01720180D BoltHex 2 #2022
S017201806 BoltHex 2 #2023 B
9 S017201652 BoltHex 2
10 S205201002 NutHex 8
11 E1613054 ORing 4
13 S391100165 ShimRound(1.0t) 4 #0725
14 S391090165 ShimRound(1.0t) 4
Print this!
1/1
* 61N930101 Bucket Assy 1 #0345

61N930102 Bucket Assy 1 #0346 #1118 B
61N930102BG Bucket Assy 1 #1119 D
1 61N931011 . Bucket Wa 1 #0345
61N931012 . Bucket Wa 1 #0346 #1118 B
61N931012BG . Bucket Wa 1 #1119 D
11 E2623027 20 .. AdapterTooth 5 #0345
61N831320 .. AdapterTooth 5 #0346 D
2 E2623046 30 . PointTooth 5 #0345
61N831310 . PointTooth 5 #0346 #1118 B
61N831310BG . PointTooth 5 #1119 D
3 63E13533 20 . Side CutterLh 1 #1118
63E13533BG 30 . Side CutterLh 1 #1119 D
4 63E13534 20 . Side CutterRh 1 #1118
63E13534BG 30 . Side CutterRh 1 #1119 D
K5 E2625004 20 . PinTooth 5
6 61E51126 20 . Bushing 1
8 61E53136 10 . Cover Plate 1
9 S017160502 . BoltHex 2
10 S017220652 . BoltHex 4
11 S017220702 . BoltHex 6
12 S205221002 . NutHex 10
14 S411220002 . WasherSpring 10 #3549
S441220006 . WasherHardened 10 #3550 D
K15 61E511150 . WasherLock 5
16 61E53141 10 . Shim(1.0t) 6
K E2625004S Tooth Pin Kit 1 #0001 INCL 5, 15
Print this!
1/1
* 66N930100BG Bucket Assy 1 #1125 #3343 WEARRESISTANT

66N930101BG Bucket Assy 1 #3344 B WEARRESISTANT
1 66N931010BG . Bucket Wa 1 #1125 #3343
66N931011BG . Bucket Wa 1 #3344 D
11 61N831320 .. AdapterTooth 5 #1125
2 61N831310BG . PointTooth 5 #1125
3 63E13533 20 . Side CutterLh 1 #1125 #1118
4 63E13534 20 . Side CutterRh 1 #1125 #1118
K5 E2625004 20 . PinTooth 5 #1125
6 61E51126 20 . Bushing 1 #1125
8 61E53136 10 . Cover Plate 1 #1125
9 S017160502 . BoltHex 3 #1125 #3343
S017160506 . BoltHex 3 #3344 B
10 S017220652 . BoltHex 4 #1125 #3343
S01722065D . BoltHex 4 #3344 B
11 S017220702 . BoltHex 6 #1125 #3343
S01722070D . BoltHex 6 #3344 B
12 S205221002 . NutHex 10 #1125 #3343
S20522100B . NutHex 10 #3344 B
13 S411160002 . WasherSpring 3 #1125 #3343
S441160006 . WasherHardened 3 #3344 B
14 S411220002 . WasherSpring 10 #1125 #3343
S411220006 . WasherSpring 10 #3344 #3549 B
K15 61E511150 . WasherLock 5 #1125
16 61E53141 10 . Shim(1.0t) 6 #1125
Print this!
1/1
* 61N930200 Bucket Assy 1 #0001 #0345

61N930201 Bucket Assy 1 #0346 #1118 B
1 61N932010 . Bucket Wa 1 #0345
61N932011 . Bucket Wa 1 #0346 #1118 B
61N932011BG . Bucket Wa 1 #1119 D
11 E2623027 20 .. AdapterTooth 3 #0345
2 E2623046 30 . PointTooth 3 #0345
61N831310 . PointTooth 3 #0346 #1118 B
3 63E13533 20 . Side CutterLh 1 #1118
4 63E13534 20 . Side CutterRh 1 #1118
K5 E2625004 20 . PinTooth 3
6 61E51126 20 . Bushing 1
8 61E53136 10 . Cover Plate 1
9 S017160502 . BoltHex 2
10 S017220652 . BoltHex 4
11 S017220702 . BoltHex 6
12 S205221002 . NutHex 10
14 S411220002 . WasherSpring 10 #3549
16 61E53141 10 . Shim(1.0t) 6
Print this!
1/1
* 61N930400 Bucket Assy 1 #0034 #0345

61N930401 Bucket Assy 1 #0346 #1118 B
1 61N934010 . Bucket Wa 1 #0034 #0345
61N934011 . Bucket Wa 1 #0346 #1118 B
61N934011BG . Bucket Wa 1 #1119 D
11 E2623027 20 .. AdapterTooth 6 #0034 #0345
2 E2623046 30 . PointTooth 6 #0034 #0345
61N831310 . PointTooth 6 #0346 #1118 B
3 63E13533 20 . Side CutterLh 1 #0034 #1118
4 63E13534 20 . Side CutterRh 1 #0034 #1118
K5 E2625004 20 . PinTooth 6 #0034
6 61E51126 20 . Bushing 1 #0034
8 61E53136 10 . Cover Plate 1 #0034
9 S017160502 . BoltHex 2 #0034
10 S017220652 . BoltHex 4 #0034
11 S017220702 . BoltHex 6 #0034
12 S205221002 . NutHex 10 #0034
13 S411160002 . WasherSpring 3 #0034
14 S411220002 . WasherSpring 10 #0034
S411220002 . WasherSpring 10 #0034 #3549
K15 61E511150 . WasherLock 6 #0034
16 61E53141 10 . Shim(1.0t) 6 #0034
Print this!
1/1
* 61N930500 Bucket Assy 1 #0001 #0345

61N930501 Bucket Assy 1 #0346 #1118 B
1 61N935010 . Bucket Wa 1 #0345
61N935011 .. Bucket Wa 1 #0346 #1118 B
61N935011BG .. Bucket Wa 1 #1119 D
11 E2623027 20 .. AdapterTooth 6 #0345
61N831320 ... AdapterTooth 6 #0346 D
2 E2623046 30 . PointTooth 6 #0345
61N831310 . PointTooth 6 #0346 #1118 B
3 63E13533 20 . Side CutterLh 1 #1118
4 63E13534 20 . Side CutterRh 1 #1118
K5 E2625004 20 . PinTooth 6
6 61E51126 20 . Bushing 1
8 61E53136 10 . Cover Plate 1
9 S017160502 . BoltHex 2
10 S017220652 . BoltHex 4
11 S017220702 . BoltHex 6
12 S205221002 . NutHex 10
14 S411220002 . WasherSpring 10 #3549
16 61E53141 10 . Shim(1.0t) 6
Print this!
1/1
* 61N930600 Bucket Assy 1 #0016 #0345

61N930601 Bucket Assy 1 #0346 #1118 B
61N930601BG Bucket Assy 1 #1119 #3343 D
61N930602BG Bucket Assy 1 #3344 B
1 61N936010 . Bucket Wa 1 #0345
61N936011 . Bucket Wa 1 #0346 #1118 B
61N936011BG . Bucket Wa 1 #1119 #3343 D
61N936012BG . Bucket Wa 1 #3344 D
11 61E70100 02 .. AdapterTooth 5 #0345
61NA31320 .. AdapterTooth 5 #0346 D
2 61E70101 01 . PointTooth 5 #0345
61NA31310 . PointTooth 5 #0346 #1118 B
61NA31310BG . PointTooth 5 #1119 D
3 61E70105 . PinTooth 5
61E70105 . PinTooth 5
4 61E51126 20 . Bushing 1
5 61E53136 10 . Cover Plate 1
6 S017160502 . BoltHex 2
8 61EH11150 . WasherLock 5 #0016
9 61E53141 10 . Shim(1.0t) 6
Print this!
1/1
* 61N930700 Bucket Assy 1 #0016 #0345

61N930701 Bucket Assy 1 #0346 #1118 B
61N930701BG Bucket Assy 1 #1119 #3343 D
1 61N937010 . Bucket Wa 1 #0345
61N937011 . Bucket Wa 1 #0346 #1118 B
61N937011BG . Bucket Wa 1 #1119 #3343 D
61N937012BG . Bucket Wa 1 #3344 D
11 61E70100 02 .. AdapterTooth 5 #0345
2 61E70101 01 . PointTooth 5 #0345
61NA31310 . PointTooth 5 #0346 #1118 B
3 61E70105 . PinTooth 5
4 61E51126 20 . Bushing 1
5 61E53136 10 . Cover Plate 1
6 S017160502 . BoltHex 2
8 61EH11150 . WasherLock 5 #0016
9 61E53141 10 . Shim(1.0t) 6
Print this!
1/1
* 61N930800 Bucket Assy 1 #0177 #0345

61N930801 Bucket Assy 1 #0346 #1118 B
61N930801BG Bucket Assy 1 #1119 #3343 D
1 61N938010 . Bucket Wa 1 #0345
61N938011 . Bucket Wa 1 #0346 #1118 B
61N938011BG . Bucket Wa 1 #1119 #3343 D
61N938012BG . Bucket Wa 1 #3344 D
11 61E70100 02 .. AdapterTooth 5 #0345
2 61E70101 01 . PointTooth 5 #0345
61NA31310 . PointTooth 5 #0346 #1118 B
3 61E70105 . PinTooth 5
4 61E51126 20 . Bushing 1
5 61E53136 10 . Cover Plate 1
6 S017160502 . BoltHex 3
7 S441160002 . WasherHardened 3
8 61EH11150 . WasherLock 5
9 61E53141 10 . Shim(1.0t) 6
Print this!
1/1
* 61N930900 Bucket Assy 1 #0497 #1118

61N930900BG Bucket Assy 1 #1119 #3343 D
1 61N939010 . Bucket Wa 1 #1118
61N939010BG . Bucket Wa 1 #1119 #3343 D
61N939011BG . Bucket Wa 1 #3344 D
11 61NA31320 .. AdapterTooth 5
2 61NA31310 . PointTooth 5 #1118
3 61E70105 . PinTooth 5
4 61E51126 . Bushing 1
5 61E53136 10 . Cover Plate 1
6 S017160502 . BoltHex 3
8 61EH11150 . WasherLock 5
9 61E53141 10 . Shim(1.0t) 6
Print this!
1/1
* 61N930300 Bucket Assy 1 #1223

1 61N933010 . Bucket Wa 1
11 61N831320 .. AdapterTooth 4
2 61N831310 . PointTooth 4
3 63E13533 . Side CutterLh 1
4 63E13534 . Side CutterRh 1
5 E2625004 . PinTooth 4
6 61E51126 . Bushing 1
7 61E53136 . Cover Plate 1
8 S017160506 . BoltHex 3
9 S01722065D . BoltHex 4
10 S01722070D . BoltHex 6
11 S20522100B . NutHex 10
13 S411220006 . WasherSpring 10 #3549
14 61E511150 . WasherLock 4
15 61E53141 . Shim(1.0t) 6
Print this!
1/1
* 91E920120 Tool Kit Assy 1 #0034

1 E1912000 10 . Tool Box 1 #0034
2 S953127100 . SocketMetric 1 #0034
4 S953127140 . SocketMetric 1 #0034
5 S953127170 . SocketMetric 1 #0034
6 S953127190 . SocketMetric 1 #0034
8 S953127240 . SocketMetric 1 #0034
9 S953127300 . SocketMetric 1 #0034
10 S953190320 . SocketMetric 1 #0034
11 S953190360 . SocketMetric 1 #0034
12 S953190460 . Socket3/4"X46mm 1 #0034
13 S953190550 . Socket3/4"X55mm 1 #0034
19 S962080902 . WrenchDouble,8x9 1 #0034
21 S962101202 . WrenchDouble,10x12 1 #0034
23 S962131702 . WrenchDouble,13x17 1 #0034
26 S962192202 . WrenchDouble,19x22 1 #0034
27 S962222402 . WrenchDouble,22x24 1 #0034
28 S962242702 . WrenchDouble,24x27 1 #0034
29 S962303202 . WrenchDouble,Metric 1 #0034
33 91E12308 . LWrench,14mm 1 #0034
34 S967040025 . LWrench 1 #0034
35 S967050028 . LWrench 1 #0034
36 S967060032 . LWrench 1 #0034
37 S967080036 . LWrench 1 #0034
38 S967100040 . LWrench 1 #0034
39 S967120045 . LWrench 1 #0034
40 S967170060 . LWrench 1 #0034
41 S959061012 . DriverScrew 1 #0034
43 S959061022 . DriverScrew 1 #0034
47 S960150020 . PlierSlip Joint 1 #0034
48 S963200024 . WrenchAdj Angle 1 #0034
50 E1912043 . WrenchFilter,300mm 1 #0034
53 S954127080 . Universal Joint 1 #0034
54 91EM20600 . Adaptor1/2"3/8" 1 #0034
55 S955127075 . BarExtension 1 #0034
56 S955127125 . BarExtension 1 #0034
57 S955190200 . BarExtension 1 #0034
58 E1912048 . HandleSliding,1/2"X10" 1 #0034
60 S958127250 . HandleRatchet 1 #0034
61 S964100290 . HammerHand,1lb 1 #0034
62 E1912053 . GunGrease,500cc 1 #0034
63 E1912054 . TipHose,Rubber 1 #0034
70 E19120571 . Tool List 1 #0034
Print this!
1/1
* 91E920121 Tool Kit Assy 1 #0035 B SEE 8010

1 E1912000 . Tool Box 1 #0035
2 S953127100 . SocketMetric 1 #0035
3 S953127130 . SocketMetric 1 #0035
4 S953127140 . SocketMetric 1 #0035
5 S953127170 . SocketMetric 1 #0035
6 S953127190 . SocketMetric 1 #0035
7 S953127220 . SocketMetric 1 #0035
8 S953127240 . SocketMetric 1 #0035
9 S953127270 . SocketMetric 1 #0035
10 S953127300 . SocketMetric 1 #0035
11 S953190320 . SocketMetric 1 #0035
12 S953190360 . SocketMetric 1 #0035
17 S962100003 . WrenchCombination 1 #0035
33 S967040025 . LWrench 1 #0035
34 S967050028 . LWrench 1 #0035
35 S967060032 . LWrench 1 #0035
36 S967080036 . LWrench 1 #0035
37 S967100040 . LWrench 1 #0035
38 S967120045 . LWrench 1 #0035
39 S967140055 . LWrench 1 #0035
40 S967170060 . LWrench 1 #0035
41 S959061012 . DriverScrew 1 #0035
43 S959061022 . DriverScrew 1 #0035
47 S960150020 . PlierSlip Joint 1 #0035
50 E1912043 . WrenchFilter,300mm 1 #0035
53 S954127080 . Universal Joint 1 #0035
54 91EM20600 . Adaptor1/2"3/8" 1 #0035
55 S955127075 . BarExtension 1 #0035
56 S955127125 . BarExtension 1 #0035
57 S955190200 . BarExtension 1 #0035
60 S958127250 . HandleRatchet 1 #0035
61 S964200340 . HammersHand 1 #0035
62 E1912053 . GunGrease,500cc 1 #0035
63 E1912054 . TipHose,Rubber 1 #0035
70 E19120572 . Tool List 1 #0035
Print this!
1/1
* 21N632231 Hrdt 2.0 Tool Kit 1 #0001

1 21N632211 . CdHrdt 2.0 Software 1
2 21N632250 . CableRs232,Mcu To Pc 1
3 21EG32200 . SenderPressure 2
4 21EG32210 . SenderPressure 1
5 P391040000 . WasherCopper 3
6 31N490400 . AdaptorGauge 3
7 21N632270 . HarnessPump Ps 1
8 21N632240 . CableRs232 To Usb 1
9 21N632260 . Case 1
Print this!
1/1
1 91N900100 Decal Kit 1 #0106

91N800104 Decal Kit 1 #0107 #0428 B
91N800105 Decal Kit 1 #0429 #0554 B
91N800106 Decal Kit 1 #0555 #0700 B
91N800108 Decal Kit 1 #0701 #3422 B
91N800109 Decal Kit 1 #3423 #3550 B
91N800110 Decal Kit 1 #3551 D
94N800100 Decal Kit 1 #1111 #1891 UPGRADE CABIN
94N800101 Decal Kit 1 #1892 #2948 B UPGRADE CABIN
94N800103 Decal Kit 1 #2949 B UPGRADE CABIN
11 91N601102 . DecalA/Cleaner Filter 1
12 91N601111 . DecalTurbo Cover 1
13 91N601121 . DecalRadiator Cap 1
14 91N601131 . DecalFueling 1
15 91N602120 . DecalBatt Accident 1
16 91N603102 . DecalHyd Oil Level 1
17 91N603111 . DecalHyd Oil Lub 1
18 91N603130 . DecalH/Press Hose 2
19 91N603140 . DecalFalling 1
110 91N604122 . DecalKeep Clear/Rr 2
111 91N604132 . DecalLifting Eye 2
112 91E114110 . DecalPin Plate 1 #3422
91LM14110 . Pin Plate 1 #3423 B
91E114130 . DecalPin Plate 1 #3422 EUROPE
91LM14130 . Pin Plate 1 #3423 B EUROPE
113 91N605110 . DecalSling Ideogram 4
114 91N606110 . DecalKeep Clear,Att 2
115 91N607102 . DecalKeep Clear 2
116 91N607112 . DecalStay Fix 3
117 91N607121 . DecalShearing 1
118 91N607131 . DecalNo Step 1
119 91N607141 . DecalTransporting 1
120 91E127110 . DecalL/Emission Eng 1
121 91N607201 . DecalCntl Ideogram 1
122 91N607212 . DecalCntl Ideogram,Lh 1
92N607210 . DecalCntl Ideo,Lh 1 #1111 UPGRADE CABIN
123 91N607221 . DecalCntl Ideogram,Rh 1
92N607220 . DecalCntl Ideo,Rh 1 #1111 UPGRADE CABIN
124 91N607231 . Ref Operator Manual 1 #0428
125 91N607241 . Max Height 1 #0428
126 91N607252 . DecalSafety Fr Window 2 #0428
91N607252 . DecalSafety Fr Window 1 #0429 A
127 91N607260 . Safety Window Rear 1 #3422
91Q607260 . DecalSafety Winow,Rr 1 #3423 B
128 91N607272 . DecalAircon Filter 1
129 91N607280 . DecalHammer 1 #3422
91Q607280 . DecalHammer 1 #3423 B
130 91N607290 . DecalFire 1
131 91N607301 . DecalConsole Box Tilt 1
92N607300 . DecalConsole Box Tilt 1 #1111 UPGRADE CABIN
132 91N607311 . DecalSafety Lever 1
92N607310 . DecalSafety Lever 1 #1111 UPGRADE CABIN
133 91N607320 . Interference 1 #0428
140 91N606410 . Name PlateBucket 1 #0107
141 91N607370 . DecalCabin Rh Pillar 1 #0429
142 91LB06350 . DecalElectric Welding 1 #0555
145 91N605120 . DecalTie 2 #0701 #3550
91N605120 . DecalTie 4 #3551 A
146 91N607390 . DecalTurbocharger 1 #0701 #3422
91Q607920 . DecalCaution(W/S,T/C) 1 #3423 B
2 91E126300 DecalStep Tread 9 #0700
91E126300 DecalStep Tread 8 #0701 #0796 A
91E126300 DecalStep Tread 3 #0797 A
3 91EK12010 Rivet 4
4 91N910100 Trade Mark Kit 1 #0047
91N910200 Trade Mark Kit 1 #0008 #0047 NLC
41 91N917110 . Model NameLh 1 #0047
91N917111 . Model NameLh/Rr 1 #0048 #1118 D
91N917112 . Model Name 1 #1119 D
91N918110 . Model NameLh 1 #0008 #0047 NLC
91N918111 . Model NameLh/Rr 1 #0048 #1118 D NLC
91N918112 . Model Name 1 #1119 D NLC

42 91N817210 . Model NameLh/Fr 1 #0048 #1118
43 91N917120 . Model NameRh 1 #0047
91N917121 . Model NameRh/Rr 1 #0048 #1118
91N918120 . Model NameRh 1 #0008 #0047 NLC
91N918121 . Model NameRh/Rr 1 #0048 #1118 NLC
44 91N917220 . Model NameRh/Fr 1 #0048
45 91N817140 . LogoRobex 2
46 91N621130 . DecalBoom/Cwt 3
47 91N604101 . DecalKeep Clear,Ref 2 #0482
91N604170 . DecalReflecting 2 #0483 B
48 91N603200 . DecalAccumulator 1 #1229
5 91N622180 DecalNoise Lwa 1 #0047
91N622170 DecalNoise Lwa/107db 1 #0048 #0541 D
91N622150 DecalNoise Lwa/105db 1 #0542 D
6 91N917160 Service Instruction 1 #0007
91N917161 Service Instruction 1 #0008 #0215 B
91N917163 Service Instruction 1 #0440 #1263 D
91N917164 Service Instruction 1 #1264 #1702 D
91N917167 DecalService Instruction 1 #3423 #3549 B
91N917168 Service Instruction 1 #3550 D
7 91N917400 KitLifting Chart 1
71 91N917410 . DecalLifting Chart 1 #0001 6.45BM+3.20AM
72 91N917420 . Lifting Chart 1 #0001 6.45BM+2.20AM
7 91N918400 Lifting Chart 1 #0008
71 91N918410 . Lifting Chart(Nlc) 1 #0008 6.45BM+3.20AM
7 91N917500 KitLifting Chart 1 #0008
71 91N917510 . Lifting Chart(H/Walk) 1 #0008 6.45BM+3.20AM
8 91N601280 DecalFops Fog Plate 1 #0701 OPTION
9 91EK12010 Rivet 4 #0701 OPTION
10 91N606420 Metal Tack 4 #0107
11 91N627510 DecalSafety Work 2 #0701 #0796
12 91N603121 DecalR/Gear Grease 1 #1703
Print this!
1/1
1 91N930030 Parts Manual 1

91N930040 Operators Manual 1
91N930050 Service Manual 1
2 91N930940 Binder & Sticker 1 P/MANUAL
91N930950 Binder & Sticker 1 S/MANUAL
3 HECD30000 CdParts Manual 1 NOT USED, EXCA
HACD30000 CdParts Manual 1 NOT USED, A/MODEL
HEDV30000 DvdParts Manual 1 NOT USED, EXCA
HADV30000 DvdParts Manual 1 NOT USED, A/MODEL
HAUS30000 EParts Manual(Usb) 1 ALL MODEL
HEUS30000 EParts Manual(Usb) 1 EXCAVATOR
Print this!
1/1
* 3927335 TagInstruction 1 AH9132

2 3936993 GasketInt Mani Cover 1
3 3930319 WasherInsulating 1
4 3930320 Screw 1
5 3932087 HeaterIntake Air 1
Print this!
1/1
1 3908612 Screw 2 AP9320

N2 3992026 Decal 1
N3 3284906 Dataplate 1
Print this!
1/1
*N 3935715 Camshaft 1 PP8185

1 3923478 . Camshaft 1
2 3902332 . KeyPlain Woodruff 1
3 3918777 . GearCamshaft 1
4 3900227 . ScrewHex Head Cap 2
5 3927155 . Support 1
6 3931623 TappetValve 12 BB988001
Print this!
1/1
1 3907998 ScrewRd Hd Cap 2 BB9882

*N 3913995 HousingTiming Pin 1
2 3903924 . PinTiming 1
3 3904849 . RingRetaining 1
4 3913994 . ORing 1
5 3919683 . HousingTiming Pin 1
6 3915772 SealRect Ring 1
7 3943885 ScrewHex F/Head Cap 3
8 3944293 GasketGear Housing 1
11 4992991 HousingGear 1
Print this!
1/1
1 3901617 Screw 12 RL9732

2 3901693 ClampRetaining 6
3 3905194 RodPush 12
4 3905870 Support 6
* 3901717 LeverRocker 12
N5 3926429 . LeverRoker 1
6 3927692 . NutHeavy Hex 1
7 3937438 . Screw 1
*N 3902588 . InsertRocker Lever 1
8 3906100 WasherSpring 12
* 3919435 Shaft 6
9 3919433 . Shaft 1
10 3919434 . Rivet 1
11 3907206 WasherPlain 12
12 3919677 Manifold 1
13 3901764 RingRetaining 12
Print this!
1/1
* 3939313 BlockCylinder 1 BB988003

N1 3939311 . BlockCylinder 1
2 143066 . PlugExpansion 2
7 3945329 . Bushing 7
9 3916369 . Screw 14
10 3936058 . CapMain Bearing 7
* 3800332 KitCyl Block Hw 1
3678923 . PlugThreaded 6
5 3678924 .. PlugThreaded 1
6 3678925 .. Seal, ORing 1
11 S923E . CockDrain 1
12 3928031 . NozzlePiston Cooling 12
13 3900257 . DowelPin 2
14 3901846 . DowelPin 4
16 3926048 . Seal, ORing 1
17 3008470 . Plug 1
* 3800328 KitCylinder Liner 6
18 3948095 . LinerCylinder 1
19 3907177 . SealRectangular Ring 1
* 3678921 PlugThreaded 2
3008469 PlugPipe 1
N @ . Not Supplied Parts
Print this!
1/1
* 3918986 Crankshaft Assy 1 BB988001

1 3917320 . Crankshaft 1
2 3918776 . CrankshaftGear 1
3 3904483 . PinDowel 1
* 3945917 Main Bearing Set 1
N4 3944158 . BearingMain 6
5 3944163 . BearingThrust 1
7 3925343 SealW/Sleeve Kit,Fr 1
8 3926126 SealW/Sleeve Kit,Rr 1
* 3923573 Bearing
3923574 Bearing
3923575 Bearing
Print this!
1/1
1 70622 Clip 1 BR9132

2 3901249 Screw 1
3 3907740 ClampSpring Hose 1
4 3907741 Clip 1
5 3909669 TubeBreather 1
6 3912072 Screw 1
7 3930827 HosePlain 1
9 3937613 ClampHose 2
10 3936331 SealRectangular Ring 1
11 3935113 ConnectionVent 1
12 3913638 ScrewHex Hed Cap 6
13 3944683 GasketBreather 1
N14 4063520 PlateCover 1
Print this!
1/1
1 3925570 DamperVibration 1 DA9704

2 3906733 Screw 4
Print this!
1/1
1 3938655 GasketAcc Drive Cvr 1 DF9709

2 3914868 PlateCover 1
3 3901249 Screw 2
Print this!
1/1
1 3901395 Screw 8 FW9704

Print this!
1/1
1 4992231 Thermostat 1 #0001 EC9702

Print this!
1/1
1 3052061 Screw 1 EH9434

2 3903112 ScrewH/Flange Cap 3
3 3902460 ScrewHex Hd Cap 1
4 3903105 Screw 1
5 3926858 Pulley 1
6 3944312 BraceAlternator 1
7 3944311 Support 1
8 3903210 Nut 1
Print this!
1/1
1 3282433 Screw 1 WP9916

2 3936213 TensionerBelt 1
3 3911581 BeltV Ribbed 1
Print this!
1/1
1 3903463 Cover 1 OB9337

Print this!
1/1
* 3942896 SupportFan 1 FA9325

N1 3942895 . SupportFan 1
2 3910739 . BearingBall 1
3 3911924 . HubFan 1
4 3923044 . RetainerFan Hub 1
5 3907769 . Screw 1
6 3035960 . RingRetaining 2
7 3900634 Screw 4
8 3914461 PulleyFan 1
Print this!
1/1
1 3008466 PlugPipe 1 FE9008

2 3902425 WasherSealing 2
3 3903035 Screw 1
4 3908110 Plug 1
5 3909552 ConnectorMale 1
6 3921594 Plug 1
7 3930789 Tee 1
9 3990881 ConnectorBenjo 1
N10 3991512 TubeAir Fuel Control 1
Print this!
1/1
1 3903293 Nut 1 FF9389

2 11E170010 FilterFuel 1
3 3925955 AdapterFilter Head 1
*N 3905860 Screw 1
4 3905403 . Screw 1
5 3911446 . Screw 1
* 3936315 HeadFuel Filter 1
8 3936313 . HeadFuel Filter 1
10 11E170210 FilterFuel&W/Separator 1
Print this!
1/1
1 3914711 Clip 1 FF9886

3 3924725 ScrewBanjo Conn 1
4 3093923 ScrewHex Flange Head 1
5 3930375 BraceTube 1
6 3930766 TubeFuel Supply 1
N7 3905860 Screw 1
71 3911446 . Screw 1
72 3939570 . Screw 1
* 3935171 WasherSealing 2
Print this!
1/1
1 3904181 PlugThreaded 1 FH9322

2 3910248 Plug, ORing 1
3 3910260 Seal, ORing 1
* 3911699 CoverRear 1
4 3933262 . SealOil 1
* 3934486 Service KitCrankshaft 1
5 3933384 . CoverRear 1
6 3912072 ScrewSelf Tap Metal 2
9 3914301 GasketRear Cover 1
11 3926207 HousingFlywheel 1
12 3925234 PlateCover 1
Print this!
1/1
1 3900589 NutHex Flange 1 FP9900101

2 3901445 ScrewCaptive Washer 1
3 3902662 NutHex Flange 4
7 3915036 Stud 4
8 3920622 Screw 1
10 3926273 SupportFuel Pump 1
12 3921357 BraceFuel Pump 1
13 3926781 SupportFuel Pump 1
N14 3938091 SupportFuel Pump 1
15 3931380 GearFuel Pump 1
Print this!
1/1
1 3938372 PumpFuel Injection 1 FP98969

N* 3938402 Specification
Print this!
1/1
1 3909310 Screw 2 FS972401

2 3916361 Screw 1
4 3918539 Tube 1
5 3936316 PumpFuel Transfer 1
6 3939258 GasketCover Plate 1
Print this!
1/1
1 3282059 Clip 1 FT97147

2 3282141 Screw 6
5 3903380 Banjo ConnectorSeal 6
7 3920595 ManifoldFuel 1
8 3921652 TubeFuel Drain 1
9 3924726 ValveCheck 1
91 167157 . BallCheck 1 NOT SHOWN
92 3916895 . PinRoll 1 NOT SHOWN
93 3924723 . ScrewBanjo Conn 1 NOT SHOWN
N* 3930388 Tube 1 PP98268
11 3282942 . BraceTube 1
12 3917747 . IsolatorVibration 4
14 3920854 . ScrewCaptive Washer 4
15 3930391 . Tube 1
16 3930392 . Tube 1
17 3930393 . Tube 1
N18 3991275 . BraceTube 2
N* 3930389 Tube 1
11 3282942 . BraceTube 1
14 3920854 . ScrewCaptive Washer 5
N18 3991275 . BraceTube 2
21 3930394 . Tube 1
22 3930395 . Tube 1
23 3930396 . Tube 1
24 3991276 . BraceTube 1
25 3991277 . BraceTube 1
Print this!
1/1
1 3900630 Screw 1 FV927402

3903990 ScrewHex Hed Cap 1
2 3913638 ScrewHex Hed Cap 2
3 3939019 SolenoidFuel Pump 1
N4 3938467 BracketSolenoid 1
5 3930683 NutLock 1
* 3934022 WasherPlain 1
Print this!
1/1
1 3900269 WasherPlain 8 FW9520

2 3901395 Screw 8
* 3906809 Flywheel 1
3 3902127 . GearFlywheel Ring 1
N4 3906808 . Flywheel 1
Print this!
1/1
1 3945212 ElbowPlain Union 1 FP99002

2 3916779 Hose 1
3 3918002 Screw 1
4 3918190 Washer 2
Print this!
1/1
1 3901249 ScrewHex F/Head Cap 4 LA9068

3 3906440 Bracket 1
4 3907861 Bracket 1
Print this!
1/1
1 68274 SpringCompression 1 LC9720

2 3008469 PlugPipe 1
3 3027232 Plug 1
6 3916073 Screw 11
7 3918174 Gasket 1
8 3918175 Core 1
9 3945967 PlungerPrs Regular 1
10 3929011 Gasket 1
* 3931084 PlugThreaded 1
N11 3930910 . PlugThreaded 1
12 3930911 . ORing 1
* 3934159 HeadLub Oil Filter 1
13 118227 . DowelRing 1
14 3907860 . ScrewHex F/Head Cap 4
15 3918334 . HeadLub Oil Filter 1
16 3921605 . Gasket 1
N17 3931077 . Cover 1
18 3936365 . ValvePress Relief 1
* 3934410 ValveBypass 1
19 3201562 . ORing 1
20 3934278 . ValveBypass 1
21 11NA70110 Engine Oil Filter 1
Print this!
1/1
2 3279104 Tube 1 LG9705

3 3900240 NutRegular Hex 1
4 3900955 PlugExpansion 1
5 3905802 EndTube 1
6 3909395 Clamp 1
7 3915152 Brace 1
8 3917314 TubeOil Gauge 1
9 3939301 Dipstick 1
Print this!
1/1
1 3948072 PumpLubricating Oil 1 LP9725

2 3900677 Screw 4
Print this!
1/1
1 3906619 PlugPipe 1 RP9036

2 3911901 ValveCheck 1
3 3911925 Coupling 1
4 3930789 Tee 1
5 156075 Plug 2 HC902301
Print this!
1/1
1 3013786 PlugPipe 1 OP9364

6 3926865 SpacerMounting 2
8 3914302 Gasket 1
10 3924147 PlugThreaded 1
12 3927606 PlateC/B Stiffener 1
13 3930408 GasketOil Pan 1
14 3932070 PanOil 1
16 3931787 BraceTube 1
17 3931979 ConnectionOil Suction 1
Print this!
1/1
* 3089238 Plug 2 TK9022

N1 3089239 Plug 1
2 3089240 SealO/Ring 1
Print this!
1/1
N1 3936180 HeadCylinder 1 PP9797101

2 3920443 Plug 1
5 3925863 Guide 12
6 3928174 ValveInsert 6
7 3908830 InsertValve 6
10 3008468 PlugPipe 1
11 3927642 SealValve Stem 6 OLD
3930057 SealValve Stem 6 NEW
* 3802463 ValveIntake
12 3924492 . ValveIntake 6
13 3901177 . Collet 12
* 3802085 ValveExhaust 6
14 3921444 . ValveExhaust 6
13 3901177 . Collet 12
N17 3991085 . SpringValve 12
18 3912976 . Retainer 12 OLD
3972757 Retainer 12 NEW
19 3927642 . SealValve Stem 6 OLD
3927642 SealValve Stem 6 NEW
20 3912900 . Plug 1
21 3938267 . GasketCylinder Head 1
22 3917729 Screw 12
23 3917728 Screw 14
Print this!
1/1
2 3910131 SpacerFan(2.5") 1 SP9077

3910128 SpacerFan(1") 1 SP9080
Print this!
1/1
1 3905401 Plug 1 OB9315

Print this!
1/1
1 3938499 MotorStarting 1 OLD

4891301 MotorStarting 1 ST9149, NEW
2 3908321 Screw 3 SM9780, OLD
3968466 ScrewTwelve Point Cap 3 SM908101, NEW
3 3918892 SpacerStarting Motor 1 T6.0mm, OLD
3967057 SpacerStarting Motor 1 T1.38mm, NEW
Print this!
1/1
1 3598500 . Turbocharger 1 PP98323

2 3755843 . GasketTurbo 1
3 3519807 . GasketOil Drain 1
4 3818823 Stud 4
Print this!
1/1
1 3282159 HoseFlexible 1 TP97209

3 3412320 Clamp 2
* 3922789 ConnectorMale 2
8 3678603 . ORing 1
9 3922790 . ConnectorMale 1
10 3922794 . ORing 1
13 3931824 ORing 1
14 3931973 TubeT/Oil Drain 1
15 3937706 GasketOil Drain 1
17 @ Connection 1
Print this!
1/1
1 3902466 Seal 1 VC9147

2 3902468 CapFiller 1
3 3905449 Seal 1
4 3910824 SealORing 6
5 3922639 Screw 6
6 3930903 Cover 1
Print this!
1/1
1 179901 ValveShutoff 2 WF9082

2 179903 Coupling, Elbow Hose 2
3 204163 HeadC/Resistor 1
4 3010596 ScrewCaptive W/Cap 4
5 11NA70210 Corrosion Resistor 1
6 3910509 ClampHose 4
7 3920552 BracketFilter 1
9 S983 Bushing 2
10 3008469 PlugPipe 4
Print this!
1/1
1 3900630 ScrewHex F/Head Cap 2 WI9153

2 3913030 ConnectionW/Outlet 1
3 3945603 GasketConnection 1
* 3804927 KitWater Pump 1 WP9918
4 3286293 . PumpWater 1
5 3940386 . ORing 1
6 3934054 . Screw 3
Print this!
1/1
1 3900631 Screw 2 WO9055

2 3940631 Connection 1
Print this!
1/1
1 3905216 Clamp 1 XS9258

Print this!
1/1
1 3938077 NutLock 5 GG9803

* 4025270 KitFront Seal Service 1
4 3942535 . SealOil 1
5 3941786 . CarrierSeal 1
6 3948045 CoverGear 1
7 3918113 ShieldDust 1
8 3921816 ScrewHex F/Hd,M8x45 2
Print this!
1/1
1 3071050 HoseHump 4 IC9288

2 3926702 ClampSpring Hose 8
11 3008468 PlugPipe 1 IC9293
13 3914311 GasketInt Mani Cvr 1
14 3922647 CoverIntake Manifold 1
21 3008465 PlugPipe 1 IT9053
22 3883284 Seal/ORing 1
23 3923041 NutLock 1
24 3069053 ClampV Band 1
25 3918327 PipeAir Transfer 1
Print this!
1/1
* 3901383 RodEngine Conn 6 PP8185

N1 3924350 . RodEngine Conn 1
2 3928870 . BoltConn Rod 2
3 3934864 . NutConn Rod 2
4 3913990 . Bushing 1
5 3901430 BearingConn Rod 12
3901431 BearingC/Rod(0.01 Os) OVERSIZE 0.010
* 3802263 Piston Kit
N6 3917707 . Piston 1
7 3920692 . RingRetainer 2
8 3802429 . SetPiston Ring 1
9 3934046 PinPiston 6
Print this!
1/1
1 3966818 Injector 6 #0001 PP818504

3 3909886 SealInjector 6
4 3910279 ClampInjector 6
Print this!
1/1
N* 3905860 Screw 1
1 3911446 . Screw 1
2 3939570 . Screw 1
4 3924725 ScrewBanjo Conn 1
6 3937342 TubeFuel Supply 1
Print this!

CatalogoPecas R320LC 7

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

CatalogoPecas R320LC 7

Uploaded by

Copyright:

Available Formats

02/02/2016 Print canvas

1 11N9­00010 Engine Assy 1 CUMMINS ENG

1 21EN­32200 Accel Actuator(2950l) 1

2 11N8­20180 Precleaner 1 ­ #0336

1 11NA­30011 Muffler Assy 1 ­ #0007 STD

* 11N9­40022 Radiator Total Assy 1 ­ #1758

1 @ Fuel Tank Assy 1

2 11N6­90031 Control Assy­Semi 1 #1926 ­

1 11NA­90010 Air Con & Heater Assy 1 ­ #1925

1 11N6­91040 Comprssor Assy 1 #1926 ­

* 11N6­90020 . Aircon & Heater Unit 1 ­ #0586 ­

* 11N6­90021 . Aircon & Heater Unit 1 #0587 ­ A

1 11NA­90210 Air Con Assy 1 ­ #1925

1 11N6­91040 Comprssor Assy 1 #1926 ­

* 11N6­90220 . Air Con Unit 1 ­ #0099 ­

* 11N6­90221 . Aircon Unit 1 #0100 ­ A

1 11N6­90310 Heater Assy 1 ­ #1925

8 11L7­90150 Valve­Heater 2 #1926 ­

* 11N6­90320 . Heater Unit 1 ­ #0586 ­

* 11N6­90321 . Heater Unit 1 #0587 ­ A

1 10N8­86400 Aircon & Heater(Fatc) 1 #0001 ­ ­

* 11N6­90420 . Air Con Unit 1 #0001 ­ ­ SEE 1160

* @ Pre Heating Group 1 #0919 ­ ­

3 21N9­10012 Harness­Frame 1 ­ #0052

1 21N9­10040 Boom Wire Harness 1

1 21N9­10021 Harness­Engine 1 ­ #0052

K14 21N8­00701 Electric Box Assy 1

1 21N6­00012 Harness­Cab 1 ­ #0552

72­5 21LM­31050 . Radio/Usb Body 1 #1828 ­ ­

* 21N8­30012 Cluster Assy 1 ­ #0034

* 21N8­36000 Cluster Assy 1 #1111 ­ #1138 ­ UPGRADE CABIN

2 21N6­01320 Bracket Wa 1 #1111 ­ ­ UPGRADE CABIN

10 21E4­0008 Lighter­Cigar 1 ­ #1441

* 21N6­20311 Fuel Filler Pump 1 ­ #1182 ­

* 21N6­20312 Fuel Filler Pump 1 #1183 ­ B

1 21N8­20041 Body­Fuse Box 1

1 @ Hyd Tank Assy 1

3 31N9­12110 Pipe Assy­Suction 1 ­ #0790

* @ Upper Hyd Piping­Base 1 #2403 ­

9 31N8­12501 Hose Assy­Flg 1

* @ Upper Hyd Piping­Travel 1 #2403 ­

18 31N8­12430 Hose Assy­Flg,0x90 1

* @ Upper Hyd Piping­Attach 1 #2403 ­

4 31N8­22121 Terminal Assy­C 1 ­ #0215

6 31M6­51060 Shim(3.0t) 1 ­ #0215

9 31EK­20110 Filter­Last Guard 1 ­ #0215

* @ Pilot Hyd Piping­Control 1 #2403 ­

* @ Pilot Hyd Piping­Control 1 #2403 ­

4 31E5­40500 Switch­Pressure 2 AUTO IDLE

8 P010­110002 Connector 5 ­ #0037

* @ Pilot Hyd Piping­Base 1 #2403 ­

* @ Pilot Hyd Piping­Base 1 #2403 ­

* @ Pilot Hyd Piping­Base 1 #2403 ­

* @ Travel Hyd Piping 1 ­ #0455 ­

* @ Travel Hyd Piping 1 #0456 ­ D

* @ Lower Piping­H/Walker #0008 ­ #0455 ­

* @ Travel Hyd Piping 1 #0456 ­ D

* @ Boom Hyd Piping­Std 1 ­ #1215

* @ Boom Hyd Piping­Std 1 #1216 ­ D

* @ Boom Hyd Piping­Std 1 #2403 ­

* @ Boom Hyd Piping­Std 1 ­ #1215 ­

* @ Boom Hyd Piping­Std 1 #1216 ­ D

* @ Boom Hyd Piping­Std 1 #2403 ­

1 11N900010 Engine Assy 1 CUMMINS ENG

1 21EN32200 Accel Actuator(2950l) 1

2 11N820180 Precleaner 1 #0336

1 11NA30011 Muffler Assy 1 #0007 STD

* 11N940022 Radiator Total Assy 1 #1758

2 11N690031 Control AssySemi 1 #1926

1 11NA90010 Air Con & Heater Assy 1 #1925

1 11N691040 Comprssor Assy 1 #1926

* 11N690020 . Aircon & Heater Unit 1 #0586

* 11N690021 . Aircon & Heater Unit 1 #0587 A

1 11NA90210 Air Con Assy 1 #1925

1 11N691040 Comprssor Assy 1 #1926

* 11N690220 . Air Con Unit 1 #0099

* 11N690221 . Aircon Unit 1 #0100 A

1 11N690310 Heater Assy 1 #1925

8 11L790150 ValveHeater 2 #1926

* 11N690320 . Heater Unit 1 #0586

* 11N690321 . Heater Unit 1 #0587 A

1 10N886400 Aircon & Heater(Fatc) 1 #0001

* 11N690420 . Air Con Unit 1 #0001 SEE 1160

* @ Pre Heating Group 1 #0919

3 21N910012 HarnessFrame 1 #0052

1 21N910040 Boom Wire Harness 1

1 21N910021 HarnessEngine 1 #0052

K14 21N800701 Electric Box Assy 1

1 21N600012 HarnessCab 1 #0552

725 21LM31050 . Radio/Usb Body 1 #1828

* 21N830012 Cluster Assy 1 #0034

* 21N836000 Cluster Assy 1 #1111 #1138 UPGRADE CABIN

2 21N601320 Bracket Wa 1 #1111 UPGRADE CABIN

10 21E40008 LighterCigar 1 #1441

* 21N620311 Fuel Filler Pump 1 #1182

* 21N620312 Fuel Filler Pump 1 #1183 B

1 21N820041 BodyFuse Box 1

3 31N912110 Pipe AssySuction 1 #0790

* @ Upper Hyd PipingBase 1 #2403

9 31N812501 Hose AssyFlg 1

* @ Upper Hyd PipingTravel 1 #2403

18 31N812430 Hose AssyFlg,0x90 1

* @ Upper Hyd PipingAttach 1 #2403

4 31N822121 Terminal AssyC 1 #0215

6 31M651060 Shim(3.0t) 1 #0215

9 31EK20110 FilterLast Guard 1 #0215

* @ Pilot Hyd PipingControl 1 #2403

* @ Pilot Hyd PipingControl 1 #2403

4 31E540500 SwitchPressure 2 AUTO IDLE

8 P010110002 Connector 5 #0037

* @ Pilot Hyd PipingBase 1 #2403

* @ Pilot Hyd PipingBase 1 #2403

* @ Pilot Hyd PipingBase 1 #2403

* @ Travel Hyd Piping 1 #0455

* @ Travel Hyd Piping 1 #0456 D

* @ Lower PipingH/Walker #0008 #0455

* @ Travel Hyd Piping 1 #0456 D

* @ Boom Hyd PipingStd 1 #1215

* @ Boom Hyd PipingStd 1 #1216 D

* @ Boom Hyd PipingStd 1 #2403

* @ Boom Hyd PipingStd 1 #1215

* @ Boom Hyd PipingStd 1 #1216 D

* @ Boom Hyd PipingStd 1 #2403

1 31N952111 Boom Cyl Assy Rh 1 #1364

S015050506 BoltHex 2 #1343 D

* @ Boom Hyd Piping #0013

* @ Boom Hyd Piping #0013

1 @ Quick Clamp Assy 1 #1216 SEE 3460,3470

* 31NA96810 Quick Clamp Assy 1 #1216

* 31NA96860 Quick Clamp Assy 1 #1216

2 31N960011 Hose AssyFlg 2 #0493

* @ Arm Piping #0013

* @ Arm Piping #0013

* @ Arm Piping #0013

* @ Arm Safety Lock Sys 1 #0818

* @ Arm Safety Lock Sys 1 #0818 D

* @ S/Act Hyd Piping Kit 1 #0001 #1740 W/O ACCUM

* @ S/Act Hyd Piping Kit 1 #1741 W/O ACCUM

* @ S/Act Hyd Piping Kit 1 #0001 #1740 WITH ACCUM

* @ S/Act Hyd Piping Kit 1 #1741 WITH ACCUM

* @ S/Act Hyd Piping Kit 1 #0001 SEE 3600,3610

*1 33N990310 S/Act Main Piping Kit 1 #2438

* @ S/Act Hyd Piping Kit 1 #0001 SEE 3600,3610
