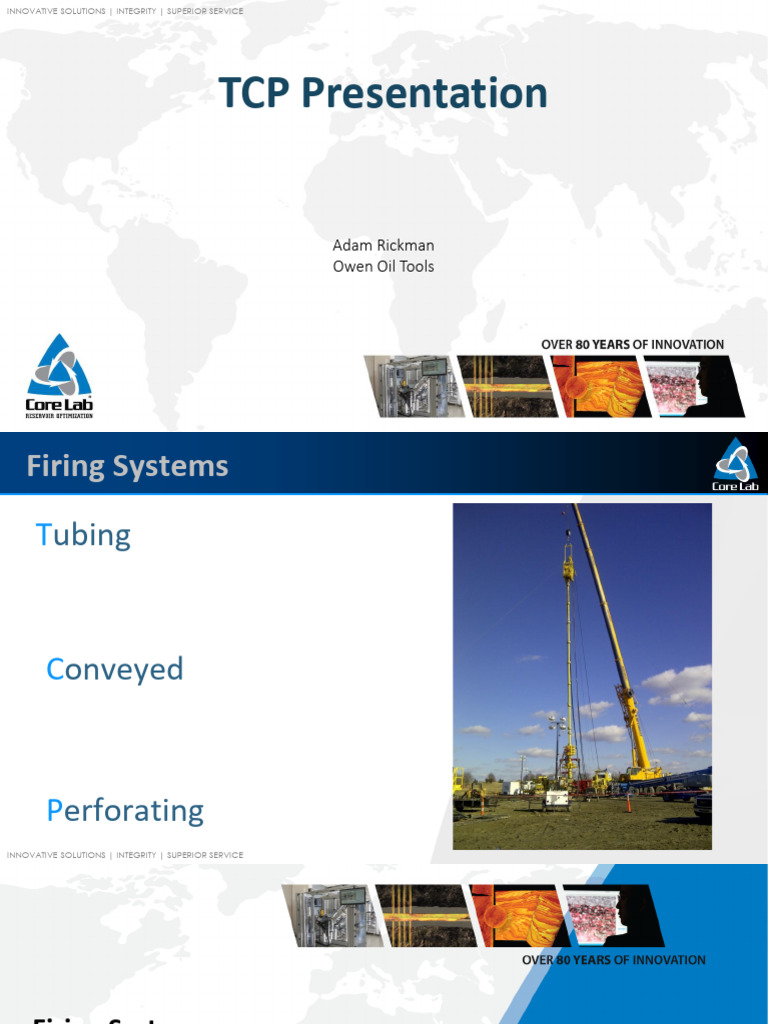

TCP Presentation

INNOVATIVE SOLUTIONS | INTEGRITY | SUPERIOR SERVICE
TCP Presentation
Adam Rickman
Owen Oil Tools
Firing Systems
Tubing
Conveyed
Perforating
Firing Systems
Module 1
Firing Systems
• Detonator Bodies
• Features / Benefits
• - Available with 2-3/8”, 2-7/8”, 3-1/2” EUE.
- Available with 2.125 – 6, 2.750 – 6, and 3.800 – 6 ACME threads.
• - Available for 2-3/4” through 7” gun systems.
• - Compatible with most Owen firing heads.

Firing Systems
• Mechanical Impact Firing Head
• - Electrical current, natural or man-made cannot
• detonate the mechanical impact system.
• - Completely pressure balanced.
• - Operates with Wide Nose Solid, Sectional and Roller Drop Bars.
• - Will attach to any Owen detonator body or Auto Gun Release.
• - At least two tubing joints filled with fluid on top of the
• Firing Head are recommended for optimum drop bar speed.

Firing Systems
• Mechanical Safety Impact Firing Head (LP)
• - Ideal for all Drop Bar Firing operations where
• a minimum of 300 psi hydrostatic exists.
• - Ideal for heavy mud and deviated wells.
• - RP-67 compliant.

Firing Systems
• Mechanical Safety Impact Firing Head (HP)
• - Ideal for all Drop Bar Firing operations where
• a minimum of 2,000 psi hydrostatic exists.
• - Ideal for heavy mud, deviated wells, and high-pressure wells.
• - RP-67 compliant.

Firing Systems
• Coiled Tubing Pressure Activated Firing Head
• - Can be used with time delay Fuses or HTD-BLAST system.
• - Min/Max operating pressure: 2,000/18,000 psi.
- Used to initiate Owen Small Scalloped Gun Systems (1-11/16”, 2-1/8”, 2-1/2”),
• Tubing Cutters and Severing Tools.
• - Well suited for highly deviated wells.
• - Can be run on slick line or electric line.

Firing Systems
• Pressure Activated Firing Head (LP)
• - Min/Max operating pressure: 2,000/18,000 psi.
• - Cannot be used with open perforations or where you cannot develop absolute pressure.
• - Can be placed on top or bottom of all Owen TCP guns.
• - Can be run on coil tubing.

Firing Systems
• Pressure Activated Firing Head (HP)
• - Minimum operating pressure: 2,000 psi.
• - Maximum operating pressure: 25,000 psi.
• - Can be placed on top or bottom of all Owen TCP guns.
• - Can be run on coil tubing.

Firing Systems
• Ball Activated Differential Safety Firing Head (LP) 1-11/16”
• - Used to initiate Owen Small Scalloped Gun Systems (1-11/16”, 2-1/8”, 2-1/2”),
• - Used for overbalanced TCP in highly deviated wells with open perforations.
• - Can be used when achieving absolute pressure is not possible.
• - MIN/MAX operating hydrostatic : 300 psi/8,000 psi.
• - Pressure balanced.
• - Positive indication of firing.
• - Requires hydrostatic to fire.

Firing Systems
• Ball Activated Differential Safety Firing Head (HP) 1-11/16”
• - Used to initiate Owen Small Scalloped Gun Systems (1-11/16”, 2-1/8”, 2-1/2”),
• - Can be used when achieving absolute pressure is not possible.
• - MIN/MAX operating hydrostatic : 2,000 psi/20,000 psi.

Firing Systems
• Ball Activated Differential Safety Firing Head (LP) 2-3/4” and 3-1/8”
• - Can be used when achieving absolute pressure is not possible. 2-3/4”
• - Used in situations where it is desirable to allow the tubing to fill itself
• while tripping in the well or allow circulation prior to and after perforating.
3-1/8”
• - MIN/MAX operating hydrostatic : 300 psi/8,000 psi.

Firing Systems
• Ball Activated Differential Safety Firing Head (HP) 2-3/4” and 3-1/8”
• - Can be used when achieving absolute pressure is not possible. 2-3/4”
• - Used in situations where it is desirable to allow the tubing to fill itself
• while tripping in the well or allow circulation prior to and after perforating.
3-1/8”
• - MIN/MAX operating hydrostatic : 2,000 psi/20,000 psi.

Firing Systems
• Absolute Pressure Firing Head With Auto Vent
• - Compact size and rugged design make it ideal for use in horizontal or deviated wellbores.
- Fits directly onto any top sub with 2.750 ACME thread connection.
- Tool can easily be converted between non-vented, Auto vent, and Auto fill & vent versions.
- Operating range 2,000 PSI/ 13,000 PSI.

Firing Systems
• Top Dual Redundant Firing System
• - Compact and rugged design
• - Provides redundancy to ensure detonation of the TCP gun string.
• - Fits onto any top sub with 2.750 ACME thread connection.
• - 20,000 PSI maximum operating range..
• - Can be used with the 6 minute time delay system.
• - 750 PSI minimum hydrostatic for drop bar firing.
• - 2000 PSI minimum hydrostatic for pressure activated firing.

Firing Systems
• Horizontal TCP Methods
• Spaced out on Tubing

• - Time Delays
• - All Direct Fire
• TCP Firing Heads

• - Pressure Activated Firing Head
• - Ball Drop Firing Head
• Coil Tubing
• - HTD BLAST (Gun to Gun Transfer)
• - Plug and Shoot, Shoot and Plug

Firing Systems
• Time Delay System
• Used in conjunction with a Pressure Activated Firing Head,

Ball Activated Differential Safety Firing Head, or the HTD-BLAST system.
• Consists of the time delay hardware, an igniter, and a time delay fuse.
• Igniter Contained in a “TC-005” detonator body or “TC-044” CT transfer sub.
• Increase operational time by the addition of time delay elements.

Firing Systems
Pressure Activated Firing Head
• Independently perforate
selected zones.
• Reduce costs by running multiple

guns without using gun spacers.
• Obtain maximum use of

under or overbalanced pressures.
• Work in heavy mud systems.
• Be used in producing completions, drill

stem testing, and dual completions.

Firing Systems
Ball Activated Differential Safety Firing Head 2-3/4”
• Obtain maximum use of overbalanced pressures.

Firing Systems
Ball Activated Differential Safety Firing Head 3-1/8”
• Obtain maximum use overbalanced pressures.
• The standard Firing pin in the TC-022-2375-000 must be

changed out for the firing pin TC-022-0010-000 when being
used on top of the time delay system.
• The standard Firing pin in the TC-022-2375-200 must be

changed out for the firing pin TC-022-0010-200 when being
used on top of the time delay system.

Firing Systems
• RDS (Rapid Deployment System)
• Perforates multiple drain holes in the work string without
the need for an electric wireline unit or coiled tubing.
• Single-man operation provides the most cost-effective

solution that eliminates all environmental hazards with
pulling a wet pipe.
• Can be used in wells with H2S or HCI.
• Can be used in tubing with parted rods.
• Requires dropping a bar and a minimum of 300 psi hydrostatic

to initiate the firing head.

Firing Systems
• Pulse Wave Transfer System
• A simple and cost-effective method way to accurately space out
perforating guns deployed on tubing.
• Eliminates the need for long intervals of blank spacer guns in vertical
or horizontal wells.
• Utilizes a pressure generating sub attached to the donor perforating gun to create
a “Pulse Wave” that passes through the fluid in the spacer tubing and activates
the vented differential firing head on the receiving gun.
• Reliable transfers through 250 feet(8 joints) of standard tubing, this figure
can be extended by adding a repeater system.
• Suitable in new wells, previously completed wells, and saltwater disposal wells
where a column of fluid can be established.
Firing Systems

Release Systems
Module 2
Release Systems
• Automatic Gun Release
• Run when it is desirable to drop the gun upon firing.
• Designed for both underbalance or highly overbalanced release operations.
• Can be run with the mechanical impact firing head, safety impact firing
head (LP, HP), and Pressure activated firing head.
• Immediately releases guns upon firing head initiation.
• Leaves the tubing fully open.
• Eliminates the need for Wireline/Slickline to release guns.
• Must be used in conjunction with a ported sub.

Release Systems
• Mechanical Gun Release, Shift Up
• Medium duty separation tool for TCP operations where it is desirable to
drop the discharged gun system after firing. Allows for other tools or operations
such as logging or treating.
• Guns released using a Model B shifting tool with positive keys on Wireline/Slickline.
• Fully sealed allowing pressure testing of the tubing prior to shifting.
• Offered in several sleeve sizes, full bore version is also available.
• Ran between joints of tubing unlike the automatic gun release.
• No time limit on dropping the firing head and TCP guns.
• Leaves the perforations uncovered to eliminate flow restrictions.

Vent Systems
Module 3
Vent Systems
• Fill / Flow Subs
• Offered in 2-3/8, 2-7/8, and 3-1/2 EUE thread.
• Allows the production tubing to fill while running in hole, as well as acting as
a flow passage for reservoir fluids to enter the tubing during production.
• Features a thin glass disk used in certain applications which keeps debris from
settling on top of the firing head that could potentially affect its operation.
• Simple design is easy to service and redress.
• Large ports give greater flow area than the tubing bore.
• The glass disk is not sealed and does not hold any differential pressure.

Vent Systems
• Bar Activated Vent
• Designed to be the primary underbalance valve in drop bar TCP operations.
• Operates from annulus hydrostatic and requires a minimum of 500 psi to activate.
• The tubing can be completely dry, operates independently of tubing hydrostatic.
• Once the valve opens, it locks in place.
• Does not reduce drop bar velocity.
• Can be run with any packer.

Vent Systems
• Surge Tool, Underbalance Sub(Ported and Non-Ported)
• Can be run in a TCP tool string to achieve a differential pressure between
the formation and the tubing string to establish an underbalance
condition for perforating.
• Inexpensive way of achieving underbalance.
• Non-ported version can be run above or below the packer.
• Ported version can be run below the packer.
• Underbalanced perforating conditions created help to clear debris

from the perforations.
• Available in 2 different pressure ratings.

Vent Systems
• Differential Sub(Ported and Non-Ported)
• Used to maintain a high differential pressure in favor of the annulus(underbalance).
• Rated for 10,000 psi from the convex side of the ceramic dome.
• Thinner cross-section than glass, ensuring better shattering properties.
• Available in 2-3/8, 2-7/8 and 3-1/2 EUE thread.
• Non-ported version can be run above or below the packer.
• Ported version can be run below the packer.

Auxiliary Systems
Module 4
Auxiliary Systems
• Wide Nose Drop Bars(Solid and Sectional)
• Used to activate Owen mechanical impact and mechanical
safety impact firing heads.
• Also used to fragment differential subs, surge tools and

pressure release (KOBE) subs.
• Can be used in wellbores with up to 40 degrees of inclination from vertical.
• Built-in 1” fishing neck for retrieval.
• Offered in 6’ and 10’ lengths(sectional), 8’ and 10’ lengths(solid).

Auxiliary Systems
• Wide Nose Roller Drop Bars(Solid and Sectional)
• Used to activate Owen mechanical impact and mechanical
safety impact firing heads.
• Offered with rollers for 2-3/8, 2-7/8 and 3-1/2” tubing.
• Can be used in wellbores with between 40 and 60 degrees of

inclination from vertical.
• Built-in 1” fishing neck for retrieval.
• 65.5” long

Auxiliary Systems
• Impact Firing Head No-Go
• Designed to be used on mechanical impact or mechanical safety impact firing heads.
• Sizes for 2-3/8, 2-7/8 and 3-1/2” tubing.
• Sized to work with our automatic gun release.
• Helps guide the drop bar onto the firing pin.
• Helps protect the firing pin from impact.

Auxiliary Systems
• Tubular Collar No-Go
• Designed to be used with mechanical impact or mechanical safety impact firing heads.
• Sizes for 2-3/8, 2-7/8 and 3-1/2” tubing.
• Not to be ran in conjunction with our automatic gun release.
• Sits in collar between tubing joints.

Auxiliary Systems
• Radioactive Marker Sub
• Ran in a TCP string above the FH or packer and is used for accurate depth control .
• Small RA pellet is contained in a chamber and held in place by a set screw,

ensuring recovery.
• Highly visible on gamma/neutron logs and allows comparison to open hole

logs for accurate gun placement across the zone.
• Sizes for 2-3/8, 2-7/8, 3-1/2 and 4-1/2”.

Auxiliary Systems
• Scalloped Gun Lift Sub Equipment
• Used to position a TCP perforating gun into the well at the rig floor.
• Collars available to attach to either top or tandem gun subs.
• The rig’s elevator then can latch securely around the lift assembly with the gun
attached and raised to vertical over the wellbore opening.
• The lifting cap has an O.D. of 4-11/16” so this assembly can be used on a variety
of rig elevator sizes.

Auxiliary Systems
• Wellhead Hanger Plate / Safety Plate
• Used to position a TCP perforating gun temporarily while the next gun is
being picked up.
• Features a slot which fits into a groove that’s machined into each tandem
sub, which is then secured by a locking bar.
• Offered for gun sizes from 1-9/16” – 7”.

Auxiliary Systems
• Tie-Down Subs
• Used for safe storage and handling of loaded perforating guns.
• Provide a sealed protective cap on either end of the gun.
• The handle provides a method to tie down loaded guns.
• NOT to be used for lifting.
• Design incorporates a plastic plug that melts to relieve

trapped pressure if the gun is exposed to
extreme heat or fire.

Auxiliary Systems
• Digital Shot Detection System
• Enables the user to monitor downhole acoustics on the tubular.
• Particularly well suited for monitoring the firing of TCP guns.
• Able to record and monitor the signal simultaneously.

TCP Presentation

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

TCP Presentation

Uploaded by

Copyright:

Available Formats

INNOVATIVE SOLUTIONS | INTEGRITY | SUPERIOR SERVICE

- Available with 2.125 – 6, 2.750 – 6, and 3.800 – 6 ACME threads.

• - Available for 2-3/4” through 7” gun systems.

• - Compatible with most Owen firing heads.

INNOVATIVE SOLUTIONS | INTEGRITY | SUPERIOR SERVICE

• detonate the mechanical impact system.

• - Completely pressure balanced.

• - Will attach to any Owen detonator body or Auto Gun Release.

• - At least two tubing joints filled with fluid on top of the

• Firing Head are recommended for optimum drop bar speed.

INNOVATIVE SOLUTIONS | INTEGRITY | SUPERIOR SERVICE

• - Ideal for all Drop Bar Firing operations where

• a minimum of 300 psi hydrostatic exists.

• - Ideal for heavy mud and deviated wells.

• - Will attach to any Owen detonator body or Auto Gun Release.

INNOVATIVE SOLUTIONS | INTEGRITY | SUPERIOR SERVICE

• - Ideal for all Drop Bar Firing operations where

• a minimum of 2,000 psi hydrostatic exists.

• - Ideal for heavy mud, deviated wells, and high-pressure wells.

• - Will attach to any Owen detonator body or Auto Gun Release.

INNOVATIVE SOLUTIONS | INTEGRITY | SUPERIOR SERVICE

• - Min/Max operating pressure: 2,000/18,000 psi.

• Tubing Cutters and Severing Tools.

• - Well suited for highly deviated wells.

• - Can be run on slick line or electric line.

INNOVATIVE SOLUTIONS | INTEGRITY | SUPERIOR SERVICE

• - Min/Max operating pressure: 2,000/18,000 psi.

• - Can be placed on top or bottom of all Owen TCP guns.

• - Well suited for highly deviated wells.

• - Can be run on coil tubing.

• - Can be run on slick line or electric line.

• - Will attach to any Owen detonator body or Auto Gun Release.

INNOVATIVE SOLUTIONS | INTEGRITY | SUPERIOR SERVICE

• - Minimum operating pressure: 2,000 psi.

• - Maximum operating pressure: 25,000 psi.

• - Can be placed on top or bottom of all Owen TCP guns.

• - Well suited for highly deviated wells.

• - Can be run on coil tubing.

• - Can be run on slick line or electric line.

• - Will attach to any Owen detonator body or Auto Gun Release.

INNOVATIVE SOLUTIONS | INTEGRITY | SUPERIOR SERVICE

• Tubing Cutters and Severing Tools.

• - Can be used when achieving absolute pressure is not possible.

• - MIN/MAX operating hydrostatic : 300 psi/8,000 psi.

• - Well suited for highly deviated wells.

• - Positive indication of firing.

• - Requires hydrostatic to fire.

INNOVATIVE SOLUTIONS | INTEGRITY | SUPERIOR SERVICE

• Tubing Cutters and Severing Tools.

• - Can be used when achieving absolute pressure is not possible.

• - MIN/MAX operating hydrostatic : 2,000 psi/20,000 psi.

• - Well suited for highly deviated wells.

• - Positive indication of firing.

• - Requires hydrostatic to fire.

INNOVATIVE SOLUTIONS | INTEGRITY | SUPERIOR SERVICE

• - Can be used when achieving absolute pressure is not possible. 2-3/4”

• - Used in situations where it is desirable to allow the tubing to fill itself

• - Well suited for highly deviated wells.

• - Positive indication of firing.

• - Requires hydrostatic to fire.

INNOVATIVE SOLUTIONS | INTEGRITY | SUPERIOR SERVICE

• - Can be used when achieving absolute pressure is not possible. 2-3/4”

• - Used in situations where it is desirable to allow the tubing to fill itself

• - Well suited for highly deviated wells.
