Apoptosis Flow Chart

There are two main pathways of apoptosis: the extrinsic pathway triggered by TNF or FAS receptors, and the intrinsic pathway triggered by DNA damage or ER stress. The extrinsic pathway involves TRADD and FADD proteins inducing caspase 8/10. The intrinsic pathway involves changes in Bcl-2 family proteins, release of cytochrome c from mitochondria, formation of the apoptosome with caspase 9, and activation of caspase 3/6/7, leading to apoptosis. Initiator caspases activate executioner caspases to carry out apoptosis.

Uploaded by

Alison Doyungan Clark
Copyright
© Attribution Non-Commercial (BY-NC)
We take content rights seriously. If you suspect this is your content, claim it here.
Available Formats
Download as PDF, TXT or read online on Scribd
5K views1 page

Apoptosis Flow Chart

There are two main pathways of apoptosis: the extrinsic pathway triggered by TNF or FAS receptors, and the intrinsic pathway triggered by DNA damage or ER stress. The extrinsic pathway involves TRADD and FADD proteins inducing caspase 8/10. The intrinsic pathway involves changes in Bcl-2 family proteins, release of cytochrome c from mitochondria, formation of the apoptosome with caspase 9, and activation of caspase 3/6/7, leading to apoptosis. Initiator caspases activate executioner caspases to carry out apoptosis.

Uploaded by

Alison Doyungan Clark
Copyright
© Attribution Non-Commercial (BY-NC)
We take content rights seriously. If you suspect this is your content, claim it here.
Available Formats
Download as PDF, TXT or read online on Scribd
  • Apoptosis Pathways

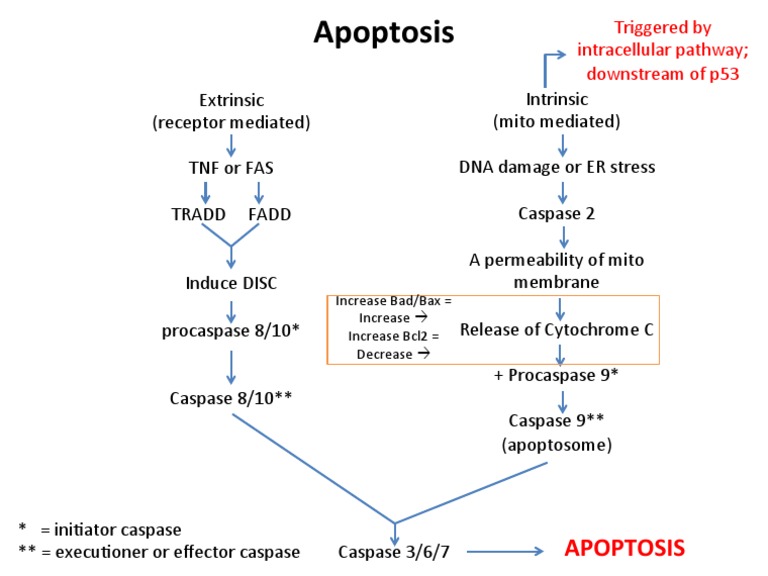

Apoptosis

Extrinsic (receptor mediated) TNF or FAS TRADD FADD Induce DISC procaspase 8/10* Caspase 8/10**

Triggered by intracellular pathway; downstream of p53 Intrinsic (mito mediated) DNA damage or ER stress Caspase 2 A permeability of mito membrane Increase Bad/Bax = Increase Increase Bcl2 = Release of Cytochrome C Decrease + Procaspase 9* Caspase 9** (apoptosome) Caspase 3/6/7 APOPTOSIS

* = iniSator caspase ** = execuSoner or eector caspase
