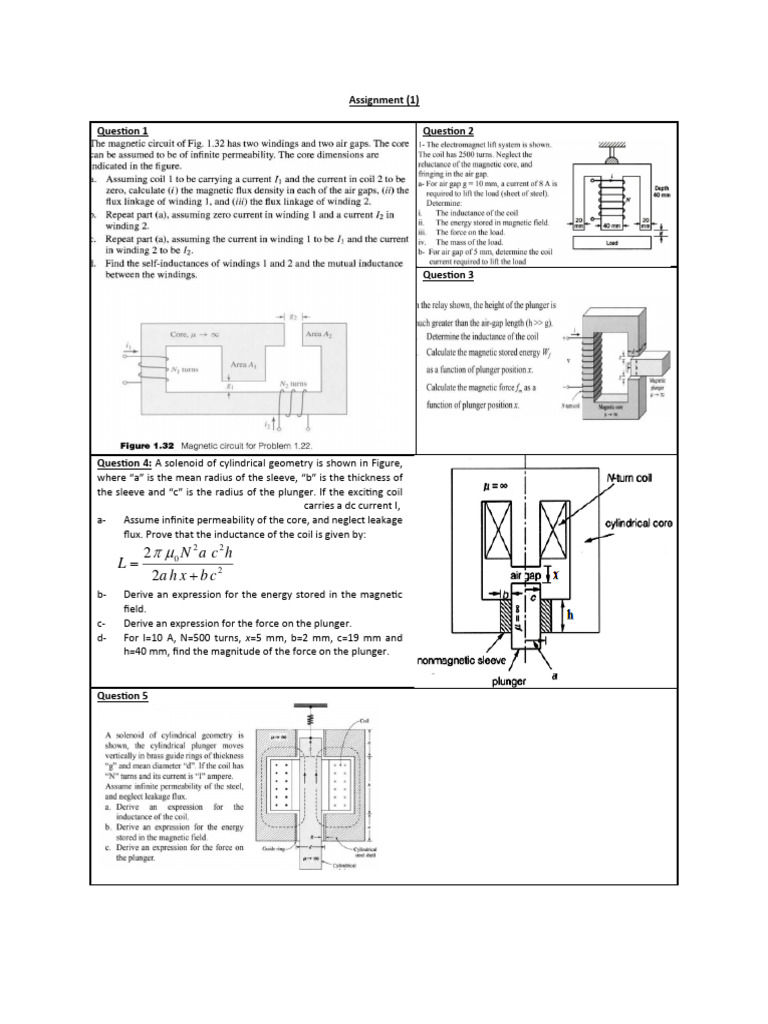

Assignment (1)

Question 1 Question 2

Question 3

Question 4: A solenoid of cylindrical geometry is shown in Figure,

where “a” is the mean radius of the sleeve, “b” is the thickness of
the sleeve and “c” is the radius of the plunger. If the exciting coil
carries a dc current I,
a- Assume infinite permeability of the core, and neglect leakage
flux. Prove that the inductance of the coil is given by:
2 0 N 2 a c 2 h
L=
2a h x + b c 2
b- Derive an expression for the energy stored in the magnetic
field.
c- Derive an expression for the force on the plunger.
d- For I=10 A, N=500 turns, x=5 mm, b=2 mm, c=19 mm and
h=40 mm, find the magnitude of the force on the plunger.

Question 5
