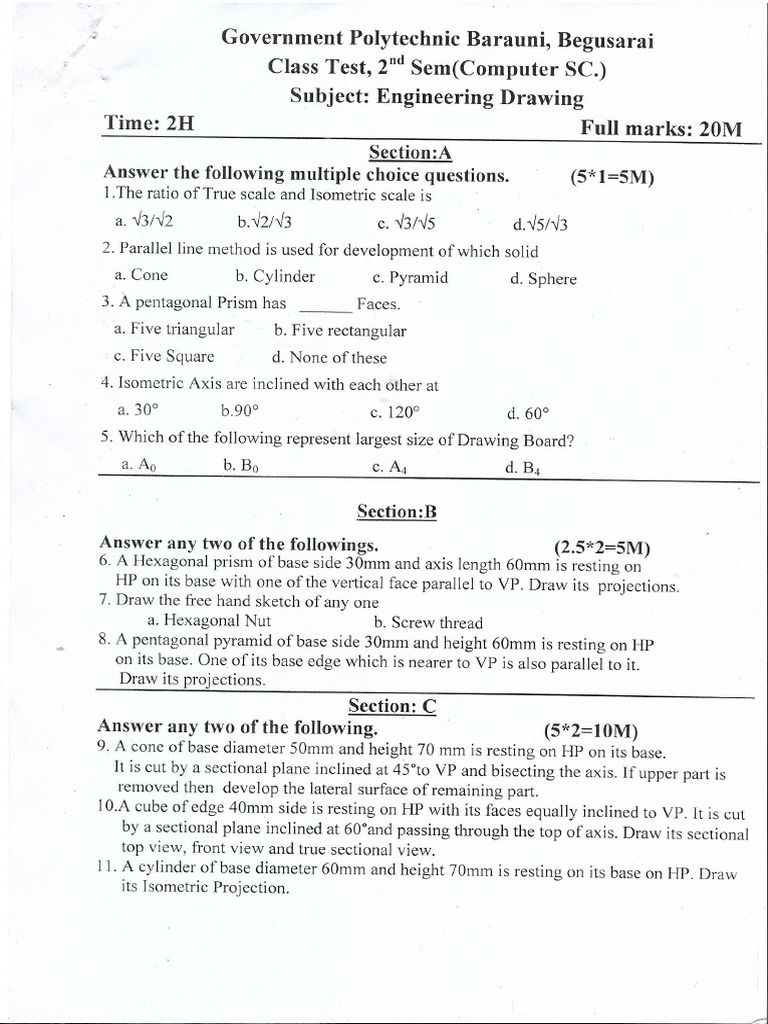

Government Polytechnic Barauni, Begusarai Class Test, 2" Sem(Computer SC.) Subject: Engineering Drawing Time: 2H Full marks: 20M Section:A Answer the following multiple choice questions. (5*1=5M) 1.The ratio of True scale and Isometric scale is a. BN2 b.v2/N3 ©. VB/V5 d.VSWV3 2, Parallel line method is used for development of which solid a. Cone b. Cylinder c. Pyramid d. Sphere 3.A pentagonal Prismhas ____ Faces. a. Five triangular, Five rectangular c. Five Square d. None of these 4, Isometric Axis are inclined with each other at a. 30° b.90° ©. 120° d. 60° 5. Which of the following represent largest size of Drawing Board? a. Ag b.Bo cA d.By Section:B Answer any two of the followings. (2.5*2=5M) 6. A Hexagonal prism of base side 30mm and axis length 60mm is resting on HP on its base with one of the vertical face parallel to VP. Draw its projections. 7. Draw the free hand sketch of any one a, Hexagonal Nut b. Screw thread 8. A pentagonal pyramid of base side 30mm and height 60mm is resting on HP on its base, One of its base edge which is nearer to VP is also parallel to it. Draw its projections Section: C Answer any two of the following. (8*2=10M) 9. A cone of base diameter 50mm and height 70 mm is resting on HP on its base, Iis cut by a sectional plane inclined at 45*to VP and bisecting the axis. If upper part is removed then develop the lateral surface of remaining part. 10.A cube of edge 40mm side is resting on HP with its faces equally inclined to VP. Itis cut by a sectional plane inclined at 60°and passing through the top of axis. Draw its sectional top view, front view and true sectional view. 11. A cylinder of base diameter 60mm and height 70mm is resting on its base on HP. Draw its Isometric Projection.
