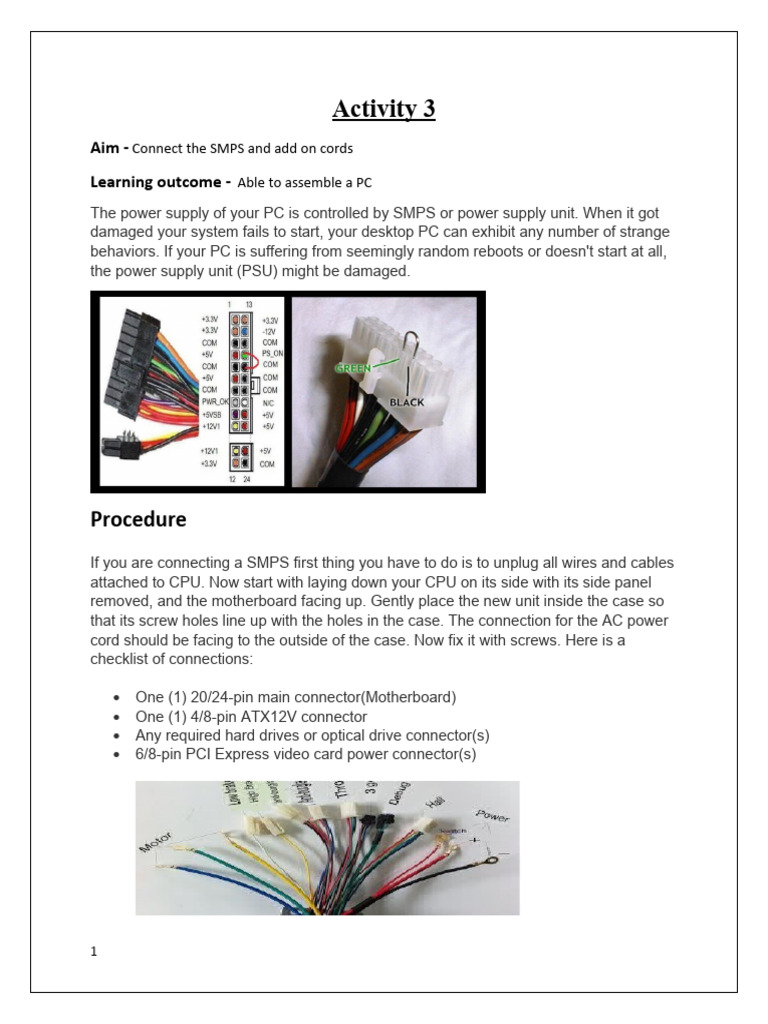

Activity 3

Aim - Connect the SMPS and add on cords

Learning outcome - Able to assemble a PC
The power supply of your PC is controlled by SMPS or power supply unit. When it got
damaged your system fails to start, your desktop PC can exhibit any number of strange
behaviors. If your PC is suffering from seemingly random reboots or doesn't start at all,
the power supply unit (PSU) might be damaged.

Procedure
If you are connecting a SMPS first thing you have to do is to unplug all wires and cables
attached to CPU. Now start with laying down your CPU on its side with its side panel
removed, and the motherboard facing up. Gently place the new unit inside the case so
that its screw holes line up with the holes in the case. The connection for the AC power
cord should be facing to the outside of the case. Now fix it with screws. Here is a
checklist of connections:

 One (1) 20/24-pin main connector(Motherboard)

 One (1) 4/8-pin ATX12V connector
 Any required hard drives or optical drive connector(s)
 6/8-pin PCI Express video card power connector(s)

1
 Each connector type is designed to prevent it from being improperly inserted, so it's
really hard to go wrong here. First, insert 24 pin connector in motherboard. For hard
drives and CD drives, use the larger 4-pin auxiliary connectors for IDE drives and
Serial ATA power connectors for Serial ATA drives, but do not plug both types into
one device. Use 6\8 pin connector for video cards.
It's also worth noting that power supplies are designed to provide a stable delivery of
current to the computer.

Following these steps, you should be able to install a power supply in most standard
cases.
