2007 Porsche Boxster S

SUSPENSION Level control

SUSPENSION

Level control

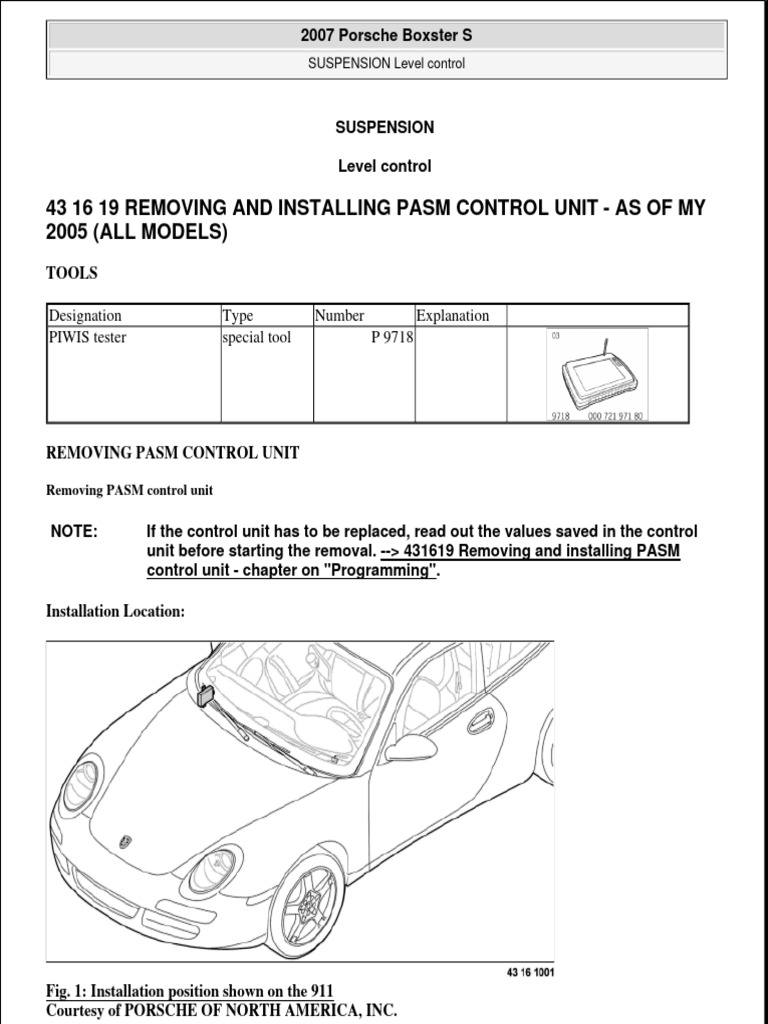

43 16 19 REMOVING AND INSTALLING PASM CONTROL UNIT - AS OF MY

2005 (ALL MODELS)
TOOLS

Designation Type Number Explanation

PIWIS tester special tool P 9718

REMOVING PASM CONTROL UNIT

Removing PASM control unit

NOTE: If the control unit has to be replaced, read out the values saved in the control
unit before starting the removal. --> 431619 Removing and installing PASM
control unit - chapter on "Programming".

Installation Location:

Fig. 1: Installation position shown on the 911

Courtesy of PORSCHE OF NORTH AMERICA, INC.
Microsoft
Thursday, September 24, 2009 9:17:16
9:17:00 AM Page 1 © 2005 Mitchell Repair Information Company, LLC.
 2007 Porsche Boxster S
SUSPENSION Level control

Fig. 2: Unscrewing cover for passenger's footwell

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Pull carpet on right-hand side to the side.

2. Unscrew the two fastening nuts -1- and remove the cover -2- . See Fig. 2.

Microsoft
Thursday, September 24, 2009 9:17:00 AM Page 2 © 2005 Mitchell Repair Information Company, LLC.
 2007 Porsche Boxster S
SUSPENSION Level control

Fig. 3: Disconnecting control unit

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Unclip control unit from the support and pull it out and down.

4. Release -A- and pull off electric connector. See Fig. 3.

INSTALLING PASM CONTROL UNIT

Installing PASM control unit

Microsoft
Thursday, September 24, 2009 9:17:00 AM Page 3 © 2005 Mitchell Repair Information Company, LLC.
 2007 Porsche Boxster S
SUSPENSION Level control

Fig. 4: Connecting the plug connection

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Connect the electric plug connection until the plug clicks into place.

2. Push in control unit into the support and clip it in.

Microsoft
Thursday, September 24, 2009 9:17:00 AM Page 4 © 2005 Mitchell Repair Information Company, LLC.
 2007 Porsche Boxster S
SUSPENSION Level control

Fig. 5: Screwing on cover for passenger's footwell

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Fit cover -2- and secure with the two fastening nuts -1- . See Fig. 5.

4. Stick on carpet at side again onto cover.

PROGRAMMING PASM CONTROL UNIT

Reading out and writing values for PASM control unit

NOTE:  During coding, there should be a guaranteed power supply for the PIWIS
tester P 9718. It is essential to connect a battery charger with a current
rating of at least 40 A to the vehicle battery.
 The PIWIS tester P 9718 instructions take precedence and in the event of a
discrepancy these are the instructions that must be followed. Deviations
may occur with later software versions.
 The procedure described here has been structured in general terms;
different text or additions may appear in thePIWIS tester P 9718 .

PIWIS tester P 9718. It is essential to connect a battery charger with a

current rating of at least 40 A to the vehicle battery.

Microsoft
Thursday, September 24, 2009 9:17:00 AM Page 5 © 2005 Mitchell Repair Information Company, LLC.
 2007 Porsche Boxster S
SUSPENSION Level control

1. Connect the PIWIS tester P 9718 to the vehicle and start it. Switch on the ignition. >> Continue.

2. Select the vehicle type.

3. Using the >> key, move from the vehicle type to the list of control units.

4. Select PASM and press >>.

5. In the PASM menu, select Control unit replacement and press >>.

6. Select Read codes and press >>.

7. On the screen of the PIWIS tester appears the message Coding read-out complete >>.

8. Switch off ignition and replace control unit.

9. Switch to the Special functions menu and perform the vehicle handover using the F8 key.

10. In the Special functions menu, erase All fault memories by pressing >>.

11. Switch on ignition. Once the control unit has been replaced, the vehicle data is uploaded under the Write in
data menu (see Section 7). Press >>.

12. PIWIS tester displays Coding write-in complete >>.

13. Carry out a test drive and read out fault memory.
