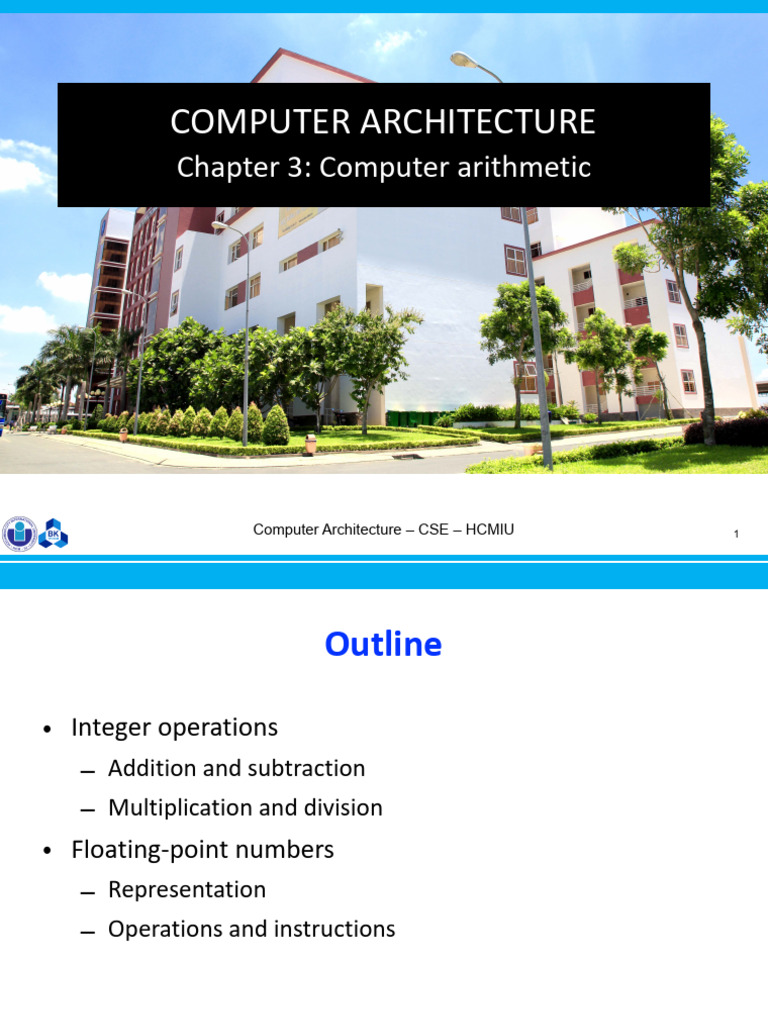

COMPUTER ARCHITECTURE

Chapter 3: Computer arithmetic

Computer Architecture – CSE – HCMIU 1

 Outline

• Integer operations
– Addition and subtraction
– Multiplication and division
• Floating-point numbers
– Representation
– Operations and instructions

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 2

INTEGER OPERATIONS

3
 Integer addition

• Example: 710 + 610 = 01112 + 01102

• Overflow: result out of range
– Adding +ve and –ve operands, no overflow
– Adding two +ve operands
• Overflow if result sign is 1
– Adding two –ve operands
• Overflow if result sign is 0
Computer Architecture (c) Cuong Pham-Quoc@HCMUT 4
 Integer subtraction

• Add negation (2’s complement) of the second operand

• Example: 7 − 6 = 7 + (−6) = 01112 + 10102 = 00012
• Overflow if result out of range
– Subtracting two +ve or two –ve operands, no overflow
– Subtracting +ve from –ve operand: −7 − 6
• Overflow if result sign is 0
– Subtracting –ve from +ve operand: 7 − (−6)
• Overflow if result sign is 1

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 5

 Deal with Overflow

• Some languages (e.g., C) ignore overflow

– Use MIPS addu, addui, subu instructions
• Other languages (e.g., Ada, Fortran) require raising an
exception
– Use MIPS add, addi, sub instructions
– On overflow, invoke exception handler (hardware)
• Save PC in exception program counter (EPC) register
• Jump to predefined handler address
• mfc0 (move from coprocessor reg) instruction can retrieve EPC
value, to return after corrective action
Computer Architecture (c) Cuong Pham-Quoc@HCMUT 6
 Hardware for multiplication

multiplicand
1000
multiplier
× 1001
1000
0000
0000
1000
product 1001000

Length of product is the sum of operand lengths

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 7

 Hardware operation

m0: LSB bit of the multiplier

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 8

 Example

• Using 4-bit numbers, calculate 210 × 310 = 00102 × 00112

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 9

Optimized hardware

Optimized in hardware usage; not in performance

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 10

 MIPS multiplication instructions

• Two 32-bit registers for product

– HI: most-significant 32 bits
– LO: least-significant 32-bits
• Instructions
– mult rs, rt / multu rs, rt
• 64-bit product in HI/LO
– mfhi rd / mflo rd
• Move from HI/LO to rd
• Can test HI value to see if product overflows 32 bits
– mul rd, rs, rt
• ONLY least-significant 32 bits of product → rd
Computer Architecture (c) Cuong Pham-Quoc@HCMUT 11
 Division

n-bit operands yield n-bit

quotient and remainder

• Long division approach • Restoring divisor

– if divisor ≤ dividend bits – Do the subtract, and if remainder goes <
0, add divisor back
• 1 bit in quotient, subtract
• Signed division
– Otherwise
– Divide using absolute values
• 0 bit in quotient, bring down
– Adjust sign of quotient and remainder as
next dividend bit
required

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 12

Hardware for division

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 13

 Example

• Using 4-bit numbers, calculate 710 ÷ 210 = 01112 ÷ 00102

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 14

Optimized hardware

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 15

 MIPS division instructions

• Use HI/LO registers for result

– HI: 32-bit remainder
– LO: 32-bit quotient
• Instructions
– div rs, rt / divu rs, rt
– No overflow or divide-by-0 checking
• What are values in HI/LO if divisor is 0?
• Software must perform checks if required
– Use mfhi, mflo to access result
Computer Architecture (c) Cuong Pham-Quoc@HCMUT 16
FLOATING POINT NUMBERS

17
 Floating point

• Representation for non-integral numbers

– Including very small and very large numbers
• Like scientific notation
– Normalized: −2.54 × 1056
– Not normalized: 0.002 × 10−4; 987.6 × 103
• In binary
– ± 1.xxxx2 × 2yyyy

• In ANSI C: float or double

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 18

 Floating point standard

• Defined by IEEE Std 754-1985 (IEEE-754)

– Developed in response to divergence of representations
– Portability issues for scientific code
• Now almost universally adopted
• Two representations
– Single precision (32-bit): float (C)
– Double precision (64-bit): double (C)

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 19

 IEEE-754 format
single: 8 bits single: 23 bits
double: 11 bits double: 52 bits
S Exponent Fraction

Normalized scienc c nota on = (−1)S × (1.Frac on) × 2(Exponent−Bias)

• S: sign bit (0 ⇒ non-negative, 1 ⇒ negative)

• Normalize significand: 1.0 ≤ |significand| < 2.0
– Always has a leading pre-binary-point 1 bit, so no need to represent it explicitly
(hidden bit)
– Significand is Fraction with the “1.” restored: 0 ≤ |Fraction| < 1.0
• Exponent = actual exponent + Bias
– Ensures exponent is unsigned
– Single: Bias = 127; Double: Bias = 1023
Computer Architecture (c) Cuong Pham-Quoc@HCMUT 20
ti
fi
ti
ti
 Example

• Question: What is the decimal value of the floating point

number 0x414C0000?
• Answer:
– 0x414C0000 ⇒ single precision
• S = 0;
• Exponent = 1000_00102 = 130;
−1 −4 −5
• F = 100_1100_0000_…_00002 = 2 + 2 + 2 = 0.59375
0 130−127
– X = (−1) × (1 + 0.59375) × 2 = 12.75

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 21

 Single precision range

• Exponents 00000000 and 11111111 reserved

• Smallest value
– Exponent: 00000001 ⇒ actual exponent = 1 – 127 = –126
– Fraction: 000…00 ⇒ significand = 1.0
– ± 1.0 × 2 ≈ ± 1.2 × 10−38
−126

• Largest value
– exponent: 11111110 ⇒ actual exponent = 254 – 127 = +127
– Fraction: 111…11 ⇒ significand ≈ 2.0
– ± 2.0 × 2 ≈ ± 3.4 × 10
127 38

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 22

 Double precision range

• Exponents 0000…00 and 1111…11 reserved

• Smallest value
– Exponent: 00000000001 ⇒ actual exponent = 1 – 1023 = –1022
– Fraction: 000…00 ⇒ significand = 1.0
– ± 1.0 × 2 ≈ ± 2.2 × 10−308
−1022

• Largest value
– Exponent: 11111111110 ⇒ actual exponent = 2046 – 1023 =
+1023
– Fraction: 111…11 ⇒ significand ≈ 2.0
– ± 2.0 × 2 ≈ ± 1.8 × 10308
1023

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 23

 Convert to IEEE-754

• Step 1: Decide S (1: negative; 0: positive)

• Step 2: Decide Fraction
– Convert the integer part to Binary
– Convert the fractional part to Binary
– Adjust the integer and fractional parts according the
Significand format (1.xxx)
• Step 3: Decide exponent

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 24

 Example

• Question: what is the IEEE-754 representation of 12.75?

• Answer:
– S = 0;
3
– 12.75 = 1100.112 = 1.10011 × 2
– Exponent = 3 + 127 = 130
– Fraction: 100_1100_0000_0000_0000_00002
– 12.75 = 0x414C0000IEEE−754

6.3 = ? IEEE-754 single precision

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 25

 Floating point addition
• Question: how to add two 4-digit decimal floating point numbers:
9.999 × 101 + 1.610 × 10−1
• Answer: do the following step
1. Align decimal points
– Shift number with smaller exponent
1 1
– 9.999 × 10 + 0.016 × 10
2. Add significands
1 1 1
– 9.999 × 10 + 0.016 × 10 = 10.015 × 10
3. Normalize result & check for over/underflow
2
– 1.0015 × 10
4. Round and renormalize if necessary
2
– 1.002 × 10
Computer Architecture (c) Cuong Pham-Quoc@HCMUT 26
 Floating point addition
• Now consider a 4-digit binary example
1.0002 × 2−1 + −1.1102 × 2−2(0.5 + −0.4375)
1. Align binary points
– Shift number with smaller exponent
−1 −1
– 1.0002 × 2 + −0.1112 × 2
2. Add significands
−1 −1 −1
– 1.0002 × 2 + −0.1112 × 2 = 0.0012 × 2
3. Normalize result & check for over/underflow
−4
– 1.0002 × 2 , with no over/underflow
4. Round and renormalize if necessary
−4
– 1.0002 × 2 (no change) = 0.0625
Computer Architecture (c) Cuong Pham-Quoc@HCMUT 27
Floating pointer adder hardware

Step 1

Step 2

Step 3

Step 4

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 28

 Floating point multiplication
• Question: how to multiply two 4-digit decimal numbers:
1.110 × 1010 × 9.200 × 10−5
• Answer: do the following steps
1. Add exponents
– For biased exponents, subtract bias from sum
– New exponent =10 + −5 = 5
2. Multiply significands
– 1.110 × 9.200 = 10.212 ⇒ 10.212 × 105
3. Normalize result & check for over/underflow
– 1.0212 × 106
4. Round and renormalize if necessary
– 1.021 × 106
5. Determine sign of result from signs of operands
– +1.021 × 106

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 29

 Floating point multiplication
• Now consider a 4-digit binary example
1.0002 × 2−1 × −1.1102 × 2−2 = (0.5 × −0.4375)
• Add exponents
– Unbiased: −1 + −2 = − 3
– Biased: (−1 + 127) + (−2 + 127) = − 3 + 254 − 127 = − 3 + 127
• Multiply significands
−3
– 1.0002 × 1.1102 = 1.1102 ⇒ 1.1102 × 2
• Normalize result & check for over/underflow
−3
– 1.1102 × 2 (no change) with no over/underflow
• Round and renormalize if necessary
−3
– 1.1102 × 2 (no change)
• Determine sign: +ve × −ve ⇒ − ve
−3
– −1.1102 × 2 = − 0.21875

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 30

 FP instructions in MIPS
• FP hardware is coprocessor 1
0x40F00000 => 7.5
– Adjunct processor that extends the ISA => 1.089.470.464
• Separate FP registers
– 32 single-precision: $f0, $f1, … $f31
– Paired for double-precision: $f0/$f1, $f2/$f3,…
• Odd-number registers: right half of 64-bit floating-point numbers
• FP instructions operate only on FP registers
– Programs generally don’t do integer ops on FP data, or vice versa
– More registers with minimal code-size impact
• FP load and store instructions
– lwc1, ldc1, swc1, sdc1
• e.g., ldc1 $f8, 32($sp)

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 31

 Write MIPS Code for following C code
float a, b; //$f0 = a; $f1 = b
FP instructions in MIPS if (a < b) a = a+b;
else a = a - b;
—
c.lt.s $f0, $f1
• Single-precision arithmetic
bc1t IF
– add.s, sub.s, mul.s, div.s
sub.s $f0, $f0, $f1
• e.g., add.s $f0, $f1, $f6 j EXIT
• Double-precision arithmetic IF: add.s $f0, $f0, $f1
– add.d, sub.d, mul.d, div.d EXIT:
• e.g., mul.d $f4, $f4, $f6
• Single- and double-precision comparison
– c.xx.s, c.xx.d (xx is eq, lt, le,…)
– Sets or clears FP condition-code bit
• e.g. c.lt.s $f3, $f4
• Branch on FP condition code true or false
– bc1t, bc1f
• e.g., bc1t TargetLabel

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 32

 Example: °F to °C

• C code: float f2c (float fahr){

return ((5.0/9.0)*(fahr - 32.0));
}

– fahr in $f12, result in $f0, literals in global memory

space
• Compiled MIPS code:
f2c: lwc1 $f16, const5($gp)
lwc1 $f18, const9($gp)
div.s $f16, $f16, $f18
lwc1 $f18, const32($gp)
sub.s $f18, $f12, $f18
mul.s $f0, $f16, $f18
jr $ra

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 33

FP machine instructions

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 34

 Accurate arithmetic

• IEEE Std 754 specifies additional rounding control

– Extra bits of precision (guard, round, sticky)
– Choice of rounding modes
– Allows programmer to fine-tune numerical behavior of a
computation
• Not all FP units implement all options
– Most programming languages and FP libraries just use defaults
• Trade-off between hardware complexity, performance, and
market requirements
• Who Cares About FP Accuracy?
Computer Architecture (c) Cuong Pham-Quoc@HCMUT 35
 Concluding remarks

• Bits have no inherent meaning

– Interpretation depends on the instructions applied
• Computer representations of numbers
– Finite range and precision
• Need to account for this in programs

Computer Architecture (c) Cuong Pham-Quoc@HCMUT 36

 The end

Computer Architecture – CSE – HCMIU 37
