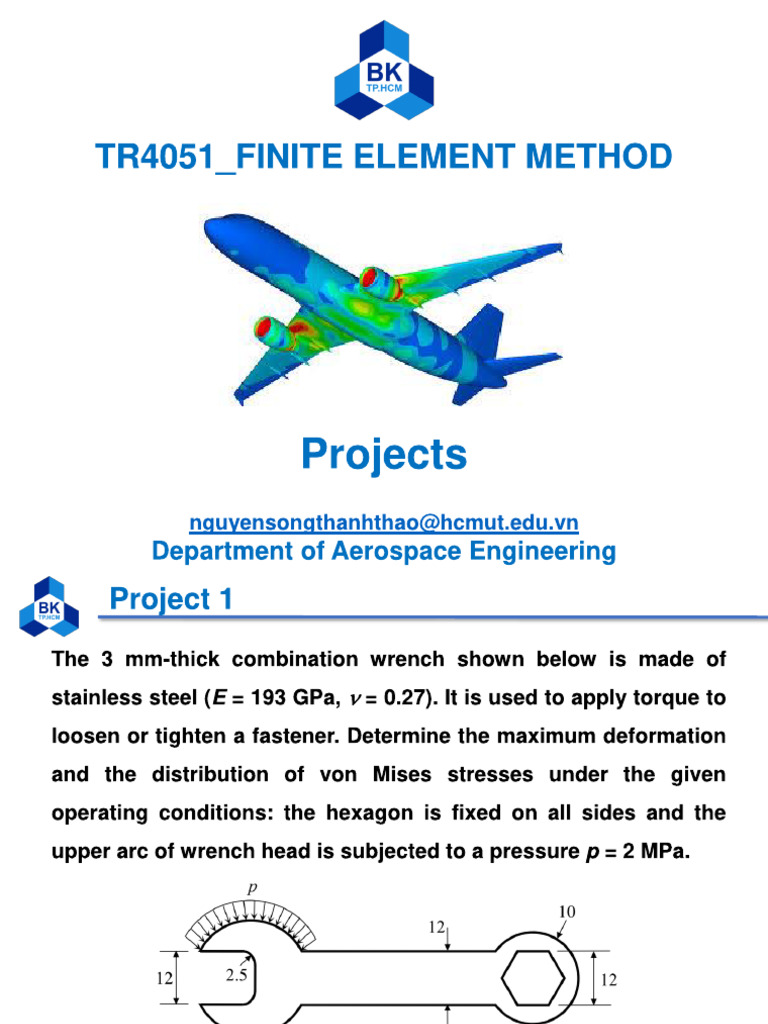

TR4051_FINITE ELEMENT METHOD
Projects
nguyensongthanhthao@hcmut.edu.vn
Department of Aerospace Engineering & Project 1
The 3 mm-thick combination wrench shown below is made of
stainless steel (E = 193 GPa, v= 0.27). It is used to apply torque to
loosen or tighten a fastener. Determine the maximum deformation
and the distribution of von Mises stresses under the given
operating conditions: the hexagon is fixed on all sides and the
upper arc of wrench head is subjected to a pressure p = 2 MPa. & Project 2
Consider the following planar truss, constructed of wooden timbers
(E= 13.1 GPa, v= 0.29) with cross section height x width 6 cm x 6 cm.
Determine the deflections at each joint of the truss under the given
loading conditions.
Solve the project with 3 method: Analysis; FEM by manual coding in
programming language; FEM using FEA software.
lm
Goin Jim fim Jim &
30 kN 30 KN 30 kN
