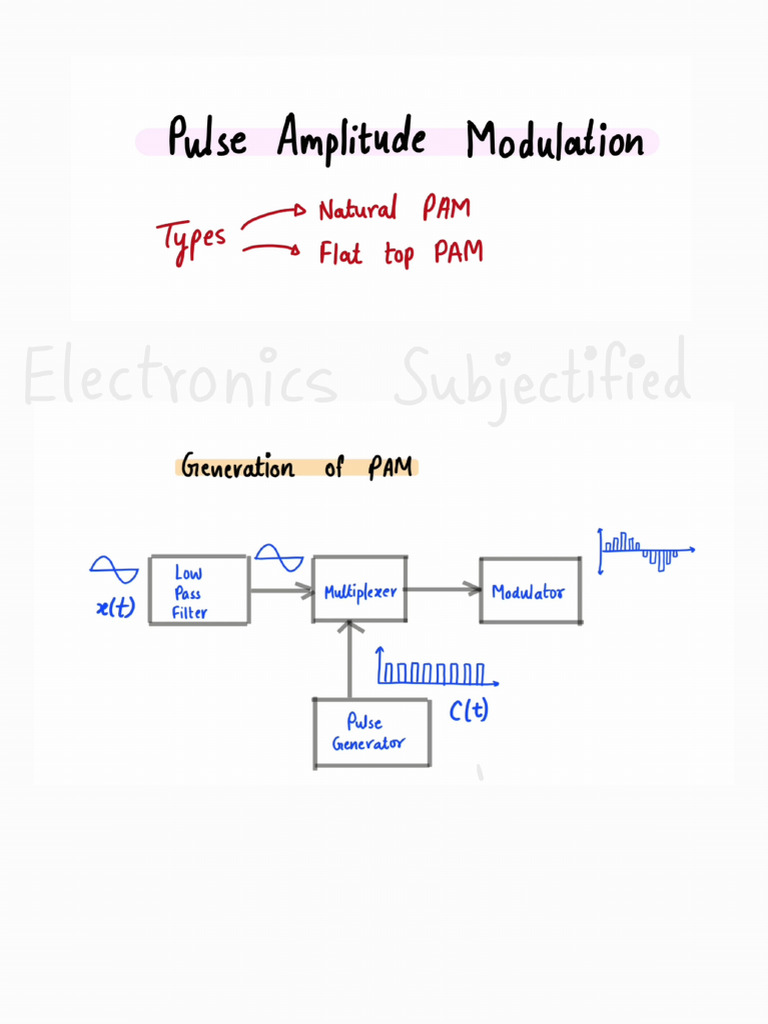

Pulse Amplitude Modulation
> Natural PAM
Types —. Fiat top PAM
Grenevation of PAMModulaking Signal
10? ‘4
Canier Signo
clt)
Pulse Amplibade Modulated
Signal
Oemodulatfon of PAM
PAM Reconstruction 5; x)
Signal Filter
cod off Frequency Reduces aperture effect
f> fray. 4 adtenuabion
Maximum trequency
‘in meccage signal1. Itis simple process for both modulation and demodulation
technique.
2. No complex circuitry is required for both transmission and
reception.
3. PAM can generate other pulse modulation signals and can
carry the message or information at same time.
Disadvantages ot PAM
1. Bandwidth will be large for transmitting the pulse
amplitude modulation signal. Due to Nyquist criteria also
high bandwidth is required.
2. The amplitude varies according to the modulating signal
or message signal. Due to these variations: in the signal,
interferences will be there. So;noise willbe more:
3. Pulse amplitude signal varies, so power required for,
transmission willbe more( peak power).
‘Applications of PAM
1. Pulse amplitude modulation is used for Ethernet
communications.
2. Itis also used forphoto biology which is a study of
photosynthesis.
3. Used as electronic driver for LED lighting:
4. Used in many micro controllers for generating the control
signals etcElectvonics
