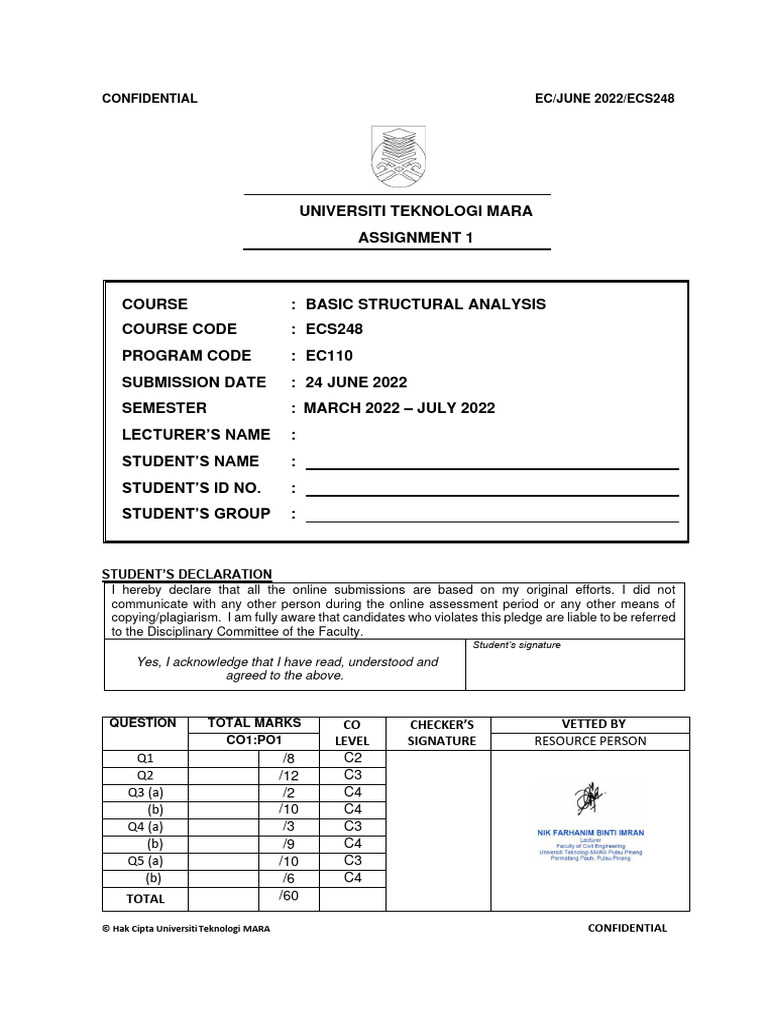

STUDENT’S DECLARATION
I hereby declare that all the online submissions are based on my original efforts. I did not
communicate with any other person during the online assessment period or any other means of
copying/plagiarism. I am fully aware that candidates who violates this pledge are liable to be referred
to the Disciplinary Committee of the Faculty.
Student’s signature
Yes, I acknowledge that I have read, understood and
agreed to the above.
b)
c)
Figure Q1
QUESTION 2
Figure Q2 below shows an unsymmetrical cable with uniformly distributed load (UDL)
and point load (PL). Support B is located 3m below the support A. The UDL is 10kN/m
and the point load is 10 kN respectively. This UDL is spanning of 24m of this cable
and the point load is located 12 m from A. Determine the reactions at all supports and
Tmax. (CO1-PO1) (C3)
(12 marks)
10 kN
10 kN/m
4.5 m
B
C
8m 4m 4m 8m
Figure Q2
QUESTION 3
A 3-hinged circular arch of span 30 m has a rise 6m as shown in Figure Q3. The arch
is loaded with uniformly distributed load of w kN/m between point A to C and an
inclined concentrated load of 40 kN with 45o angle skew to the right at point E.
a) Determine the uniformly distributed load (w kN/m) if the horizontal reaction at point
B is 8.67 kN acting to the left and vertical reaction at point B is 19.50 kN acting
upward. (CO1-PO1) (C4)
(2marks)
b) Analyse all the internal forces at point E when the value of w is 10 kN/m. (CO1-
PO1) (C4)
(10 marks)
C 40 kN
45o
F E
w kN/m 6m 5m
A B
6m 7.5 m
30 m
Figure Q3
QUESTION 4
A frame shown in Figure Q4 carries a uniformly distributed load of 5 kN/m along
member CE and subjected to vertical and horizontal point load of 10 kN at point B and
point H. A hinge is located at point G.
a) Solve the reactions at supports A, D and F. (CO1,PO1)(C3)
(3 marks)
b) Determine the shear force, normal force and bending moment for members FH,
HE and EC for the frame. (CO1,PO1)(C4)
(9 marks)
10 kN
5kN/m
B G C E
4m
H 10 kN
4m
6m
A D
F F
1m 3m 4m
Figure Q4
QUESTION 5
The truss system shown in Figure Q5 is subjected to a vertical uniformly distributed
load of 20kN/m from E to F, vertical point loads 100 kN at B and 50 kN at C, and a
horizontal point load, P kN at E. The truss is pinned supported at A and roller supported
at D.
a) Compute the force in each member of the truss by using Method of Joints.(CO1-
PO1)(C3)
(10 marks)
b) Determine the vertical displacement at joint B using unit load method. The cross
sectional area of each member is A=400mm 2 and E=2 x 105 N/mm2.(CO1-PO1)
(C4)
(6 marks)
20 kN/m
P kN
E F
G
5m
D
A B C
100 kN 50 kN
3m 3m 4m
Figure Q5
