Department of Civil Engineering

National Institute of Technology, Rourkela

B. Tech/ M Tech (Dual degree). 4th Semester Mid-Sem Examination 2016
Sub-Structural Analysis (CE222)
Answer any three questions
All questions carry equal marks.
Full marks: 30 Time 2.0 Hours

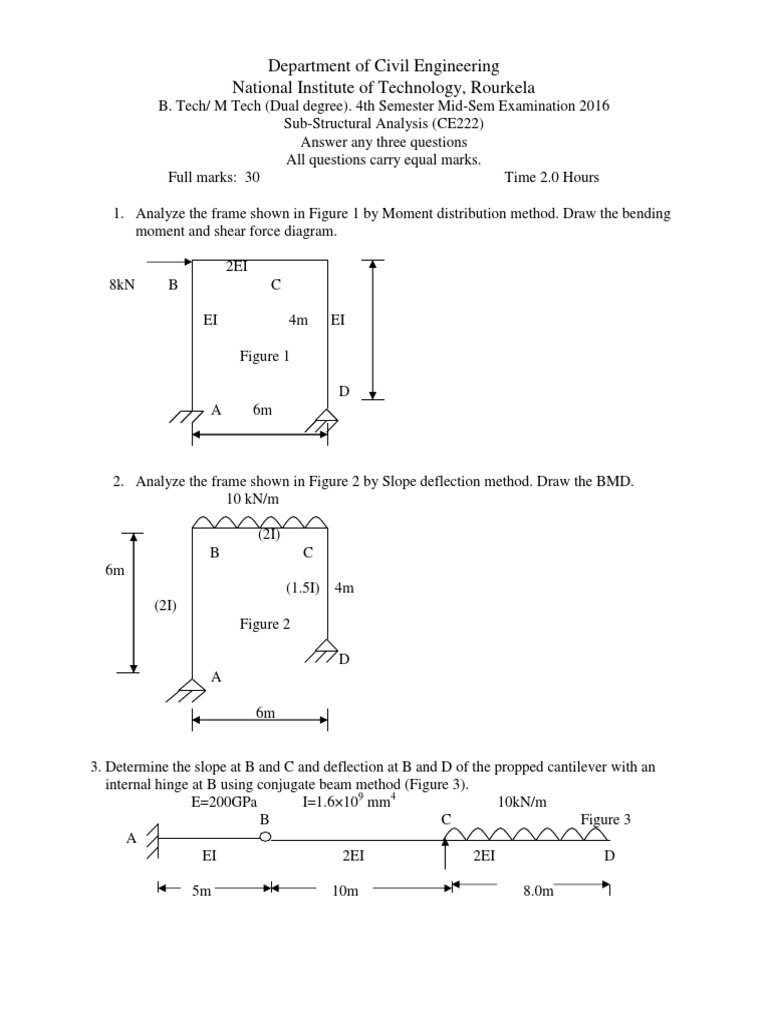

1. Analyze the frame shown in Figure 1 by Moment distribution method. Draw the bending
moment and shear force diagram.

2EI
8kN B C

EI 4m EI

Figure 1

D
A 6m

2. Analyze the frame shown in Figure 2 by Slope deflection method. Draw the BMD.
10 kN/m

(2I)
B C
6m
(1.5I) 4m
(2I)
Figure 2

D
A

6m

3. Determine the slope at B and C and deflection at B and D of the propped cantilever with an
internal hinge at B using conjugate beam method (Figure 3).
E=200GPa I=1.6×109 mm4 10kN/m
B C Figure 3
A
EI 2EI 2EI D

5m 10m 8.0m
 4. a) Analyze the fixed beam shown in Figure 4 by moment area method.[6 marks]

A 20 kN/m 20 kN/m B

Figure 4
2I I 2I

2m 4m 2m

b) Find the static and kinematic indeterminacy of two trusses. [4 marks]

F 100kN G

3m

A B
C D E
Figure 5
200kN 200kN 100kN
4@ 4 m

U1 U2 U3 U4 U5
12m

9.6m
Figure 6

L0 L1 L2 L3 L4 L5 L6
6@ 7.2 m= 43.2 m

5. Write Notes on
a) Energy approach of determination of deflection of Truss [6 marks]
b) Shear equation [2 marks]
c) Displacement factor [2 marks]
